Waterproof 36V 500W 700C Geared Front Rear e-Bike Conversion Kit

Regular price $334.99

NBPower Waterproof 36V 500W 700C Geared Front Rear e-Bike Conversion Kit

Please enable images to view this content
ITEM DESCRIPTION

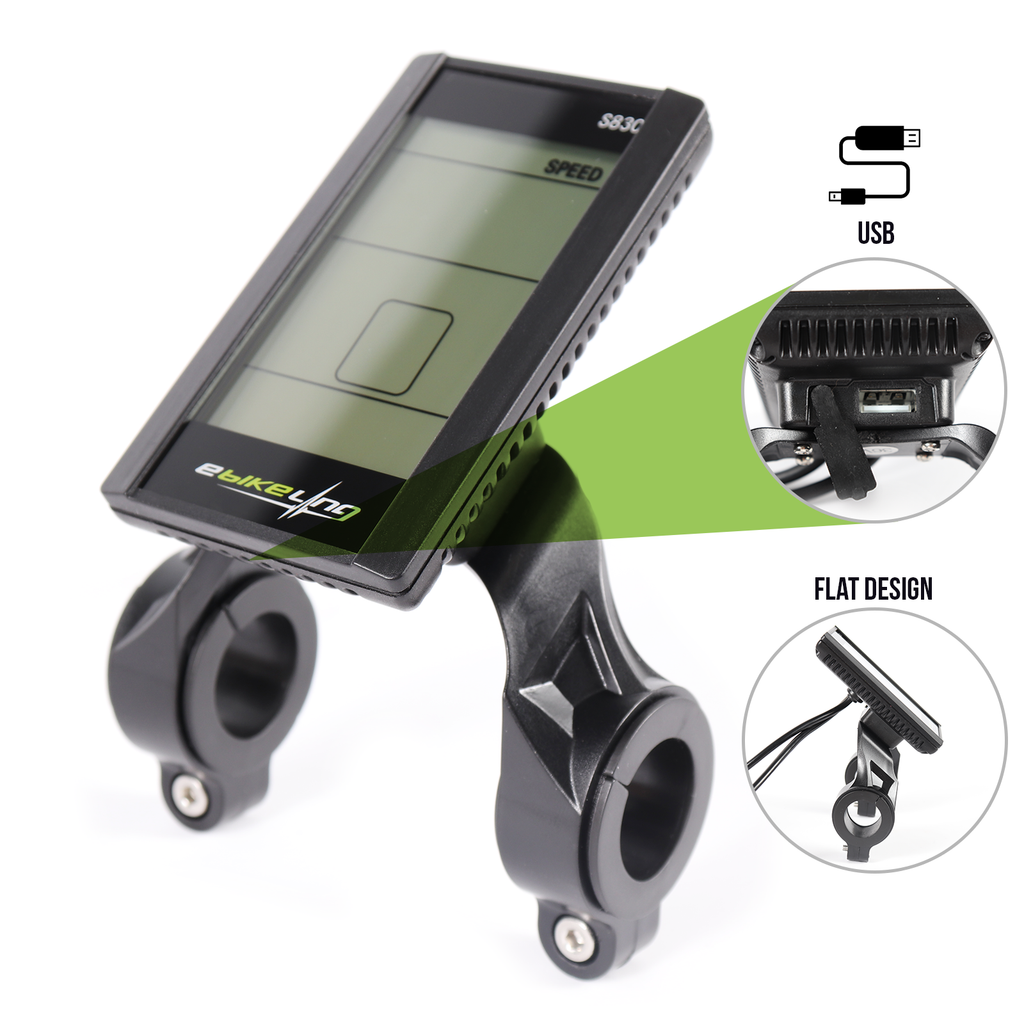

Introducing our 2019 model conversion kits. A complete waterproof system from connectors to the motor ensuring reliability and efficiency. We have also introduced new products like the S830 LCD display along with the 20" Fat Tire Conversion Kit.

NBPower Geared Electric Bicycle Conversion Kits come with a 500W hub motor and a 22Amp controller.

Kits are ready to install with aluminum double walled rim and a hub motor already attached, all you need to do is to transfer your original tire.
We have two throttle control options to choose from, twist or thumb.
There are several other accessories included to complete this ebike kit such as pedal assist sensor and a set of brake levers with safety cutoff switches.

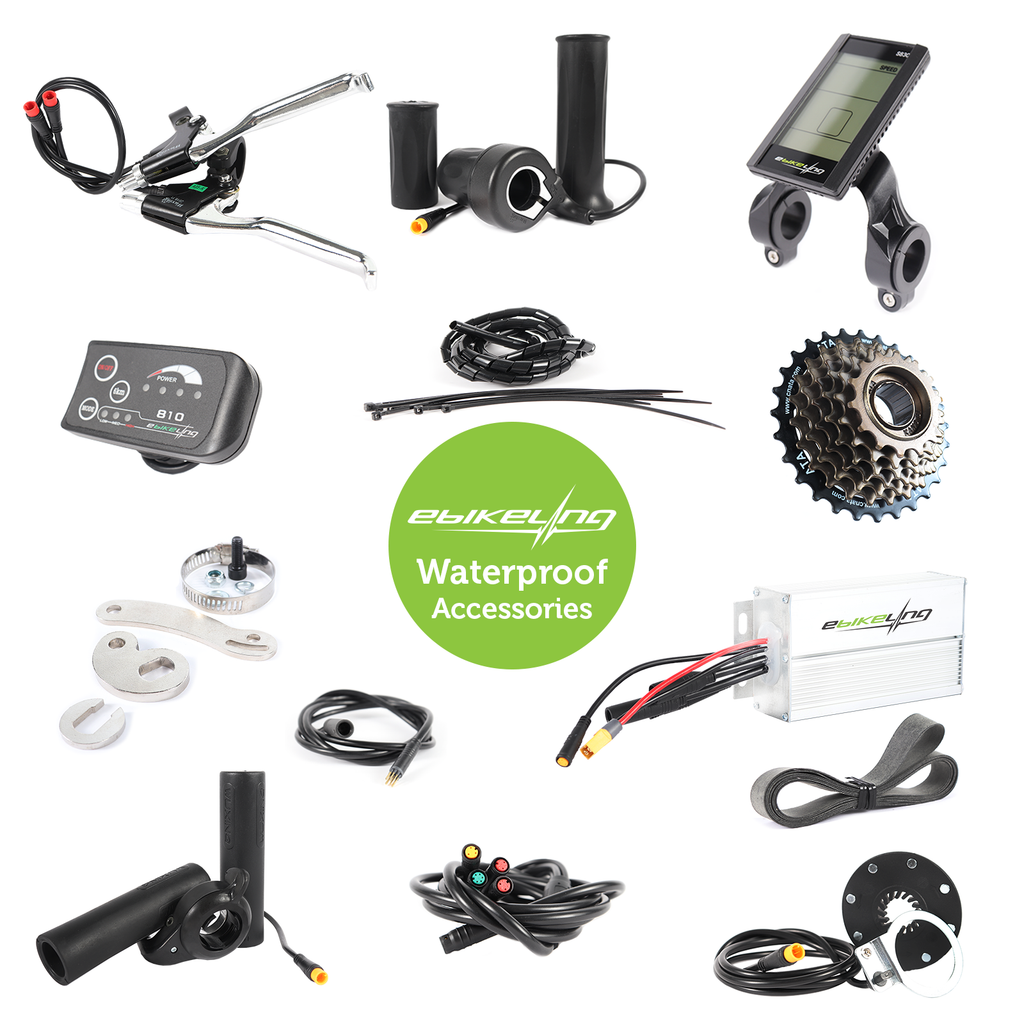

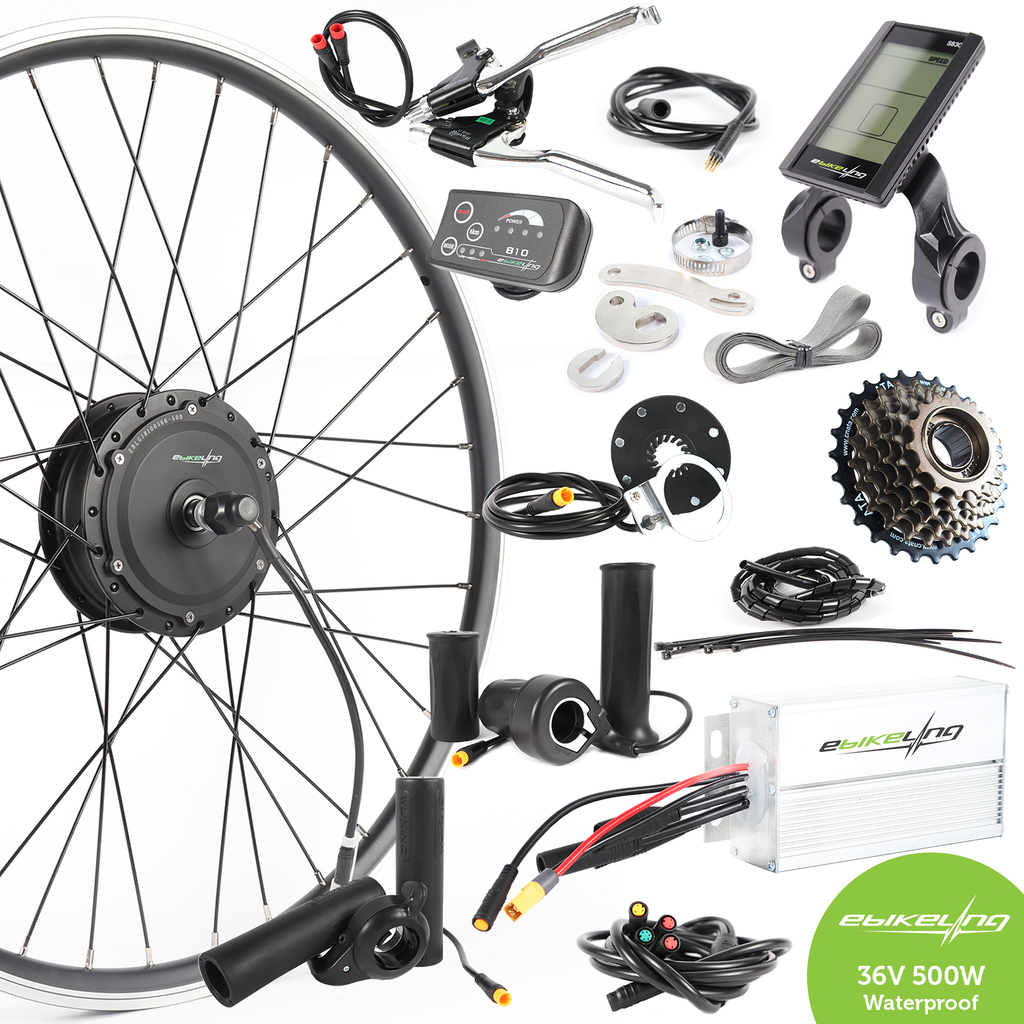

Package Includes

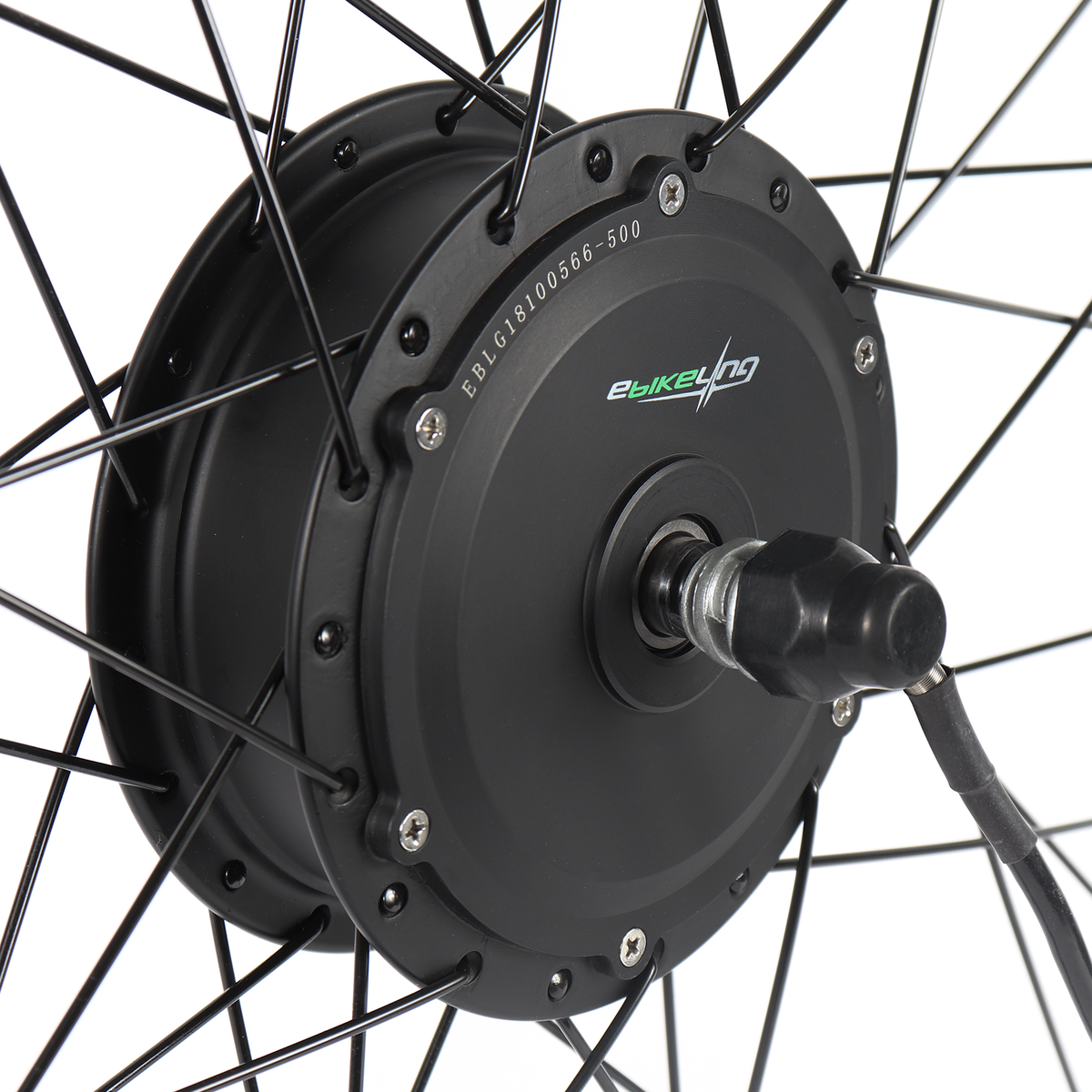

Geared Hub Motor
Brushless Motor Controller
LED or upgraded LCD controller
Twist or Thumb Throttle
Pedal Assist Sensor
Freewheel (for rear kit)
Two Brake Levers with safety switches, V type and Mechanical Disc brake compatible, will not work on Hydraulic systems.
Torque arm
Tube liner
Installation hardware and zip ties


Waterproof
Aluminum rims have openings for a schrader type valve
Kit doesn't have regen brake option
Disc brake compatible
PAS/Brake Levers are optional. Kits will operate without them
You will be able to use your own brakes and freewheel
Recommended tire width: 28C, 32C
Rim Width (Inner): 19mm
Rim Diameter (Outer): 633mm
Rim Diameter (Inner): 583mm
Spoke: 234mm 12G Carbon Steel Copper Nipples
Rear Dropout: 135mm
Rear Axle Length: 199mm
Front Axle Length: 165mm
Front Dropout: 101mm
Motor Wheel Weight: 7.4lbs
Motor Torque: 40 Nm Efficiency > 80%
Motor RPM (Nominal): 300
Motor Hub Diameter: 158mm
Motor Magnets: 20
Peak Power: 0.84kW
Operating Mode: S1

ebikeling-Waterproof-36V-500W-700C-Geared-Front-Rear-e-Bike-Conversion-Kit thumbnail 3    ebikeling-Waterproof-36V-500W-700C-Geared-Front-Rear-e-Bike-Conversion-Kit thumbnail 1  ebikeling-Waterproof-36V-500W-700C-Geared-Front-Rear-e-Bike-Conversion-Kit thumbnail 4ebikeling-Waterproof-36V-500W-700C-Geared-Front-Rear-e-Bike-Conversion-Kit thumbnail 5ebikeling-Waterproof-36V-500W-700C-Geared-Front-Rear-e-Bike-Conversion-Kit thumbnail 6ebikeling-Waterproof-36V-500W-700C-Geared-Front-Rear-e-Bike-Conversion-Kit thumbnail 8ebikeling-Waterproof-36V-500W-700C-Geared-Front-Rear-e-Bike-Conversion-Kit thumbnail 11



PLEASE NOTE THIS KIT DOESN'T INCLUDE BATTERY OR CHARGER UNIT

Warranty
Electronic speed controller and hub motor are covered under 3 month warranty.
Remaining accessories are covered under 30 Days warranty.
