0.5/2.5/4Kg Load 3-Axis Mechanical Robot Arm Industrial Manipulator Robot for Robotic Arm Compatible Stepper Motors/Suction Cups

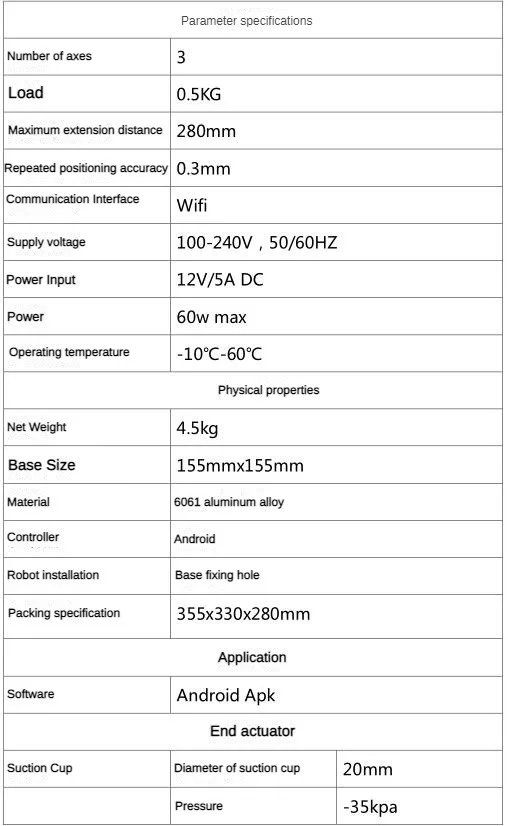

Title:Robot arm Manipulator 3-axis desktop robot 0.5/2.5/4Kg load
Number of axes: 3
Load :0.5KG

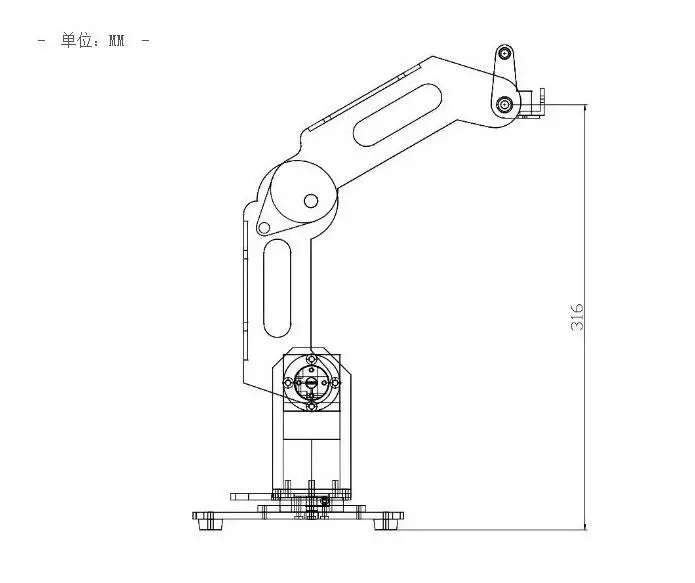

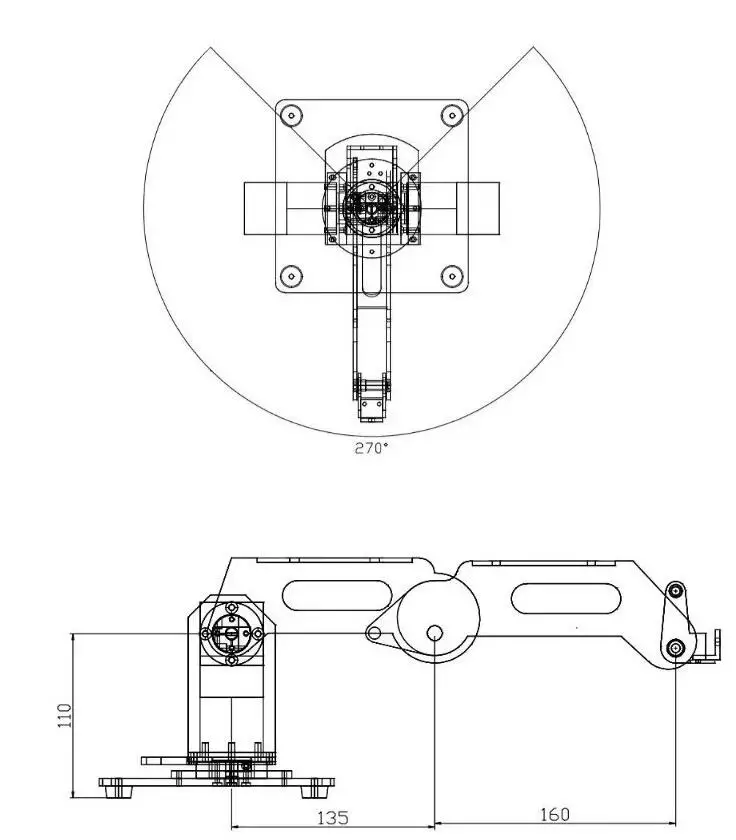

Maximum extension distance:280mm
repeated positioning accuracy:0.3mm
Communication interface Wifi
Power supply voltage:100-240V,50/60 Hz
Power input:12V/5A DC
Power:60w max
Operating temperature: -10° C -60° C
Physical characteristics
Net weight:4.5kg
The base dimensions are:155mmx155mm

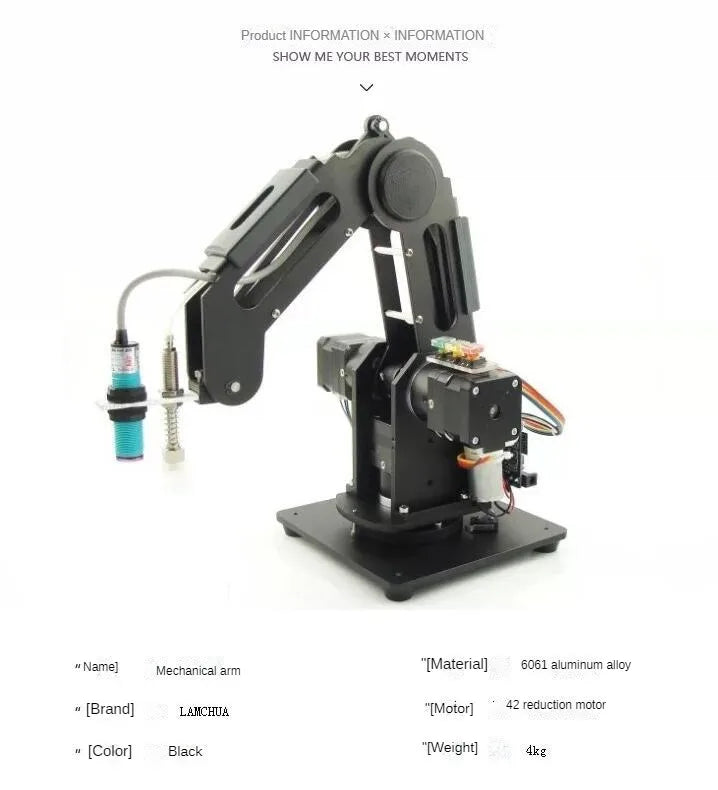

Material 6061 aluminum alloy
Controller Android
The robot installs the base fixing holes
Package size:355x330x280mm
Software Android:Apk

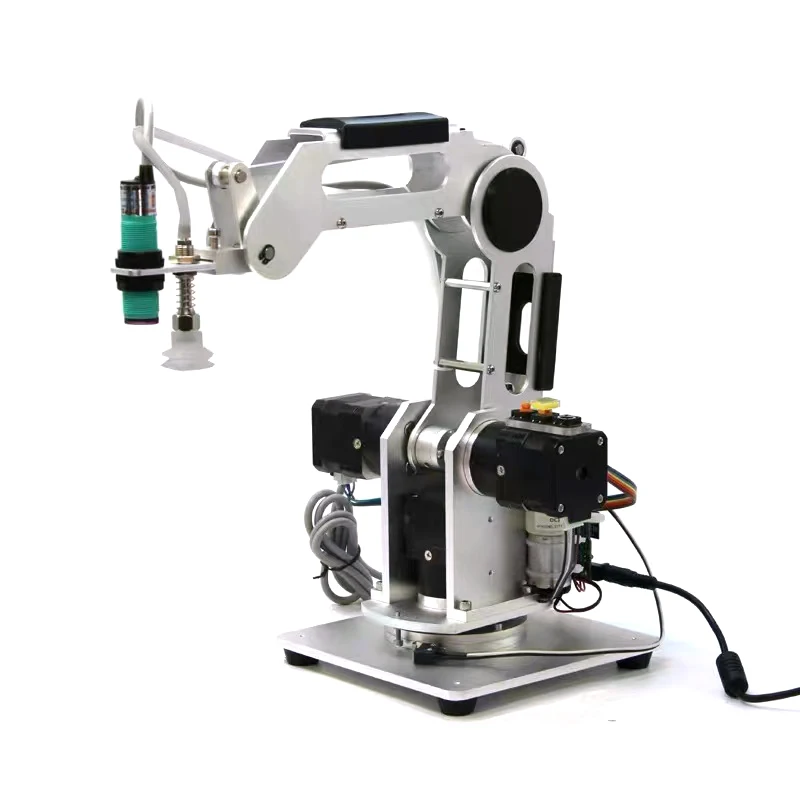

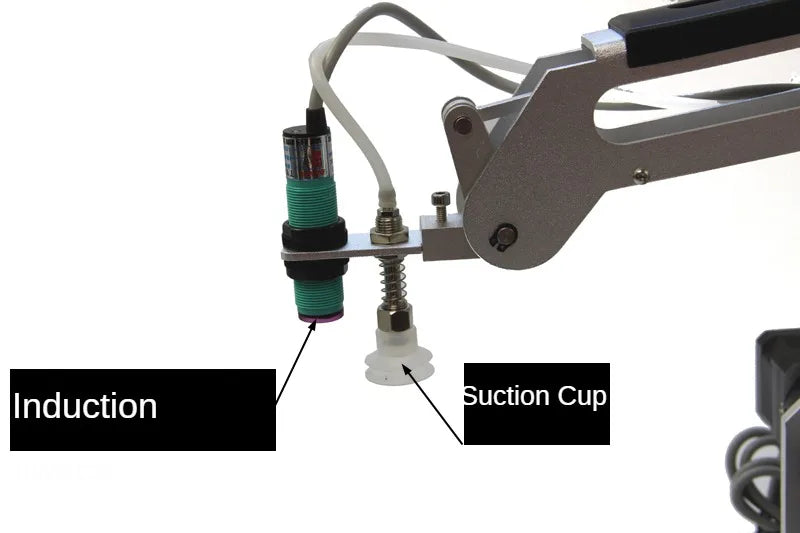

Suction cup
The diameter of the suction cup is 20mm and the pressure is 35kpa

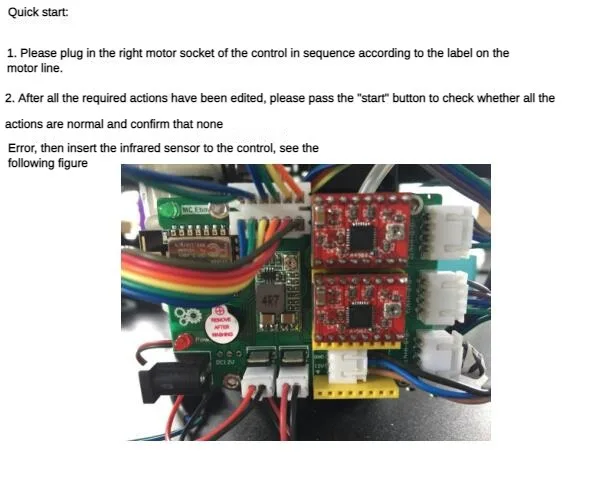

Quick start:
1, please first according to the label on the motor line, corresponding to the right motor jack inserted in the control
2, after all the required actions are edited, please first press the "Start" button to check whether all the actions are normal, confirm, and then insert the infrared sensor to the control, refer to the following figure

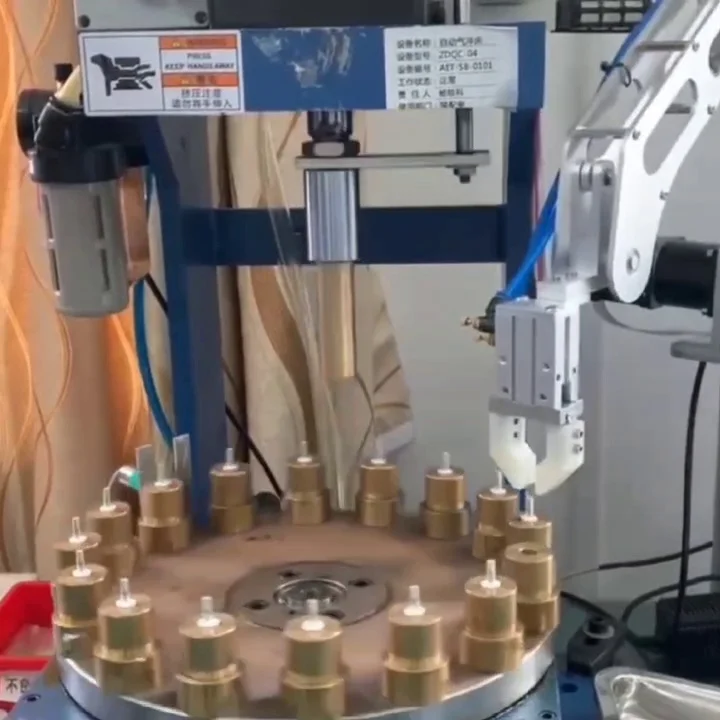

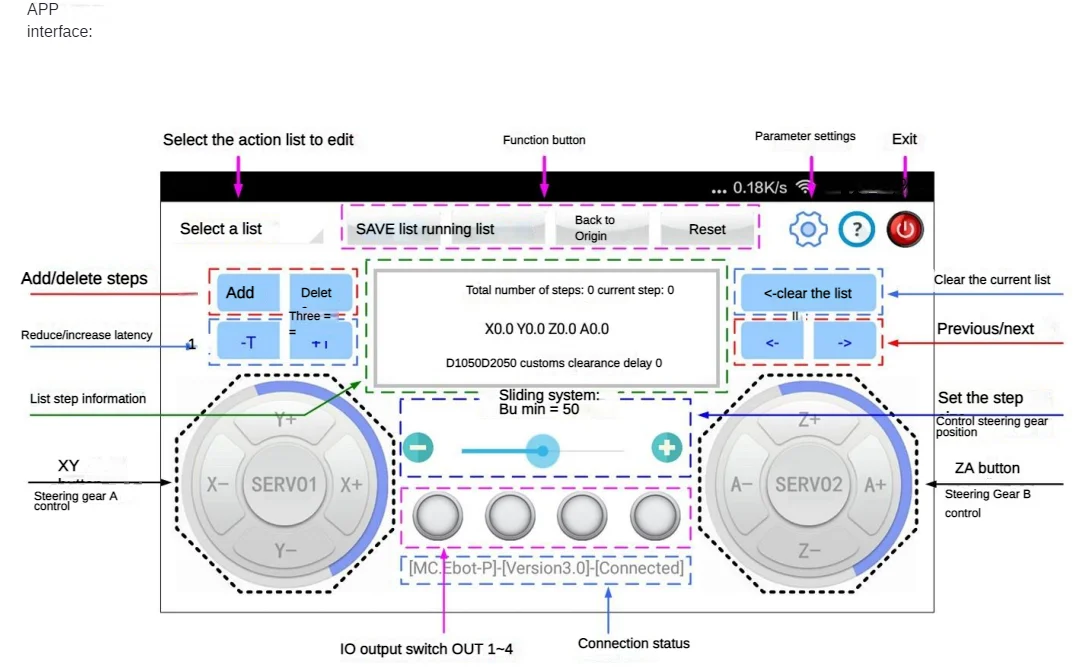

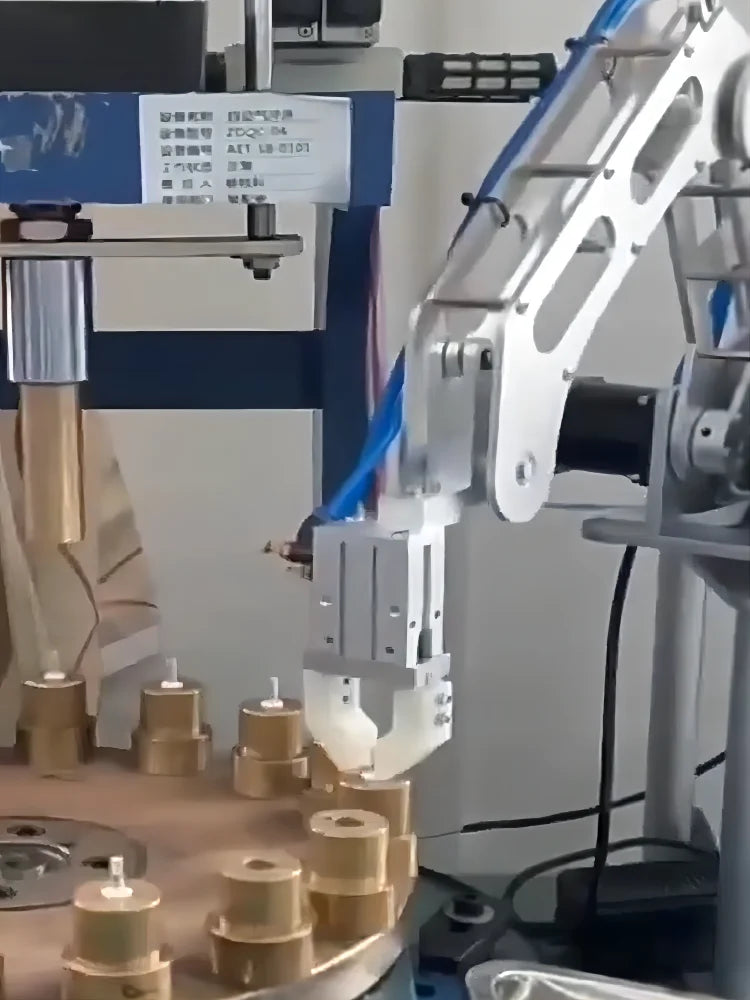

Specially designed for production line handling, can run offline features: mobile APP (currently only Android) field programming, using teaching mode, point programming mode. The user does not need to have any knowledge of G code, nor does he need to touch any machine coordinates, etc. Note: each axis of the machine must be switched with finite bits!! (One for each axis) Board peripheral introduction:
The spindle interface supports PWM Settings, and the duty cycle can be set by sending S command through the APP. The fan interface does not support PWM.
Package list:

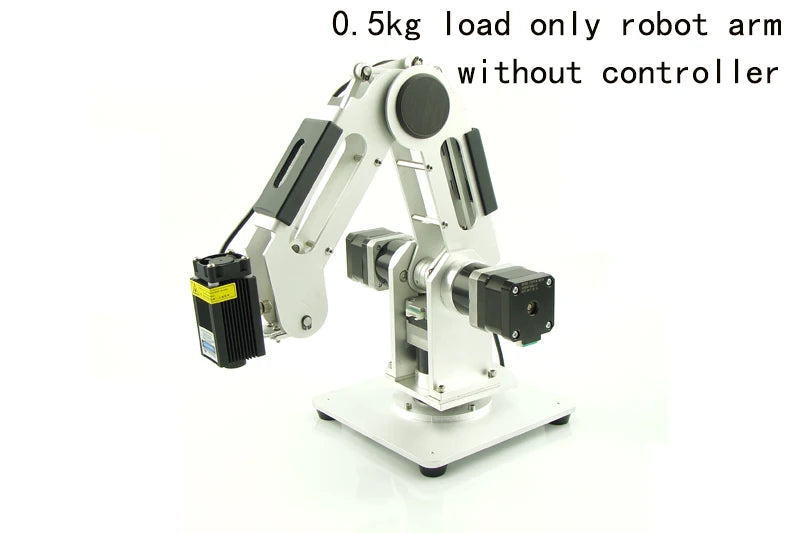

500g load arm: 1pcs 500g load Mechanical Robotic Arm with motor without controller,without sunction cup
2500g load arm: 1pcs 2500g load Mechanical Robotic Arm with motor without controller,without sunction cup
4000g load arm: 1pcs 4000g load Mechanical Robotic Arm with motor without controller,without sunction cup
500 load full set: 1pcs 500g Mechanical Robotic Arm with Motors with Controller
2500 load full set: 1pcs 2500g Mechanical Robotic Arm with Motors with Controller
4000 load full set: 1pcs 4000g Mechanical Robotic Arm with Motors with Controller
Note:
- Silver end cap.
- Not for 3D printing.
- It is assembled and ready to use.
Note:
- Silver end cap.
- if you need Controllers and drivers ,Please choose Option that with controllers(0.5/2.5/4kg Full set )
Controller Board Control Board For 3Axis Industrial Mechanical Arm Robotic Arm Robot Arm Uses
