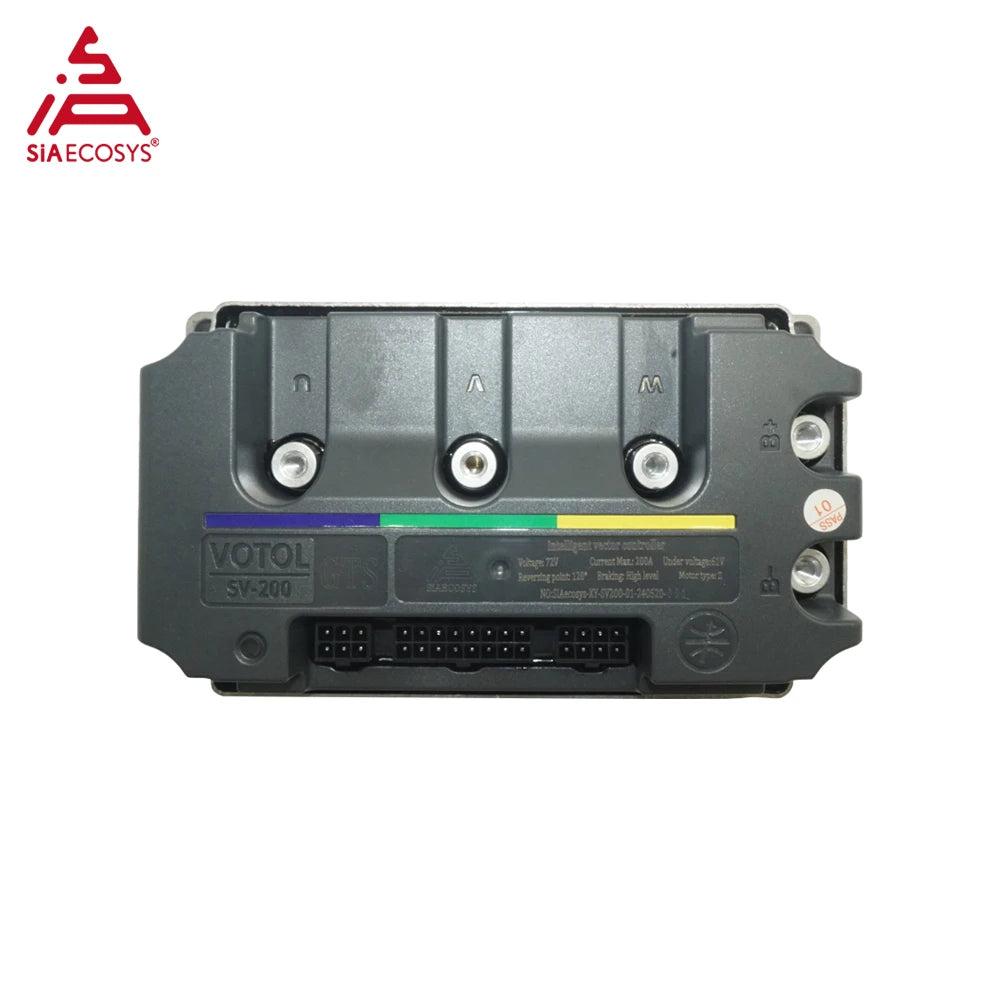

VOTOL SV200 72V Peak 490A CAN BUS One LIN Programmable Controller for E-Scooter E-Motorcycle

VOTOL SV200 72V Peak 490A CAN BUS/One LIN Programmable Controller for E-Scooter E-Motorcycle

SV series controller is sine wave type controller, which is brushless DC controllerwith flux-weakening. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders

 including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs

clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.

 (special countries list contact seller)

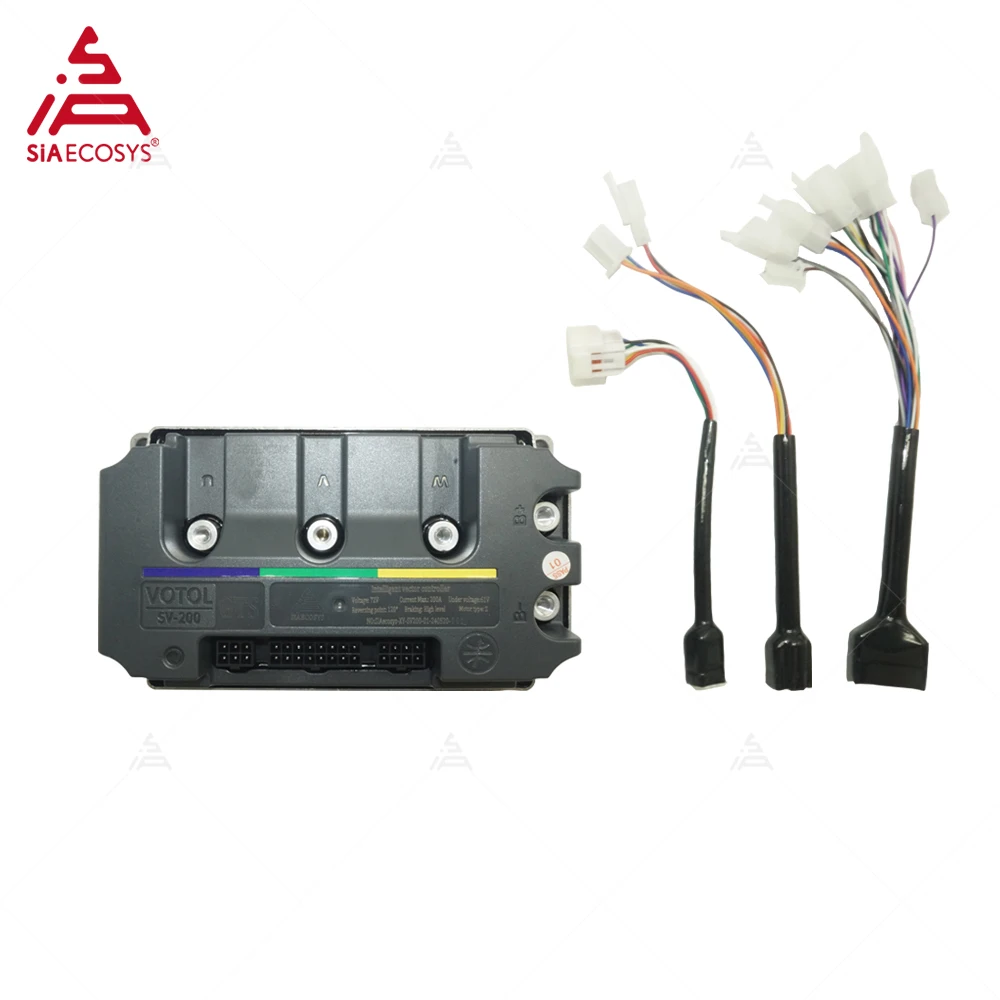

One set including below kits

Combo 1: CAN Version

1. 1pcs SV200 sine wave controller with CAN BUS

2. 1pcs USB programmable cable

3. 1set Plug-in(match with controller harness plug)

Combo 2: LIN Version

1. 1pcs SV200 sine wave controller with One-LIN

2. 1pcs USB programmable cable

3. 1set Plug-in(match with controller harness plug)

Key Features

1).The materials are imported.

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With flux weakening function

Product Description

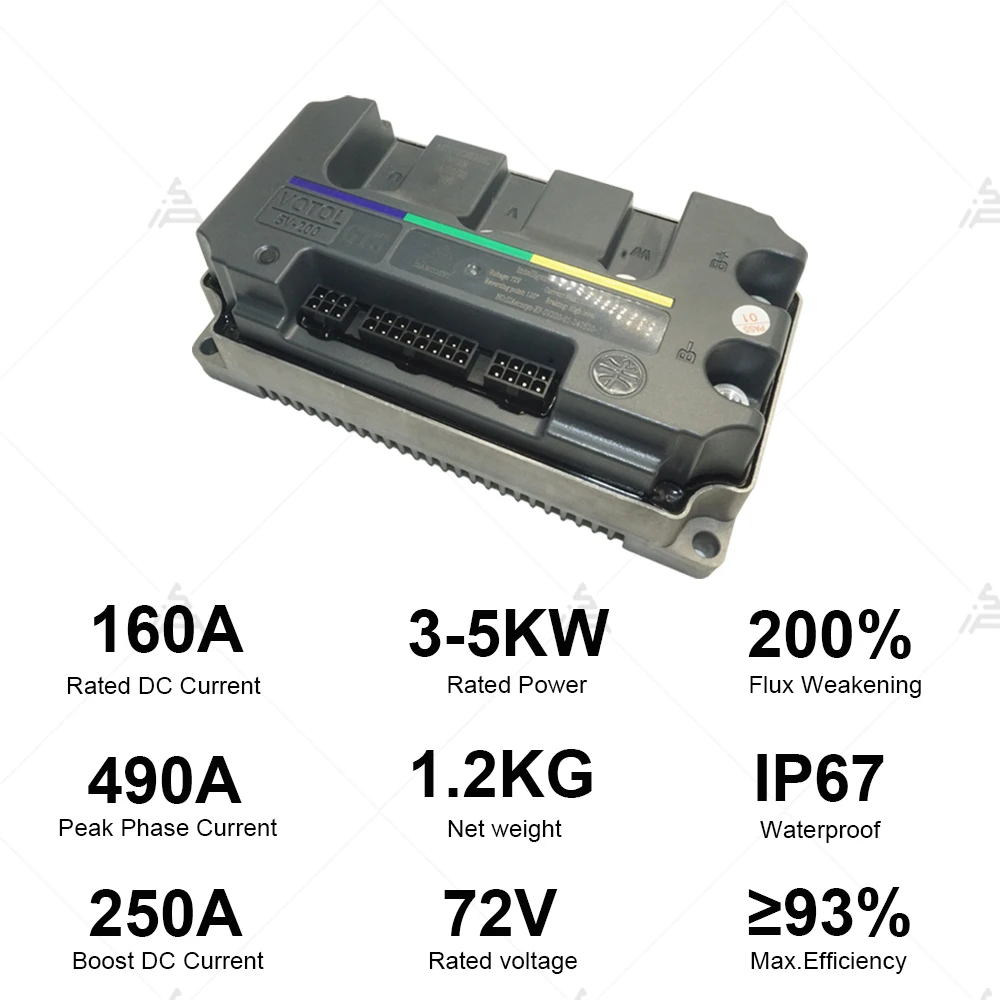

SV200 is cost effective controller with waterproofing grade IP67, suit for 3-5kW motors.

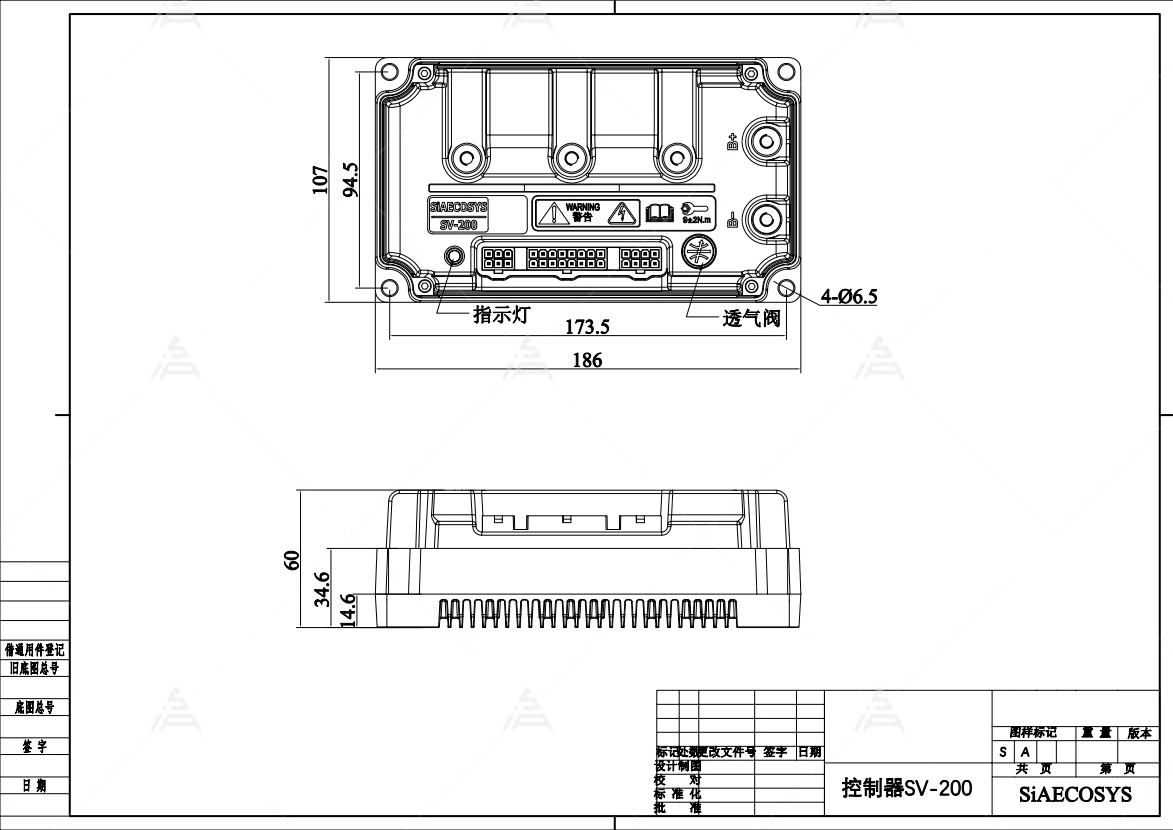

Drawing

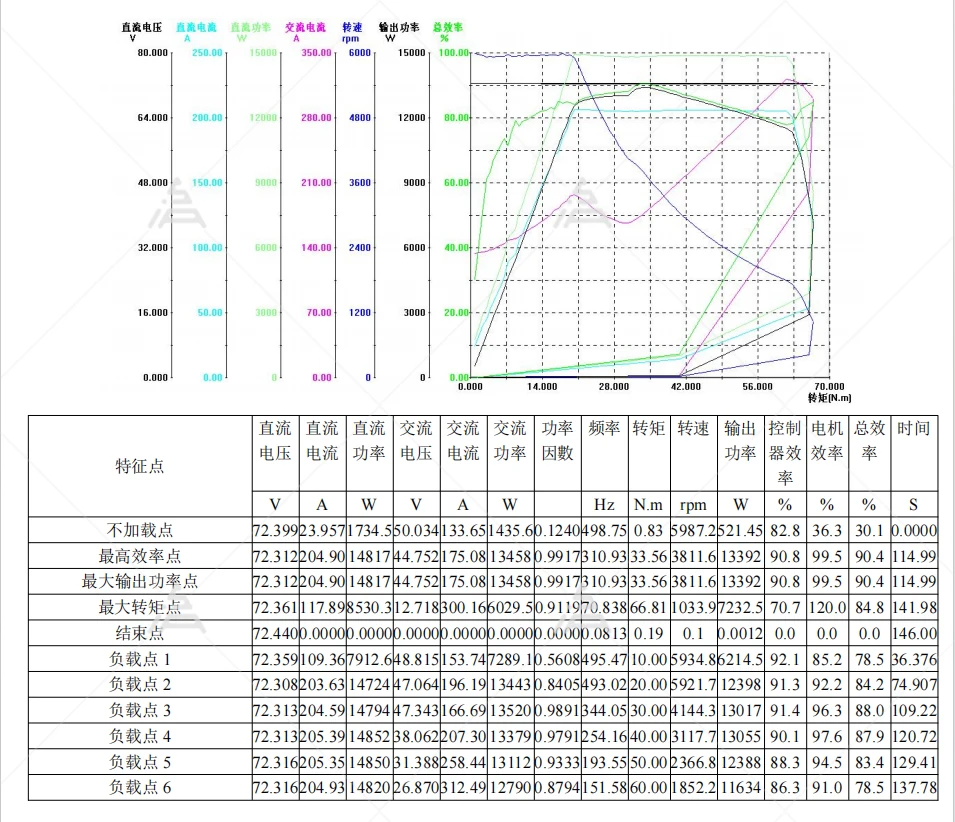

Test Report

SV200 + QS 138 4000W Mid Drive Motor

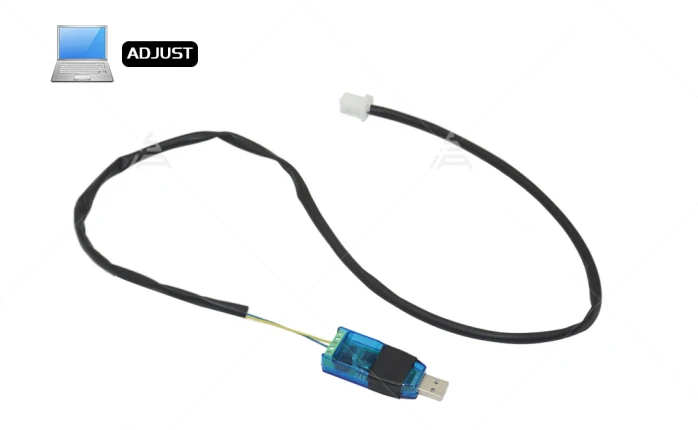

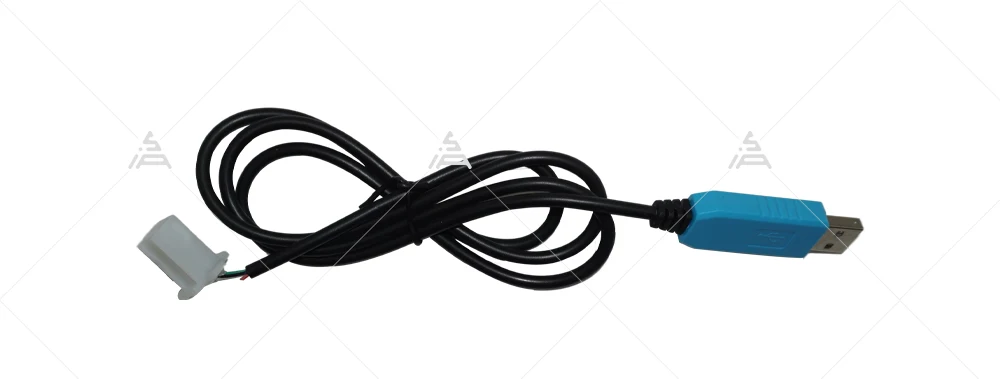

Debugging Cable

For CAN Version

For One-LIN Version

Software interface（PC）

Wiring Diagram

For the detail of wiring manual, pls contact our online service.

Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
