Voilamart 28" 48V 1000W Ebike Rear Wheel Hub Motor Kit Electric Bicycle Conversion Kit LCD Meter Electric Bike Conversion Kit

Voilamart 28" 48V 1000W Ebike Rear Wheel Hub Motor Kit Electric Bicycle Conversion Kit LCD Meter Electric Bike Conversion Kit

LCD Rear Motor Kit / United States
Sale price  $365.68 Regular price $393.88
Skip to product information
Voilamart 28" 48V 1000W Ebike Rear Wheel Hub Motor Kit Electric Bicycle Conversion Kit LCD Meter Electric Bike Conversion Kit

Voilamart 28" 48V 1000W Ebike Rear Wheel Hub Motor Kit Electric Bicycle Conversion Kit LCD Meter Electric Bike Conversion Kit

Sale price  $365.68 Regular price $393.88
ColorLCD Rear Motor Kit
Ships FromUnited States

Voilamart 28" 48V 1000W Ebike Rear Wheel Hub Motor Kit Electric Bicycle Conversion Kit LCD Meter Electric Bike Conversion Kit



This Electric Bicycle kitincludes everything needed(except battery) to convert your standard bike into a top-of-the-line performance electric bike, which delivers unequaled performance and reliability. You’ll be out cruising along at28mph (45km/h)without a sweat!

Key feature:
* Built to the highest international standards,CE
* 48V 1000W and 250W super powerBrushless Gearless Hub Motor

* Restricted to 250W and 16mph (25km/h) by default as a road-legal kit
* Nylon tire & alloy rim & stainless steel spoke
* Rare-earth metal magnet are used in the motor to efficiently produce large power
* Aluminum alloyPowerful Controllerguarantee big current supply
* Adjustable5 Level Intelligent Pedal Assistwith twist throttle

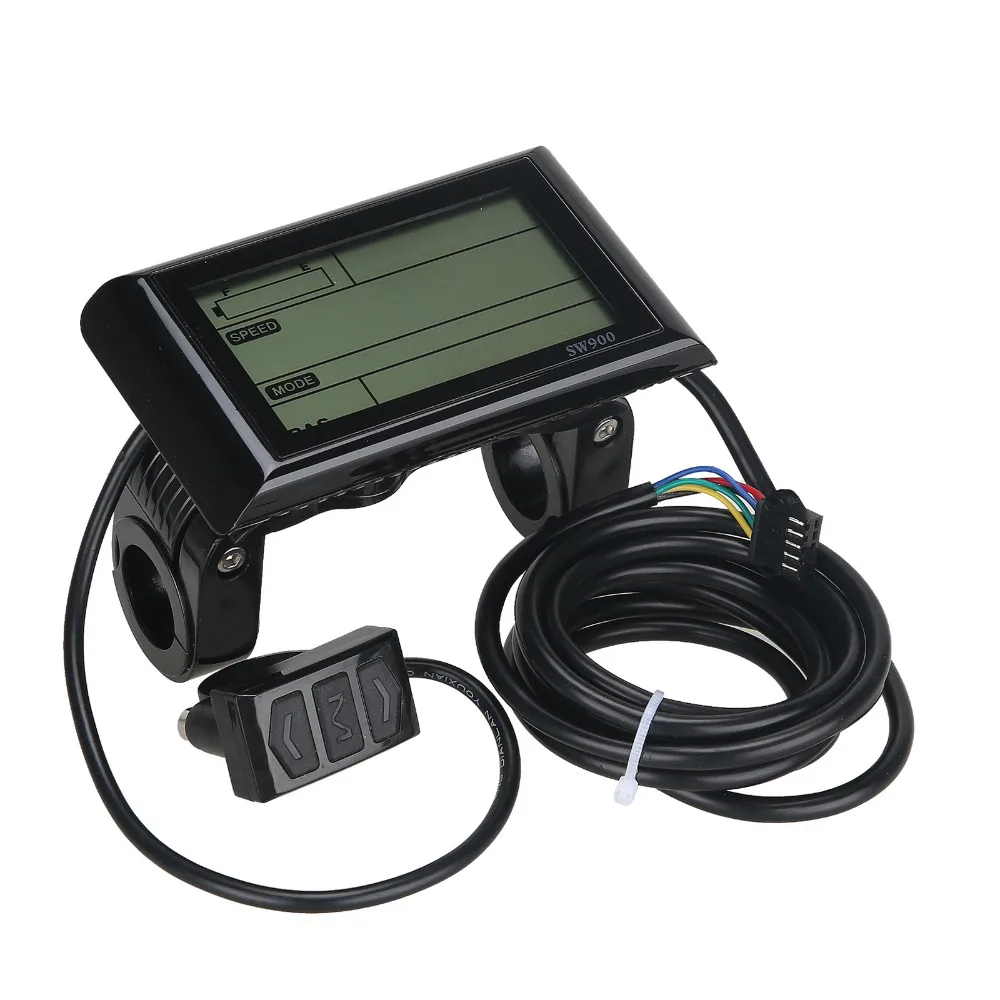

*LCD Displayshows battery level and pedal assistance settings
* Brake Levers cut off the power supply to the motor safely
* Crank speed sensor for8 Point High Efficent Pedal Assist

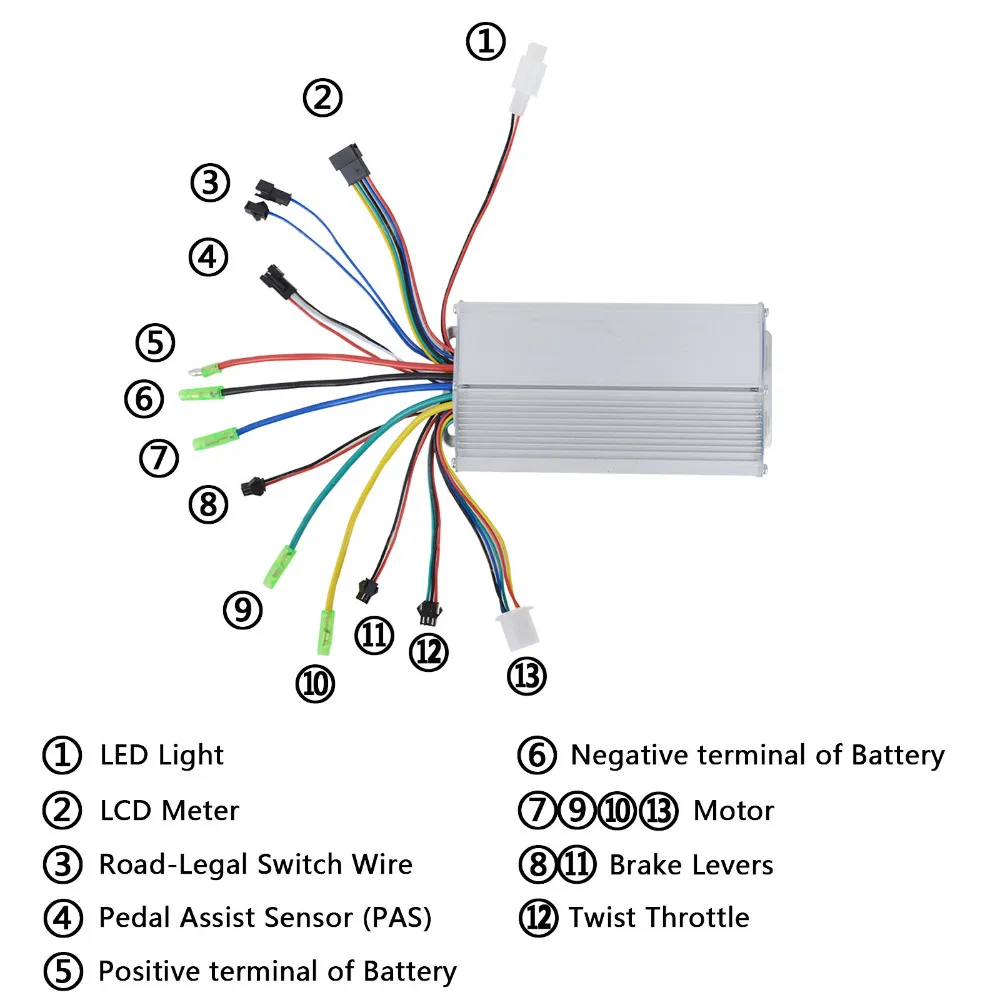

Upgraded Intelligent Motor Controller:

* Allow you to swap two power modes between the full 1000W power or 250W power by a single blue switch wire is embedded in controller.(Only for Twist Throttle)

* Still remain the full 1000W power with no speed control.(Only for Pedal Assist System,"PAS")


Note:

1.Press the "M" button on the LCD Meter to start the system.

2.The system requires a 48 Volt electrokinetic cell battery with a nominal capacity not less than 11.6Ah.

3.Battery and Charger is not included in package.

4.The UK/DE regulations dictate that a kit must not exceed the rated power of 250W to be road-legal.


SPECIFICATIONS:

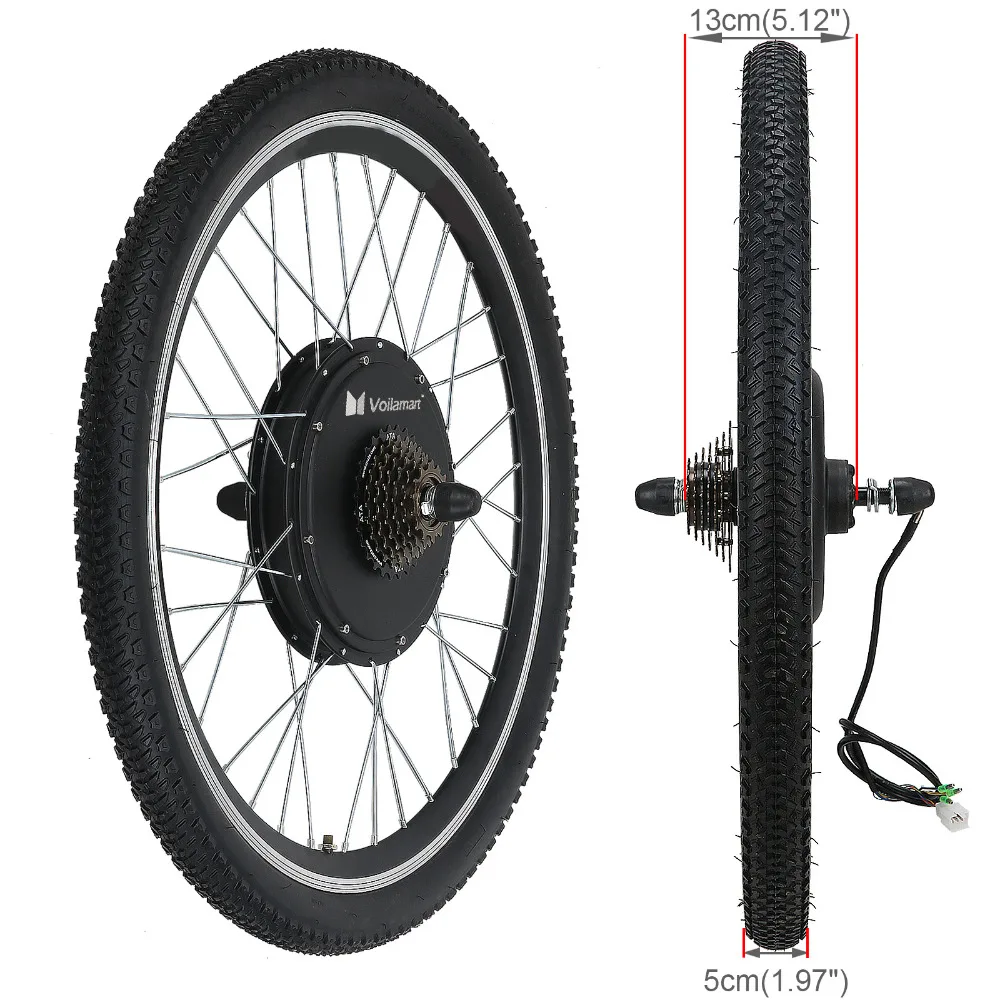

  • Wheel type:Rear Wheel

  • Motor:Brushless Gearless

  • Tire:Nylon

  • Rim:Alloy

  • Power:1000W / 48V or 250W / 48V

  • Torque:45 N.M

  • Spokes:Steel, 12G×2.6mm

  • Max speed:28 mph or 16 mph (45km/h or 25km/h)

  • Wheel Size:28"

  • Max load capacity:200kg

  • Net weight:11.16k

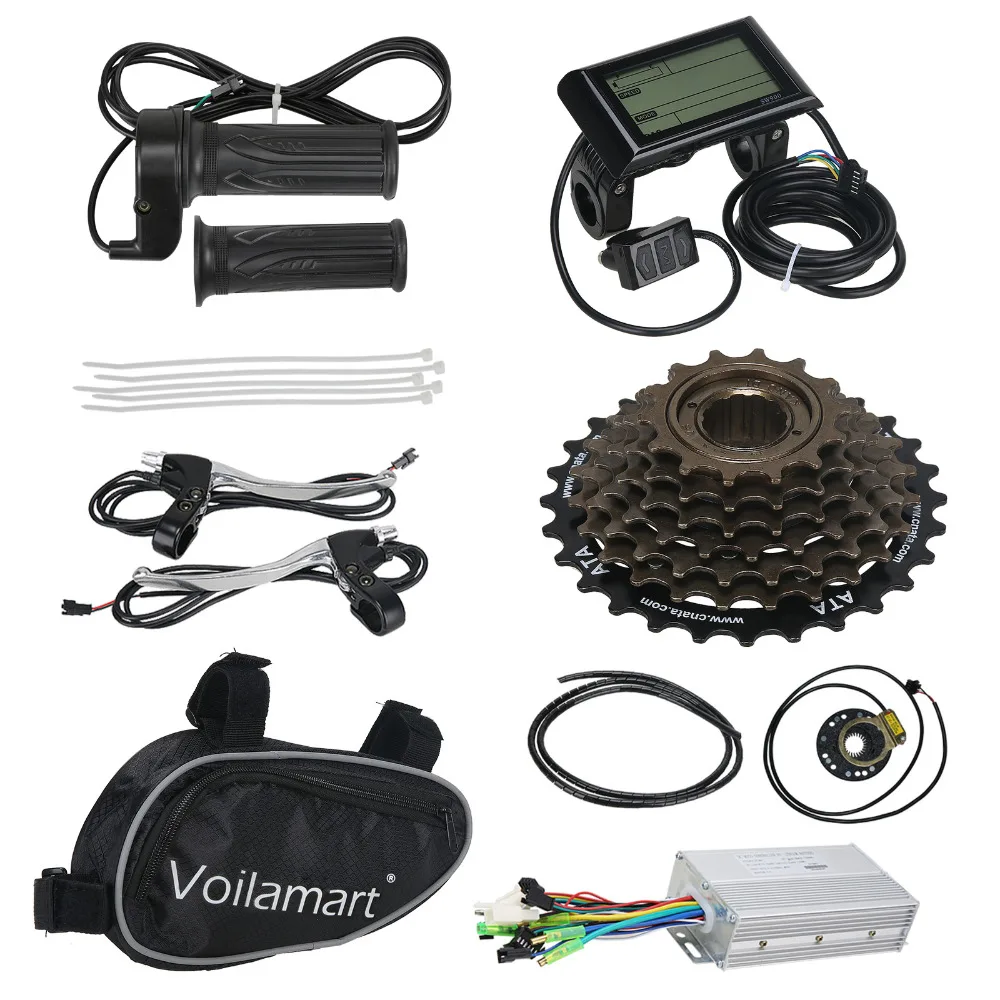

Package Include:

  • 1xBrushless Gearless Motor Rear Wheel

  • 1xIntelligent Motor Controller

  • 1xPedal Assist Crank Sensor

  • 1xCable Ties & Plastic Coil

  • 1xPair of Handle Bars (included Twist Throttle)

  • 1xController Bag

  • 1xPair of Brake Handles

  • 1xLCD Meter

  • 1xManual
