SIAECOSYS SIAYQ72180 Programmable Electric Motorcycle Controller 72V 180A for High Power Motor
SIAYQ series controller is sine wave type controller, which is brushless DC controllerwith self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
US Warehouse ! SIAECOSYS SIAYQ72180 Programmable Electric Motorcycle Controller 72V 180A for High Power Motor

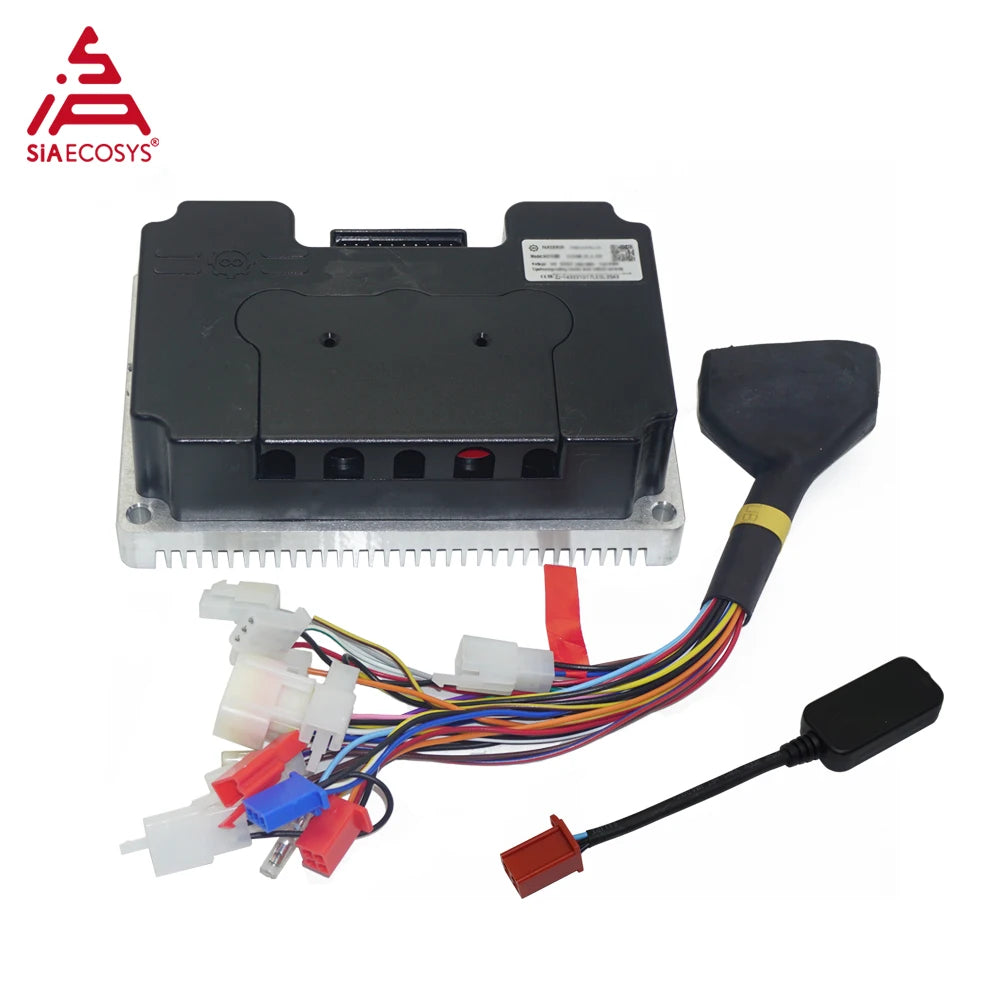

One set including below kits
1. 1pcs X SIAYQ72180 sine wave controller
2. 1pcs X Bluetooth Adapter
Key Features
1). All the raw materials are imported, using high-performance Moss tube
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). With flux weakening function.(The product does not contain magnetism)
Product Description
SIAYQ72180 is high quality controller with stable performance.

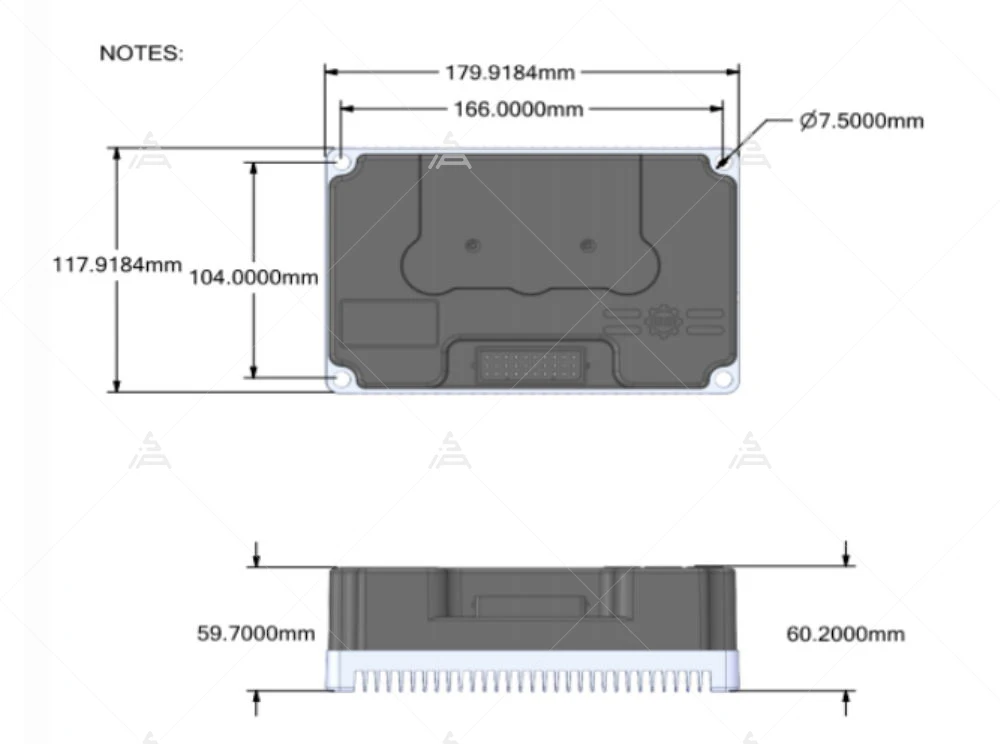

Drawing

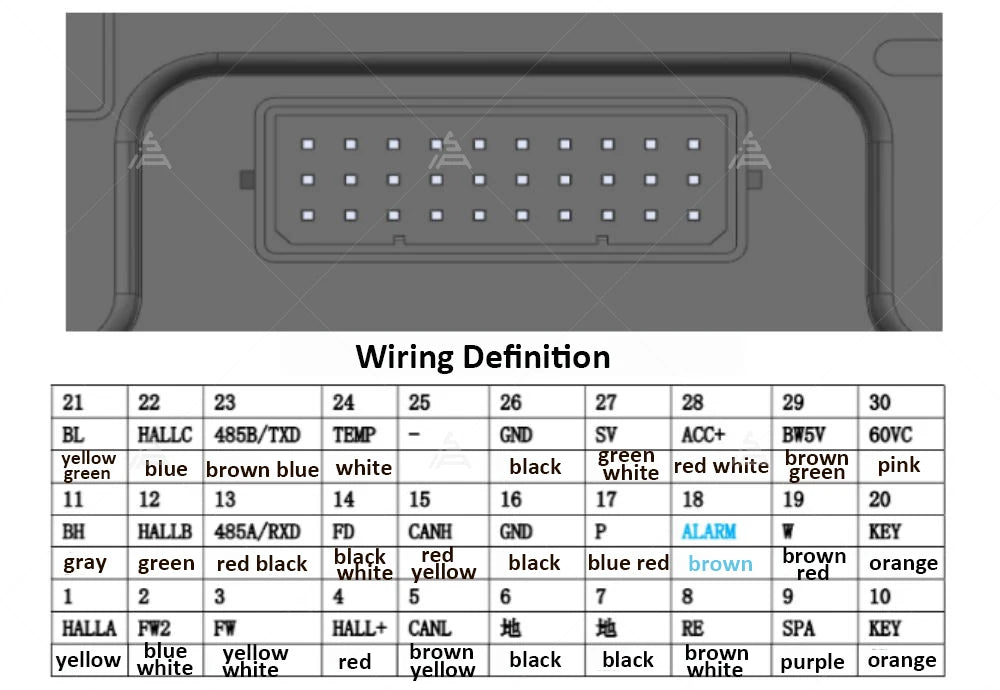

Harness Definition

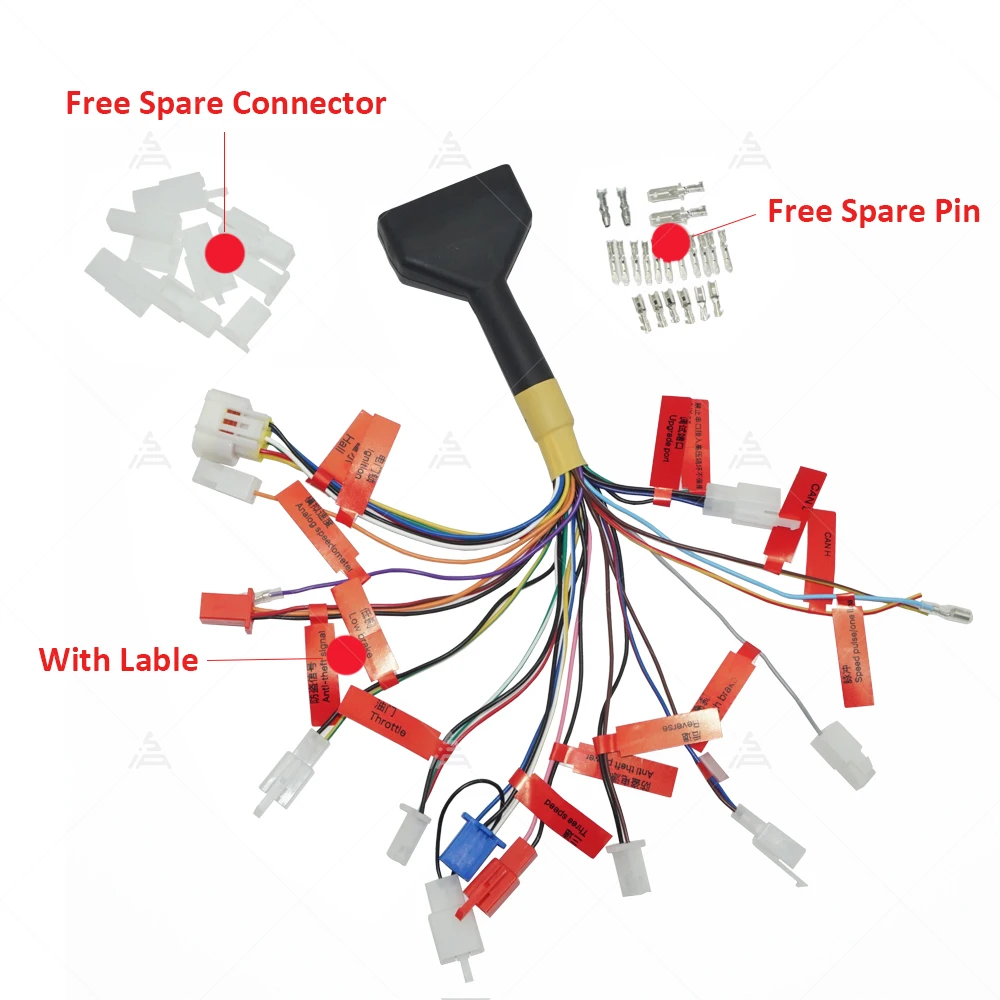

Adapter Cable
we free provide wiring function lable, connector and pin,
which will be more convenient to wire.

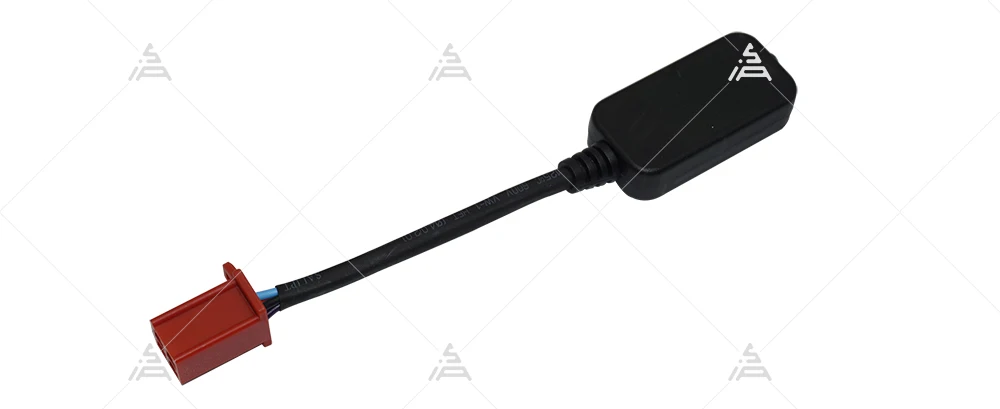

BT Adapter

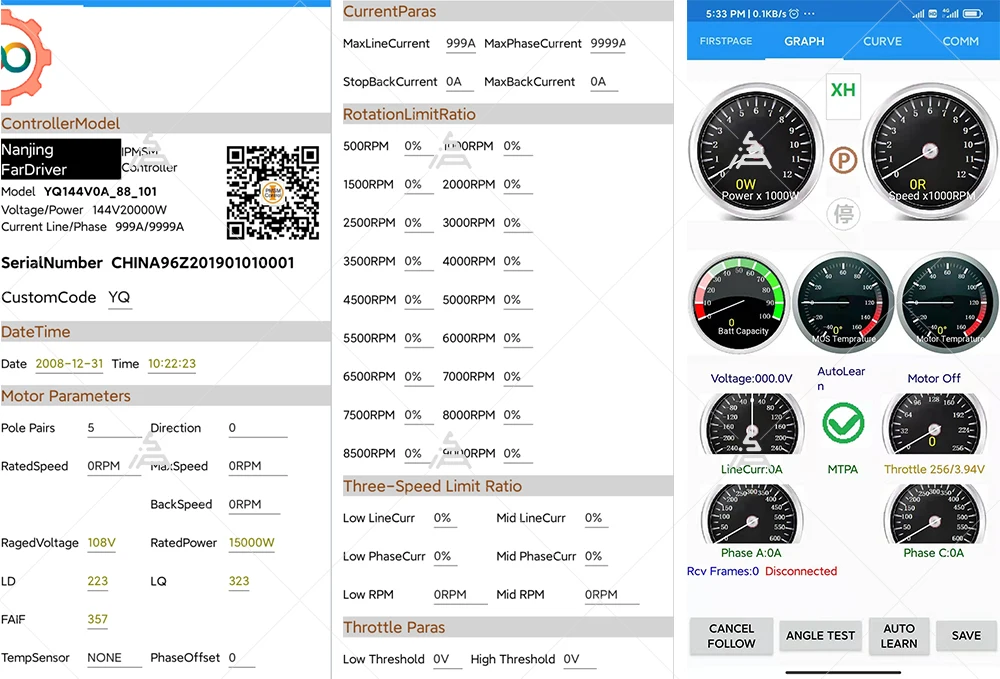

Software interface（APP）
Programmable Software & User manual (Before you received the controller)
Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
Inventory Last Updated: Nov 26, 2024
