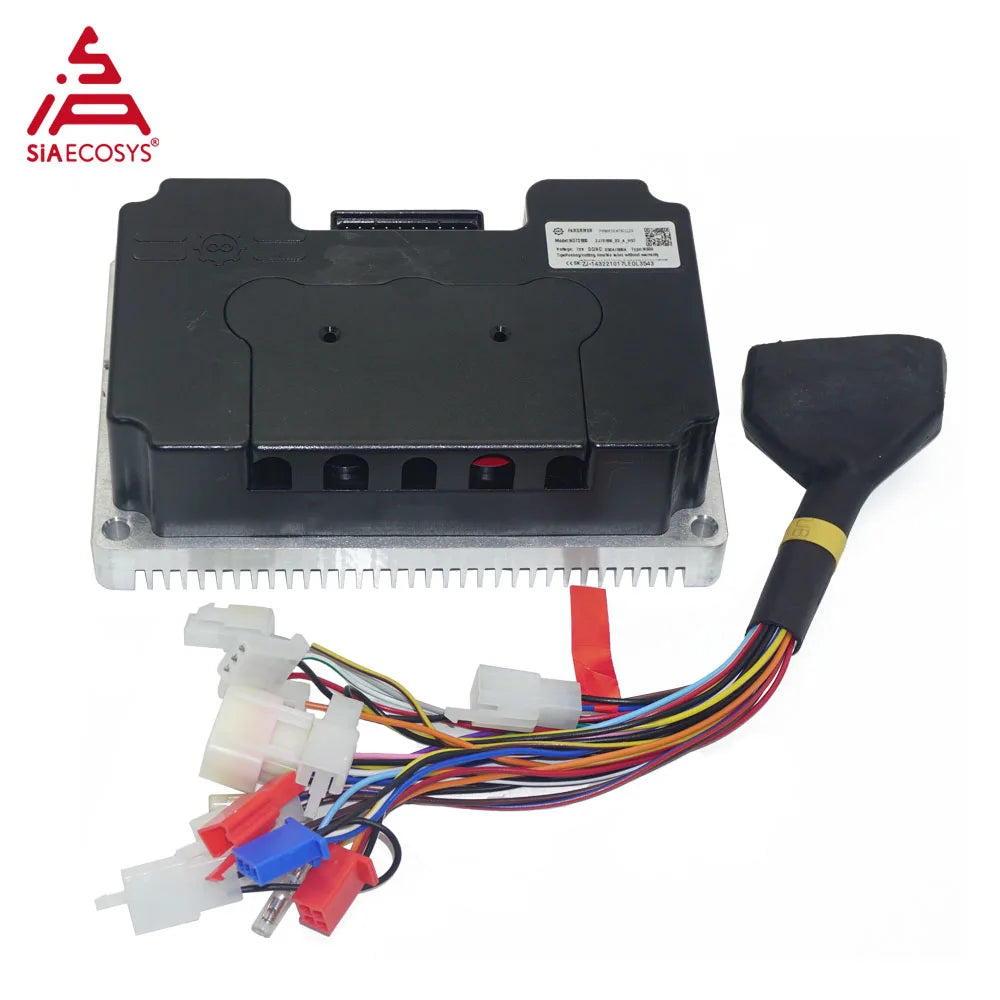

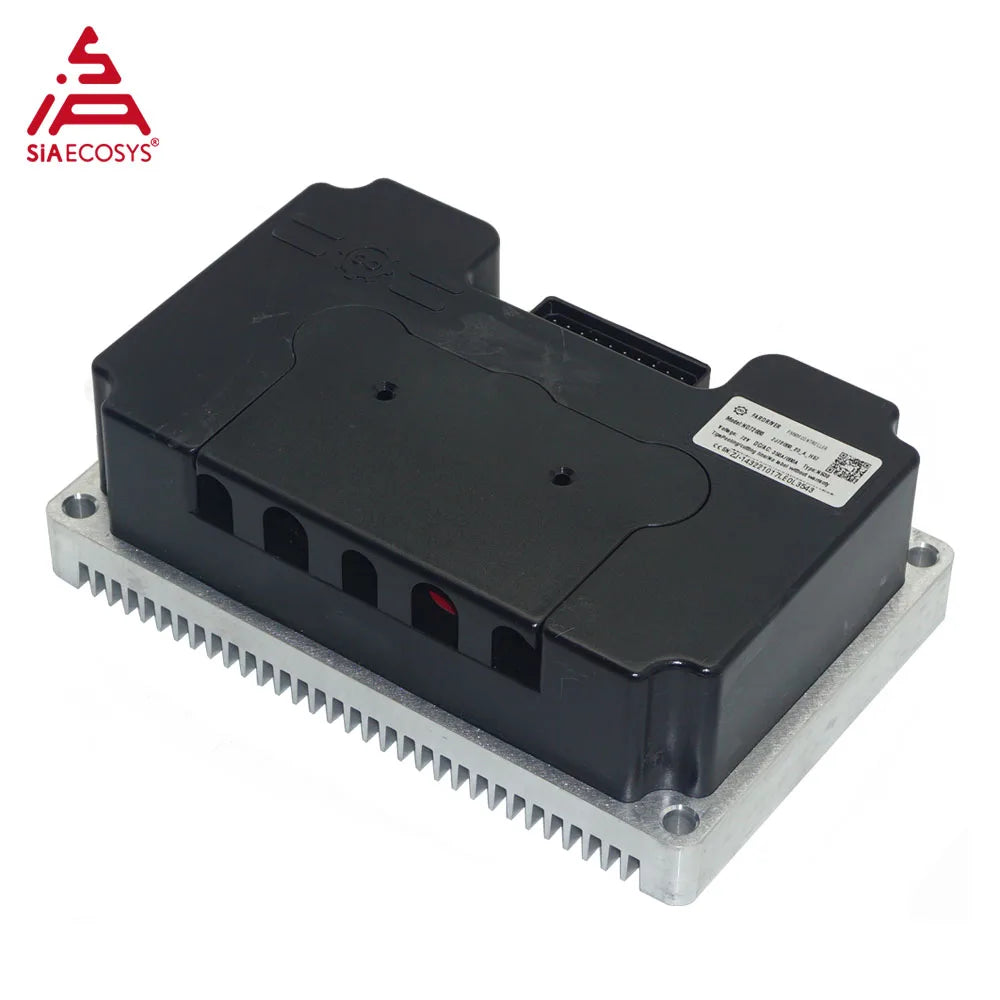

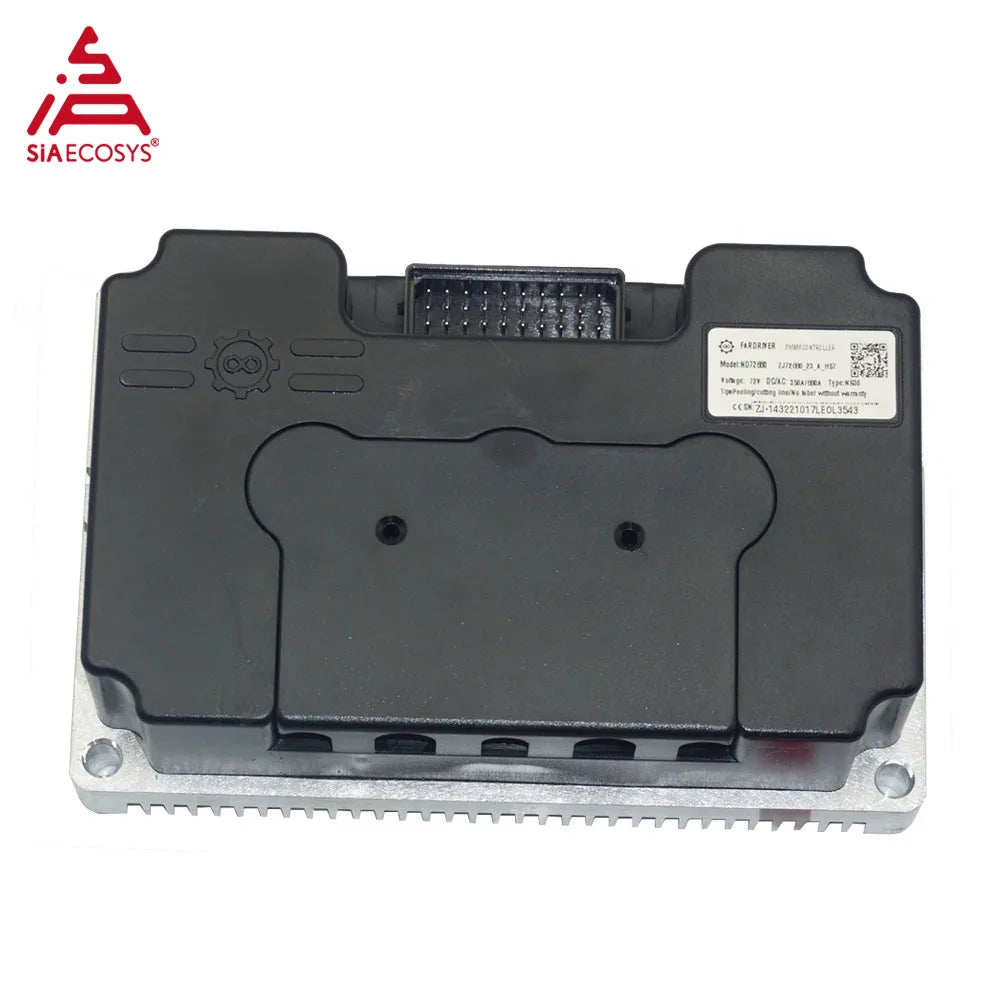

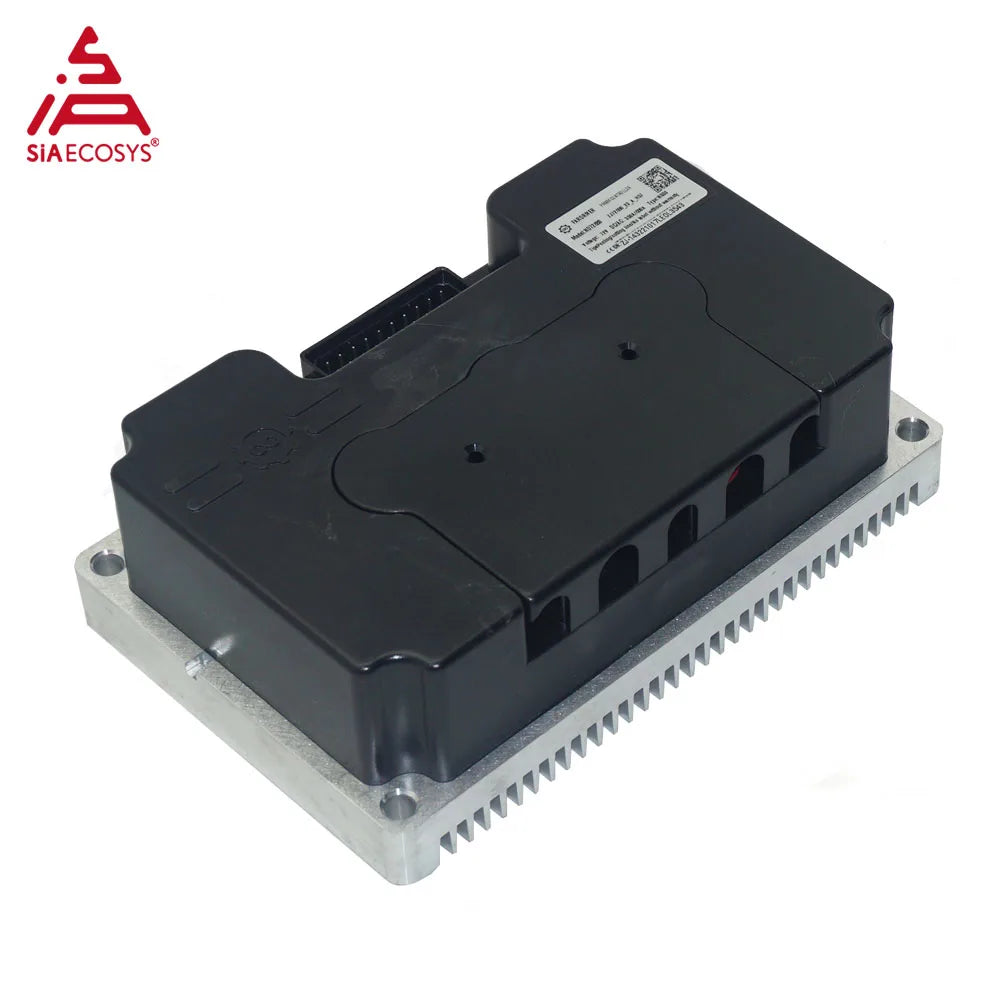

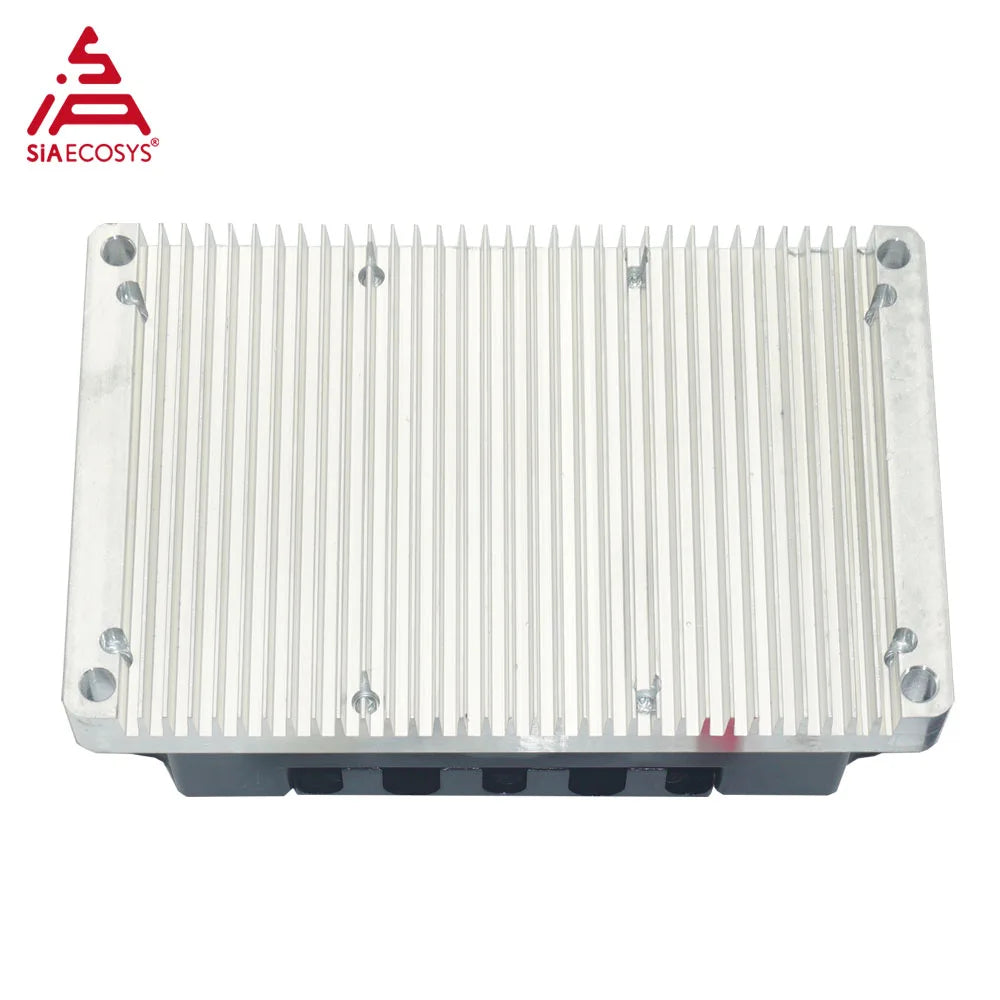

US Warehouse! FARDRIVER ND96680 High Power Electric Motorcycle Controller 680A BLDC Programmable with bluetooth For 4-6kW QSMotor
FarDriver controller is sine wave type controller, which is brushless DC controllerwith self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
One set including below kits
1. 1pcs X ND96680 sine wave controller
2. 1pcs X Bluetooth adaptor
Key Features
1). All the raw materials are imported, using high-performance Moss tube
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). The app compatible with Android and Apple
7). With flux weakening function.(The product does not contain magnetism)
Product Description
For ND96680, the peak voltage is 115V.
It’s hall version (as default) which suit with hall motors.
It could also support encoders, please check with sales.

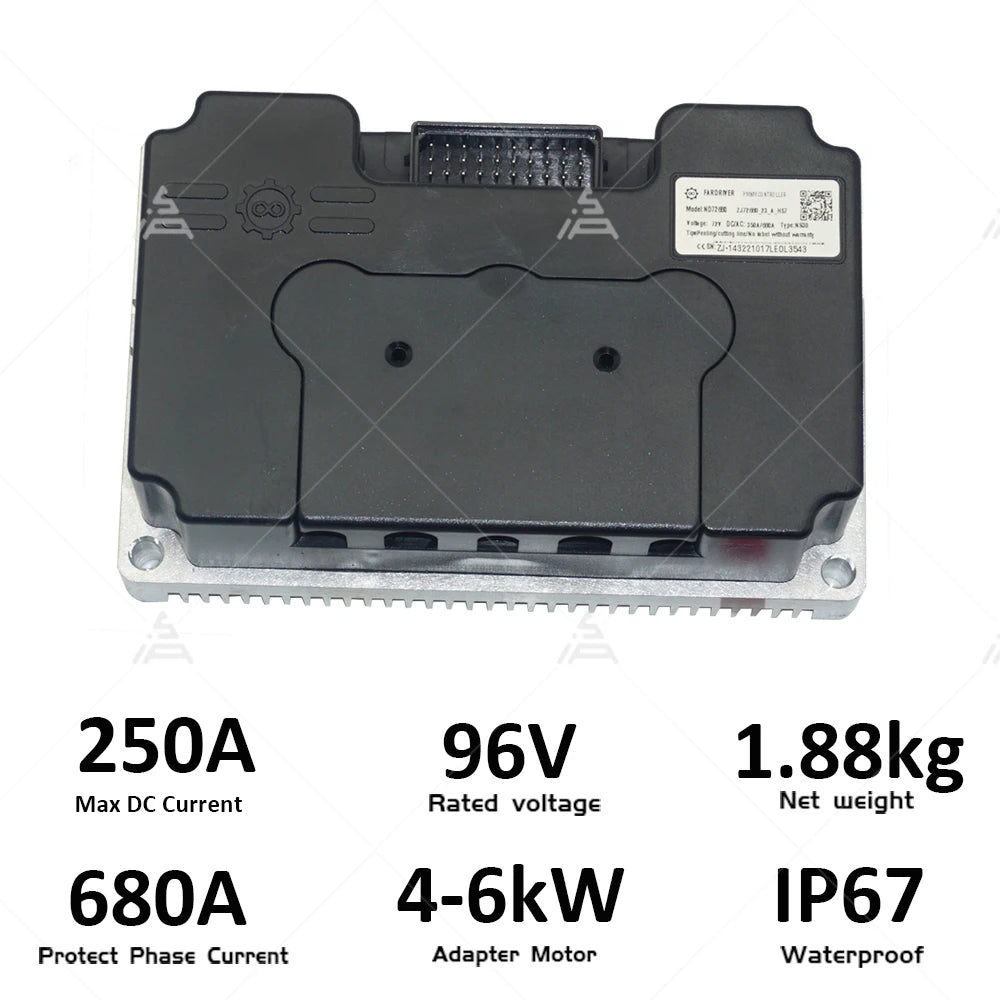

ND96680Spec

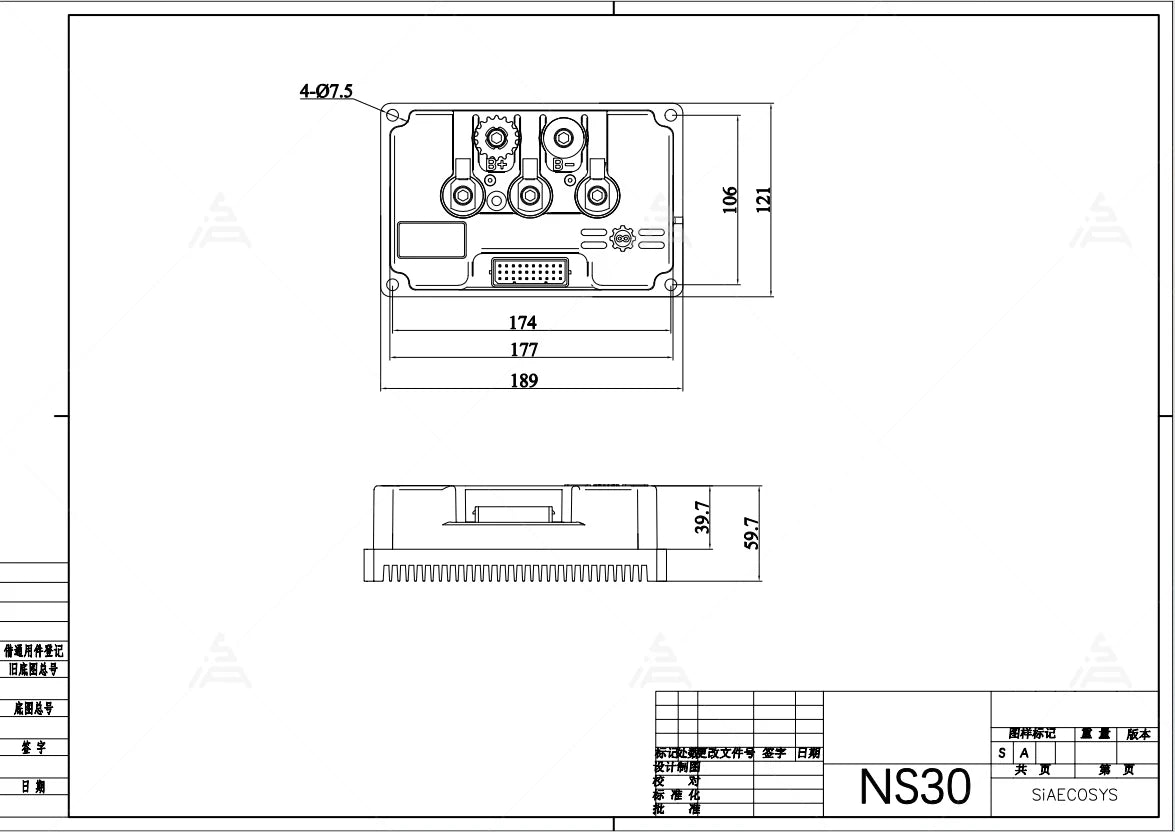

Drawing

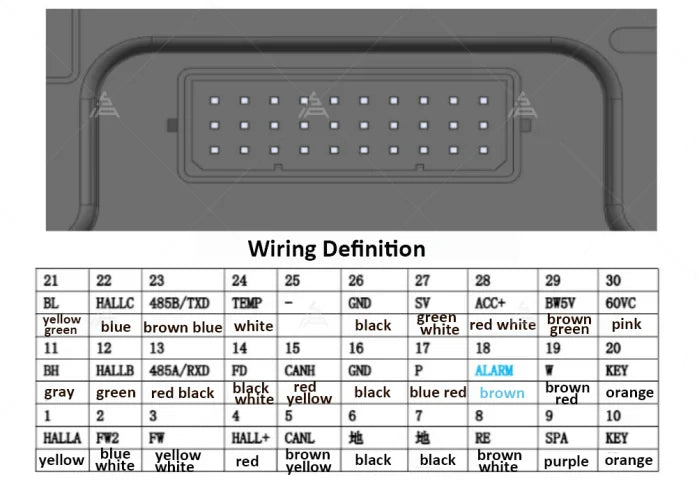

Harness Definition

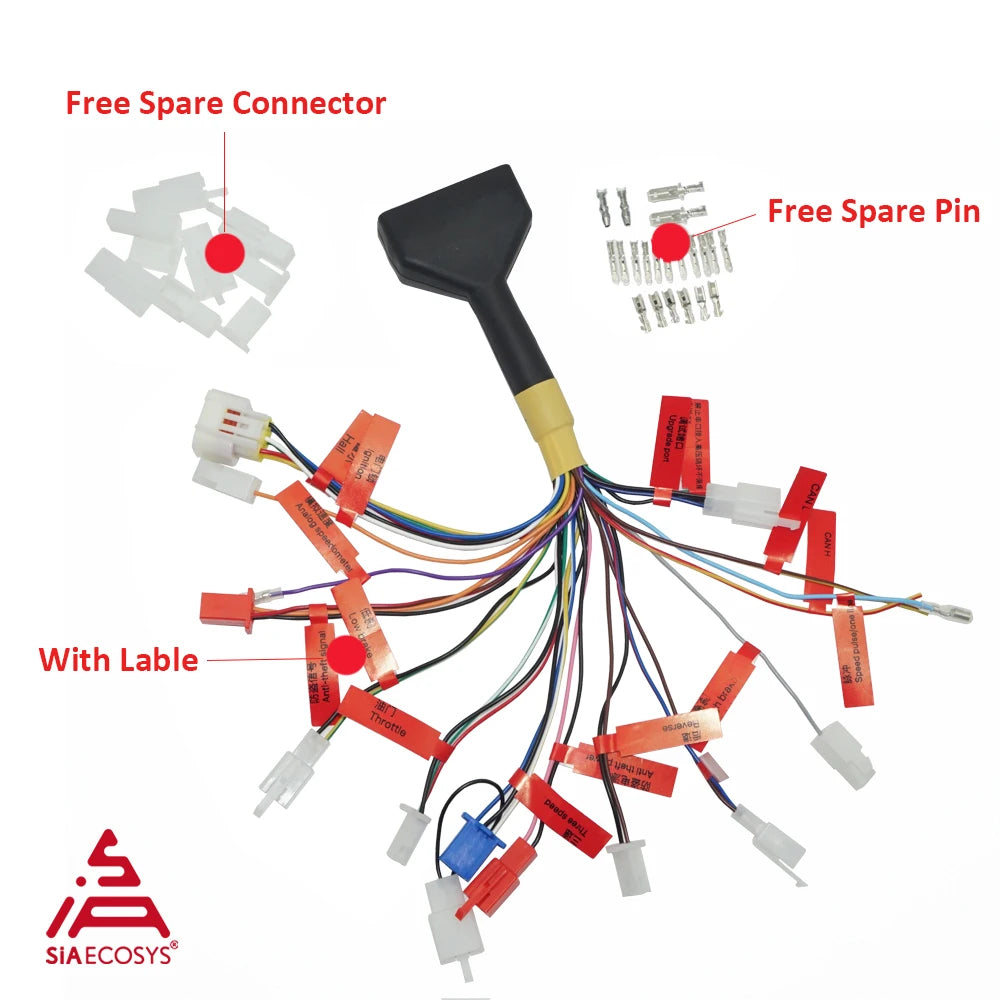

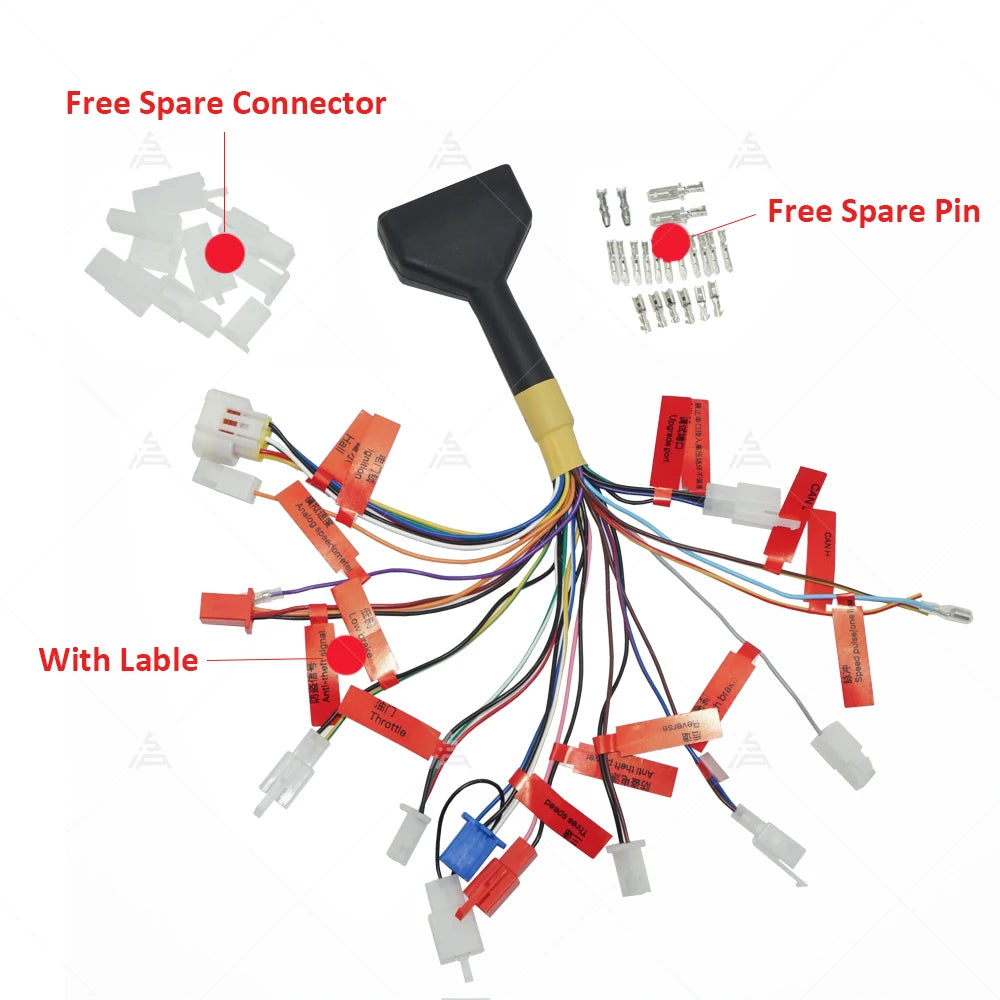

Adapter Cable
we free provide wiring function lable, connector and pin,
which will be more convenient to wire.
Bluetooth

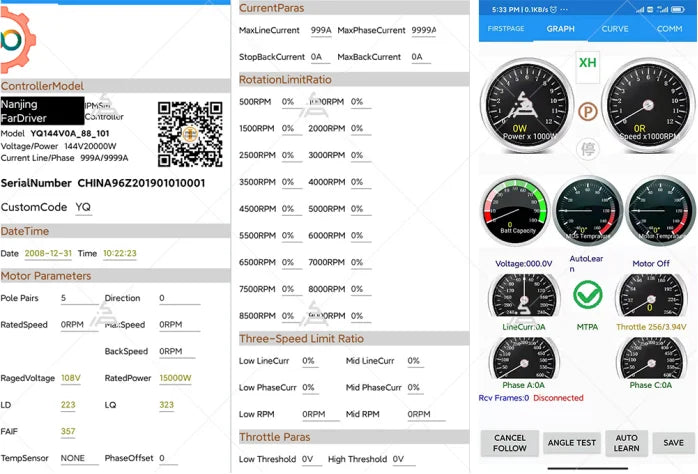

Software interface（APP）
Programmable Software & User manual (Before you received the controller)
Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
