US stock Fardriver 3000W-4000W ND72360 ND84360 ND96360 Ebike Electric Scooter Motorcycle Sine wave FOC Programmable Controller

US stock Fardriver 3000W-4000W ND72360 ND84360 ND96360 Ebike Electric Scooter Motorcycle Sine wave FOC Programmable Controller

$199.00

Fardriver 3000W-4000W ND72360/ND84360/ND96360 Ebike Electric Scooter Motorcycle Sine wave FOC Programmable Controller



General SPEC

Products Description

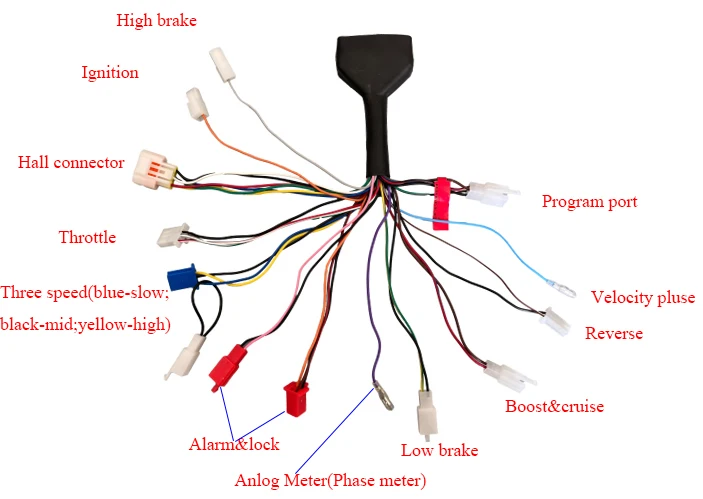

The default function for Fardriver controller :
Hall plug, Throttle signal (0-5V), Ignition, Speed Signal Meter, High Brake(12v), Three Speed, Temp Sensor, Reverse, Low Brake(0v),Flux Weakening,Anti-Theft,Boost,Cruise,Self Learning,Program Port.



Packing List:
1 x Controller and wiring (controller color is random）
1 x Bluetooth

General SPEC

Nanjing Fardriver Controller
1.Model: ND72360/ND84360/ND96360
2.Working Communication: Hall Sensor
3.Available Rated Battery Voltage: 72V/84V/96V
4.Peak Battery Voltage: 88V/100V/115V
5.Available Motor Power: 2000W - 4000W
6.Defaut Throttle Working Voltage: 0V - 5V
7.Peak DC Current: 170A
8.Peak Phase Current: 360A
9.Mosfets Detail: 24 FET
10.Weight: 2.2kgs

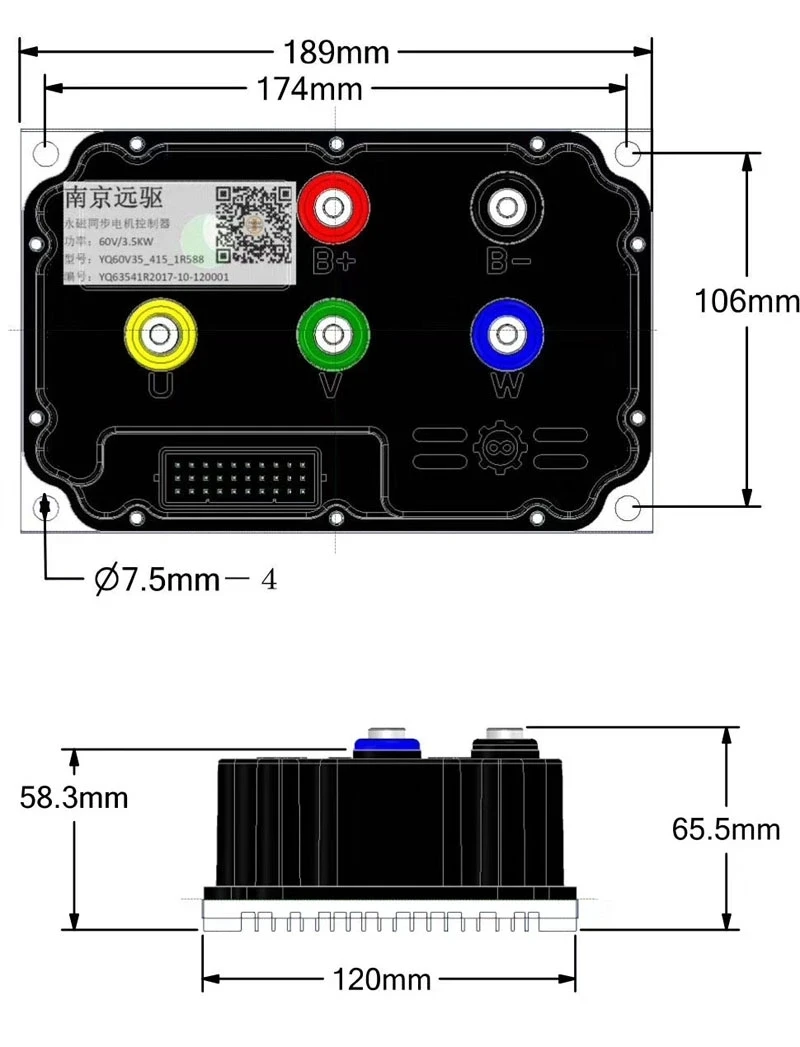

11.Instaliing Size: 189mm * 121mm * 65mm
12.Controller Design: Sine Wave BLDC
13.Case Material: Aluminum
14.Support Programmable: PC & Phone
15.Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV






Features:
The ND series Hall one-line pass-through controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors. It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles. Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined.

Rich software parameter configuration： * Monitor and configure the controller through the visual computer interface, and update and upgrade online.
* The current at different speeds can be adjusted online. * The maximum speed of forward and backward, economic speed can be set. * The overall bus current and phase current can be set. * The accelerator pedal threshold can be set to adjust the response sensitivity of the pedal.

Perfect protection function： Monitor working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc. Ensure the safety of vehicle driving control
Items




Different Model:




Bluetooth

FAQ

Q: How about the Duty & Tax ?
A: All products are sent in DDU mode, the total price does not include tax and duty.The relevant tax and duty need to be paid by the buyer.
We are not responsible for product customs clearance, please ensure that you have the ability to clear the goods before purchasing.

Q: How long is the delivery time ?
A: Fardriver controllers are sent by UPS or Fedex，7-10working days. But if no stock(the stock on this page is not exact), preparing time is about 1-2weeks.
