UPP Hailong EBike Battery with Samsung 18650 Cells for 350W 500W 750W 1000W Motor - 36V 13Ah 15Ah 17.5Ah or 48V 12Ah 14Ah Electric Bikes Battery Pack
Parameter |
36V 13Ah |
36V 15Ah |
48V 12Ah |
36V 17.5Ah |
48V 14Ah |
Nominal Voltage |
36V |
36V |
48V |
36V |
48V |
Nominal Capacity |
13Ah |
15Ah |
12Ah |
17.5Ah |
14Ah |
Nominal Watt Hour |
468WH |
540WH |
576WH |
630WH |
672WH |
Composed Type |
10S5P |
13S5P |
14S4P |
10S5P |
13S4P |
Built-in BMS |
20A |
20A |
30A |
20A |
30A |
Fit Motor Power |
0-500W maximum |
0-500W maximum |
0- 1000W maximum |
0-500W maximum |
0- 1000W maximum |
Charge Cut-off Voltage |
42V |
42V |
54.6V |
42V |
54.6V |
Discharge Cut-off Voltage |
28V |
28V |
36.4V |
28V |
36.4V |
Battery Weight |
3.7KG |
4.5KG |
4KG |
3.7KG |
3.8KG |
Battery Charger |
42V2A |
42V2A |
54.6V2A |
42V2A |
54.6V2A |
Battery Pack Cell |
Domestic Grade A 2500mAh 18650 |
Domestic Grade A 3000mAh 18650 |
Domestic Grade A 3000mAh 18650 |
Samsung 3500mAH |
Samsung 3500mAH |

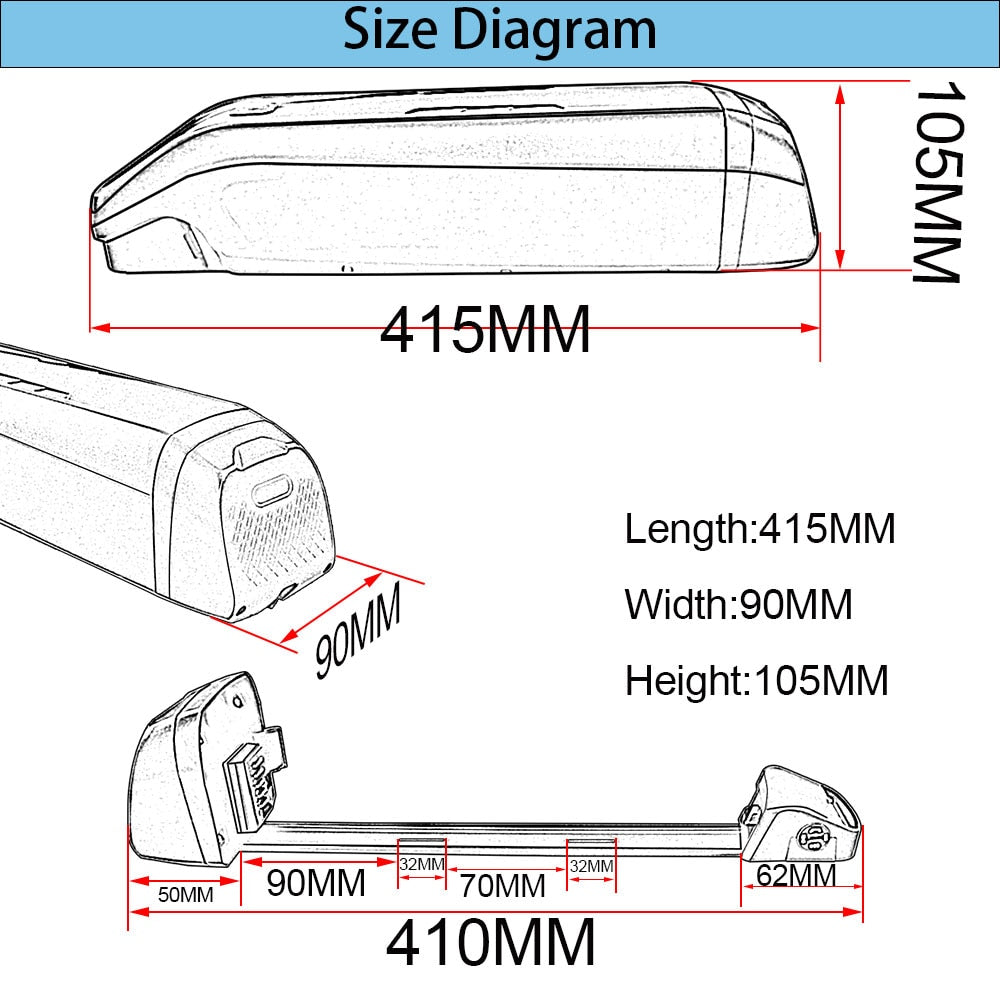

Dimension |
415*90*105mm |
415*90*105mm |
415*90*105mm |
415*90*105mm |
415*90*105mm |
Which Battery Should I choose?
This really depends on the application and can be a hard question. First you need to get a battery voltage match to your motor request , then the capacity , high capacity can make your bike longer trip but more expensive , also need to choose a right amps BMS to fit your motor . do your research if this is your first ebike kit to make sure you are getting the right battery for your needs.
What cells are your battery packs made up of?
All our packs are made up of authentic Grade A 18650 battery cells made in China , Korea or Japan. We use Sanyo Panasonic Samsung , LG or Chinese A grade brand cells and only use the very best models of these brands. and all of our battery would never
What is a BMS Battery management system.
The circuit board that makes your ebike battery “smart”. All of our packs have state of the art BMS to keep your pack safe.
How many volts should I choose?
Depending on your controller. All 48v controllers can handle either 48v or 52v packs. If you have a 36 volt controller however you will need to upgrade it before you can run a 48 or 52v pack.
How many amps do I need?
Also depending on your ebike motor voltage(V) and power(W), here is for your reference , If your motor is not included by belows , just contact us to check :
36V 20amps if for 36V 500W motor maximun ;
36V 25amps if for 36V 700W motor maximun ;
48V 30amps if for 48V 1000W motor maximun ;
48V 40amps if for 48V 1400W motor maximun ;
48V 50amps if for 48V 1800W motor maximun ;
52V 30amps if for 48V/52V 1100W motor maximun ;
52V 40amps if for 48/52V 1500W motor maximun ;
52V 50amps if for 48V/52V 1800W motor maximun ;
Certificate
Warning :
Don't transport or store the battery with metal objects together , such as hairpins, necklaces, etc.
Don't connect the positive and negative terminals with metal objects which would cause short circuit
Don't reverse the position and negative pole.
Use the specified charger that come with the battery
Don't put the battery near a heat source such as fire or heater.
Don't put the battery in the water, keep the battery cool and dry condition .
Don't hit, pierce, strike, trample or throw the battery.
But beware that following situations are beyond our guarantees.
> Open a case without contacting us
> Incorrect unsing the battery not according the instrucitons
> The battery is broken man-made
>The battery goes over water
Notice :
Ship from USA : 2-5days to USA
Ship from Germany : Within 7days to most of EU countries ,
Ship from China :
To Europe defuat shipping is train, free tax 50-60days , or you can choose to ship by air 18-23days;
To USA/Canada , free tax , will ship by air 18-230days ;
To Austrailia , ship by air 18-23days ;
To other countries it depends , just confirm with us.
If the uncontrolled delay by Delivery , please understand and be patient
