UNIT PACK POWER 18650 21700 Triangle Ebike Battery 36V 48V 52V 20Ah 24Ah 28.8Ah for Electric Bicycle 500W 750W 1000W 1500W 1800W Electric Bike Battery Pack
Looking for a reliable and long-lasting Electric Bike Battery Pack that can power your electric bicycle for longer distances? Look no further than the UNIT PACK POWER Triangle Ebike Battery, compatible with motors ranging from 500W to 1800W. Whether you're a casual rider or a professional cyclist, this battery pack has the power and performance you need to take your riding to the next level.
The UNIT PACK POWER Triangle Ebike Battery is available in 36V, 48V, and 52V options, with capacities ranging from 20Ah to 28.8Ah. It is made with high-quality domestic grade A 18650 cells or Tesla 21700 cells, ensuring a cycle life of 800-1000 cycles. This means that you can enjoy years of use without worrying about the battery's durability.

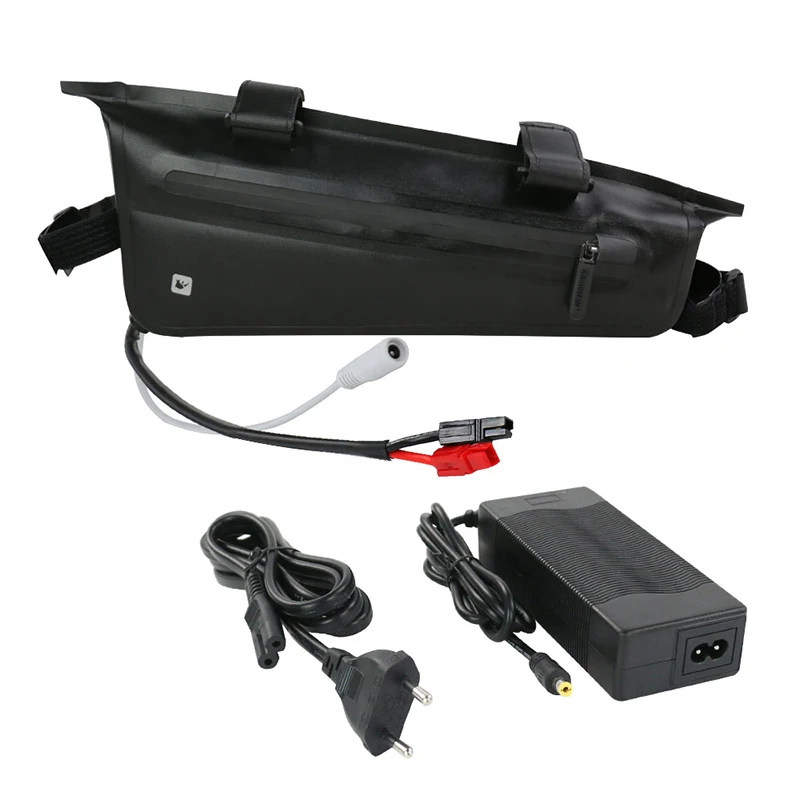

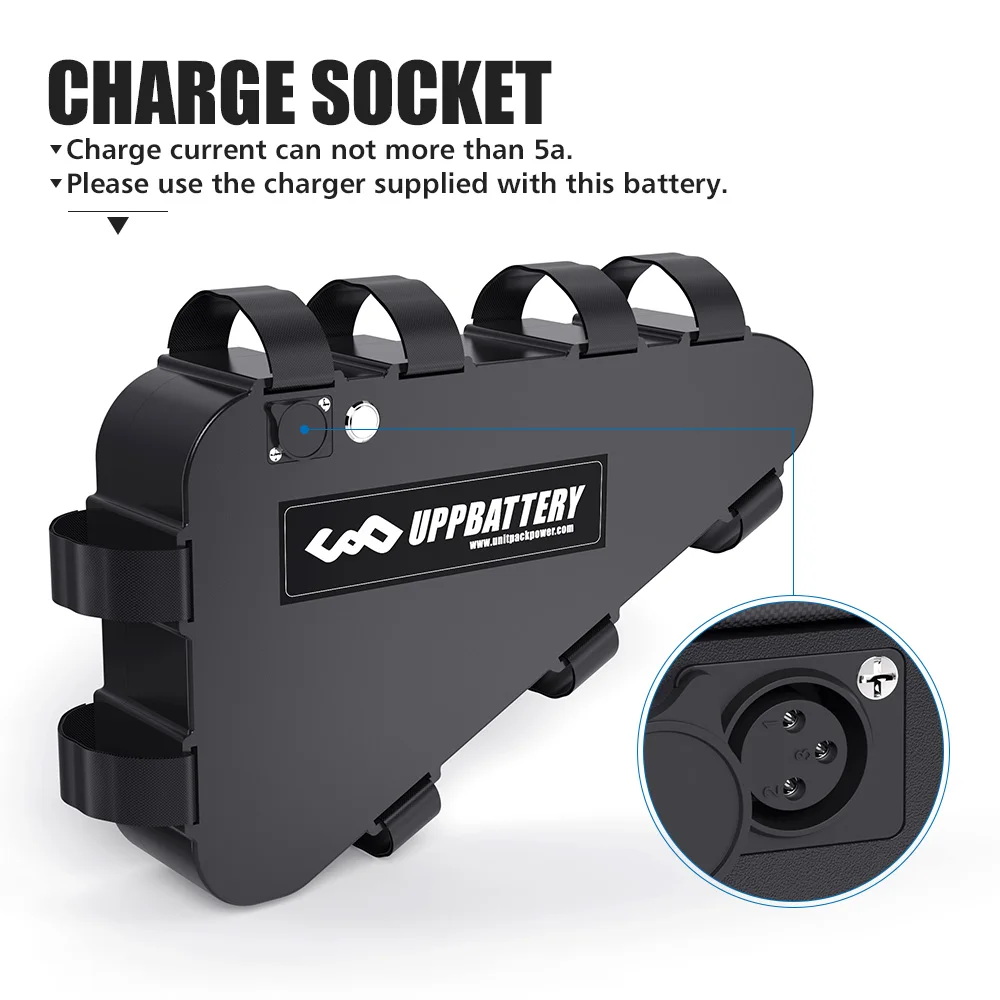

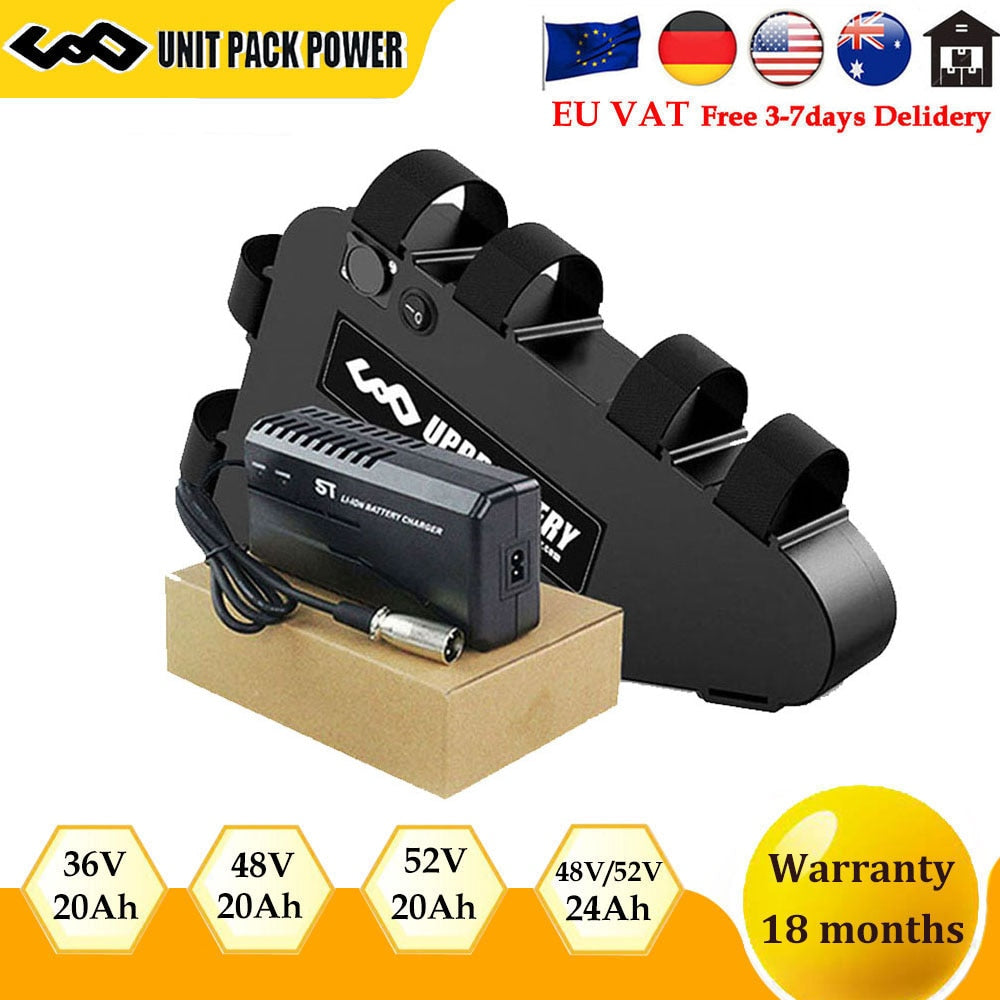

The battery pack comes with a charger that matches the voltage and capacity of the battery, ensuring quick and safe recharging. It also features a discharge connector, such as XT60+Paired XT60 or Anderson+Paired Anderson, depending on the model you choose.

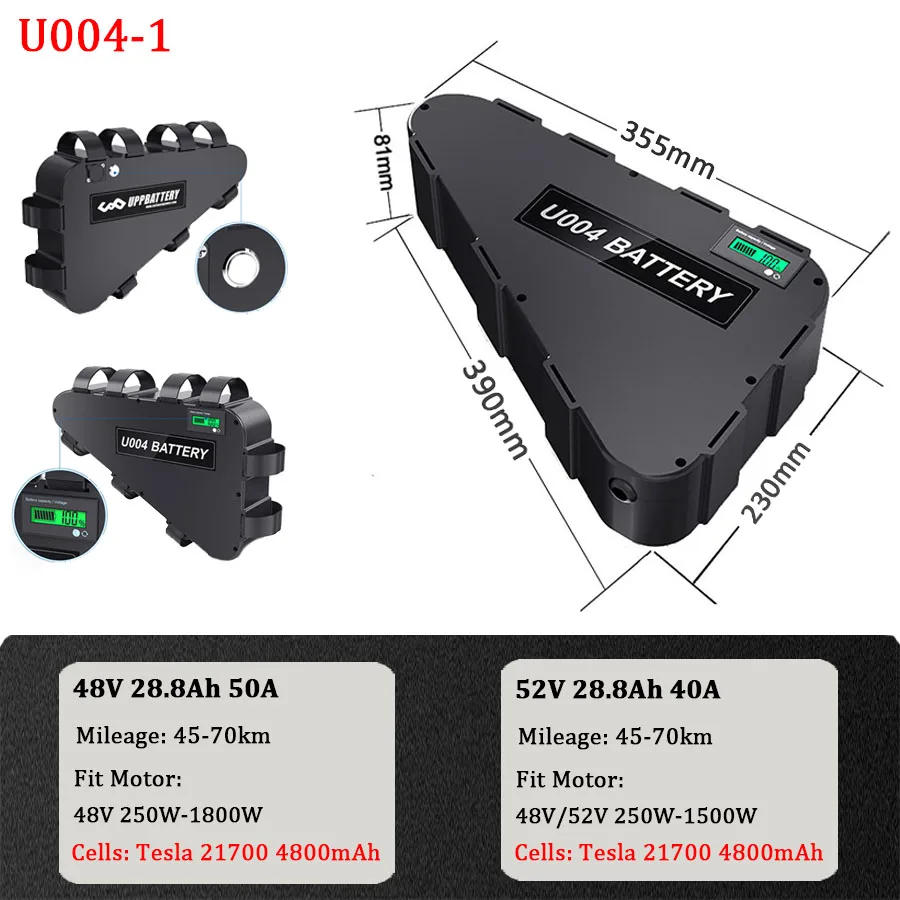

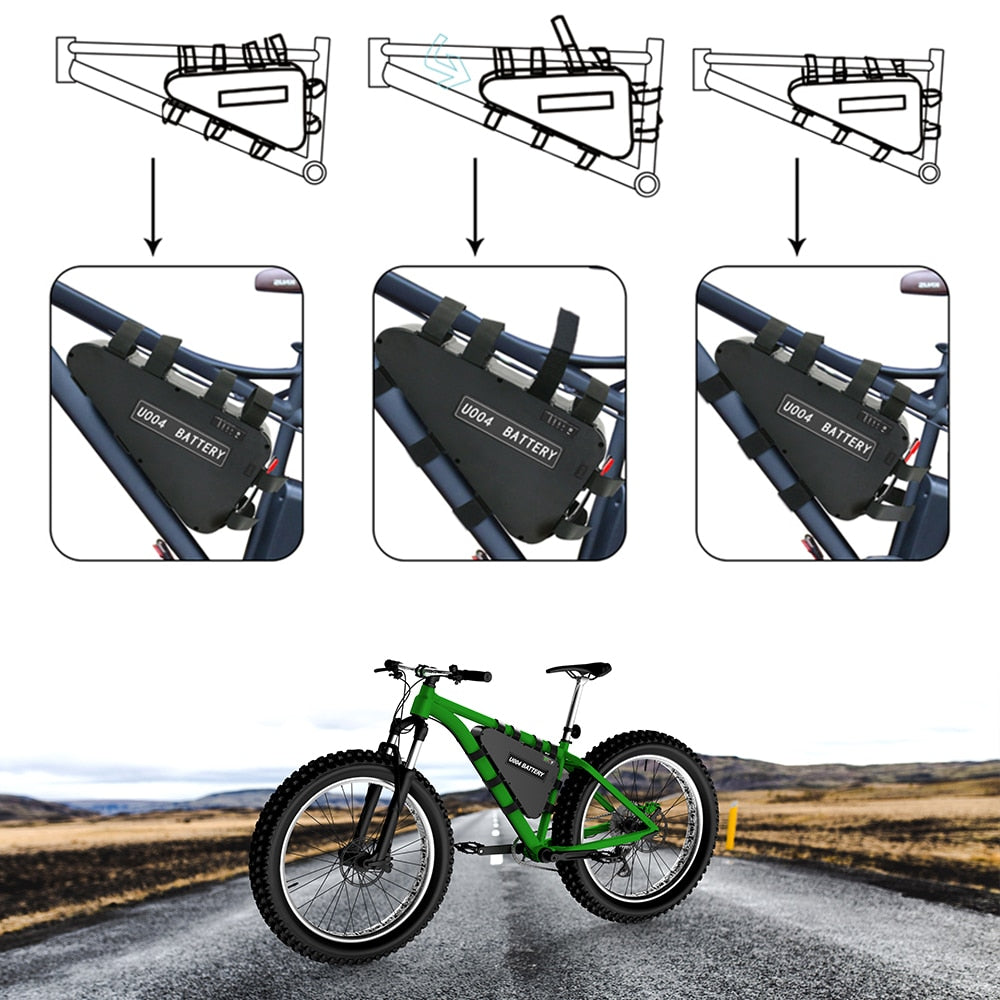

With dimensions of 390mm x 230mm x 355mm x 80mm (or 81mm for some models) and weighing between 3-6.9kg, the UNIT PACK POWER Triangle Ebike Battery is easy to install and won't weigh you down. Plus, it is compatible with 48V/52V 250W-1800W motors, making it a versatile choice for a wide range of electric bicycles.

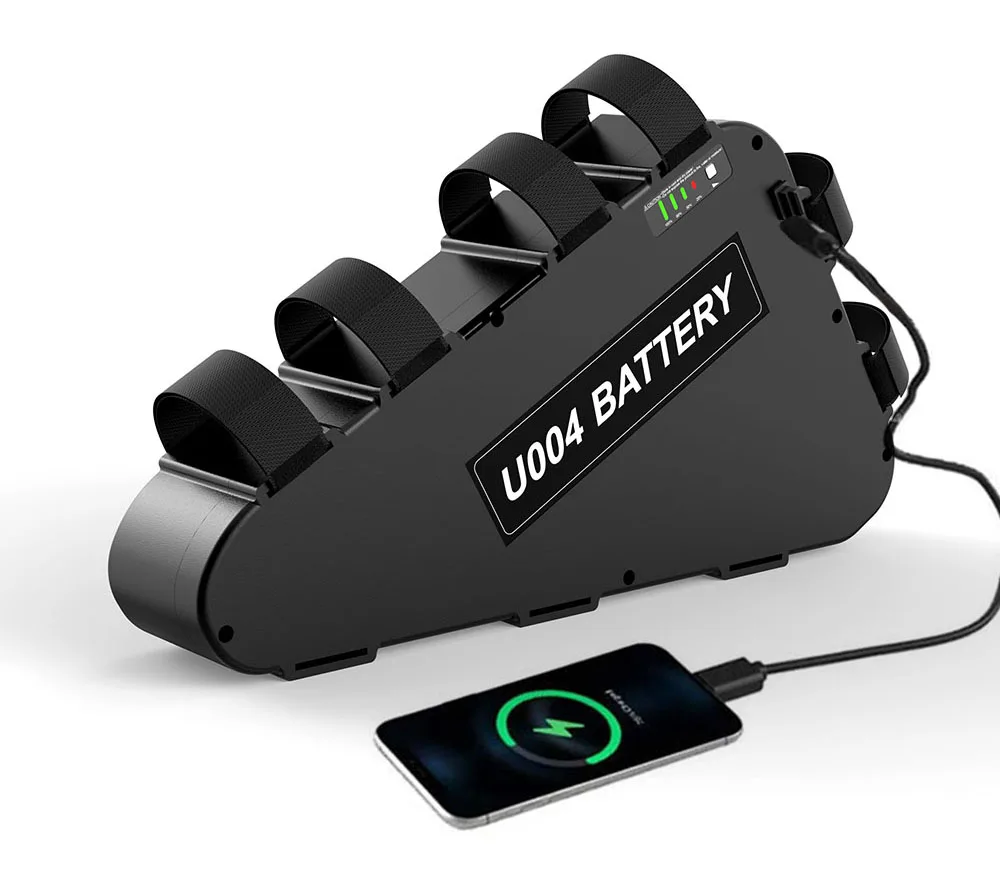

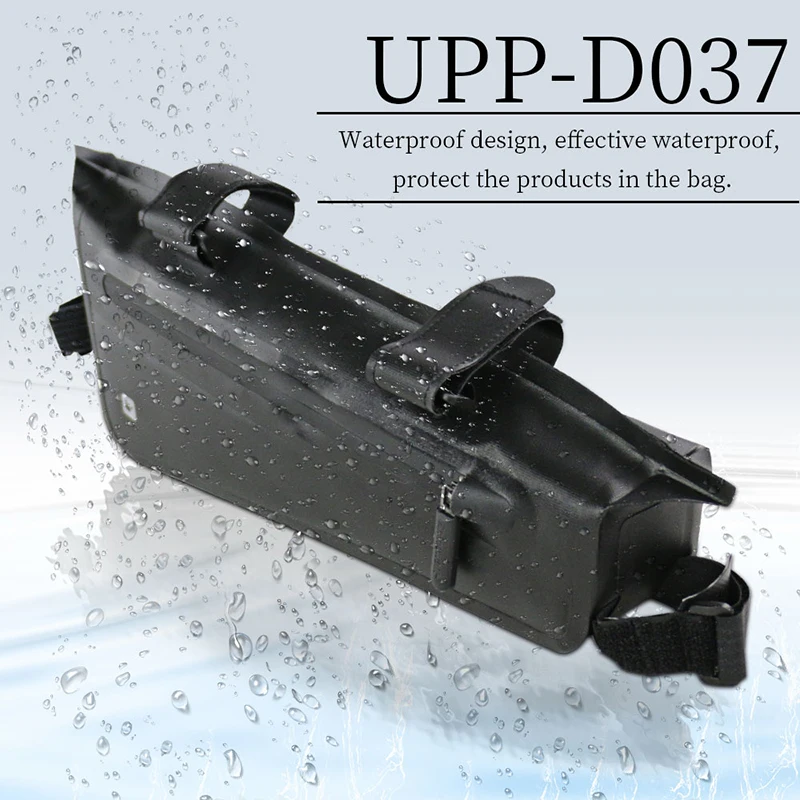

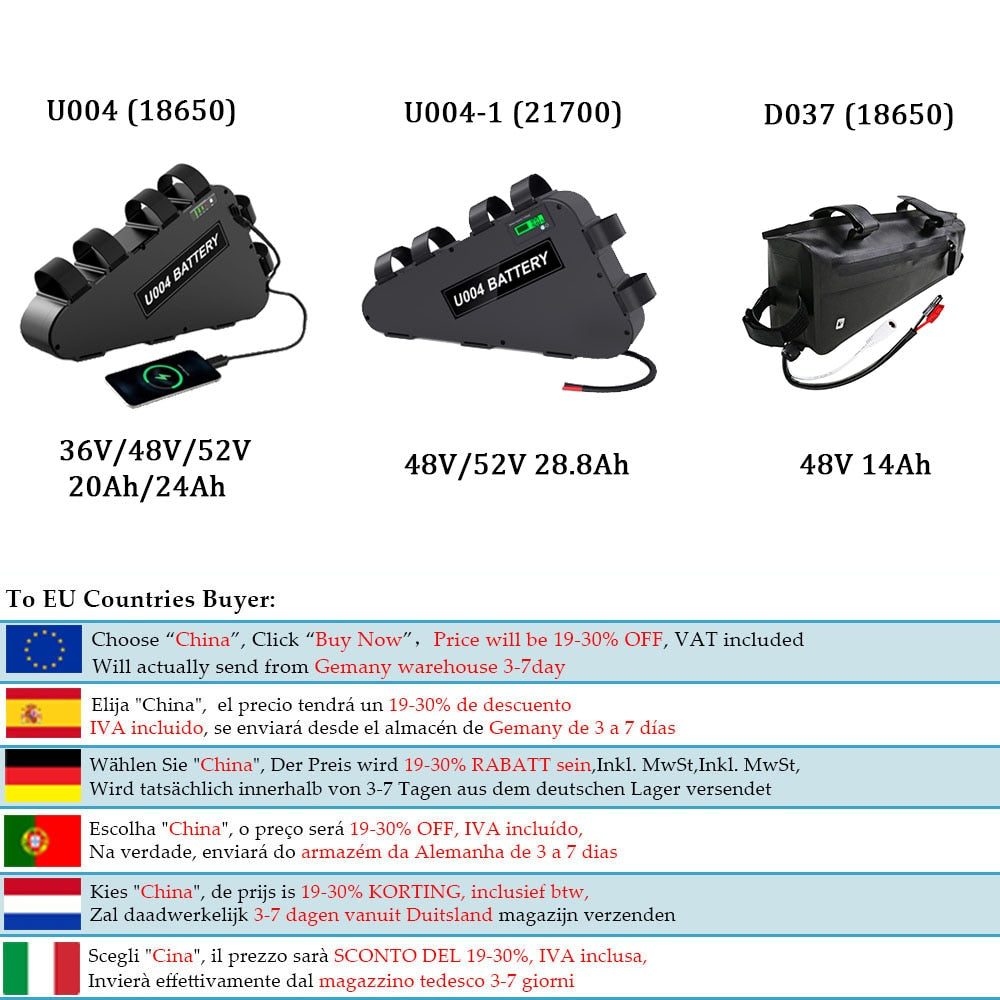

Choose from the U004, U004-1, or D037 models, each with its own unique set of features and specifications. Whether you're looking for a 48V/52V battery for your electric bike, a battery pack with an XT60+Paired XT60 discharge connector, or a battery with a high-capacity of up to 1497.6Wh, the UNIT PACK POWER Triangle Ebike Battery has you covered. Upgrade your electric bicycle today with this reliable and long-lasting battery pack.
4 UnitPackPower batteries have insured to International Insurance, rest assured to buy.

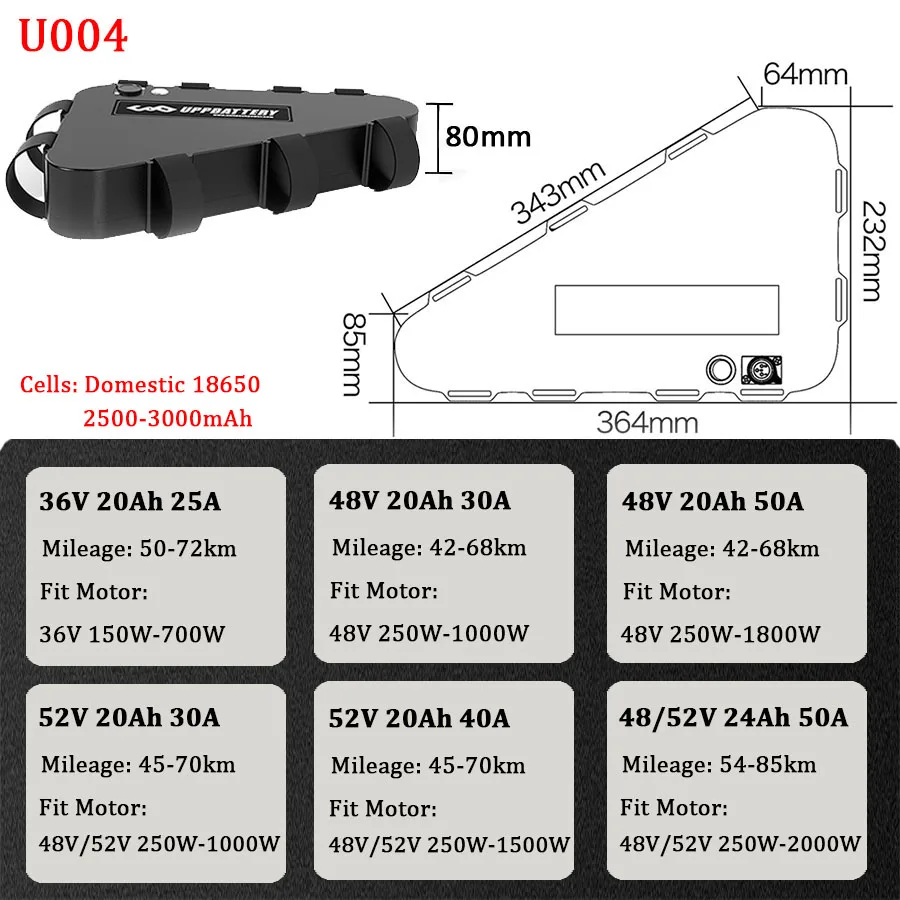

Model |
U004 |
||||
Parameter |
52V20AH 30A |
52V20AH 40A |
48V20AH 30A |
48V20AH 50A |
36V20AH 25A |
Voltage |
52V |
52V |
48V |
48V |
36V |
Capacity |
20AH |
20AH |
20AH |
20AH |
20AH |
Cell |
Domestic Grade A 2500mAh 18650 Cells |
||||
Watt hours |
1040WH |
1040WH |
960WH |
960WH |
720WH |
Compitable wattage |
48V/52V 250W 350W 500W 750W 1000W motor |
48V/52V 250W 350W 500W 750W 1000W 1500W |
48V 250W 350W 500W 750W 1000W motor |
48V 250W 350W 750W 1000W 150WW 1800W motor |
36V 250W 350W 500W 700W motor |
Dimension |
390*230*355*80 MM |
390*230*355*80 MM |
390*230*355*80 MM |
390*230*355*80 MM |
390*230*355*80 MM |
Weight |
appx. 6.6KG |
appx. 6.6KG |
appx. 6.2KG |
appx. 6.2KG |
appx. 5KG |
Cycle life |
800-1000 cycle times |
800-1000 cycle times |
800-1000 cycle times |
800-1000 cycle times |
800-1000 cycle times |
Charger |
58.8V 2.5A |
58.8V 2.5A |
54.6V 2.5A |
54.6V 2.5A |
42V 3A |
Charge cut off voltage |
58.8V |
58.8V |
54.6V |
54.6V |
42V |
Discharge current |
30A |
40A |
30A |
50A |
25A |
Discharge cut off voltage |
39.2V |
39.2V |
36.4V |
36.4V |
28V |
Discharge connector |
Anderson+Paired Anderson |
XT60+Paired XT60 |
Anderson+Paired Anderson |
XT60+ Paired XT60 |
Big Bullet + Paired Big Bullet |
Model |
U004 |
U004-1 |
D037 |
||
Parameter |
48V 24Ah 50A |
52V 24Ah 40A |
48V 28.8Ah 40A |
52V 28.8Ah 40A |
48V 14Ah 30A |
Voltage |
48v |
52V |
48v |
52V |
48v |
Capacity |
24Ah |
24Ah |
28.8Ah |
28.8Ah |
14Ah |
Cell |
Domestic Grade A 3000mAh 18650 cells |
Tesla 21700 4800mAh cell |
Grade A 3500mAh 18650 |
||
Watt hours |
1152WH |
1248WH |
1382.4WH |
1497.6WH |
672WH |
Compitable wattage |
48V 250W 350W 500W 750W 1000W 15000W 1800W motor |
52V/48V 250W 350W 500W 750W 1000W 1500W motor |
48V 250W 350W 500W 750W 1000W 15000W motor |
52V/48V 250W 350W 500W 750W 1000W 1500W motor |
48V 250W 350W 500W 750W 1000W motor |
Dimension |
390*230*355*80 MM |
390*230*355*80 MM |
390*230*355*81 MM |
390*230*355*81 MM |

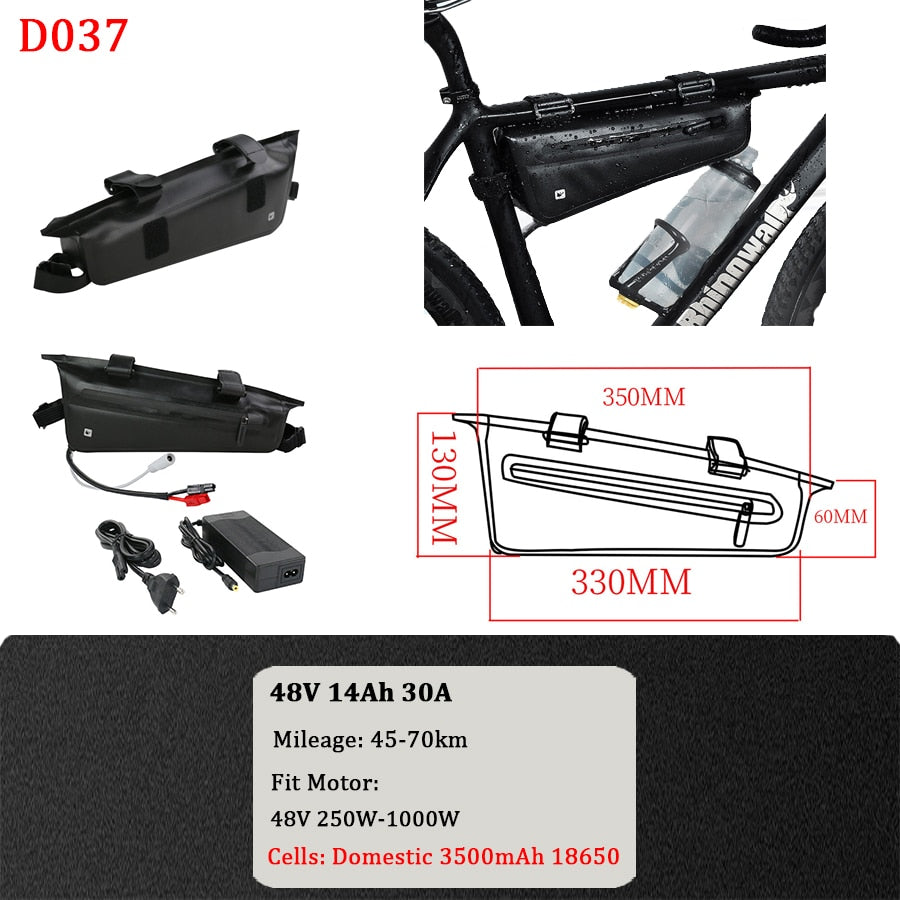

350*330*130*60 MM |
Weight |
appx. 6.2KG |
appx. 6.6KG |
appx. 6.5KG |
appx. 6.9KG |
appx. 3KG |
Cycle life |
800-1000 cycle times |
800-1000 cycle times |
800-1000 cycle times |
800-1000 cycle times |
800-1000 cycle times |
Charger |
54.6V 4A |
58.8V 4A |
54.6V 4A |
58.8V 4A |
54.6V 2A |
Charge cut off voltage |
54.6V |
58.8V |
54.6V |
58.8V |
54.6V |
Discharge current |
50A |
40A |
50A |
40A |
50A |
Discharge cut off voltage |
36.4V |
39.2V |
36.4V |
39.2V |
36.4V |
Discharge connector |
XT60+Paired XT60 |
XT60+Paired XT60 |
XT60+Paired XT60 |
XT60+Paired XT60 |
Small Anderson |
Which Battery Should I choose?
This really depends on the application and can be a hard question. First you need to get a battery voltage match to your motor request , then the capacity , high capacity can make your bike longer trip but more expensive , also need to choose a right amps BMS to fit your motor . do your research if this is your first ebike kit to make sure you are getting the right battery for your needs.
What cells are your battery packs made up of?
All our packs are made up of authentic Grade A 18650 battery cells made in China , Korea or Japan. We use Sanyo Panasonic Samsung , LG or Chinese A grade brand cells and only use the very best models of these brands. and all of our battery would never
What is a BMS Battery management system.
The circuit board that makes your ebike battery “smart”. All of our packs have state of the art BMS to keep your pack safe.
How many volts should I choose?
Depending on your controller. All 48v controllers can handle either 48v or 52v packs. If you have a 36 volt controller however you will need to upgrade it before you can run a 48 or 52v pack.
How many amps do I need?
Also depending on your ebike motor voltage(V) and power(W), here is for your reference , If your motor is not included by belows , just contact us to check :
36V 20amps if for 36V 500W motor maximun ;
36V 25amps if for 36V 700W motor maximun ;
48V 30amps if for 48V 1000W motor maximun ;
48V 45amps if for 48V 1500W motor maximun ;
48V 50amps if for 48V 1800W motor maximun ;
52V 30amps if for 48V/52V 1100W motor maximun ;
52V 40amps if for 48/52V 1500W motor maximun ;
52V 50amps if for 48V/52V 2000W motor maximun ;
Warning :
Don't hit, pierce, strike, trample or throw the battery.
Don't put the battery in the water, keep the battery cool and dry condition .
Don't put the battery near a heat source such as fire or heater.
Use the specified charger that come with the battery
Don't reverse the position and negative pole.
Don't connect the positive and negative terminals with metal objects which would cause short circuit
Don't transport or store the battery with metal objects together , such as hairpins, necklaces, etc.
But beware that following situations are beyond our guarantees.
>The battery goes over water
> The battery is broken man-made
> Incorrect unsing the battery not according the instrucitons
> Open a case without contacting us to cause the problem
Notice :
Ship from USA : 2-5days to USA
Ship from Germany : Within 7days to most of EU countries ,
Ship from China (Please ignore Aliexpress default shipping time show on listing):
To Europe defuat shipping is train, free tax 80-90days , or you can choose to ship by air 15-23days;
To USA/Canada , free tax , will ship by air 15-23days ;
To Austrailia , ship by air 20-30days ;
To other countries it depends , just confirm with us.
If the uncontrolled delay by Delivery , please understand and be patient
