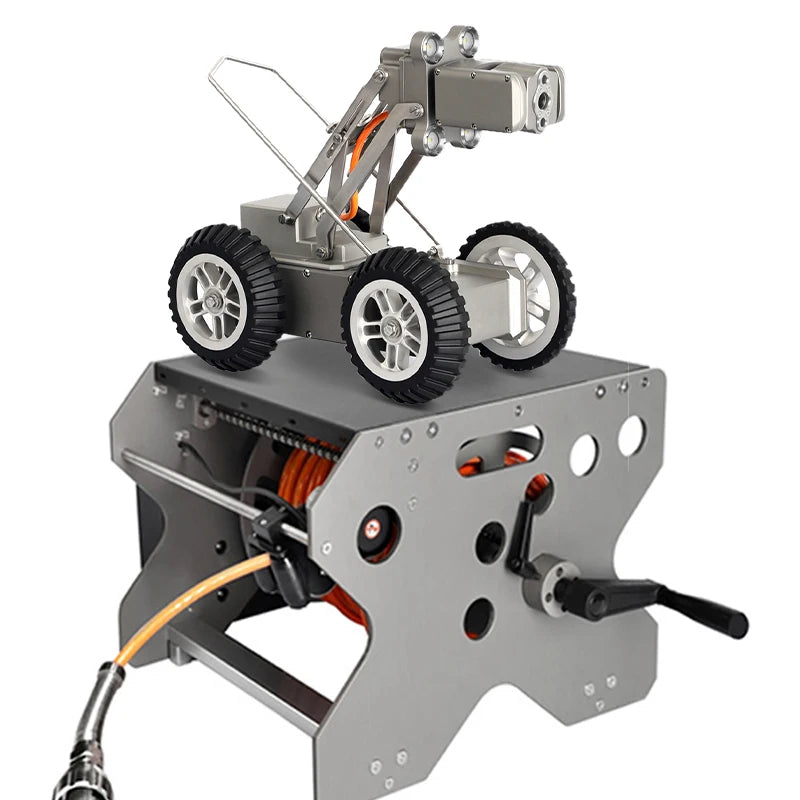

underwater Sewer Pipe Inspection Crawler Robot PTZ Camera For 200mm To 3500mm
ptz crawler robot for pipe
T his is a high-definition pipeline robot, it can adapt to the diameter of 300mm-1500mm, with bright lighting, with high-strength climbing ability, the maximum climbing ability is not less than 30 degrees. In-pipe robot body forward, backward, left and right turn when the body attitude real-time animation, the body bracket can be manually adjusted to meet the needs of different pipe diameter. Standard with 60 meters thick wear-resistant cable, you can screenshot, video, superimposed display date and time, construction information, cable length and other information. The IP68 crawler is waterproof, and the special-shaped anti-skid tire can be designed according to the forces in the pipeline to adapt to all kinds of wet and slippery scenes
Successful Project
Aircraft engine inspection
Wind capacitance cavity detection
Burr check of turbine die
PRODUCT SPECIFICATIONS
|
material quality
|
High-strength alloy material
|
|
Drive way
|
|
four wheel drive
|
|
mode of exercise
|
Four rounds of crawling
|
|
velocity
|
|
2-25 m / min level 3 speed regulation
|
|
power of motor
|
100W
|
|
Lens pixels
|
|
Two million
|
|
Lens rotation Angle
|
Infinite rotation at 360 degrees at constant speed
|
|
Lens flip Angle
|
|
190 Degrees
|
|
Lens material
|
alloy steel
|
|
Light power
|
|
100W
|
|
Front lens light source
|
4 main headlights, 2 lens auxiliary lights
|
|
Rear lens light source
|
|
Two
|
|
Light source regulation
|
Infinite dimming
|
|
classification of waterproof
|
|
IP68
|
|
size
|
522.5mm*212mm*198.5mm
|
|
Wire frame material
|
|
all-metal
|
|
weight
|
9.8KG
|
|
Cable length
|
|
60M
|
FAQ
Q1: What is the diameter and focal length of this camera?
A1: The diameter of the camera is 3mm, which can be customized. The focal length is 5mm-50mm
