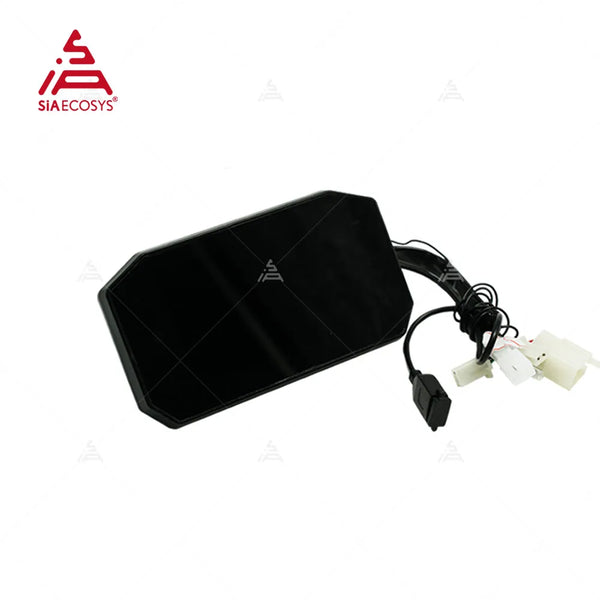

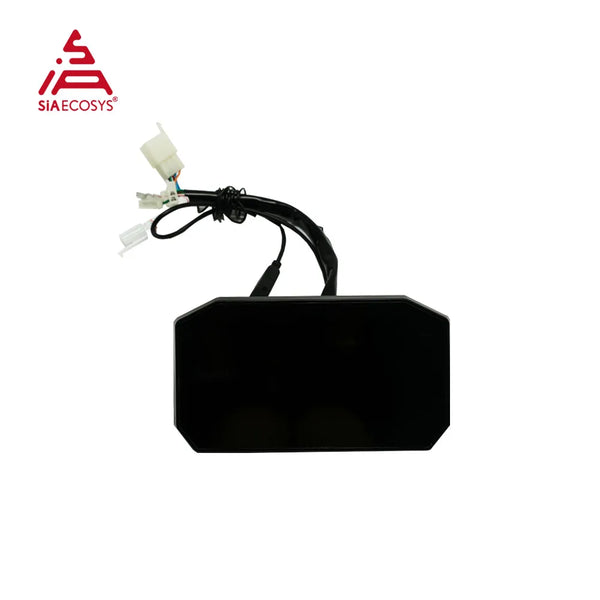

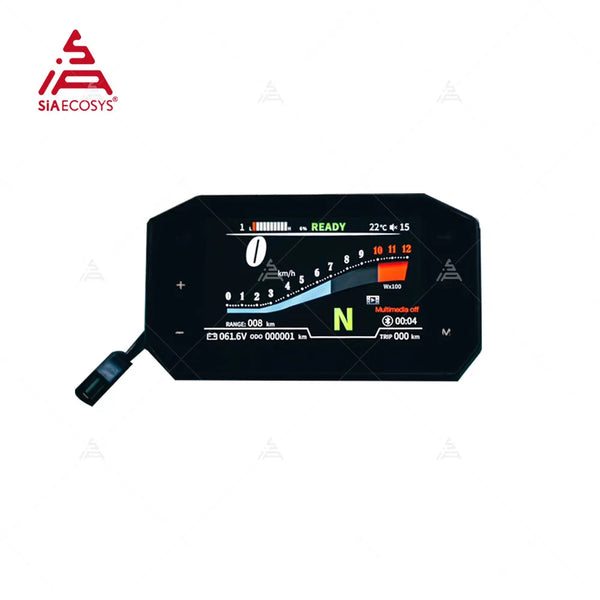

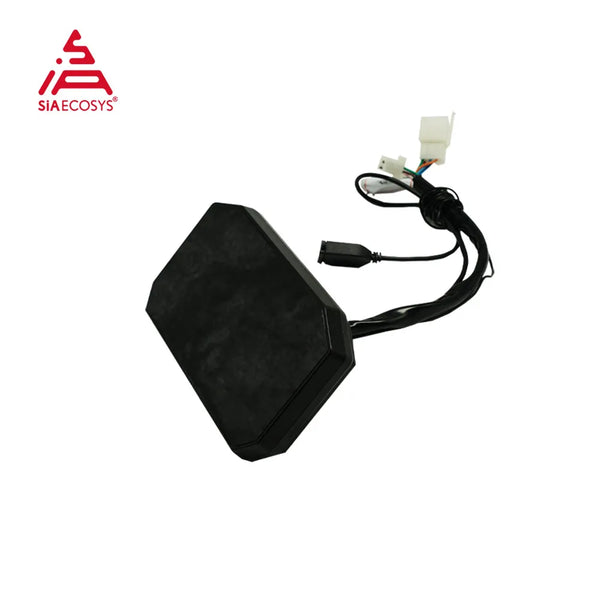

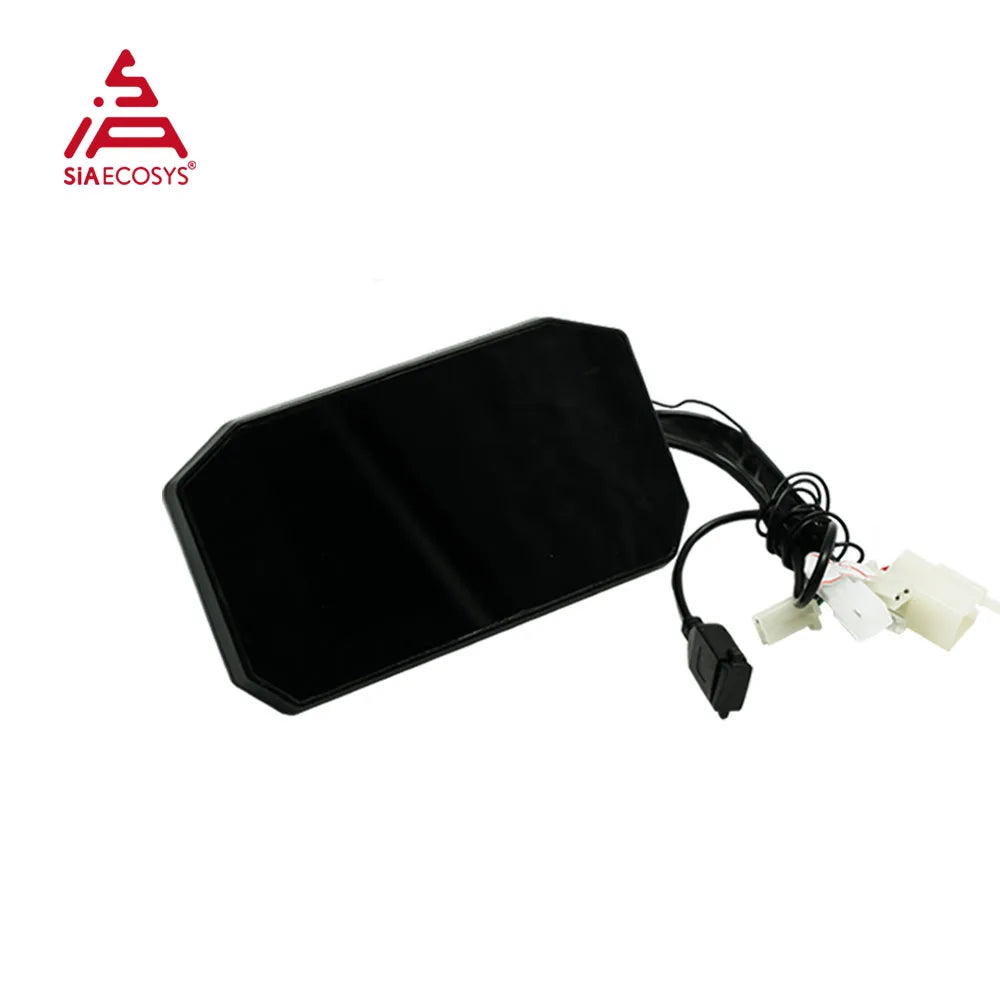

TFT Speedometer 5inch Display Clutch SCJ5066-1 CAN BUS LIN Speedometer for Electric Scooter Adjustable Display

NOTE:

1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).

2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

One set including below kits:

Combo1：

1 pcs5inch SCJ-5D Speedometer(adjustable)

Combo2：

1 pcs5inch SCJ-5D Speedometer(adjustable)

1 pcs horn

Product description：

1. Multimedia functions: FM radio playback, USB MP3 music and MP4 video playback.

2. Button touch function: Bluetooth connection function, Bluetooth music and Bluetooth caller ID. Bluetooth name: CJ-B.

3. The speedometer has a universal display for lithium batteries and lead-acid batteries, and a remaining mileage is displayed by estimation.

4. Amplifier output 5W/4 ohm*2 channels, pixels: 800*480, waterproof grade: IP65, working temperature range: -30°-80°, DC12-120V.

5. The speedometer supports setting: battery power, speed adjustment, Chinese and English language switching, and checking software version number.

6. USB software upgrade function.

7. Support CAN and LIN communication. (Will only work with Fardriver controller from SiAECOSYS)

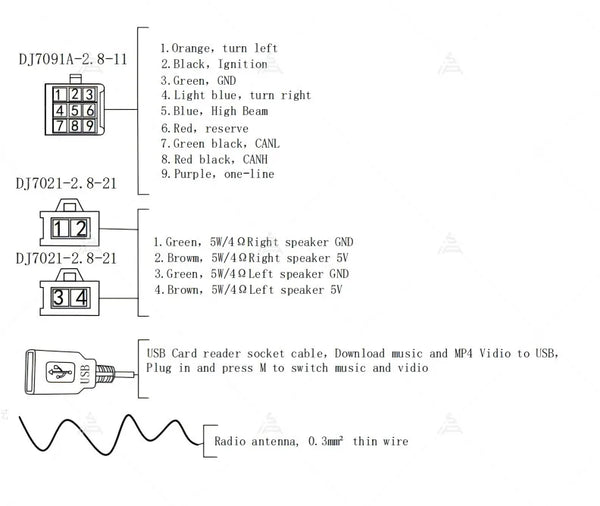

Wiring definition:
