TFT display 48V-72v 60A 80A 3000w 5000w electric bike controller system with Controller Bag
There are T6 TFT display and SW900 LCD display for choose.

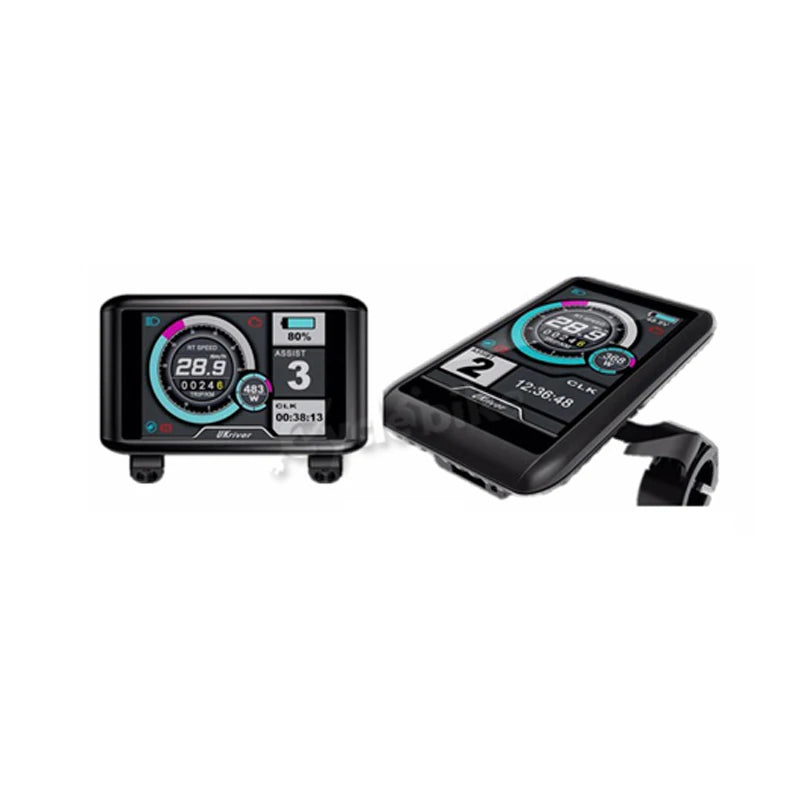

1) T6 TFT display
2) SW900 display
T6 TFT display Functions :
1) 5 levers Speed, speed, distance, wattage, battery indicator, time, wheel size adjust, battery voltage adjust and so on .
2) 3.2" high contrast color screen shows battery power level, time, speed, mileage, gear, input power. Components error checking and report.

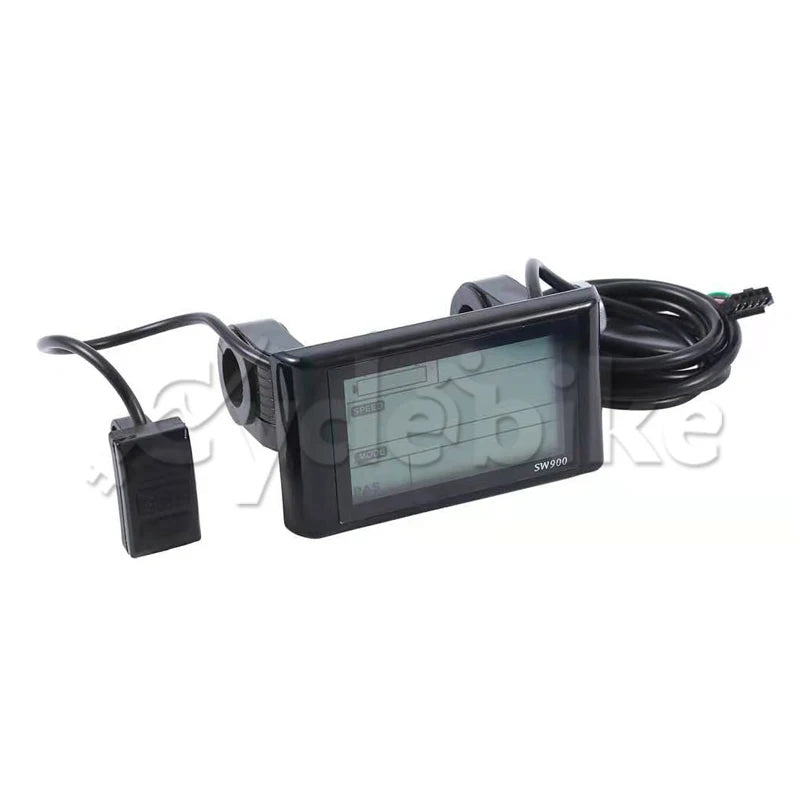

SW900 LCD display
5 levers Speed, speed, distance, wattage, battery indicator, time, wheel size adjust, battery voltage adjust and so on .
48V-72V 5000W Electric Bike 80Amp Smart Controller Package :
1. Torque Arm Safe for Customer..
2. 48V-72V 80Amp smart controller, 86V max voltage, 200A phase current
3. Controller bag can putting controller with cables inside.
4. 1 pair of High Quality Aluminum Alloy Brake Levers.
5. T6 TFT display or SW900 display
6. Full Twist Throttle.
7. PAS 8 Magnets High Quality Pedal Assistant Sensor .
8. GOOD PACKAGE FOR EXPRESS .
Torque Arm
This is the most Important for safety. Torque arms are used to prevent axle rotation in hub motors. When a hub motor is powered up running, for all the torque that the motor generates spinning a wheel forwards, there is an equal and opposite torque on the axle causing it to rotate backwards.

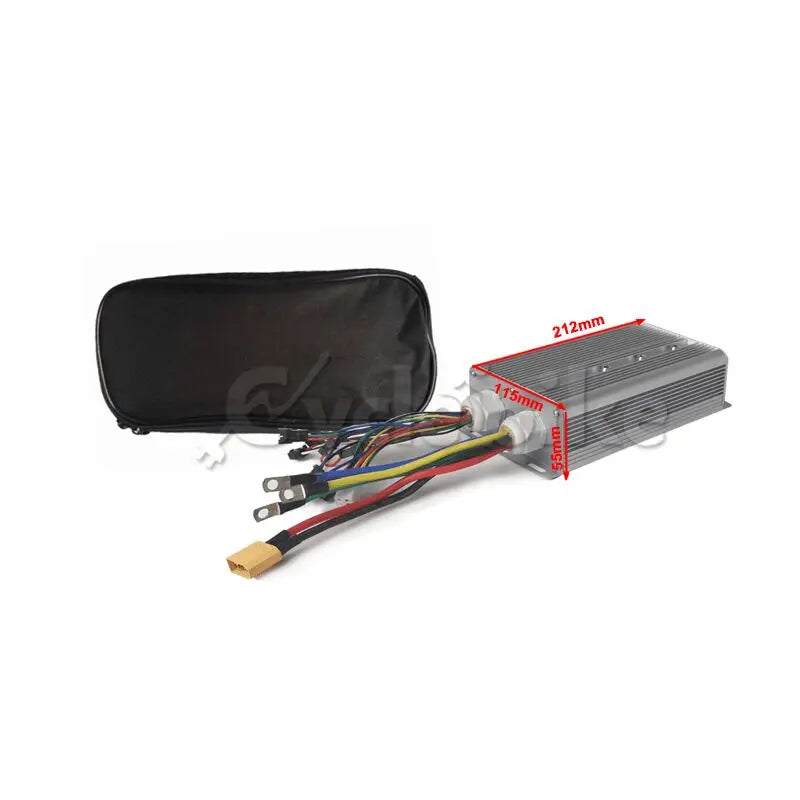

Smart Controller with Controller Bag
1) Spec. : 48v-72 80Amp. Max working Voltage 86V. 200A phase current
2) Size: L212mm*W115mm*H55mm
3) Functions: Low Brake, Display, Throttle, Curise, Temperature sensor, lock, 25KPH limited, Pedal Assist Sesor.
With multiple protection features such as stalled, over-current, over-temperature,
over-voltage, under-voltage, speed, lack of phase and so on.
4) Optional Function: Front Light With Horn, Regen.Braking
Brake Lever, Twist Throttle, PAS
1) Aluminum Alloy Material, electric brake & Mechanical braking.
2) Twist Throttle with Grips.
3) 8 magnets 1:1 PAS
