TFT Display 48v -72v 5000w electric bike kit 5kw e bike conversion kit with 16" 17" 18" 19" 24" 26"

Sale price $890.68 Regular price $862.88

TFT Display 48v -72v 5000w electric bike kit 5kw e bike conversion kit with 16" 17" 18" 19" 24" 26"



Note: We will use the UKC1 TFT display instead of the 750C display for all orders

UKC1 TFT Color Display With QS V3 Superpower motor Ncyclebike 48v -72v 5000w electric bike kit 5kw e bike conversion kit

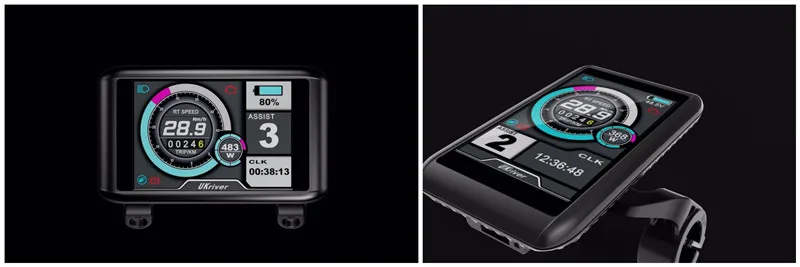

UKC1 TFT display Functions : 5 levers Speed, speed, distance, wattage, battery indicator, time, wheel size adjust, battery voltage adjust and so on .

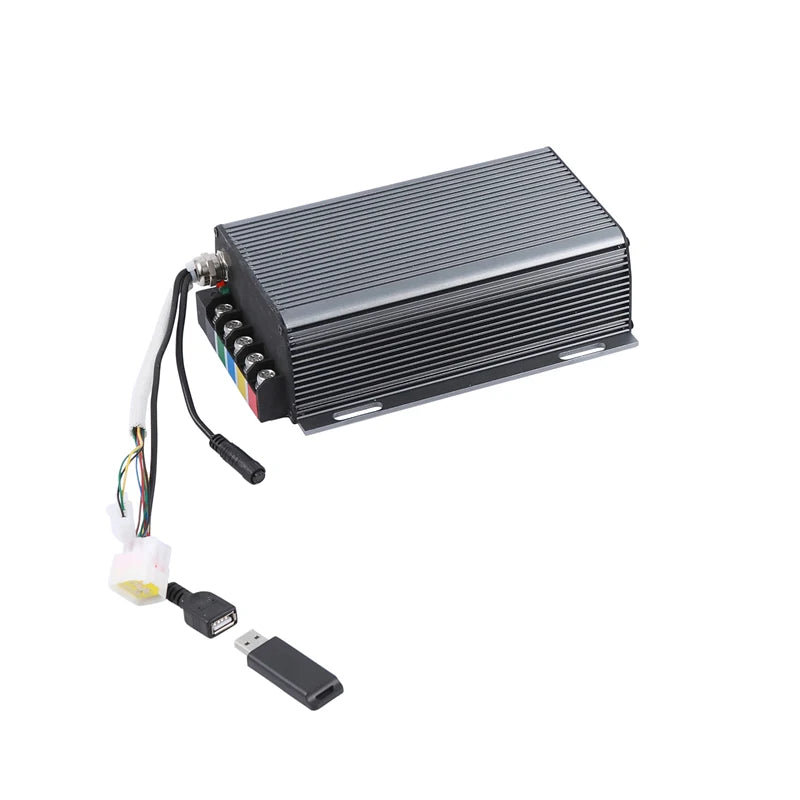

Sabvoton Controller with Bluetooth Adapter Functions :  Programmable through ISO or Android , 100% stable, E-brake current setting, Regen.Braking Current Setting, DC current setting, Voltage Setting, Temperature Protection Setting and So On.   Please view the Video For more details :

https://youtu.be/3_ol3JMGARs

https://youtu.be/q3lARdkeNaE

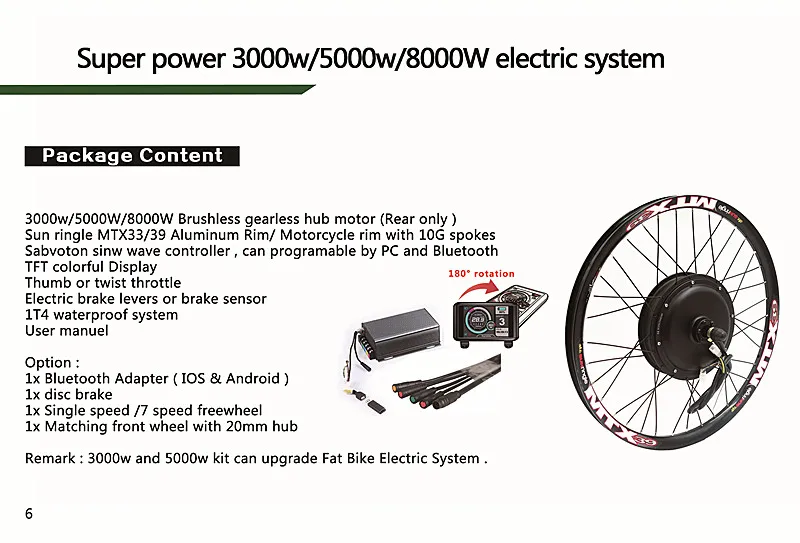

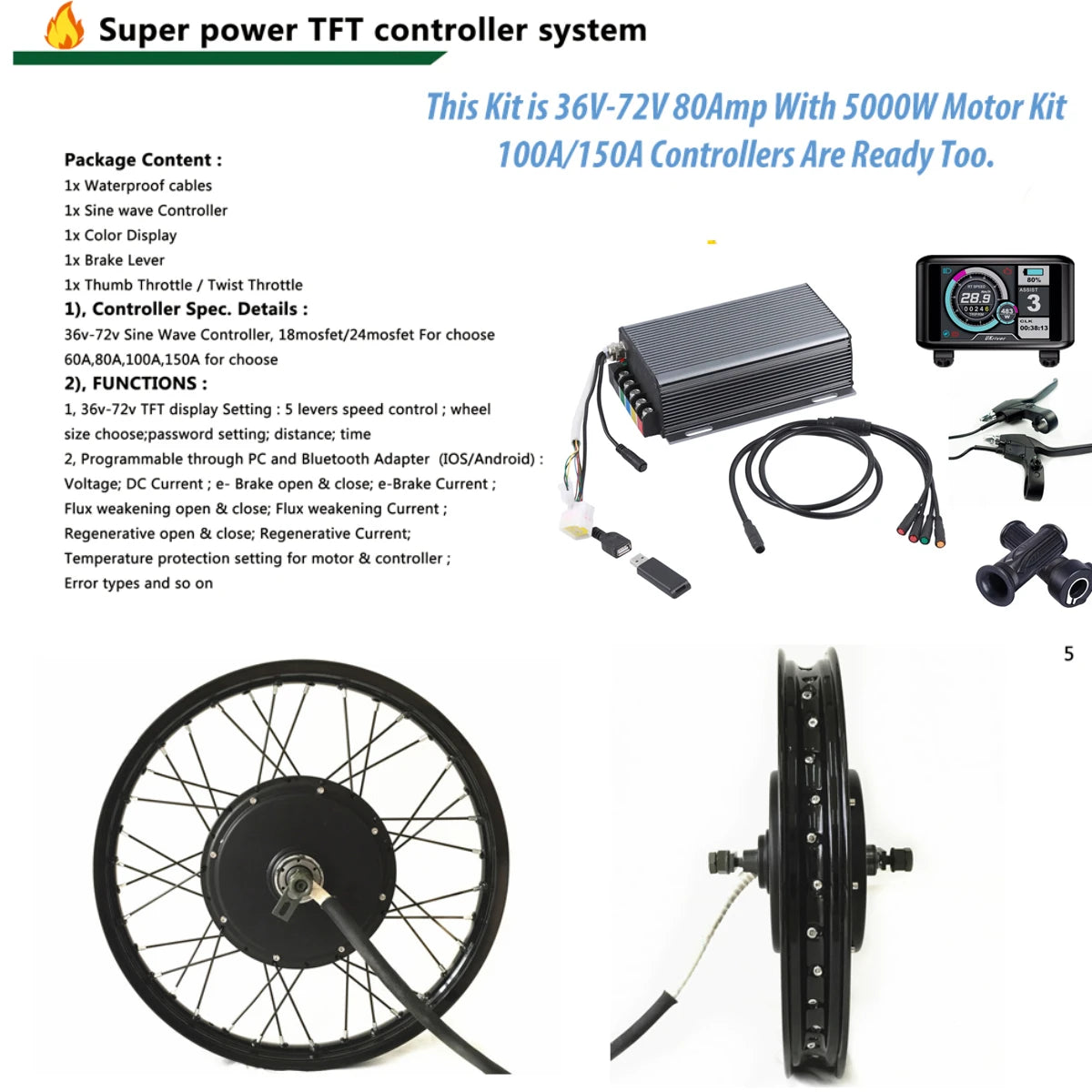

PACKING LIST for 5000w electric bike kit

CE Approved Superpower Ncyclebike 48v -72v 5000w e bike conversion kit Package Content :

1x 36v-72v QS V3 5000W Motor 50H magnet, 3.5T*38 windings, 16 Poles

1x 36v-72v 80Amp sabvoton Controller, 18 mosfet 4110 .

1x 36v-72v UKC1 TFT Color Display

1x Bluetooth Adapter

1x waterproof cables

1x thumb throttle or twist throttle

1x brake levers or brake sensors for choose.


We have the motorcycle and bicycle rims for choose.   The MTX is the bicycle rim.
MTX RIM Details:
1) MTX 24inch, MTX 26inch, MTX 29inch wheels for choose.
2) It is for disc brake system ONLY.
3) It is double wall aluminum alloy material, good quality.
4) It is good for various tires (1.95, 2.125, 2.1, 2.2, 2.3, 2.5, 3.0).

Motorcycle Rim Details
1) 17inch 18inch 19inch 21inch aluminum alloy rim for choose.
2) It is aluminum alloy material, good quality.
3) It is good for various tires 2.5 2.75 or 3.0

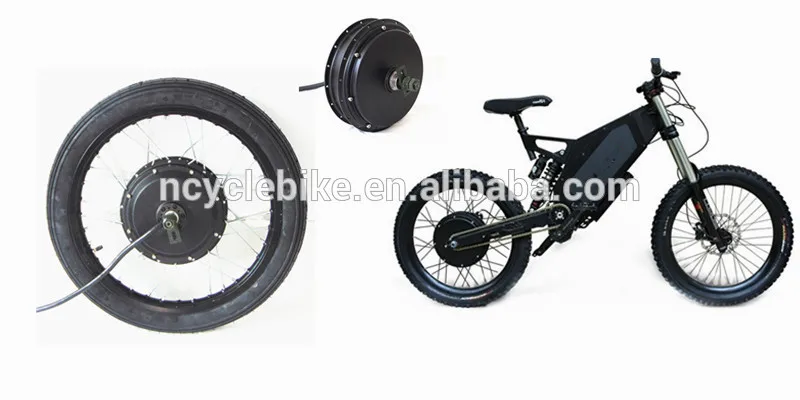

PRODUCT PICTURES




PRODUCT SPECIFICATION


Superpower Ncyclebike QS V3 48v -72v 5000w electric bike kit 5kw ebike conversion kit Specifications:

  • Electric bike hub motor kit 5000w speed max : 80-100km/

  • 36V 72v 80A sine wave programmable controller sabvoton

  • Bluetooth Adapter

  • UKC1 TFT color display

  • Waterproof cables

  • Twist throttle or thumb throttle for choose

  • five speed switch

  • 17" 18" 19" motorcycle rim and Sun ringle MTX33 bicycle rim for choosing

  • net weight : 18kgs for all.

  • Two years warranty

The Waterproof connections of controller, throttle, UKC1 TFT color display and 5kw Motor



Optional parts : 72v panasonic NCR18650PF 2900mah cell lithium battery for Superpower Ncyclebike 48v -72v 5000w e bike conversion kit




PRODUCT INSTALLATION on The Vector Bike, Enduro E bike and so on .

Superpower Ncyclebike 48v -72v 5000w e bike conversion kitwith electric bike lithium battery





PRODUCT PACKING


Superpower Ncyclebike 48v -72v 5000w e bike conversion kitPacking :

Material : carton with foam for Superpower Ncyclebike 48v -72v 5000w e bike conversion kit

Package size :
17" 18" 24" : 55cm x 55cm x 24cm
19" 26" : 60cm x 60cm x 24cm
