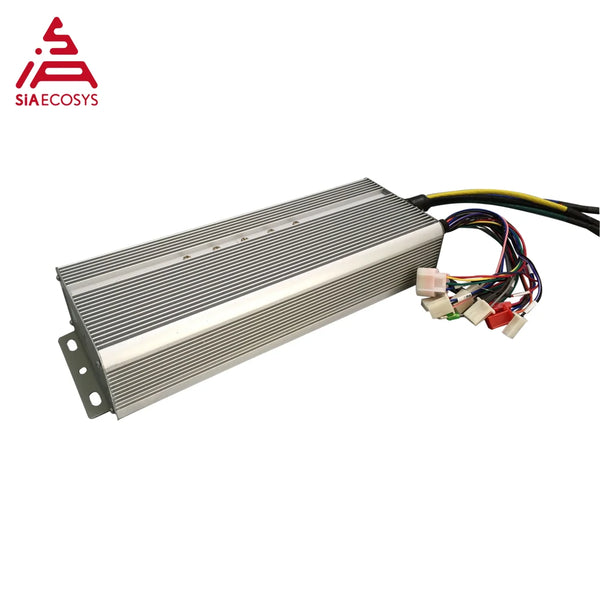

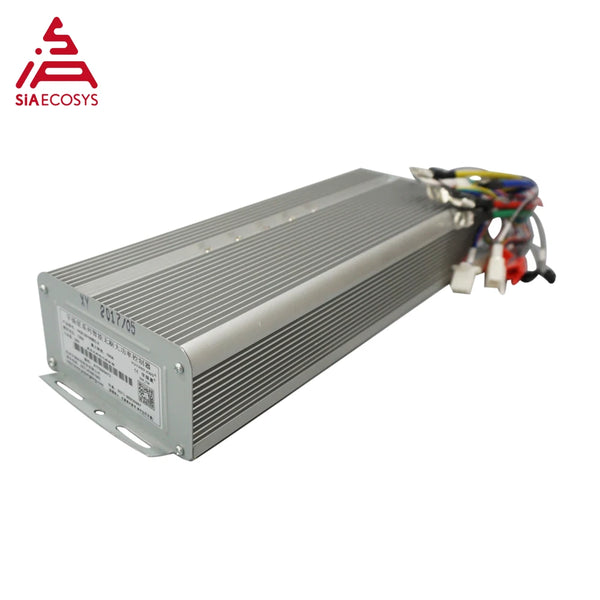

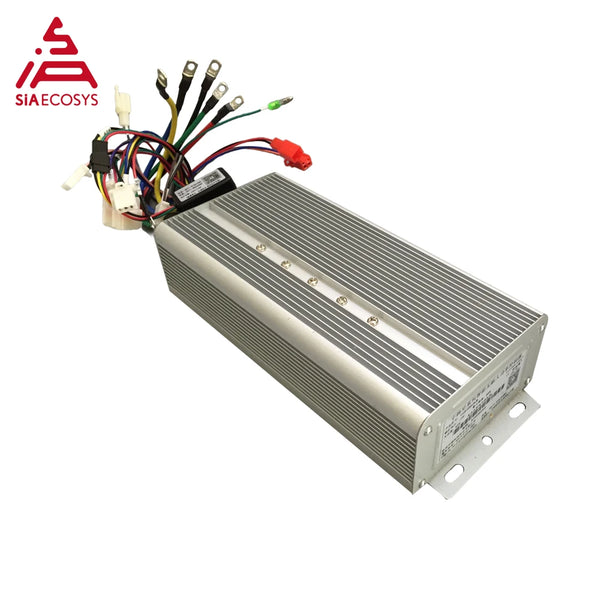

Yuyang King YKZ7280JA 1000-1500w Brushless Motor Controller with Bluetooth adapter
It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 1000-1500W.
Key Features
1). Very easy to connect
2). Can match with almost brushless DC motor
3). Soft start can be adjusted
4). Programmable by bluetooth
1. 1pc* YKZ7280JA Controller
2. 1pc* Bluetooth
General Spec
1. Power supply: 48~72V, Limitied current: 80A, Max phase current: 230A
2. Product Size: 280mmx117mmx60mm
3. Net Weight: 1.66kg
4. Testing way: Hall sensor

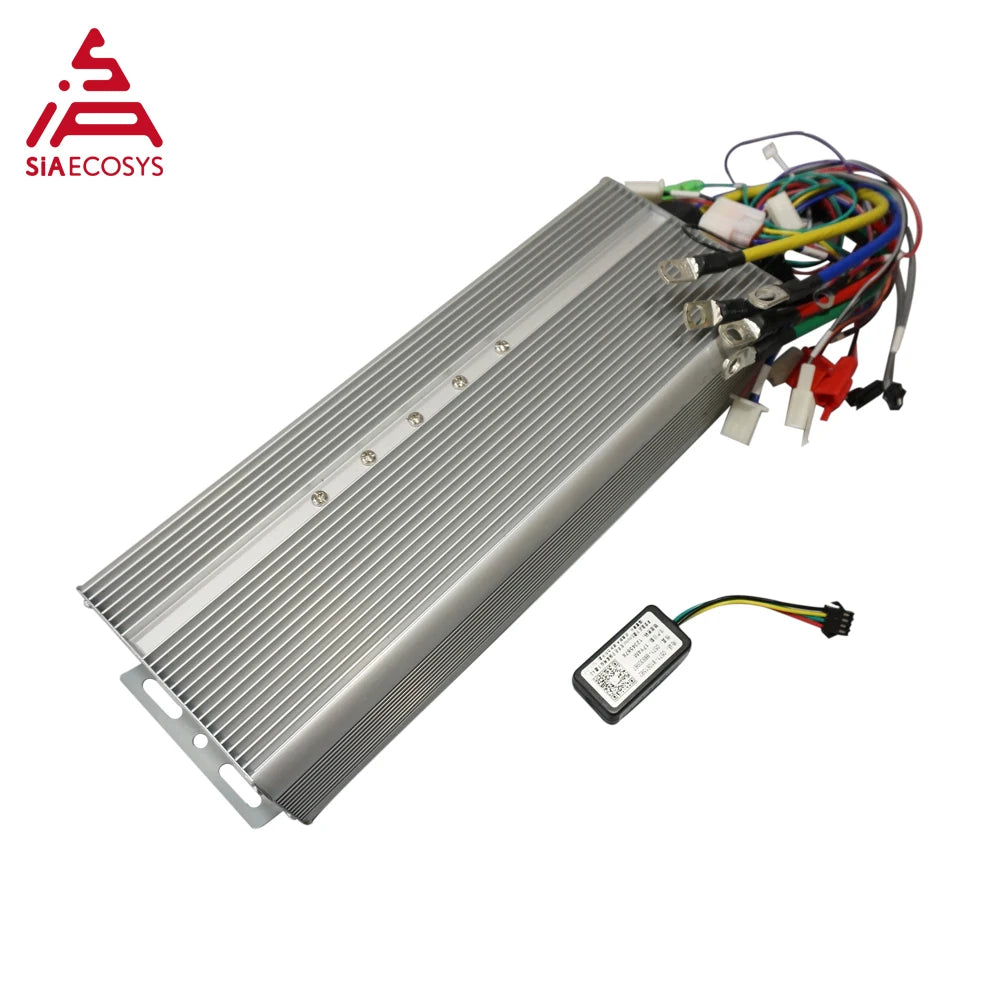

5. Including: 1pcs controller + 1pcs Function harness+1pcs Bluetooth Adapter
P.S.: For Software & Manual, please contact with us freely.
It support Bluetooth Function with Bluetooth Adapter.

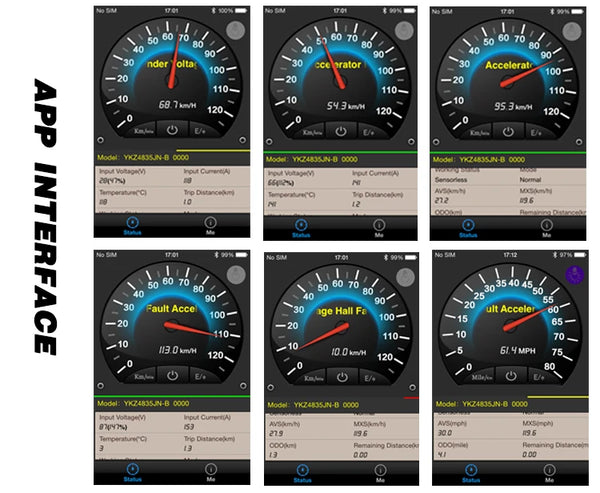

Yuyang King APP Interface.
Here are the clear and easy adjustment APP interface.

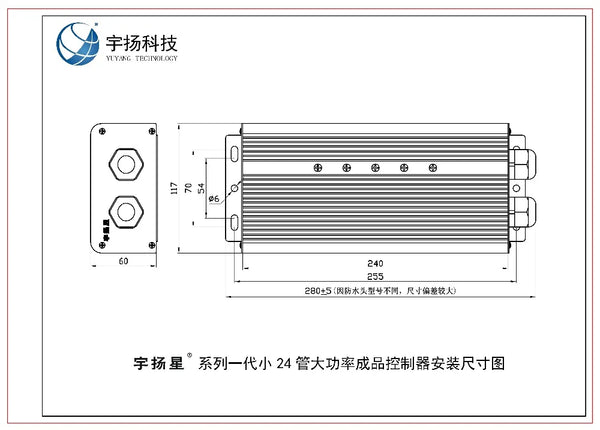

Siaecosys YKZ7280JA Controller dimension drawing
Here is drawing of our normal YKZ7280JA controller, 280mmx117mmx60mm

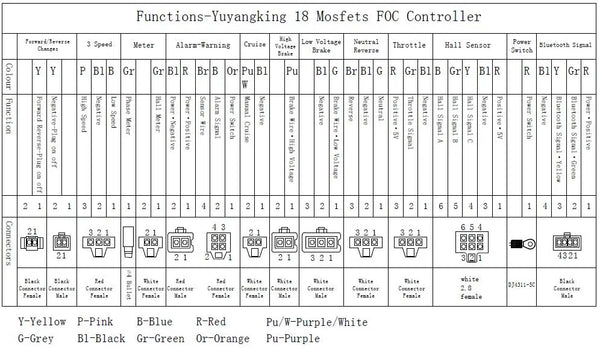

Pin Definition
Pls. contact with sales first if you don't know how to connect the controller with motor and other parts.
Questions before order
1). If you want to buy the controller separately, please advise us the parameters of your matching motor?
Such as Motor Voltage, Wattage, Speed...
2). If you need any other special functions for this controller, please feel free to contact to us. Thank you!
