SiAECOSYS SIA155-48 18kW Peak 72V100kph PMSM Hairpin Motor Kits with SIA72400 Controller for High Quality Assurance New Hairpin Motor Similar Technology with Tesla

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

e.g. Electric Dirt Bike

Vehicle weight: approx 90kg+100kg

Vehicle tire: 90/90-19

Battery: 72V60Ah

Gear ratio: 1:8

Speed: 72V100KPH

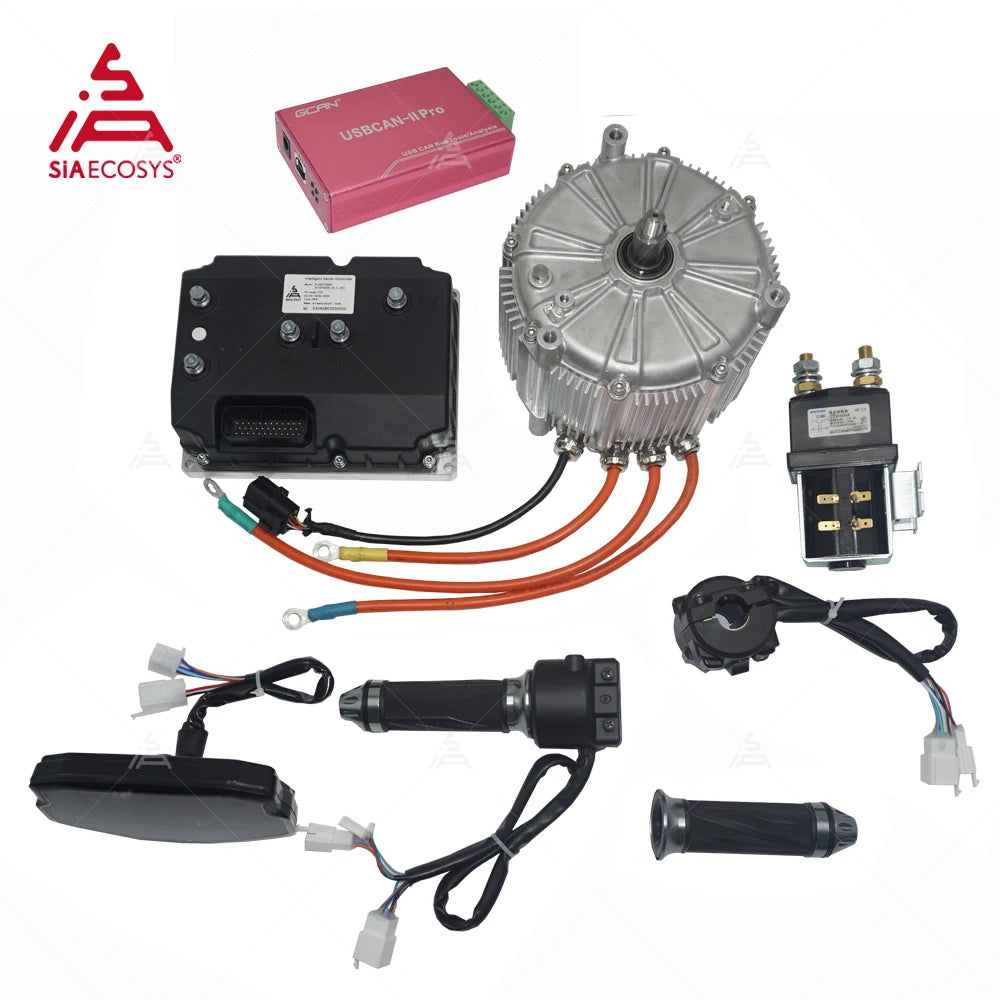

One set including below kits

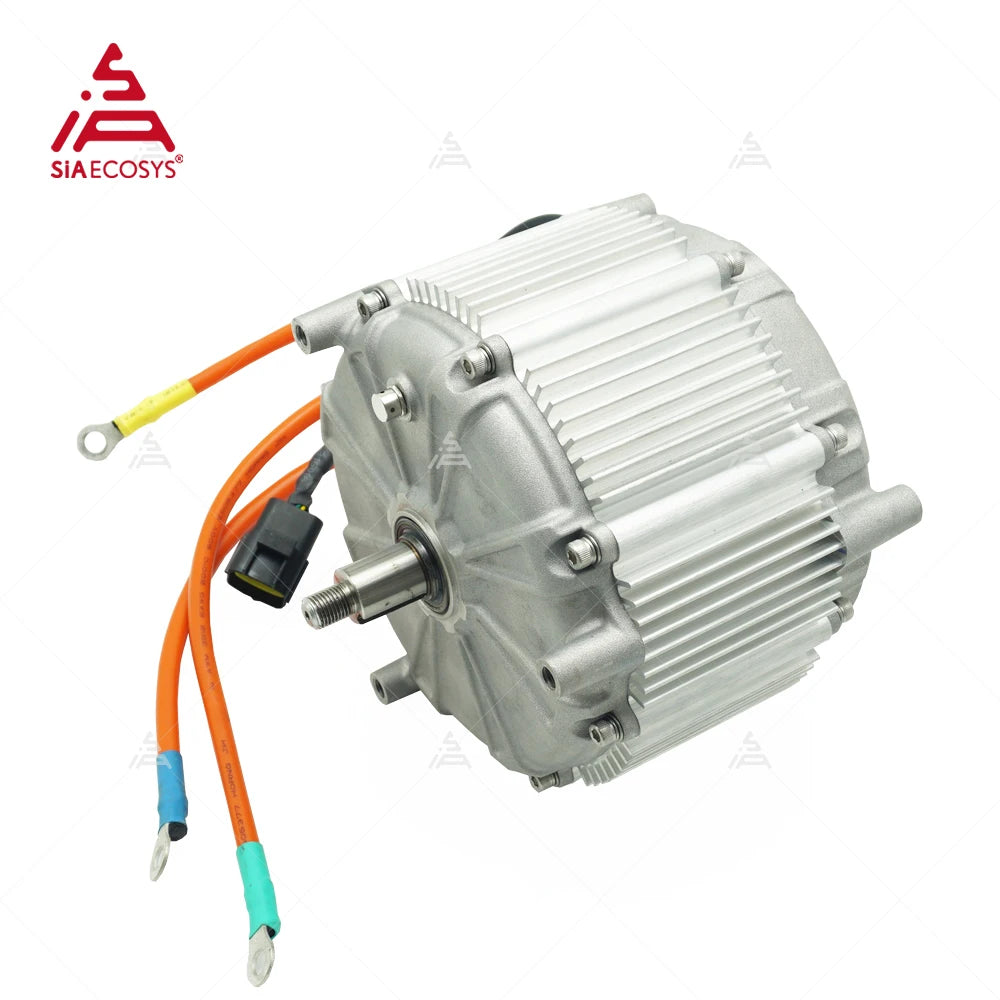

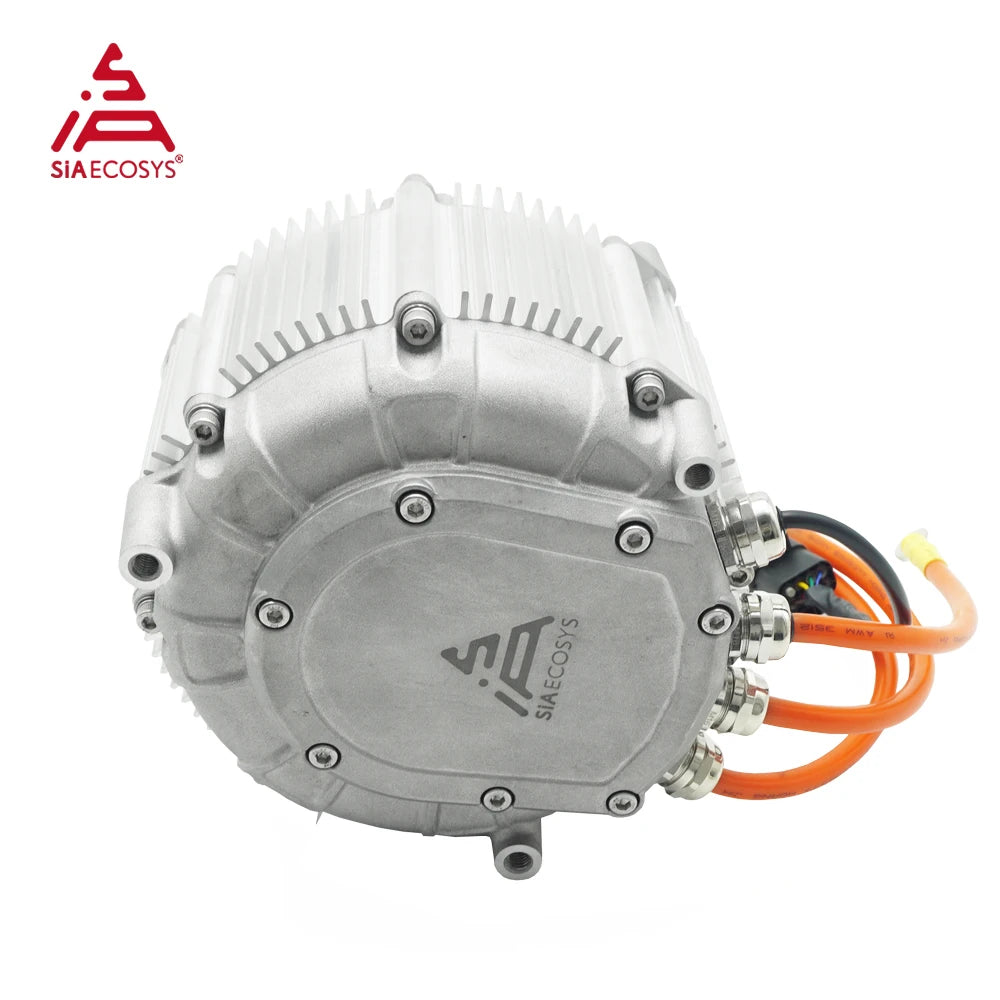

1. 1pc*SIA155-48 PMSM Hairpin Motor

2. 1pc*SIA72400 Controller

3. 1pc*DKD LCD Speedometer

4. 1pc*Z6 throttle with combination switch

5. 1pc*72V400A Main Contactor

6. 1pc*CAN Box

Key Features

Similar Technology with Tesla

Automated Production, High Quality Assurance

Light weight and small dimension compare to hub motor

High performance benefit from flux weakening

High efficiency during climbing, and better acceleration

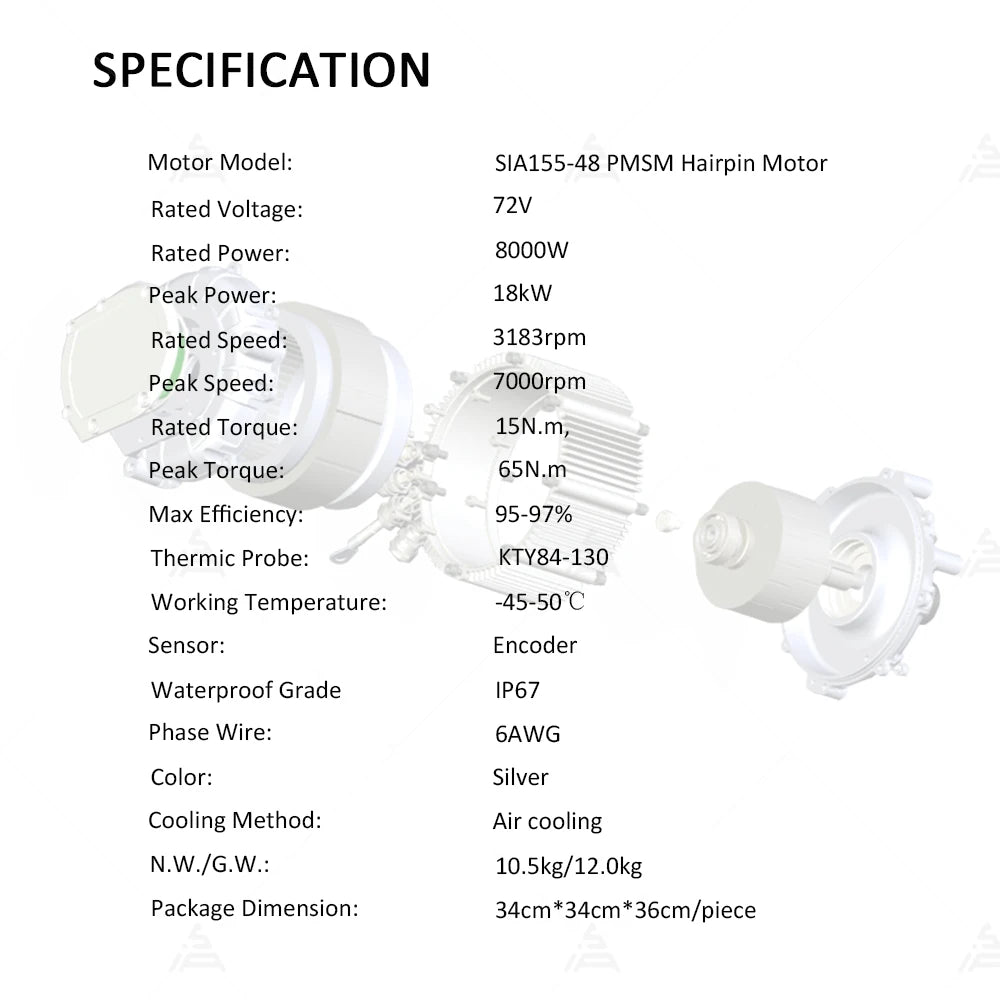

Motor Spec

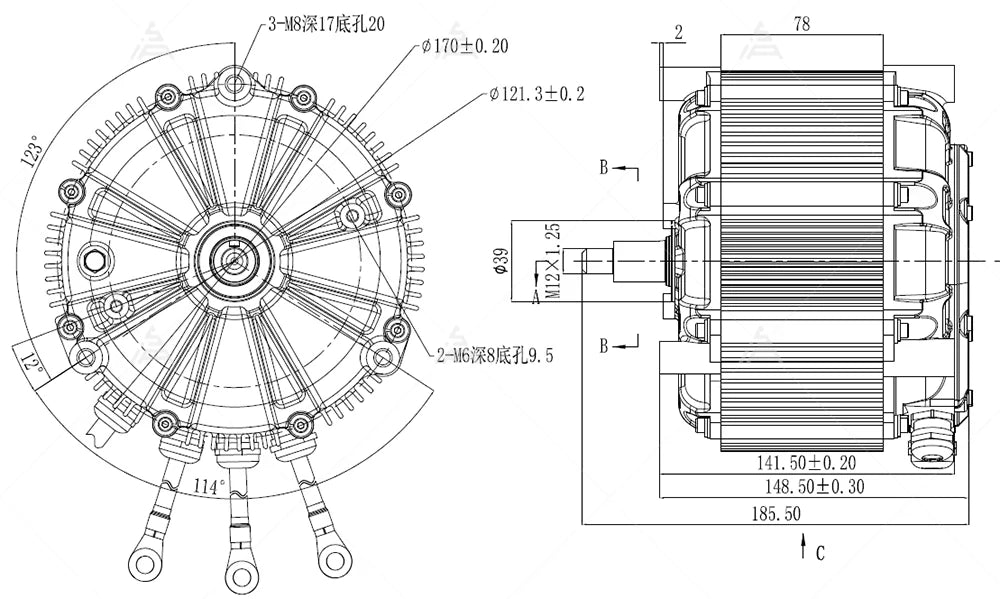

Motor Drawing

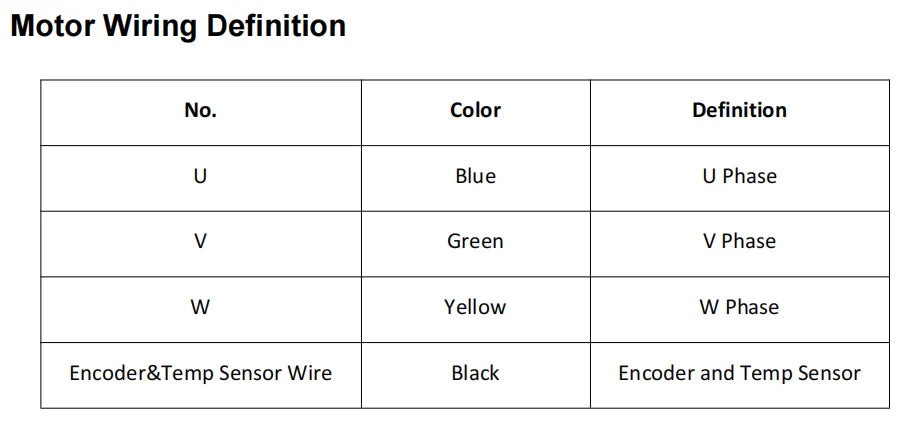

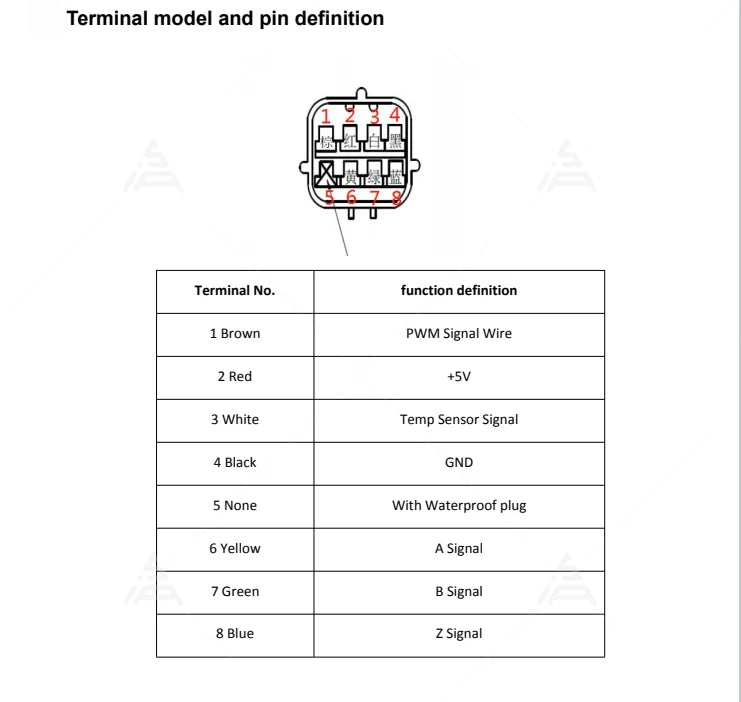

Motor Wiring

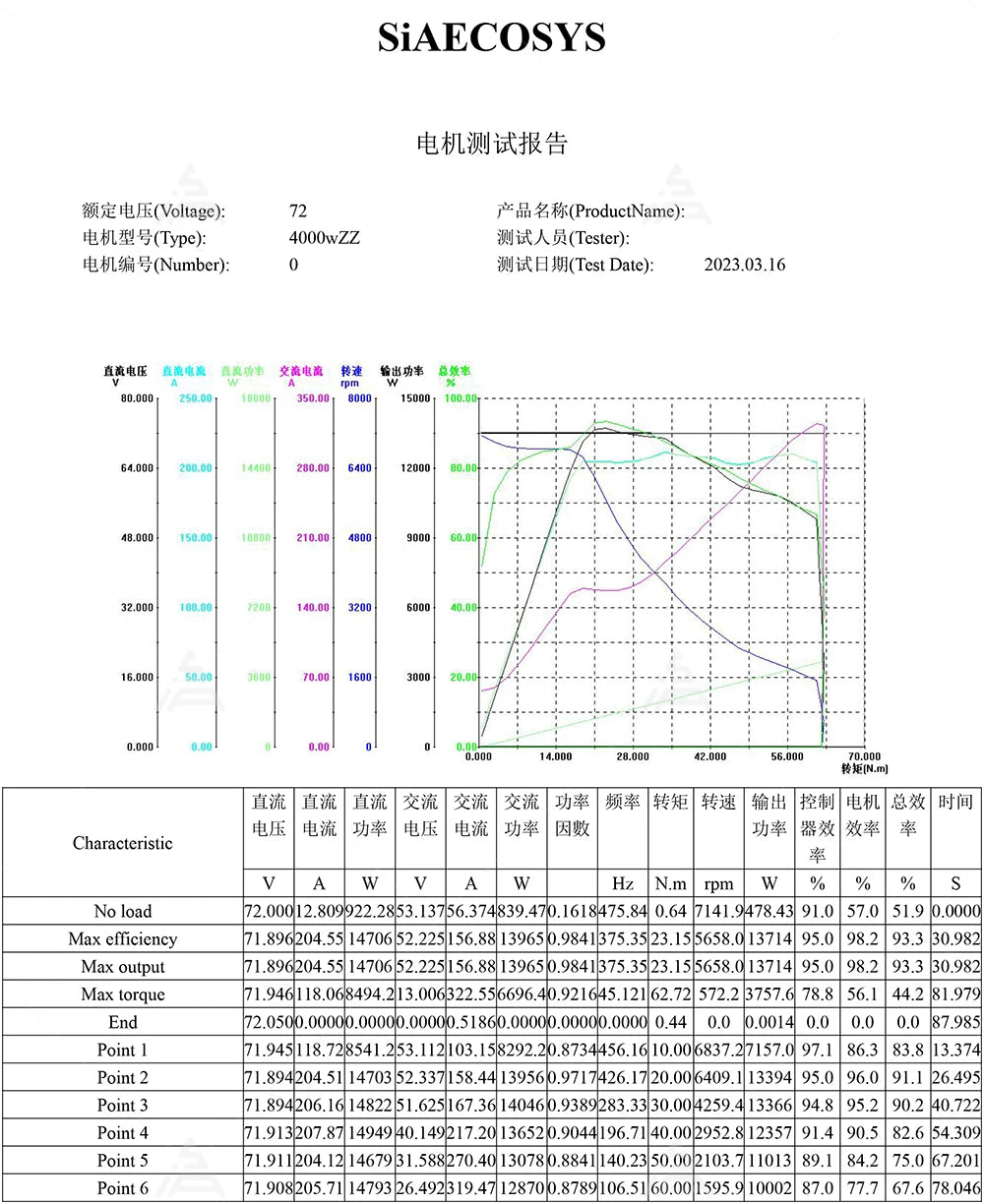

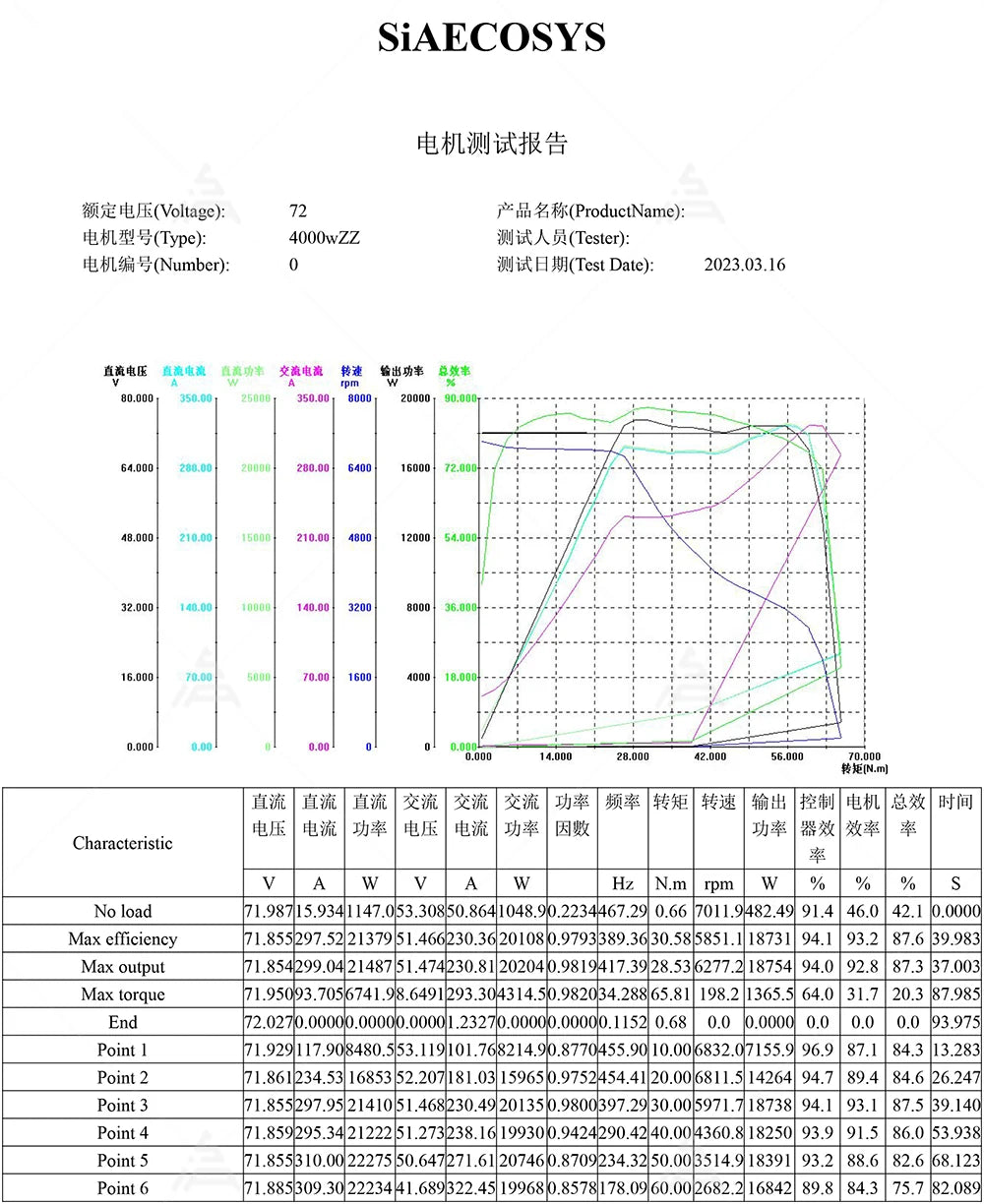

Test Report

200A Line Current

300A Line Current

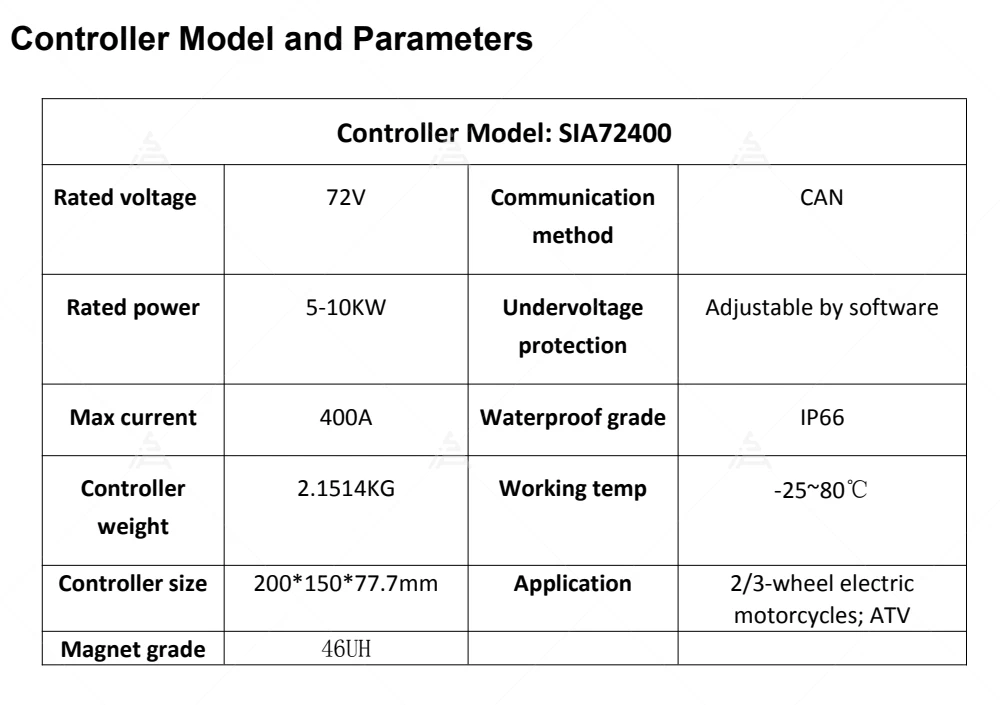

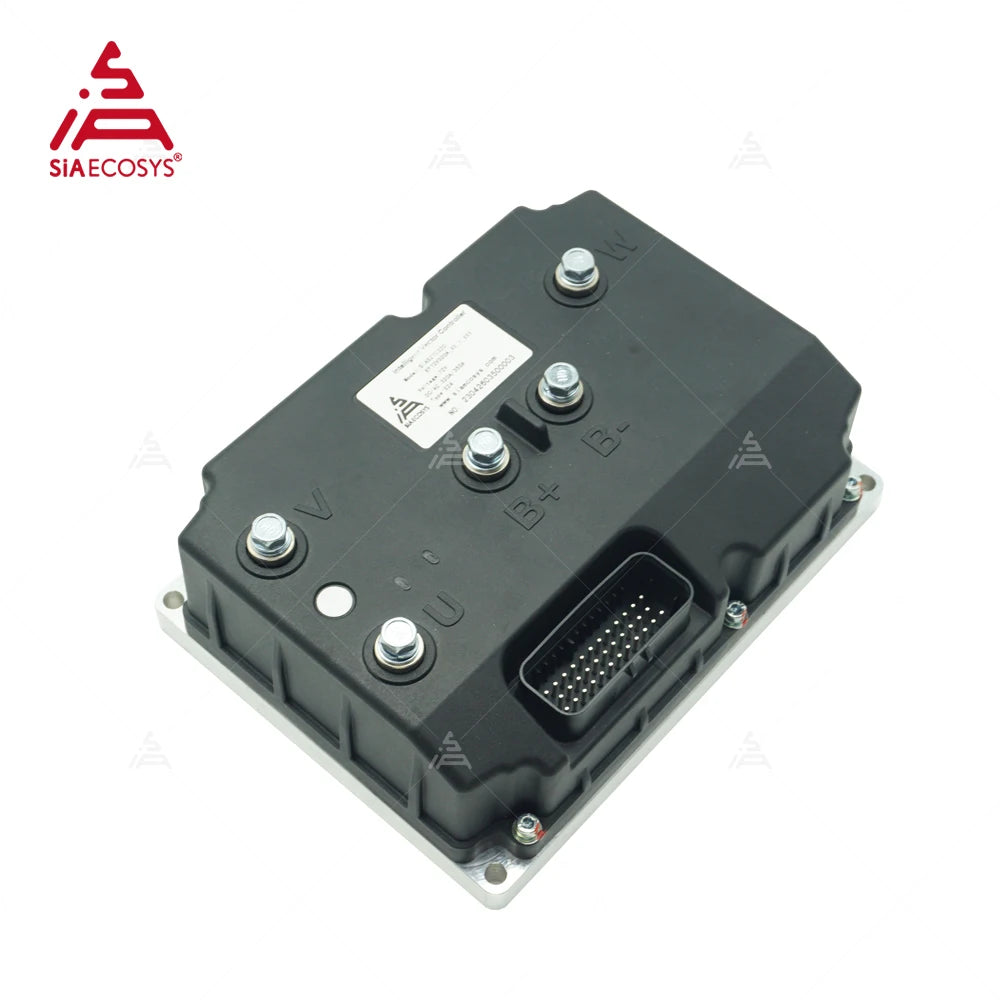

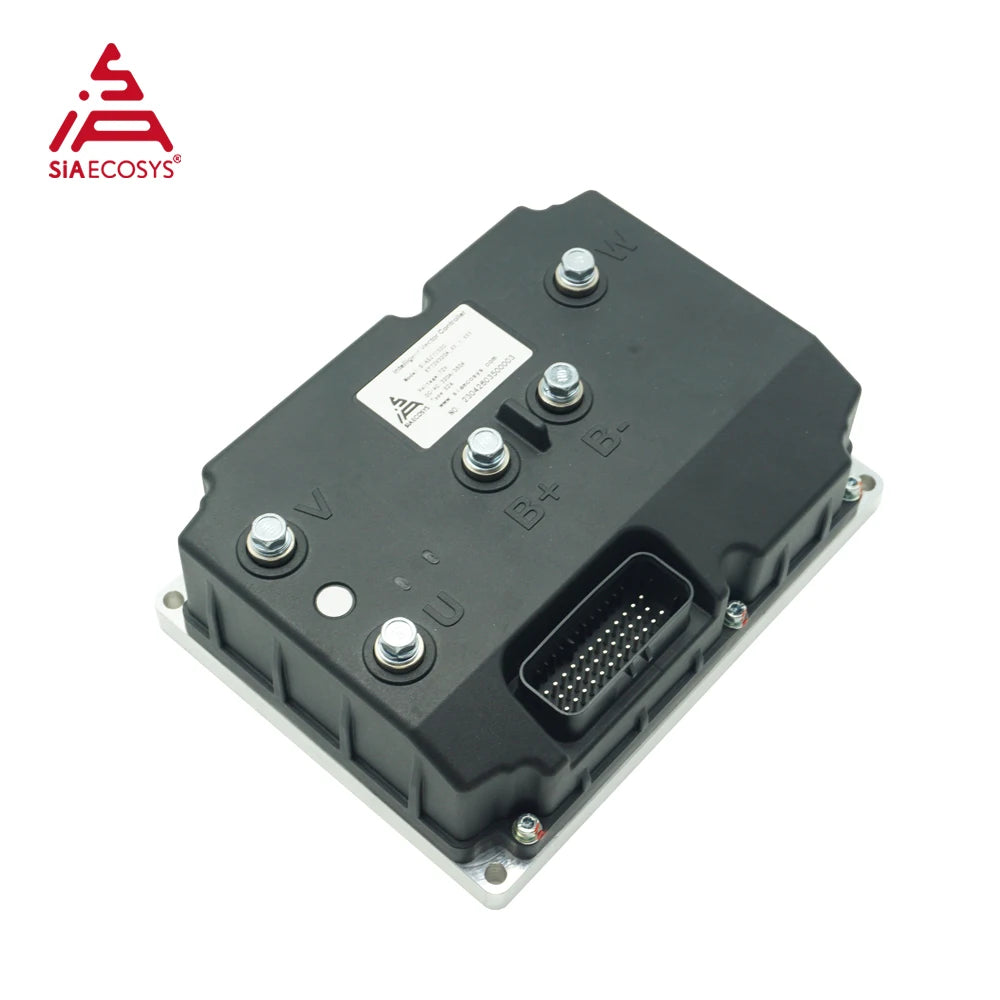

Controller Spec

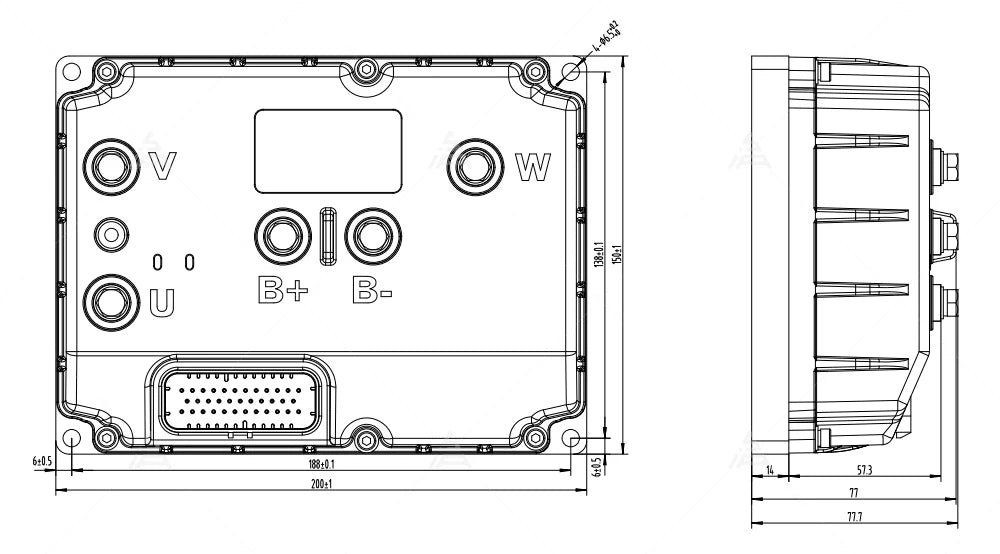

Controller Drawing

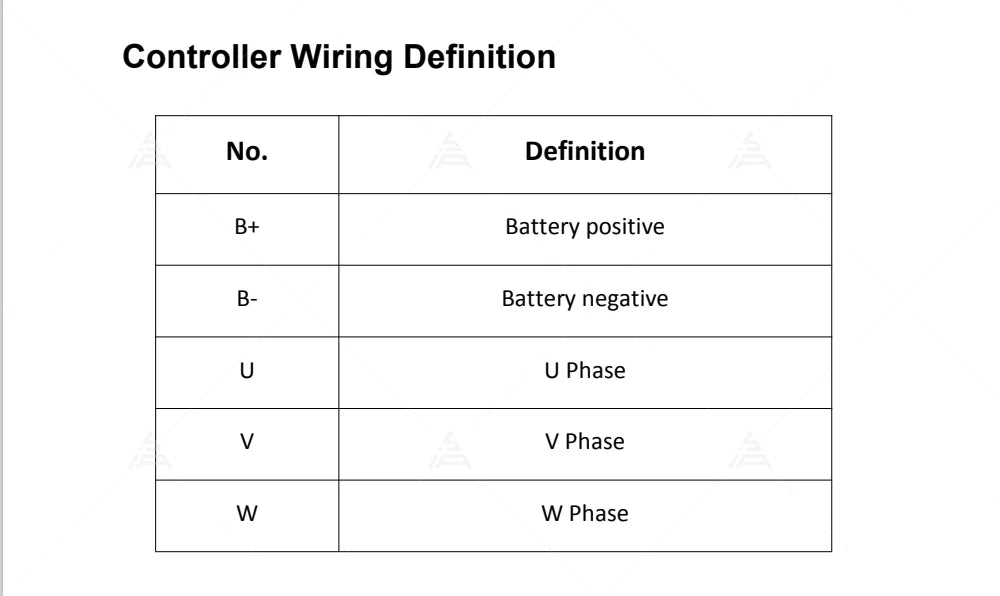

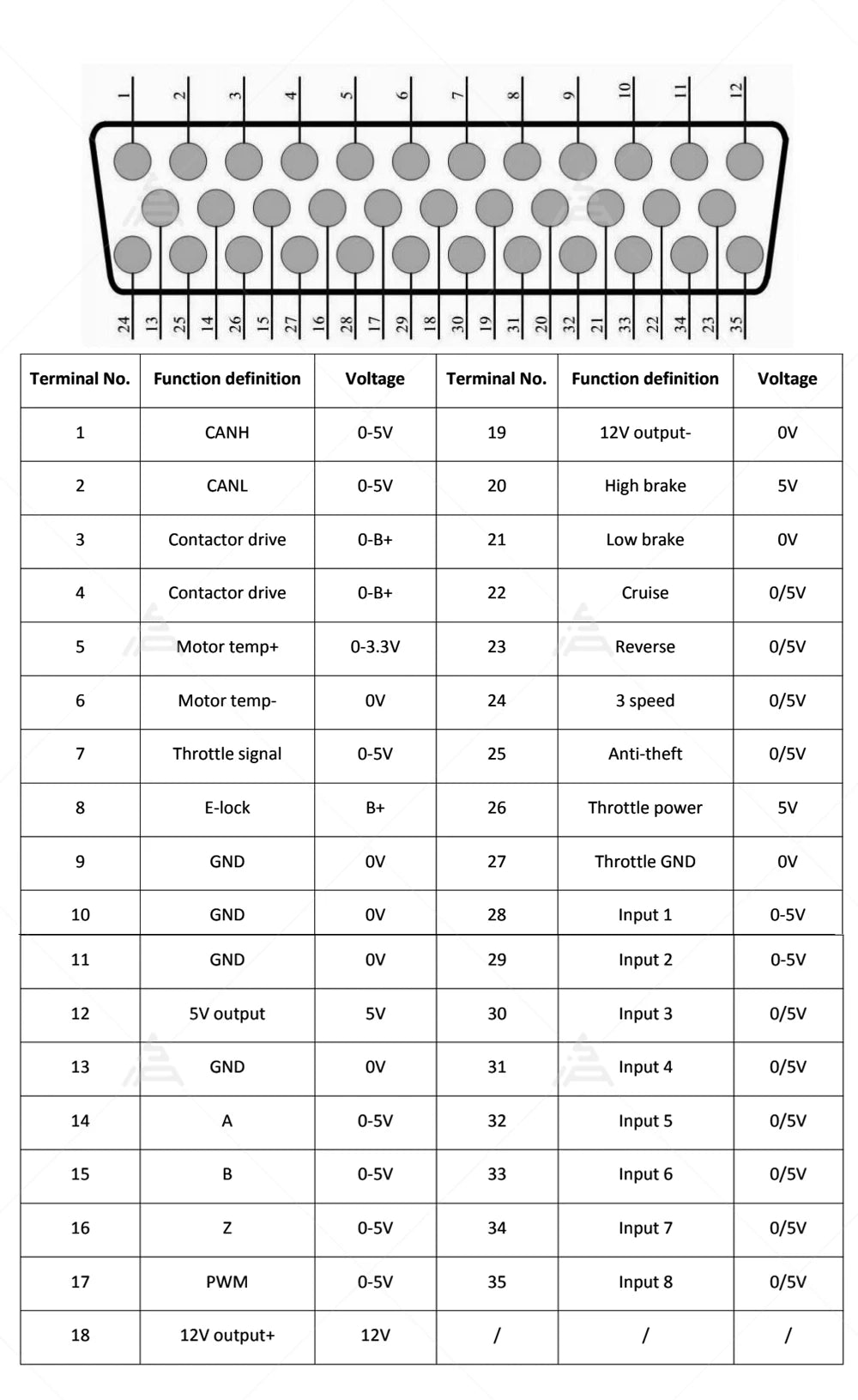

Controller Wiring Definition

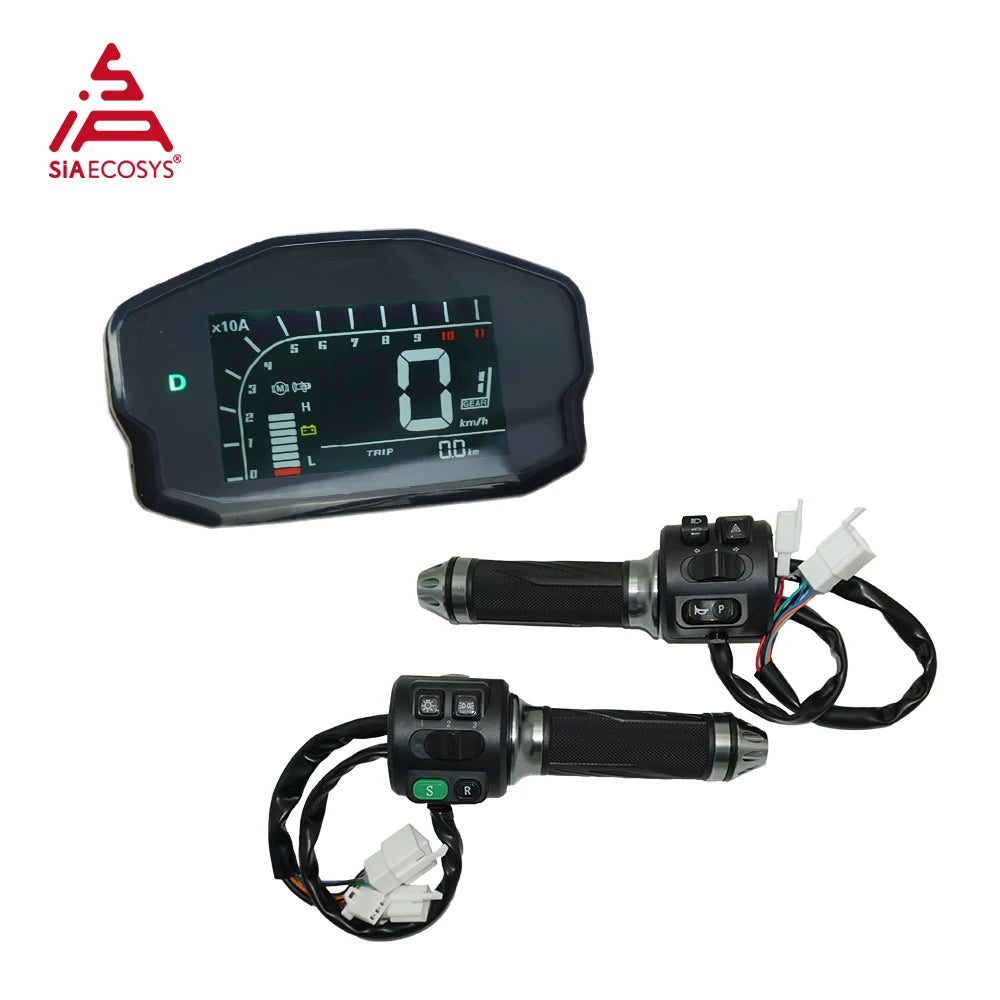

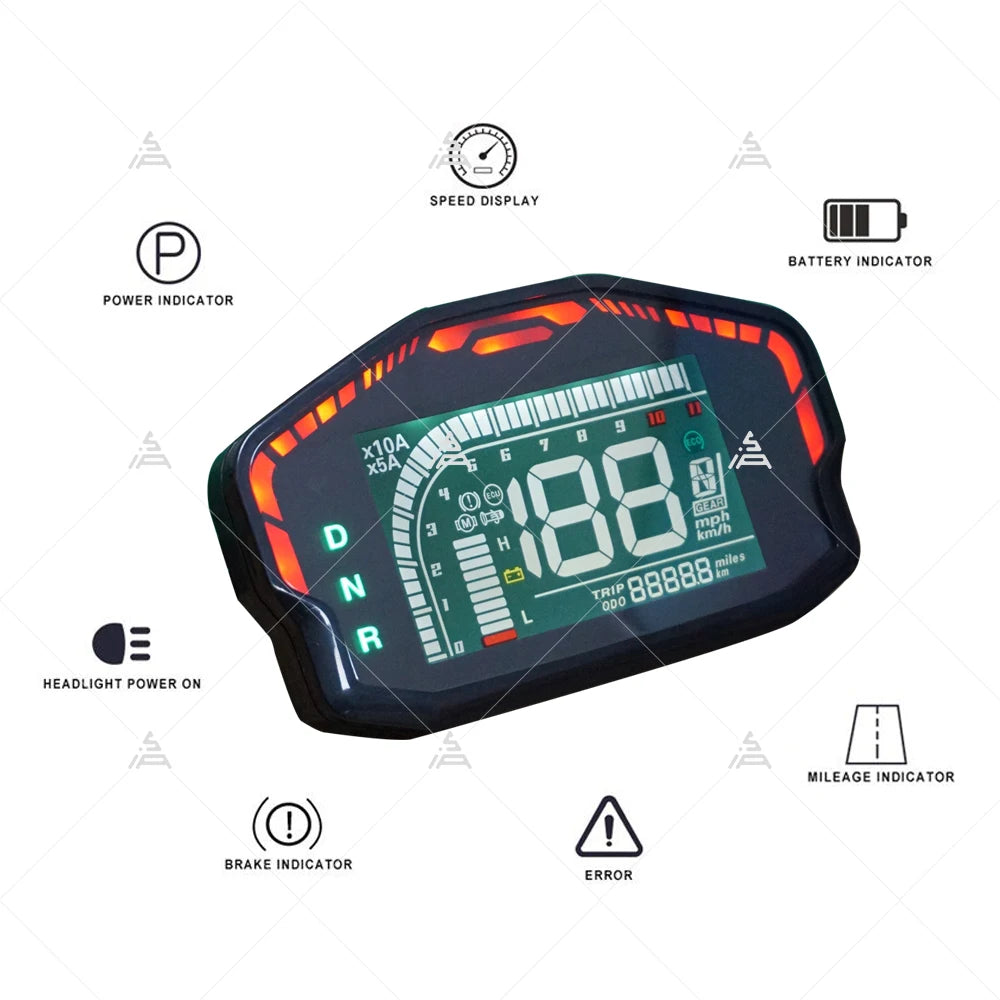

DKD LCD Speedometer

It display D, N, R, P, 1, 2, 3, S gear, and battery current X10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

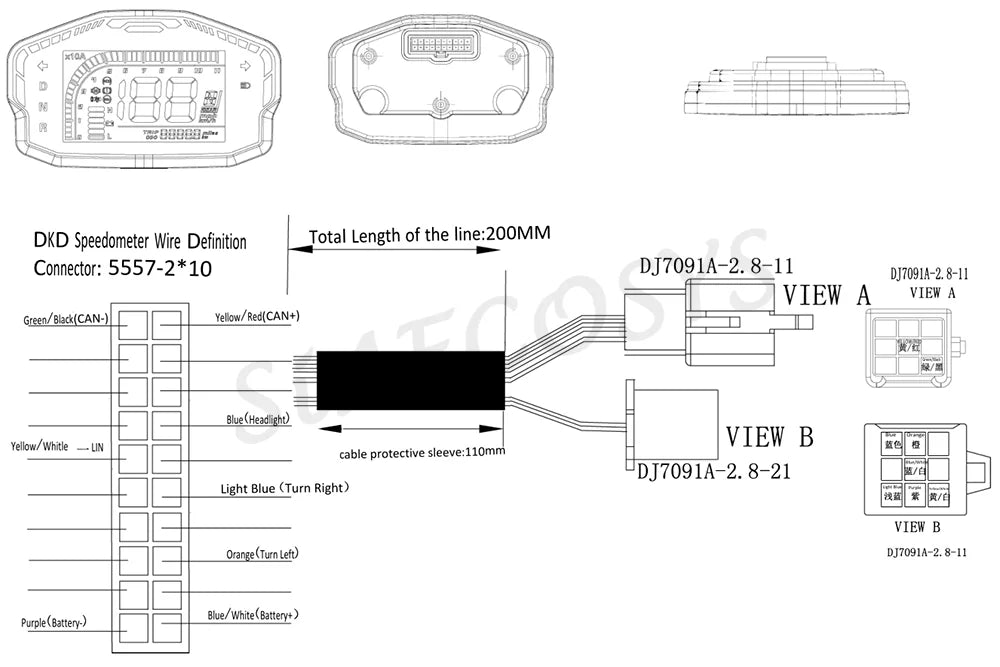

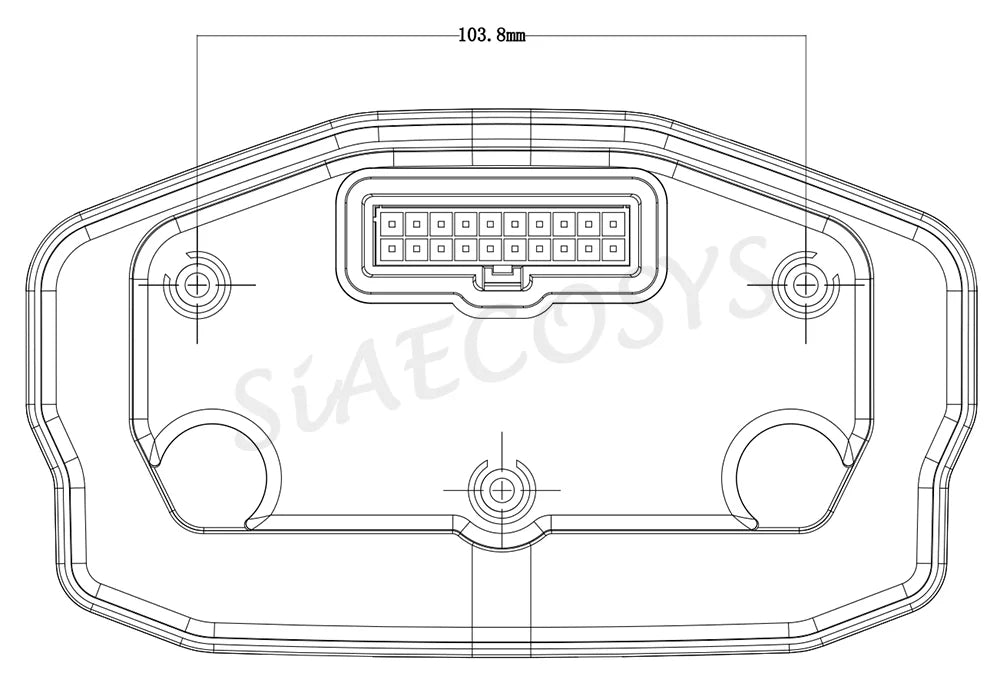

Drawing

Cable schematics

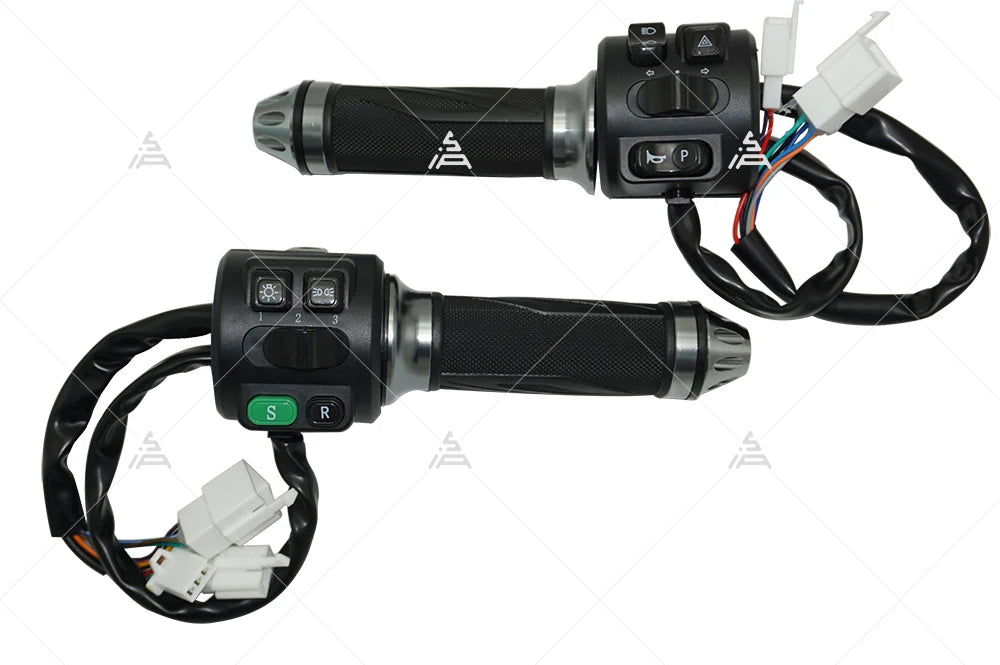

Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

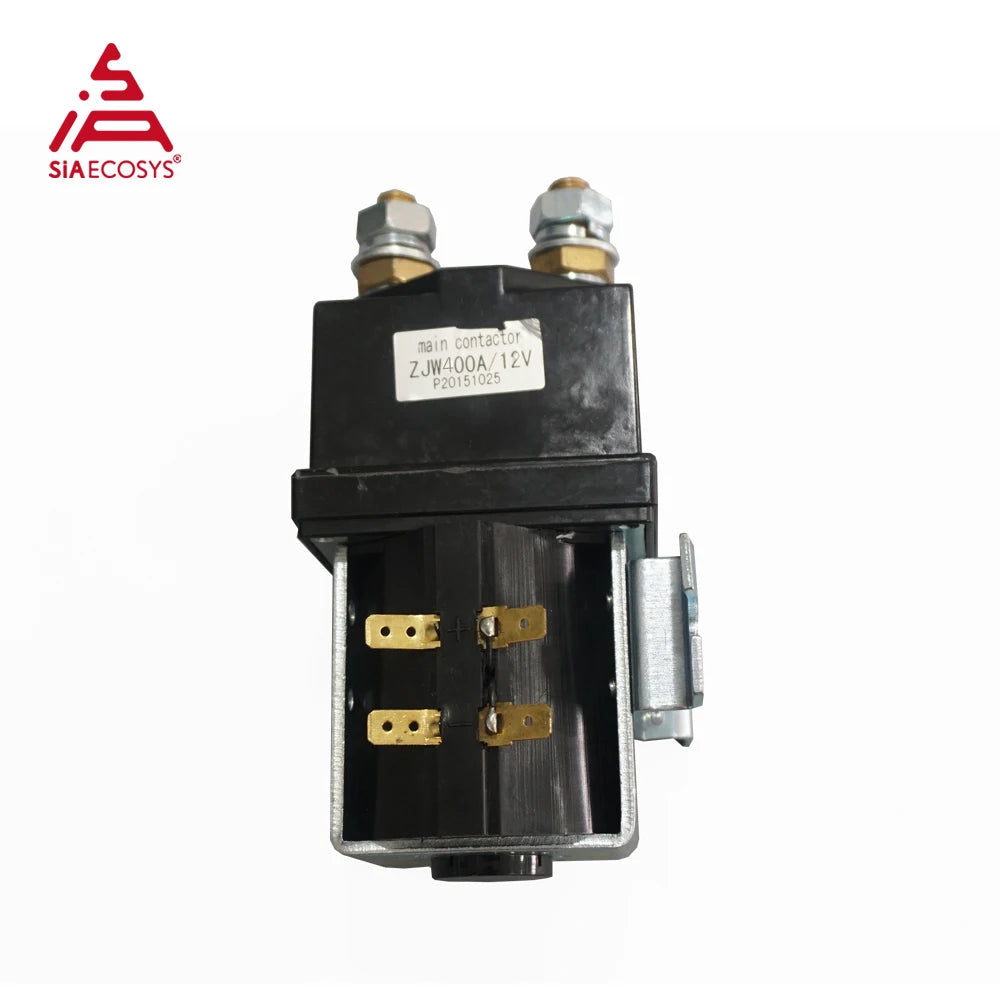

72V400A Main Contactor

This 72V400A main contactorhas the characteristics of small size, large load capacity, long service life and simple maintenance.

Spec:

1. 20M Ωinsulation resistance

2. 1.5A/72VDC

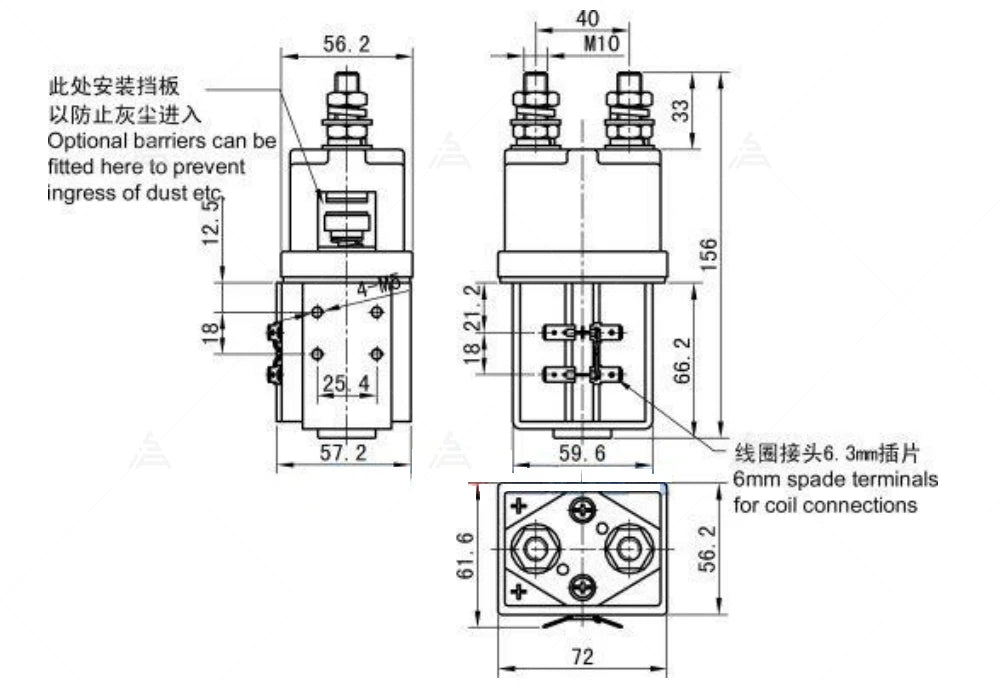

Drawing

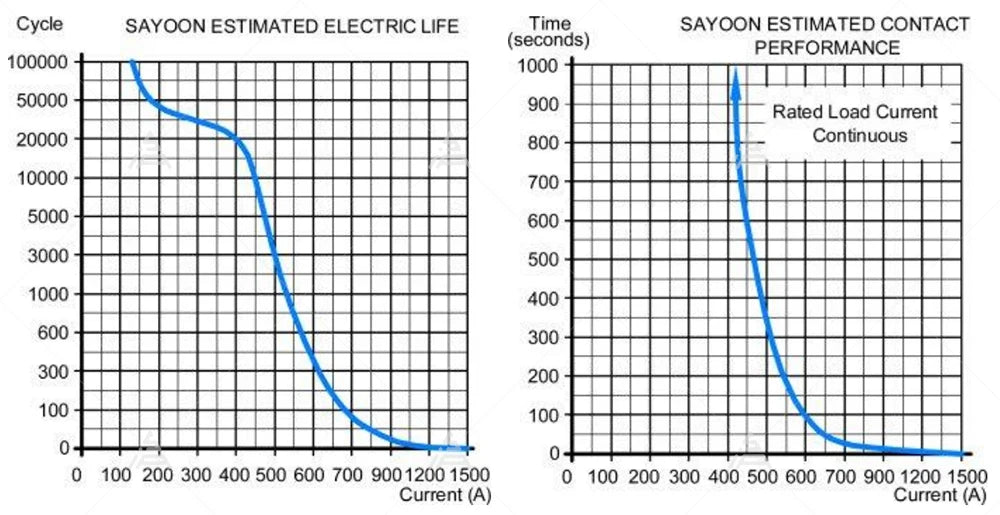

Load characteristic curve

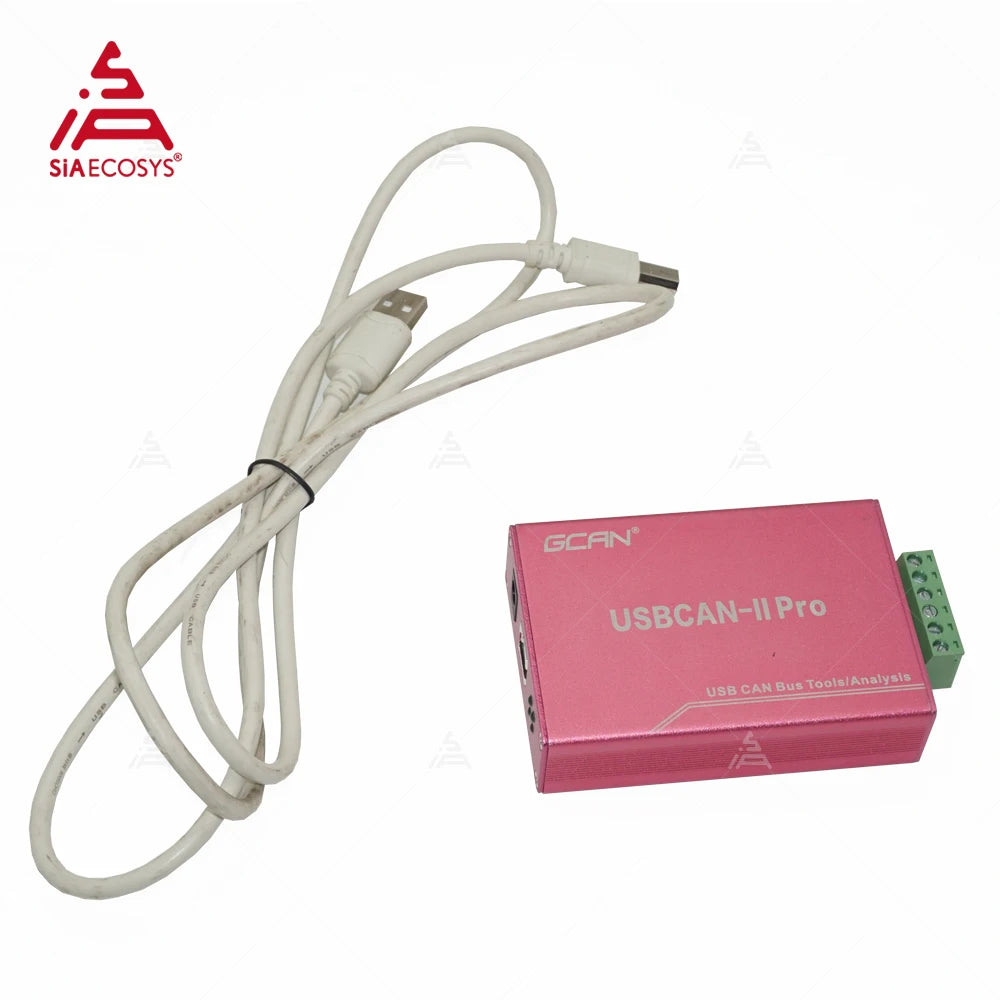

CAN Box

Power supply: USB/External 5V power supply

Interface form: open6

CAN channel: 2

Size: 92*63*30mm

Working Temp: -40~85℃

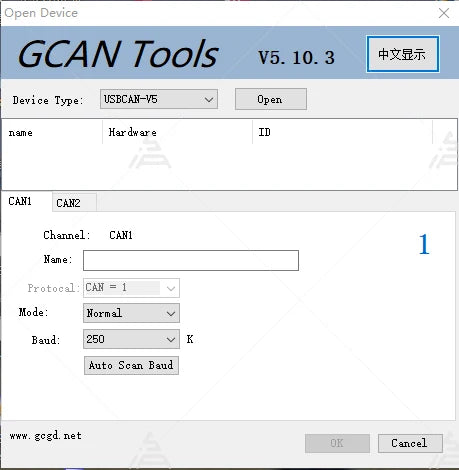

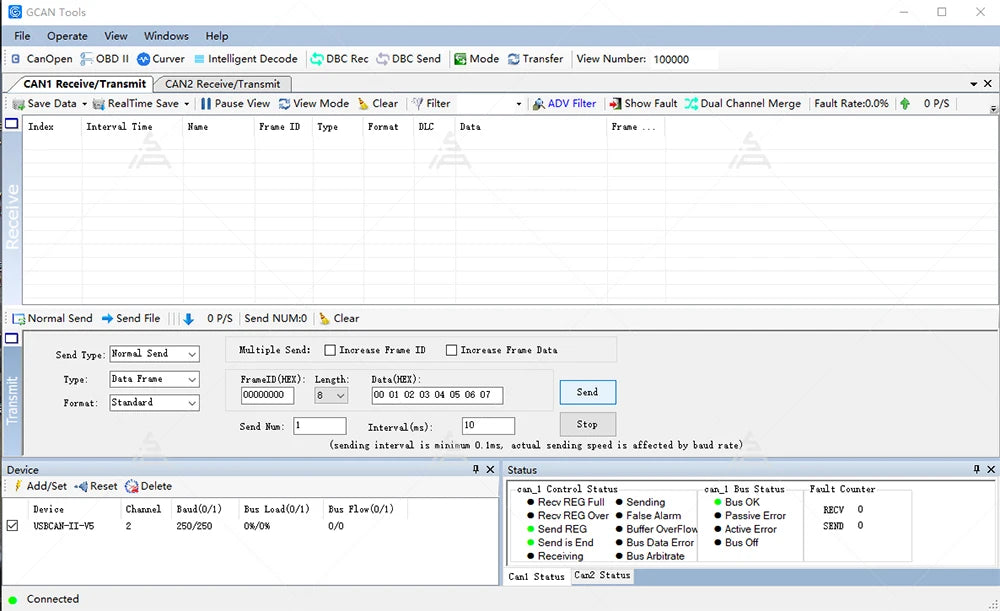

Software interface
