SiAECOSYS/QSMOTOR 205 10x3.0inch 50H 3000W 72VPowerful Racing Hub Motor forHigh SpeedElectric Scooter

For 10inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

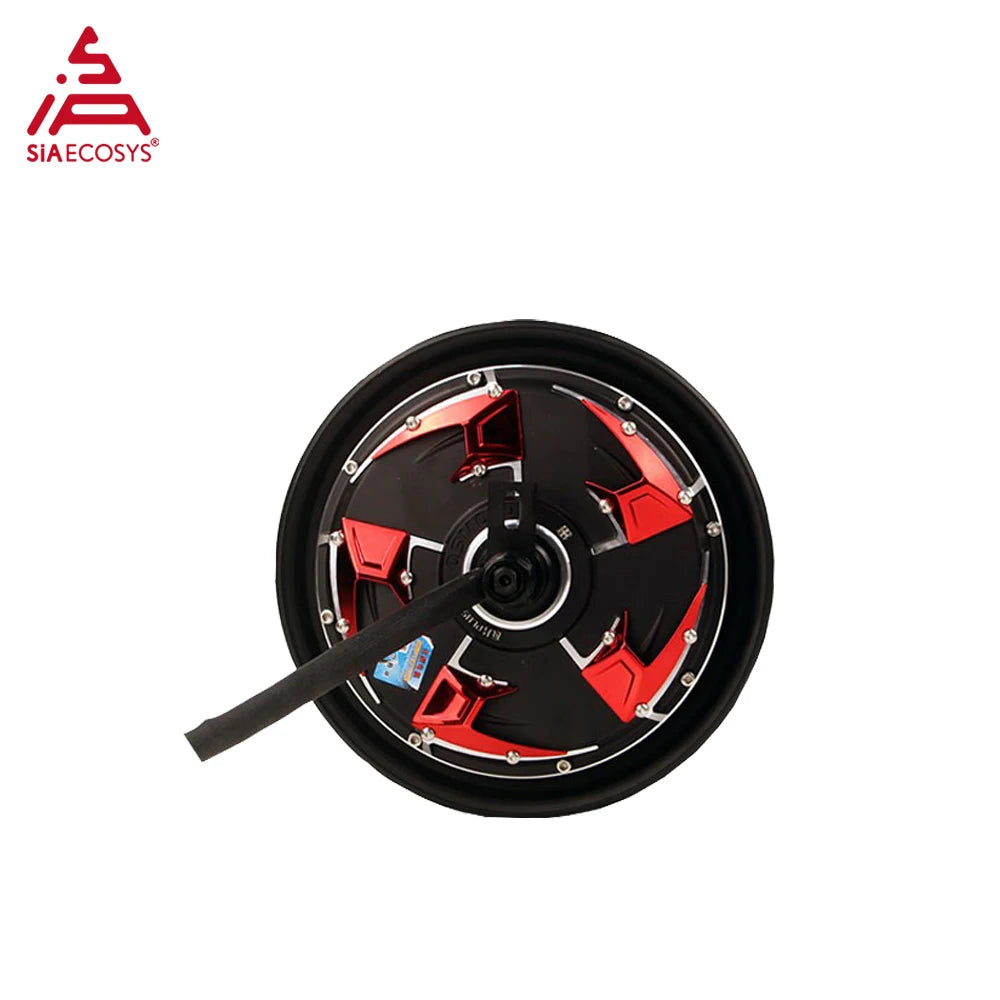

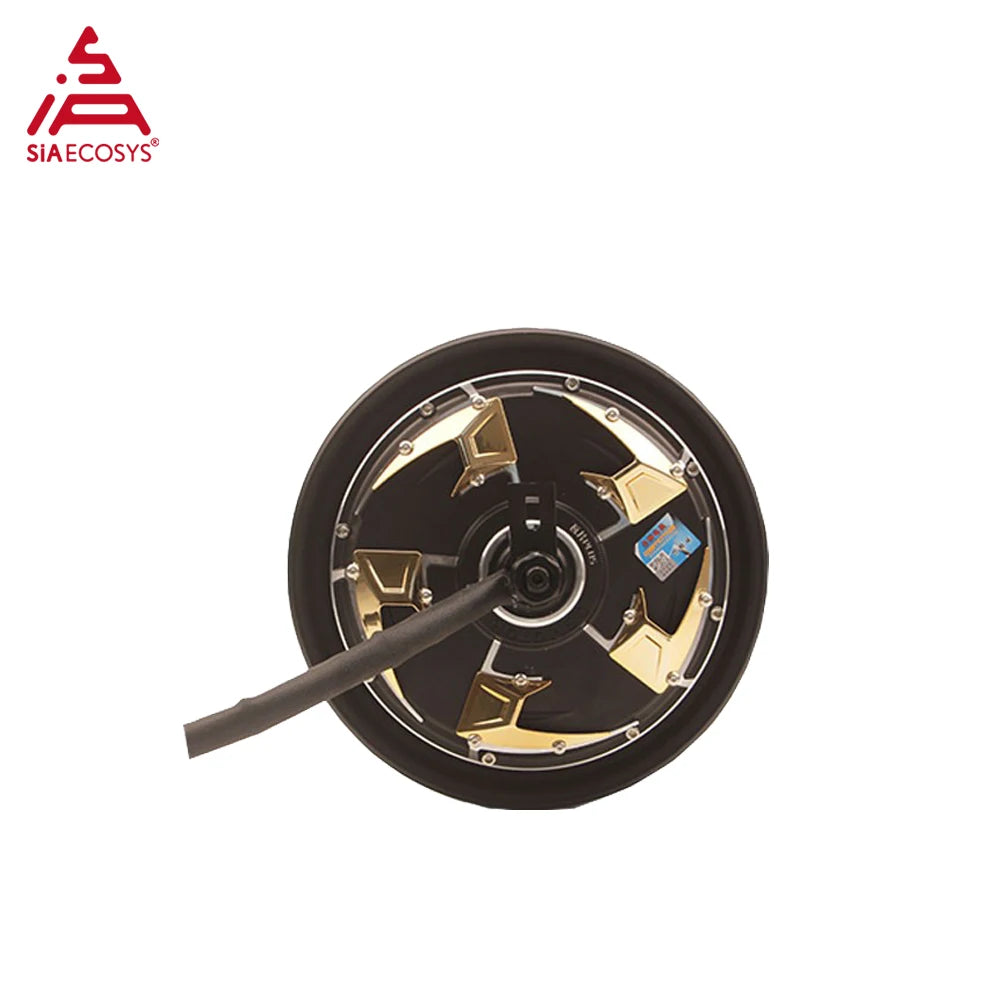

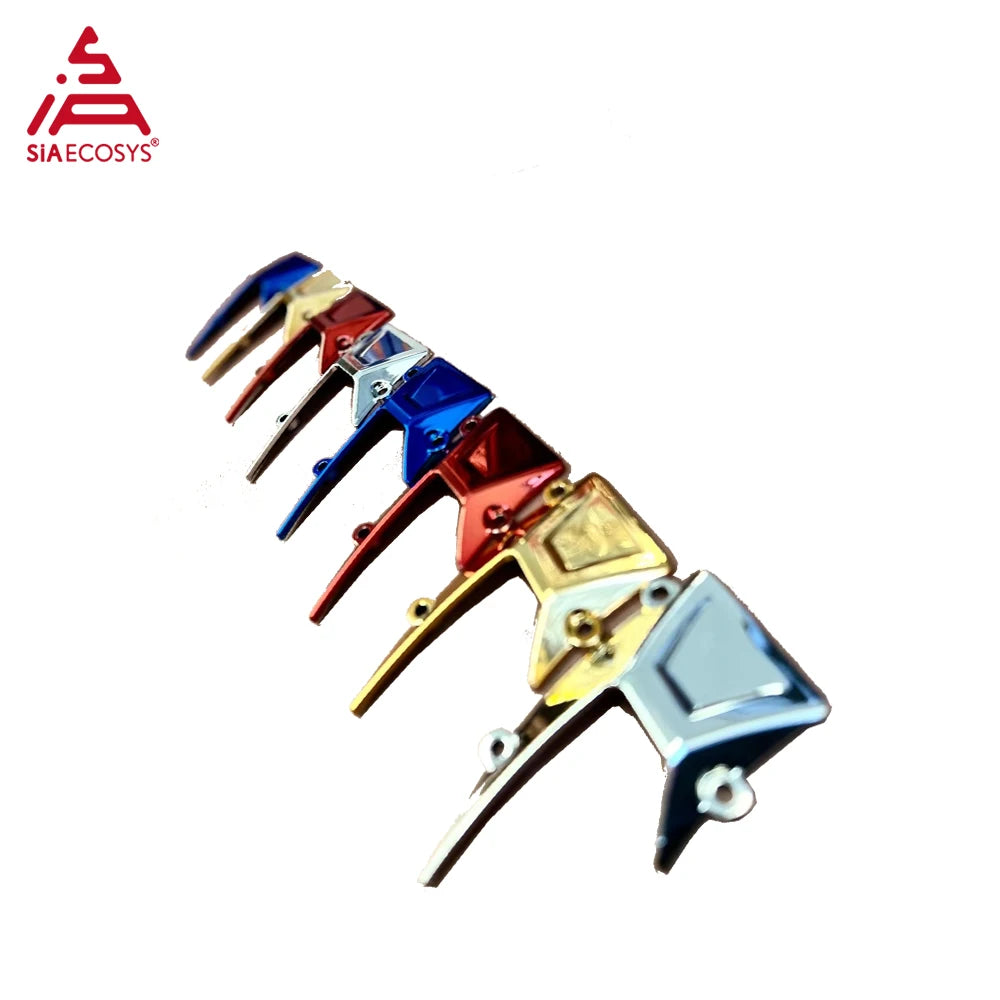

Pictures with different decorating plates

One set including below things

1. 1pc * QS 10*3.0 205 V3 50H 3000W Racing hub motor

(Silver decorating plate as default, other colors or no decorating plates, please contact with seller first )

Key Features
1). Simplify to make a electric-Scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 90%

Product Description

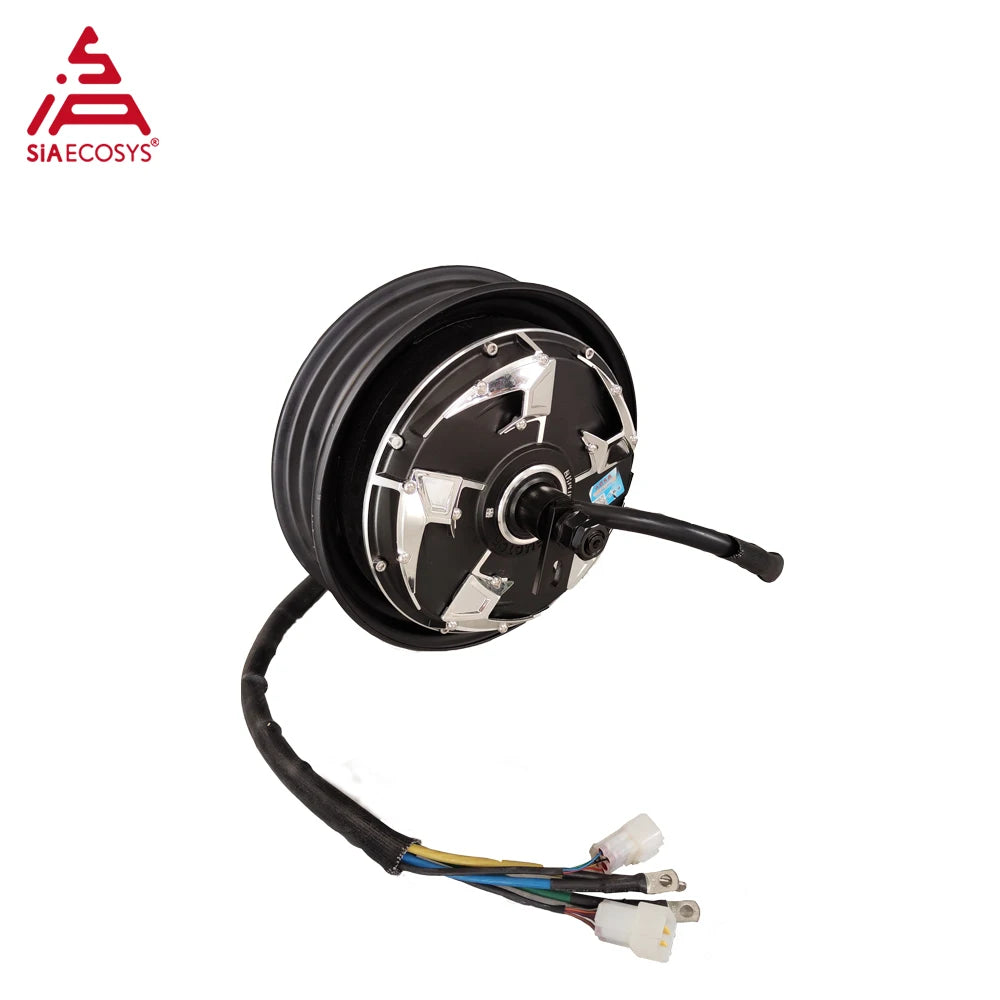

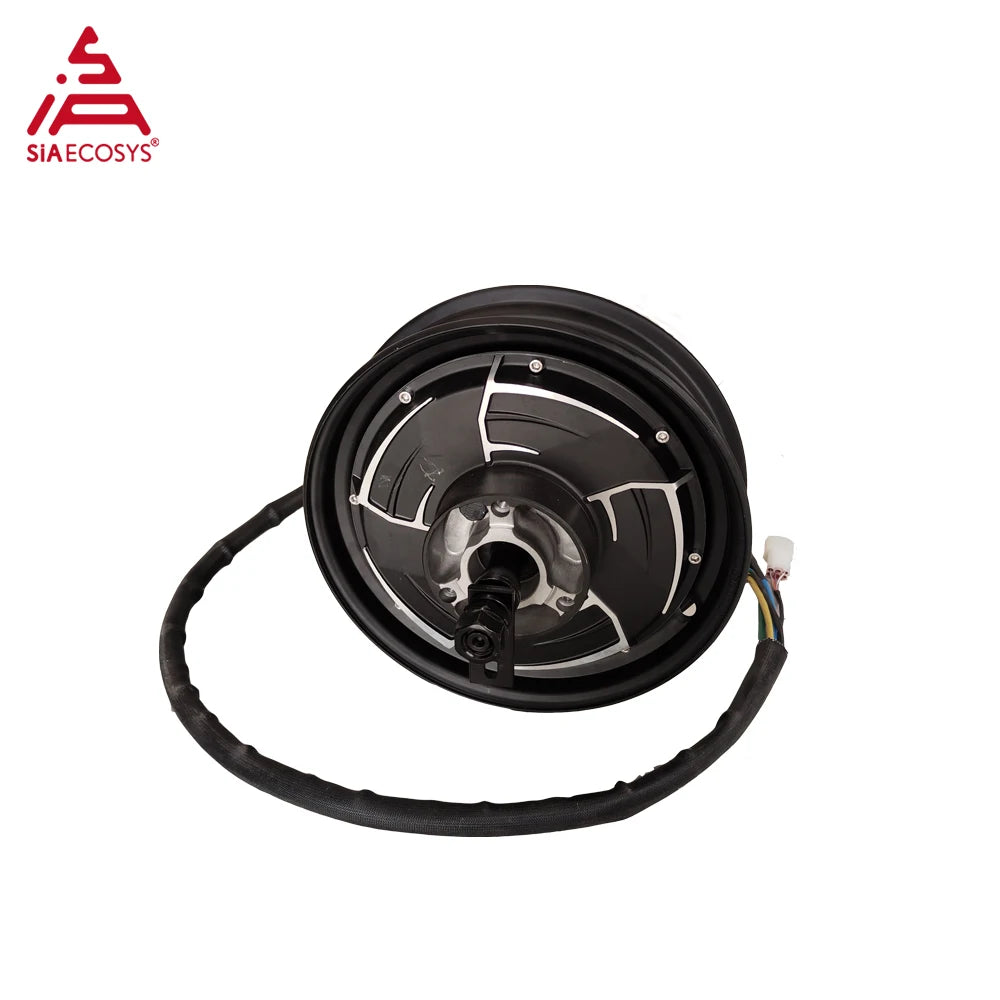

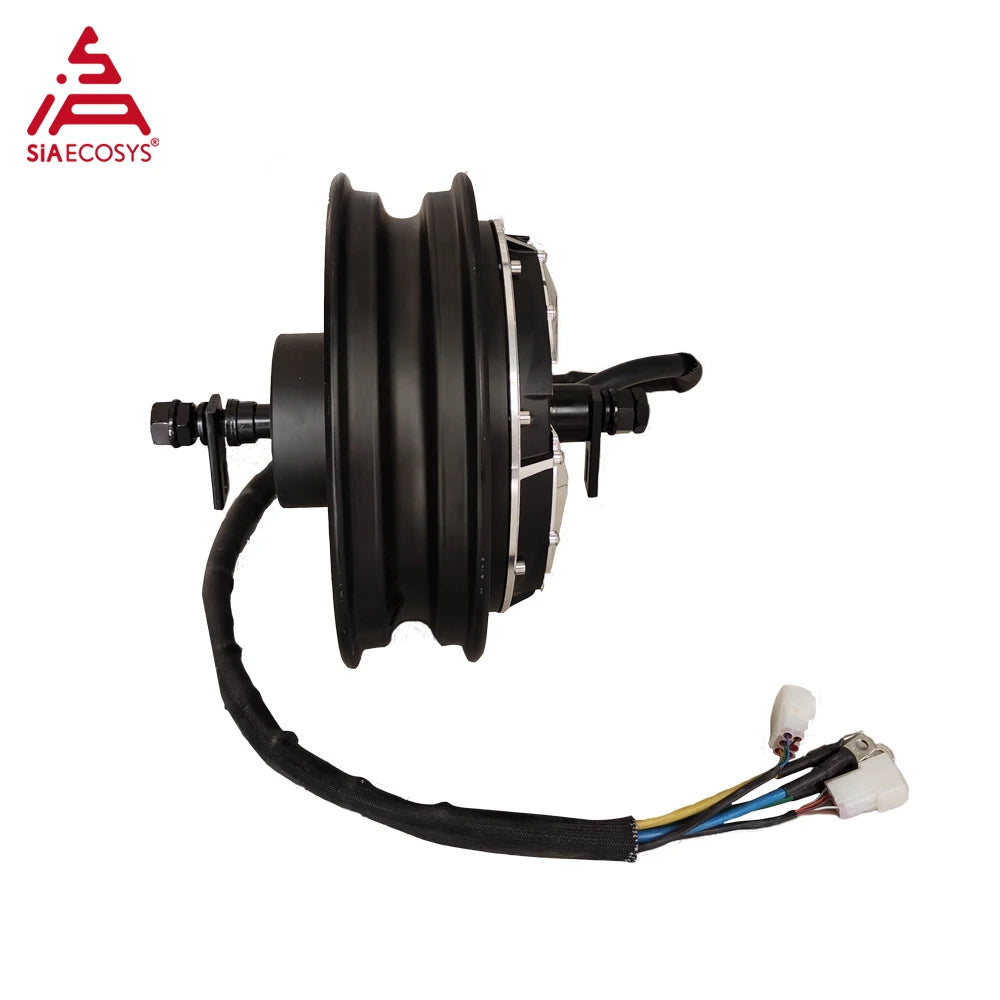

1. QSMOTOR 205 10X3.0 inch3000W V350H Electric Scooter Hub Motor

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: double axle

·Matched tyre:3.50-10、120/60-10 or 130/60-10

·Stator: Aluminmum Core

·Magnet Height: 50H, 16 pole pairs

·Rated Power: 3000W

·Peak Power: 6000W

·Rated Voltage: 72V

·Speed: 40-100KMH, it's customized

·Max Torque: approx130N.m

·Max Efficiency: approx 90%

·Thermic Probe: KTY83/122 (as default, optional)

·Brake type: Disc brake as default,PCD3*80mm-M8, CB 58mm

·Drop-outs: 200mm

·Dual Halls with waterproof connectors(One for spare, in case of damage)

·Waterproof Grade: IP66

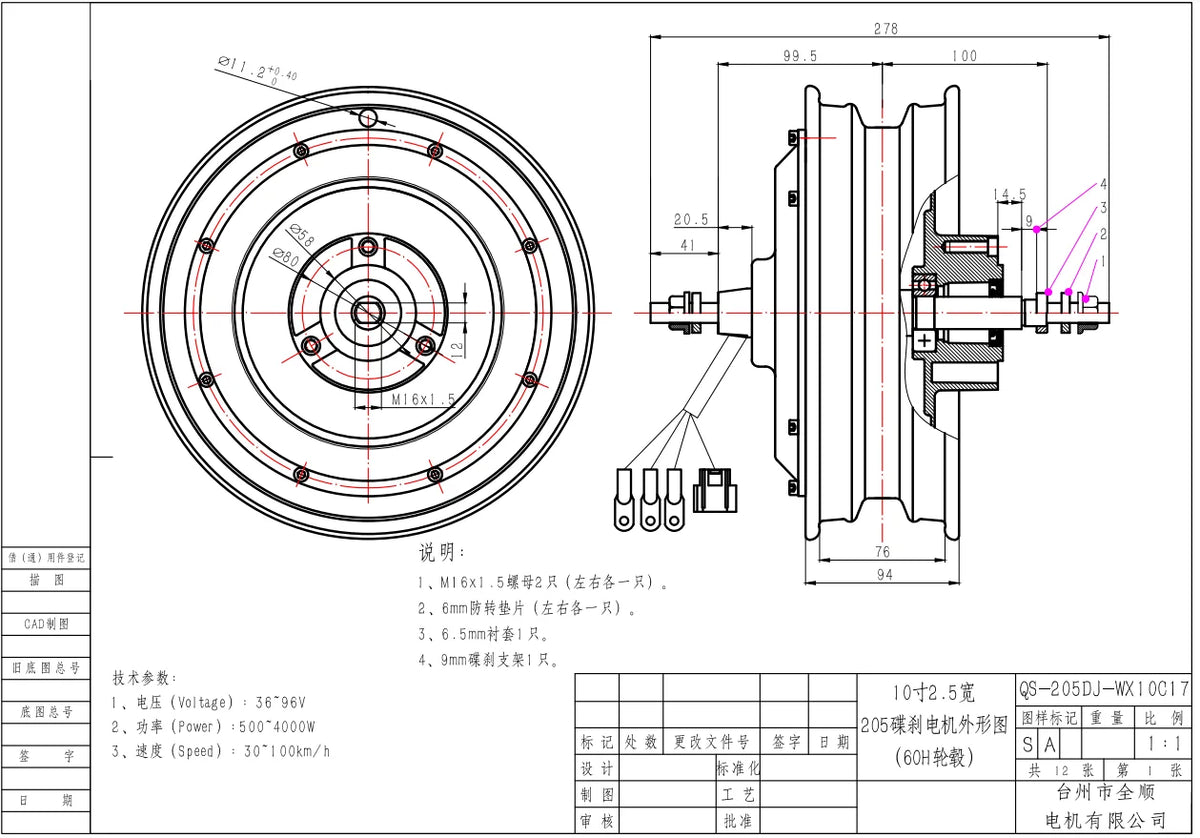

Drawing

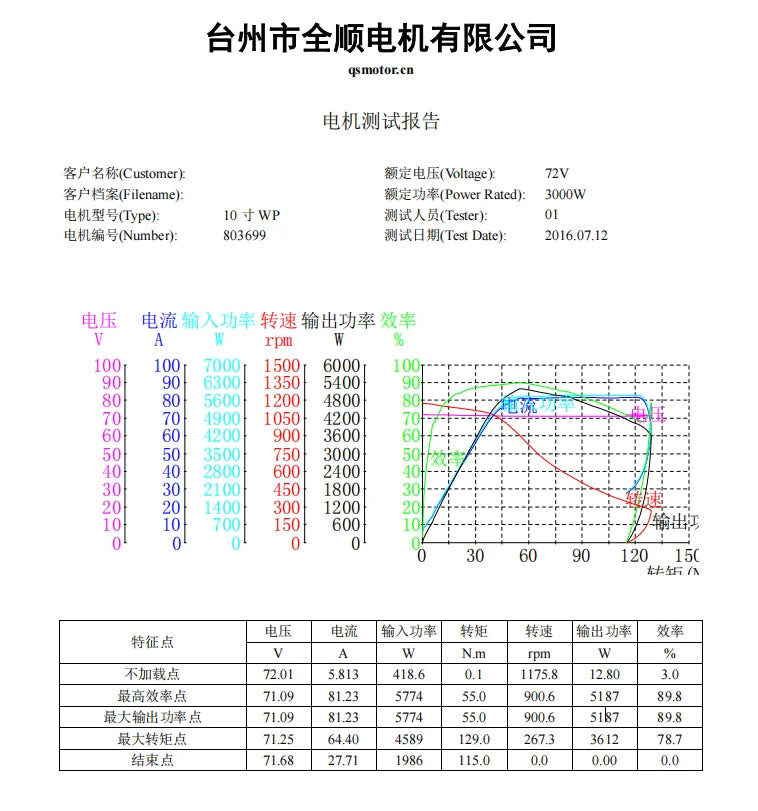

Test Report

Only for reference

With Different winding, the report will be different.

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Application
