SiAECOSYS QS 273 17X3.5inch 8000W 72V 120kph ub Motor with EM200-2SP Controller Powertrain Kits for Electric Motorcycles

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

For 17inch 8000W motor power train kits, it could be used for electric motorcycle, which could be 72V 120KPH.

e.g. Electric Motorcycle

E-motorcycle weight, approx 150kg+2*80kg

Speed: peak 120km/h

Climbing slope: 15 degree@230kg

Tire: 130/70-17

Battery: 72V60Ah

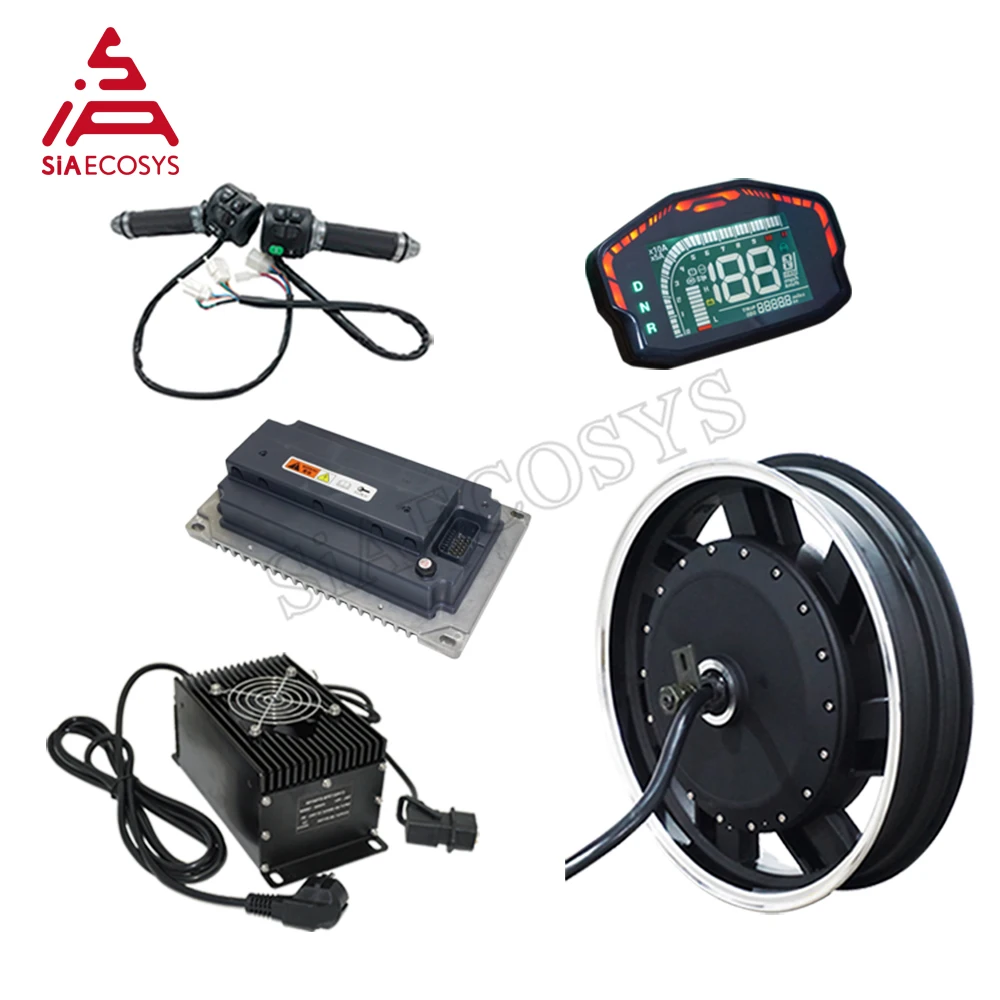

One set including below kits

Combo 1

1. 1pcs X QSMOTOR 17*3.5inch 273 8000W V3 electric wheel hub motor

2. 1pcs X EM200-2 sine wave motor controller with standard CAN-BUS

3. 1pcs X 1200W charger with CAN-BUS

4. 1pcs X DKD LCD speedometer

5. 1pcs X Z6 throttle with combination switch

Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

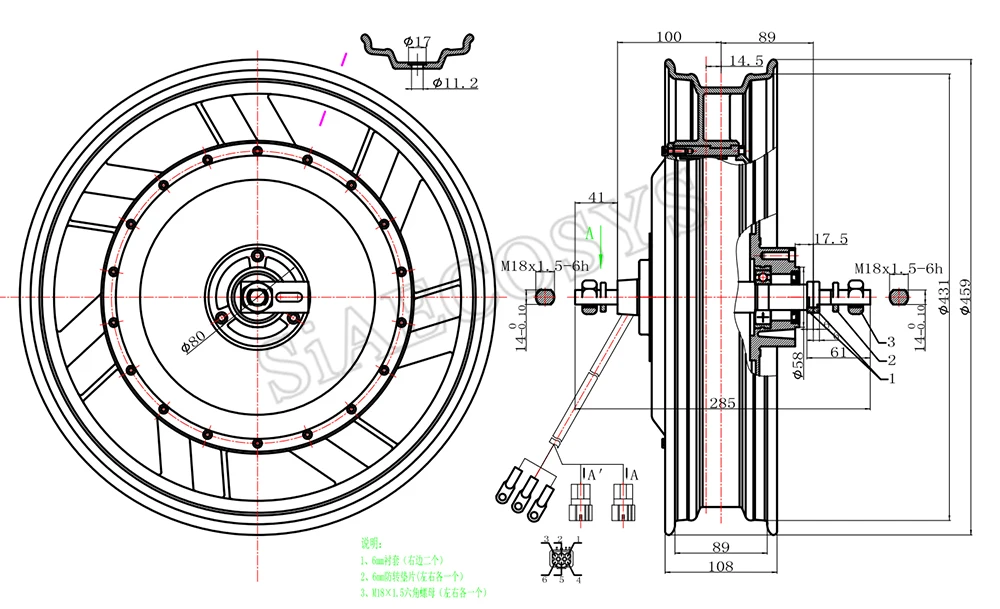

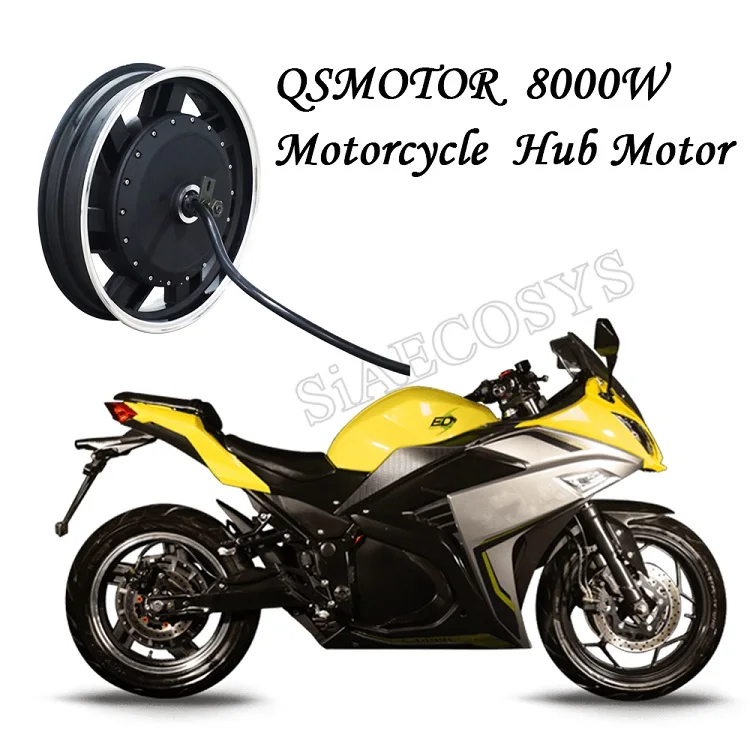

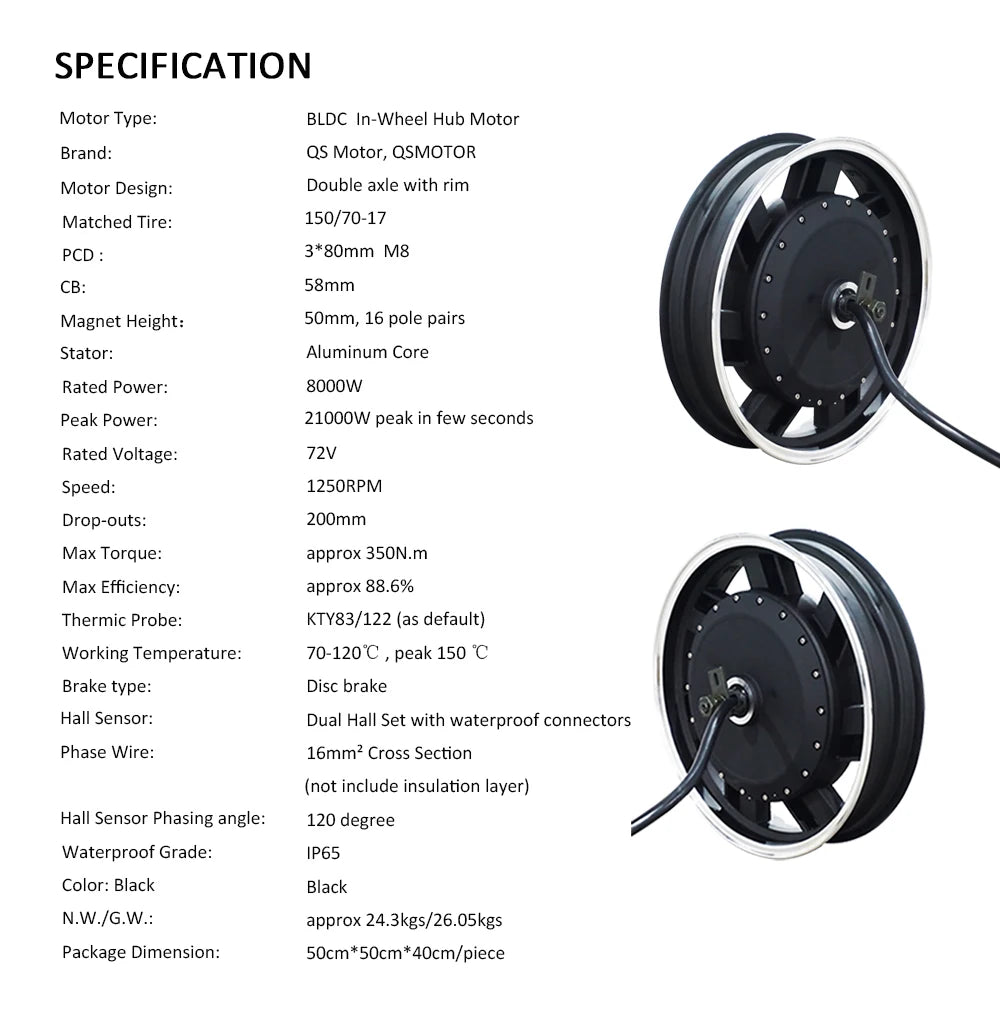

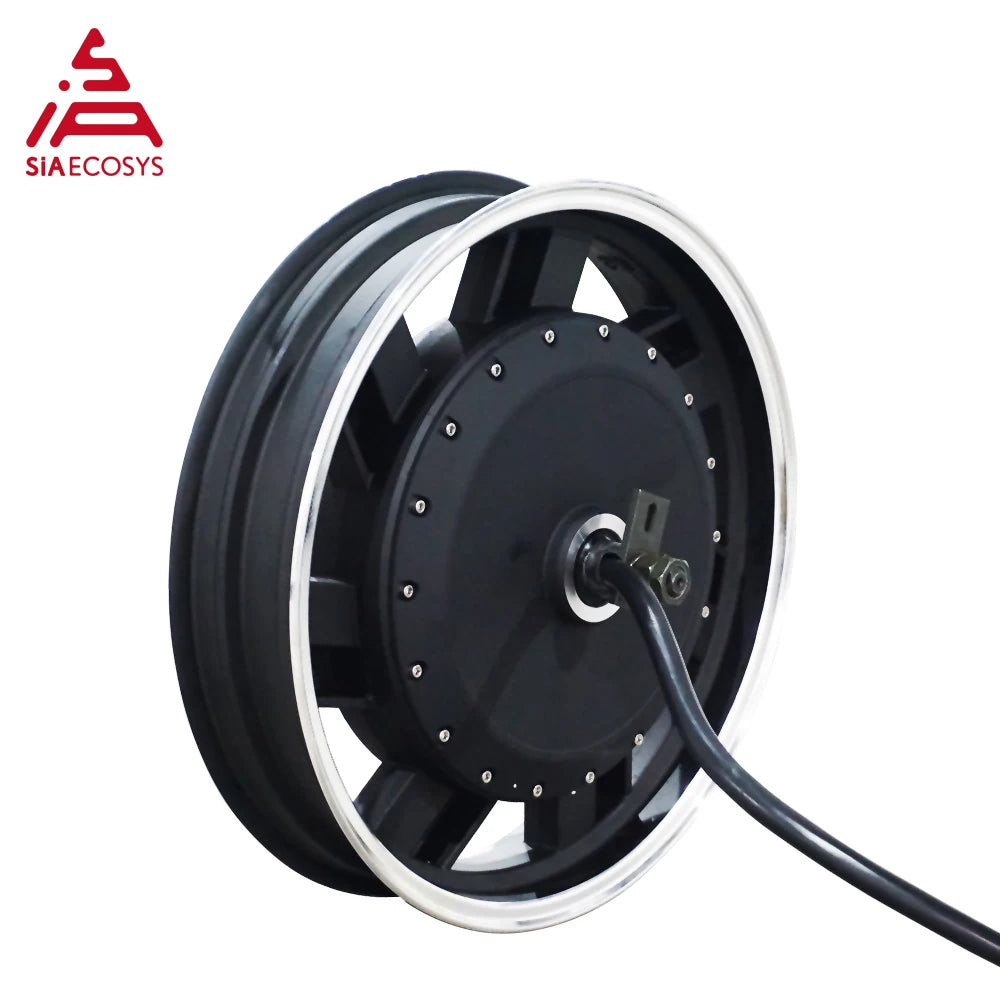

1. QSMOTOR 17X3.5inch 8000W V3 Electric Motorcycle Hub Motor

Drawing

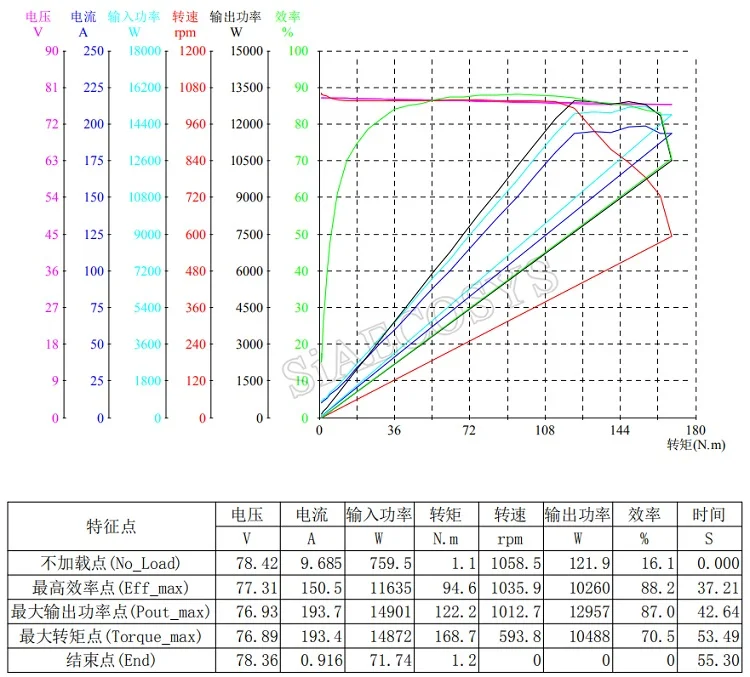

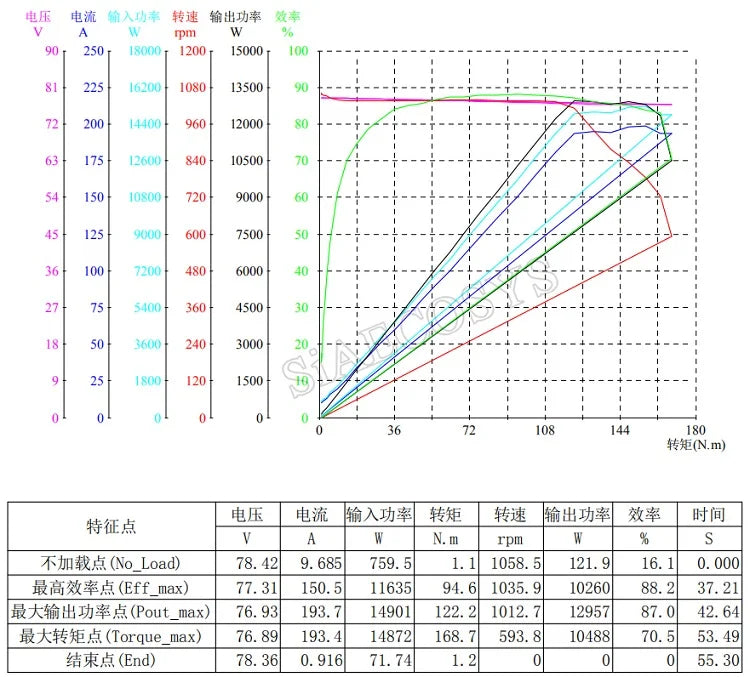

Test Report

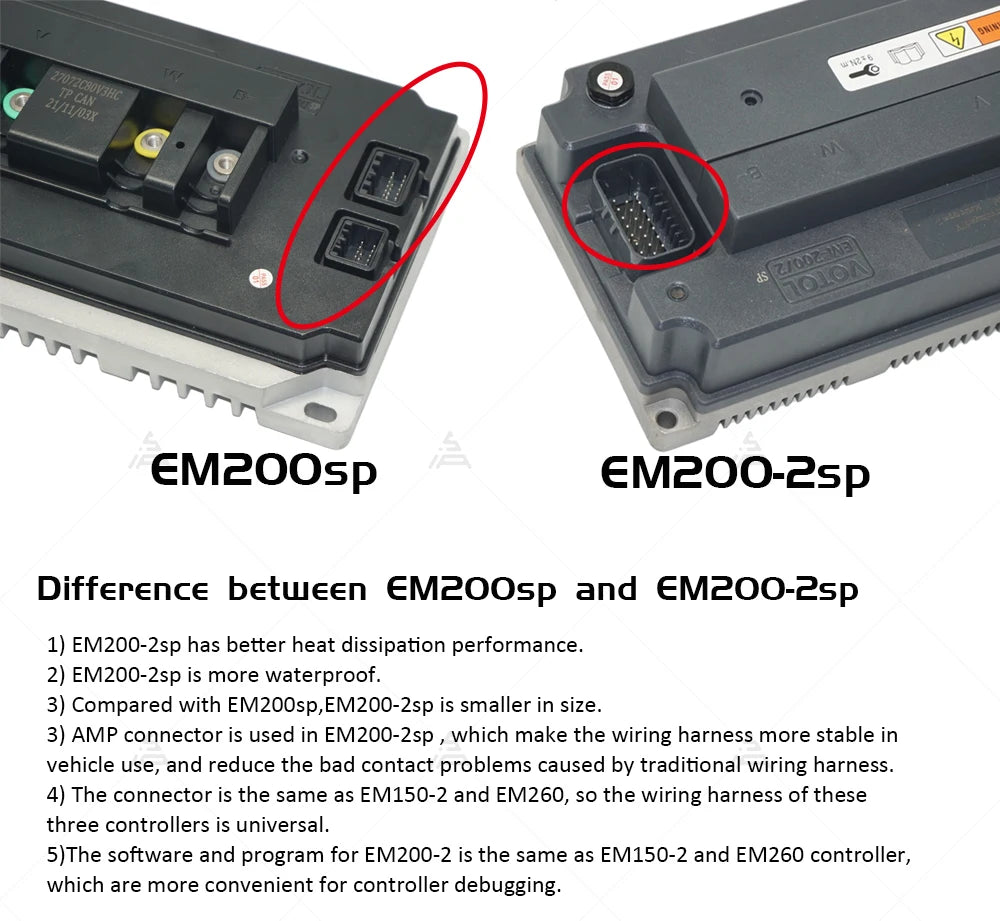

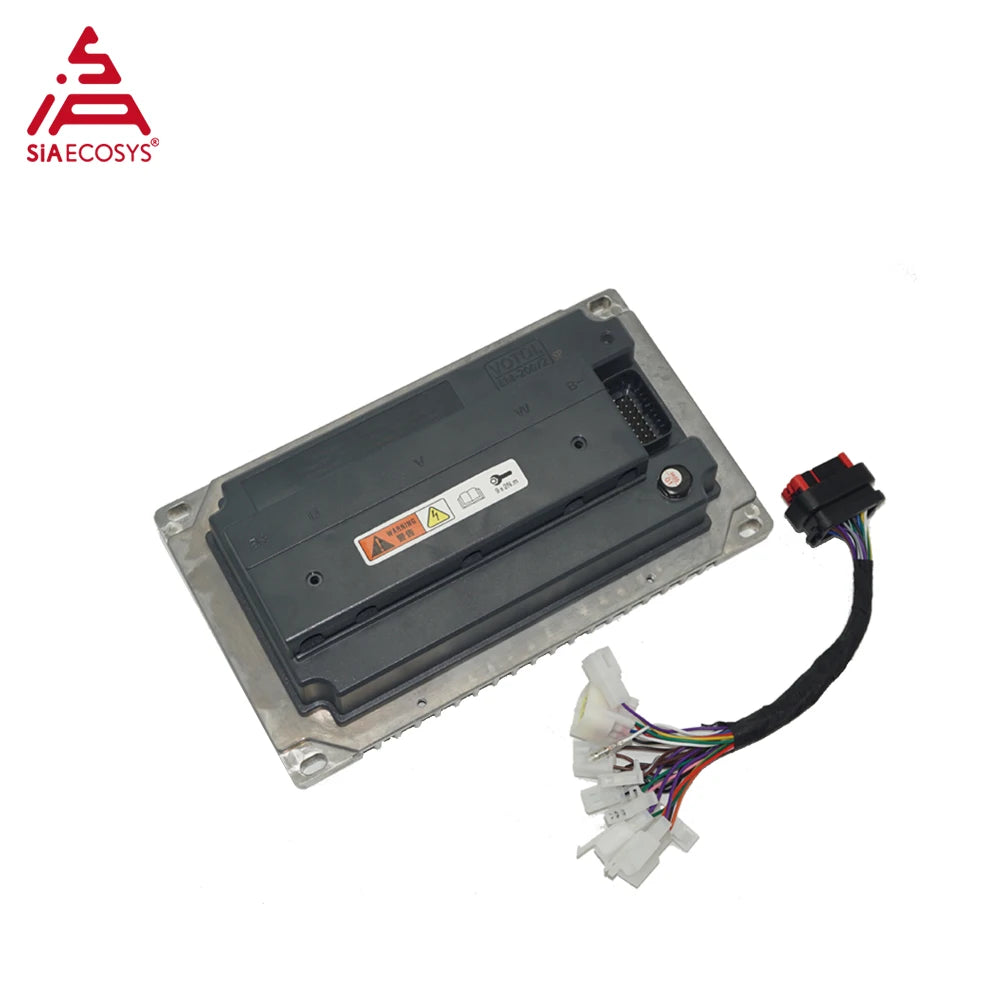

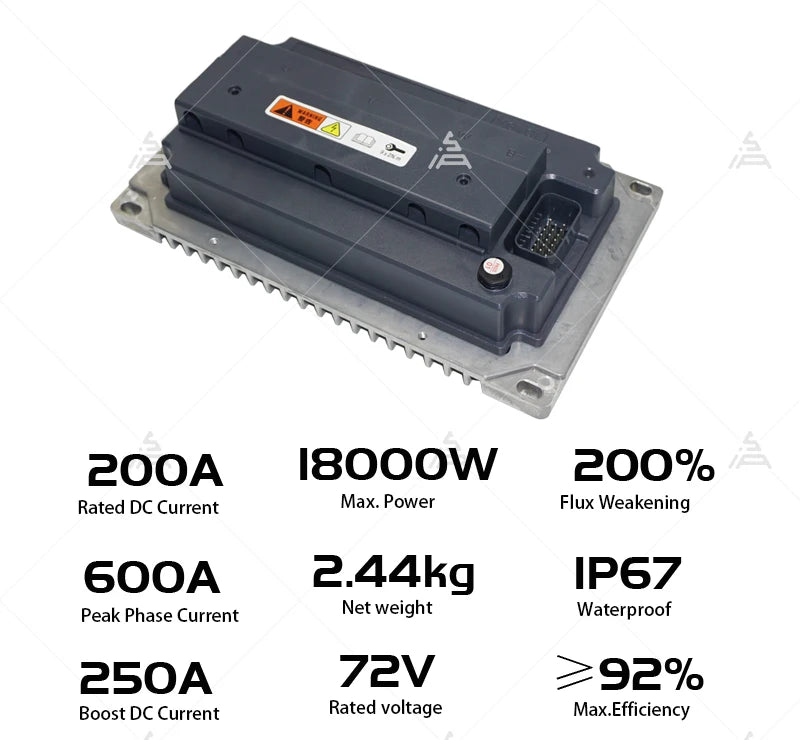

2. EM200-2SP sine wave motor controller in big cooling panel with standard CAN-BUS

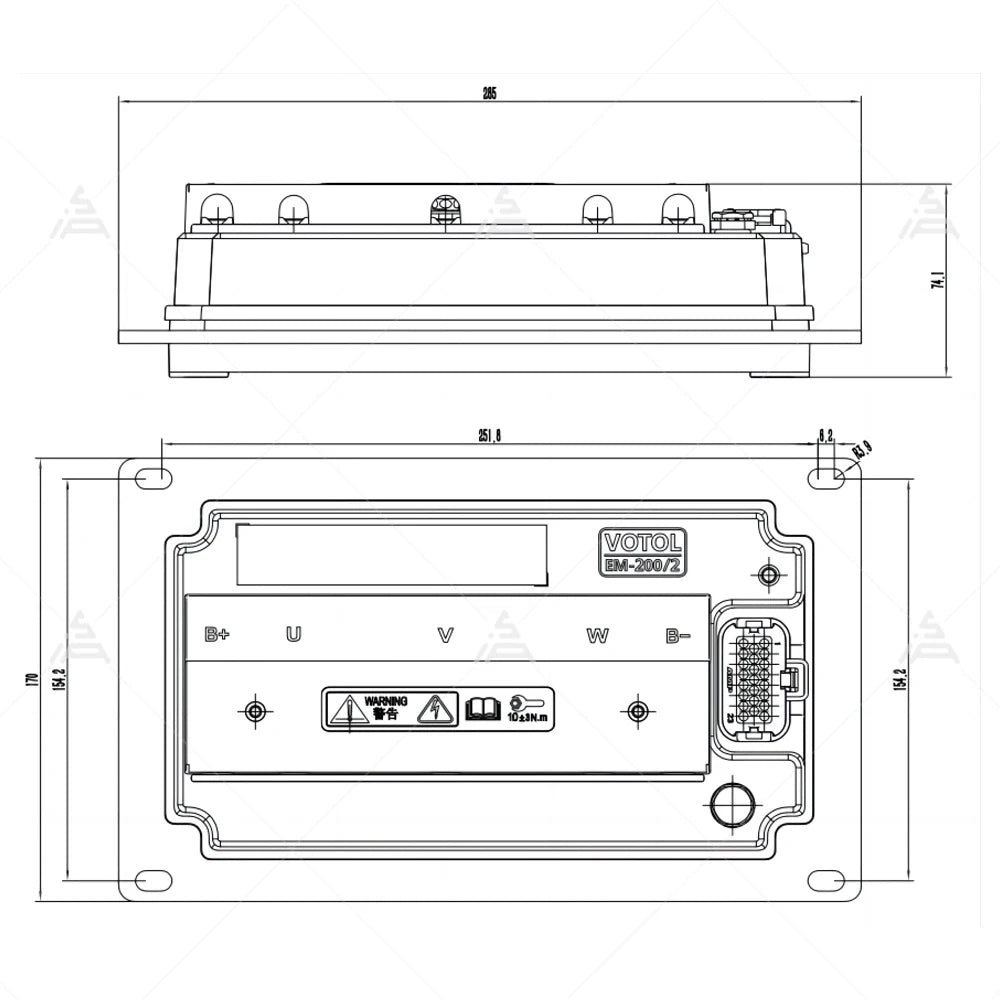

Controller drawing

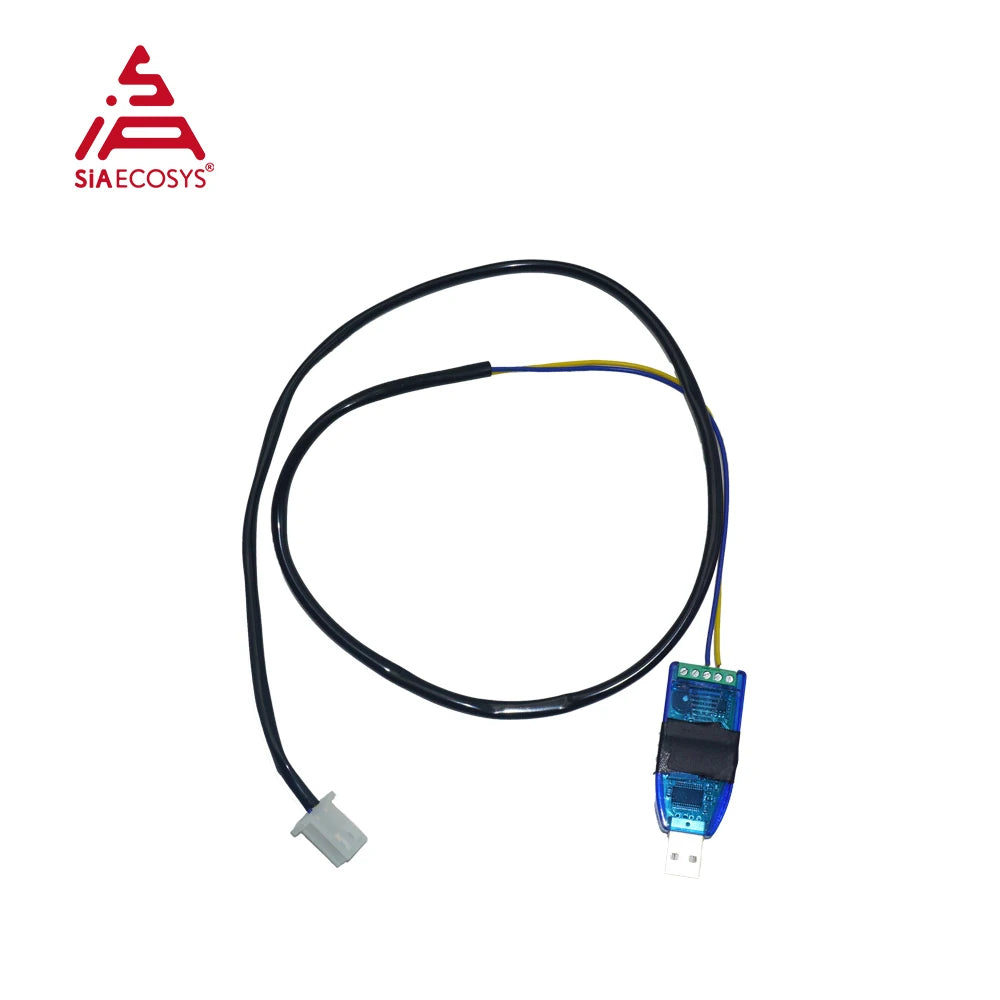

USB Cable

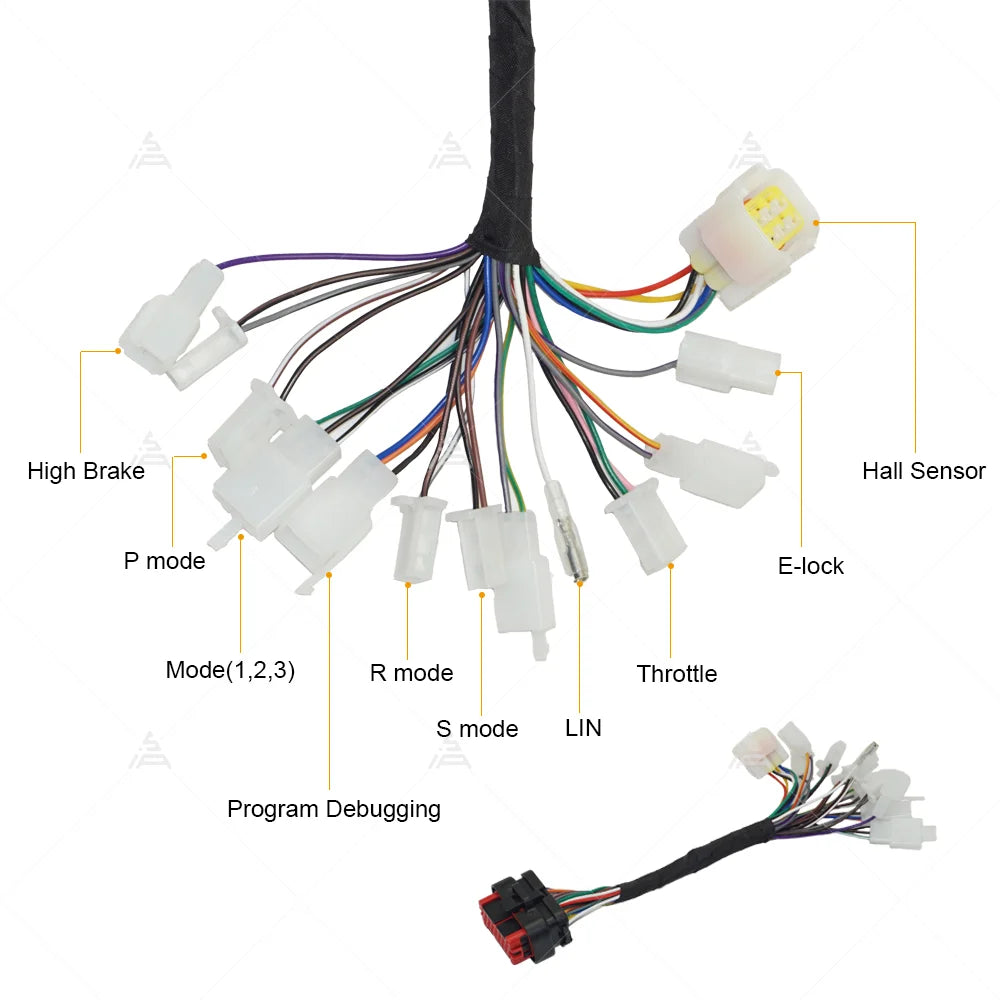

Controller Wiring Definition

Notice:

The model of plug-in connector isTE 770680-1.

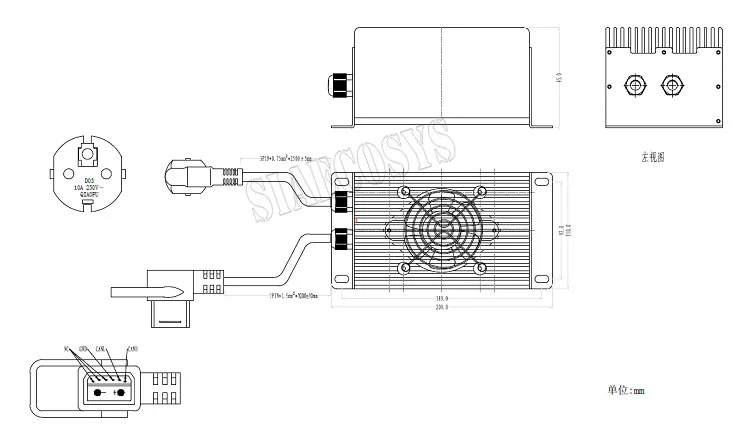

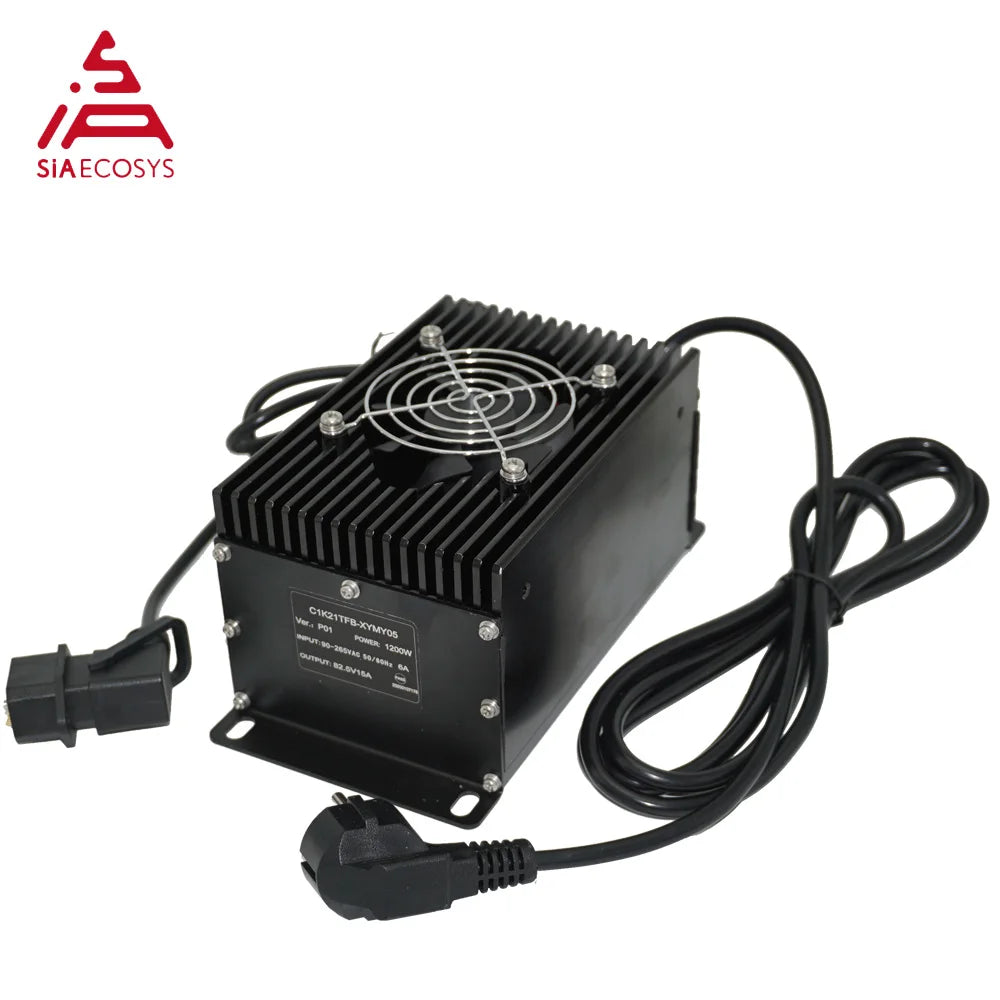

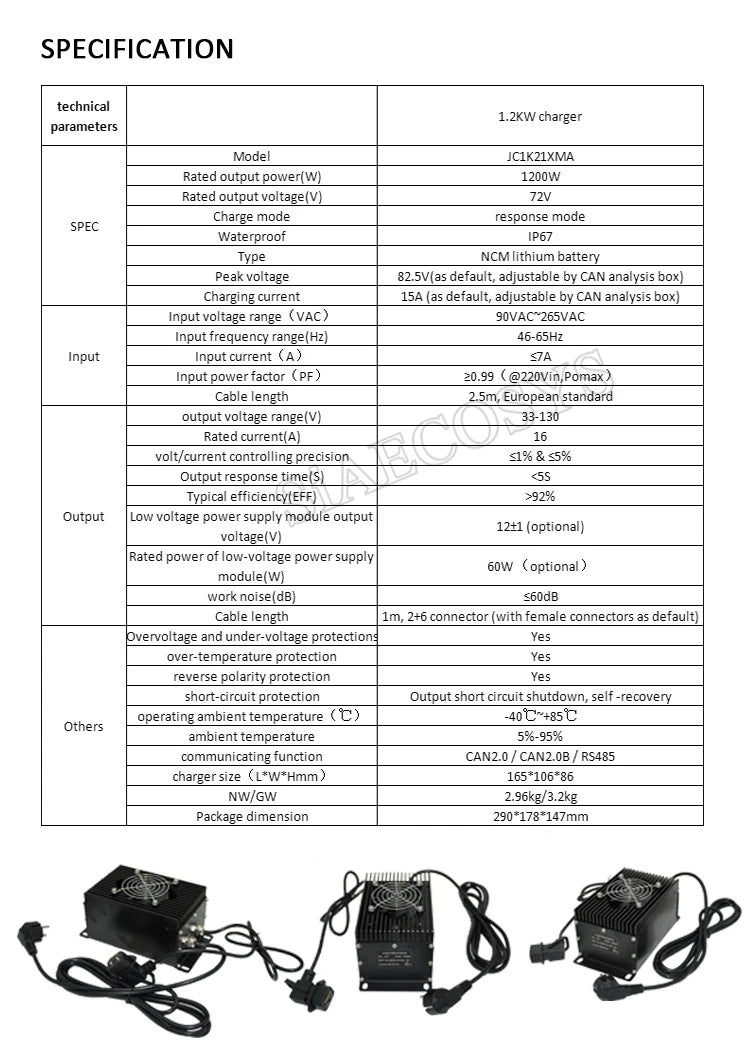

3. 1200W battery charger with CAN BUS (disable CAN BUS as default)

Drawing

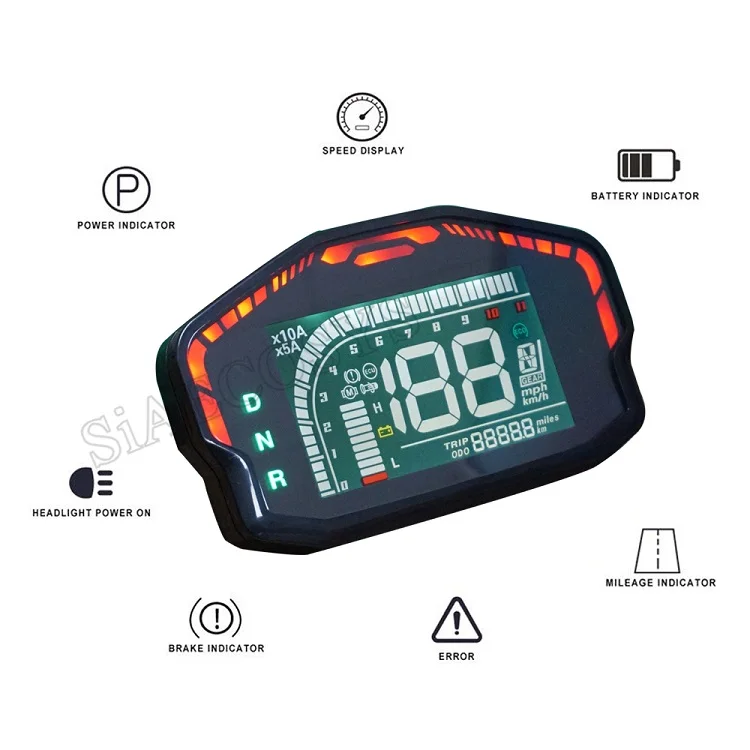

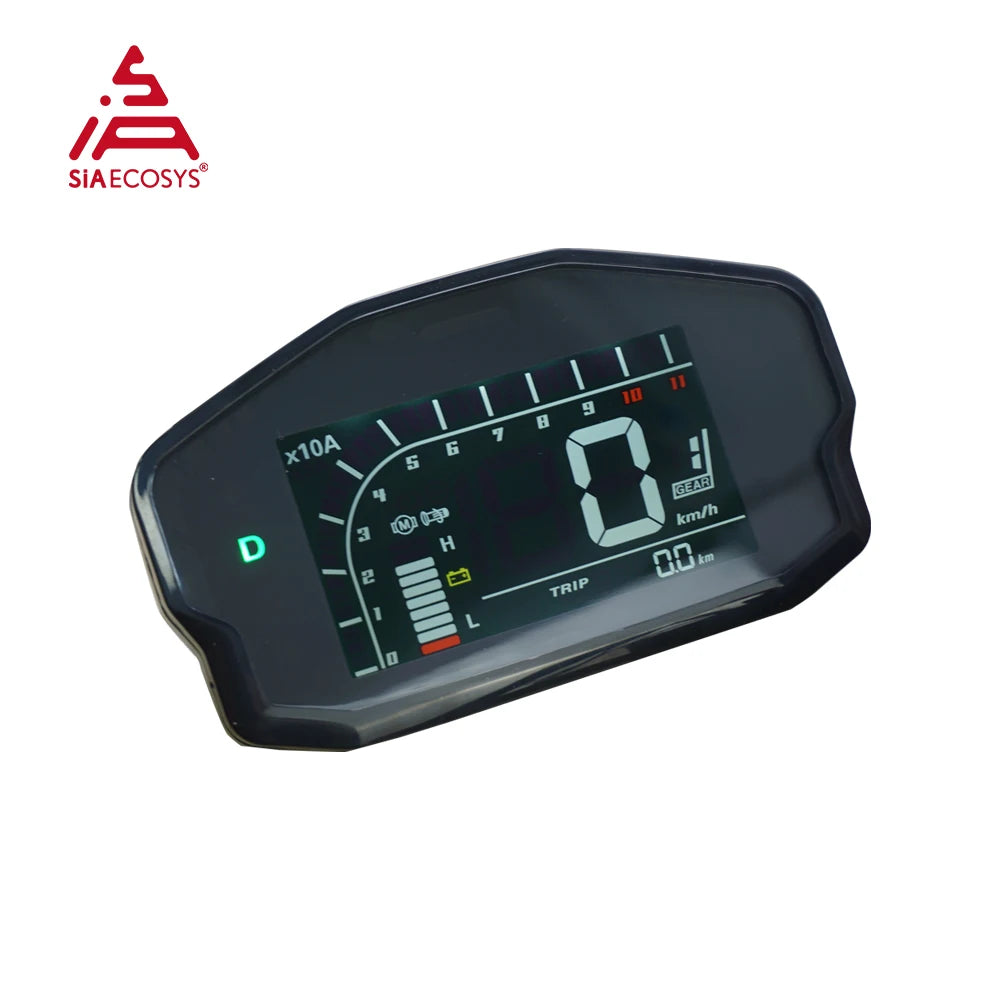

4. DKD LCD speedometer, can-bus(optional, LIN as default)

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

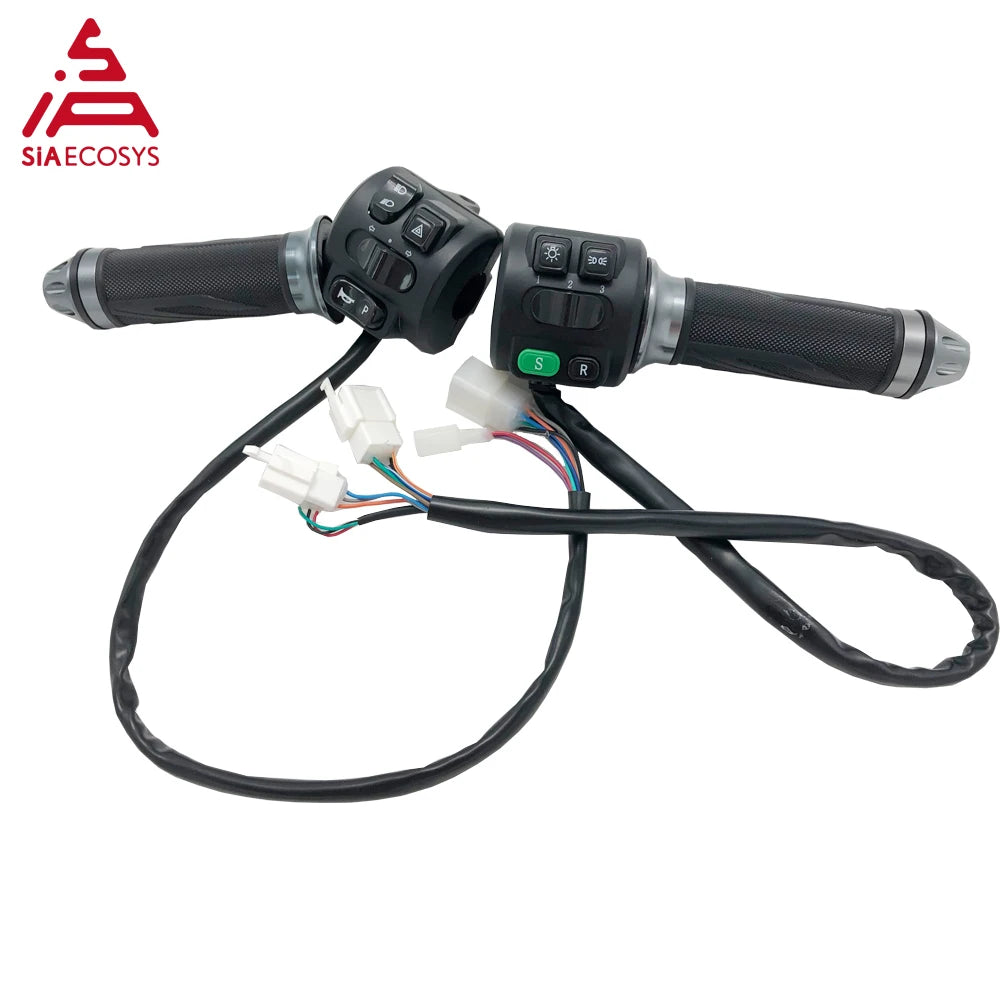

5. Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Application
