SiAECOSYS QS Electric Car12000W 273 70H V4 72V-96V 130kph E-Car Hub Motor with ND96850 Controller Conversion Kits
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
(special countries list contact seller)
The Electric Car Kit includes most of things needed (except battery/charger) to convert your standard car into a top-of-the-line performance electric car, which delivers unequaled performance and reliability.
Key feature:
1. Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2. It could be installed in wheels, and easy to be hybrid car.
3. 2pcs 12kw motor bearing 1000-1300kg, can reach at 130kph max. speed.
4. Easily to make 4-wheel drive, which could spot turn.5. Support regenerative braking6. High efficiency: 85~92%
Notes:
1. Battery and charger are not included in package.
2. The battery voltage depends on your application. (72V as default.)
3. When place order, please remark which winding needed, otherwise make winding as default, if any question about application, please consult seller.

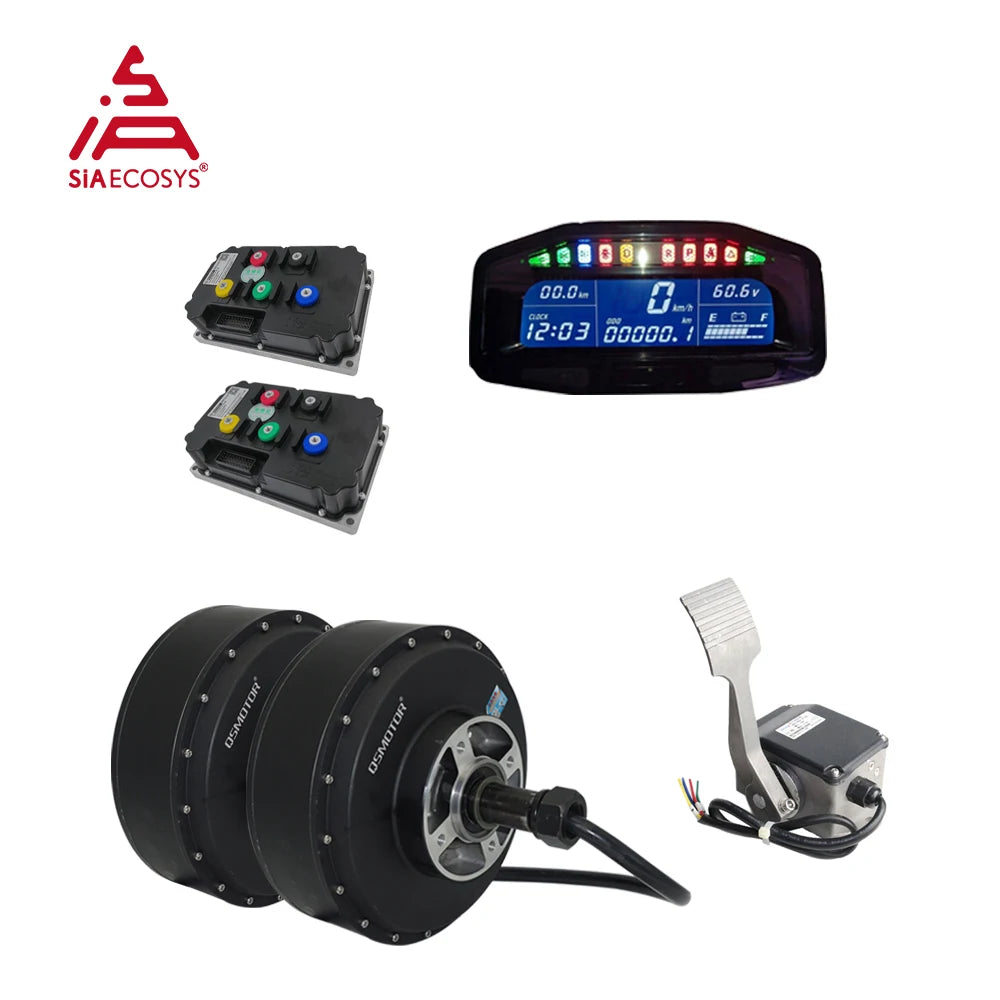

One set including below kits
2x QS 273 12000W 273 70H V4 E-Car Hub Motor
2x Fardriver ND96850 with Bluetooth
1x SIA Throttle Pedal
1x SIA X8-E Speedometer
Production Description:

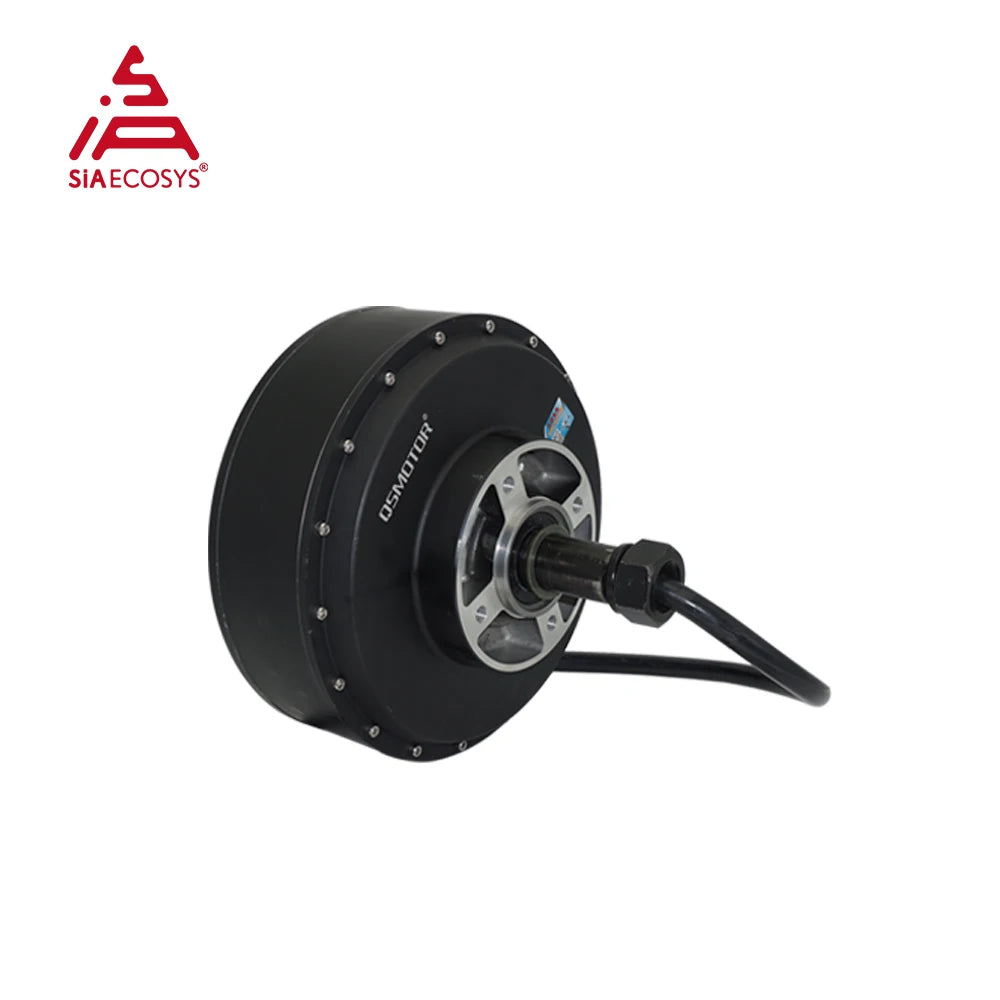

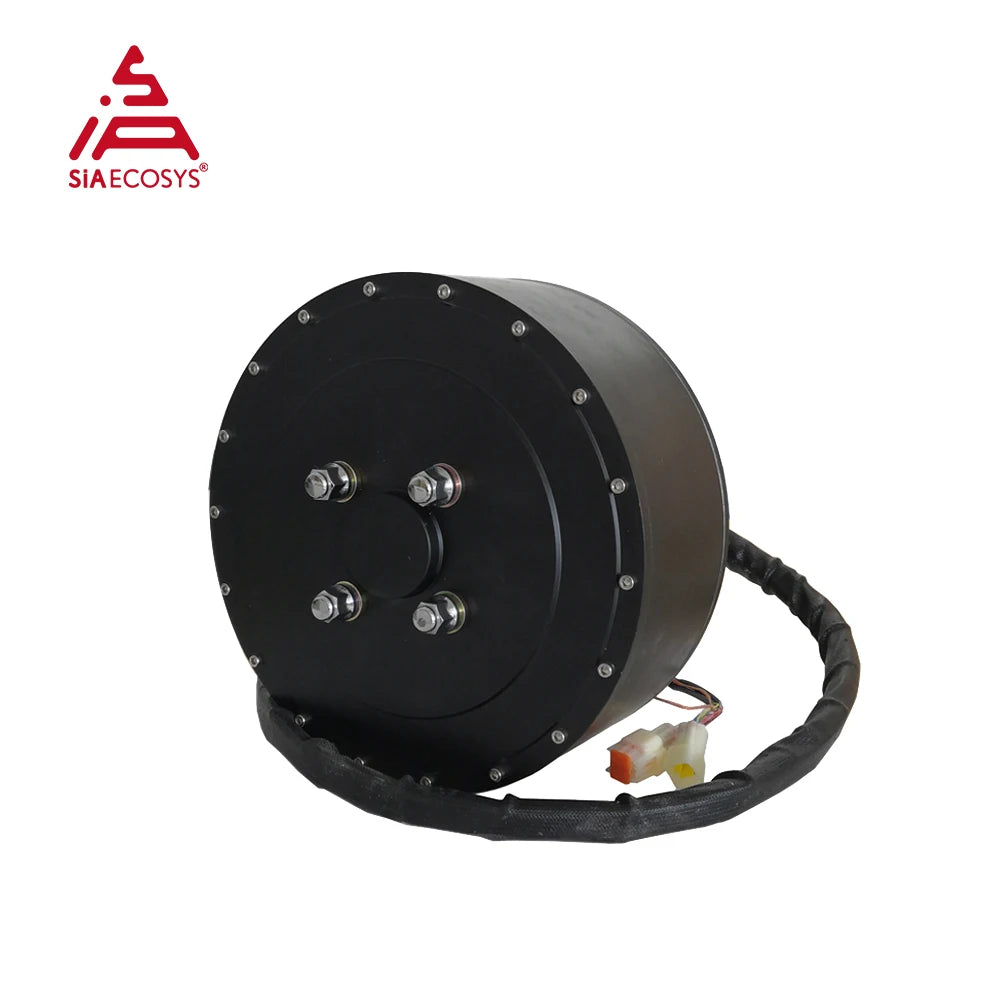

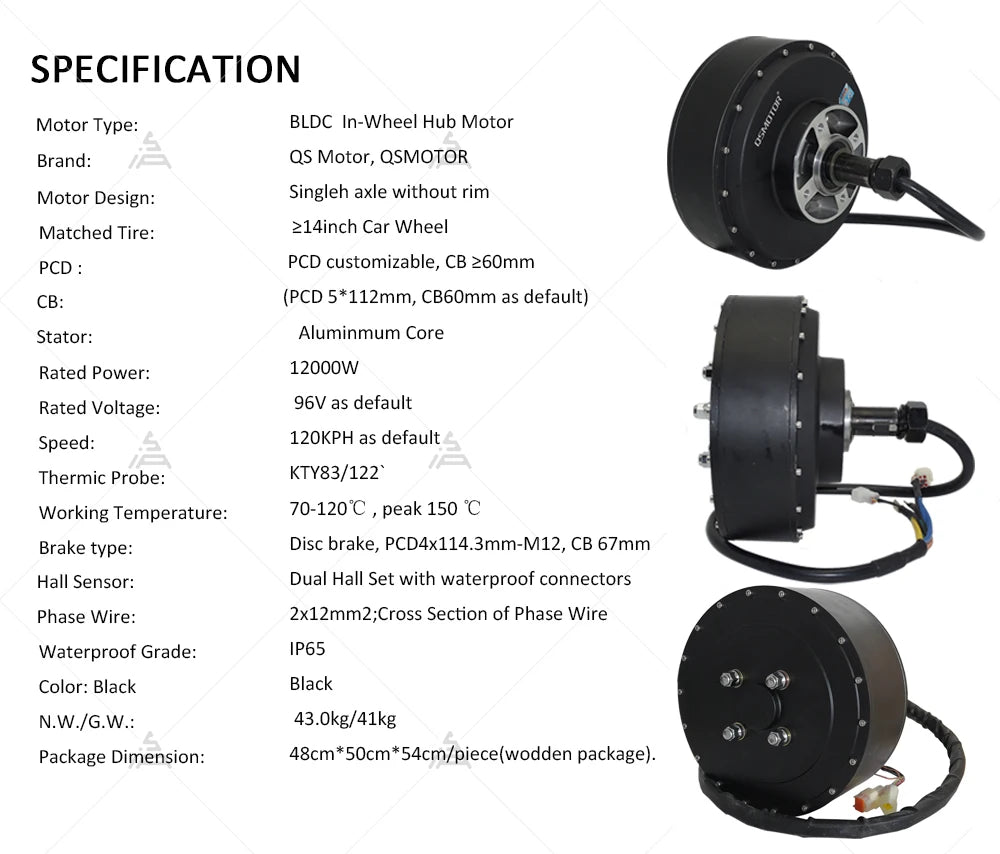

1. QS Motor 12000W 273 70H V4 E-Car Hub Motor

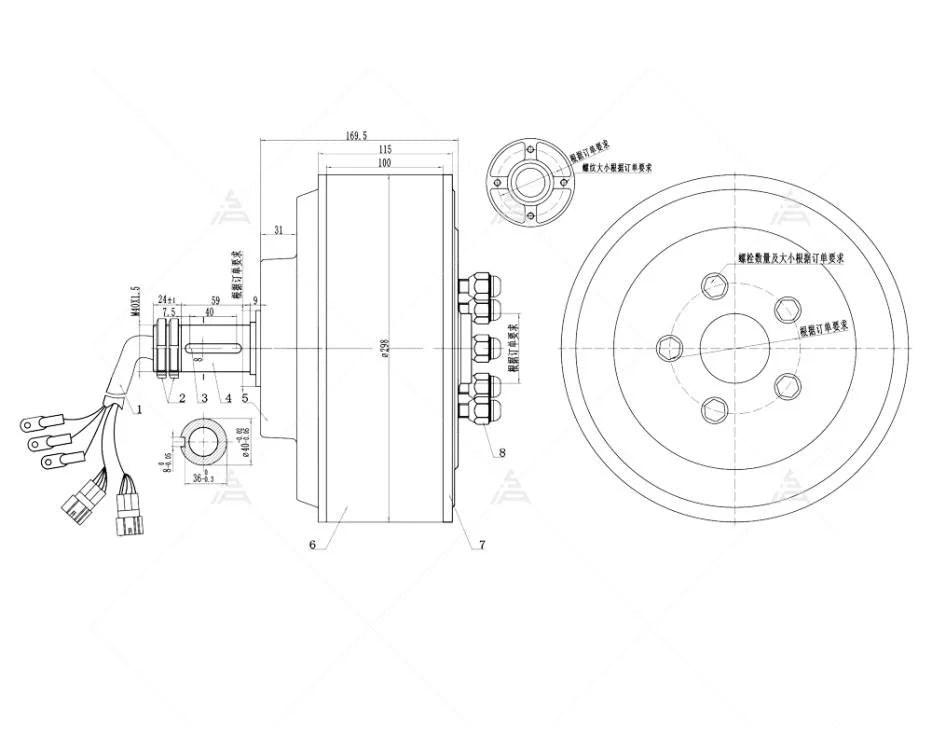

Drawing
Test Report
TBD

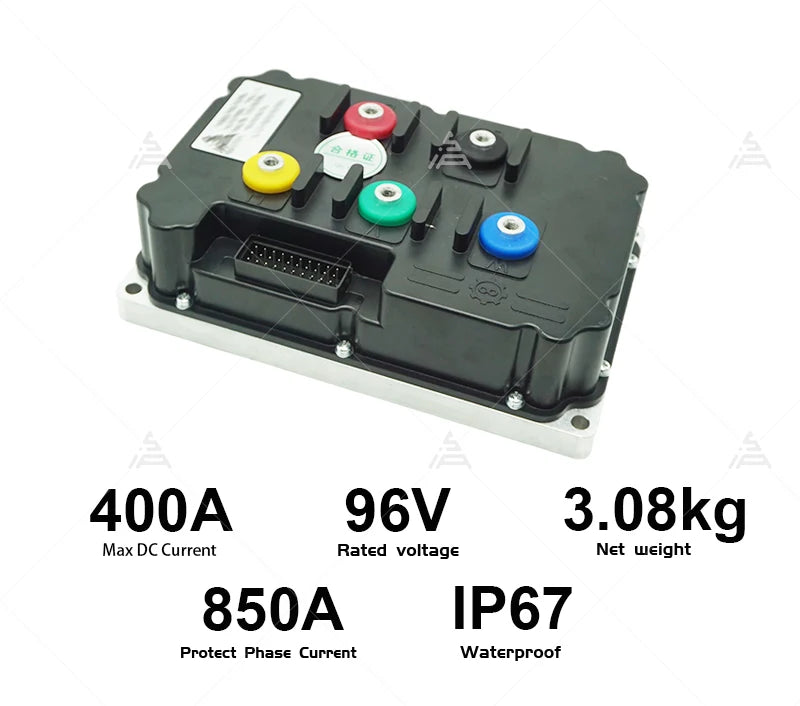

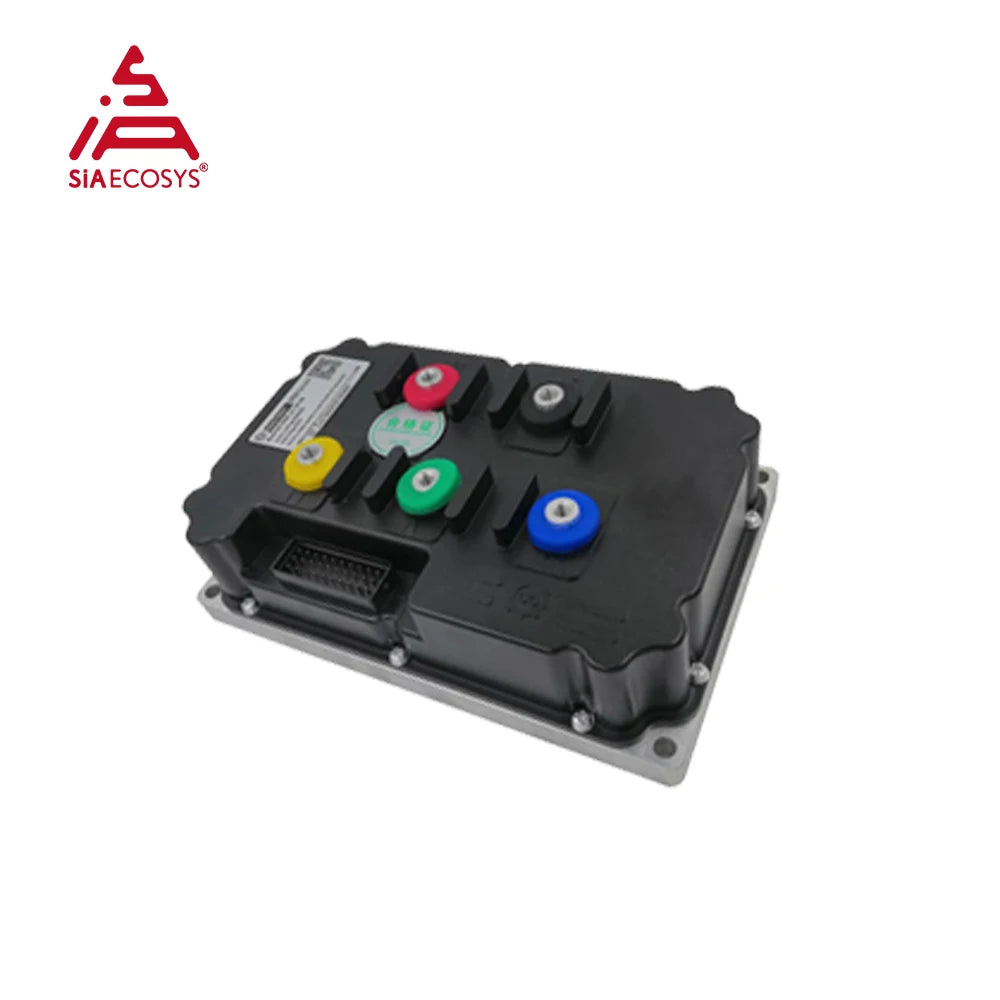

2. ND96850
Spec

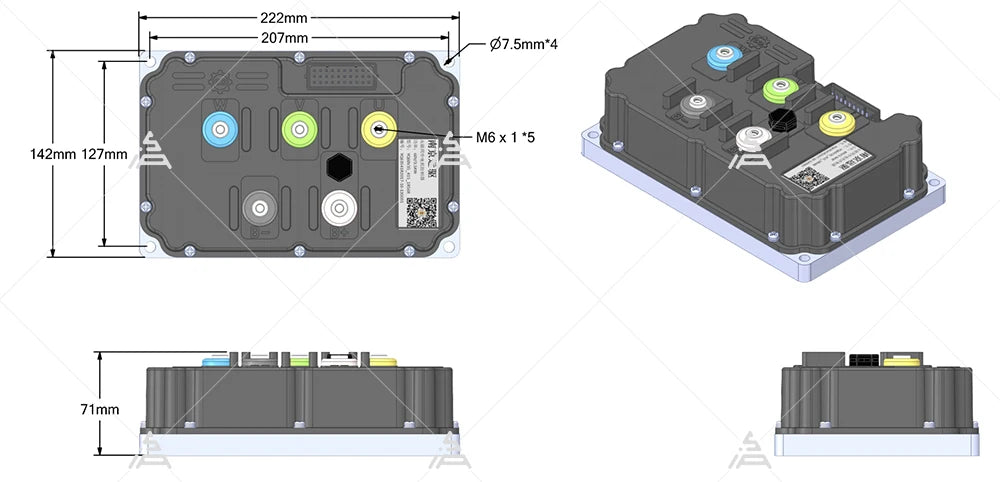

Drawing

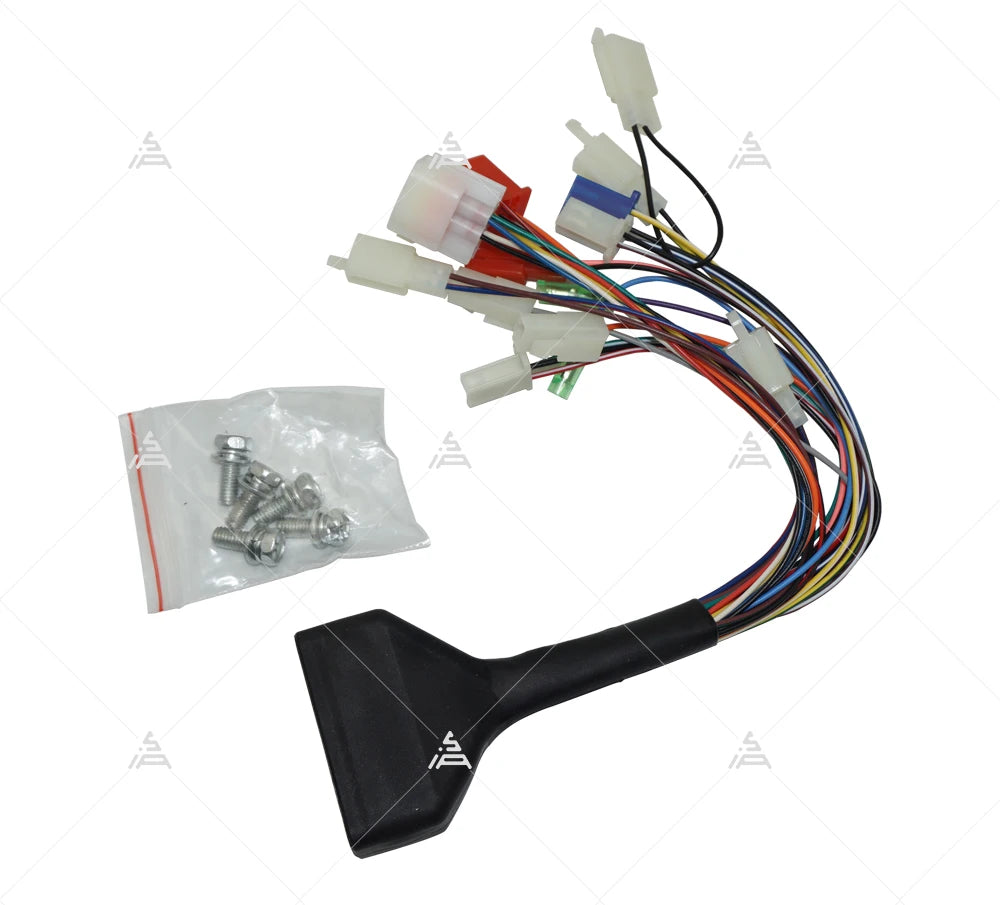

Adapter Cable

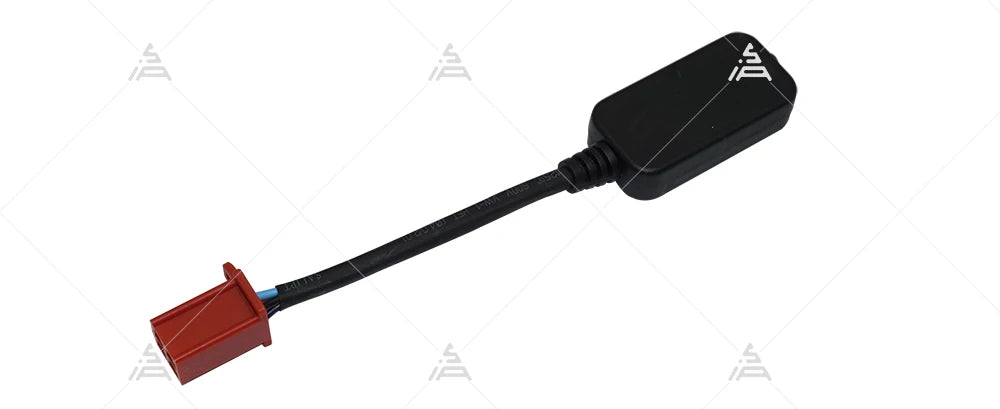

Bluetooth

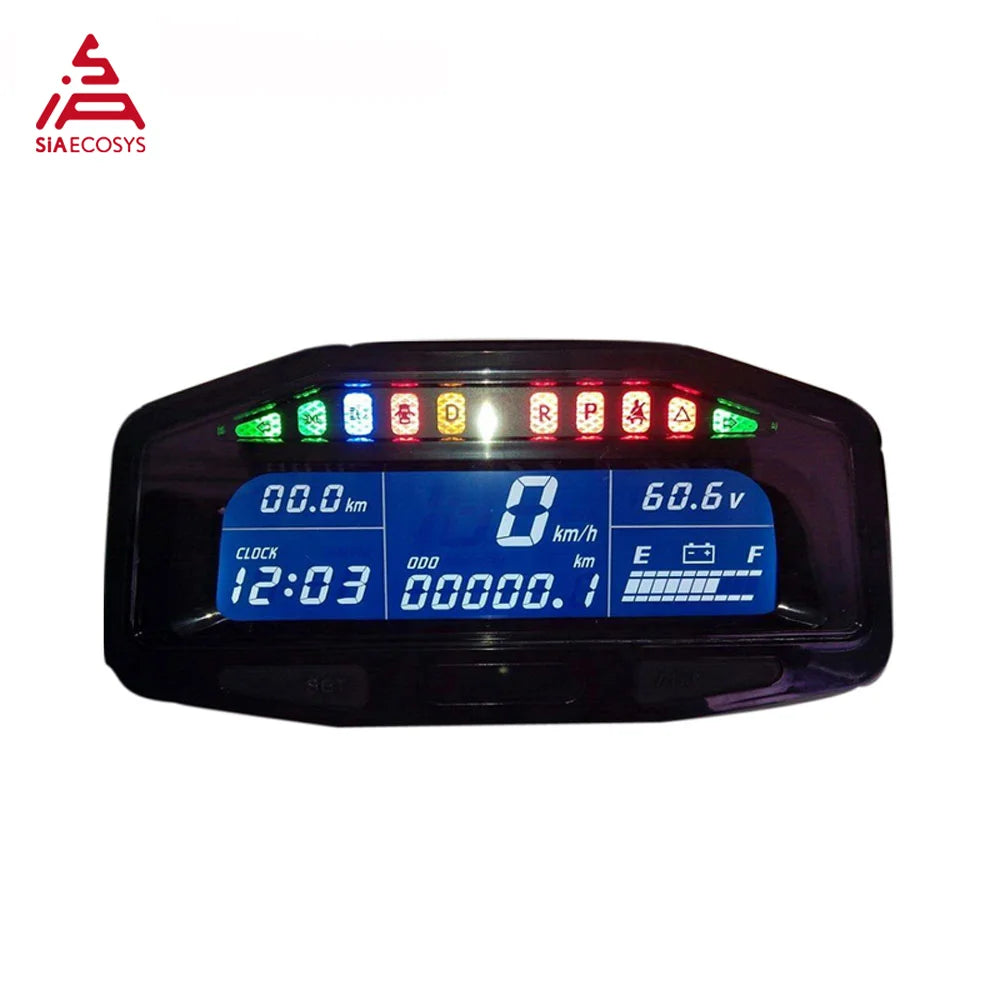

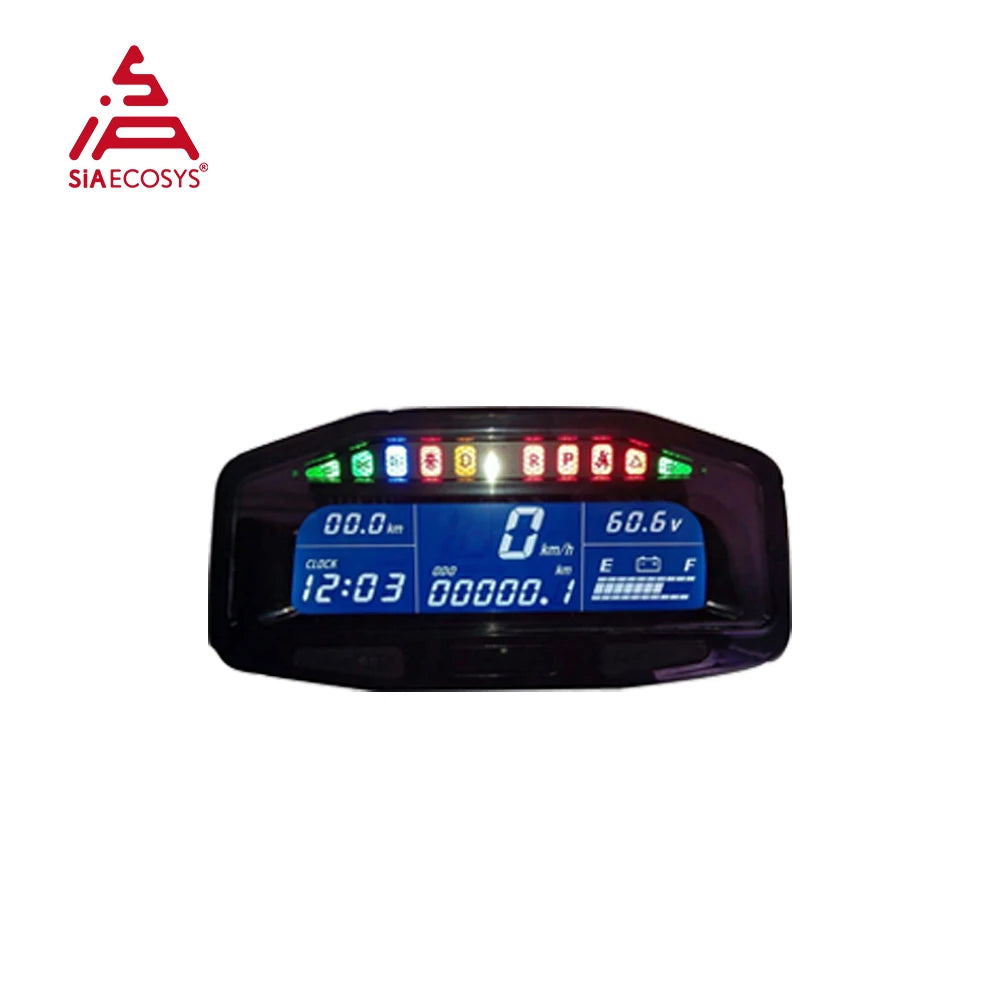

3. X8-E Speedometer
Place of Origin: China(Mainland)
Model Number: X8-E
Application: Electric Car, EV
Rated Voltage:48V-96V
Work voltage: 0-120V
Programmable items: voltage, trip, time, background light
Show Time, driving distance, speed, voltage, electric quantity
Test Speed Type: Hall Sensor
Net weight: 0.57kg
Size: 205mm*103mm*67mm
Packing size: 220mm*160mm*100mm
PS：We don't provide female and male waterproof connectors, pins for as below picture as default.
Itwill cost extra USD3.0/set for unit speedometer.

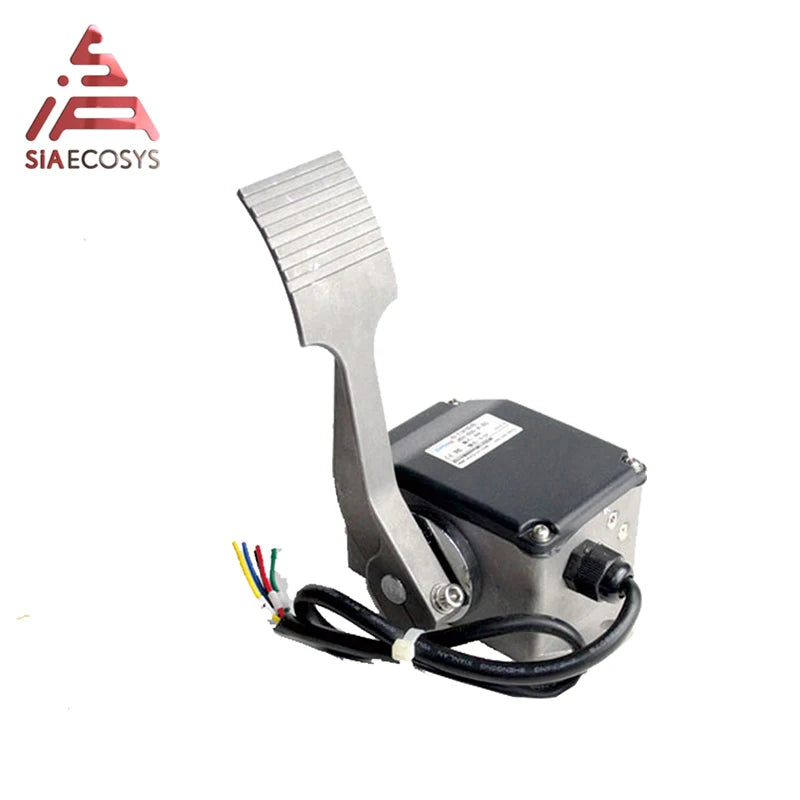

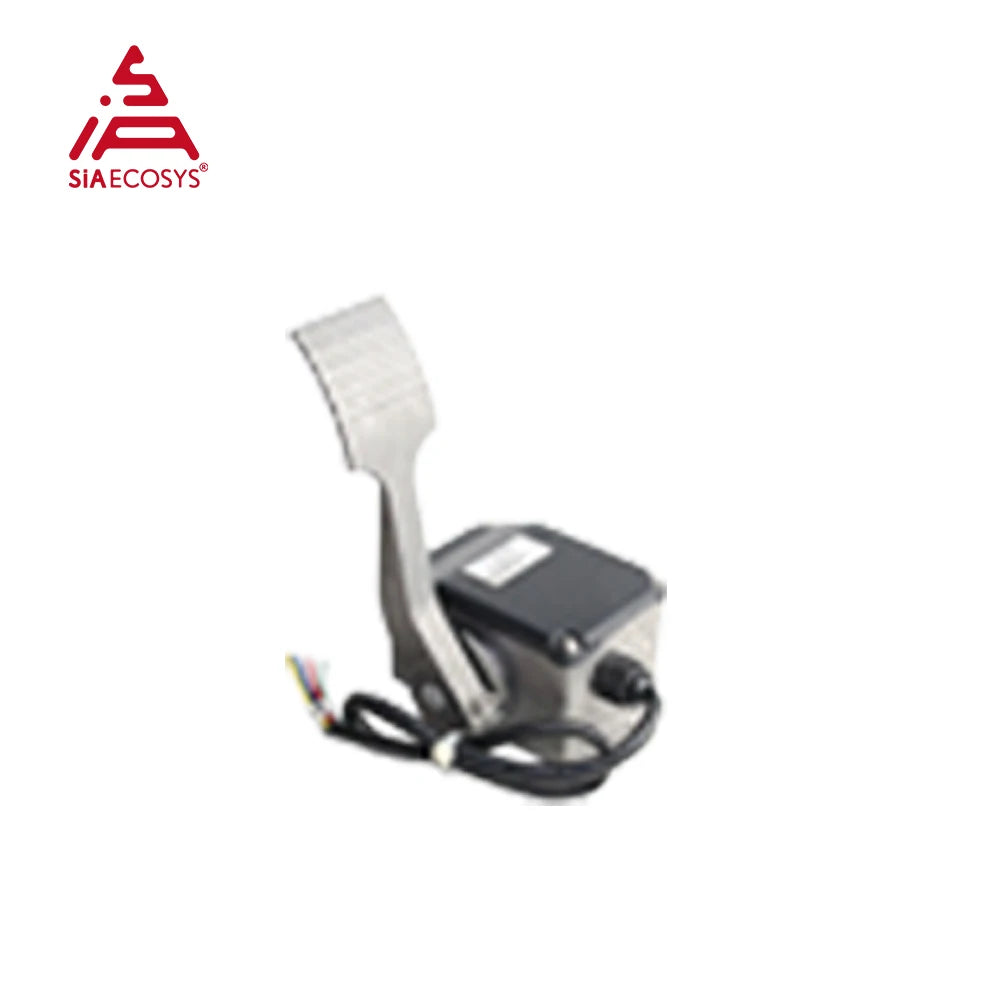

4. 0-5V Electric Car Throttle Pedal
Throttle Pedal Hall type : JKH model (match with our motor & controller)
Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V
Output voltage: 0-5V5-0V1-4.2V4.2-1V0-10V10-0V
Deafult: 5v input voltage (depends on controller design, for our matched controllers, you can choose 5v input voltage), 0-5v output voltage.
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
A note to client
1. Please contact seller confirm the parameter, otherwise we will produce as default.
2. Please extended 15 days more at least for order prepare when motor no in stock. (Most of motor is customized based on application, without in stock).
3. When place order please leave email address, for seller provide manual.
4. Please read manual careful before using motor and controller, and if meet problem please contact seller in time, and don't disassemble cargo without seller permit, otherwise there will be no warranty.
