SiAECOSYS Liquid Cooled 138 4000W 90H 7500W Max continuous 72V 110KPH Mid drive Motor conversion with Better temperature resistance fit EM200-2sp Controller
For 138 90H motor powertrain kits, it could be used for electric motorcycle, which could be 72V 110KPH.
e.g. Dirt bike
E-motorcycle weight, approx 130kg+2*80kg
Speed: continuous 110km/h
Gear ratio: 1:2.3*3 (double steps transmission )
Climbing slope: 30°@208kg
Battery: 72V52h
Tire: 0.6138 130/70-17
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do
customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not
support. (special countries list contact seller)

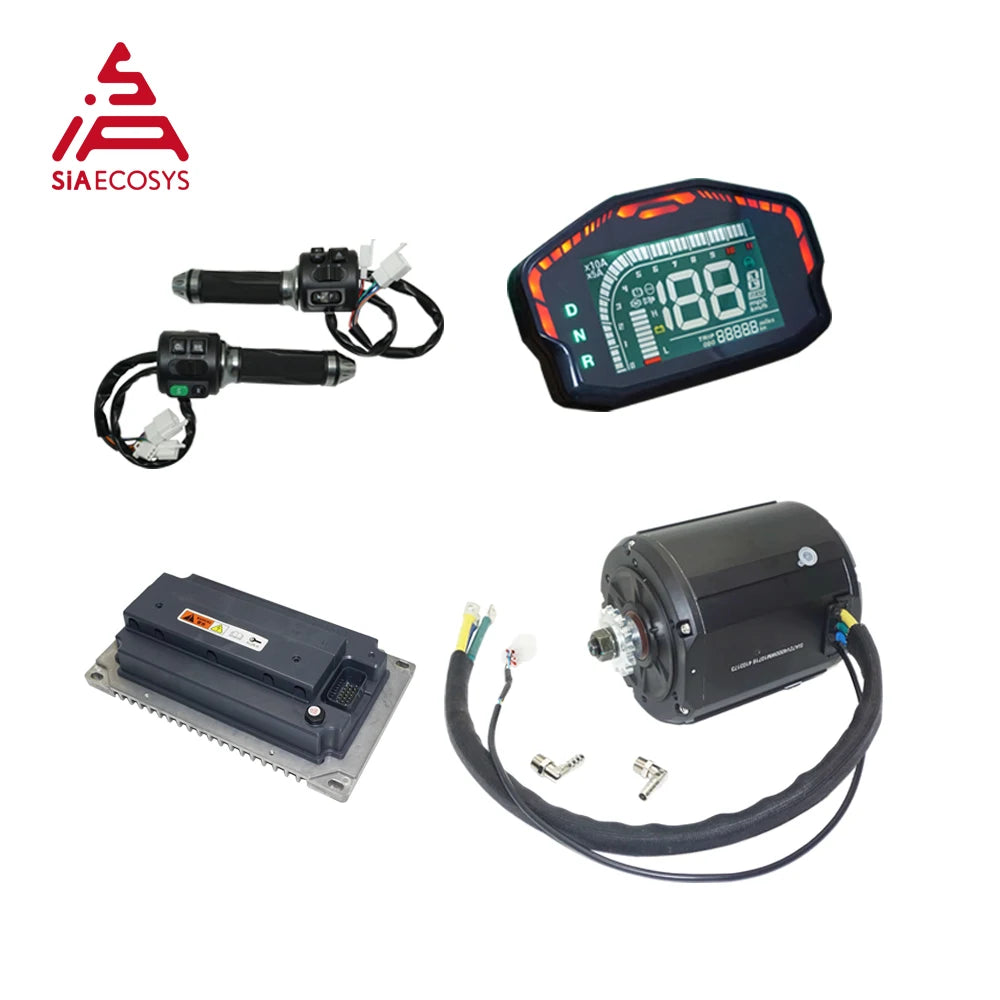

One set including below kits
Combo 1:
1.1pcs X QS Liquid Cooled 138 4kW Mid drive motor with belt design
2.1pcs X EM200-2sp CAN sine wave controller with enlarged heat sink
3.1pcs X DKD LCD speedometer with CAN (disable CAN as default)
4.1pcs X Z6 throttle with combination switch
Combo 2:
1.1pcs X QS Liquid Cooled 138 4kW Mid drive motor with 14T 428 sprocket adapter
2.1pcs X EM200-2sp CAN sine wave controller with enlarged heat sink
3.1pcs X DKD LCD speedometer with CAN (disable CAN as default)
4.1pcs X Z6 throttle with combination switch
Combo 3:
1.1pcs X QS Liquid Cooled 138 4kW Mid drive motor with belt design
2.1pcs X EM200-2sp CAN sine wave controller with enlarged heat sink
3.1pcs X DKD LCD speedometer with CAN (disable CAN as default)
4.1pcs X Z6 throttle with combination switch
5.1pcs X Vehicle Wiring with 1pcs Relay, 1pcs Flasher, 1pcs 72V to 12V 15A DC converter, 1pcs Ignition, suitable for EM200-2 controller.
Combo 4:
1.1pcs X QS Liquid Cooled 138 4kW Mid drive motor with 14T 428 sprocket adapter
2.1pcs X EM200-2sp CAN sine wave controller with enlarged heat sink
3.1pcs X DKD LCD speedometer with CAN (disable CAN as default)
4.1pcs X Z6 throttle with combination switch
5.1pcs X Vehicle Wiring with 1pcs Relay, 1pcs Flasher, 1pcs 72V to 12V 15A DC converter, 1pcs Ignition, suitable for EM200-2 controller.
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description
QSMOTOR Liquid Cooled138 4000W Mid drive motor with 14T 428 sprocket adapter
Drawing
Test Report
ACCESSORIES
2. EM200-2sp CAN sine wave controller with enlarged heat sink
There is latest new hardware controller, it support 1st2nd3rdspeed gear, sport mode, reverse mode and parking mode, soft start as default.
Drawing
USB Cable

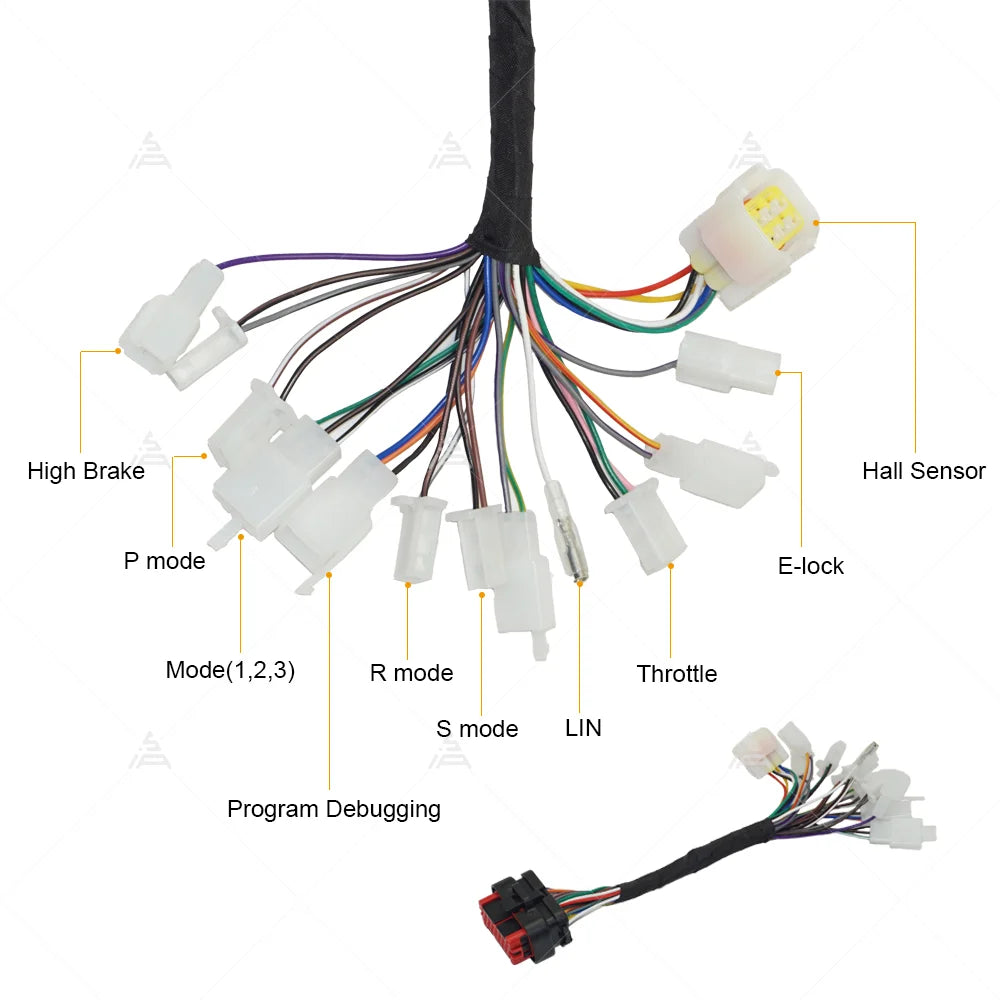

Controller Wiring Definition
Notice:
The model of plug-in connector isTE 770680-1.

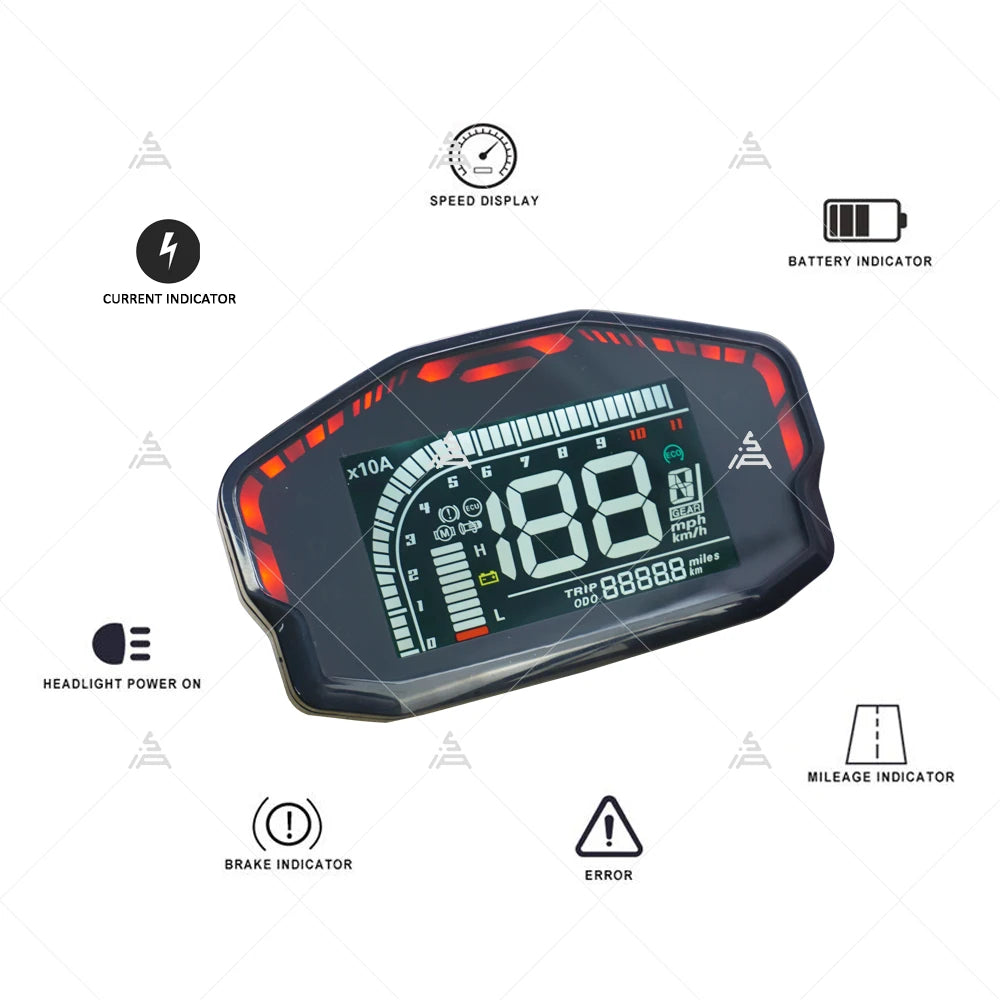

3.DKD LCD speedometer, can-bus(optional, LIN as default)
It display D N R, P, S gear, and battery current X5/10.
P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.
4.Z6 throttle with combination switch
With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with VOTOL controller well.
5. vehicle wiring harness
With 1pcs Relay, 1pcs Flasher, 1pcs 72V to 12V 15A DC converter, 1pcs Ignition, suitable for EM200-2 controller.
Programmable Software & User manual (Before you received the controller)
Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
