SIAECOSYS/FarDriver Encoder ND721200 BLDC 600A 8-12kW High Power Electric Motorcycle Controller With Regenerative Braking Function

Far driver ND721200 encoder version, generally match with QS 180 8kw mid drive motor.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

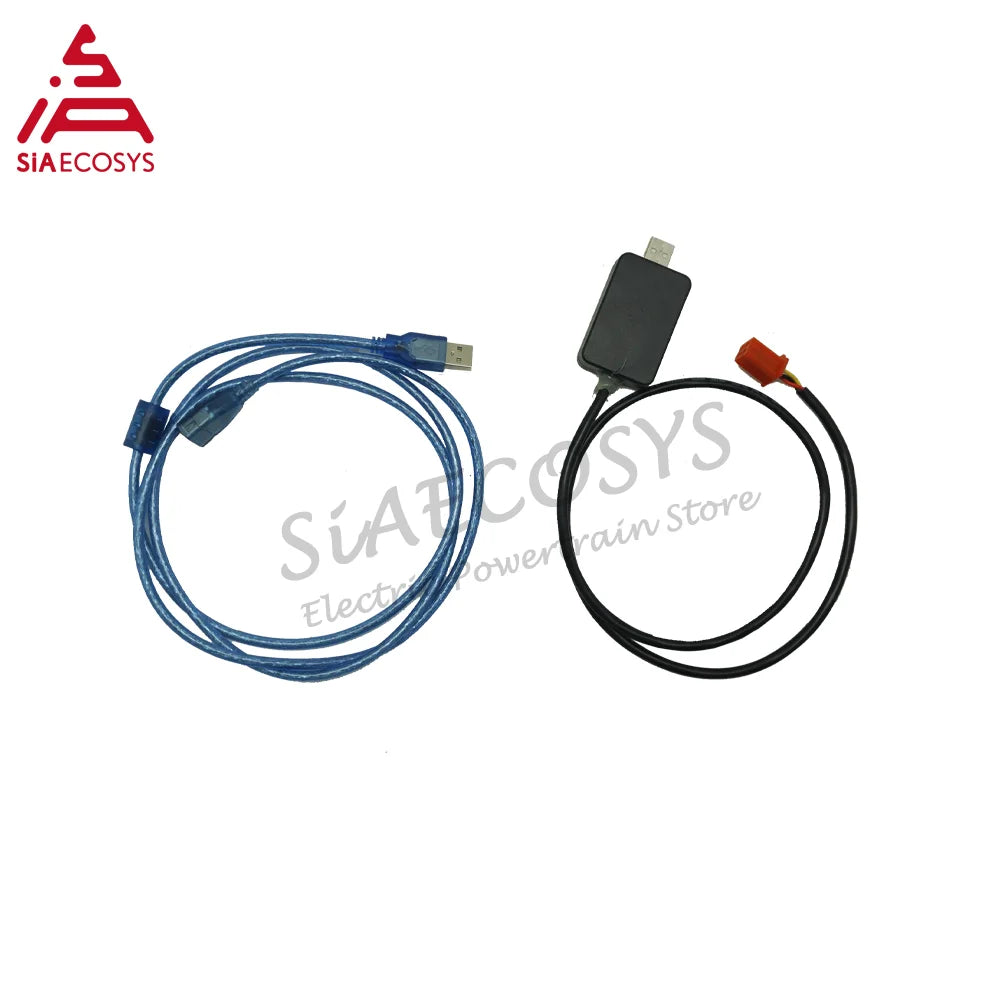

One set including below kits

Controller Key Features

1). All the raw materials are imported, using high-performance Moss tube

2).Withthe aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3).Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function (The product does not contain magnetism)

Controller Description

ND721200, is sine wave motor controller with waterproofing grade IP67, suit for 8-12kw motors.

For ND721200, the peak voltage is 88V

It’s encoder version (as default) which suit with encoder motors.

72V rated version only.

Drawing

Bluetooth

Software interface（APP）

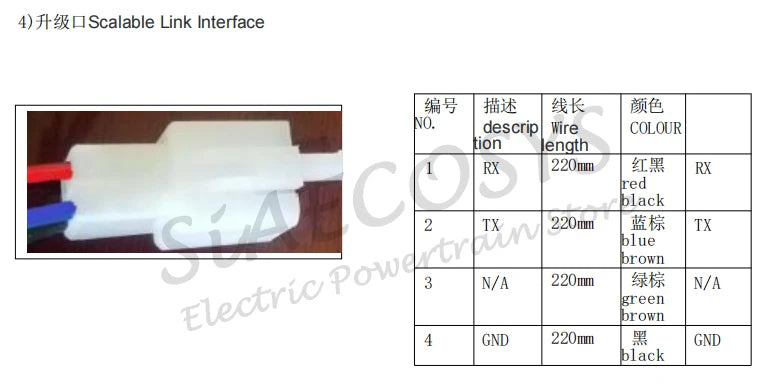

Wiring Diagram

The wiring support one-line and hallanalog speedometercommunication, which work with hall speedometer.

There is also CAN BUS version, please contact with sales for details.

Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
