SiAECOSYS 17X6.0inch 12000W V4 96V 157kph hub Motor with SIAPT96800 controller power train kits for High Power electric motorcycle
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
For17inch 12000Wmotor power train kits,it could be used for electricmotorcycle, which could be96V157KPH.
e.g.Electric Motorcycle
E-motorcycle weight, approx182kg+80kg
Speed:peak 157km/h
Climbing slope:15 degree@262kg
Tire: 190/50-17
One set including below kits
1.1pcs X QSMOTOR 17X6.0inch 12000W 273 V4 Electric Motorcycle Hub Motor
2.1pcs XSIAPT96800 96V Sinusoidal Wave BLDC Motor Controller
3.1pcs X CT22 LCD Programmable Speedometer
4.1pcsXZ6 Switch Combination Full Twist Throttle
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description
1.QSMOTOR 17X6.0inch 12000W 273 V4 Electric Motorcycle Hub Motor
Drawing
Test Report
2.SIAPT96800 96V Sinusoidal Wave BLDC Motor Controller
Drawing

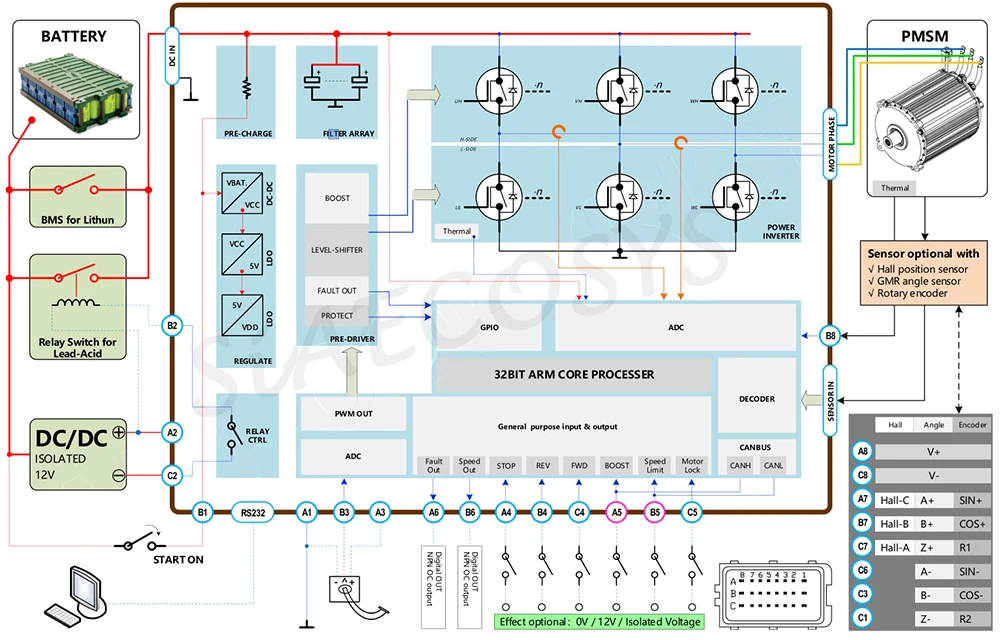

Wiring Diagram

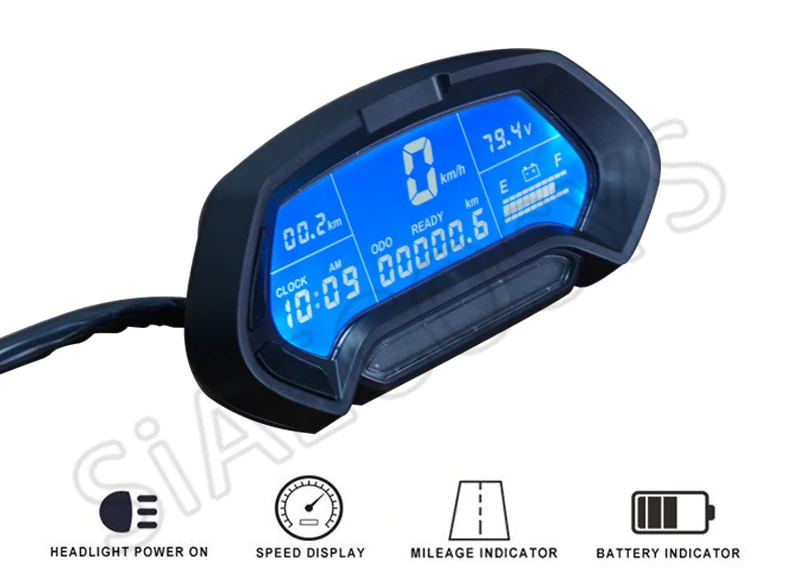

3.CT22 LCD Programmable Speedometer

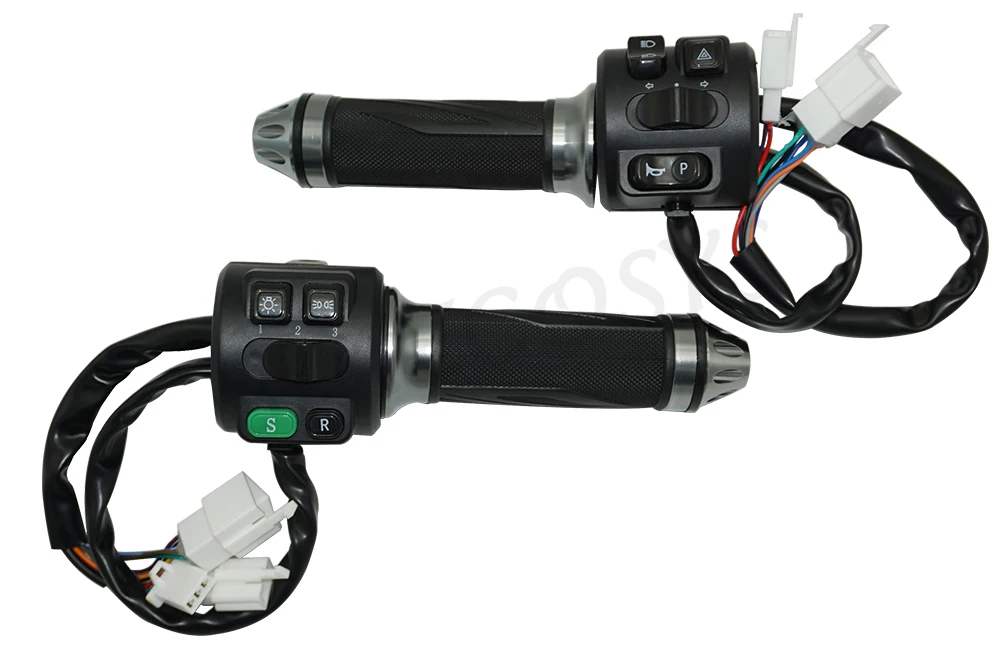

4. Z6 Switch Combination Full Twist Throttle
The controllersupport1,2,3 mode and R mode.
However,does notsupportSportandParkingfunctionsdue to the controller has no function port, so the two buttonson throttlecan not be used.
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
Application
