SIA QS 205 3KW V3TI Spoke Hub Motor Kits With 19inch Wheel Rim And Heat Sink

Regular price $896.68

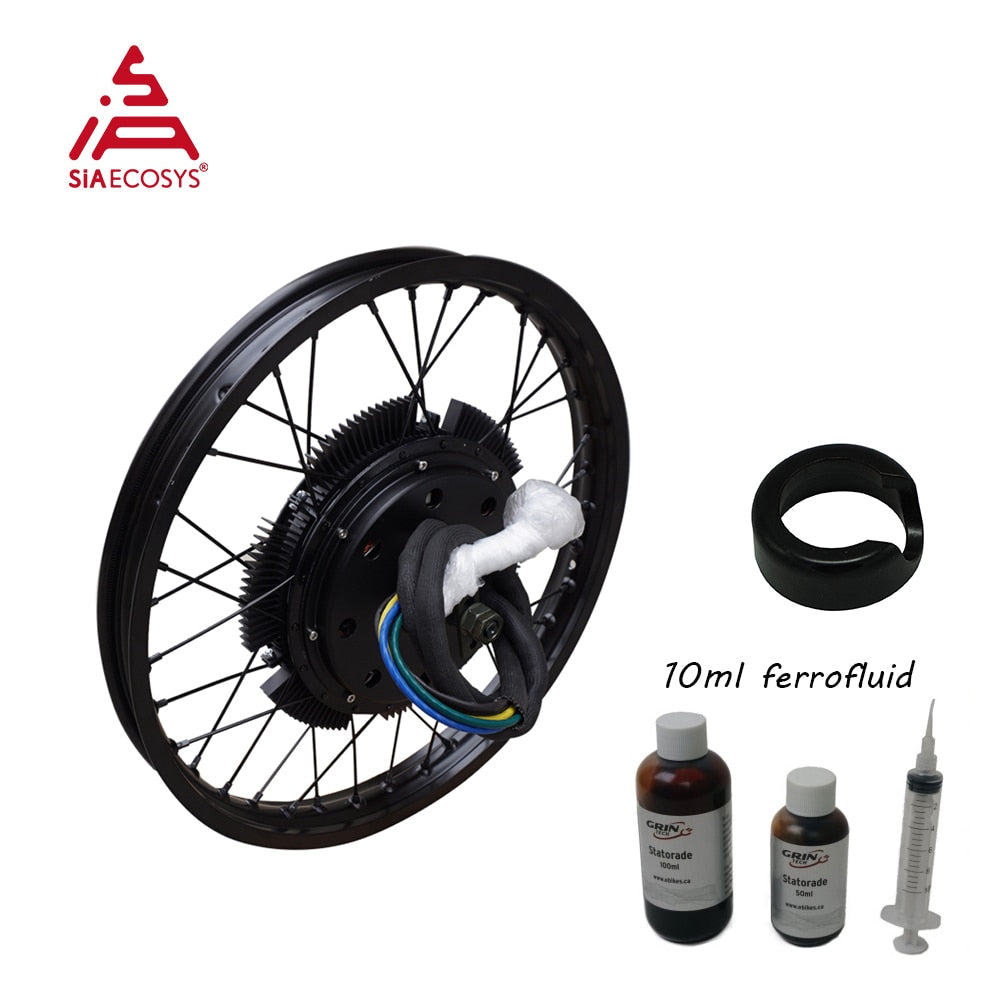

QS E-Bike 205 50H V3 Spoke Hub Motor Kits With 19x1.6inch Moped Rim and heat sink By SIA



For QS E-Bike  Hub Motor Kits electric motor, it’s new design and especially upgrades for e-bike. It could be 72V 70KPH, available in a variety of sizes, such as 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

Optional spoke color, Black/Silver

Please contact seller for which color you prefer before making order.

Note: only silver spokes are available now, all orders will be delivered according to silver,please don't order if you mind.






Key Features

1). Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



Difference between V3/V3I/V3TI

1. Phase wire exit from thread side, which is easier to mount on bike and it looks better.

Left is V3TI, right is V3/V3I

2. Phase wire change to integrated one instead of standard loose one, which improved from IP54 to IP65.

Regular V3 uses # Standard wire #

V3I/V3TI use # Integrated wire #

3. Add brake spacer as default, which is thinner to avoid scratch phase wire by brake disc.




Product Description

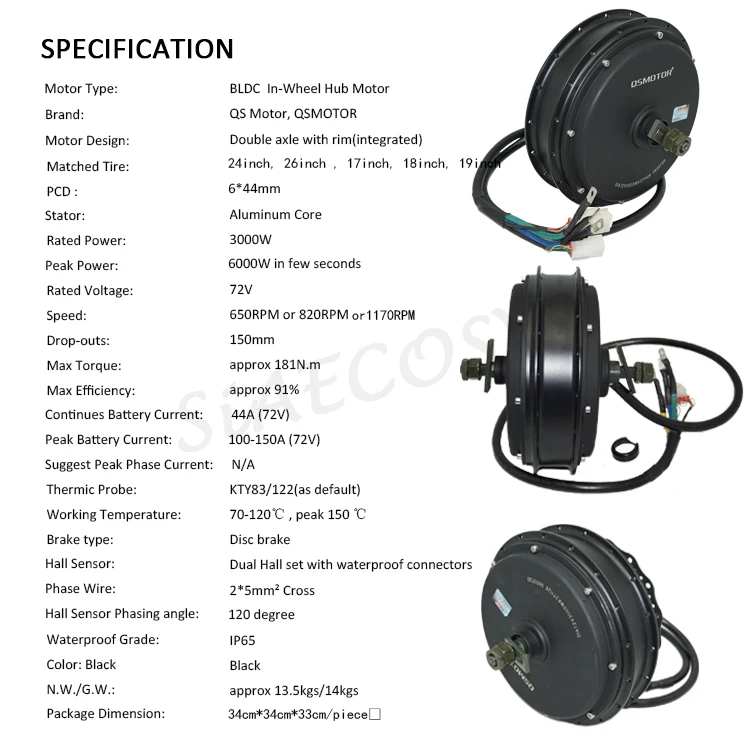

1. Specification:

PS. V3Ti short for V3 thread integrated, which mean phase wire exit from thread side of motor axle, we plan to replace V3 motor gradually.

Dimension Drawing

Refer to V3 drawing firstly.

Test Report



For 205 spoke motor, we provide 1 piece Hex Flange Nuts M16*1.5*13, 1 piece Hex Nuts M16*1.5*7, 1 piece 4mm thick Washer as default.

Option 1: Hex Flange Nuts M16*1.5*13 + Hex Nut M16*1.5*7

Option 2: Hex Flange Nuts M16*1.5*13 + 4mm thick Washer

We suggest option 1, if the motor shaft length is not enough, choose option 2 and make sure the washer is installed and tight, otherwise there is a risk of shaft broken.

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.



Conversion kits

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.




Application for QS 205 3kW V3 e-bike spoke hub motor

Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the SIA QS 205 3KW V3TI Spoke Hub Motor Kits With 19inch Wheel Rim And Heat Sink.
