SIA/QS 12inch 3000W V1.4 72V 80kph Hub Motor with VOTOL EM150SP controller and kits for Scooter

SIA 12inch 3000W 72V 80kph Hub Motor with VOTOL EM150SP controller and kits for Scooter

For 3000W motor kits, it could be used for Electric Scooter, which could be 72V 80KPH.

e.g. Electric Scooter

Weight, approx 100kg+80kg

Speed: peak 80km/h

Climbing slope: 15 degree@180kg

Tire: 130/70-12

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

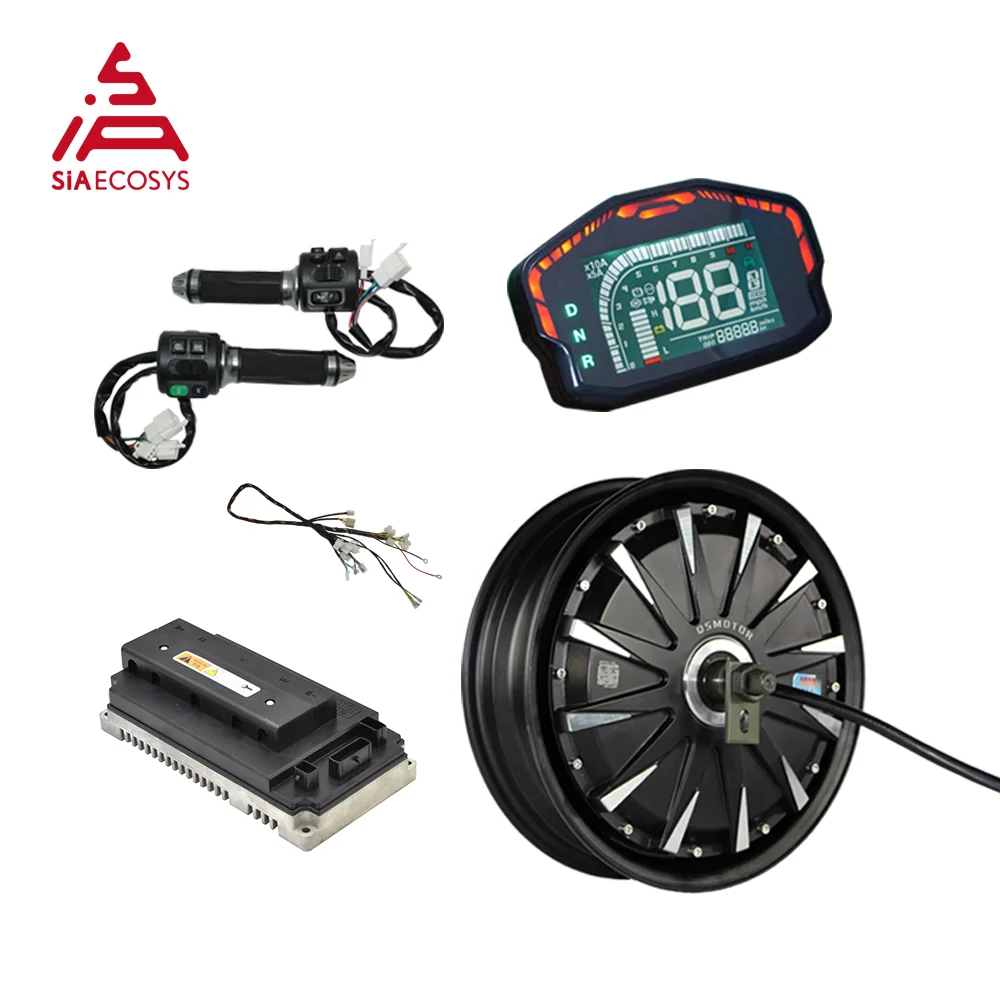

One set including below kits

kit one

1. 1pcs X QSMOTOR 12X3.5inch 3000W V1.4 electric wheel hub motor

2. 1pcs X EM72150SP sine wave motor controller with standard CAN-BUS

3. 1pcs X  DKD LCD speedometer with CAN (disable CAN as default)

4. 1pcs X Z6 throttle with combination switch

kit two

1. 1pcs X QSMOTOR 12X3.5inch 3000W V1.4 electric wheel hub motor

2. 1pcs X EM72150SP sine wave motor controller with standard CAN-BUS

3. 1pcs X  DKD LCD speedometer with CAN (disable CAN as default)

4. 1pcs X Z6 throttle with combination switch

5.1pcs X Vehicle Wiring suitable for EM50sp-EM150sp controller

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

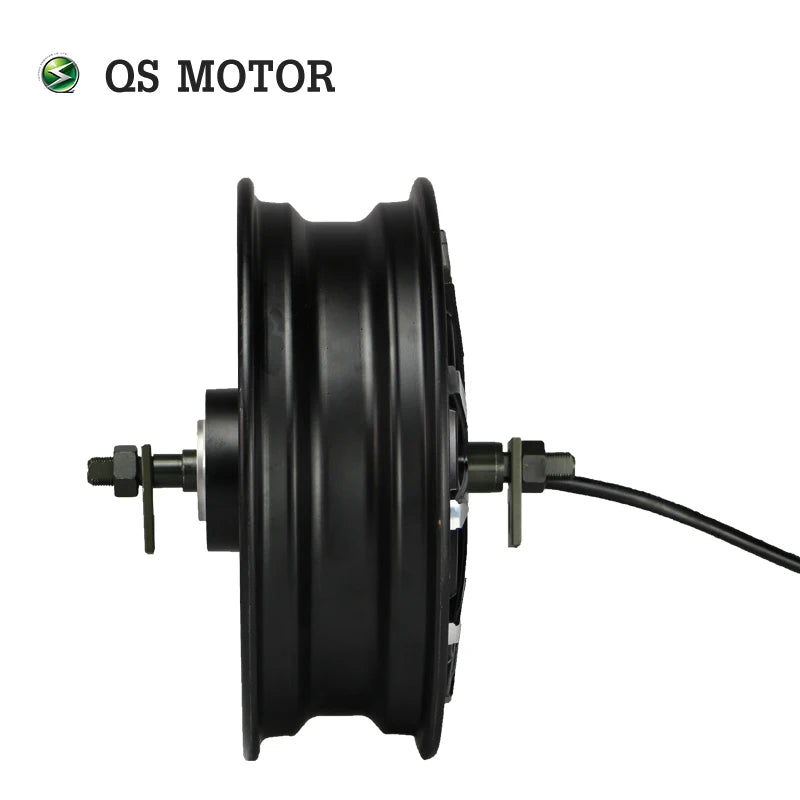

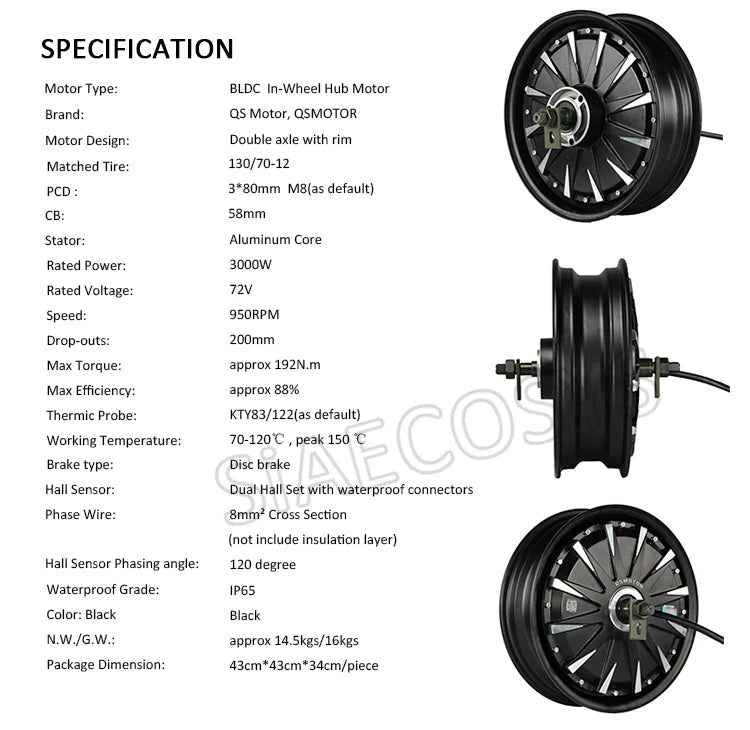

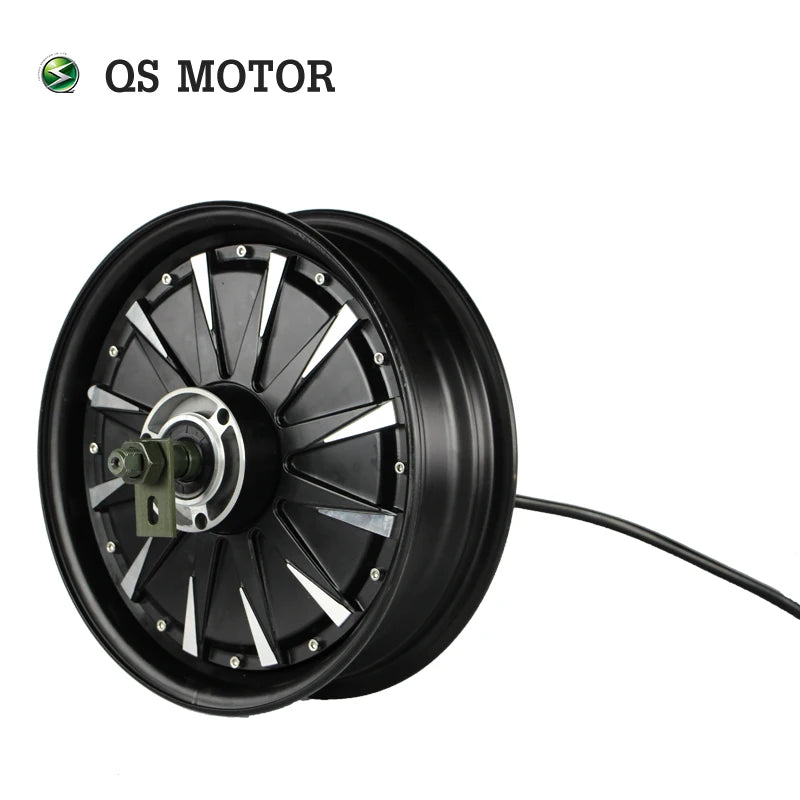

1.QSMOTOR 12X3.5inch 3000W V1.4 Electric Scooter Hub Motor

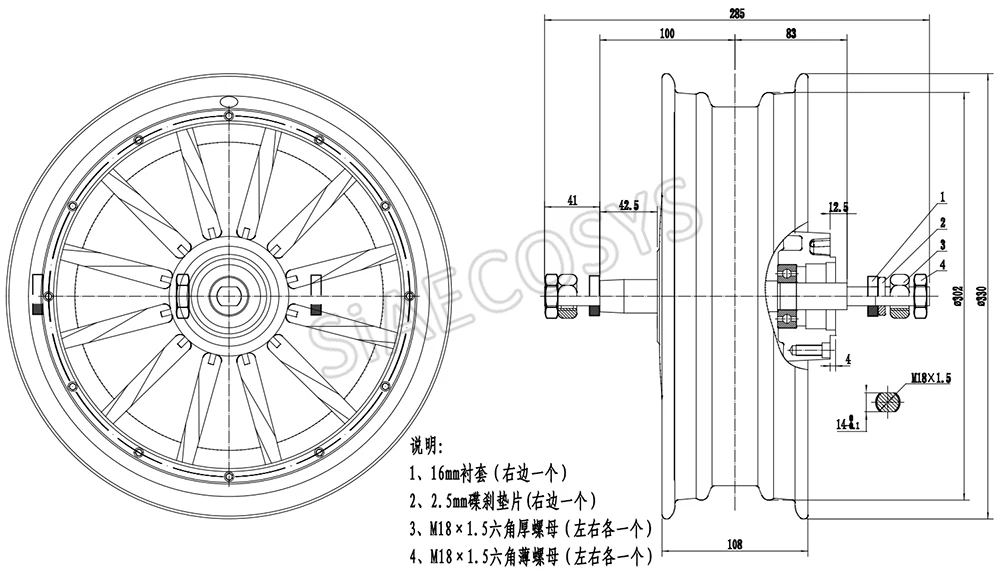

2. Drawing

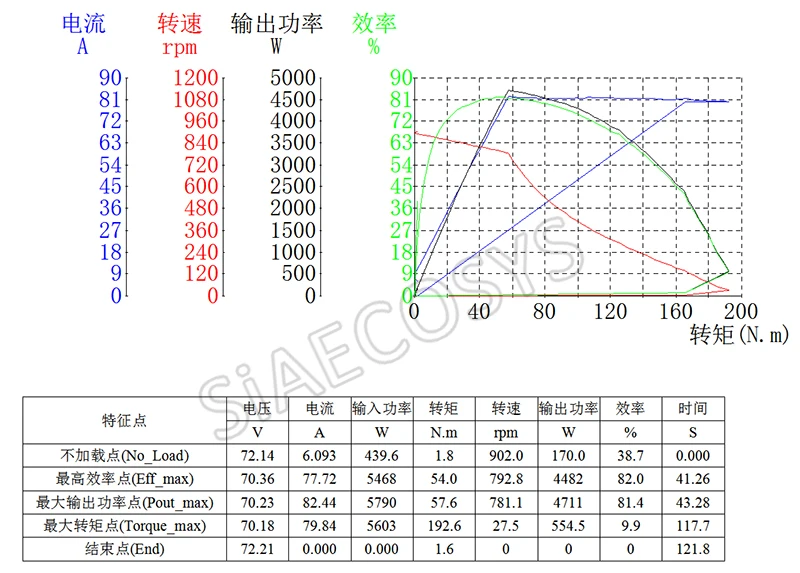

3. Test report

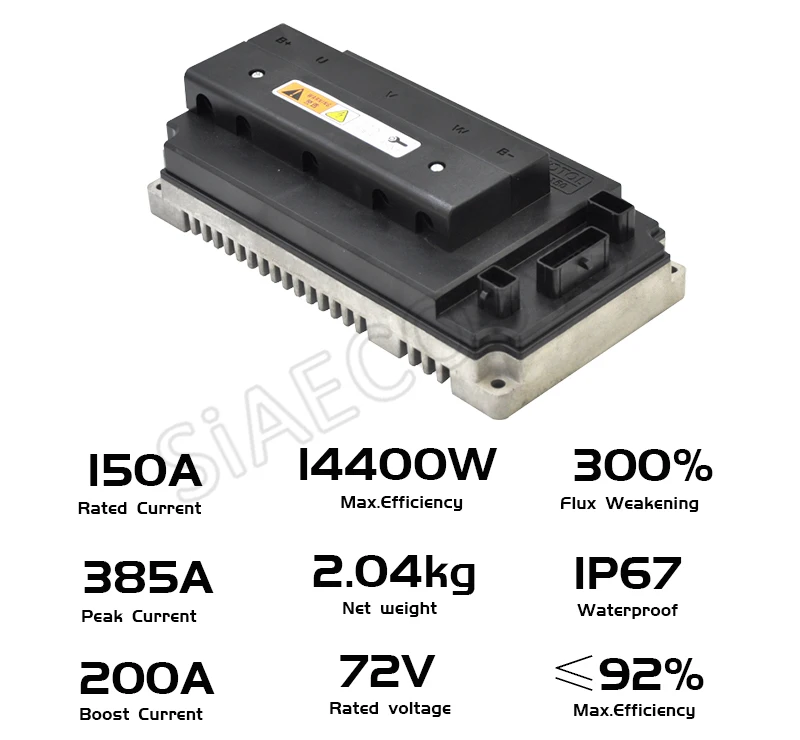

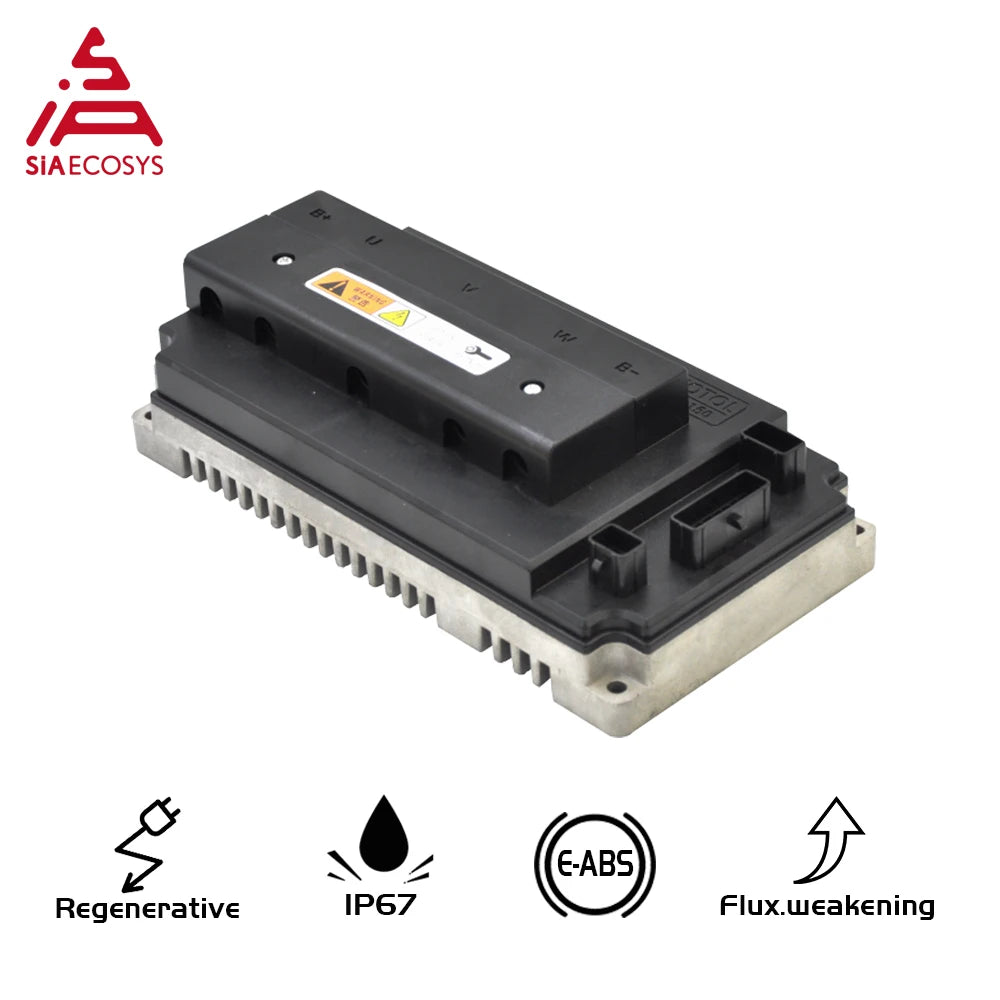

2.EM150SP72V sinusoidal wave BLDC motor controller, with CAN BUS

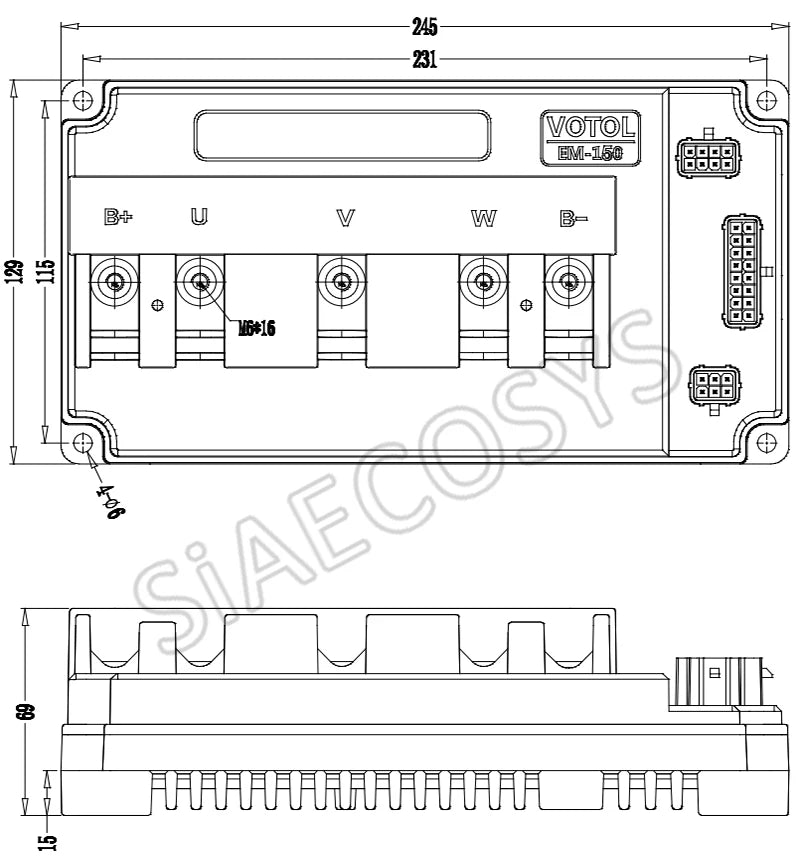

Dimension drawing

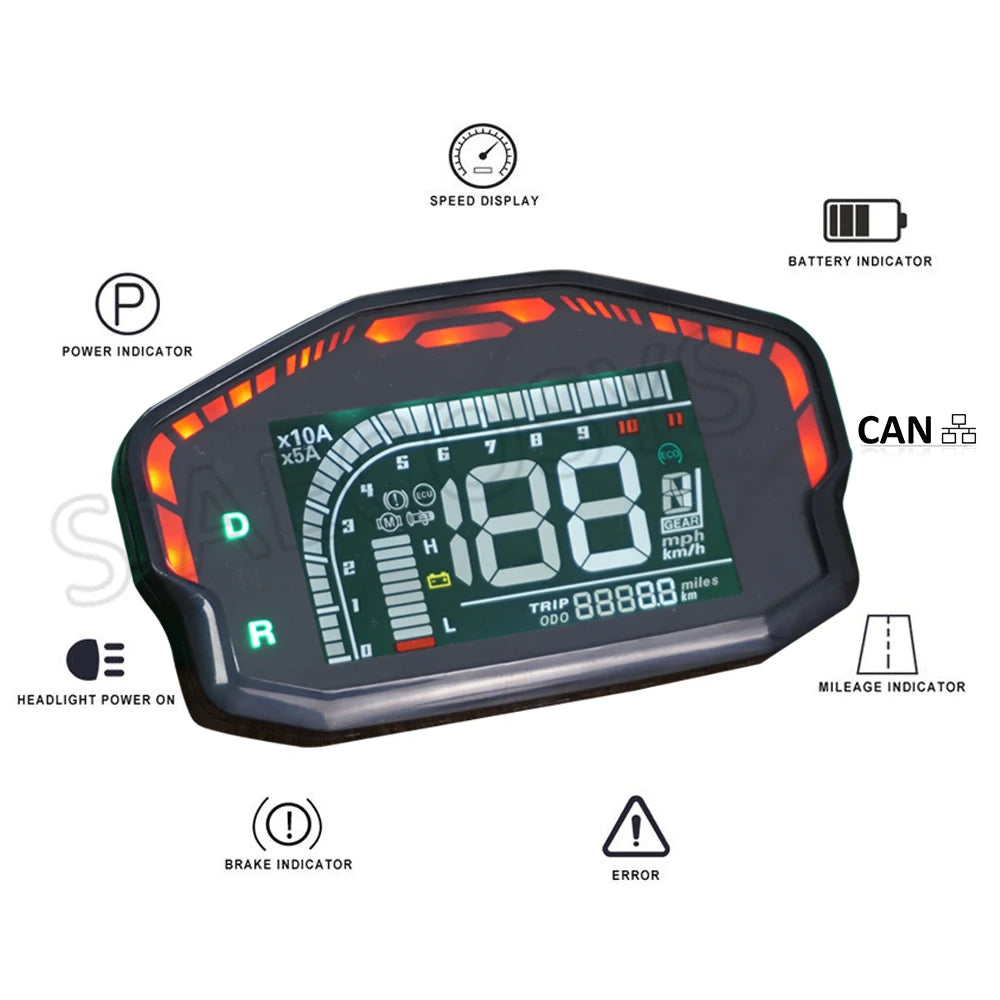

3. DKD LCD speedometer, can-bus(optional, LIN as default)

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

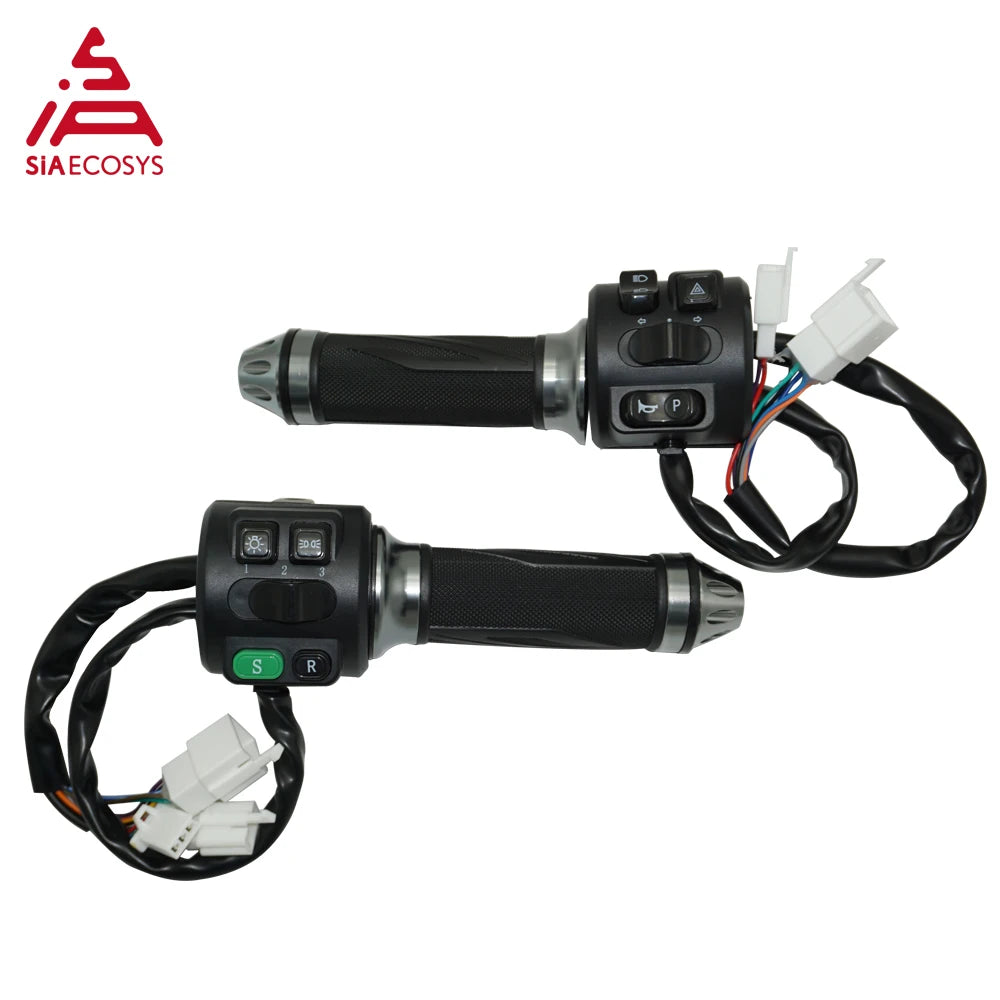

4. Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.

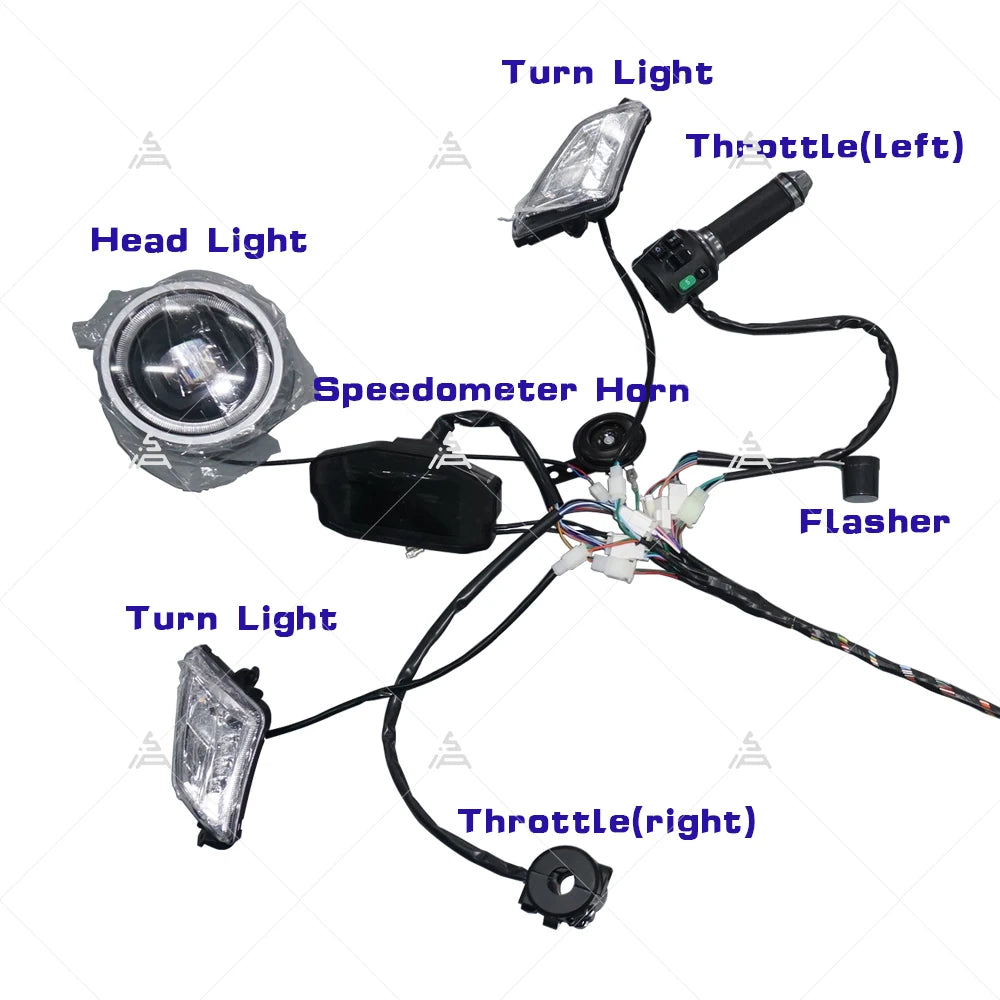

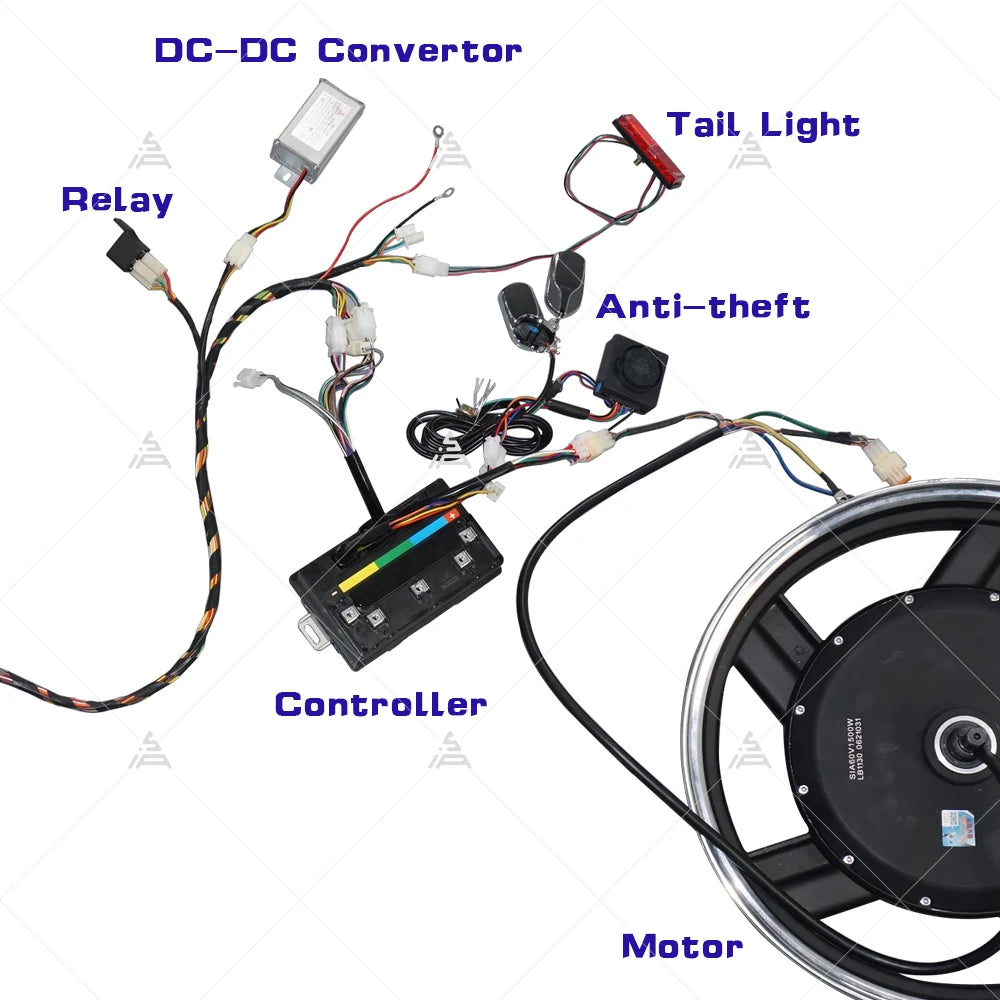

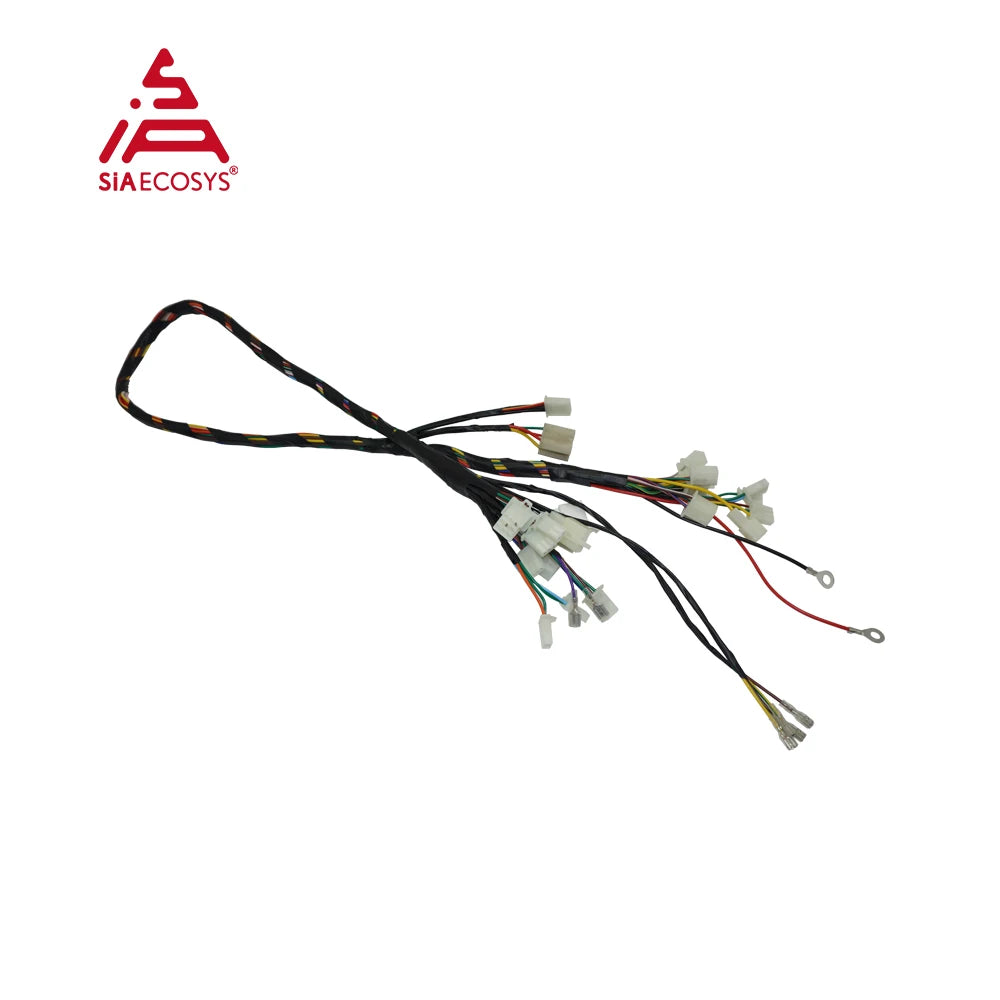

4.1pcs X Vehicle Wiring suitable for EM50sp-EM150sp controller

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

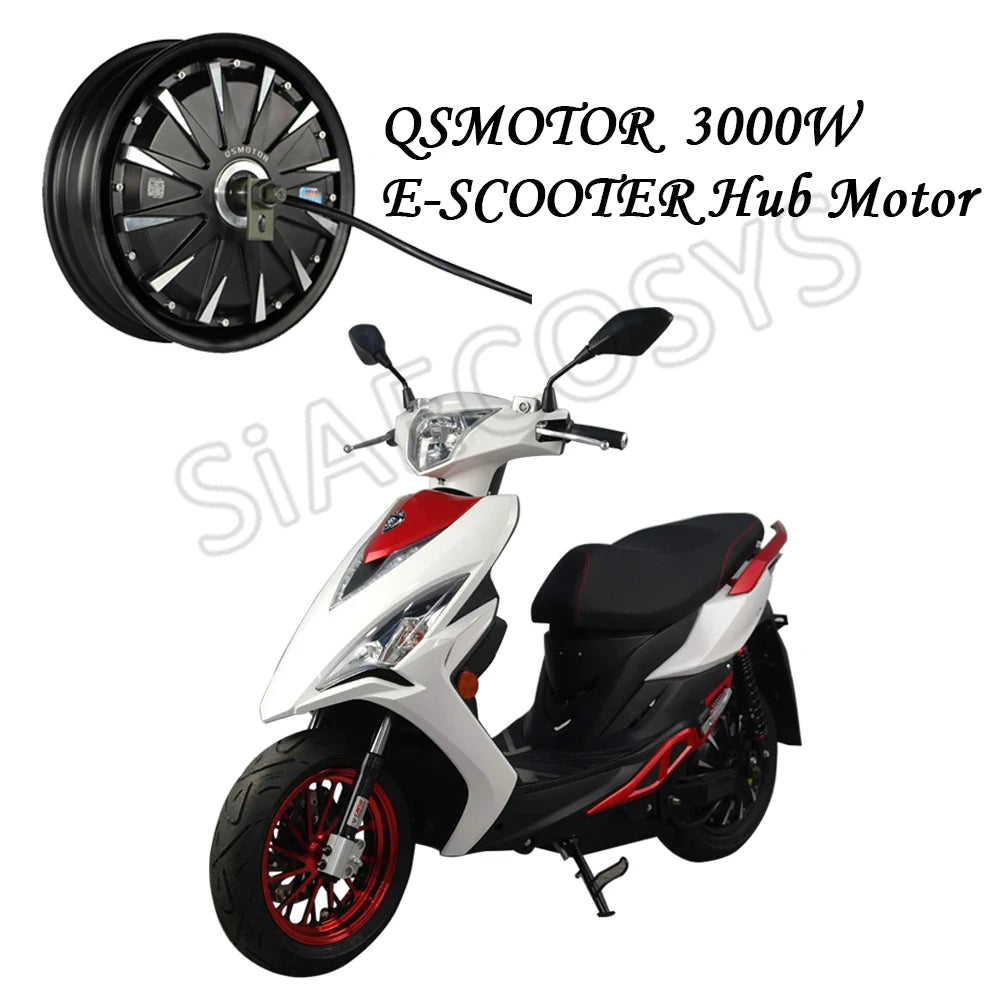

Application for 12x3.5inch 3kw in-wheel e-scooter hub motor
