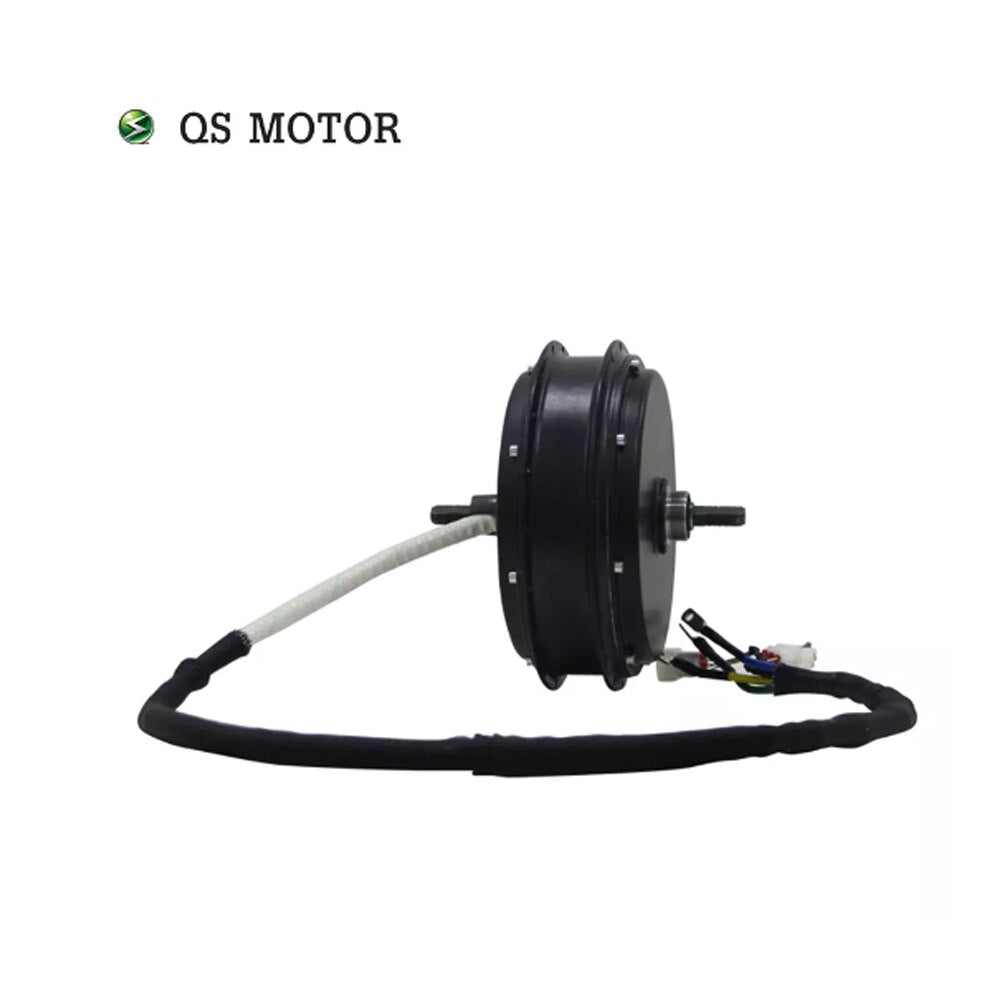

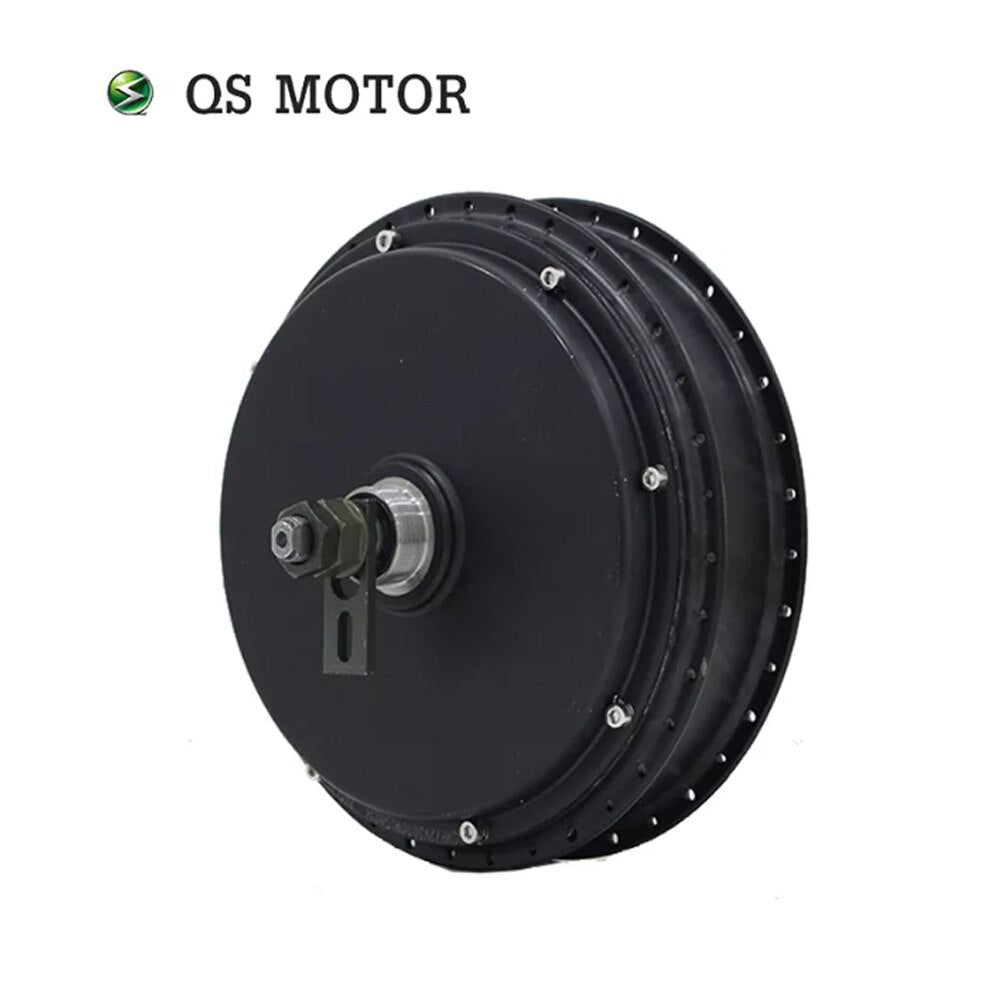

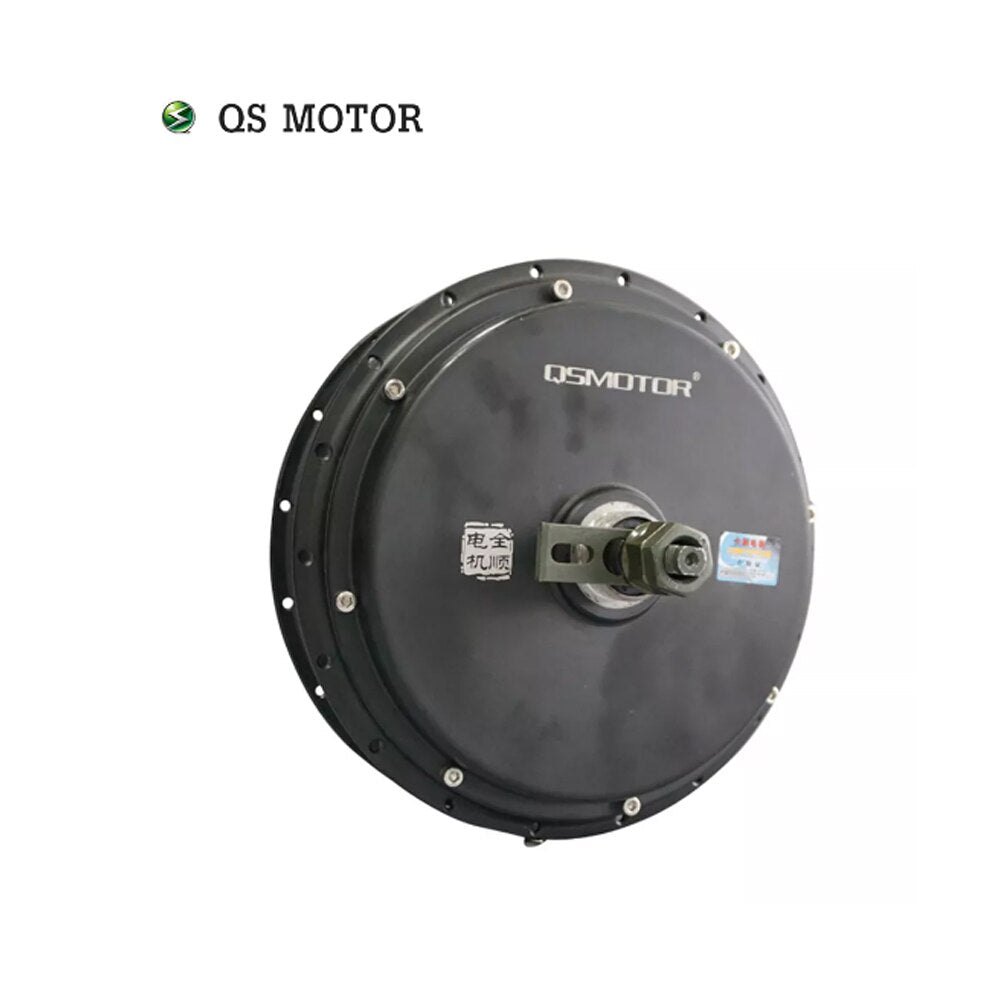

QS Motor Bicycle Spoke motor 3000W 205 (50H) V3TI Type Hub Motor with moped wheel Electric Bike Kit
For 205 3000W Electric Bike Kit spoke hub motor, it could be used for electric bike, high power electric bicycle.
Especially suit for electric bicycle, max. speed for 60km/h to 100km/h.

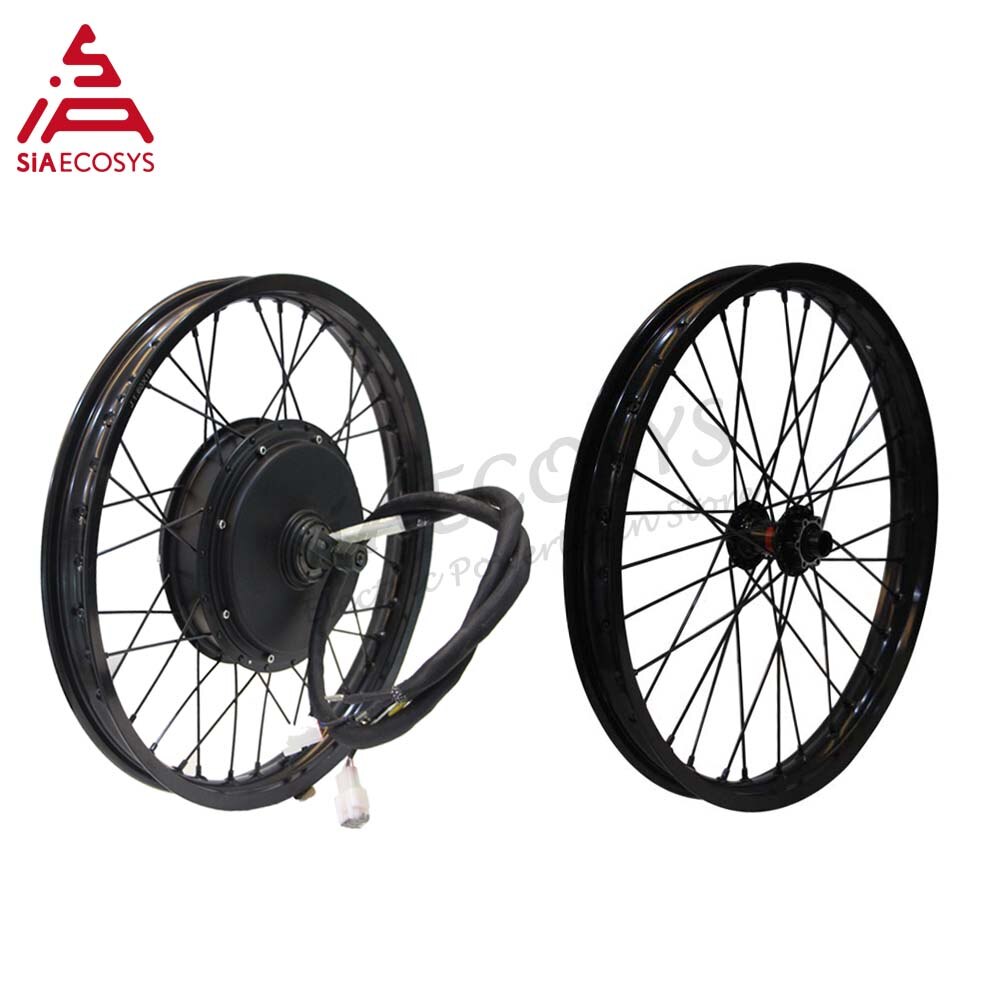

One set including below kits
Combo 1
1.3000W 205 (50H) V3TI Type Hub Motor with moped wheel rim
2.QSMOTOR 19x1.6inch front wheel rim for bicycle motor
Combo 2
1.3000W 205 (50H) V3TI Type Hub Motor with moped wheel rim
2.QSMOTOR 17x1.6inch front wheel rim for bicycle motor
P.S. The spokes only available silver color
Key Features
1). Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product description

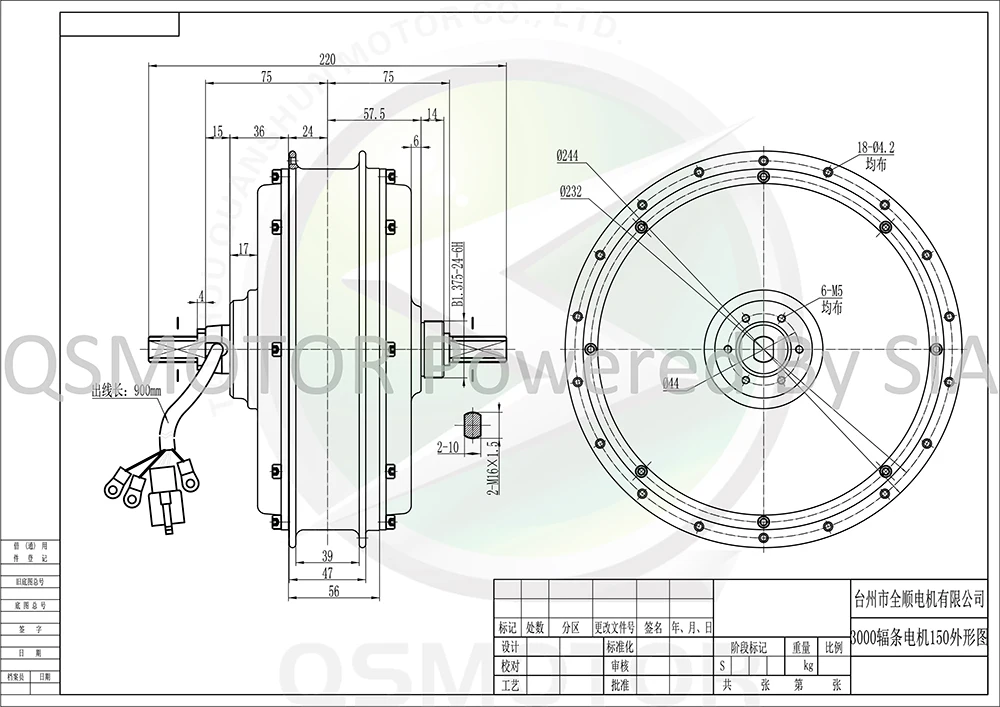

Drawing
-
QS 205 150mm drop-outs E-BIKE spoke hub motor
For 205 spoke motor, we provide 1 piece Hex Flange Nuts M16*1.5*13, 1 piece Hex Nuts M16*1.5*7, 1 piece 4mm thick Washer as default.
Option 1: Hex Flange Nuts M16*1.5*13 + Hex Nut M16*1.5*7
Option 2: Hex Flange Nuts M16*1.5*13 + 4mm thick Washer
We suggest option 1, if the motor shaft length is not enough, choose option 2 and make sure the washer is installed and tight, otherwise there is a risk of shaft broken.
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.

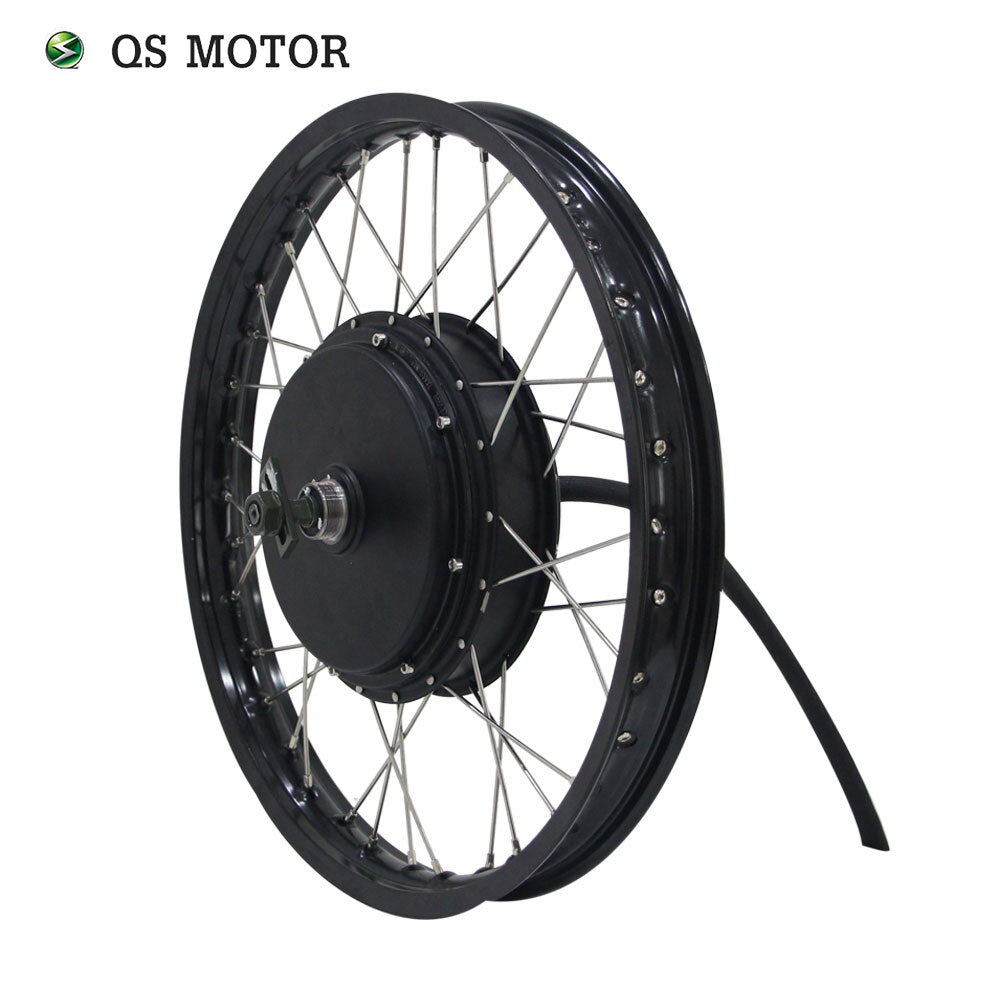

Moped rim details
Black moped aluminium wheel rim
36X10G Spoke , silver color (Iron with zinc coat)
QS 3000W 205 50H Hub Motor, 36 holes, 150mm dropouts, black (not include motor)
For Rear Rim, Nipples, Spoke, $53.9 For Lacing & Truing, $25.0 Total cost $78.9
Wheel rim optional: 17*1.6inch/18*1.6inch/18*1.85inch
Spokes color optional: Black/Silver color
P.s.: We're able to supply the matched 19*1.6inch front moped wheel rim as well.
For more details, please kindly refer to below picture.

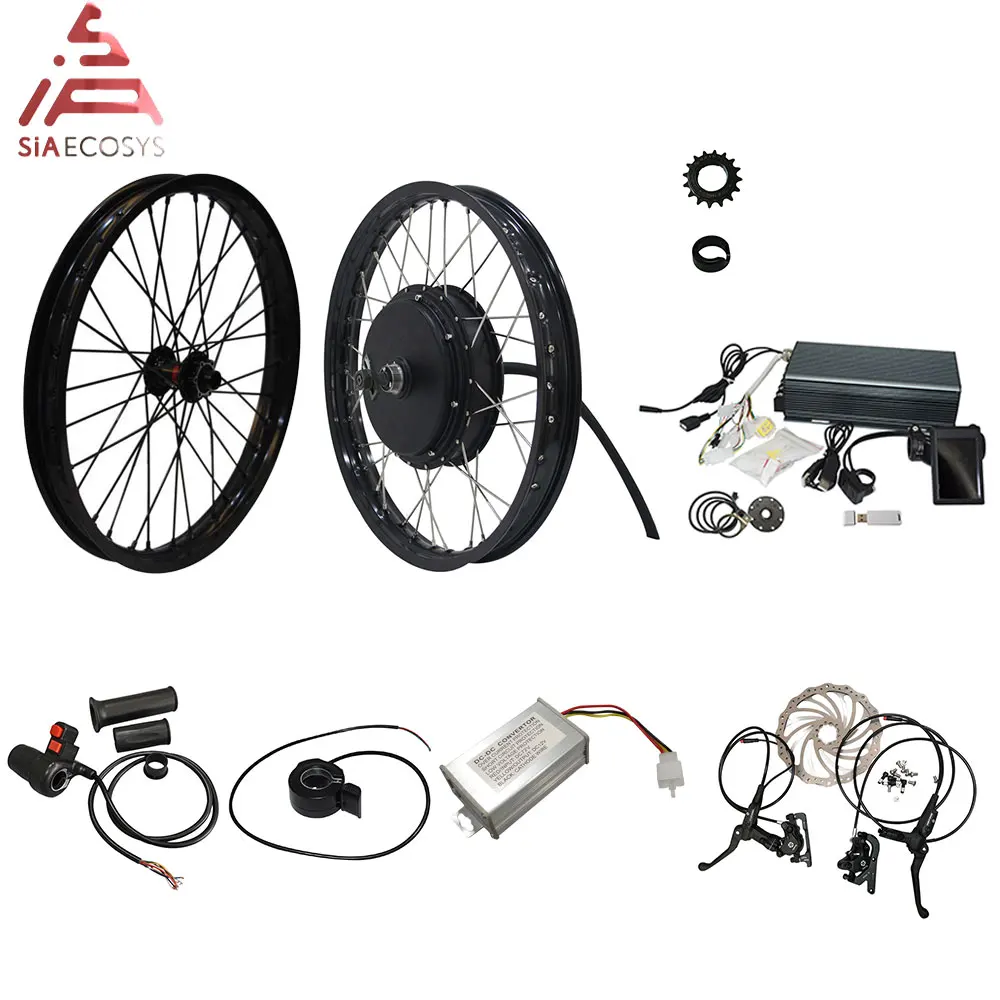

Conversion kits for 205 3kW E-Bike Spoke hub motor
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
Application for E-Bike hub motor
