SHINEGLE 10kW EV Conversion Kit - Advanced Electric Vehicle Retrofit System for Enhanced Performance

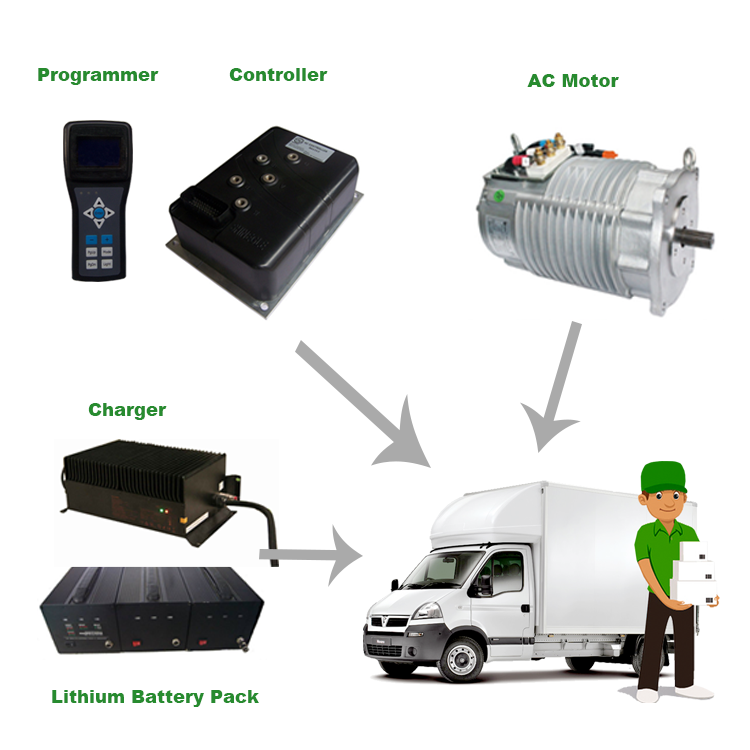

Upgrade your vehicle with the SHINEGLE 10kW EV Conversion Kit - a cutting-edge electric vehicle conversion system that combines a powerful AC motor, advanced motor controller, and state-of-the-art PMSM technology. Ideal for sightseeing buses and various electric vehicle applications, this conversion kit revolutionizes the way you experience transportation.
As a leading provider of electric vehicle components, SHINEGLE offers a comprehensive range of products, including motors, controllers (equipped with a programmer and accelerator), chargers, and battery packs. Our driving system is compatible with a wide range of electric vehicles, including low-speed electric vehicles such as golf carts and tricycles, delivery cars, and modified cars. Specifically designed with modified cars in mind, the 7.5kW, 10kW, and 15kW options deliver exceptional performance. Additionally, the controller and motor can be seamlessly applied to electric boats, expanding the versatility of our products.
SHINEGLE's motors, controllers, gearboxes, batteries, chargers, and more are widely trusted and utilized in electric conversion vehicles, ensuring reliable and efficient operation.
Let's take a closer look at the specifications for the components in the SHINEGLE 10kW EV Conversion Kit:
Motor:
- Rated Power: 7.5kW/10kW/15kW
- Duty: S1
- Max. Speed: 7500rpm
- Rated Voltage: 72V/96V/108V
- Net Weight: 35~50kg
- Speed Sensor: 64 Pulse
- Rated Speed: 3000~4500rpm
Controller:
- Rated Voltage: 72V/96V/108V
- Rated Output Current: 100A/120A
- Max. Output Current: 500A
- Efficiency: 98%
- Protection Grade: IP65
- Packing: Wooden box
- Net Weight: 5~10kg
- Ambient Temperature: -40 ~ 50℃
- HS: 8714990000
Gearbox:
- Speed Capacity: 9000rpm
- Ratio: 6:1/8:1/10:1/12:1
- Packing: Wooden box
- Torque Capacity: 180N.m
- Center Distance: 50~106mm
- HS: 7326909000
- Noise: ≤65dB
- Est. Net Weight: 15~30kg
The SHINEGLE 10kW EV Conversion Kit offers remarkable features, including high torque and fast speed, ensuring exceptional performance on the road. The kit comes with comprehensive hands-on instructions, allowing for easy installation and use. We take pride in providing our customers with the fastest system solutions, working closely with clients to calculate and test the optimal configuration to meet their specific needs. Our products undergo extensive system testing to ensure their maturity and reliability.
Please note that the price provided is for reference only, as the cost may vary depending on individual customer requirements for the conversion kit. Upgrade your vehicle and embrace the future of sustainable transportation with the SHINEGLE 10kW EV Conversion Kit.

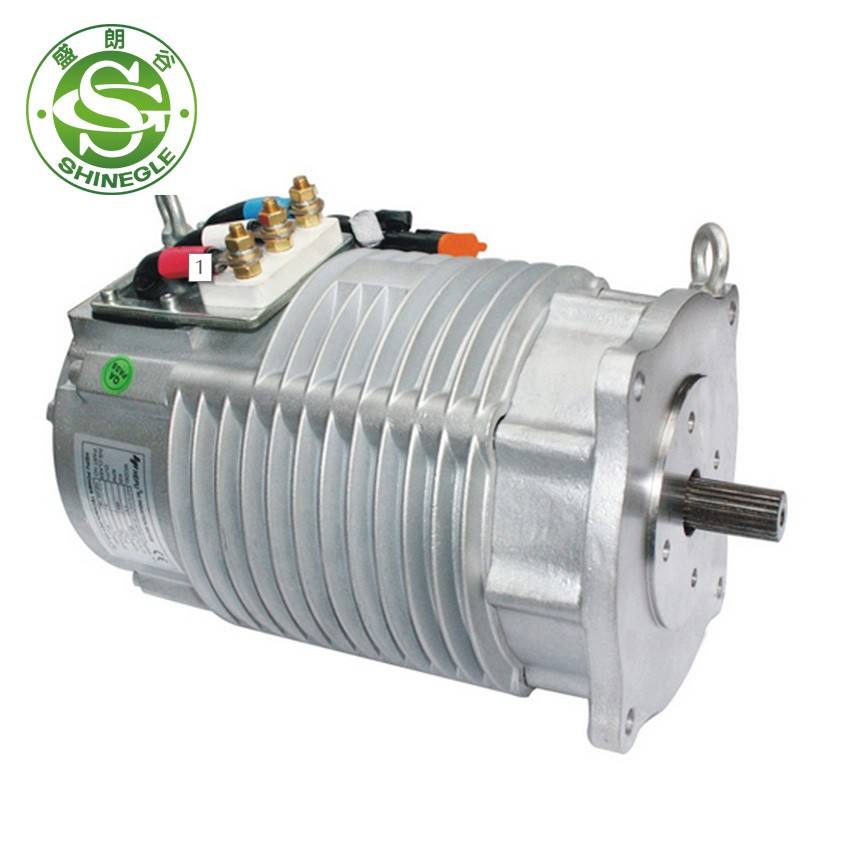

Name: Motor
Brand: SHINEGLE
Original: China
Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motor, AC motor has more advantages, like larger torque.

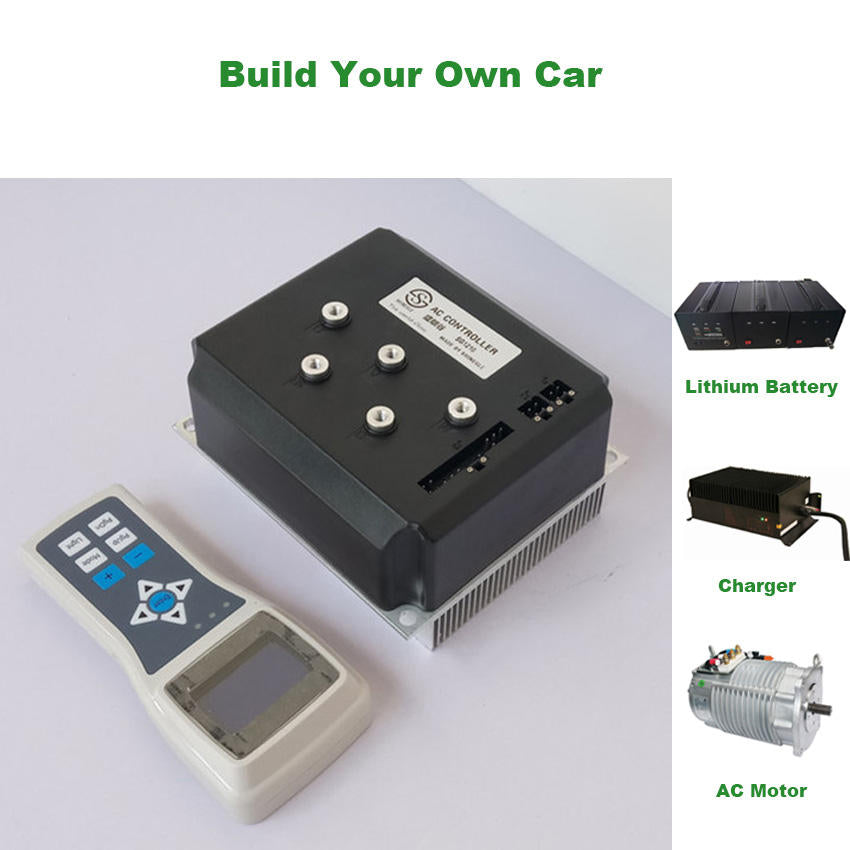

Name: Controller
Brand: SHINEGLE
Original: China
Vector control is one of the best ways to control motor. We have tested this system for more than 10 years, and the current stability is very high.
Name: Gearbox
Brand: SHINEGLE
Original: China
Low noise and high transmission efficiency are the two main advantages of the gear box.
Name: Battery and Charger
Brand: SHINEGLE
Original:China
At present, China's lithium-ion battery cell production technology is in the world's leading position. We can provide 100,000km protection for our customers.
Pre-Sales Service
* Customer sends inquiry
* Tailor the right system
* Sample testing support
After-Sales Service
* Timely technical communication
* Result feedback and improvement
Inventory Last Updated: May 13, 2024
