SHINEGLE 15KW 96V 72V 60V AC Motors electric motor controller axle gearbox vw beetle electric conversion kit for boat UTV electric vehicle

SHINEGLE 15KW Electric Vehicle Conversion Kit - High-Power EV Motor Conversion System

Upgrade your vehicle to electric power with the SHINEGLE 15KW EV Conversion Kit. This comprehensive kit includes everything you need to convert your gasoline-powered vehicle into an efficient and eco-friendly electric vehicle.

The SHINEGLE 15KW EV Conversion Kit features a powerful AC motor and controller assembly, complete with a key switch, stall switch, accelerator, and a 4m wire harness. Please note that the price of the battery pack, charger, and other additional parts are not included in this kit.

With over 10 years of expertise in motor control systems, SHINEGLE has gained a global reputation for delivering high-quality products. Our electric AC motors, motor controllers (both AC and BLDC), dashboards, and DC-DC converters are trusted by customers worldwide.

This versatile driving system is suitable for various types of electric vehicles, including golf carts, electric tricycles, electric tuk-tuks, electric ATVs or UTVs, and electric cars for both cargo and passengers. The SHINEGLE 7.5kw/10kw/15kw electric vehicle conversion kits are specifically designed for those looking to retrofit their fuel-powered cars into efficient electric vehicles.

Furthermore, our controller and motor can also be applied to electric boats, expanding the possibilities for electric transportation on the water.

As a highly capable enterprise, we have the ability to develop and produce customized products according to our clients' specific needs and requirements.

Here are the specifications for the SHINEGLE 15KW EV Conversion Kit:

Motor:
- Rated power: 7.5/10/15KW
- Duty: S1
- Maximum speed: 7500 rpm
- Rated voltage: 72/96/108V
- Net weight: 35~50kg
- Speed sensor: 64 Pulse
- Rated speed: 3000~4500rpm

Controller:
- Rated voltage: 72/96/108V
- Rated output current: 100/120A
- Maximum output current: 500A
- Efficiency: 98%
- Protection grade: IP65
- Packing: Wooden box
- Net weight: 5~10kg
- Ambient temperature: -40 ~ 50℃
- Harmonized System (HS) code: 8714990000

Gearbox:
- Speed capacity: 9000 rpm
- Ratio: 6:1/8:1/10:1/12:1
- Packing: Wooden box
- Torque capacity: 180N.m
- Center distance: 50~106mm
- Harmonized System (HS) code: 7326909000
- Noise: ≤65dB
- Estimated net weight: 15~30kg

Main Features of the SHINEGLE 15KW EV Conversion Kit:
1) High torque and fast speed for enhanced performance.
2) Hands-on instruction for easy installation and use.
3) Fast system solutions provided to meet customer requirements.
4) Collaborative calculation and testing with clients.
5) Extensive system testing to ensure product maturity and reliability.

Please note that the price provided is for reference only, as the cost may vary depending on individual customer requirements for the conversion kit.

Upgrade your vehicle to electric power and enjoy the benefits of sustainability and efficiency with the SHINEGLE 15KW EV Conversion Kit. Join the electric revolution and drive towards a greener future.

Main Features

1) High torque and fast speed

2) Hands-on instruction, installation and use

3) Provide customers the fastest system solutions

4) Work with clients to calculate and test

5) Long time system testing, product maturity

Certifications

Detailed Images

(Click the Following Corresponding Pictures for More Information)

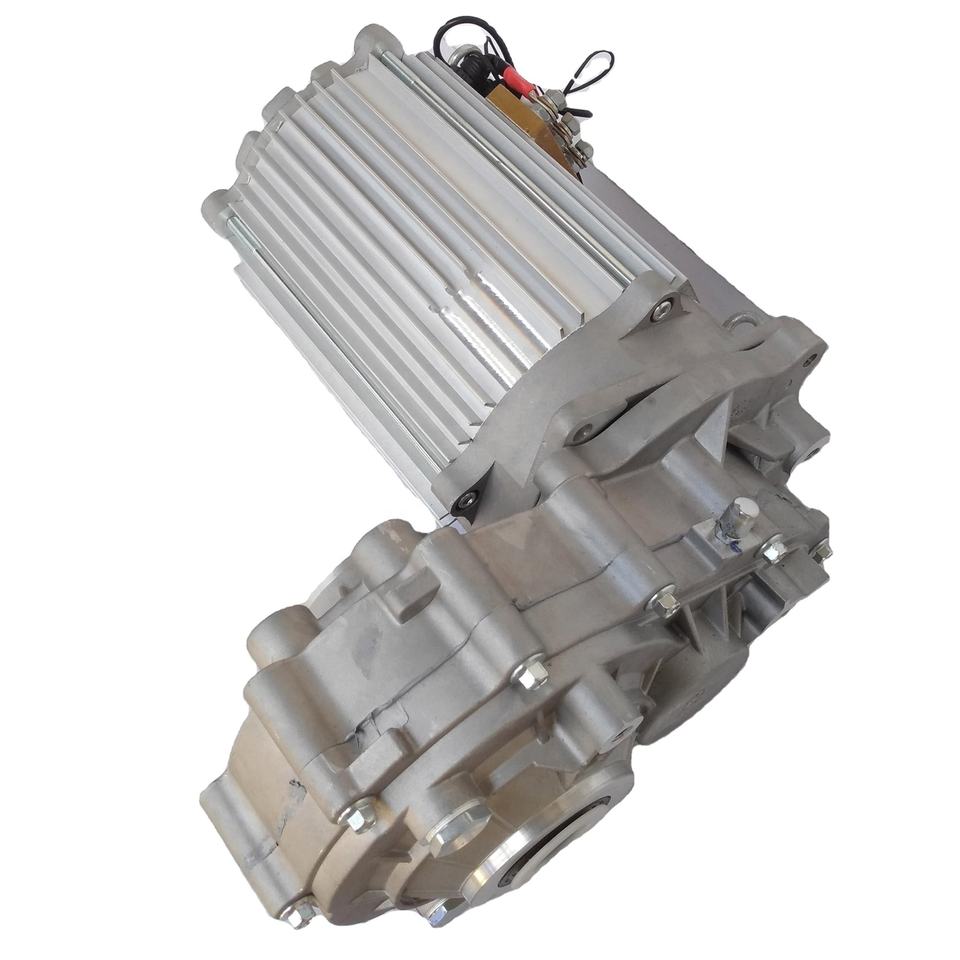

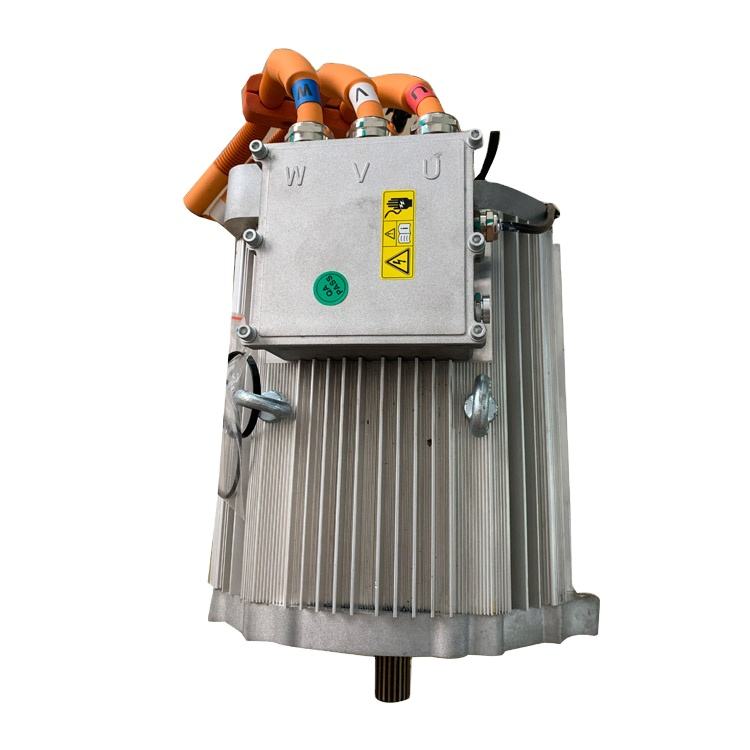

Name: AC Motor

Brand: SHINEGLE

Original: China

Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motor, AC motor has more advantages, like larger torque.

Name: Motor Controller
Brand: SHINEGLE
Original: China
Vector control is one of the best ways to control motor. We have tested this system for more than 10 years, and the current stability is very high.

Name: Gearbox
Brand: SHINEGLE
Original: China
Low noise and high transmission efficiency are the two main advantages of the gear box.

Name: Battery and Charger

Brand: SHINEGLE
Original:China
At present, China's lithium-ion battery cell production technology is in the world's leading position. We can provide 100000km protection for our customers.

Our Service

Pre-Sales Service

* Customer sends inquiry

* Tailor the right system

* Sample testing support

After-Sales Service

* Timely technical communication

* Result feedback and improvement
