Samsung Ebike Bottle Battery - Small Mini E-bike Bicycle Battery 36V 10.5AH G30 Sanyo Cell with USB for 250W 500W Motor
Our battery features powerful Demestic Grade A G2500/G3000 18650 3.7V cells, or Sanyo, Samsung, or LG 3500mAh/3200mAh cells, depending on the model you choose. This ensures reliable and efficient performance, making it a great choice for your daily commute or weekend ride. The configuration of our battery is 10S3P or 10S2P, providing a rated capacity of 5Ah/9Ah, 7Ah/6.4Ah, or 10.5Ah/9.6Ah, depending on the model.
With a maximum charge voltage of 42V and a discharge cut-off voltage of 28V, our Samsung Ebike Bottle Battery provides exceptional power and performance. The battery is also equipped with a BMS, which ensures safe charging and discharging. The BMS has a continue discharge current of 20A and a peak discharge current of 80A, making it a safe and reliable choice for your E-bike or Bicycle.
Our battery is compact and lightweight, with a weight ranging from 2kg to 2.5kg, depending on the model you choose. This makes it easy to transport and install, and it's small enough to fit in a bottle cage. Additionally, this battery features a USB port, so you can charge your mobile devices on the go.
Our Samsung Ebike Bottle Battery is compatible with a range of motors, including 36V 200W, 250W, 300W, 350W, and 500W motors. It comes with a charger that matches the voltage and capacity of the battery, ensuring quick and safe recharging. The charger connector comes in US/EU/UK/AU AC plug and DC Connector models, providing versatility and convenience.
Upgrade your ride today with our reliable and high-performance Samsung Ebike Bottle Battery. Whether you're commuting to work or exploring new trails, this battery will provide the power and performance you need for a smooth ride. Other keyphrases that apply to this product include "36V Battery for E-bike", "Samsung 3500mAh Battery Pack", "USB E-bike Battery", "Compact E-bike Battery", and "High-Performance Bicycle Battery".
4 UnitPackPower batteries have insured to International Insurance, rest assured to buy.
E-Bike Lithium Battery 36V 7Ah 9AH Small Mini Water Bottle Ebike Bicycle G30 Sanyo Batteries Cell with USB for 250W 500W Motor
Specification

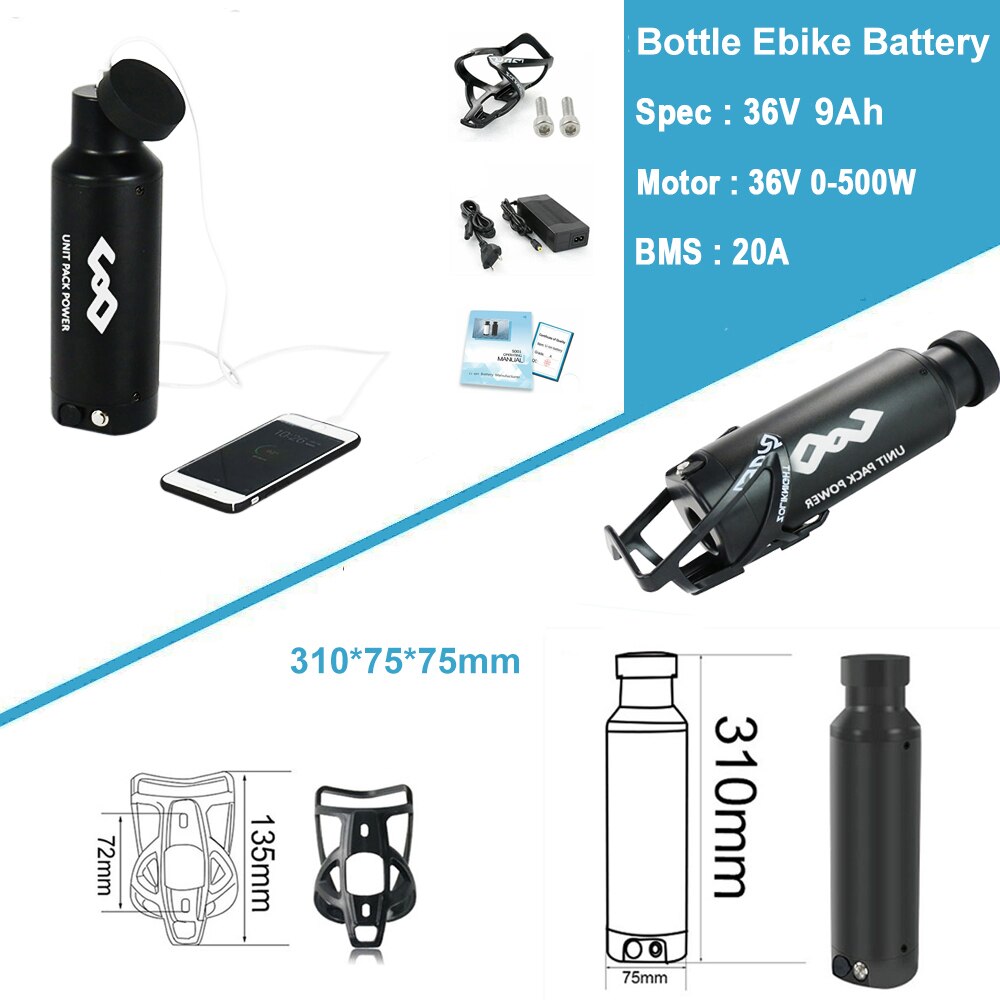

36V 5Ah/9AH
Nominal Voltage: 36V
Reated Capacity: 5Ah/9Ah
Watt Hours:180Wh/252Wh
Cell insid: Demestic Grade A G2500/G3000 18650 3.7V Powerful cells
Configuration: 10S3P
Battery Dimensions: 5AH: 240*75*75MM/ 9Ah: 310*75*75MM
Battery weight : 2.5kg
Standard Charge Current: 2A (3A fast charger is also available with different price)
Max charge voltage: 42V
AC input: 110-240v,50/60HZ
BMS Continue Discharge Current: 20A
Peak Discharge Current: 80A
Fit for Motor:36V 200W 250W 300W 350W 500W Motors
Charged Cut-off Voltage: 42V
Discharge Cut-off Voltage: 28V
Charger Connector: US/EU/UK/AU AC plug and DC Connector
Operating Temperature: Charging 0℃-45℃, Discharge -20℃~65℃
Lifecycle:800-1000 Cycleswith DOD80%

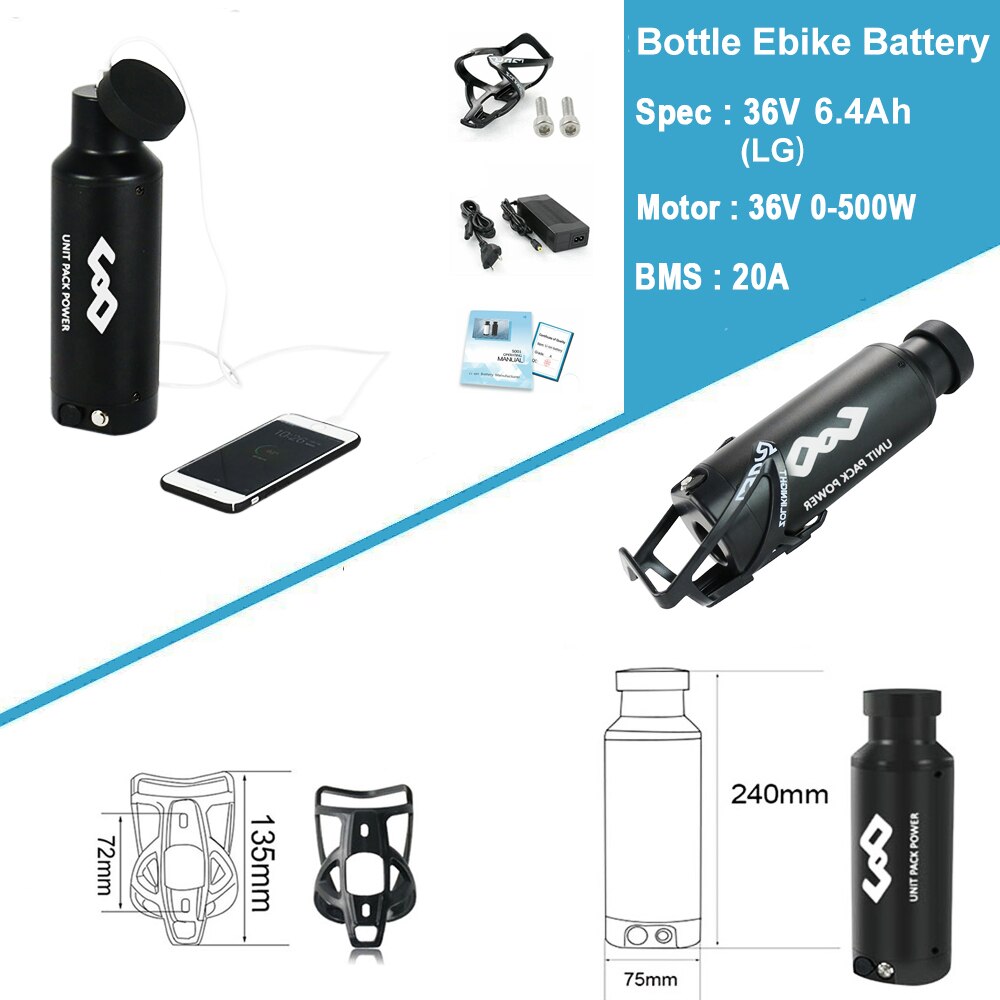

36V 7AH/6.4Ah
Nominal Voltage: 36V
Reated Capacity: 7Ah / 6.4Ah
Watt Hours:252Wh/230.4WH
Cell insid:Sanyo / Samsung 3500mAh / LG 3200mAh
Configuration: 10S2P
Battery Dimensions: 240*75*75MM
Battery Weight : 2kg
36V 10.5AH/9.6Ah
Nominal Voltage: 36V
Reated Capacity: 10.5Ah/9.6Ah
Watt Hours:378Wh
Cell insid:Samsung 3500mAh / LG 3200mAh
Configuration: 10S3P
Battery Dimensions: 310*75*75MM
Standard Charge Current: 2A (3A fast charger is also available with different price)
Max charge voltage: 42V
AC input: 110-240v,50/60HZ
BMS Continue Discharge Current: 20A
Peak Discharge Current: 80A
Fit for Motor:36V 200W 250W 300W 350W 500W Motors
Charged Cut-off Voltage: 42V
Discharge Cut-off Voltage: 28V
Charger Connector: US/EU/UK/AU AC plug and DC Connector
Operating Temperature: Charging 0℃-45℃, Discharge -20℃~65℃
Lifecycle:800-1000 Cycleswith DOD80%
Package included
1pc Lithium Battery
1pc bottle holder
1pc 42V 2.0A Charger
36V 6AH
Nominal Voltage: 36V
Reated Capacity: 5Ah
Watt Hours:180WH
Cell insid: Domestic Grade A 2500mAh cell
Configuration: 10S2P
Battery Dimensions: 230*85.4*85.4MM
Battery Weight : 1.5-1.8kg
Which Battery Should I choose?
This really depends on the application and can be a hard question. First you need to get a battery voltage match to your motor request , then the capacity , high capacity can make your bike longer trip but more expensive , also need to choose a right amps BMS to fit your motor . do your research if this is your first ebike kit to make sure you are getting the right battery for your needs.
What cells are your battery packs made up of?
All our packs are made up of authentic Grade A 18650 battery cells made in China , Korea or Japan. We use Sanyo Panasonic Samsung , LG or Chinese A grade brand cells and only use the very best models of these brands. and all of our battery would never
What is a BMS Battery management system.
The circuit board that makes your ebike battery “smart”. All of our packs have state of the art BMS to keep your pack safe.
How many volts should I choose?
Depending on your controller. All 48v controllers can handle either 48v or 52v packs. If you have a 36 volt controller however you will need to upgrade it before you can run a 48 or 52v pack.
How many amps do I need?
Also depending on your ebike motor voltage(V) and power(W), here is for your reference , If your motor is not included by belows , just contact us to check :
36V 20amps if for 36V 500W motor maximun ;
36V 25amps if for 36V 700W motor maximun ;
48V 30amps if for 48V 1000W motor maximun ;
48V 40amps if for 48V 1400W motor maximun ;
48V 50amps if for 48V 1800W motor maximun ;
52V 30amps if for 48V/52V 1100W motor maximun ;
52V 40amps if for 48/52V 1500W motor maximun ;
52V 50amps if for 48V/52V 1800W motor maximun ;
Certificate
Warning :
Don't hit, pierce, strike, trample or throw the battery.
Don't put the battery in the water, keep the battery cool and dry condition .
Don't put the battery near a heat source such as fire or heater.
Use the specified charger that come with the battery
Don't reverse the position and negative pole.
Don't connect the positive and negative terminals with metal objects which would cause short circuit
Don't transport or store the battery with metal objects together , such as hairpins, necklaces, etc.
But beware that following situations are beyond our guarantees.
>The battery goes over water
> The battery is broken man-made
> Incorrect unsing the battery not according the instrucitons
> Open a case without contacting us
