Sabvoton SVMC96100/MQ Series Brushless Sinusoidal Programable Motor Controller with bluetooth

$408.00


Sabvoton SVMC96100 controller suitable for 120A Electric Bicycle Motor with bluetooth adapter


Sabvoton controller only design sine wave type controller so far, it’s brushless DC controller, 120 degree phase angle. Generally, we matched it well with QS Motor, if you want to match with new brand motor, some parameters should be tested by yourself.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.


NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)




Key Features


1). Cost-effective

2). It can match with almost brushless BLDC motor

3). Programmable

4). Sine wave without noise, silence during the usage



Sabvoton SVMC96100/MQ Series Brushless Sinusoidal Programable Motor Controller with bluetooth

Product description
A. Specification
1). Sine wave controller, programmable, with regen function

2). DC Current Limit: 100A

3). Max. Phase Current: 200A

4). Protect Phase Current: /

5). Battery Voltage: 24V-96V rated, Max. 120V

6). Thermic Probe: KTY83-122

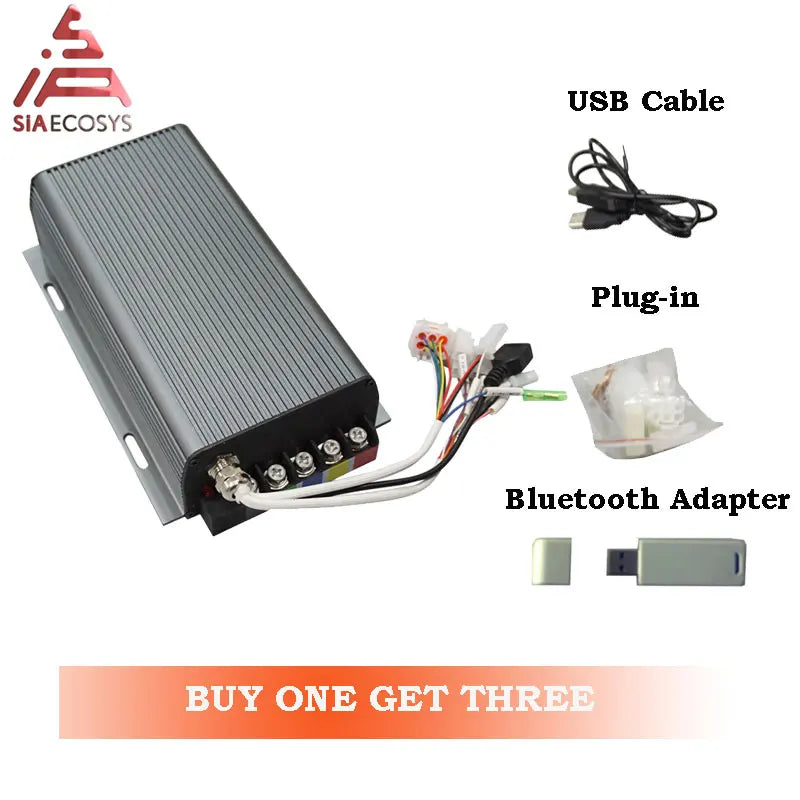

7). Including one controller + USB convertor cable + matched plug

8). Controller size: 247mm*146mm*62.5mm

9). Net weight: 2.12kg

10). It includes bluetooth adapter as default

11). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed Button, Hall speedometer, Reverse, Curise.


Please Notes:


1). We have updated the 0-5v e-brake function.

Old: it should be press the brake switch then can achieve 0-5v e-brake funtion.

Update: you can achieve 0-5v e-brake function without press the brake switch.

2). For no lock type controller(higher amps), there is no warranty service, but we could offer our suggestions for you.

3). CA function not support anymore. You could customize the controller according to our provided drawing.

4). Pls. make sure all the connection is correct before power on.


B. SVMC Controller List




C. SVMC series wiring diagram


1. Svmc series wiring diagram

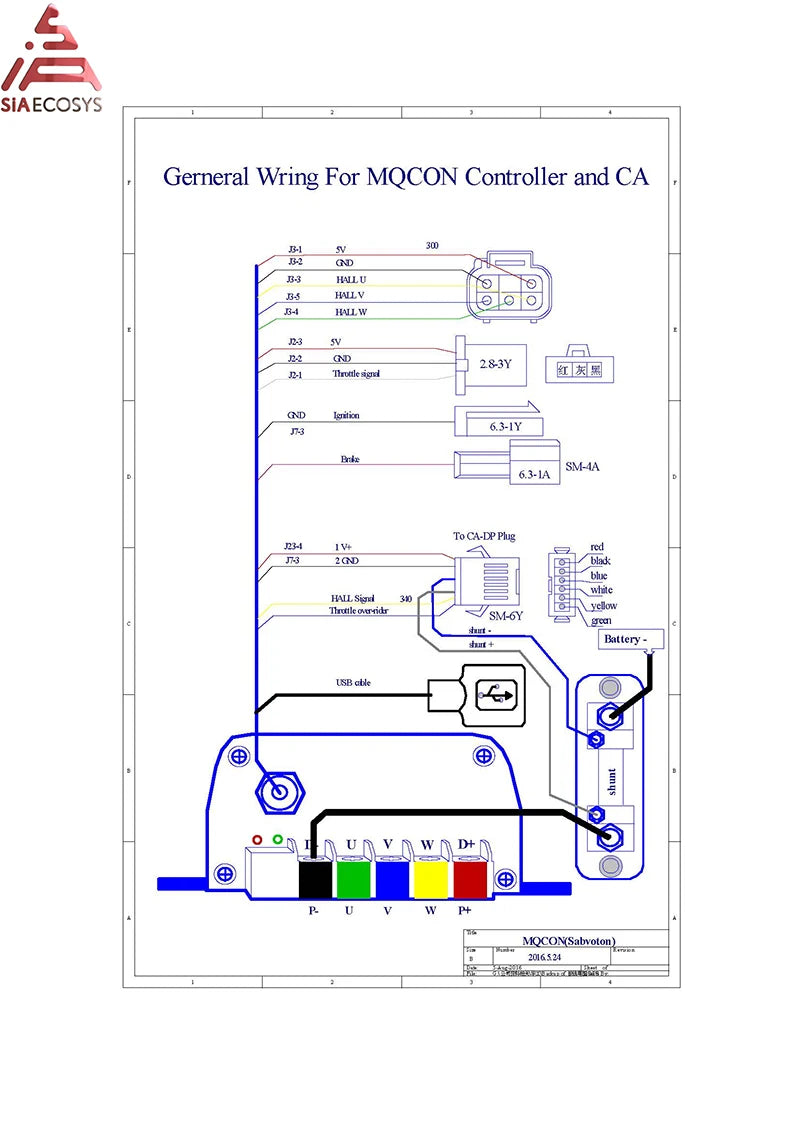

2. Gerneral Wring For MQCON Controller and CA

Remark: all black wire is the same point with battery negtive and all ground is the same withbattery negtive.


D. SVMC controller software interface



E. SVMC series wiring diagram


1. Orange ignition. : the wire should be connectted to battery positive.


2.1. H-brake： If the purple wire connect to 12V，the controller enter brake status， when it disconnect with 12V，the controller quit the brake status.


2.2. L- brake: If the Yellow wire connect to 0V(Battery negtive)，the motor stop running.


High brake wire connect with 12v brake wire of hand brake/foot brake; low brake wire connectwith ground wire.

High brake and low brake cannot using in the same time.


3. Reverse：If the white wire connect to 0V(Battery negtive)，the controller enter reverse status，twist the throttle, the motor will spin in back direction.When the white wire disconnect with 0V，the controller quit the reverse status.



4. 3 speed function


3- speed mode(Botton):



When select the 3 speed(button )in the software. use a button(which can be reset by itself) to connect the pink wire and ground wire.
Push it and release ,the speed gear will change according as follows： 3-2-1-2-3-2-1-2-3-……
When power on ,the controller is in 3 gear mode (high speed mode).
3 speed (switch)：



When select the 3 speed (switch) in the software.
Use such switch to realize the 3 speed(switch) mode.


If 3 speed (switch) mode selected,
a. Connect the pink and ground wire.
b. Enter high speed mode
c. Connect the transparent and ground wire. Enter low speed mode
d. Disconnect pink ,transparent wire and ground ,enter middle speed mode


5. 0-5v e-brake throttle:


Use a seperate throttle to connect to the teminal above.
Please select the“Ebrake-throttle”mode, When spin the throttle ,the controller will enter the e-brake mode , the brake strength will follow the the throttle positon. the max streng can be set from ” Electric brake phase current ” as following.


6. Motor termperature function.


The controller support kty83-121 termperature sensor from motor inside. The function can beenabled or
disabled from the software.


7. MQCON controller can be connected with computer by usb cable or conneted with phone bybluetooth, thecomputer interface is just same with the phone app interface.

Connect with computer

Before connected with computer ,please install usbdrive and volume software provided bythe controller manufacturer


The usb cable should be connected in right way as the following picture showed:




For information about “ how to use computer to set the parameters ” , Please ask seller fordocument ” MQCON controller application user manual” and “ MQCON(Sabvoton) FOC Controller "
Parameter Manual-EN ”
The controller can communicate with the phone app.


For information about “ how to use phone bluethooth to set the parameters ” , please ask seller for User manual.
8.  Hall angle ---the most important parameter for MQCON controller.
Different type motor should use different angle in controller.
If use improper angle , themotor may not run in best status.
When the user does not know the “hall angle ”in advance , the user should get theparamenter by using automatic testing function in the software . if the user know the parameter in advance ,just enter the right angle. For svmc series controller ,if used QS V1 or V2 type motor ,the hall angle is about 65. If use QS V3 type , the angle is about 250.


F. Additional notes:


1. All RTN pins are internally connected.

2. Meter function is to copy either of hall sensors.

3. Above pin definition is for classical type controller.

Pls. Contact with sales first if you don't know how to connect the controller with motor and other parts.



Programmable Software & User manual (Before you received the controller)


Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.



Application for SVMC controller
