16X2.75inch 260 V1.4 4000w 50H Electric Motorcycle Brushless DC Wheel Hub Motor with SIAYQ72120 controller
For 16inch 260 E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.
For E-scooter wheel hub motor, we also provide the10-17inch type
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%

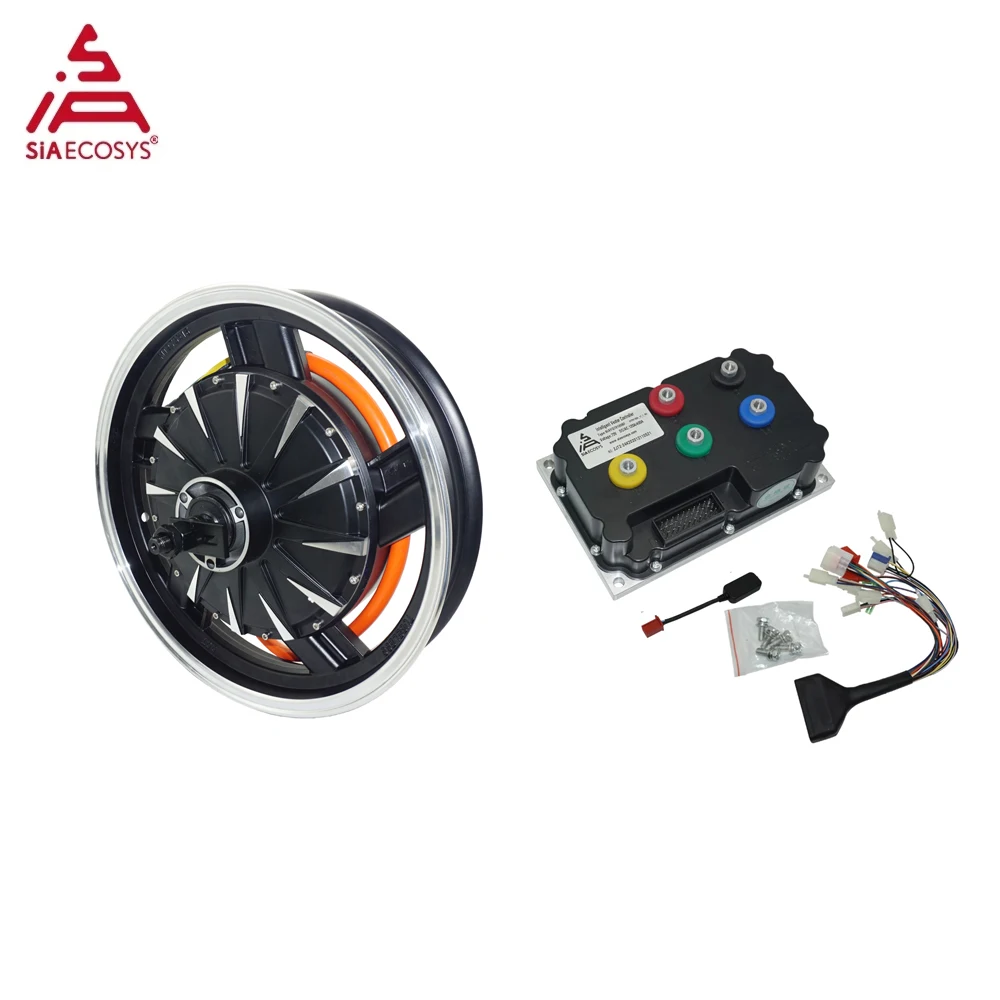

One set including below kits

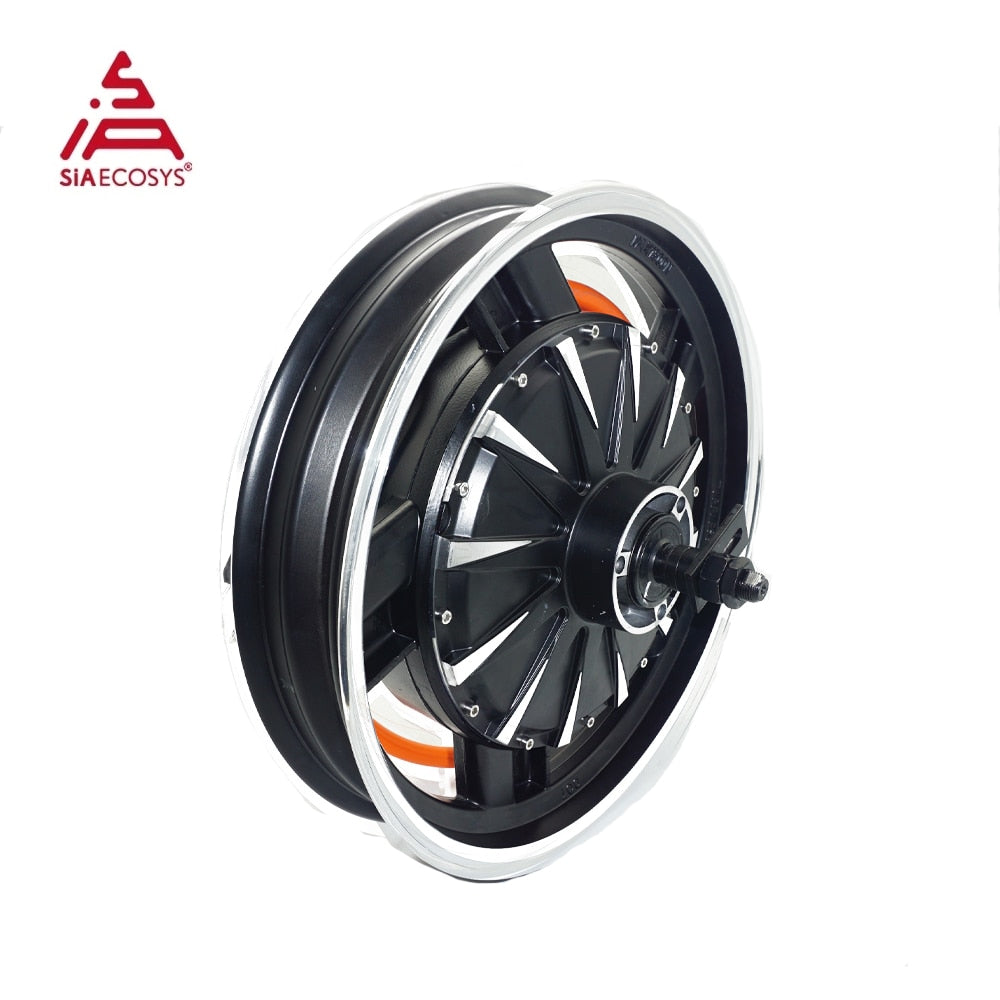

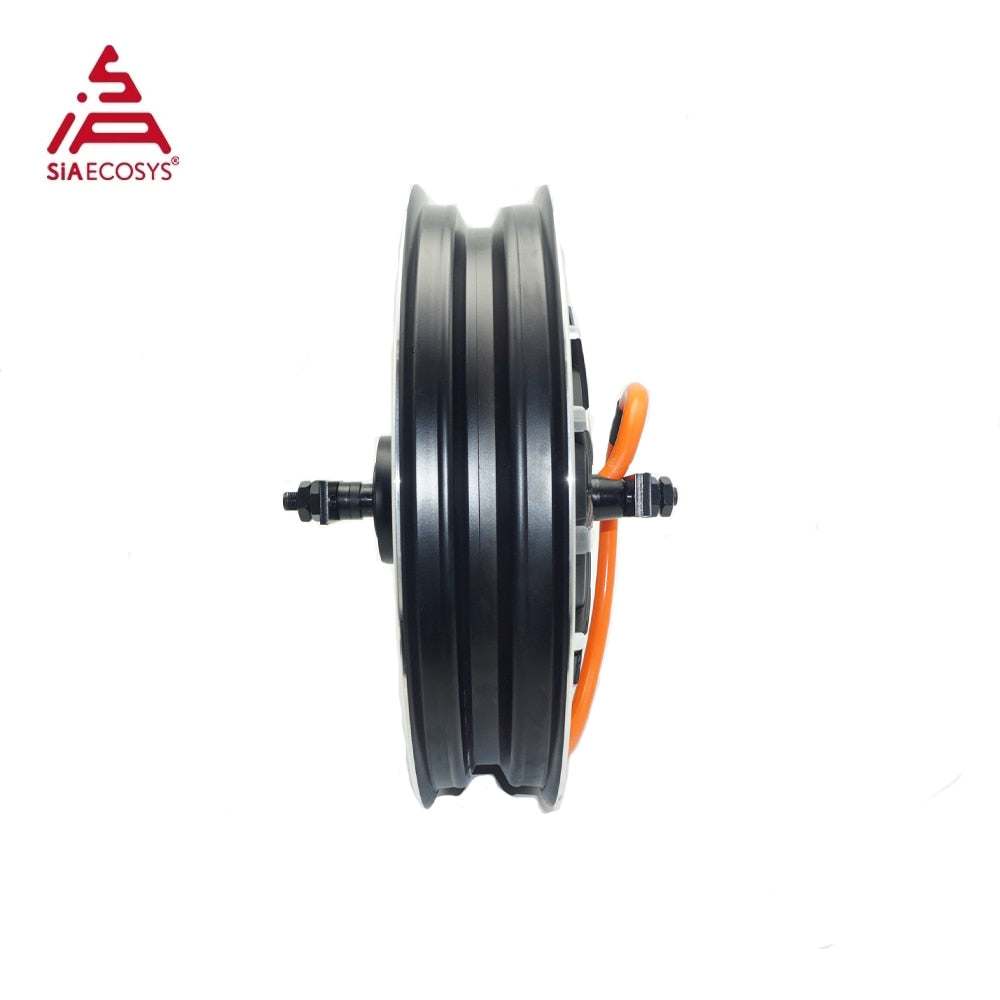

1. 1pcs XQSMOTOR 16X2.75inch 260 V1.4 4000w hub motor

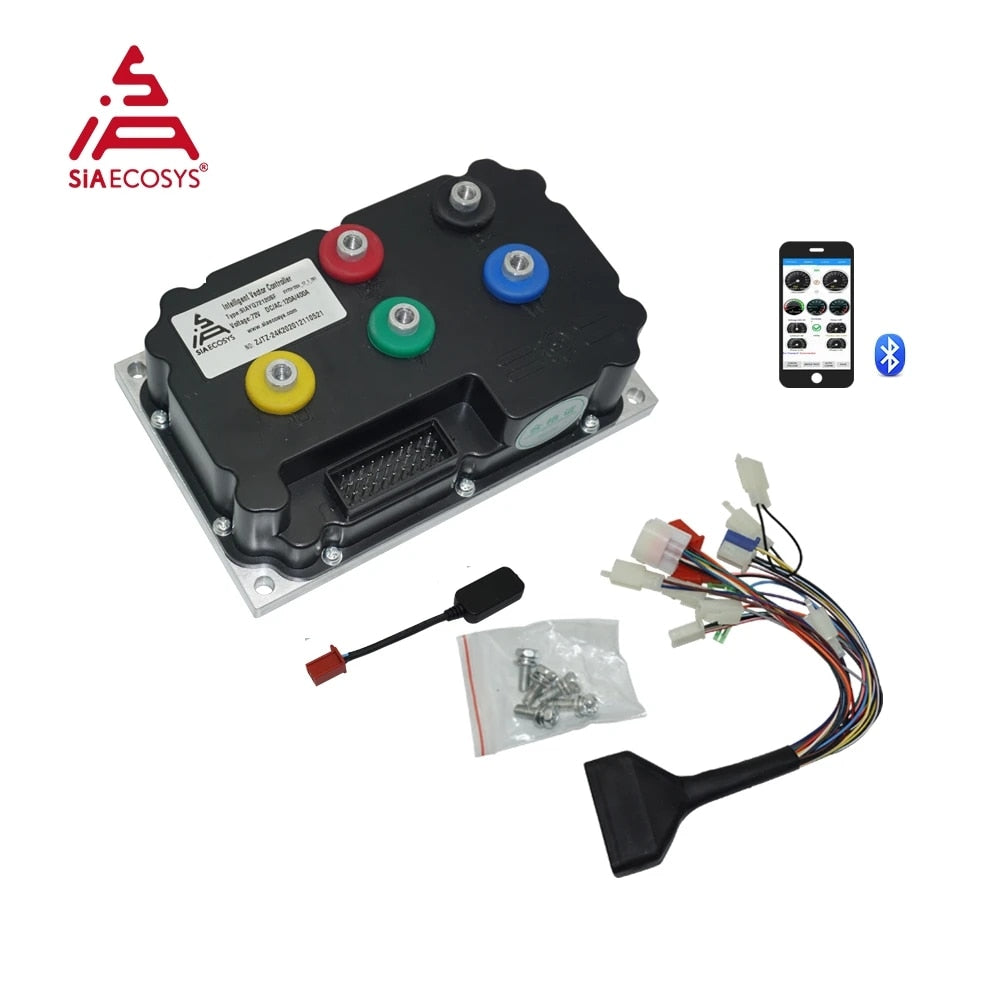

2. 1pcs XSIAYQ72120 controller with Bluetooth
Generally SPEC
·Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
·Brand: QS Motor, QSMOTOR
·Motor Design: Double axle with 16inch moped rim (integrated)
·Rim Size:16x2.75inch, matched tire: 120/70-16 etc
·Magnet Height: 50mm, 24pole pairs
·Stator: Iron Core
·Rated Power: 4000W
·Speed: 30KPH-80KPH, it's customized, generallywe will design as 72V840RPM.
·Work voltage range: 48V-96V, will be 72V as default.
·Max Torque approx 227.0N.m
·Thermic Probe: KTY83-122 (as default, optional)
·Max Efficiency approx 88%
·Brake type: Disc brake design(as default), PCD3*80mm-M8, CB 58mm
·Drop-outs: 200mm
·Dual Halls with waterproof connectors(One for spare, in case of damage)
·10mm² Phase Wire
·Waterproof Grade: IP54
·Color: Black (As default)
·
Dimension Drawing
be pending
Test report:
Here is one test reportwith SIAYQ72120 controller.

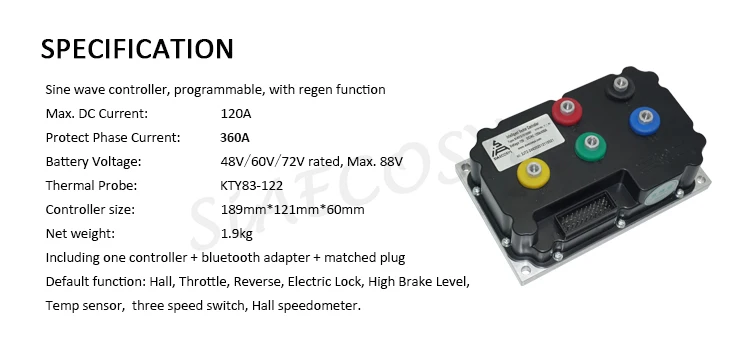

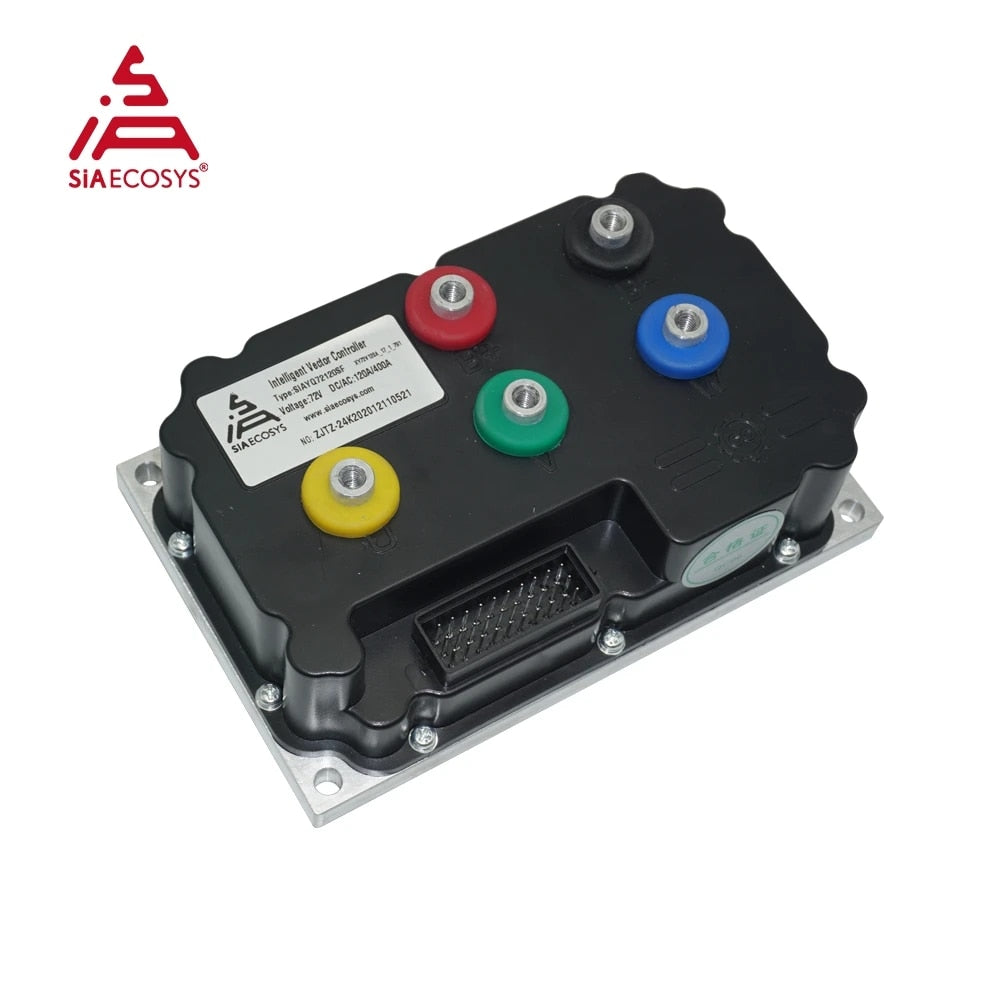

2.SIAYQ72120 controller
Drawing of controller:
Adapter Cable:

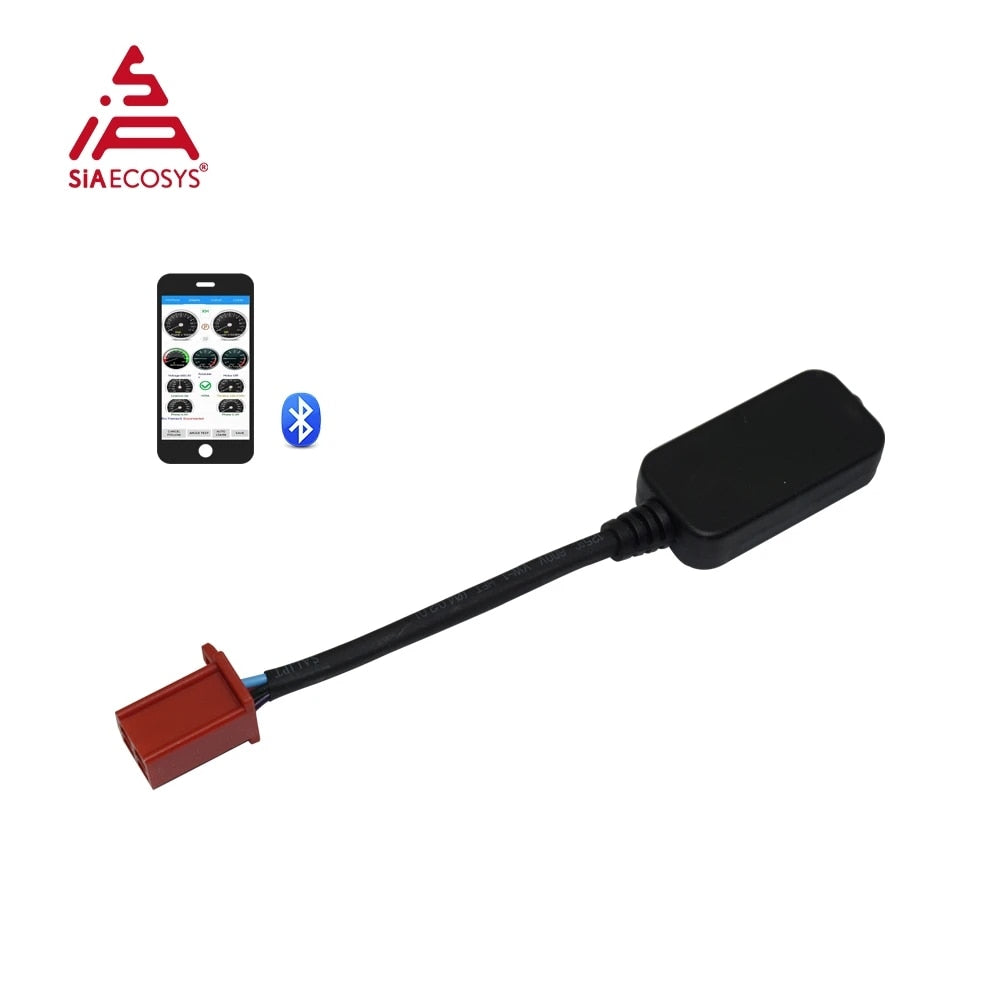

Bluetooth adapter:
Software interface（APP）:
Programmable Software & User manual (Before you received the controller)
Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
