QSMOTOR/SIAECOSYS 138 4000W 90H 72V 110KPH Mid drive Motor Fardriver ND96530 Controller Electric Motorcycle Conversion kit
For 138 90H Electric Motorcycle Conversion kit, it could be used for electric motorcycle, which could be 72V 110KPH.
e.g. Dirt bike
E-motorcycle weight, approx 130kg+2*80kg
Speed: continuous 110km/h
Gear ratio: 1:2.3*3 (double steps transmission )
Climbing slope: 30°@208kg
Battery: 72V52h
Tire: 0.6138 130/70-17
Note:Orange phase line is our new packaging, new and old packaging random delivery, if specified please contact customer service！

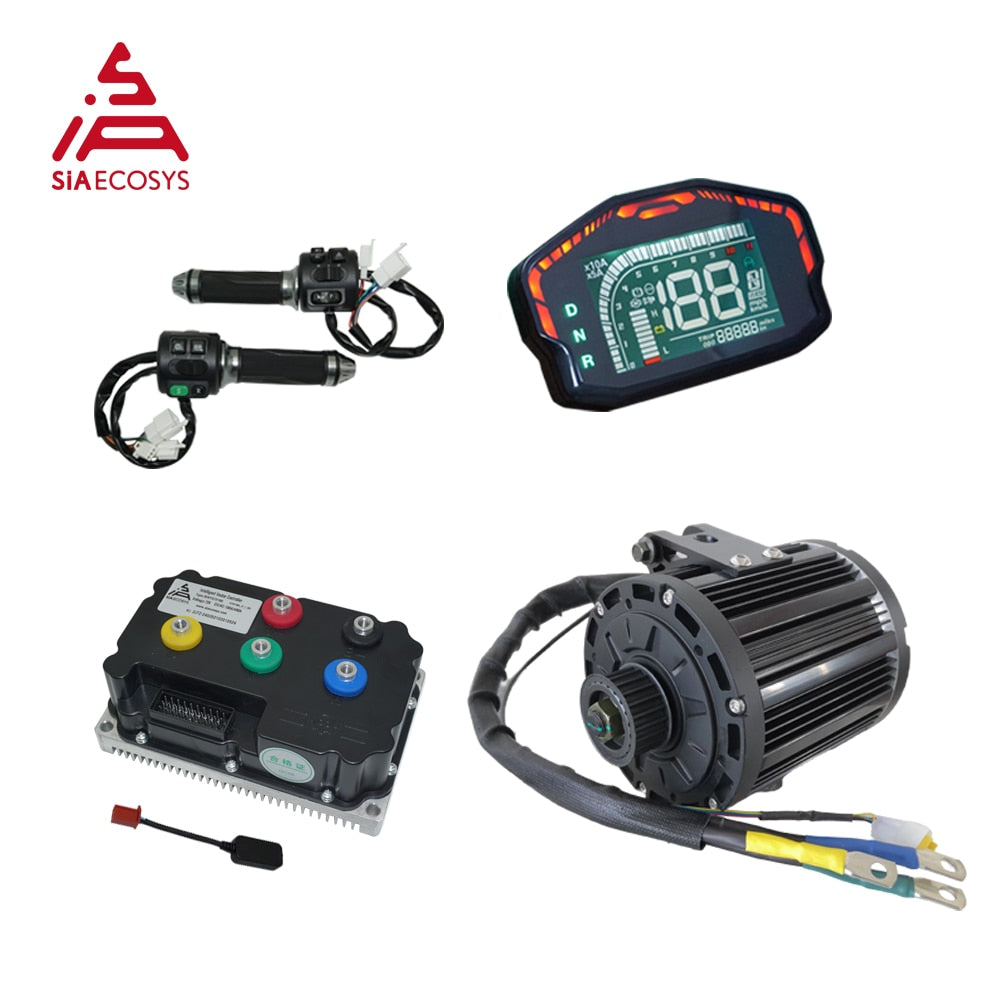

One set including below kits
Combo1.
1.1pc XQS 138 4kW Mid drive motor with belt design
2.1pcs X ND96530 sine wave motor controller with LIN
3.1pcs X controller bluetooth adapter
4.1pcs X DKD LCD speedometer with LIN
5.1pcs X Z6 throttle with combination switch
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description

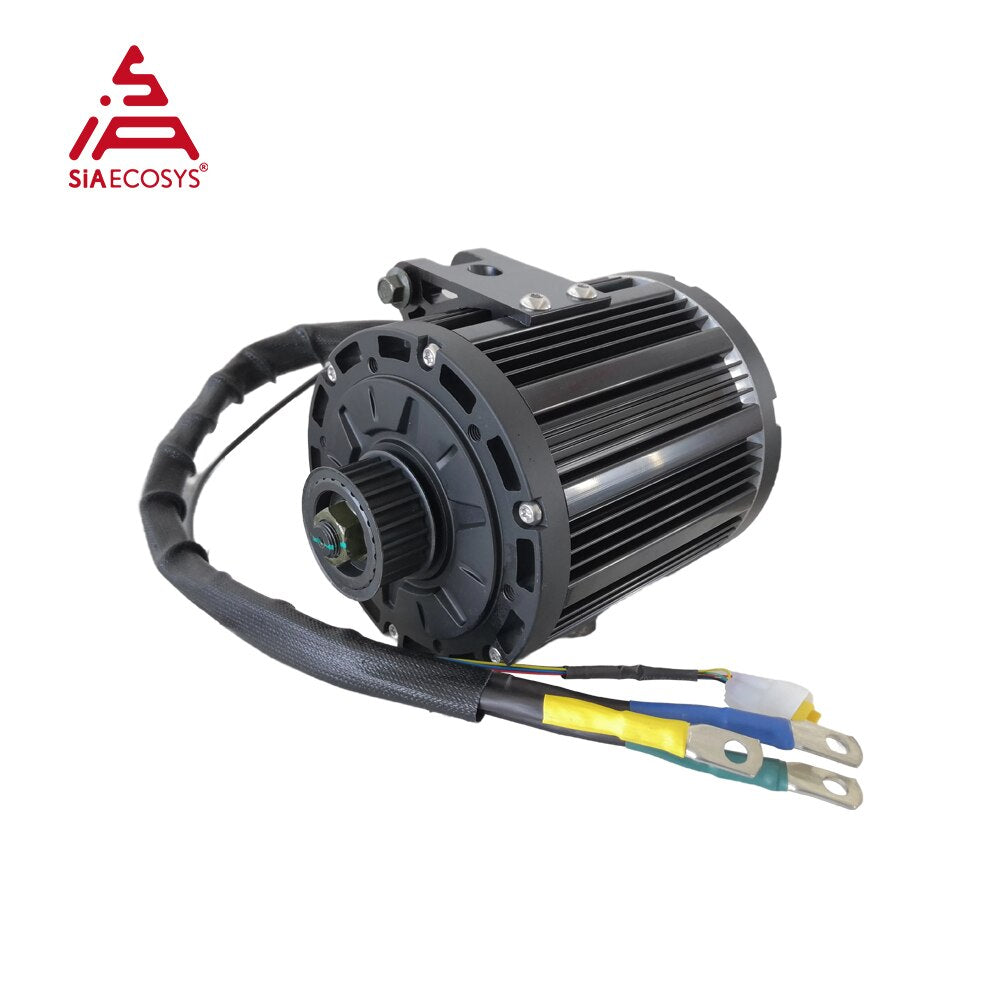

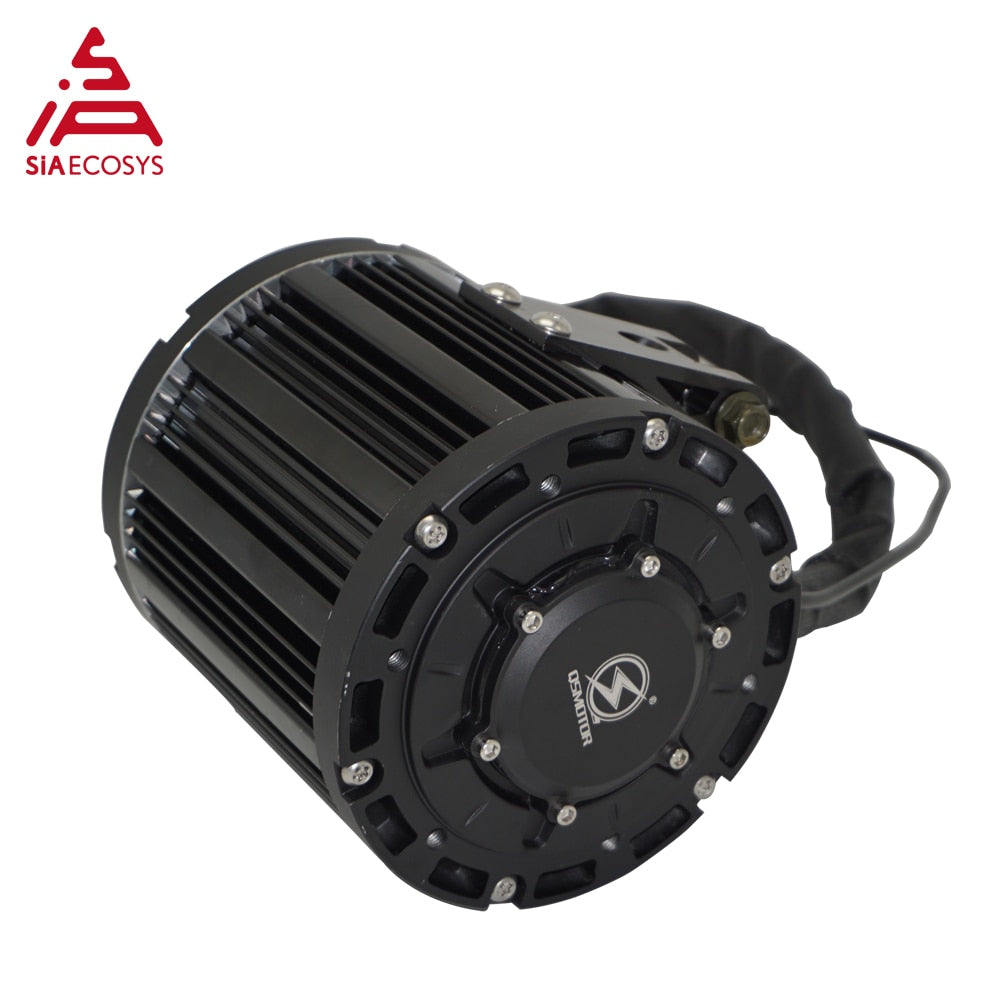

1.QSMOTOR 138 4000W Mid drive motor
Drawing
Test Report

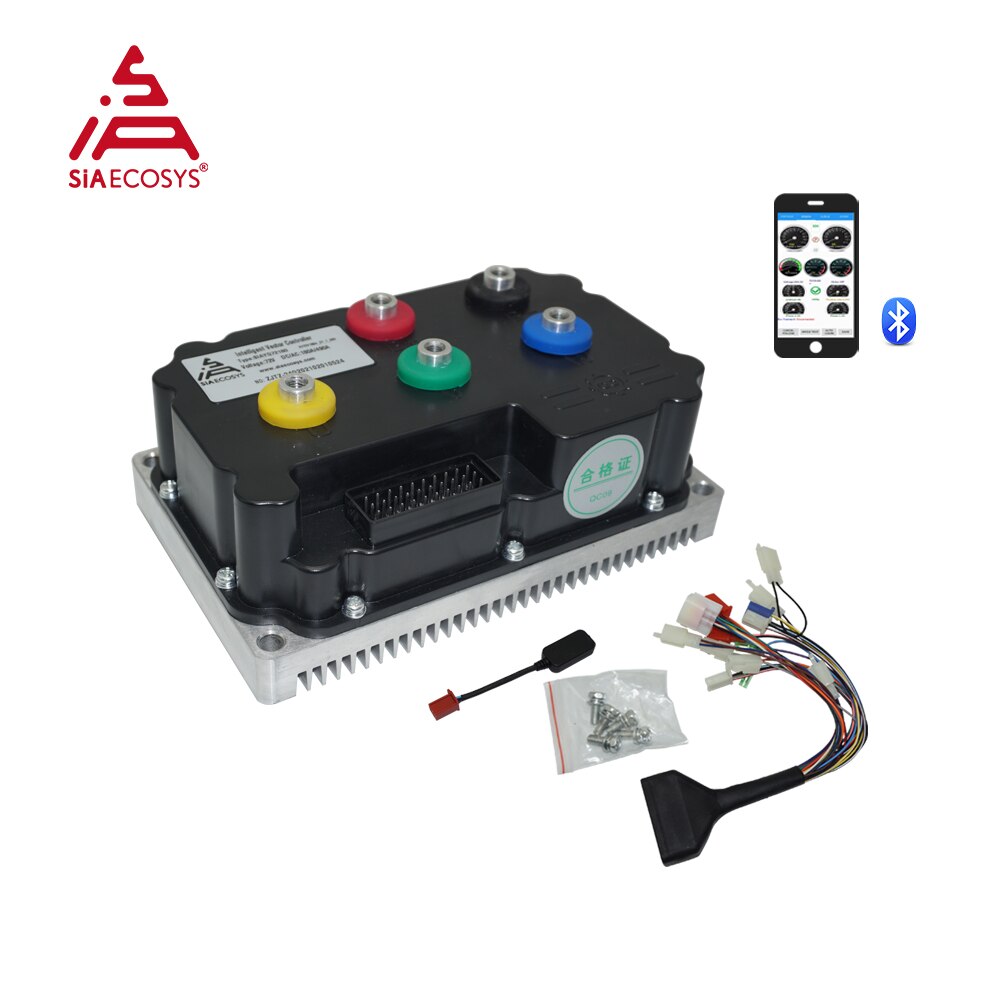

2. ND96530 controller
One set including below kits
1.1pcs X ND96530 sine wave controller
2.1pcs X Bluetooth adaptor
ND96530 is sine wave controller. Which is more cost effective with waterproofing grade IP67, suit for 6-8kw motors.
For ND96530, the peak voltage is 115V and the mosfet inside more resistant to temperature than ND72530 and ND84530.
It’s hall version (as default) which suit with hall motors.
It could also support encoders, please check with sales.
Drawing
Controller Software Interface
Adapter Cable
Bluetooth Adapter
2.DKD LCD speedometer, can-bus(optional, LIN as default)
P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.
3.Z6 throttle with combination switch
With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with controller well.
