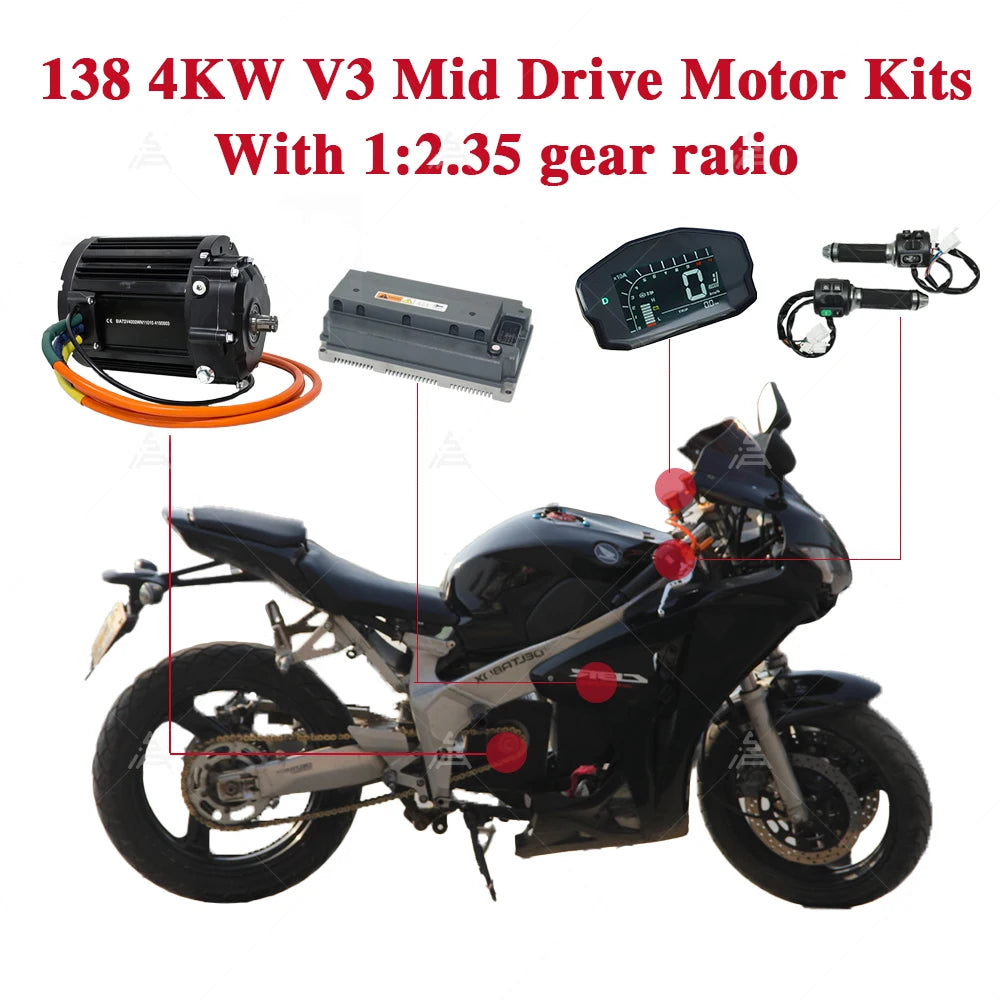

QSMOTOR QS138 90H V3 with 1:2.35 gear box Rated 4KW 7200rpm Mid Drive MotorKits with EM200-2SP Controller 200A 600A for E-Motorcycle

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

For138 4000W V3 motor powertrain kits,it could be used for electricmotorcycle, which could be 72V120KPH.

e.g. E-Motorcycle

E-motorcycle weight, approx 180kg+1*70kg

Speed: peak 120km/h

Gear ratio: 1:2.46

Climbing slope: 20°@30kph@250kg

Tire: 100/70-19

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

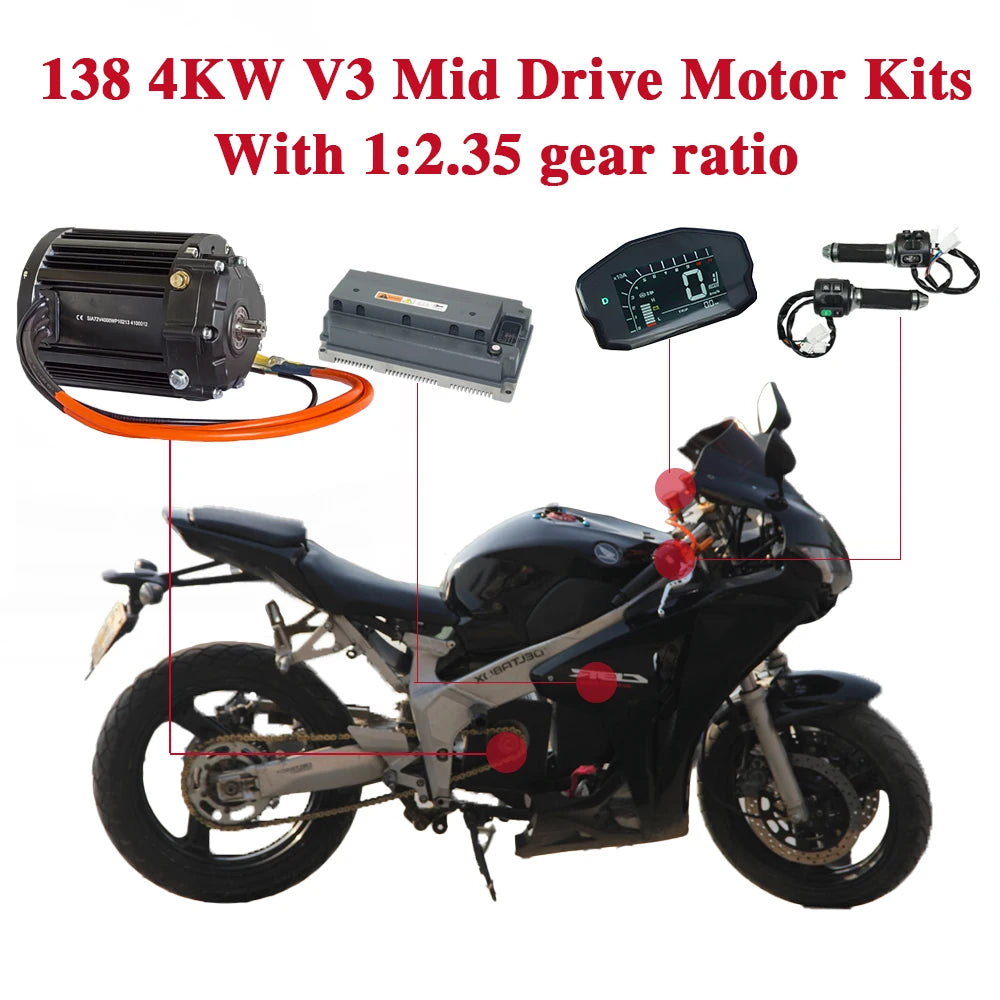

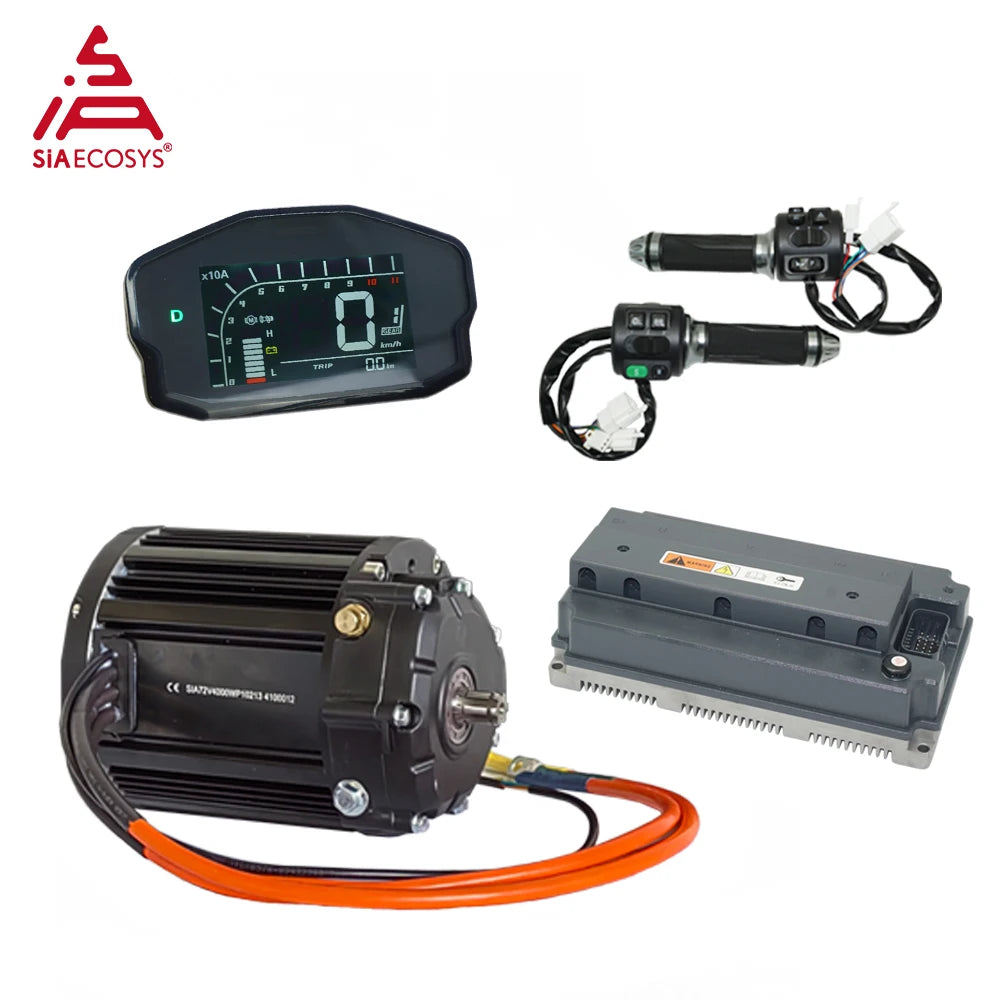

One set including below kits:

1. 1pcs X QS138 4000W V3 1:2.35 gear ratio Mid Drive Motorwith 15T sprocket

2. 1pcs X EM200-2SP Controller

3. 1pcs X DKD Speedometer

4. 1pcs X Z6 Throttle

Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 87~94%

Product Description

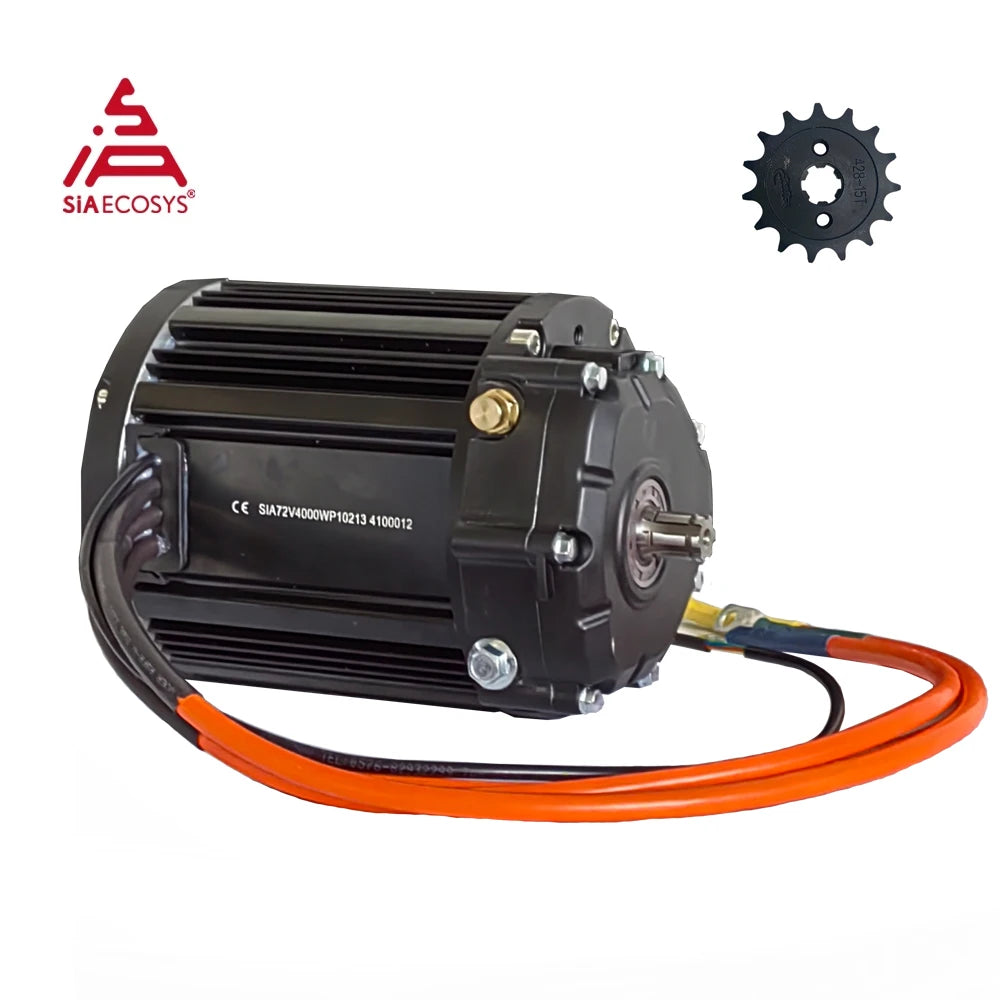

1. QS138 4kw V3 Mid Drive Motor

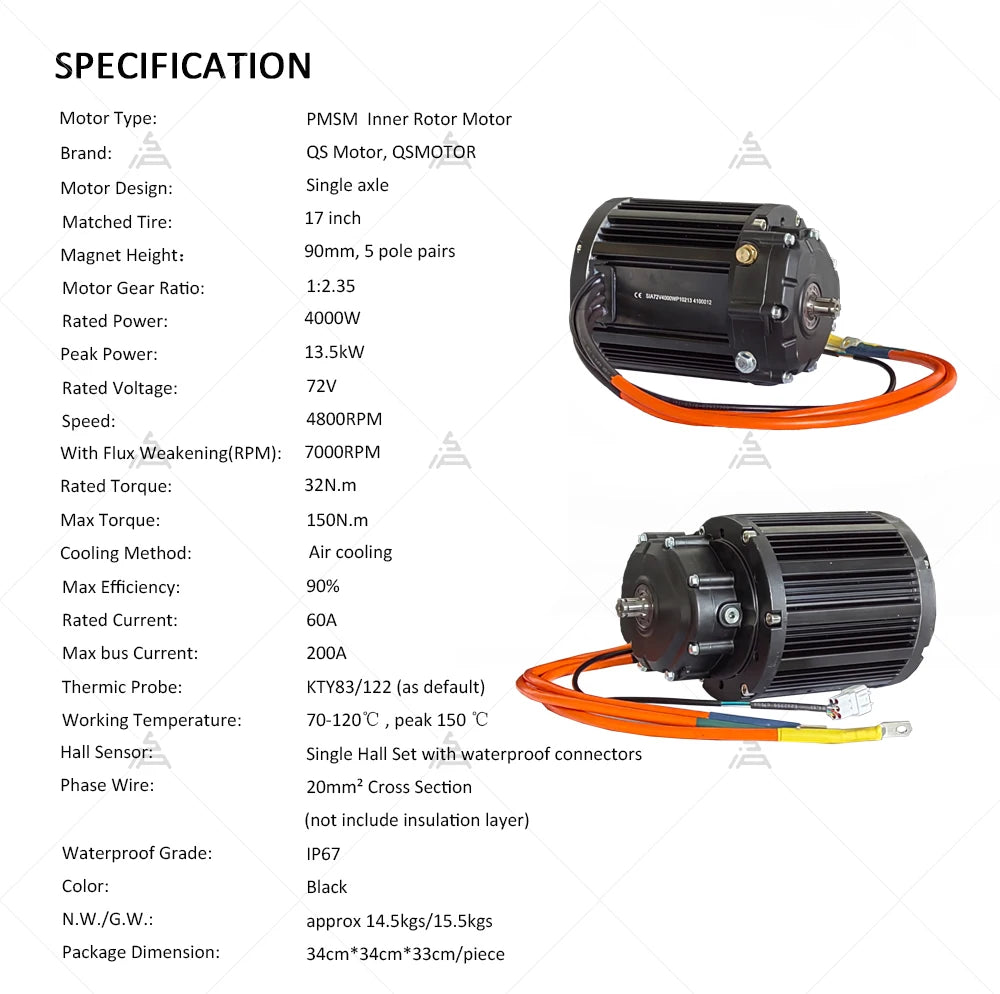

Spec

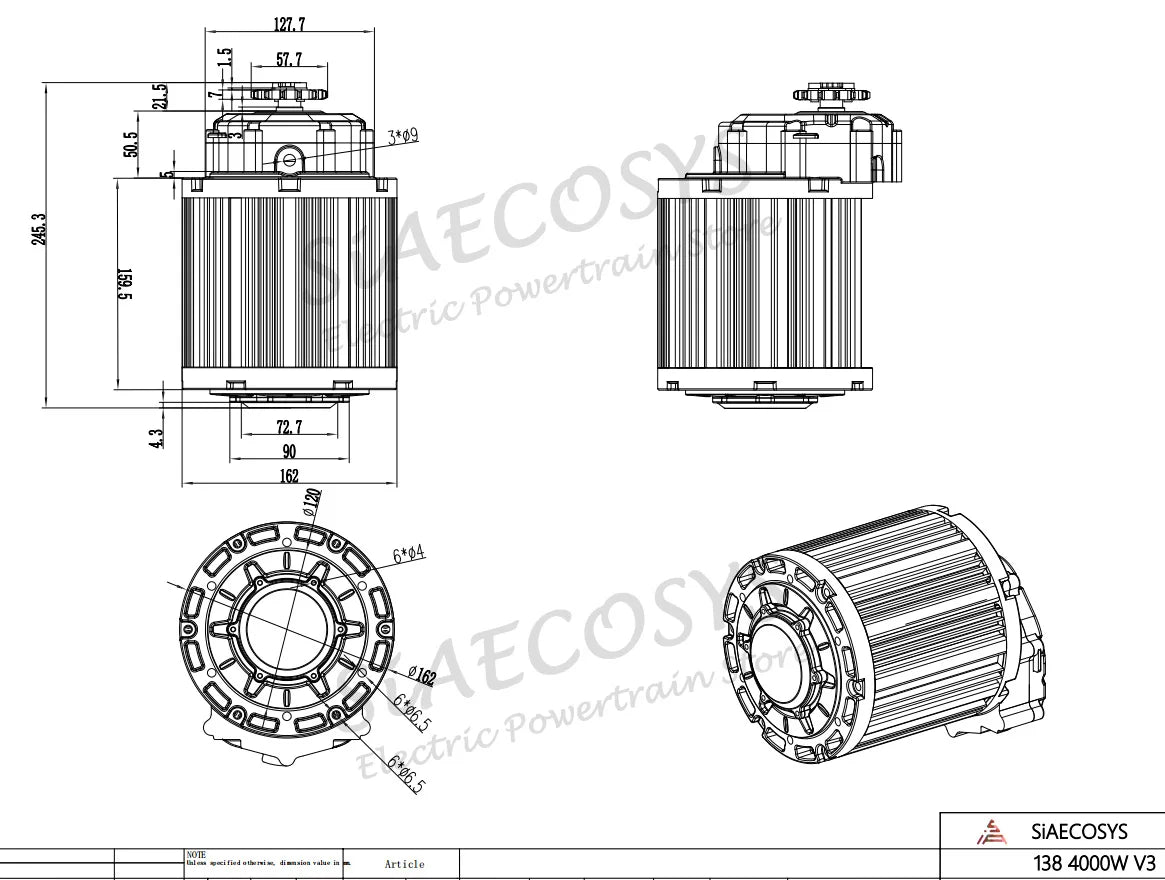

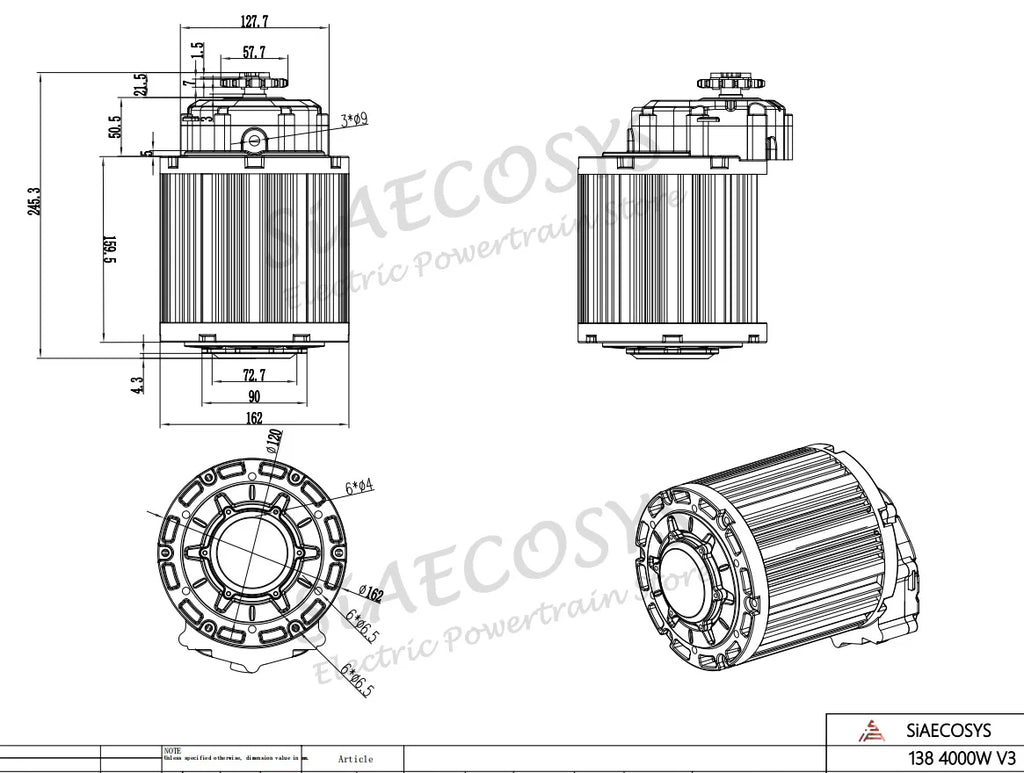

Drawing

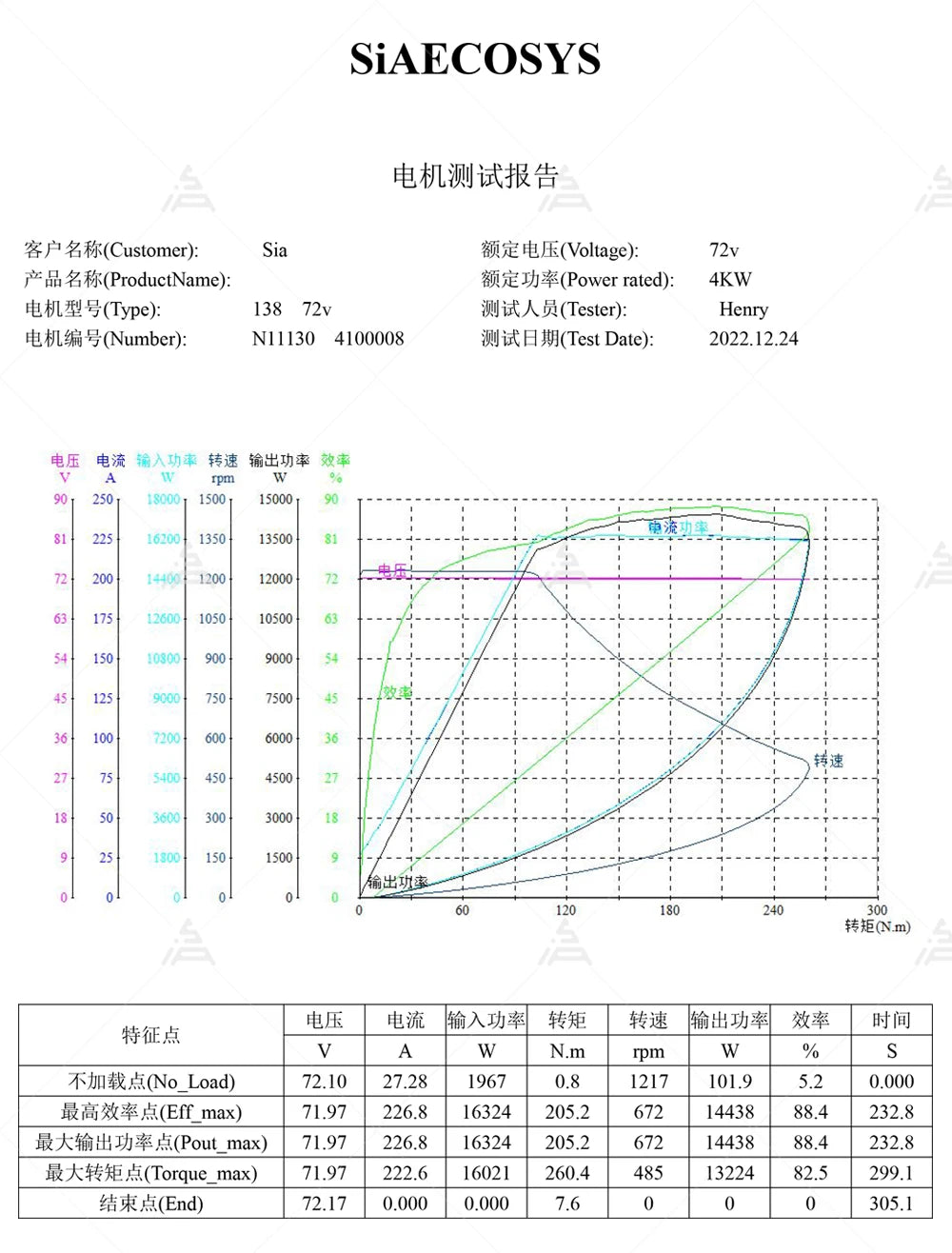

Test Report

138 4kw V3+EM200-2

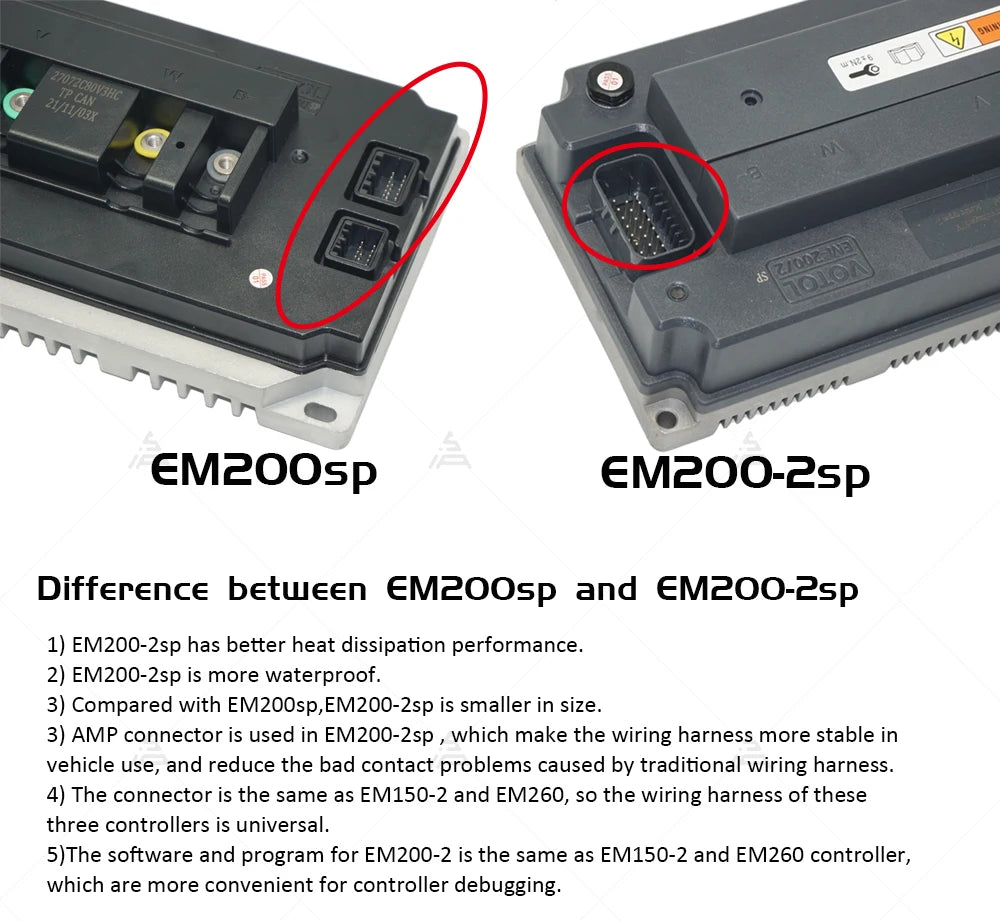

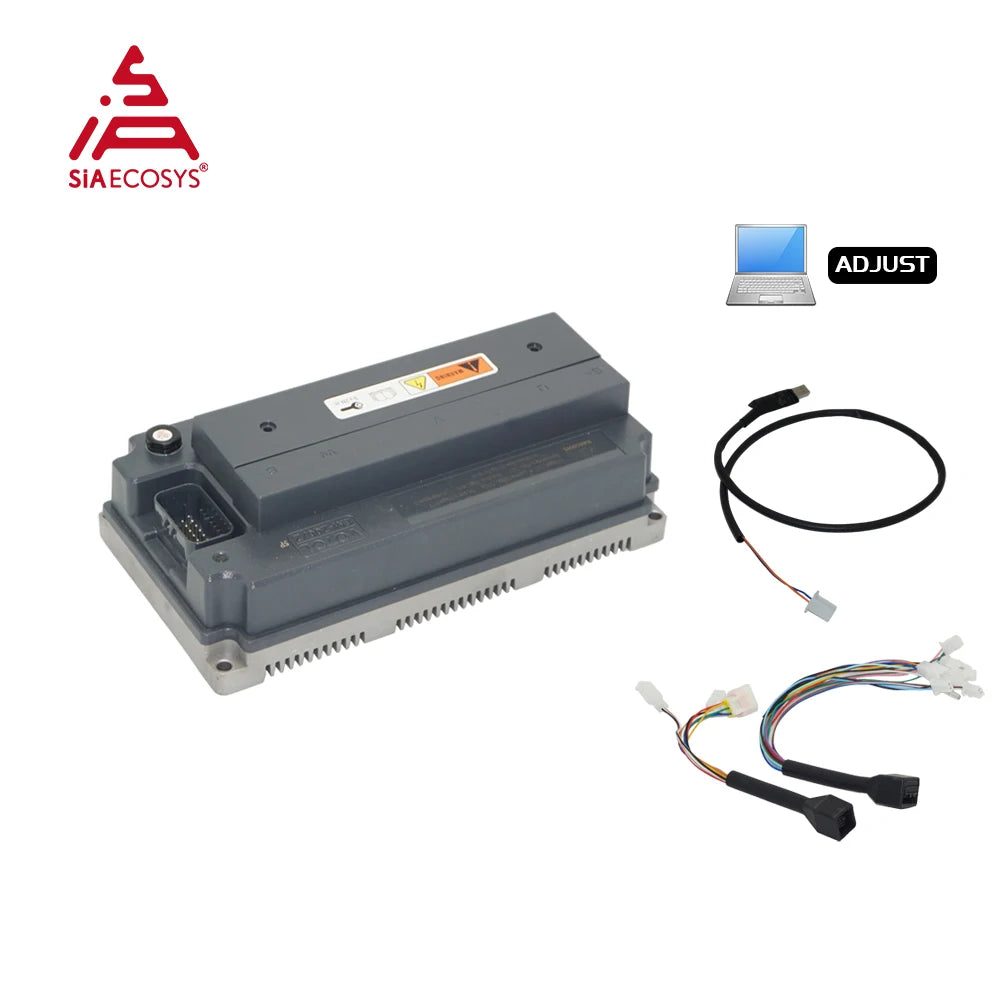

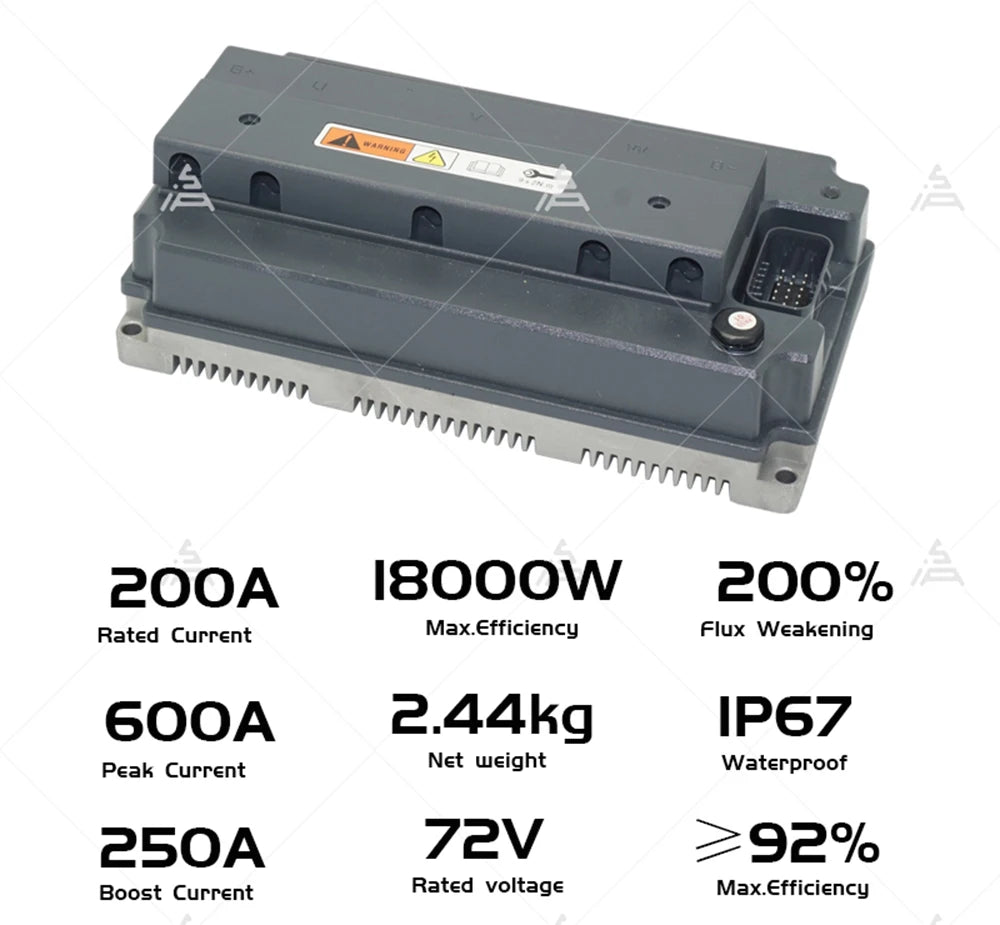

2. EM200-2SP Controller

Spec

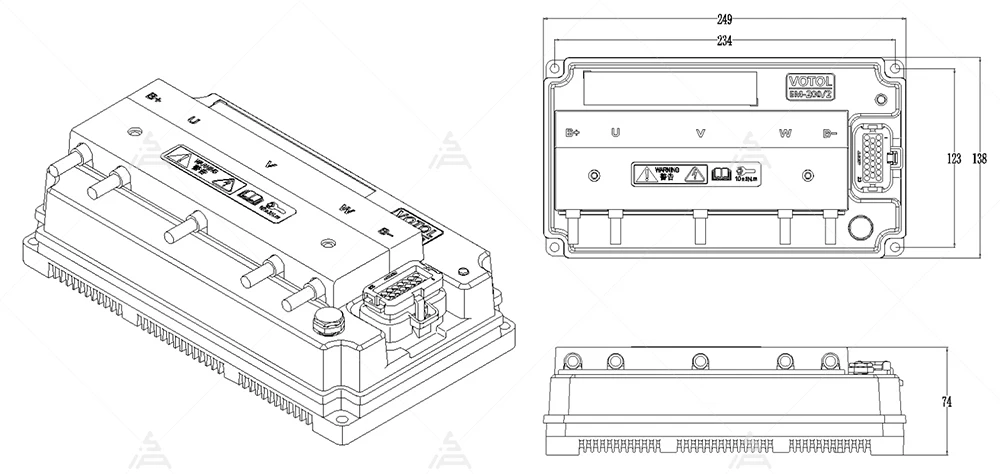

Drawing

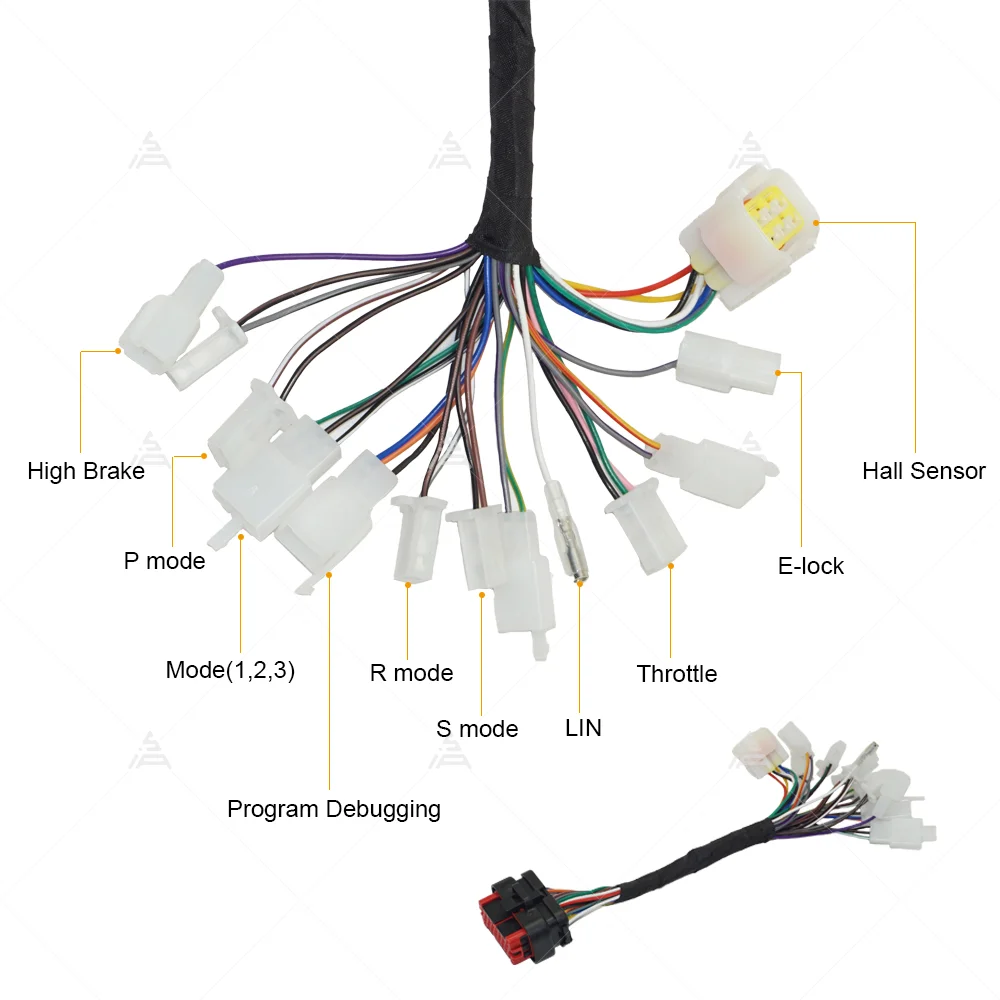

Harness definition

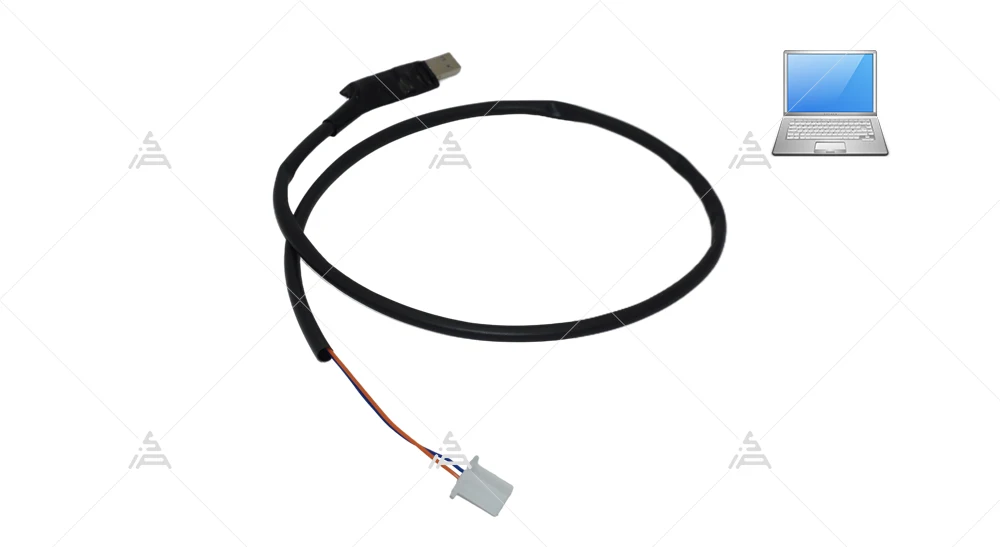

Debug Cable

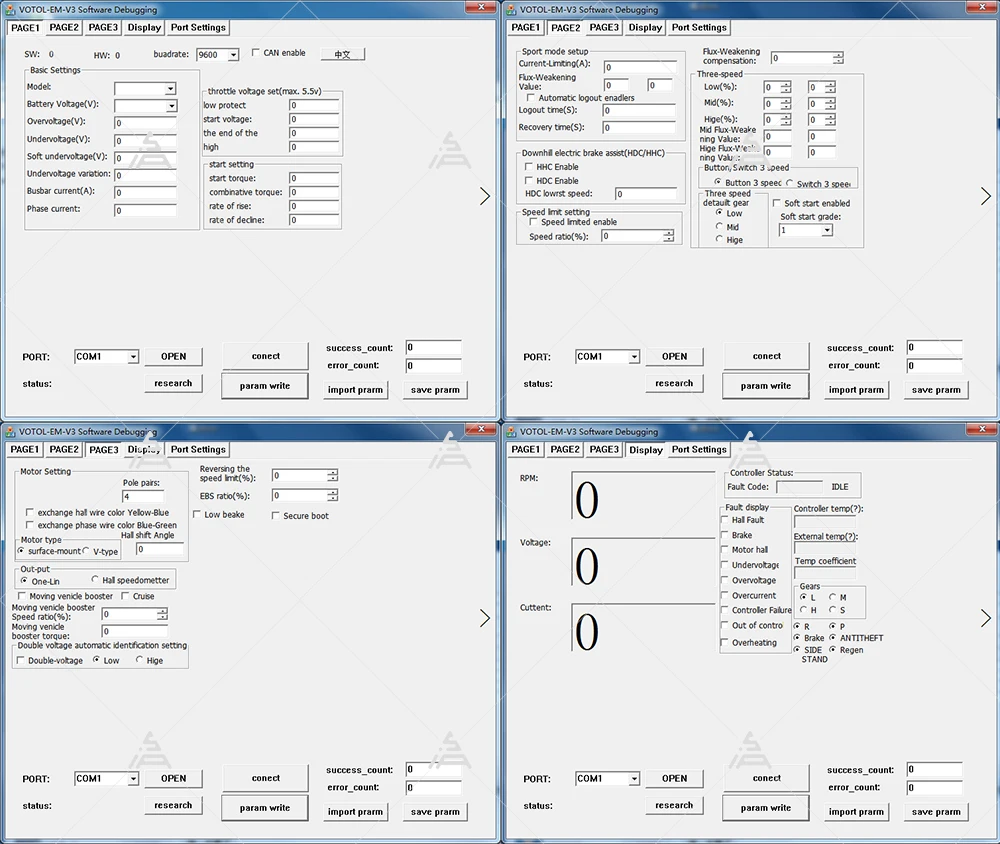

Software Display(PC)

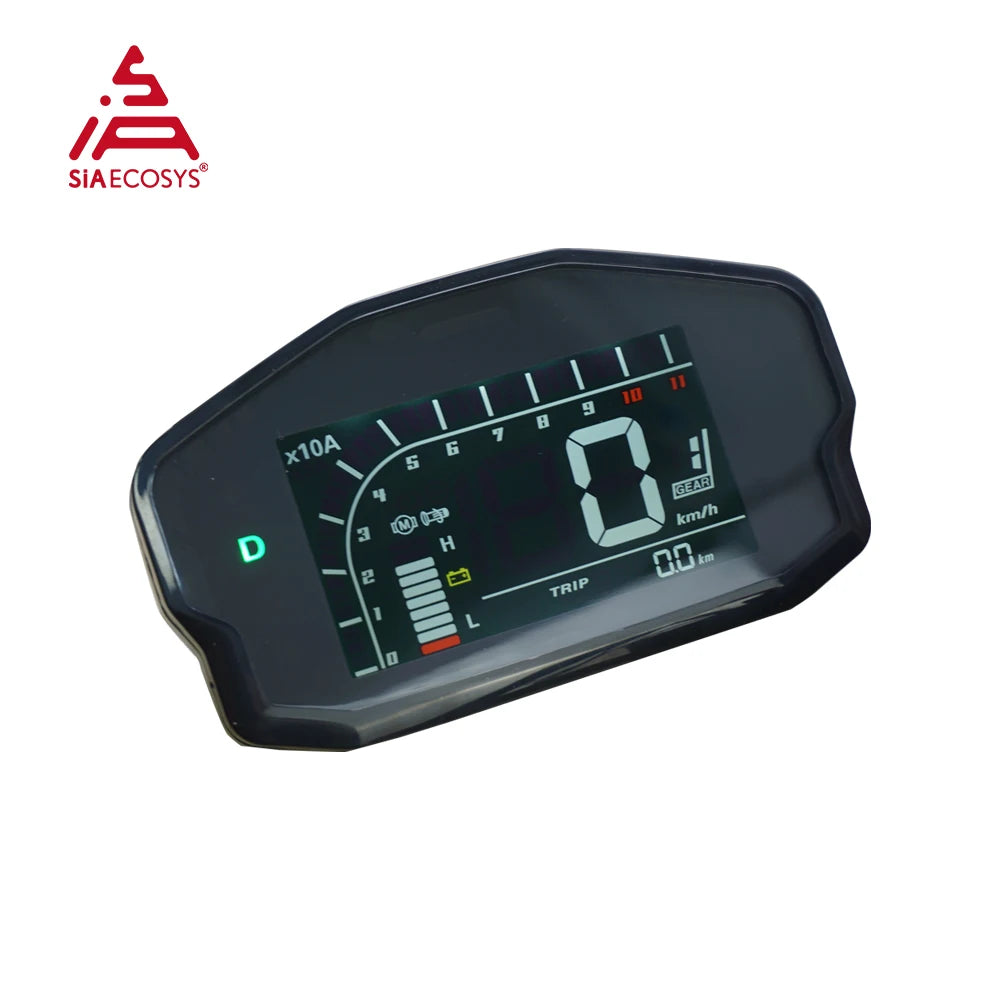

3. DKD Speedometer

Key Features

Both CAN and LIN communication are supported

Product Description

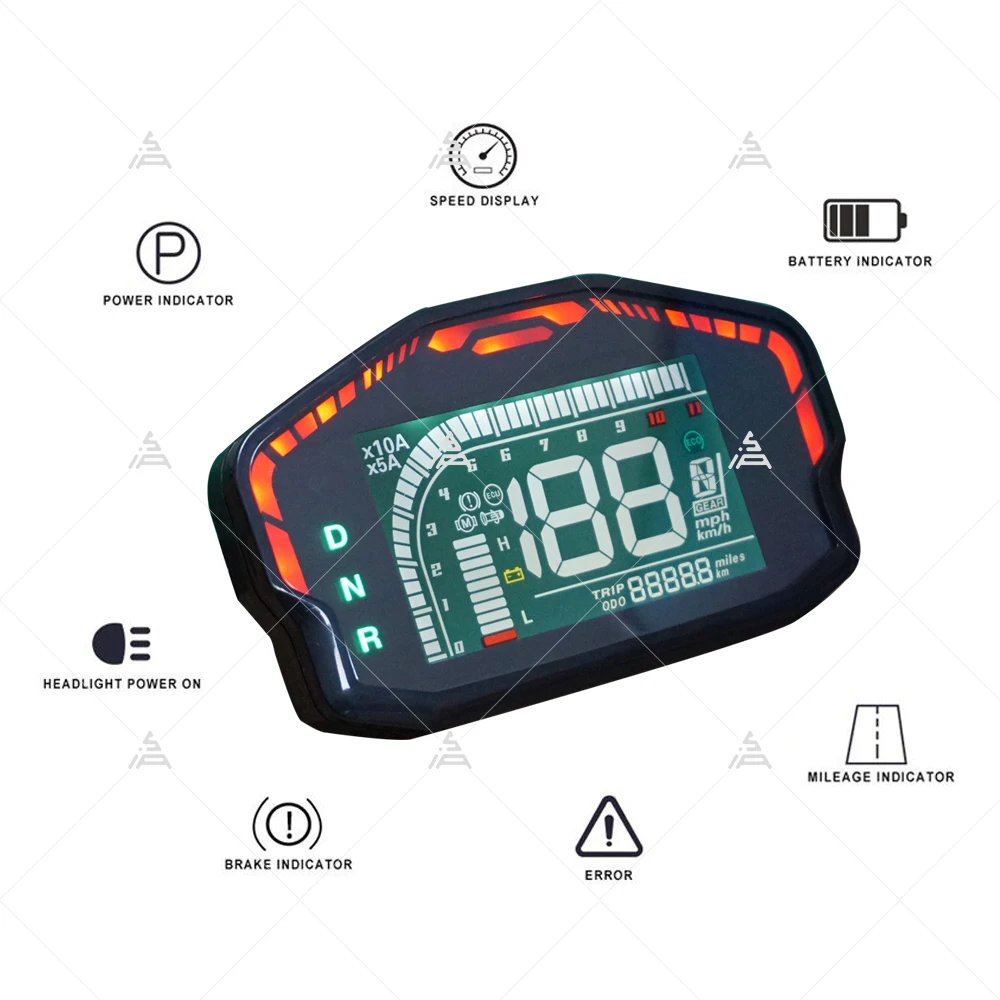

DKD LCD speedometer, Adjustable

It display D N R, P, 1 2 3 S gear, and battery current X10.

For the speed, we recommend to set it as following as default (to match with QS138 3kw 12inch assembly).

·Wheel tire size: 130/70-12

·Pole Pairs: 5

·Gear Ratio: 1: 4.77

·Voltage: 72V (20s Lithium battery)

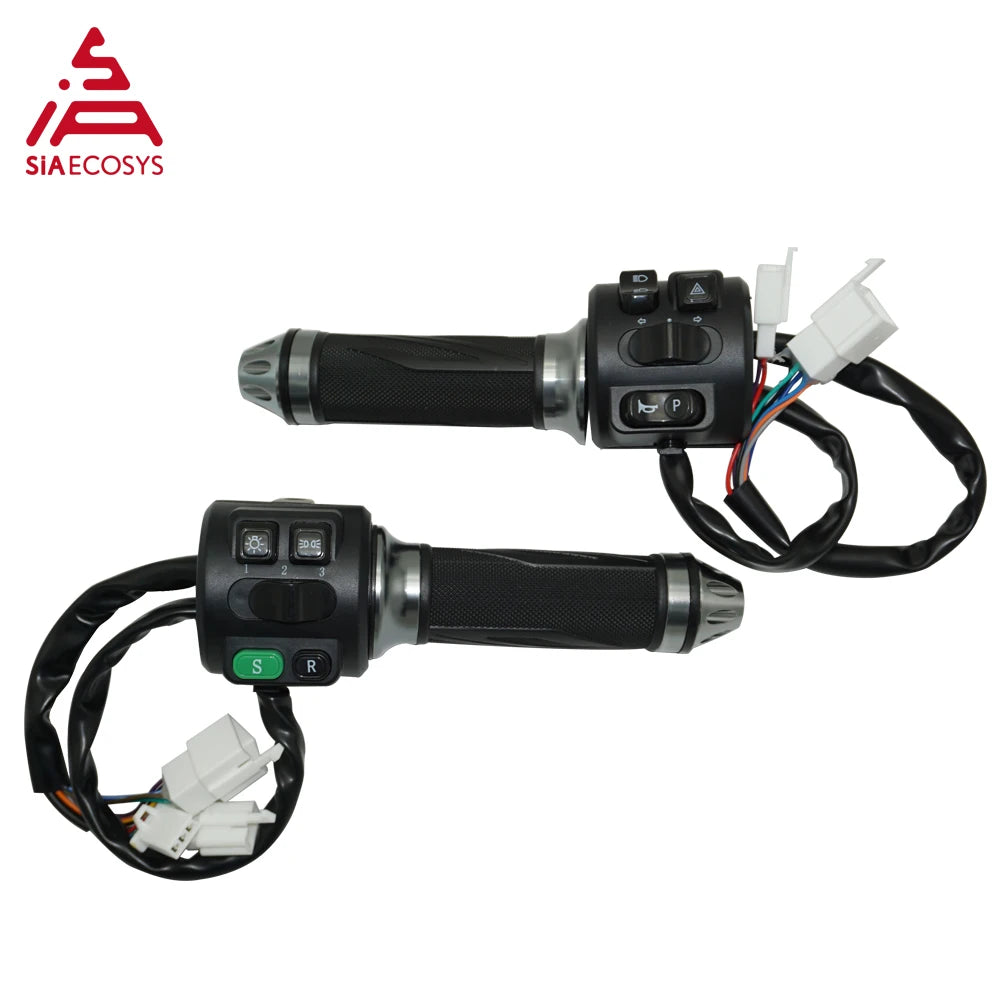

4. Z6 Throttle

Basic Parameters

Color: black

Rated operating voltage: DC+5V

Current: DC 10mA

Main material: ABS PVC

Right throttle pull force/ left handle pull pull force: ≥200N / ≥200N

Torsional strength: ≥ 9N.m

Output voltage: 0.8 ~ 4.2V

Service life: ≥100,000 times

Waterproof rating: IPX6

Number of core cable:5

Type of switch: half twist, with meter and key

Inner diameter of throttle: 22mm

Function

With Reverse, Parking button(throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.

Application
