QSMOTOR 273 5000W 72V 80kph 2wd Dual Hub Motor With EM200-2sp Controller Kits For Electric ATV Car

Regular price $3,280.68

QSMOTOR 12*5.0inch 5000W V4 72V 90kph 2wd Single Shaft Hub Motor with EM200-2sp controller kits for electric ATV Car

For this 5000W electric ATV Car kits, it could be used for electric car, which could be 72V 90KPH.

e.g. Electric ATV car

E-motorcycle weight, approx 600kg+1*100kg

Speed: peak 90km/h

Climbing slope: 12 degree@700kg

Battery: 72V200Ah

Tire Diameter: 0.66m

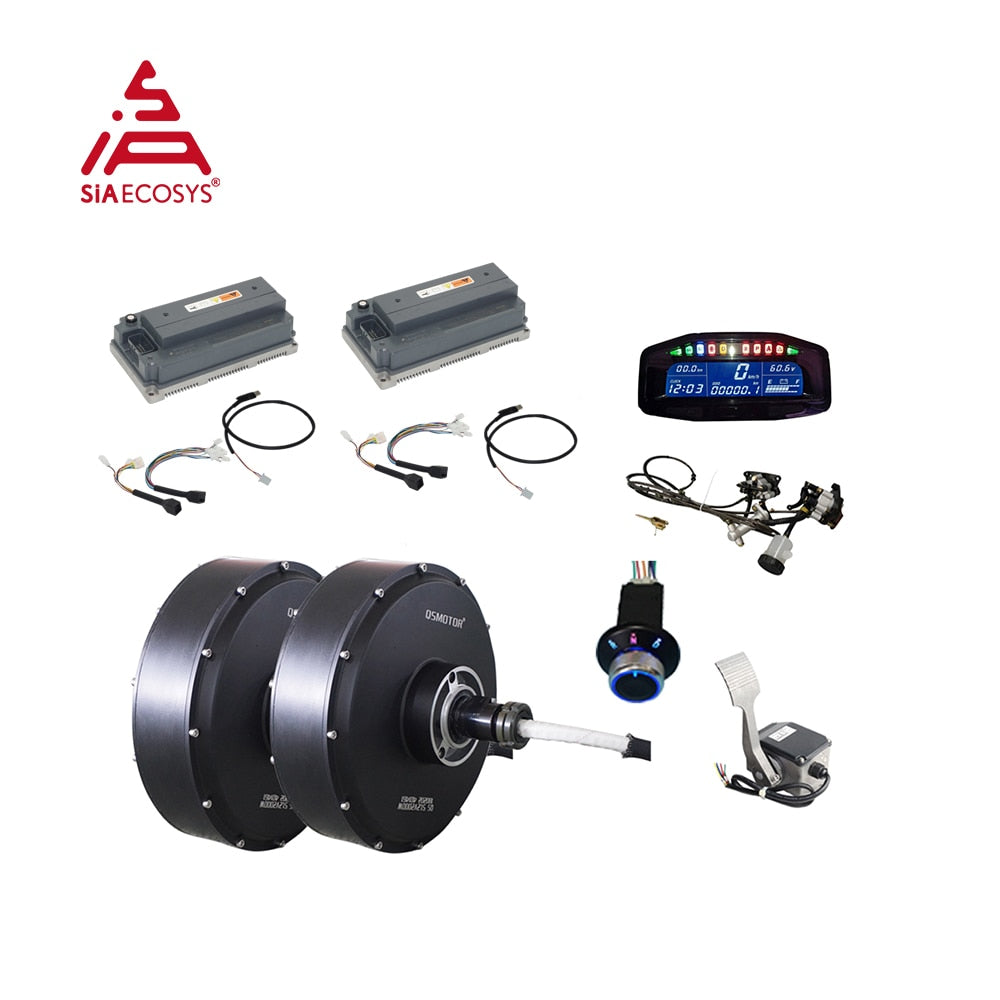

One 5000W electric ATV Car kitsincluding below kits

1. 2pcs X QSMOTOR 5000W 273 V4 electric wheel hub motor

2. 2pcs X KLS7275H sine wave motor controller with standard CAN-BUS

3. 1pcs X XE-8 speedometer

4. 1pcs X 0-5V Electric Car Throttle Pedal

5. 1pcs X DNR gear switch

6. 1pcs X 1 tow 2 Hydraulic Disc brake system

7. 1pcs X Bluetooth Adapter(optional)



Key Features

1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in wheels, and easy to be hybrid car.

4). Easily to make 4-wheel drive, which could spot turn.

5). Support regenerative braking

6). High efficiency: 85~92%



Product Description

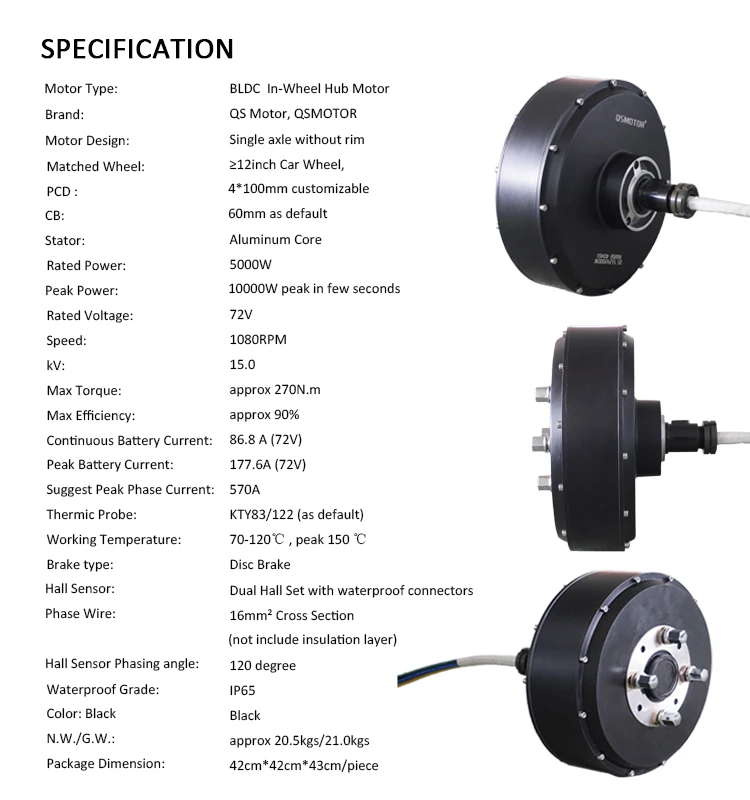

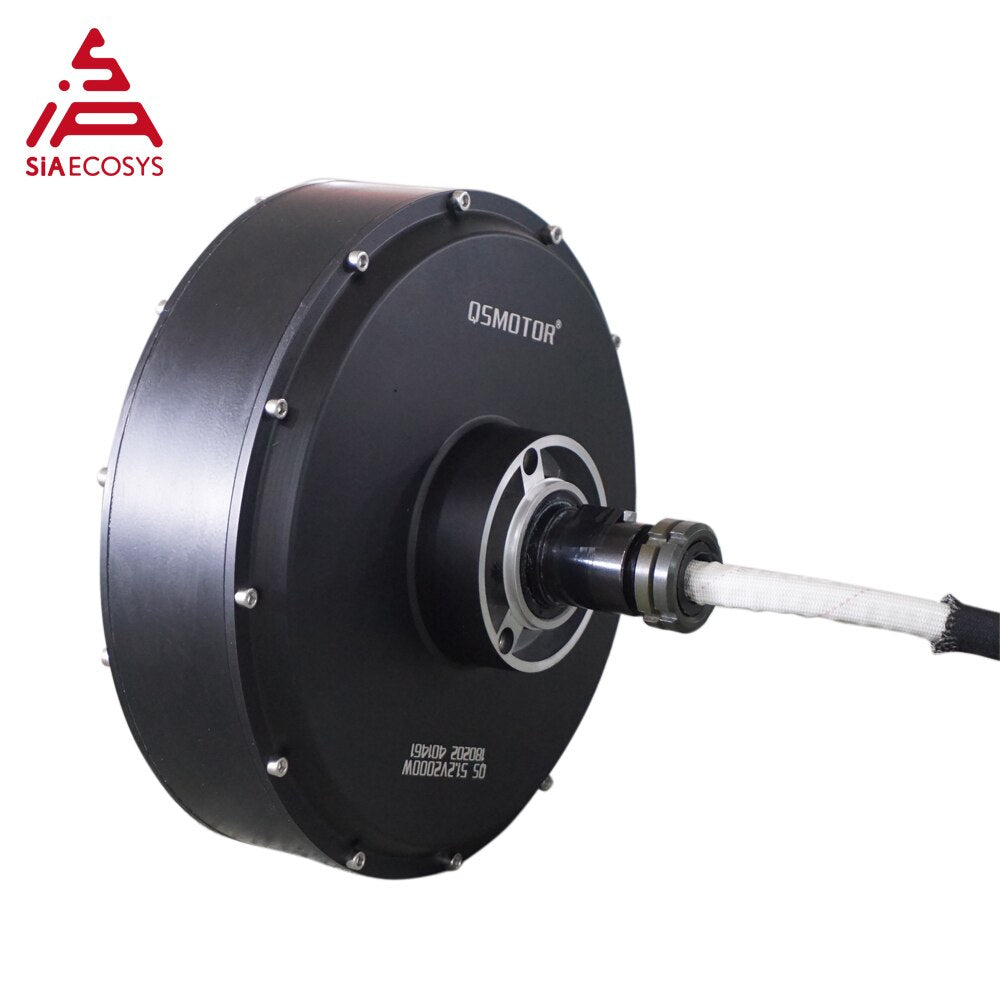

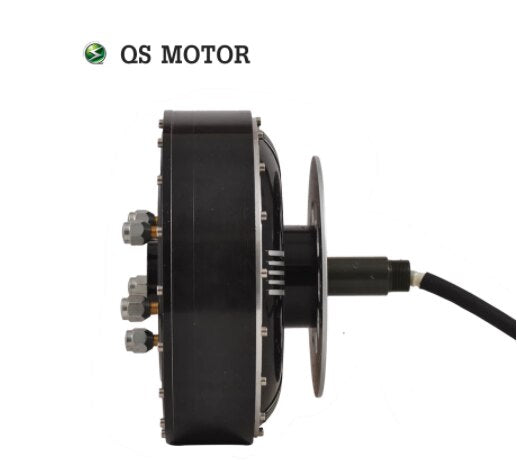

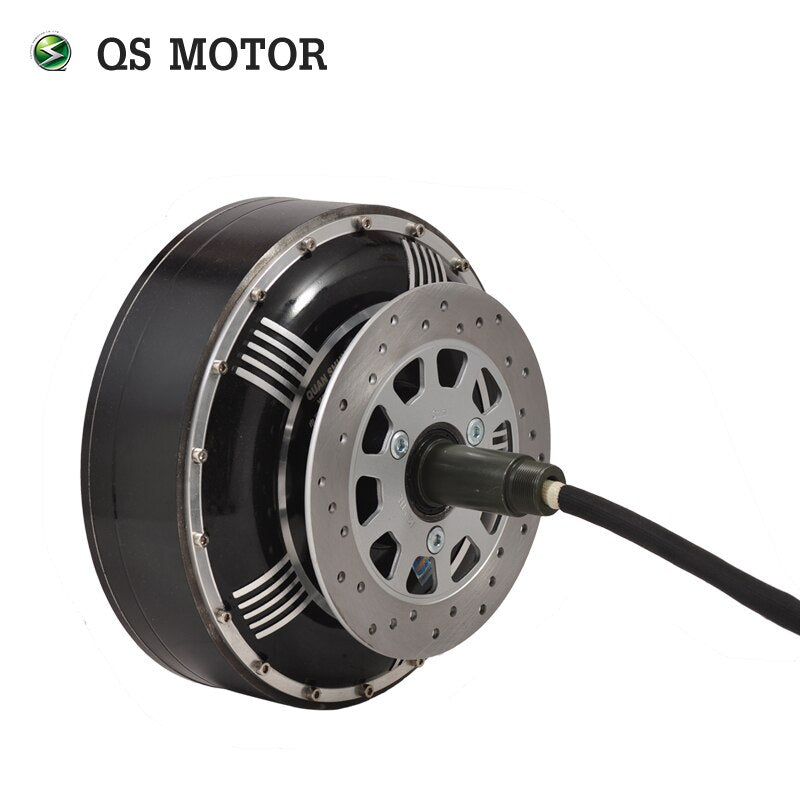

1. QSMOTOR 273 5000W Electric Car Hub Motor

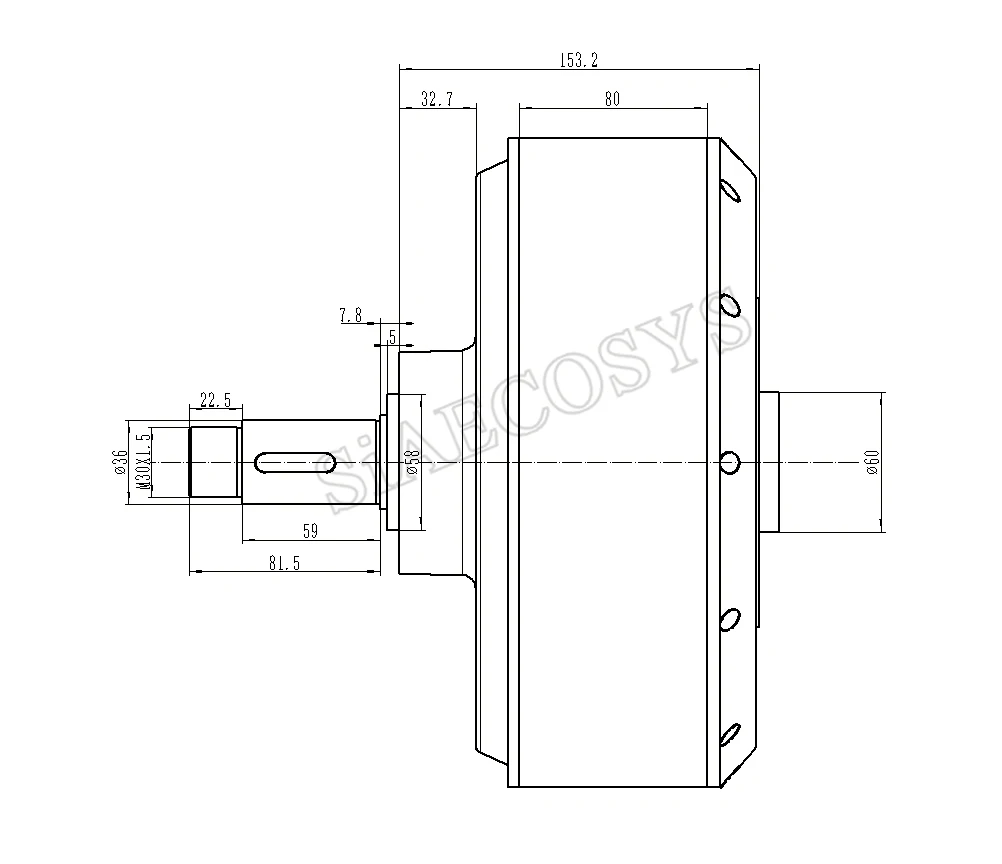

Drawing

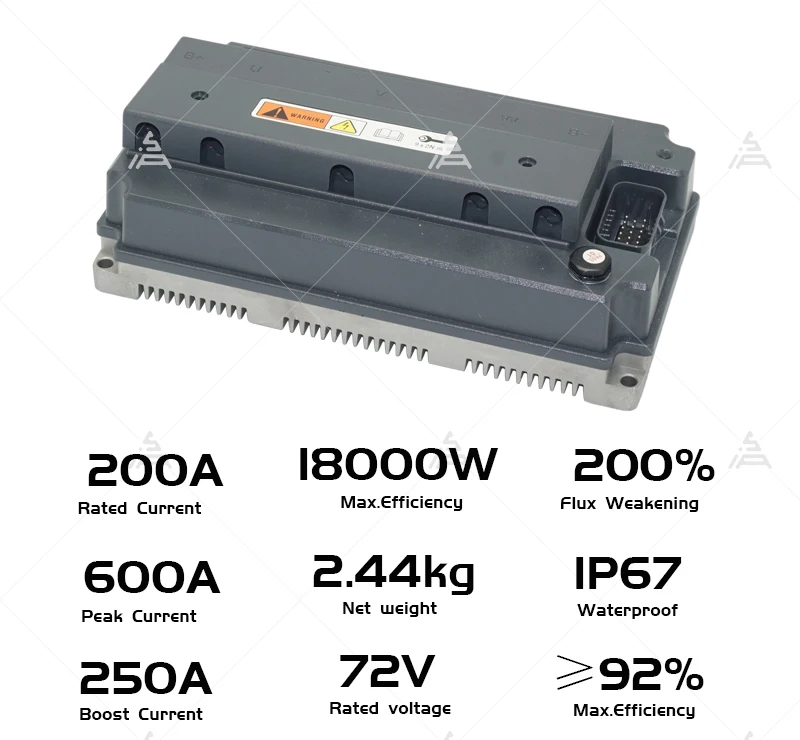

2EM200-2sp sine wave controller with CAN BUS


  • 1. Sine wave controller, programmable, with regen function

  • 2. Motor Current Limit, 20 seconds: 500A

  • 3. Motor Current Limit, continuous: 200A

  • 4. Thermic Probe: KTY83-122

  • 5. Including one controller + USB convertor cable + matched plug

  • 6. Controller size: 288mm*185mm*94.5mm

  • 7. Net weight: 5.00kg

  • 8. Waterproof IP66

  • 9. Default not including bluetooth, waterproof(those function are optional); Can support can-bus

  • 10. Work voltage: 18V~90V; Rated voltage: 24V~72V

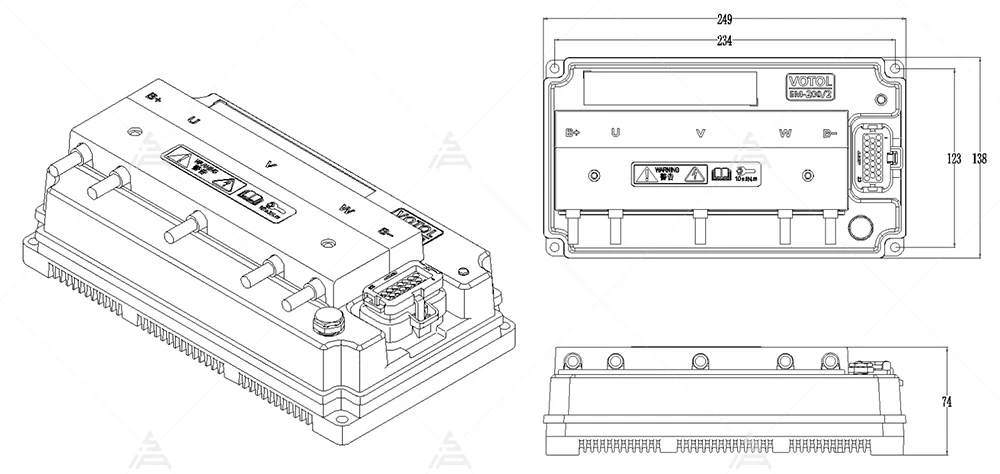

Drawing

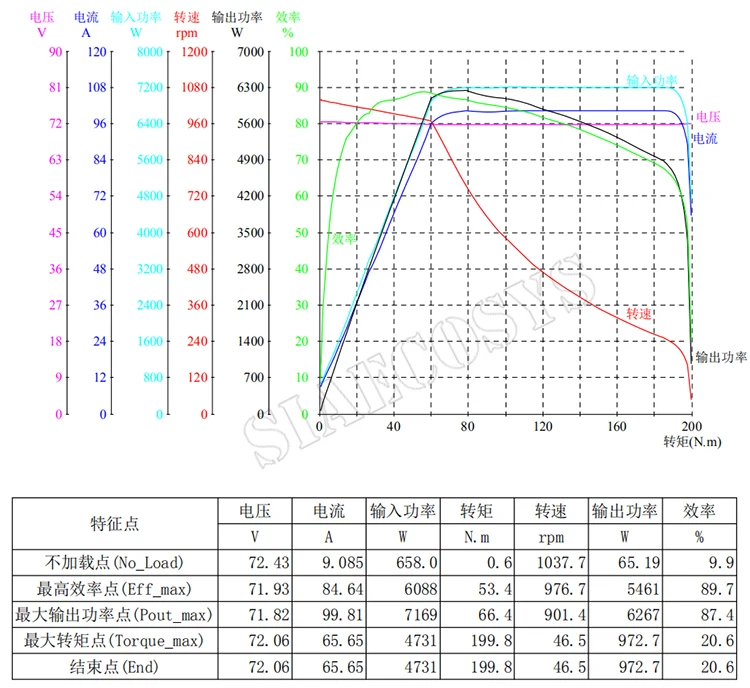

Test Report

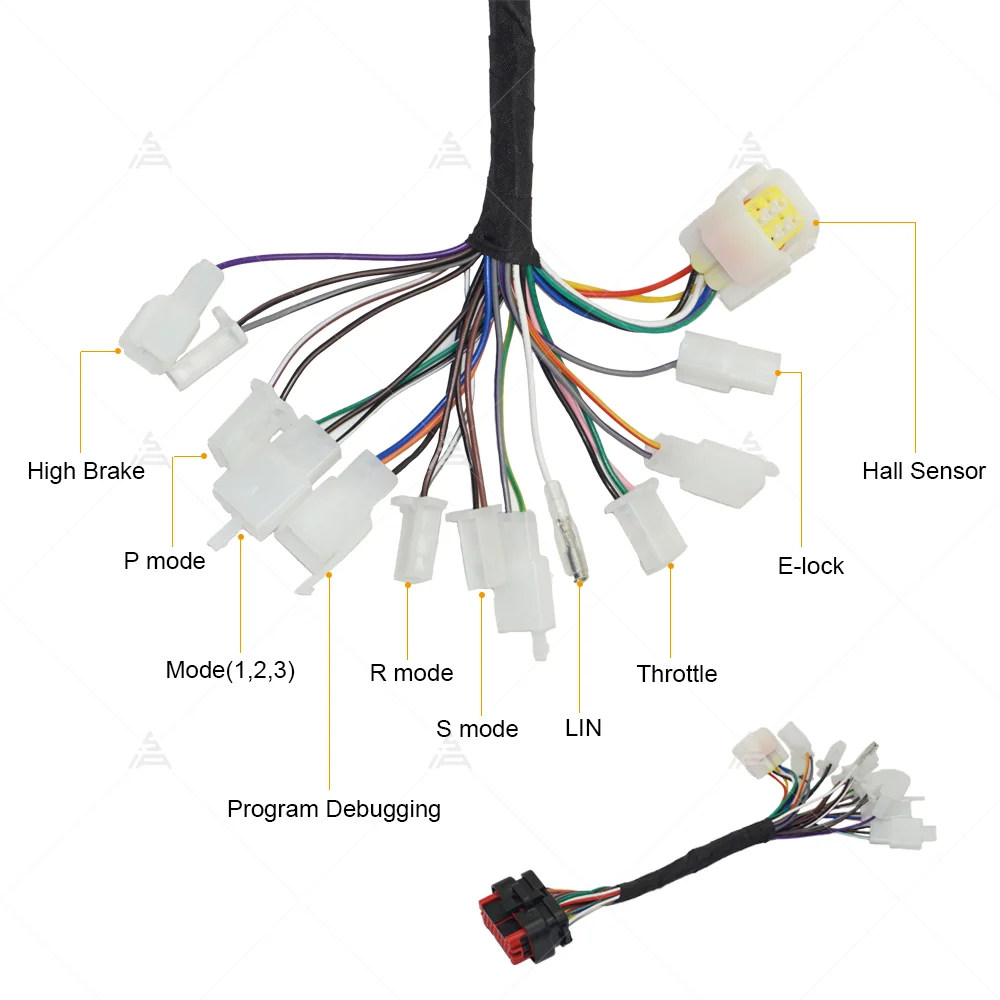

Wiring Diagram

3. XE-8 speedometer

Place of Origin: China(Mainland)

Model Number: X8-E

Application: Electric Car, EV

Rated Voltage:48V-96V

Work voltage: 0-120V

Programmable items: voltage, trip, time, background light

Show Time, driving distance, speed, voltage, electric quantity

Test Speed Type: Hall Sensor

Net weight: 0.57kg

Size: 205mm*103mm*67mm

Packing size: 220mm*160mm*100mm

PS:We don't provide female and male waterproof connectors, pins for as below picture as default.

It will cost extra USD3.0/set for unit speedometer.

4. 0.8-4.2V Electric Car Throttle Pedal

Hall type: JKH mode

Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V

Output voltage: 0.8V-4.2V

Default: Three wires out(cannot connect with switch), 4.2v input voltage. 0.8-4.2v output voltage.

5. DNR gear switch

Include D N R three gears and light, suitable for electric tricycle and car.

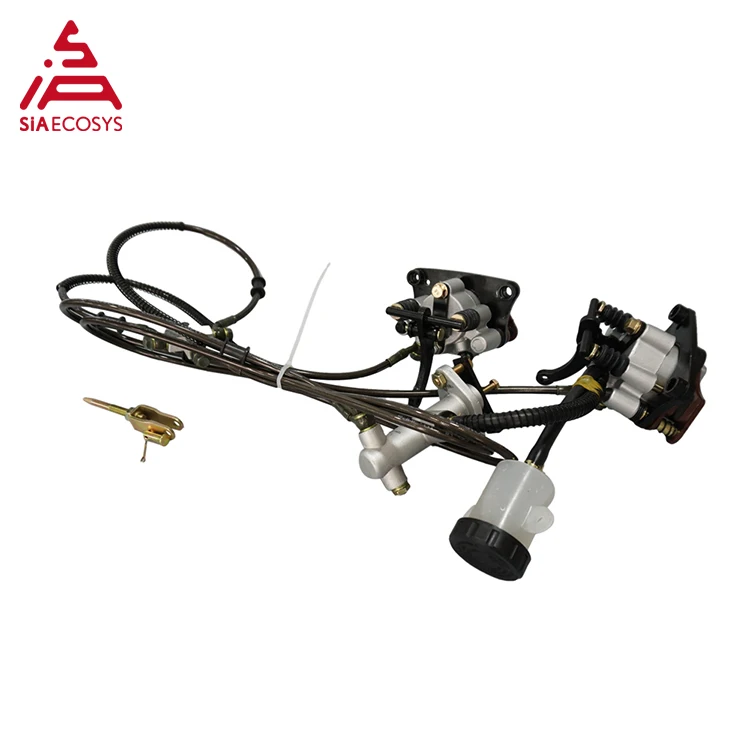

6. 1 tow 2 Hydraulic Disc brake system

One main master cylinder with two calipers

Dayang caliper with mechanical parking brake (in grey), 38mm plunger, pitch of mounting 80 & 103mm

Foot brake master cylinder

Hoses 220cm + 80cm X2

Mechanical parking brake cable 95cm + 2 x 115cm

220mm disc brake plate and screws (PCD 3*80mm, CB58mm, thickness 4mm)

Without brake oil

N.W. 4.78kg (Without brake disc)


Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.



Conversion kits

We're able to supply adaptable more motor kits, e.g. speedometer, throttle. Please contact with us for details.



Application

The QSMOTOR 273 5000W 72V 80kph 2wd Dual Hub Motor With EM200-2sp Controller Kits For Electric ATV Car destined to impress, and priced at only $3,280.68, for a limited time.
