QSMOTOR 19*1.6inch Wheel Rim 3kw Electric Bike Spoke Hub Motor And Aabvoton SIA7230 Controller For Electric Bicycle

Sale price $1,208.68 Regular price $978.88

QS Motor Kits 19*1.6inch 820rpm Wheel Rim 3000w E-Bike Spoke Hub Motor V3I/V3TI Match SIA7230 Controller Kits

3000w E-Bike  Kits

E-bike weight, approx 47kg+80kg

Tire diameter: 2.50-17

Speed: 72V 70km/h

Climbing slope: 25°@127kg

Battery: 72V40h lithium battery

Application e.g. Electric high power bike with 3kW 205 spoke hub motor, SIA7230 controller

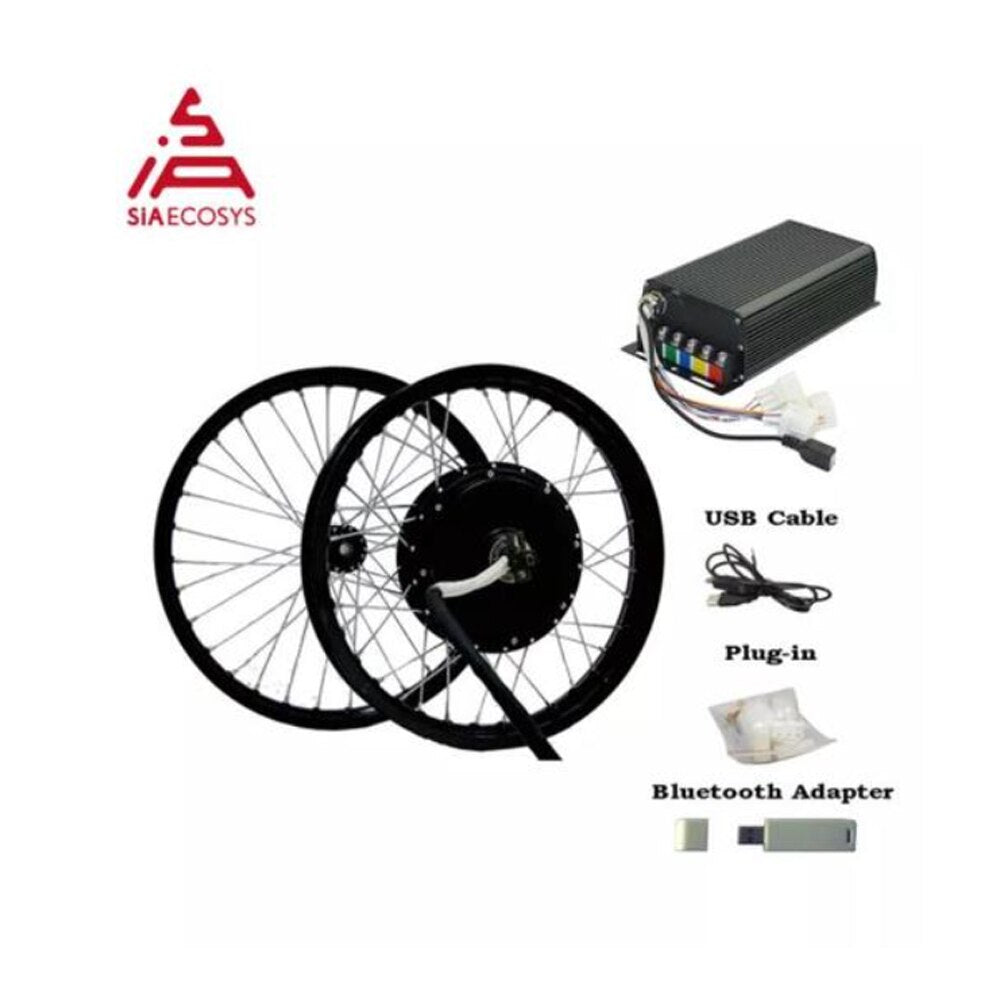

One set including below kits

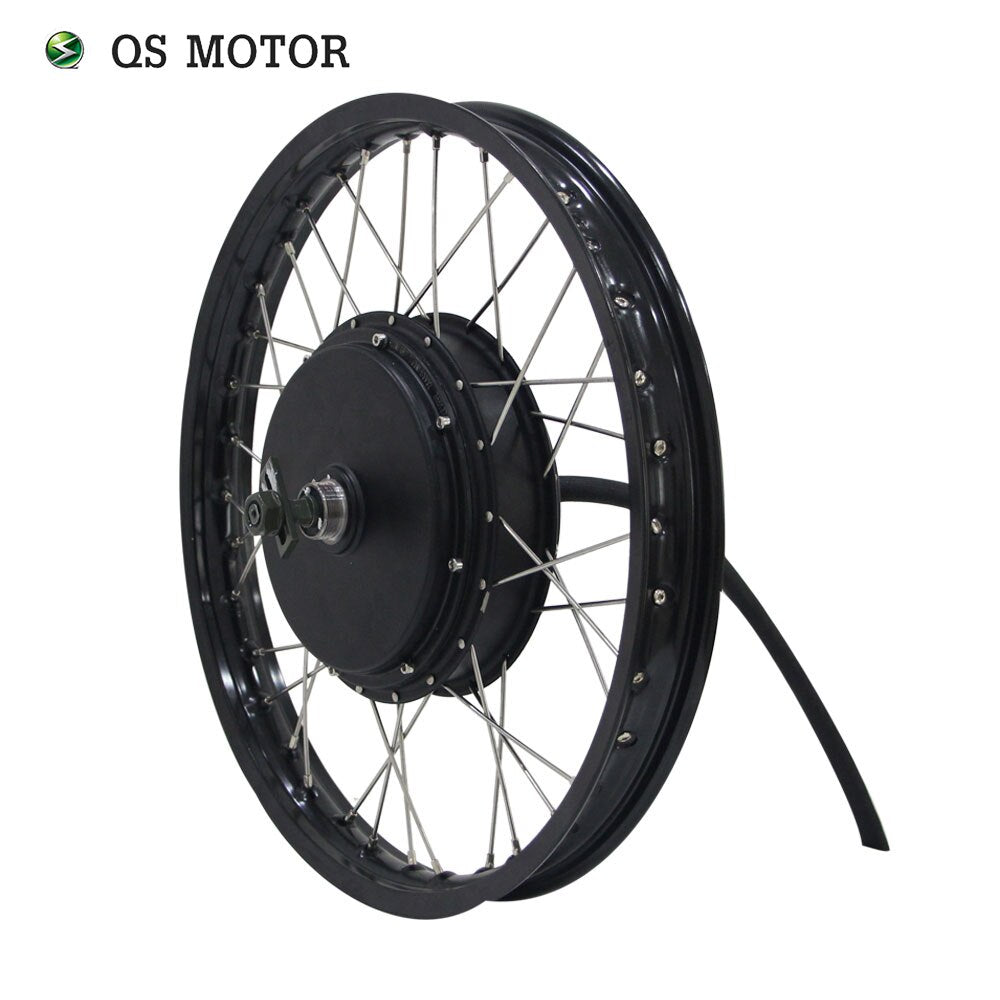

1. 1pc X QSMOTOR 205 3kW 50H V3I V3TI electric spoke hub Motor with moped wheel (17x1.6inch/ 18*1.6inch/ 18x1.85inch/ 19x1.6inch as default )V3I as default. If you need V3TI to place an order, please remark it.

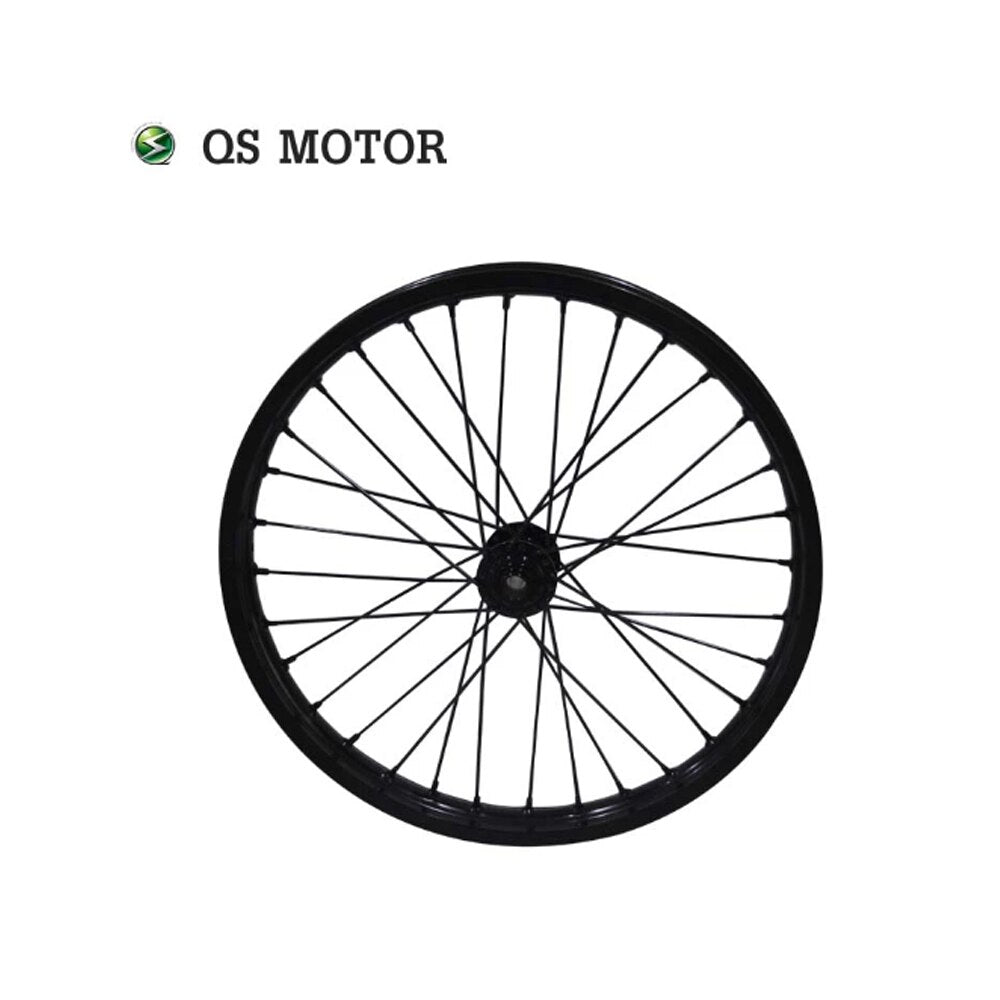

2. 1pcs X 19*1.6inch front wheel rim (front wheel rim only 19x1.6inch so far )

3.1pcs X17x1.6inch/ 18*1.6inch/ 18x1.85inch/ 19x1.6inchrear wheel rim

4.1pc X SIA7230 controller

5.1pcs XHalf Twist Throttle

6. 1pc X CT-22 speedometer

7. 1pc X Bluetooth adapter

8. 1pc X Spacer(As free)

P.S. The spokes only available silver color

Key Features


1. QS Motor with high quality and service.

2. Sine Wave controller, Bluetooth wireless connection are optional, Highest Reliability!

3. Parameter Programmable

4. Higher Torque & Higher Efficiency

5. No noisy

6. Temperature sensor inside and Lower overheating

7. Regenerative braking

Product Description

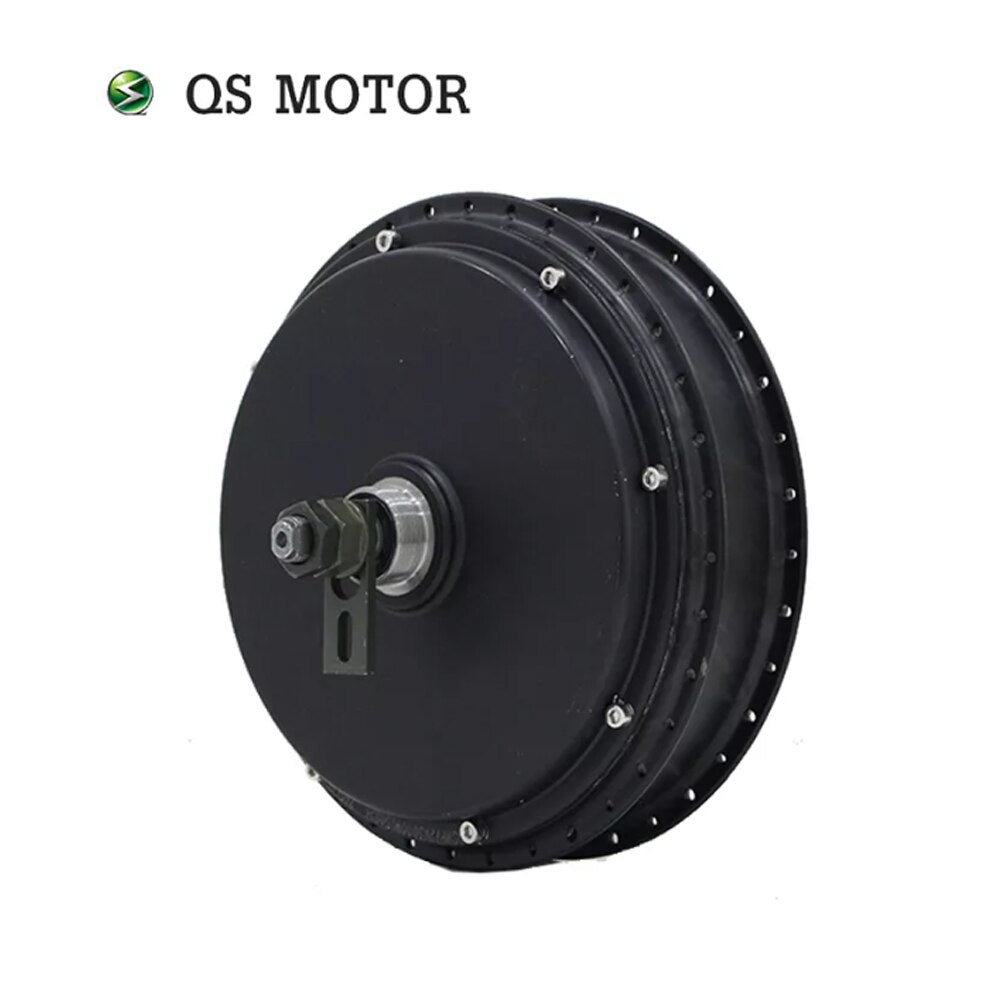

1. QSMOTOR 3000W 205 50H V3I/V3TI electric spoke hub Motor

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor, QSMOTOR

·Motor Design: double axle without rim

·Matched Wheel: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

·Stator: Aluminmum Core

·Rated Power: 3000W, 6000W in peak for 20~30 seconds

·Voltage range: 48V~96V, 72V as default

.Winding option: 650rpm@72V (stock)/ 820rpm@72V(stock & default)/ 1110rpm@72V(no in stock) ,please contact seller for which winding do you prefer

·Max Torque: approx 185.0N.m

·Max Efficiency: approx 91%

·Continuous Battery Current: 44A (72V)

·Peak Battery Current: 100-150A (72V)

·Suggest Peak Phase Current: 240A

·Thermic Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-120℃ , peak 150 ℃

·Brake type: Bike Disc brake, PCD6*44mm(as default)

·Drop-outs/Rear Fork Width for installation: 150mm

·14mm english thread length for single/3 speed freewheel

·10mm axle flats

·Dual Hall Set with waterproof connectors

·10mm² Cross Section of Intergrated Phase Wire (not include insulation layer).

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP54

·Color: Black

·N.W./G.W.: approx 12.5/14.0kg

·Package Dimension: 34cm*34cm*33cm/piece

3000W 205 V3I Electric Spoke Hub Motor




3000W 205 V3TI Electric Spoke Hub Motor



Drawing



Test Report

For 205 spoke motor, we provide 1 piece Hex Flange Nuts M16*1.5*13, 1 piece Hex Nuts M16*1.5*7, 1 piece 4mm thick Washer as default.

Option 1: Hex Flange Nuts M16*1.5*13 + Hex Nut M16*1.5*7

Option 2: Hex Flange Nuts M16*1.5*13 + 4mm thick Washer

We suggest option 1, if the motor shaft length is not enough, choose option 2 and make sure the washer is installed and tight, otherwise there is a risk of shaft broken.

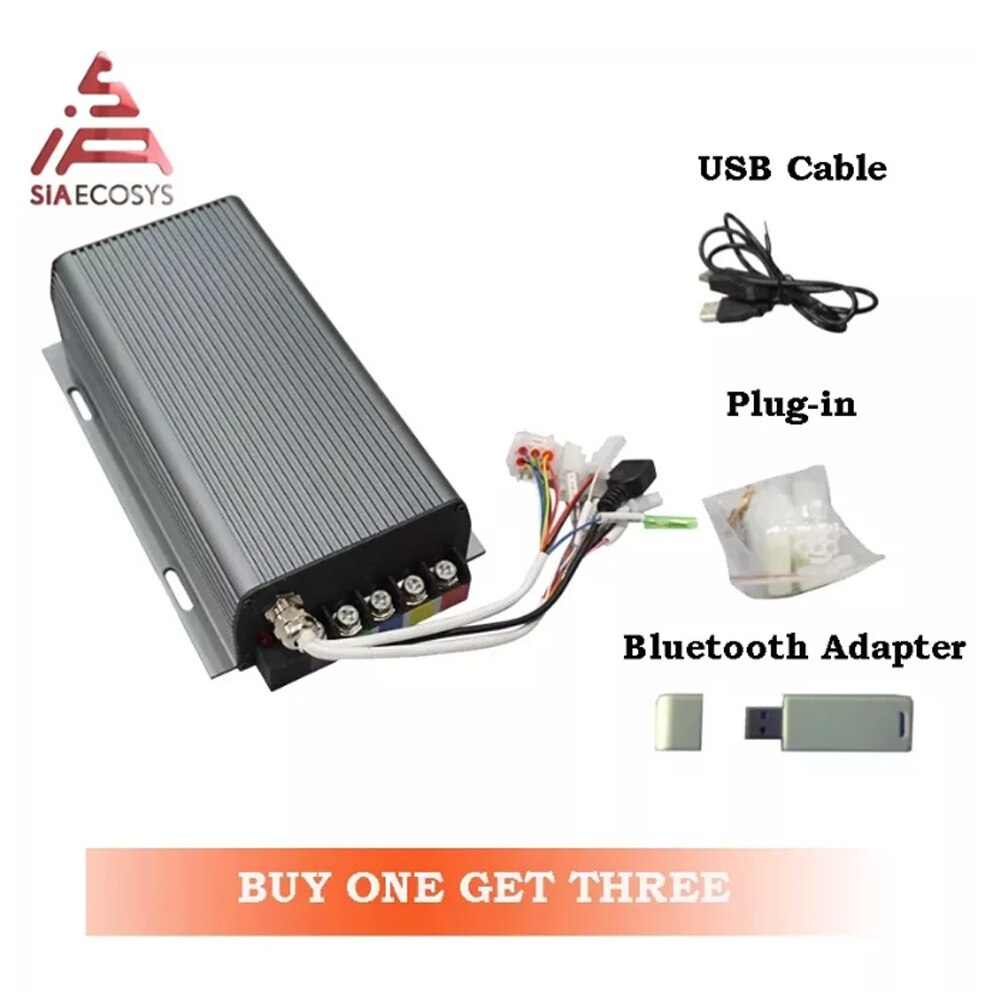

2. SIA7230 Sine Wave Motor Controller

SIA7230 is new motor controller which develop by SiAECOSYS.

Compare to SVMC72150, the size is much smaller, and more cost effective.

The connector is similar to KLS7230, aim for replacement.

Drawing

SIA7230, 243*122*63

SVMC72150 (V1), 247*146*62.5

SVMC72150(V2), 275*122*64

PIN Denfinition

3. Spacer



4. 17X1.6inch Moped Spoke Wheel Rim



5.CT-22 Speedometer

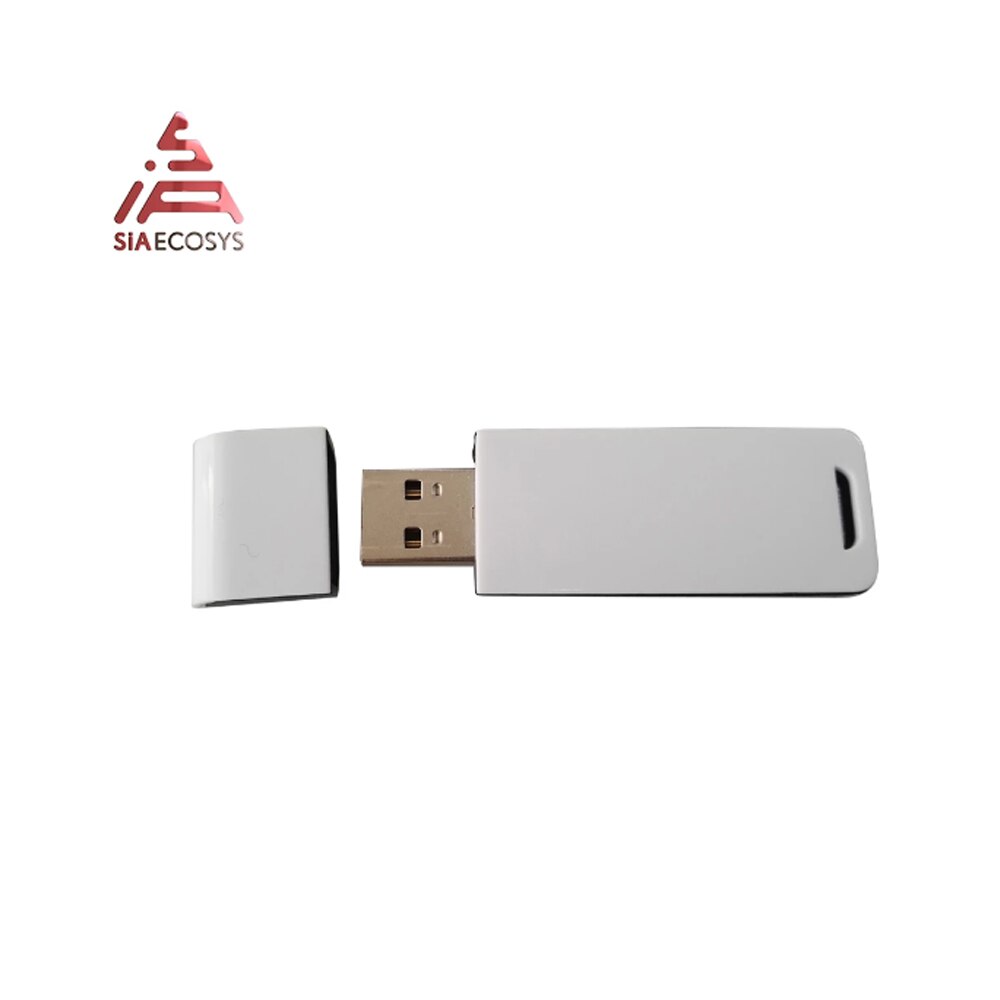

6. Bluetooth adapter

7. Half Twist Throttle

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Application

Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
