QSMOTOR 17x4.25 inch 273 8000W V3 72V 120kph High Speed E-Motorcycle Spoke Hub Motor with EM200-2 Controller Conversion Kit

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

For 273 spoke hub motor, the dropout is 200mm, it could be used for electric motorcycle, high power electric motorcycle.

For 200mm dropout 273 spoke hub motor, we can provide from 3000W-8000W.

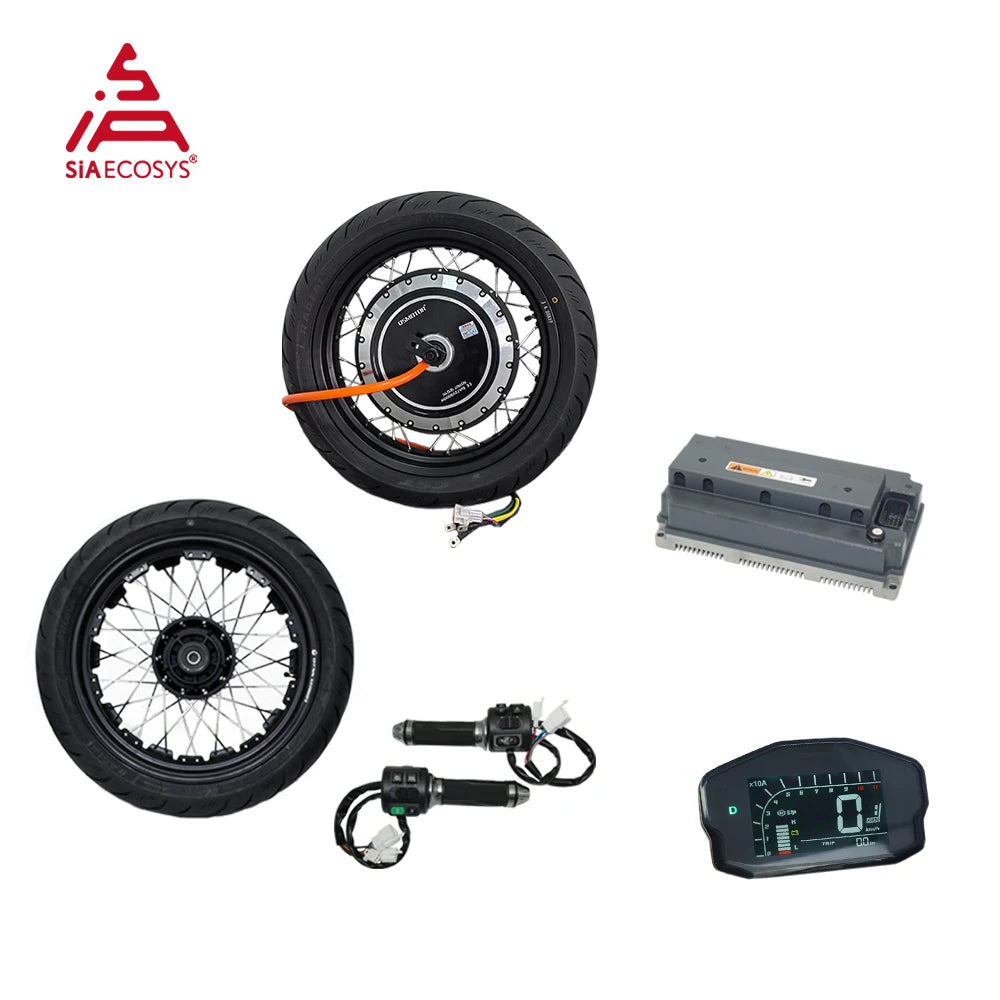

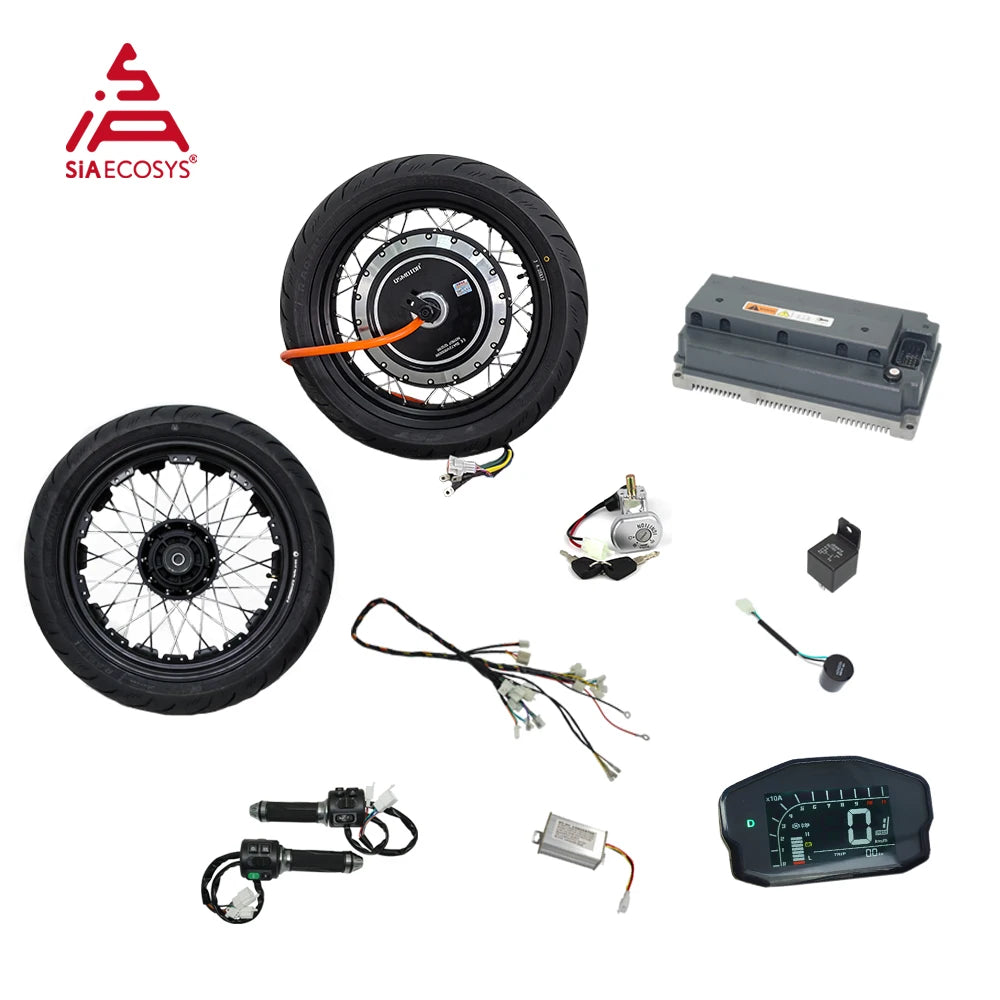

One set including below kits

Combo 1

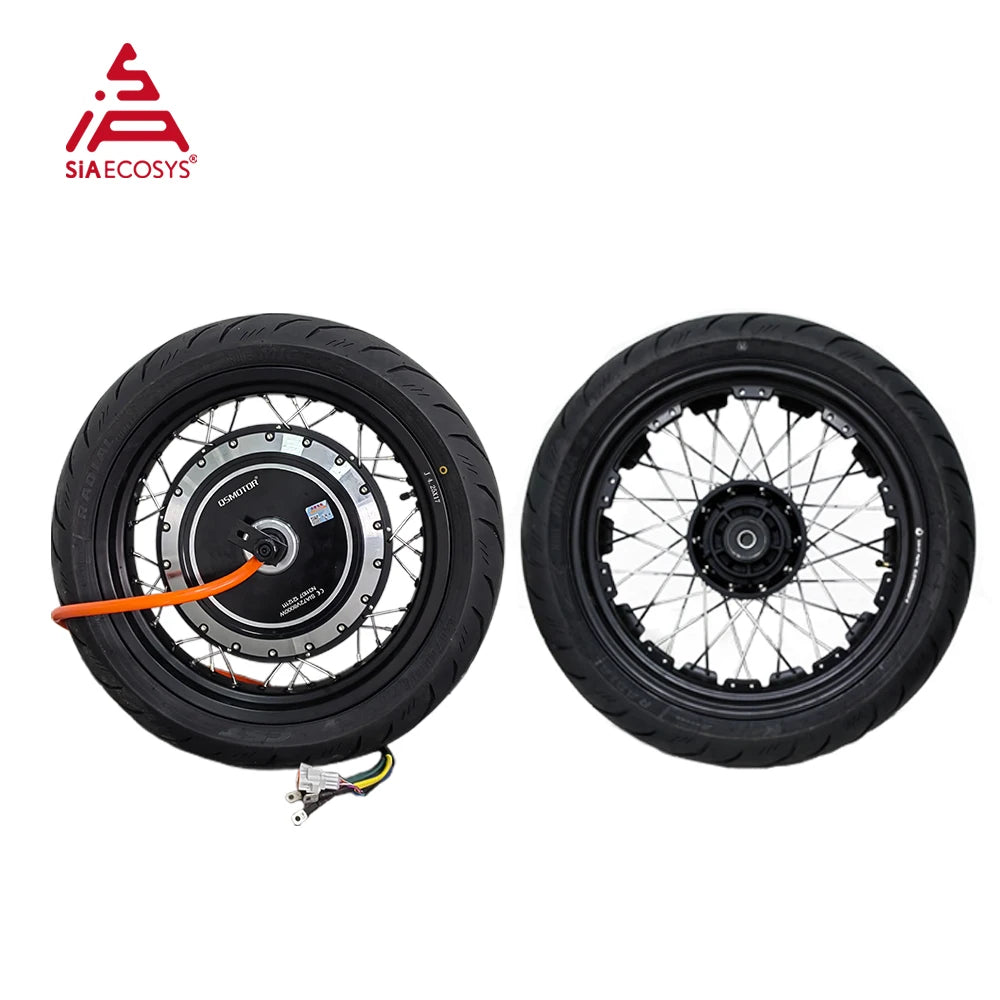

1. 1pcs X QS273 8000W V3 E-Motorcycle Spoke Hub Motor lacing17x4.25 inch Rear Wheel rim

2. 1pcs X 17x3.5inch Front Wheel rim Lacing Spoke

3. 1pcs X Votol EM200-2SP sine wave motor controller with standard CAN-BUS

4. 1pcs X DKD LCD speedometer

5. 1pcs X Z6 throttle with combination switch

Combo 2

1. 1pcs X QS273 8000W V3 E-Motorcycle Spoke Hub Motor lacing17x4.25 inch Rear Wheel rim

2. 1pcs X 17x3.5inch Front Wheel rim Lacing Spoke

3. 1pcs X Votol EM200-2SP sine wave motor controller with standard CAN-BUS

4. 1pcs X DKD LCD speedometer

5. 1pcs X Z6 throttle with combination switch

6. 1pcs XVehicle wiring harness for EM200-2 Controller(with 1pcs 4p 72V 40A relay, 1pcs flasher, 1pcs 72V to 12V10A DC converter, 1pcs Electric Lock Ignition)

Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

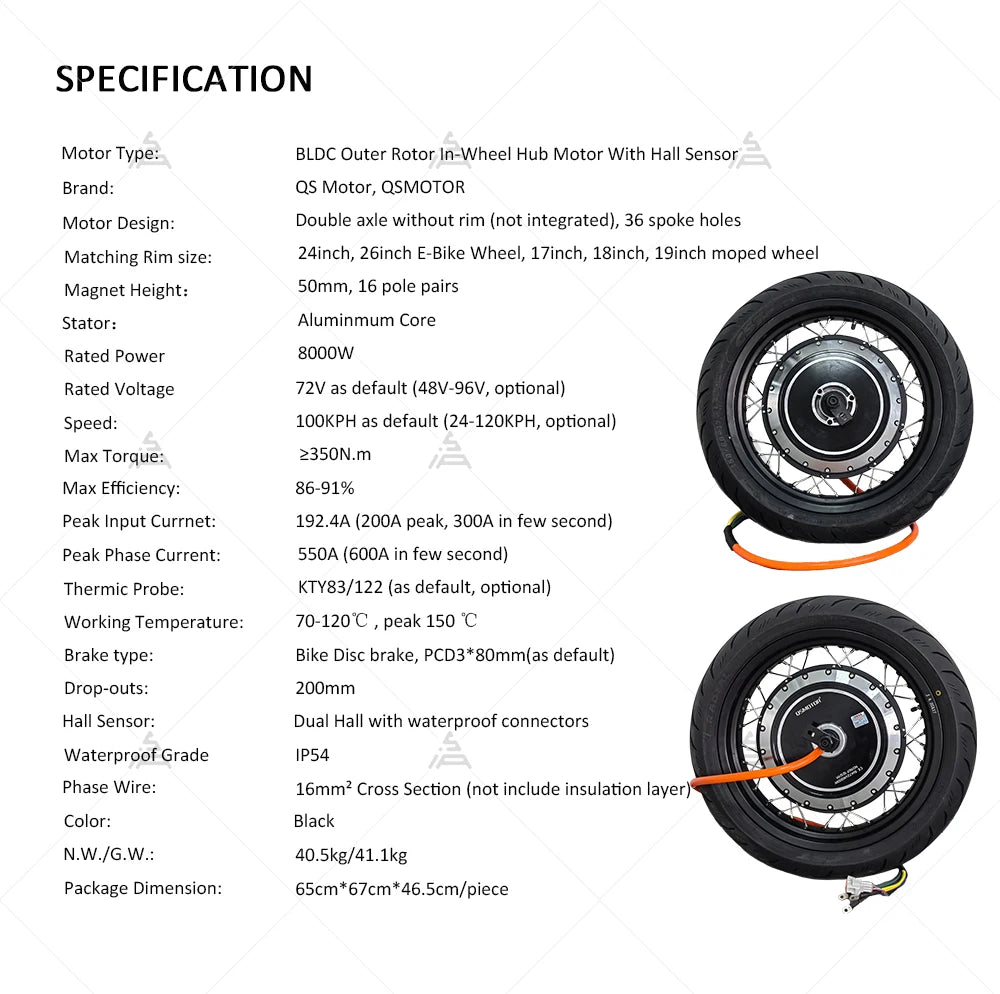

1.QS273 8000W V3 E-motorcycle spoke hub motor Spec

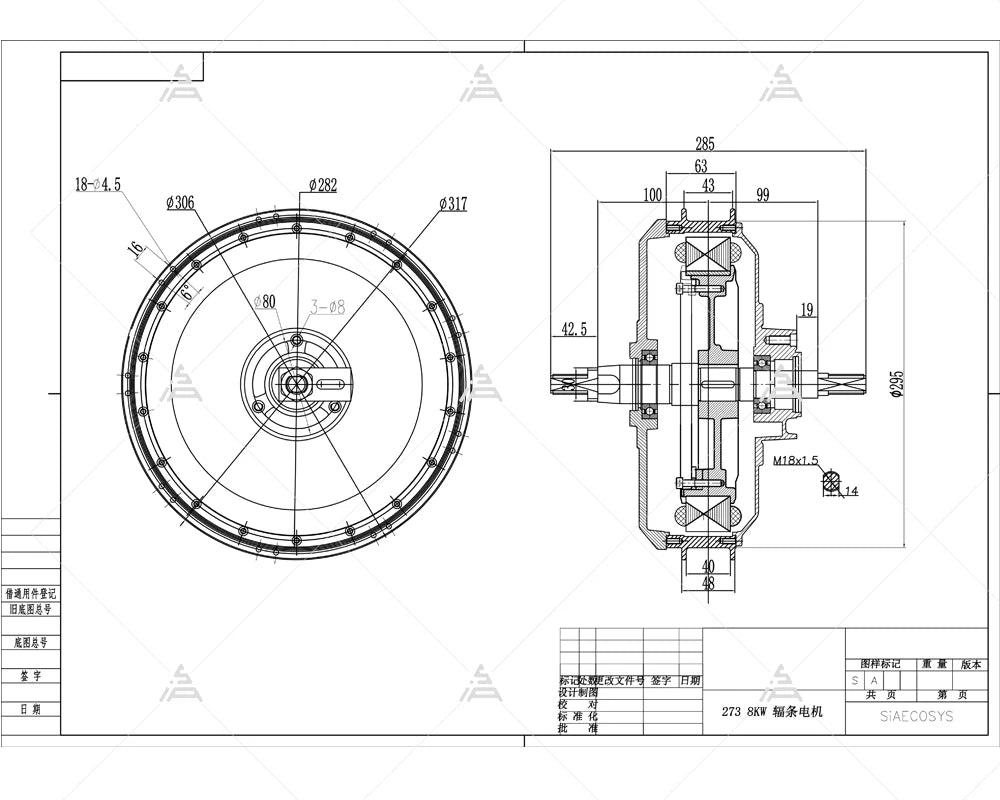

Drawing

QS 273 200mm drop-outs e-motorcycle spoke hub motor

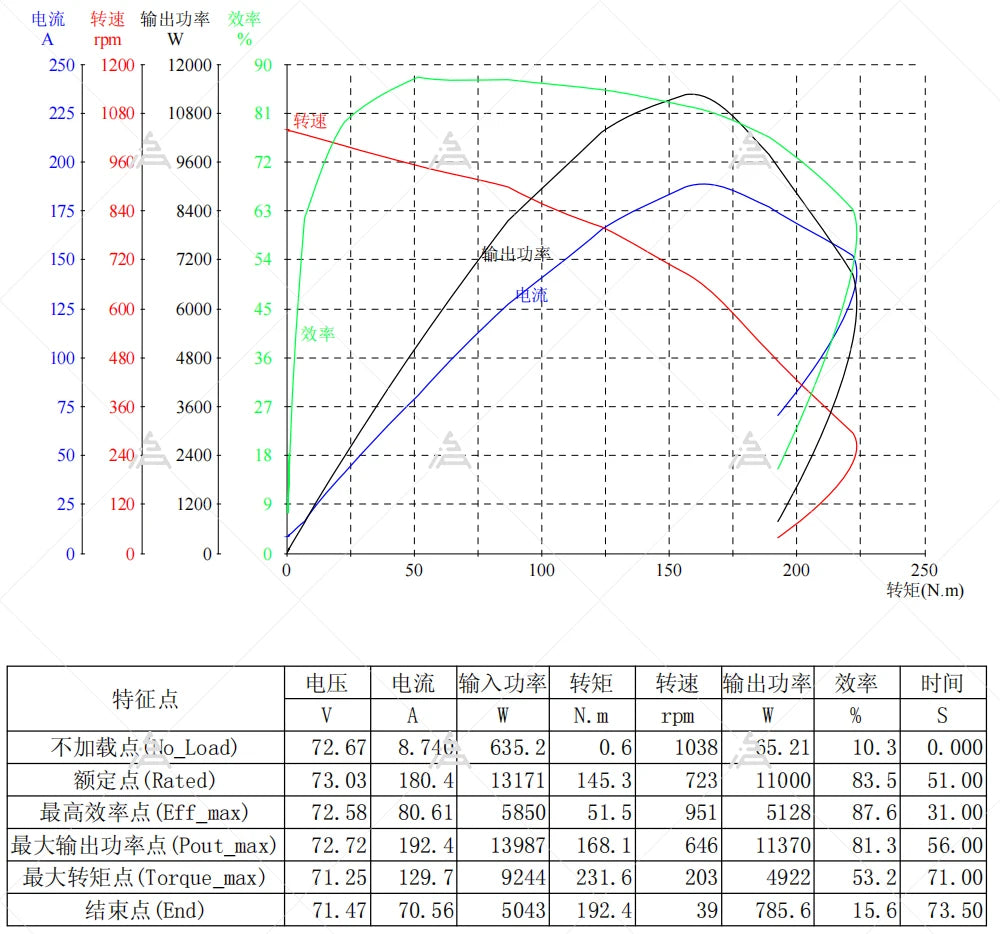

Test Report

For reference only

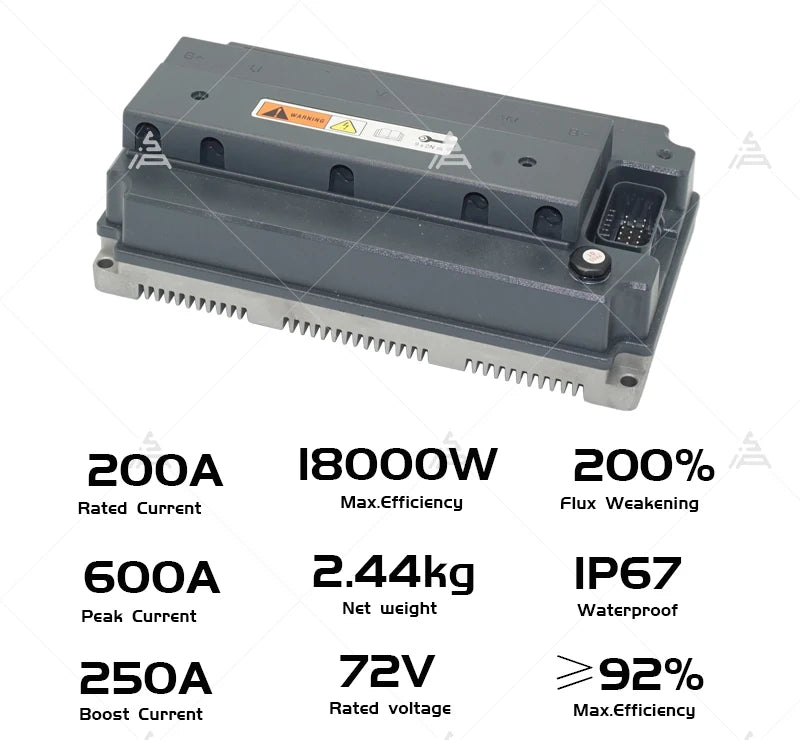

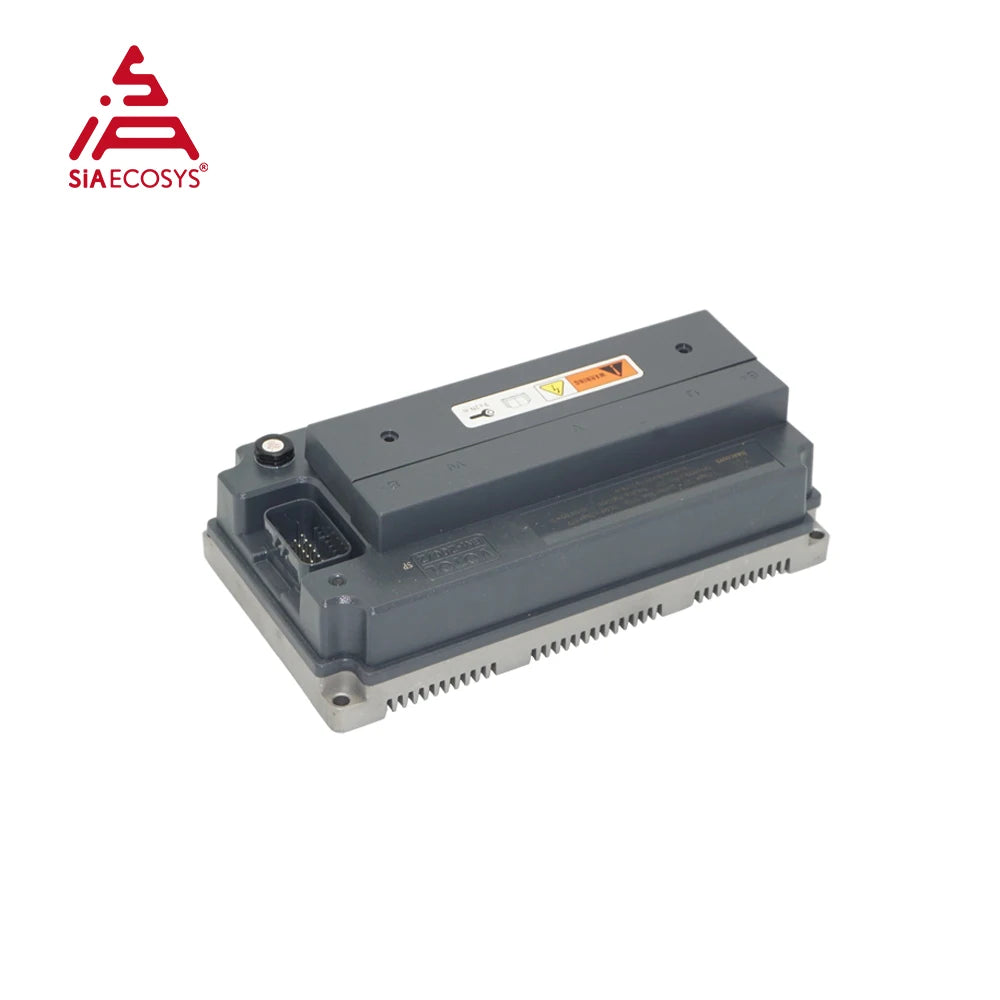

2. EM200-2 Sine Wave Motor Controller

Key Features

1). The materials are imported.

2). Withthe aluminum substrate scheme, the Moss tube is laid on the aluminum substrate

and then placed on the PCB board

3). Smallin size

4). Highefficiency, low temperature rise, small running current

5).With flux weakening function

Product Description

EM200-2sp is cost effective controller withwaterproofing grade IP67, suit for 4-8kW motors.

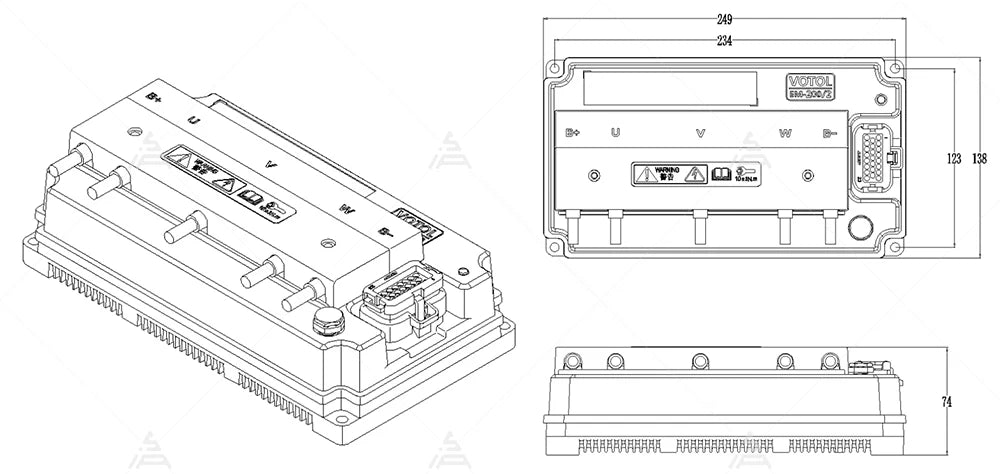

Drawing

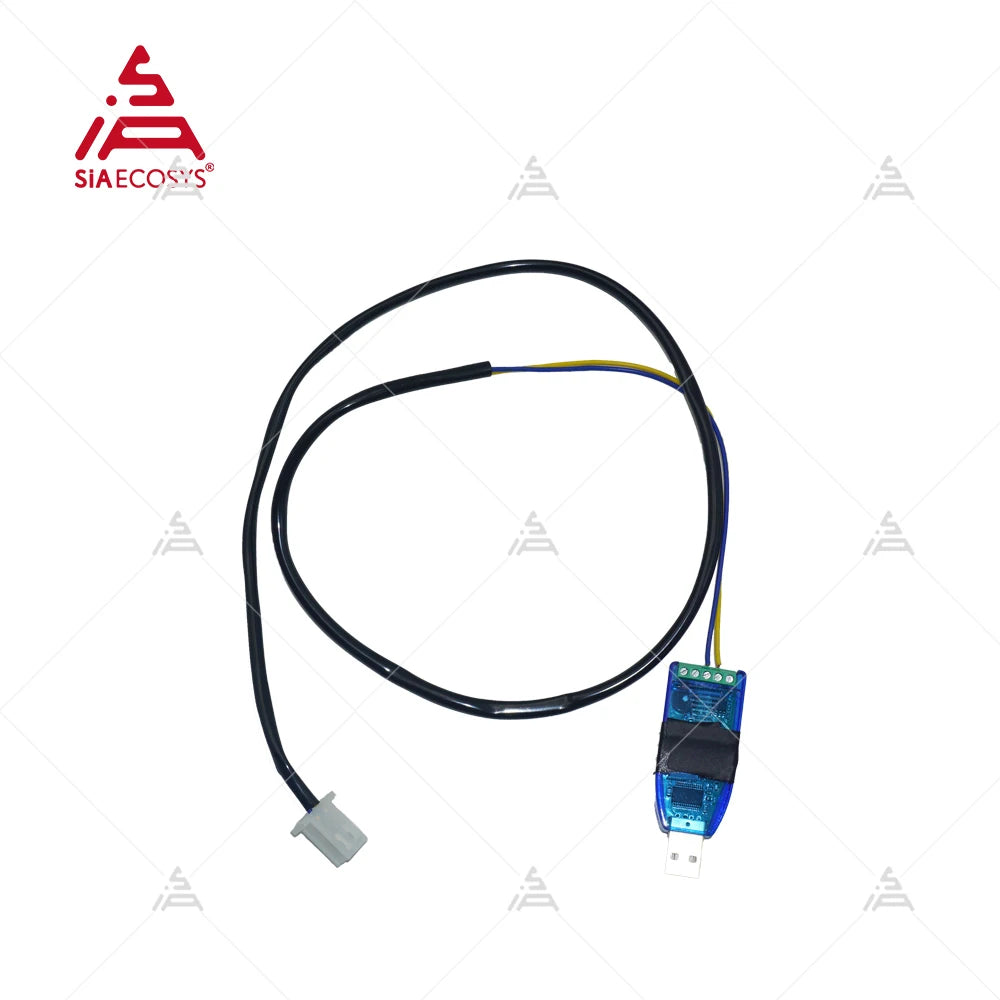

Debugging Cable

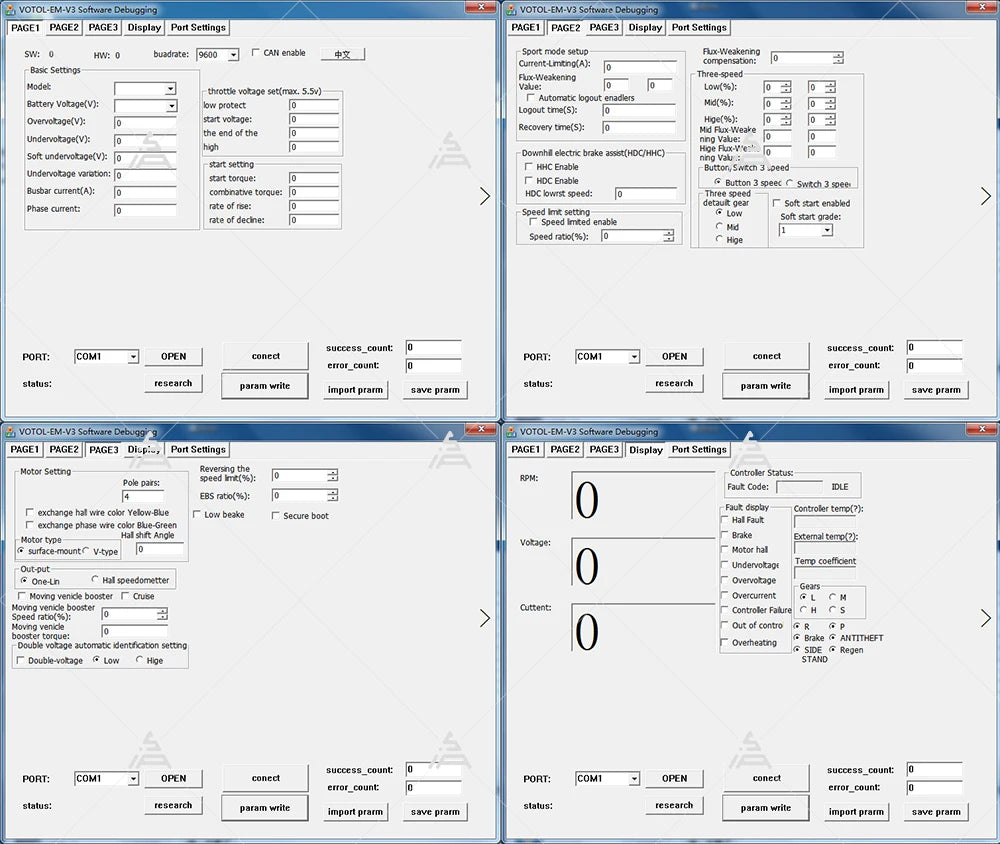

Software interface（PC）

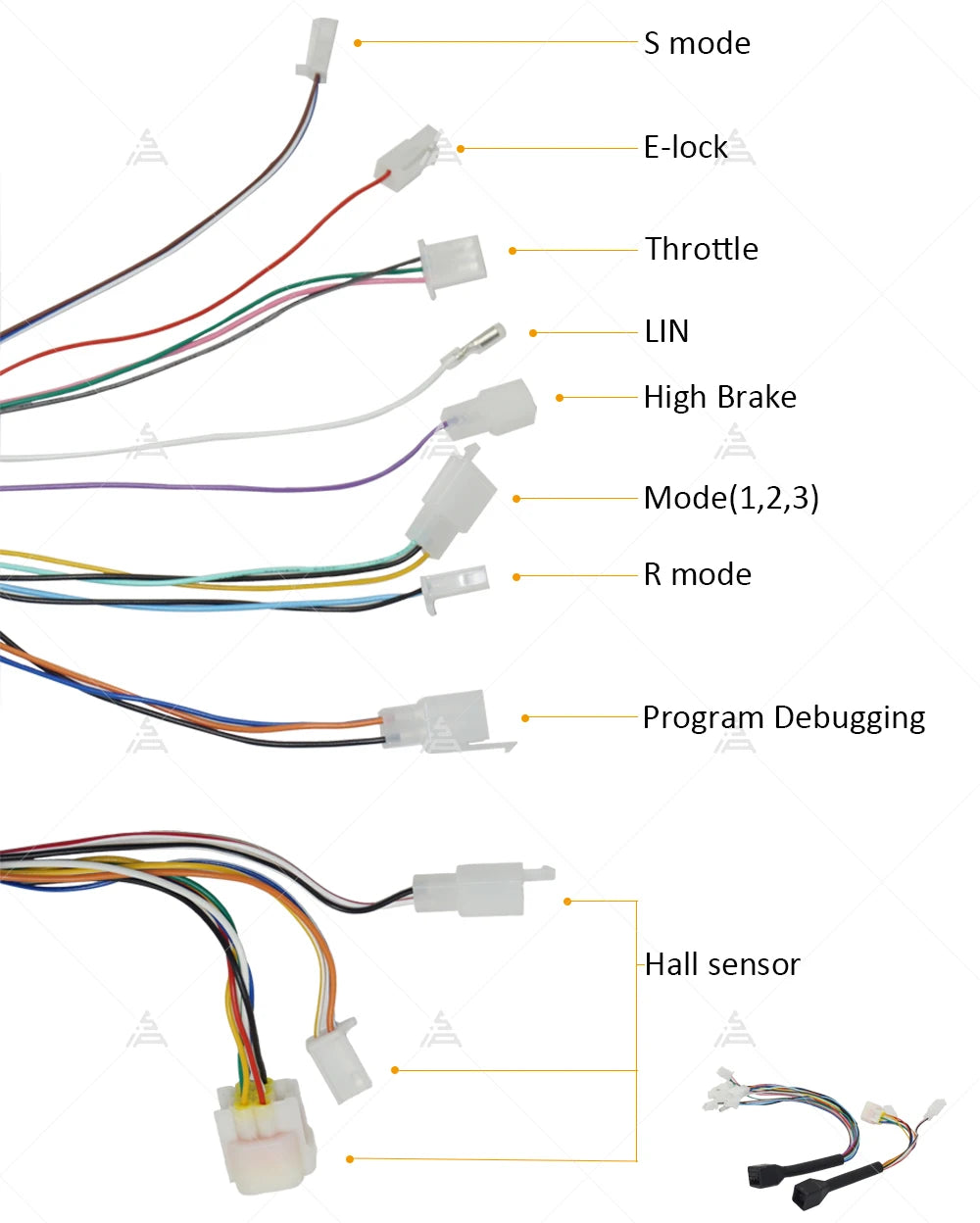

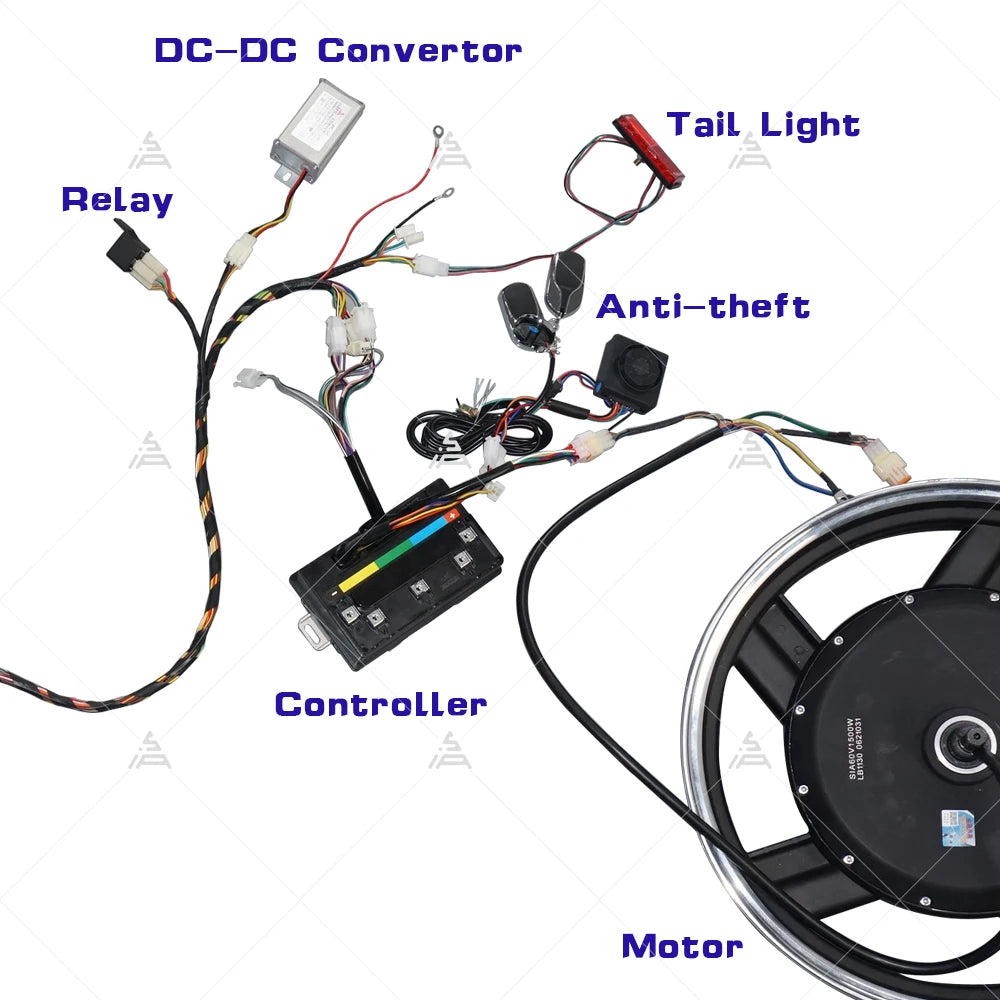

Wiring Diagram

For the detail of wiring manual, pls contact our online service.

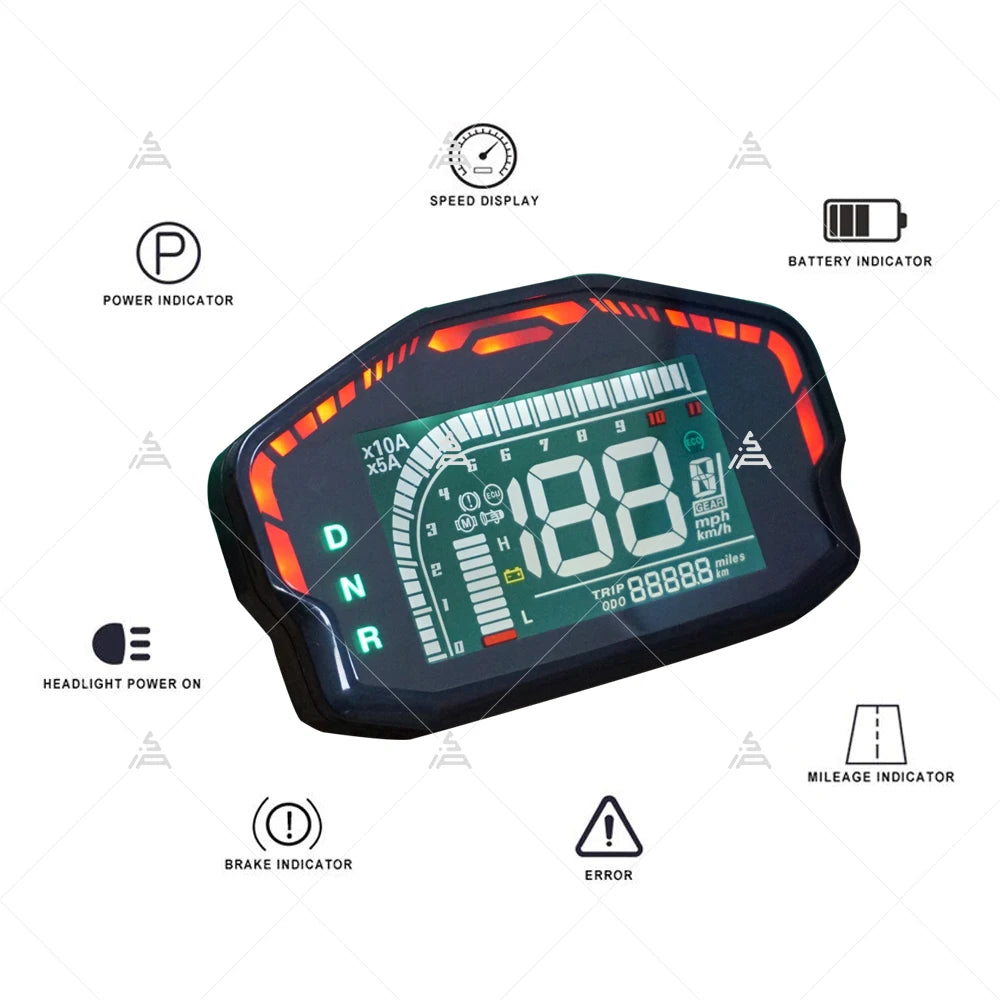

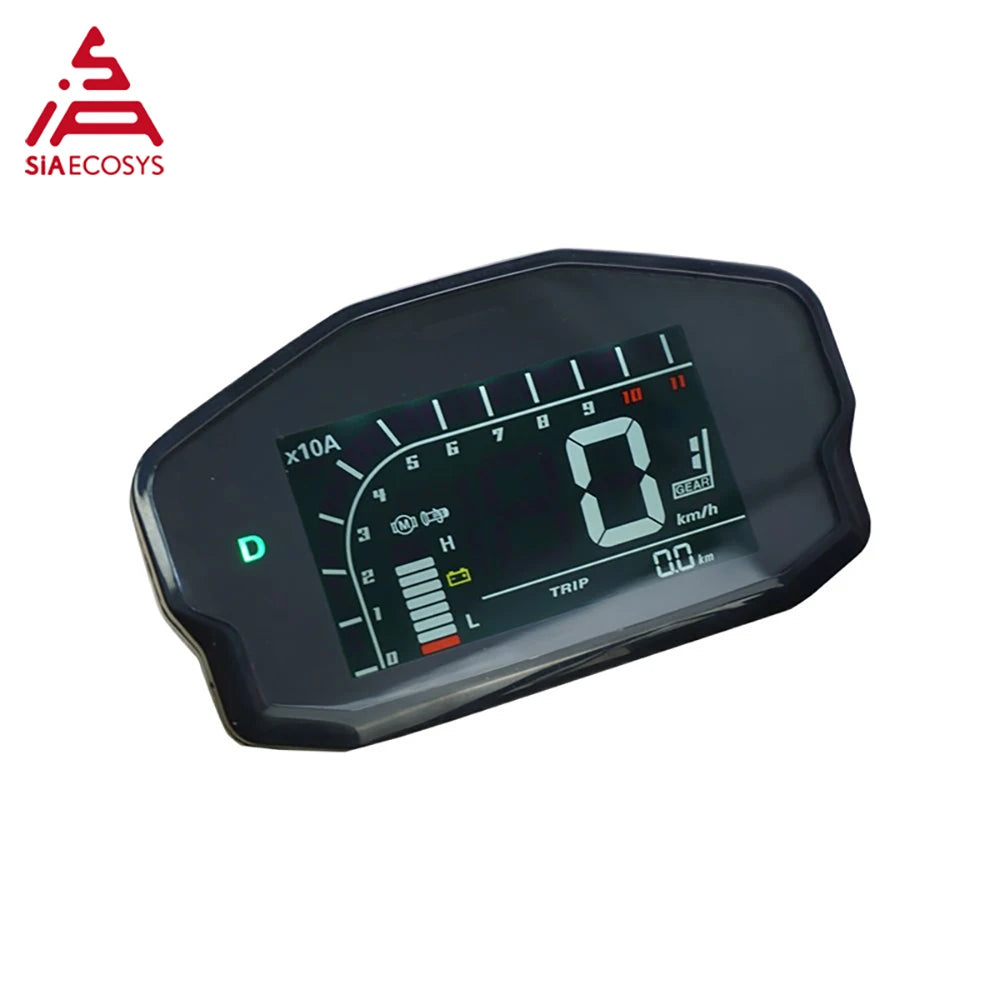

3. DKD LCD speedometer

Key Features

Both CAN and LIN communication are supported

Product Description

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

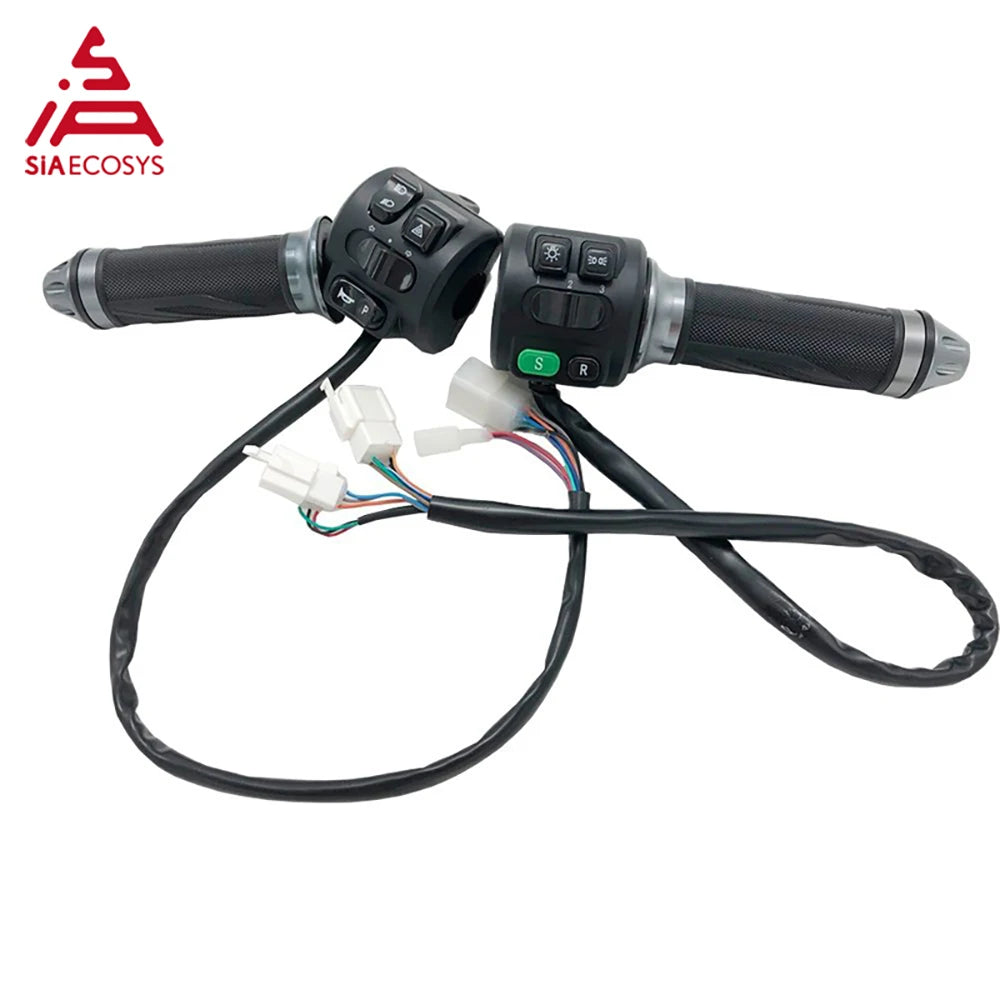

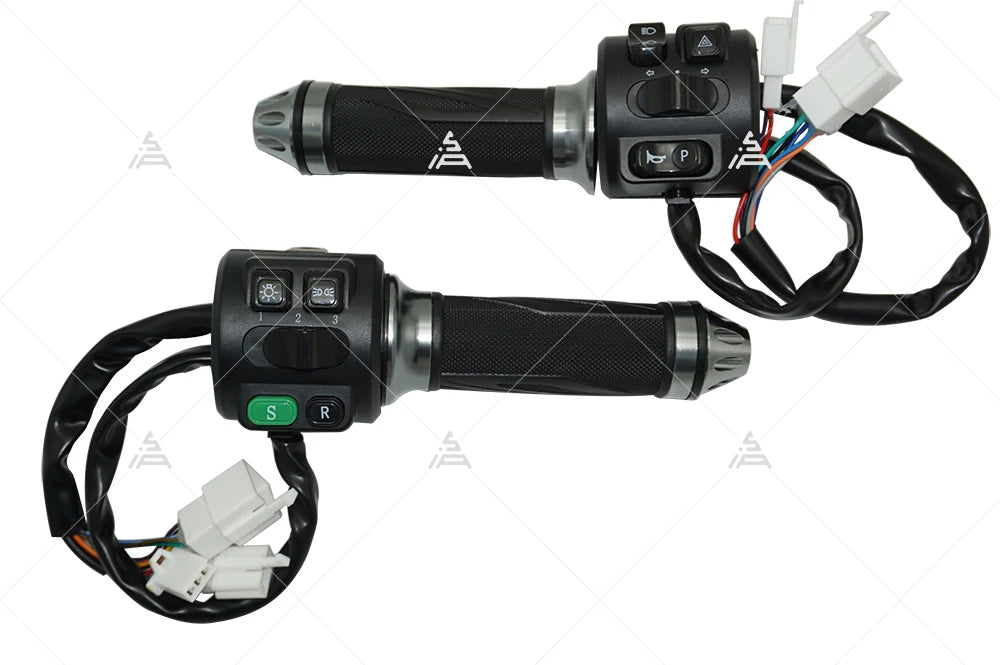

4. Z6 throttle with combination switch

Basic Parameters

Color: black

Rated operating voltage: DC+5V

Current: DC 10mA

Main material: ABS PVC

Right throttle pull force/ left handle pull pull force: ≥200N / ≥200N

Torsional strength: ≥ 9N.m

Output voltage: 0.8 ~ 4.2V

Service life: ≥100,000 times

Waterproof rating: IPX6

Number of core cable:5

Type of switch: half twist, with meter and key

Inner diameter of throttle: 22mm

Function

With Reverse, Parking button(throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.

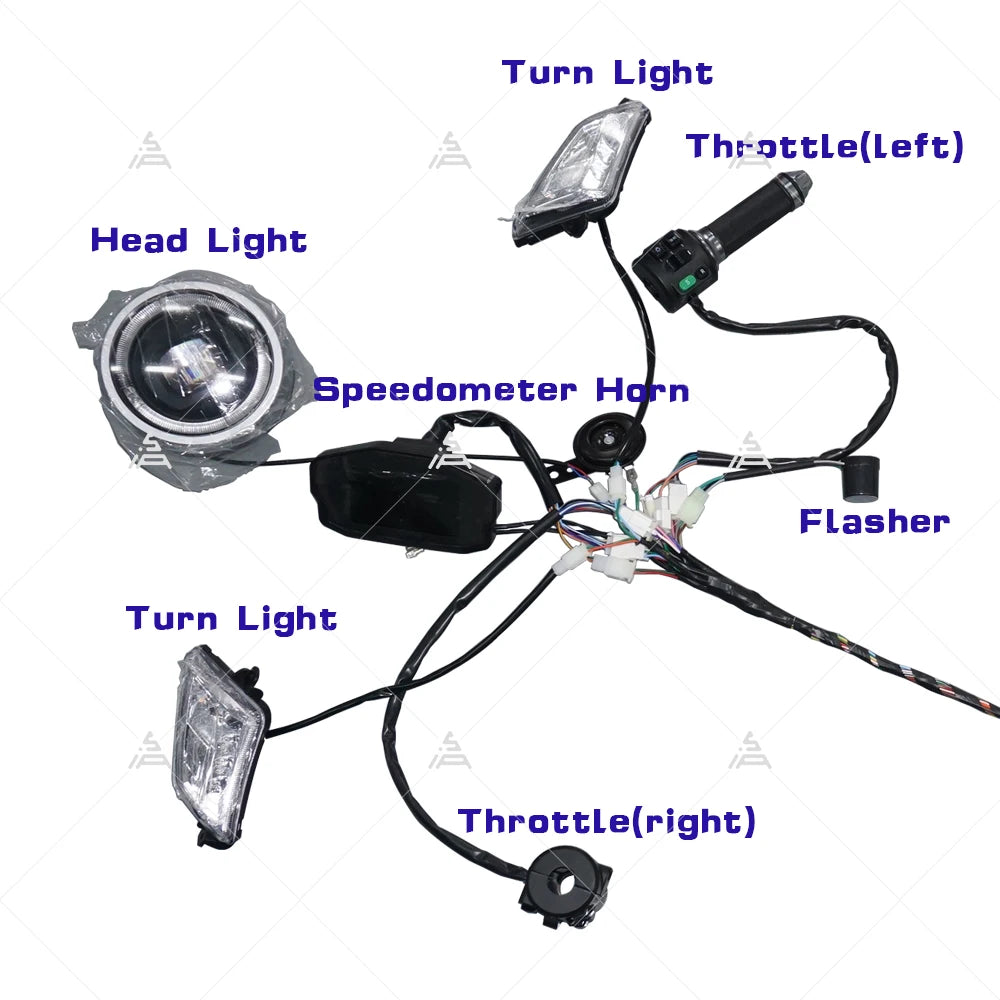

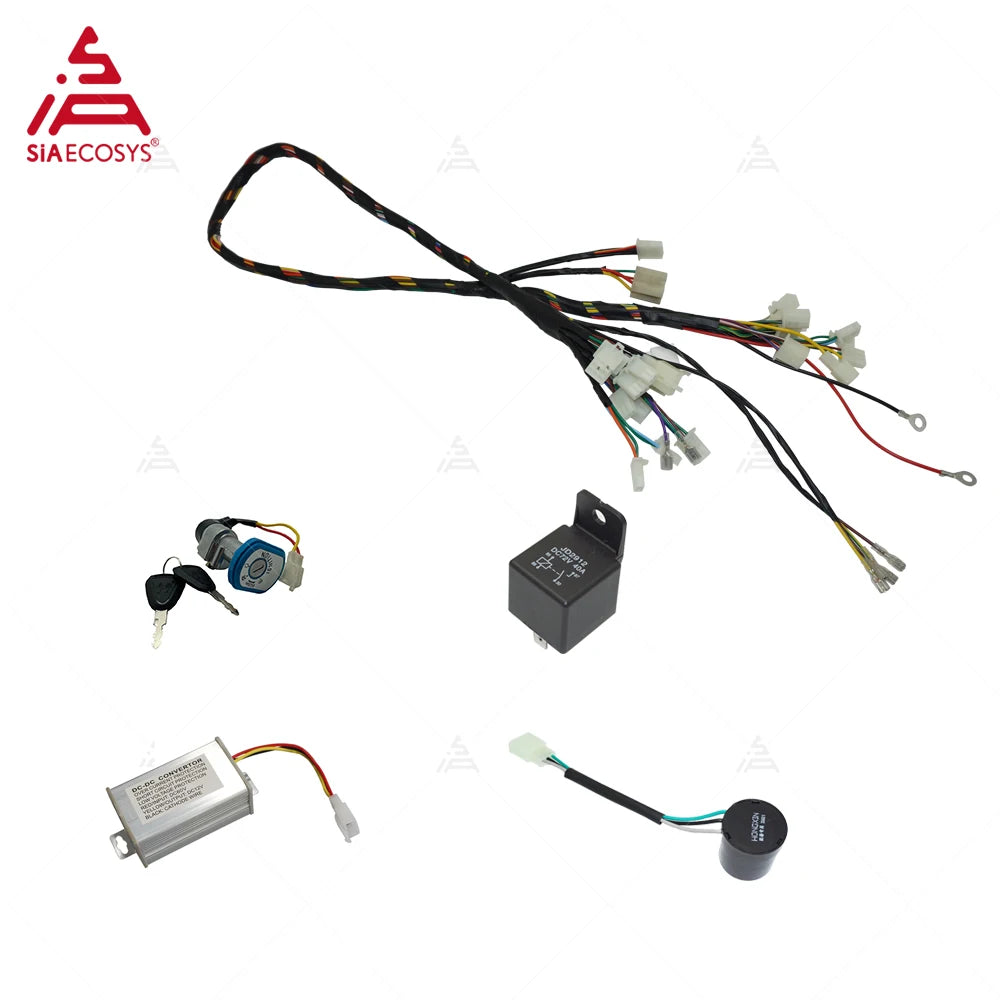

5. Vehicle Wiring Harness

Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
