QSMOTOR 17X3.5inch 5000W 72V 100kph hub Motor with EM200-2SP controller power train kits for electric motorcycle
$1,368.00
QSMOTOR 17X3.5Inch 5000W Hub Motor Power Train Kits 72V 100kph V4 Version For Electric
Motorbike With EM200-2SP From SIAECOSYS
For 17inch 5000W motor power train kits, it could be used for electric motorcycle, which could be 72V 100KPH.
e.g. Electric Motorcycle
E-motorcycle weight, approx 150kg+2*80kg
Speed: peak 100km/h
Climbing slope: 15 degree@150+80*2kg
Tire: 130/70-17
Battery: 72V60Ah
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

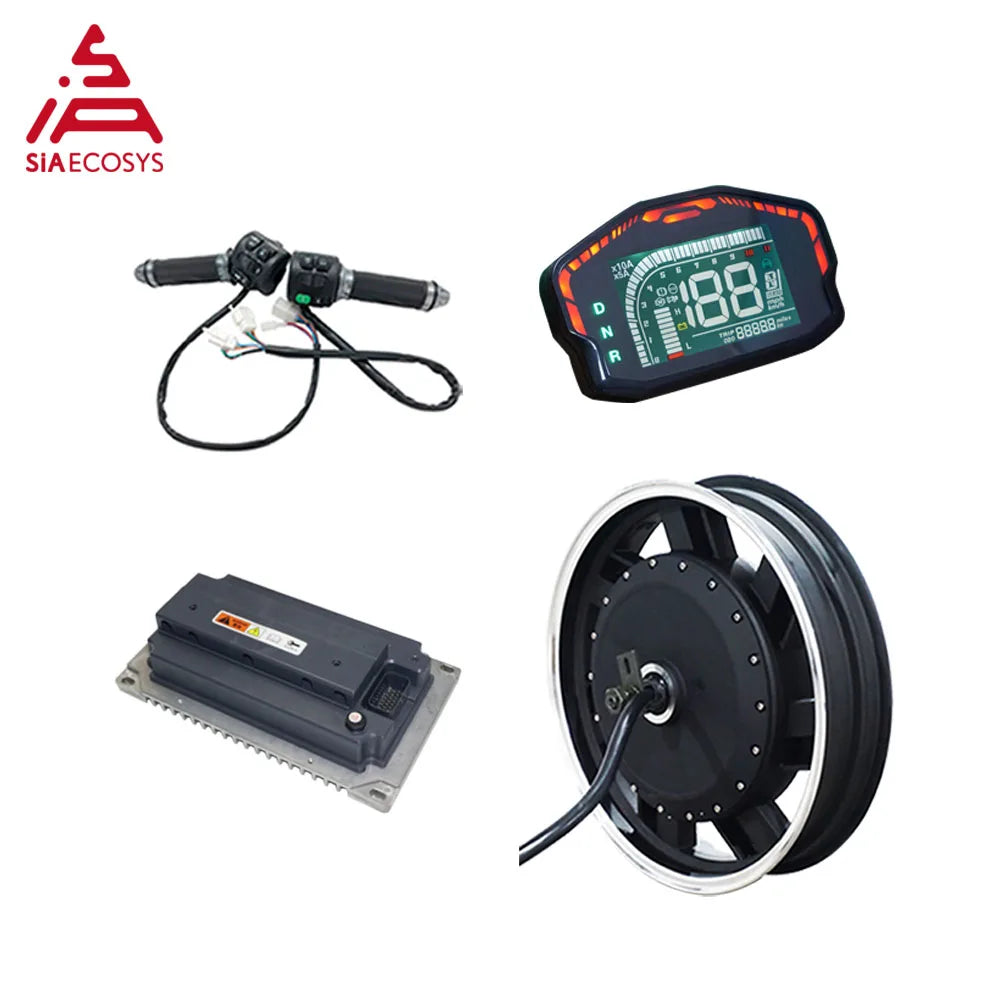

One set including below kits
Combo 1

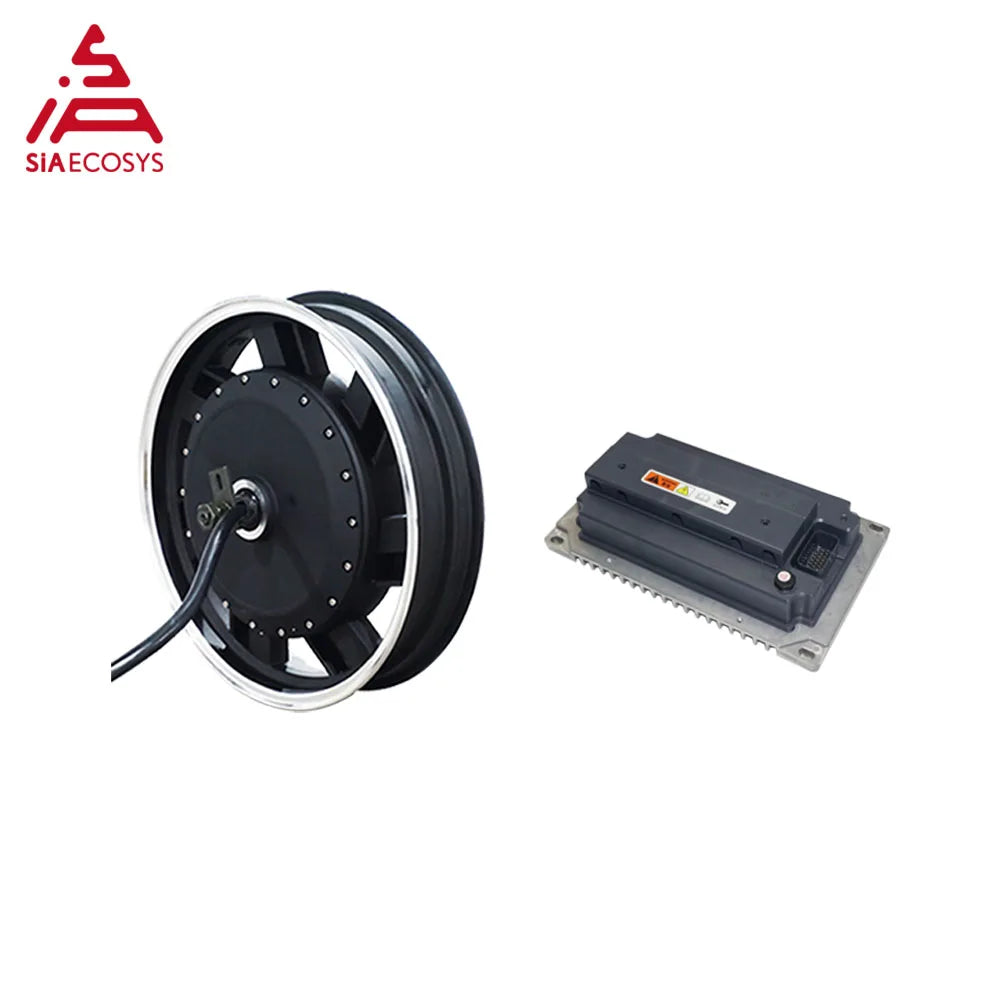

1. 1pcs X QSMOTOR 17X3.5inch 5000W V4 Electric Motorcycle Hub Motor
2. 1pcs X EM200-2SP sine wave motor controller with standard CAN-BUS
3. 1pcs X DKD LCD speedometer with CAN (disable CAN as default)
4. 1pcs X Z6 throttle with combination switch
Combo 2
1. 1pcs X QSMOTOR 17X3.5inch 5000W V4 Electric Motorcycle Hub Motor
2. 1pcs X EM200-2SP sine wave motor controller with standard CAN-BUS
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description

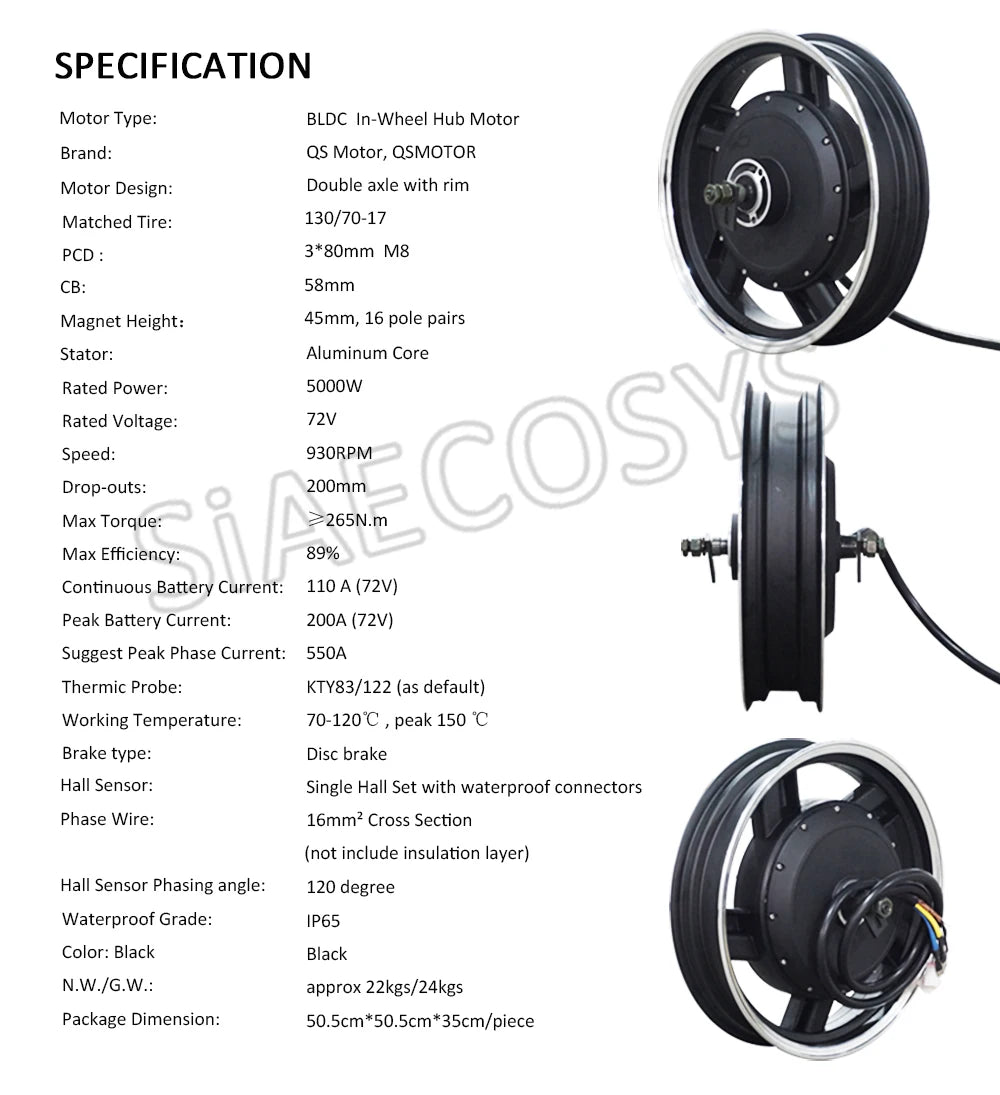

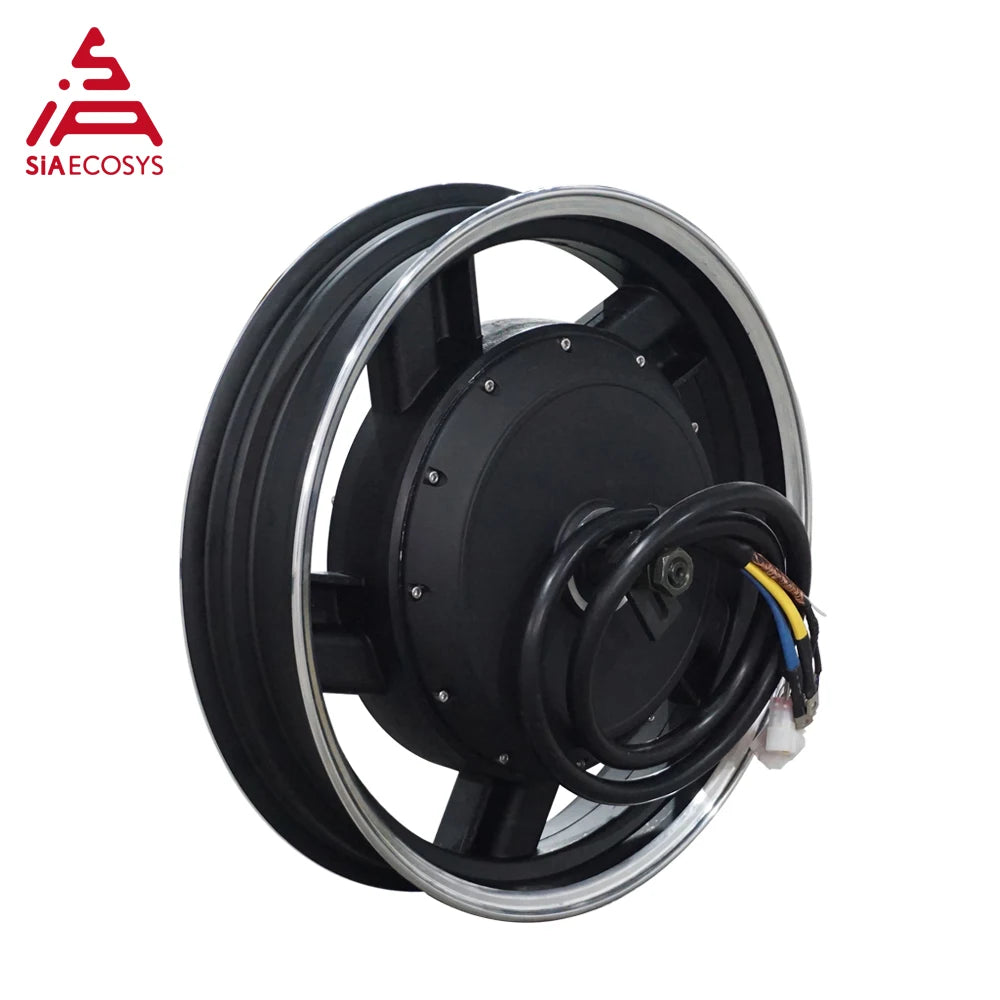

1. QSMOTOR 17X3.5inch 5000W V4 Electric Motorcycle Hub Motor

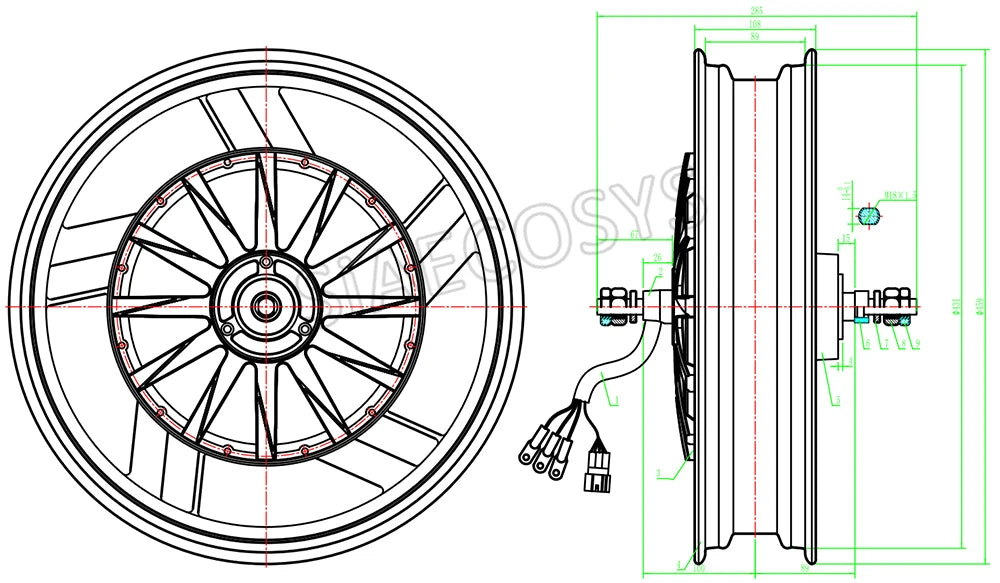

Dimension Drawing:

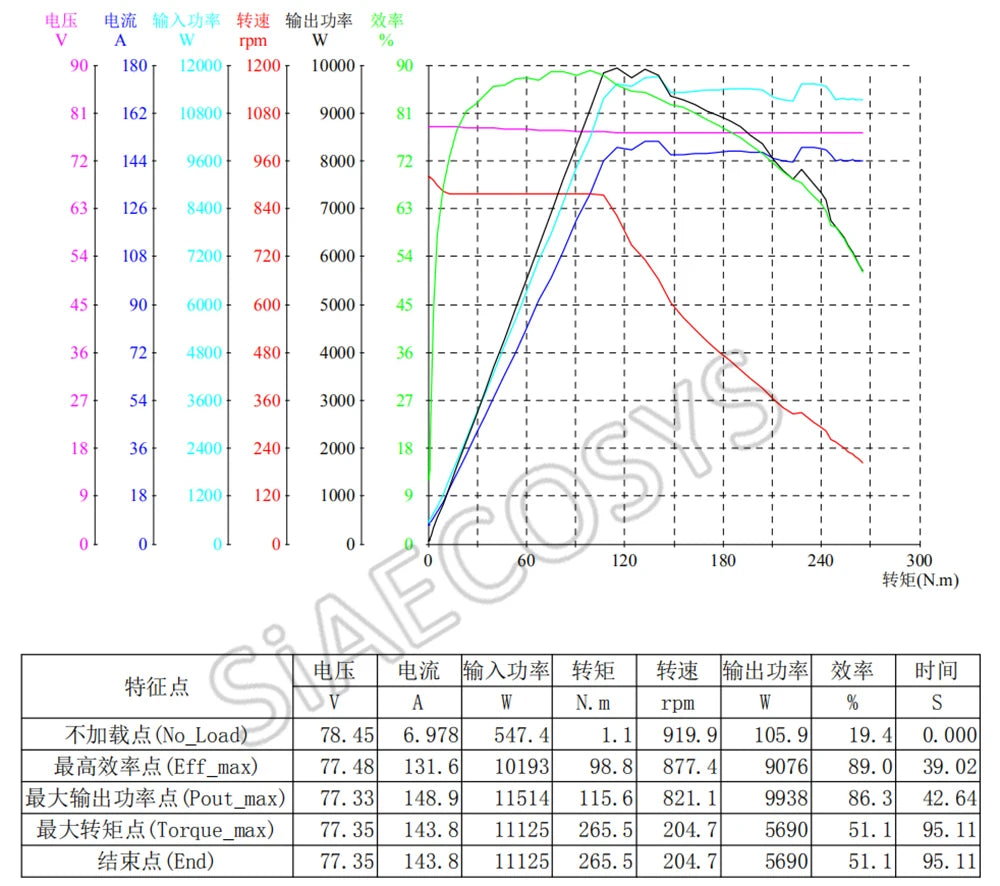

Test Report

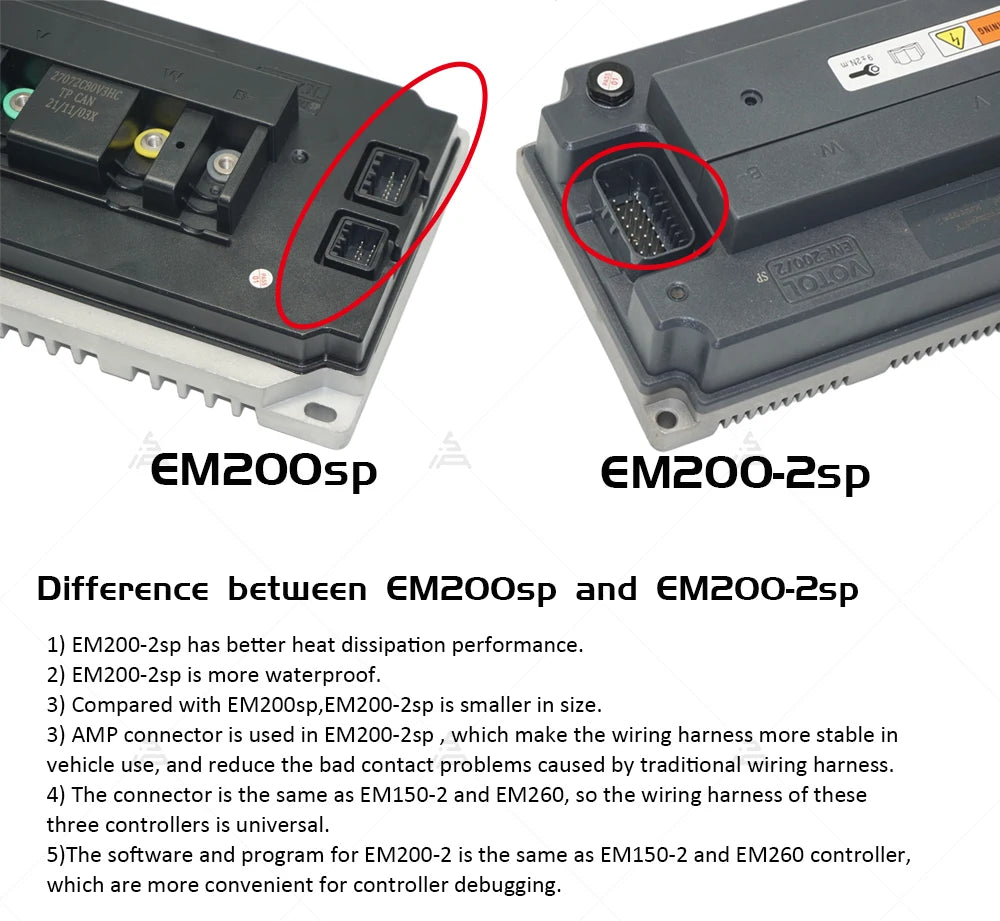

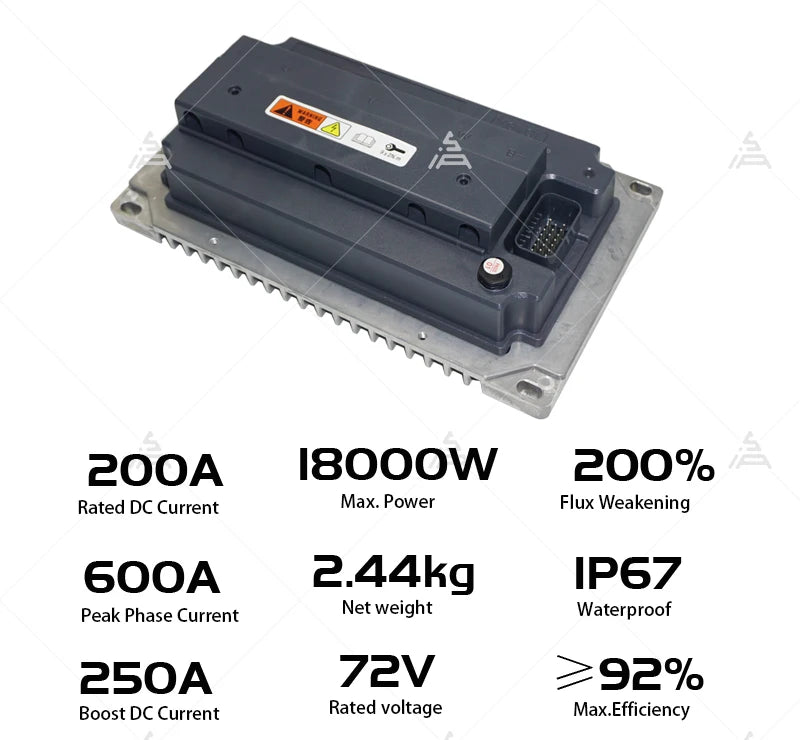

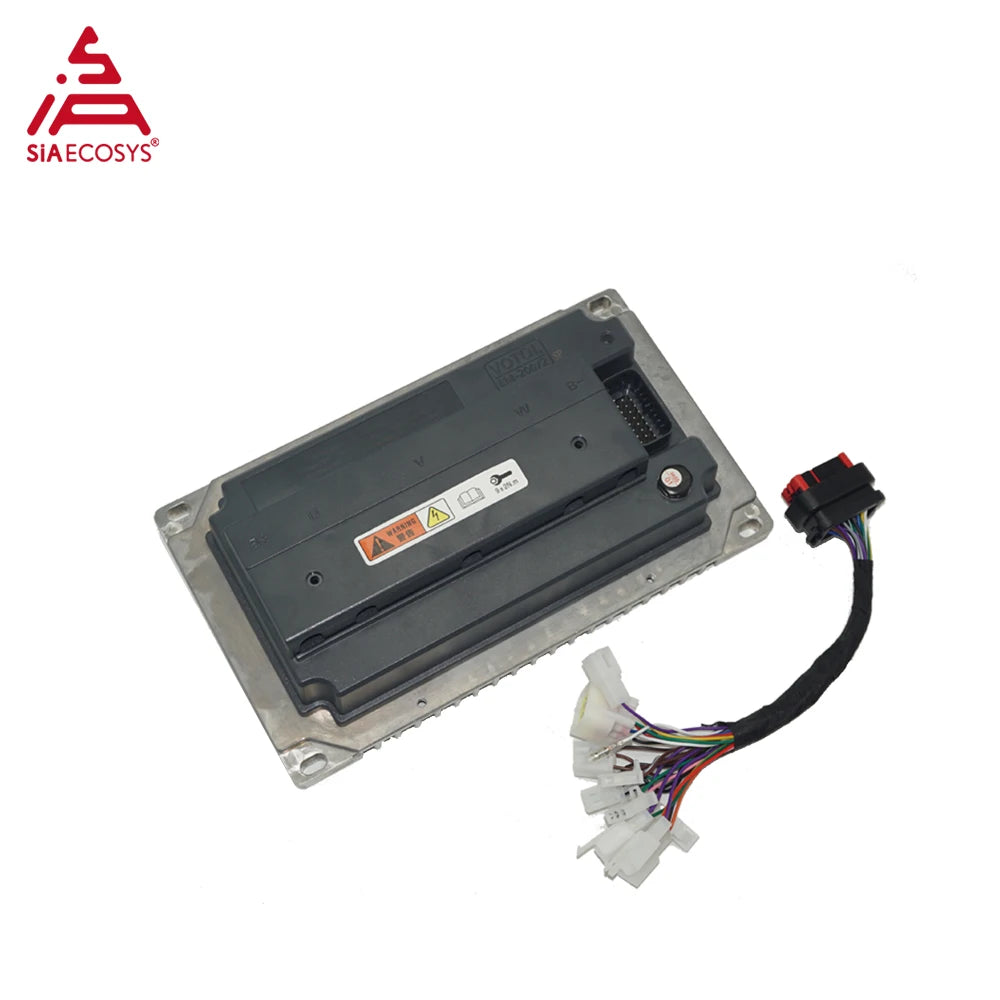

2.EM200-2SP sine wave motor controller in big cooling panel with standard CAN-BUS

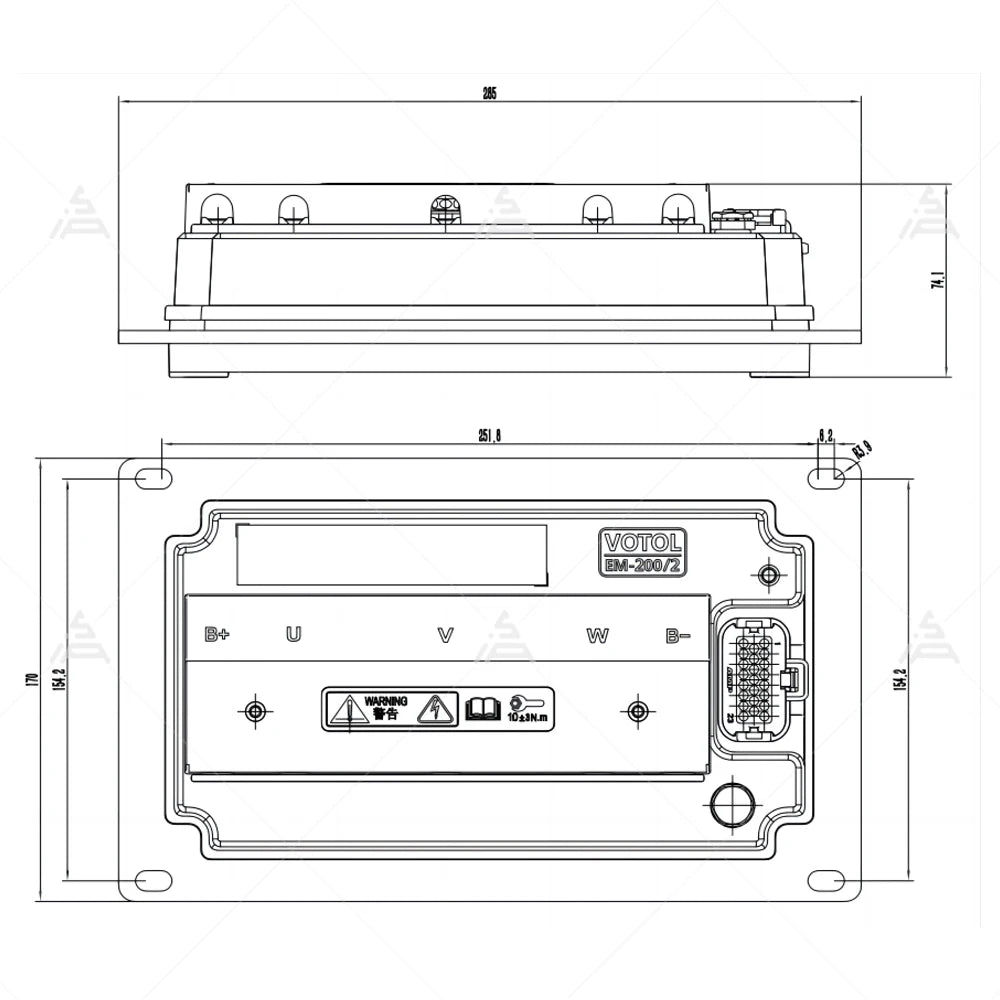

Controller drawing

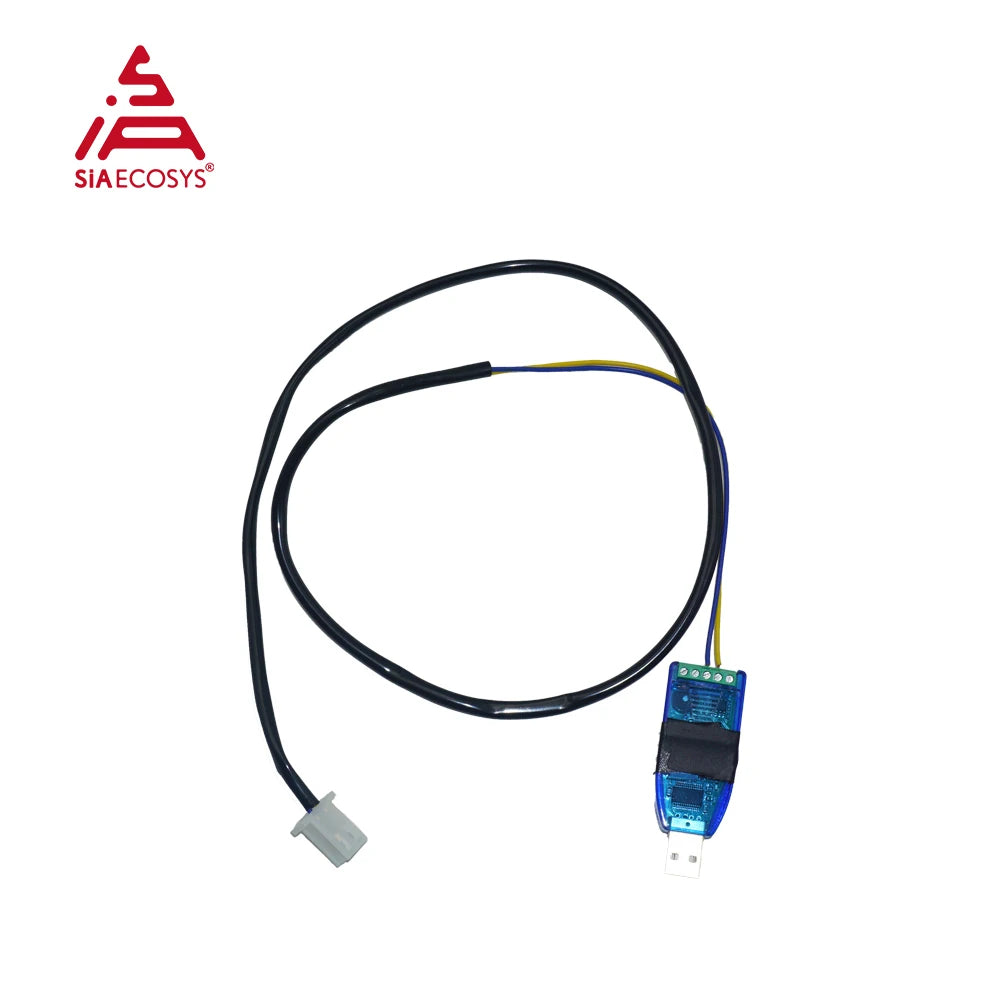

USB Cable

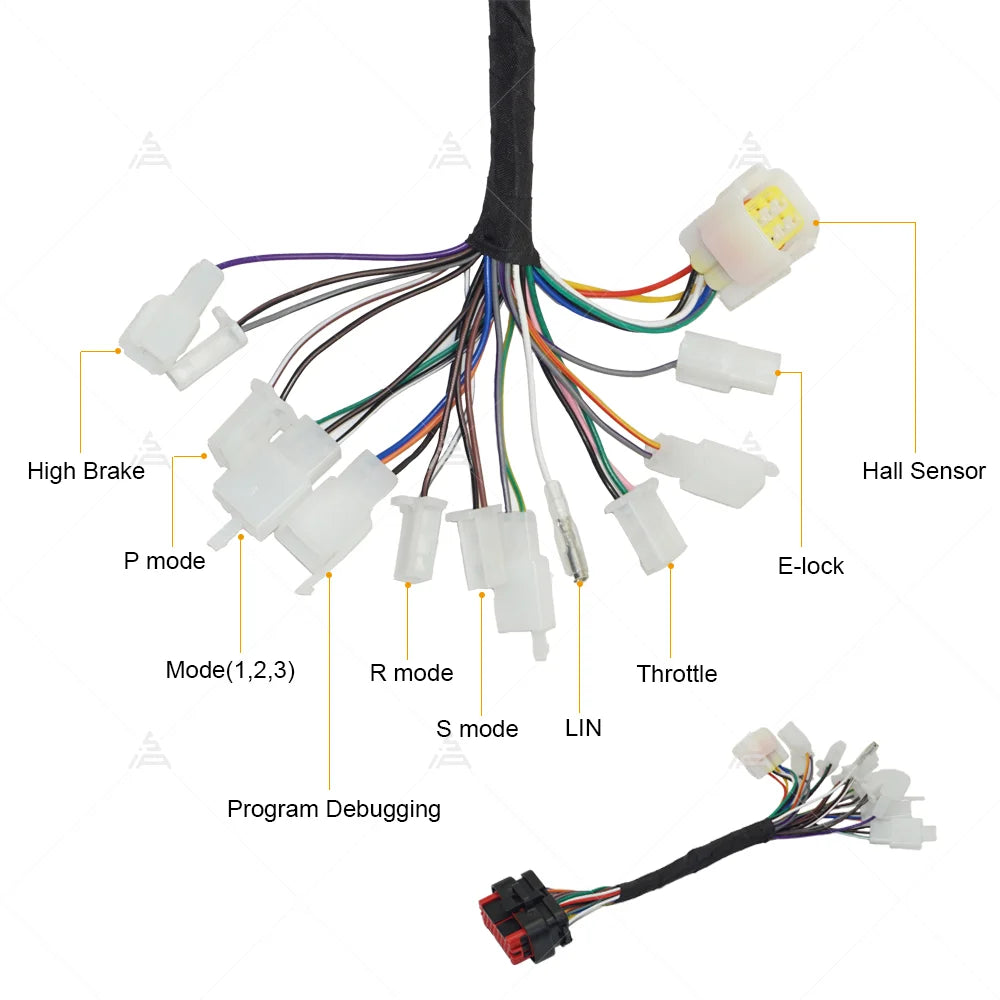

Controller Wiring Definition
Notice:
The model of plug-in connector isTE 770680-1.

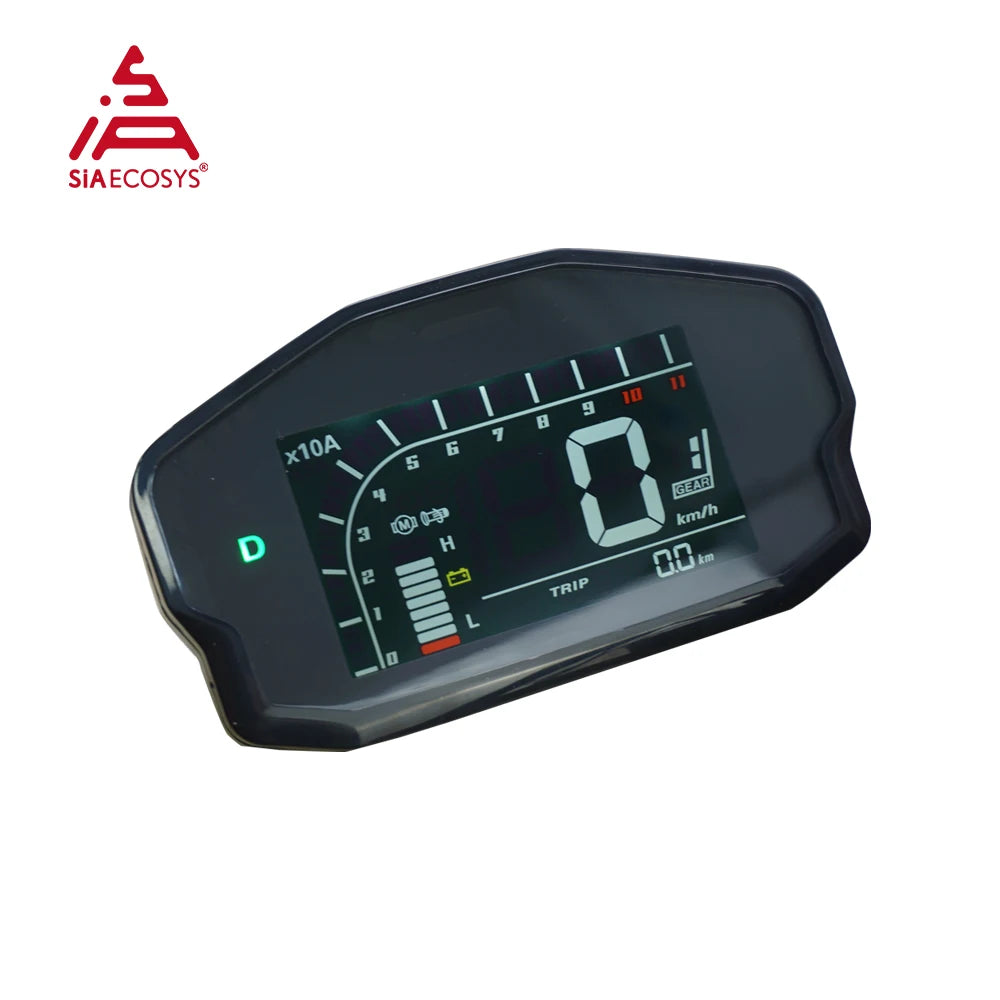

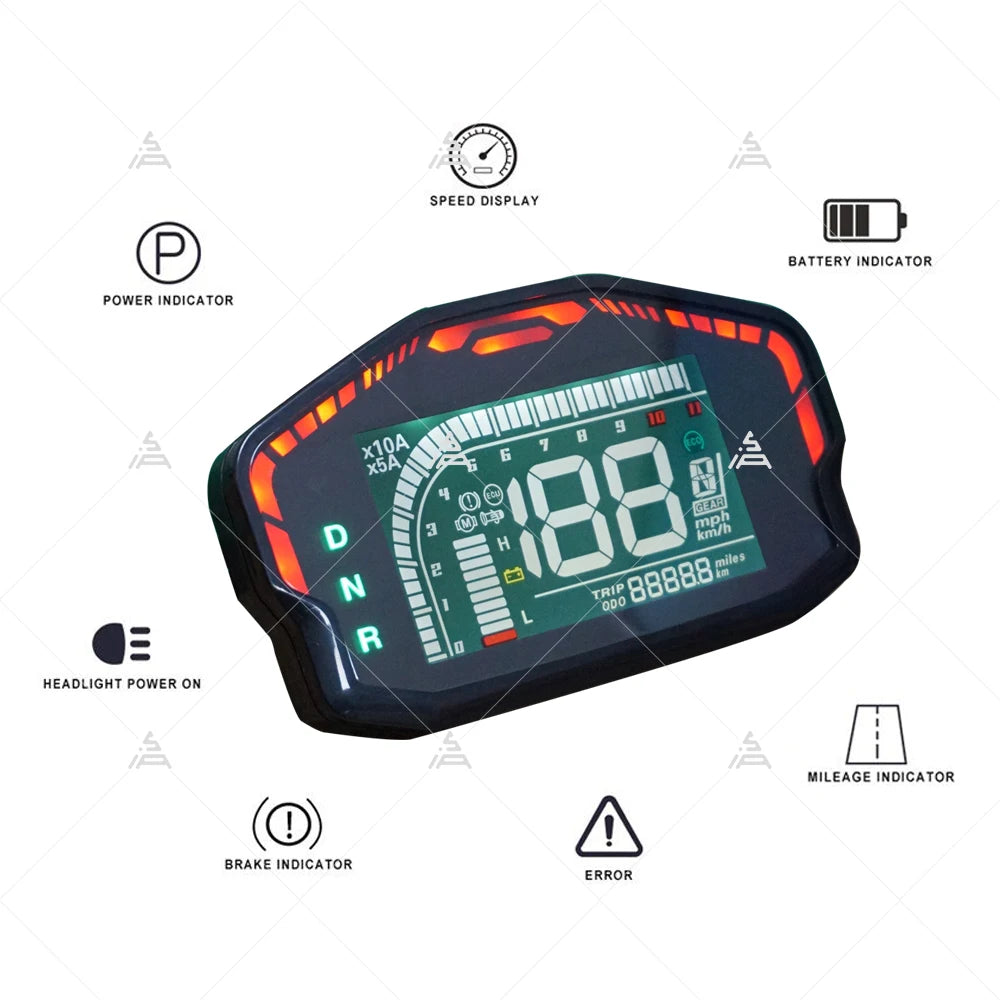

3. DKD LCD speedometer
It display D N R, P, S gear, and battery current X5/10
P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

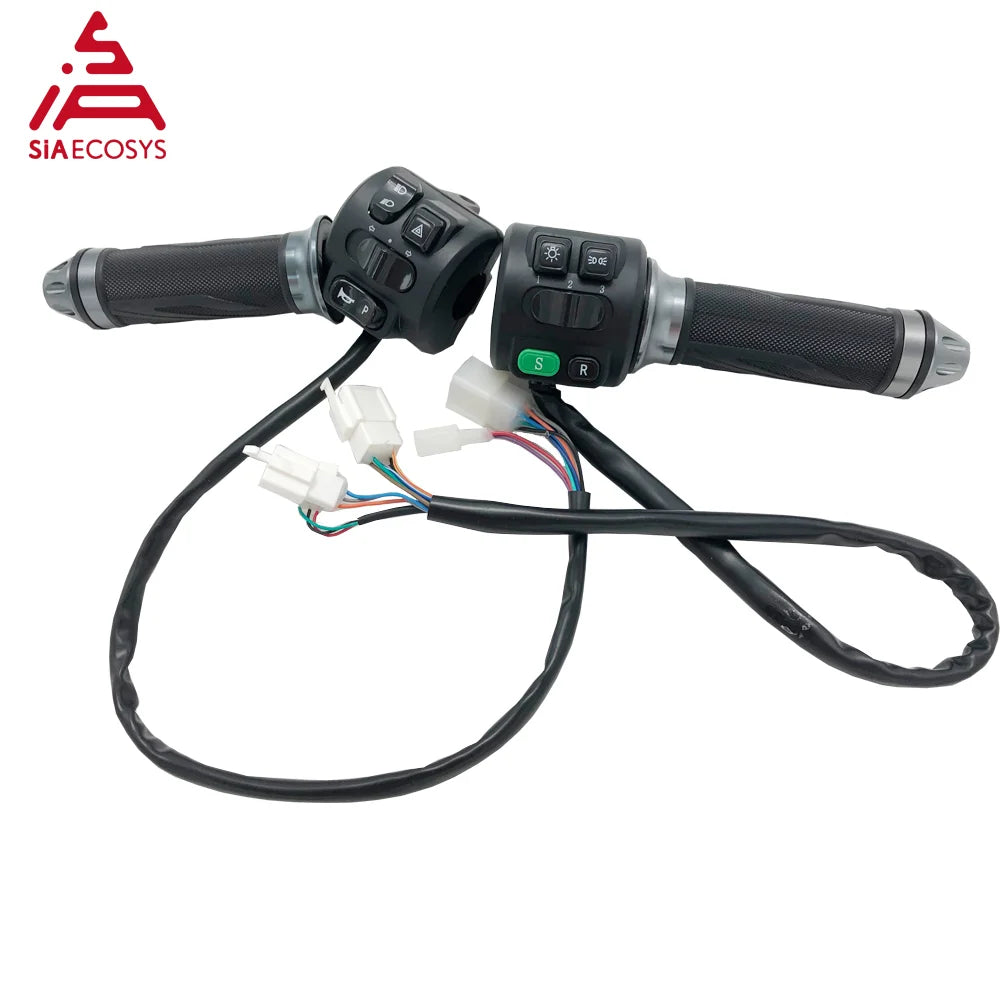

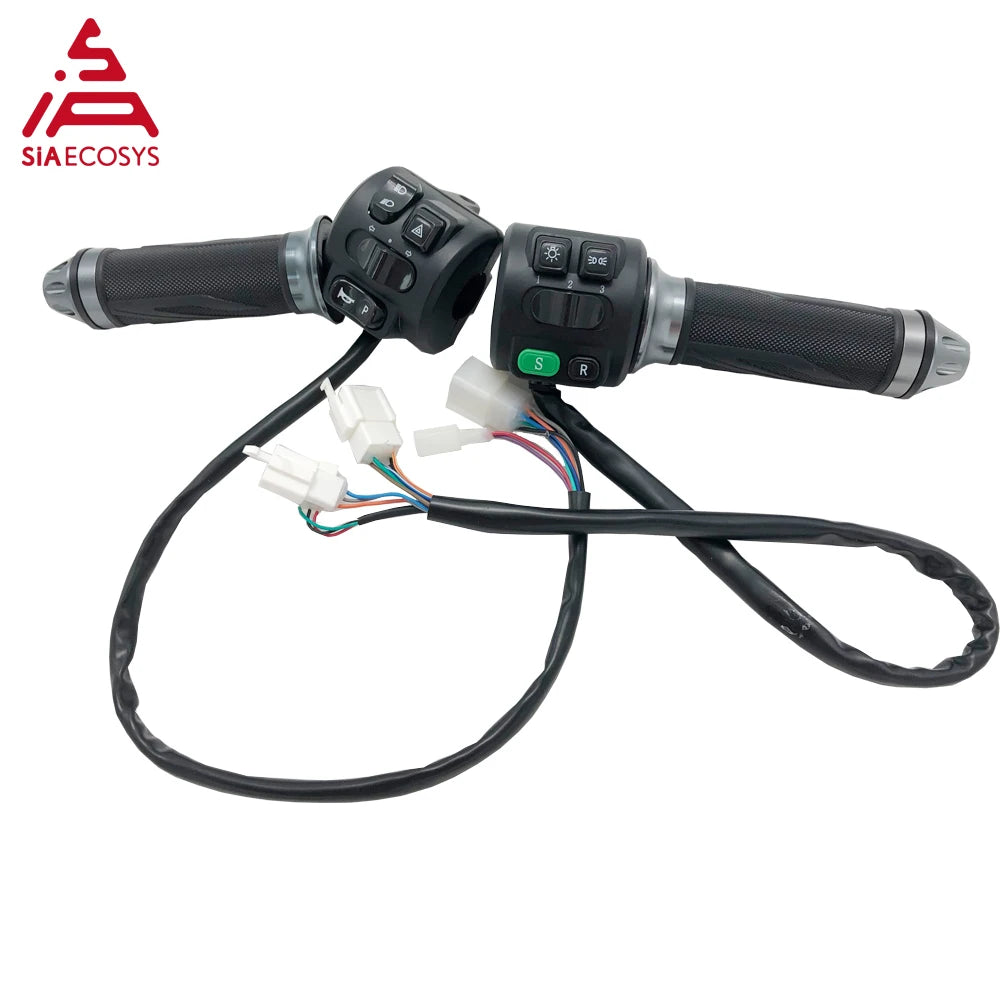

4.Z6 throttle with combination switch
With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with VOTOL controller well.
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
A note to client
1. Please contact seller confirm the parameter, otherwise we will produce as default.
2. Please extended 15 days more at least for order prepare when motor no in stock. (Most of motor is customized based on application, without in stock).
3. When place order please leave email address, for seller provide manual.
4. Please read manual careful before using motor and controller, and if meet problem please contact seller in time, and don't disassemble cargo without seller permit, otherwise there will be no warranty.

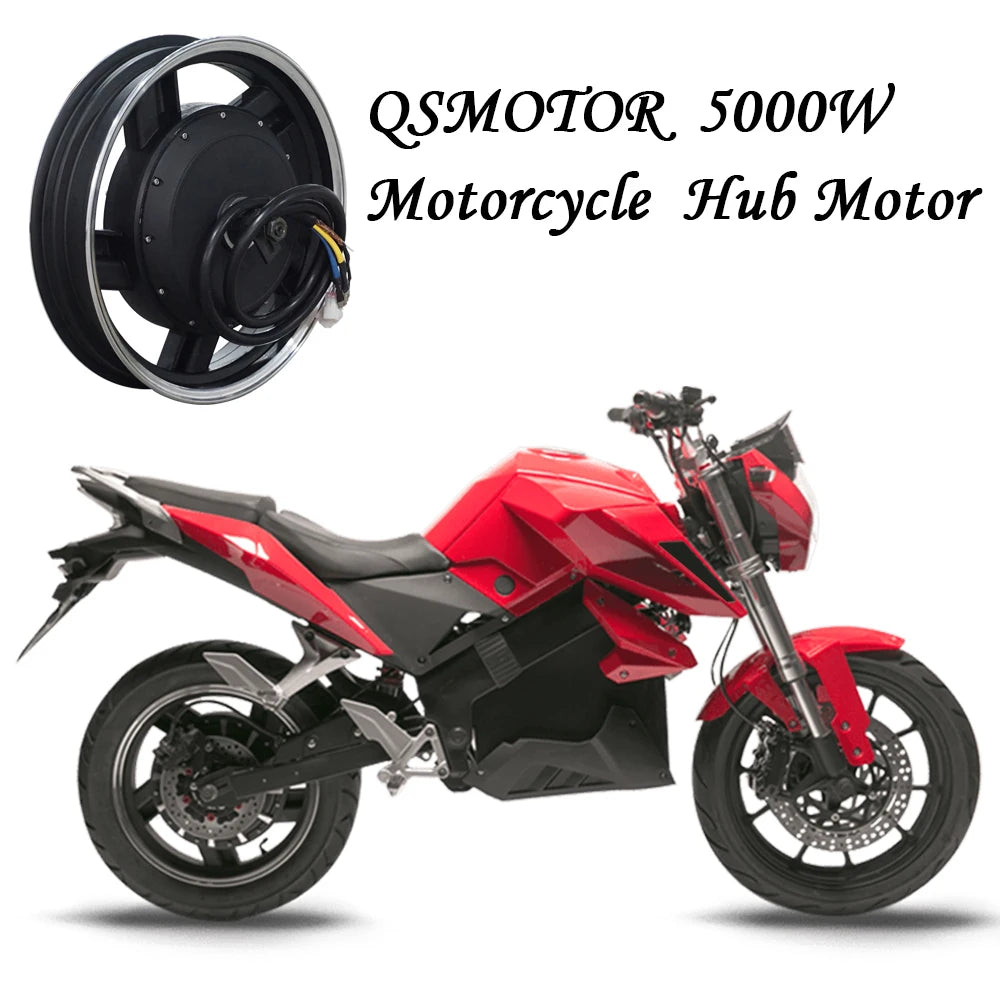

Application
