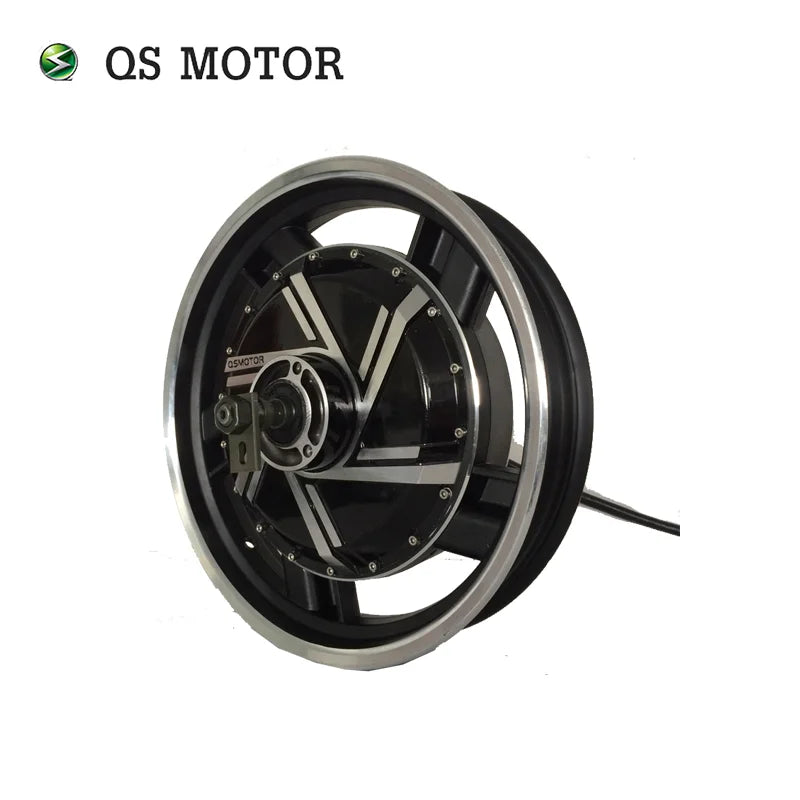

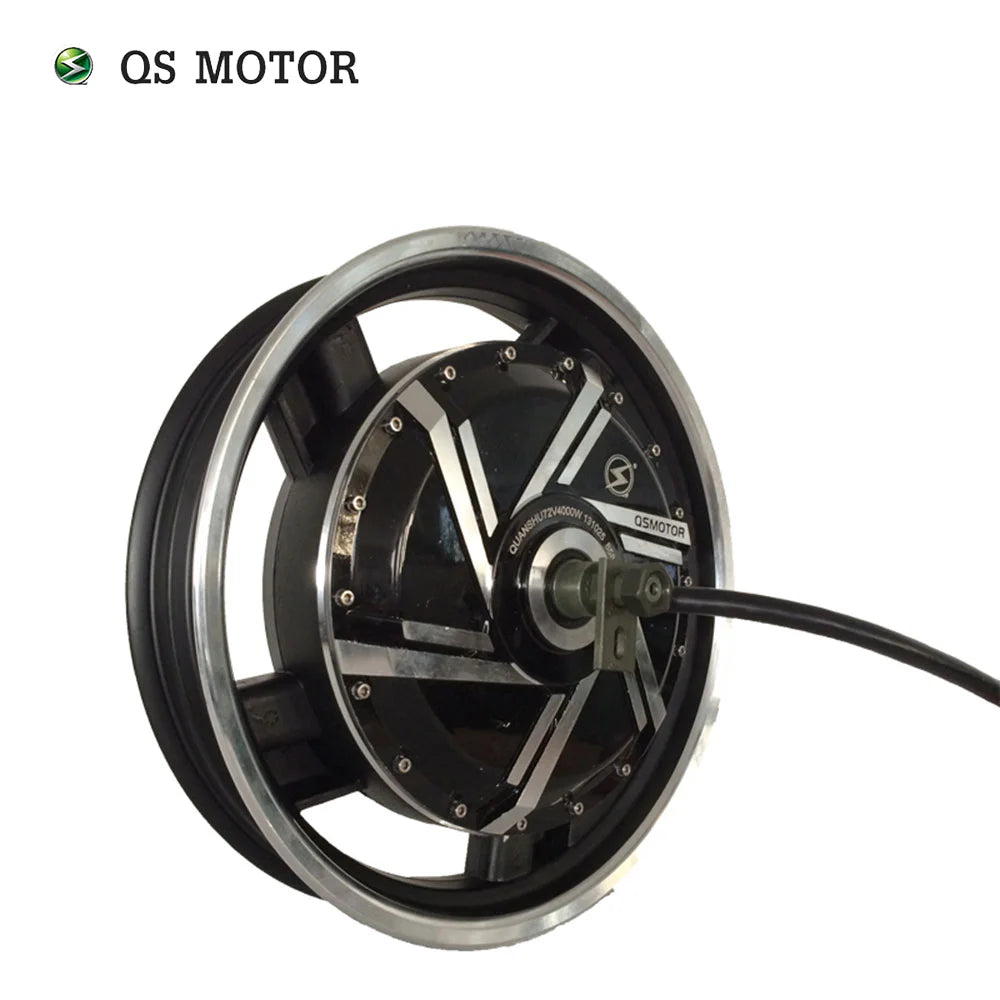

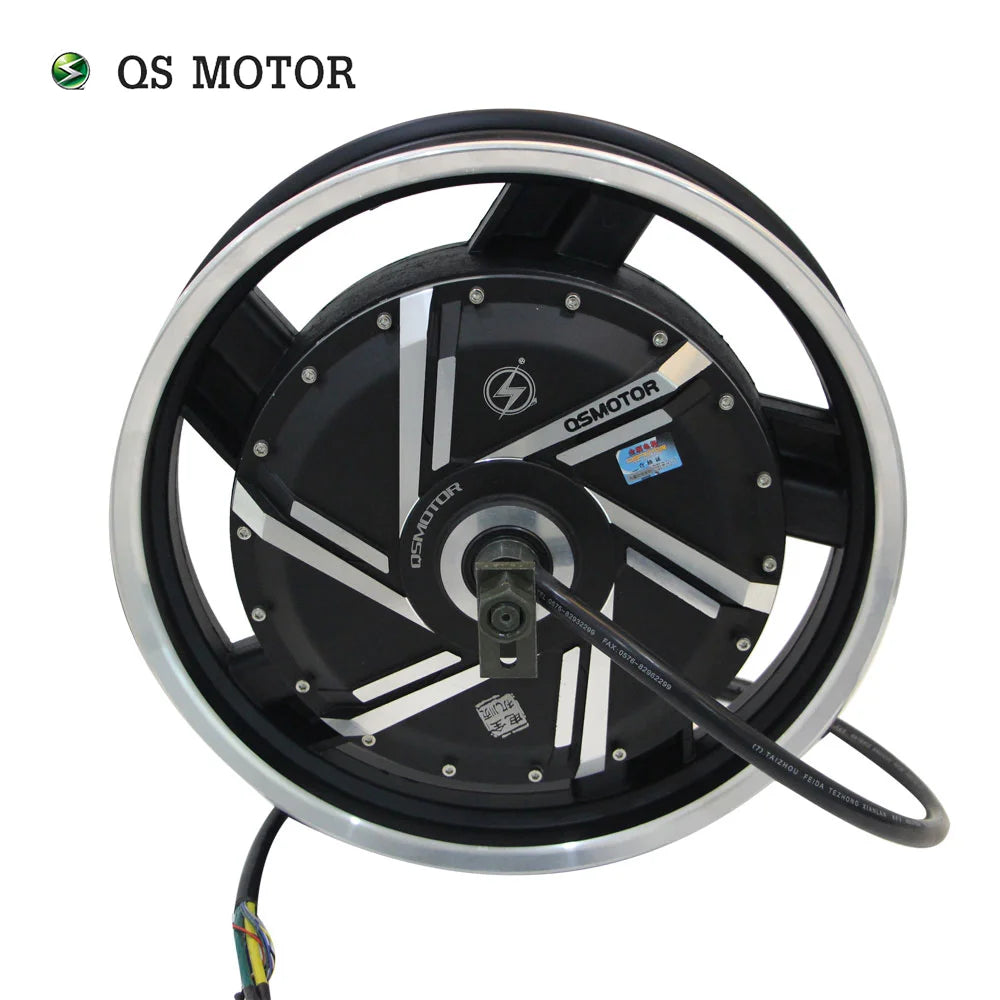

QSMOTOR 16inch 4kW 273 40H V3 48V-72v Brushless DC Electric Scooter Hub Motor
For 16inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.
It suits for 16*3.0inch rim, for example 110/70-16.
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
PS.1). Above quotation base on 273 16inch electric scooter wheel hub motor, 48V~120V.
2). Above configuration is suggested for mass production,
for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).
Product description
Genearlly Spec:
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor, QSMOTOR
Motor Design: Double axle with 16inch moped rim (integrated)
Rim Size:16x3.0inch(Narrow Tire as default), matched tire: 110/70-16 etc
Magnet Height: 40mm, 16 pole pairs
Stator: Aluminum Core
Rated Power: 4000W
Speed: 30KPH-100KPH, it's customized, genearlly we will design as 72V85KPH.
Work voltage range: 48V-120V, will be 72V as default.
Max Torque approx 266.0N.m
KV: 7.5/8.65/11.46/12.46/13.54/15.69(optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 200mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
10mm² Phase Wire
Waterproof Grade: IP54
Color: Black (As default)

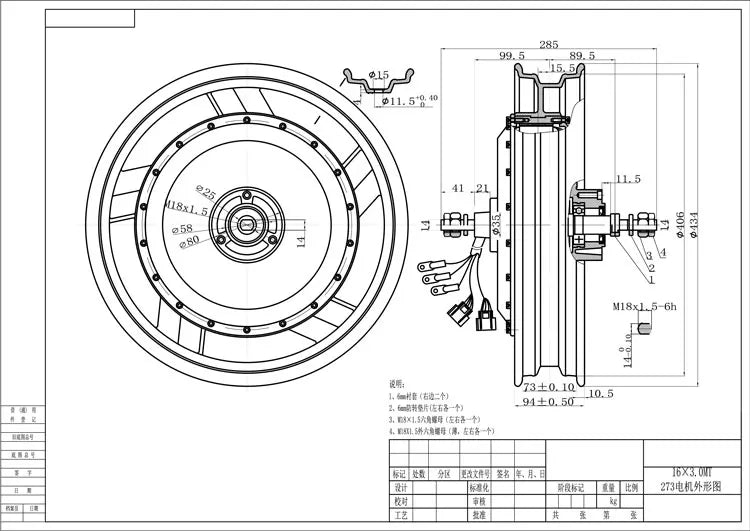

Dimension Drawing:
16*3.0inch in-wheel hub motor(Integrated)
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.

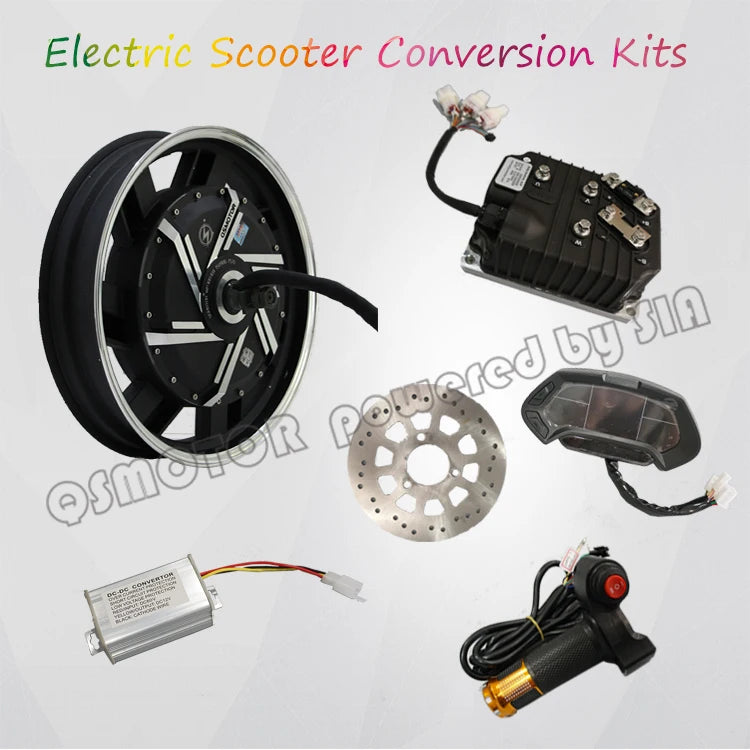

Conversion kits for 16inch in-wheel hub motor
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
Application for 16inch in-wheel hub motor
