QSMOTOR 16*3.0inch 8000W 273 50H V3 120kph Electric scooter motor with APT96600 72V 96V 8kW 10kw Speed controller

QS Motor 16*3.0inch 8000W 273 50H V3 120kph bldc Electric scooter motor with APT Programmable Sine Wave FOC AE96600 72V 96V 8kW PM Motor Driver Controller

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

Key features:

1.QS Motor with high quality and service.
2. Sine Wave controller, Bluetooth wireless connection are optional, Highest Reliability!
3. Parameter Programmable
4. Higher Torque & Higher Efficiency
5. No noisy
6. Temperature sensor inside and Lower overheating
7. Regenerative braking

8. Higher cost performance

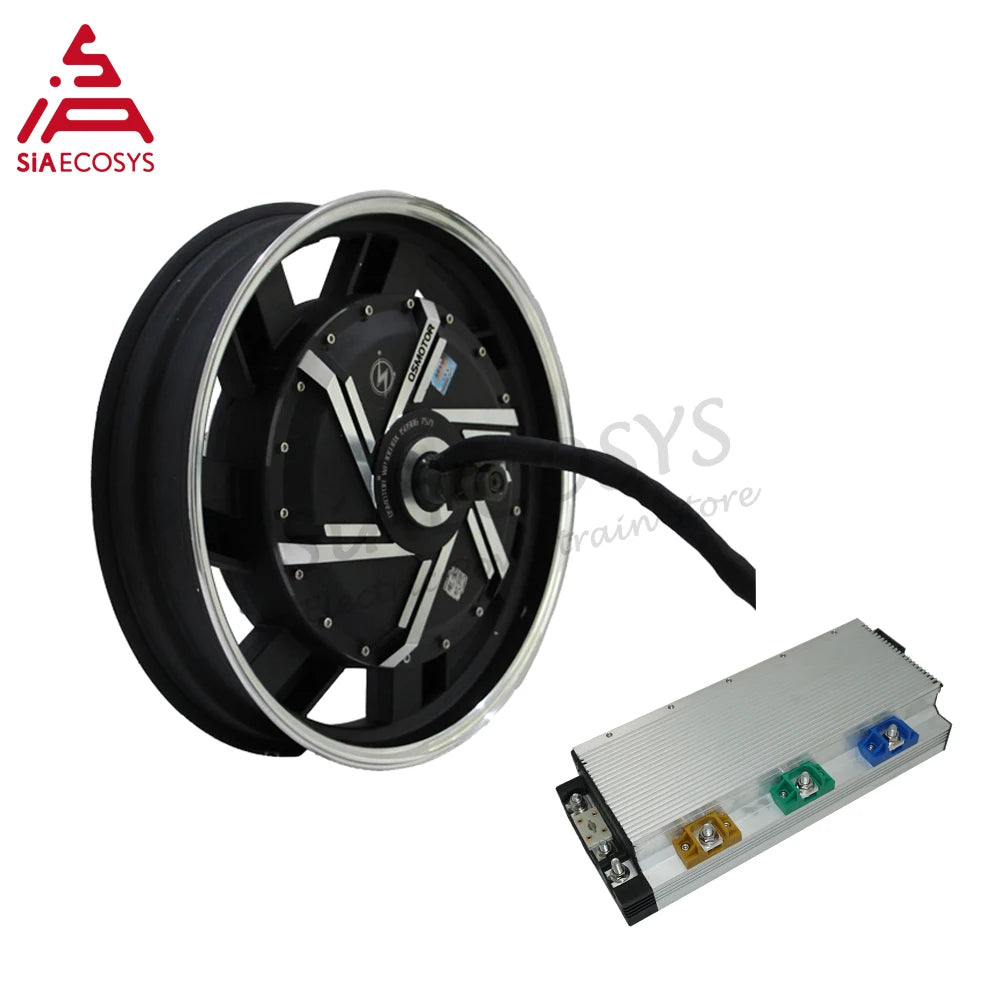

One kit including below kits

1. 1pcs X QS Motor 16x3.0inch 8000W 273 50H V3 Electric scooter motor

2.1pcs X APT AE96600 Controller

Specification

For 16inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

It suits for 16*3.0inch rim, for example 110/70-16.

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

PS.1). Above quotation base on 273 16inch electric scooter wheel hub motor, 48V~120V.

2). Above configuration is suggested for mass production,

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Product description

Genearlly Spec:

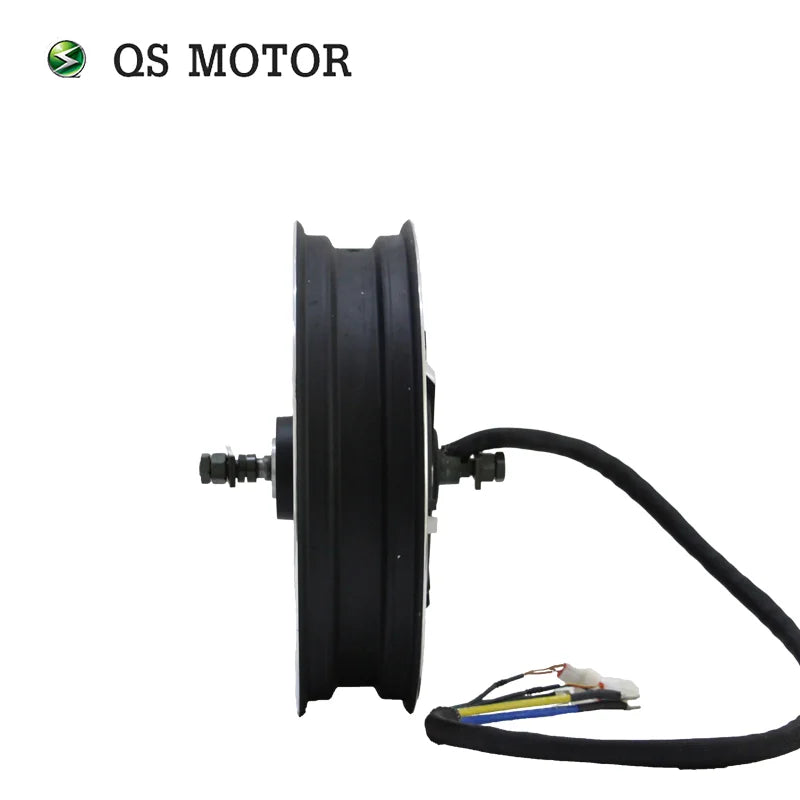

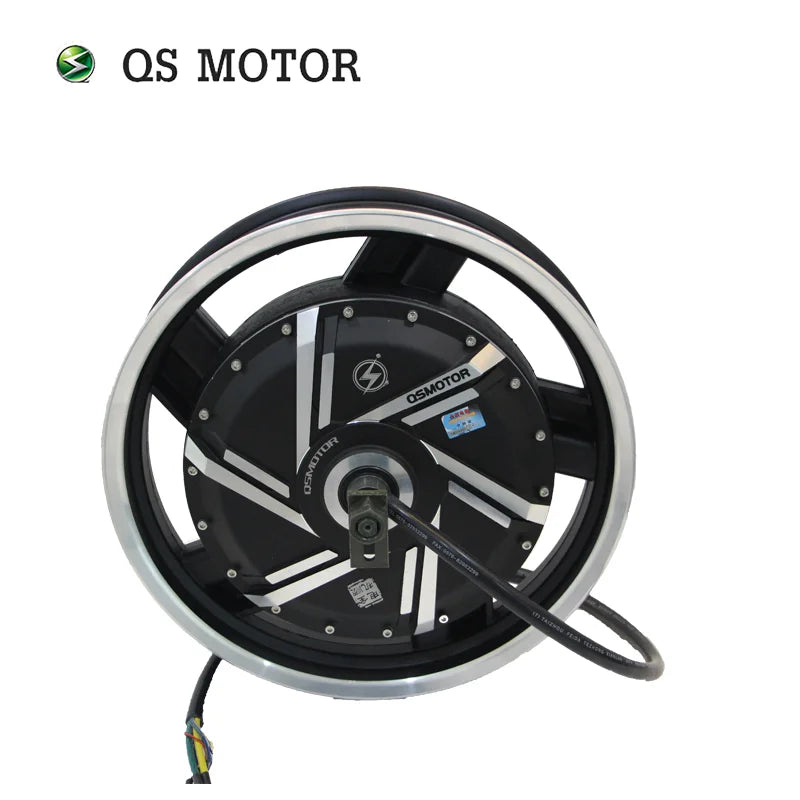

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

• Brand: QS Motor, QSMOTOR

• Motor Design: Double axle with 16inch moped rim (integrated)

• Rim Size:16x3.0inch(Narrow Tire as default), matched tire: 110/70-16 etc

• Magnet Height: 50mm, 16 pole pairs

• Stator: Aluminum Core

• Rated Power: 8000W

• Speed: 30KPH-120KPH, it's customized, genearlly we will design as 72V100KPH.

• Work voltage range: 48V-120V, will be 72V as default.

• Max Torque approx 350.0N.m

• KV: 6.8/9.4/10.2/12.7/14.4/16.87 (optional)

• Thermic Probe: KTY83-122 (as default, optional)

• Max Efficiency approx 88%

• Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

• Drop-outs: 200mm

• Dual Halls with waterproof connectos(One for spare, in case of damage)

• 16mm² Phase Wire

• Waterproof Grade: IP54

• Color: Black (As default)

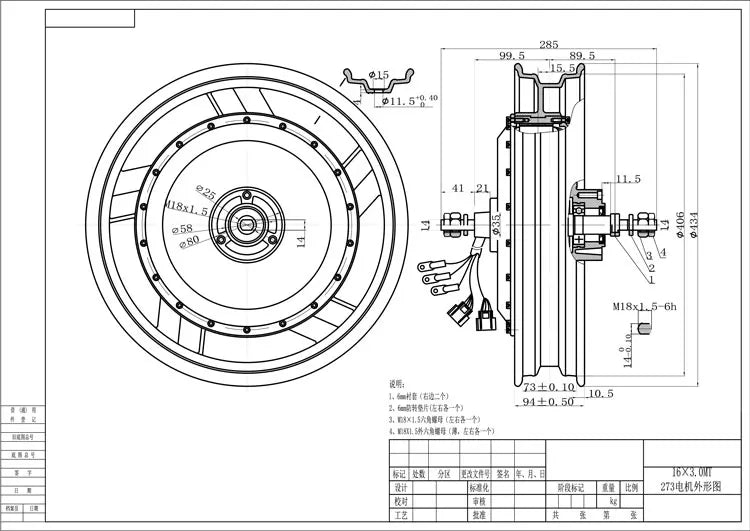

Dimension Drawing:

• 16*3.0inch in-wheel hub motor(Integrated)

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

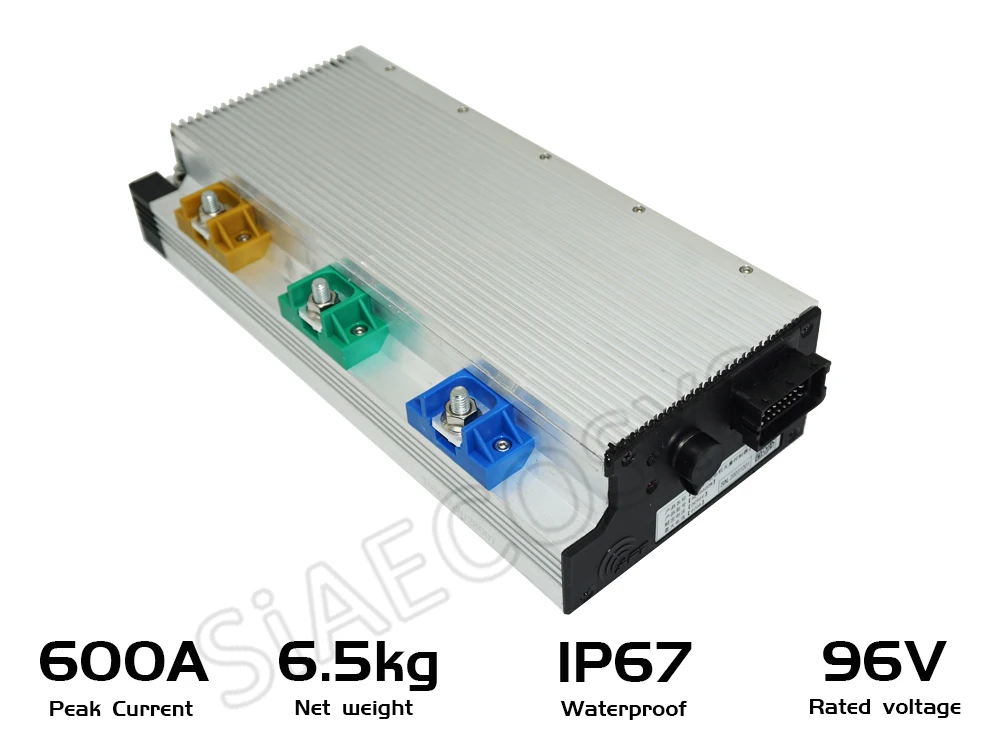

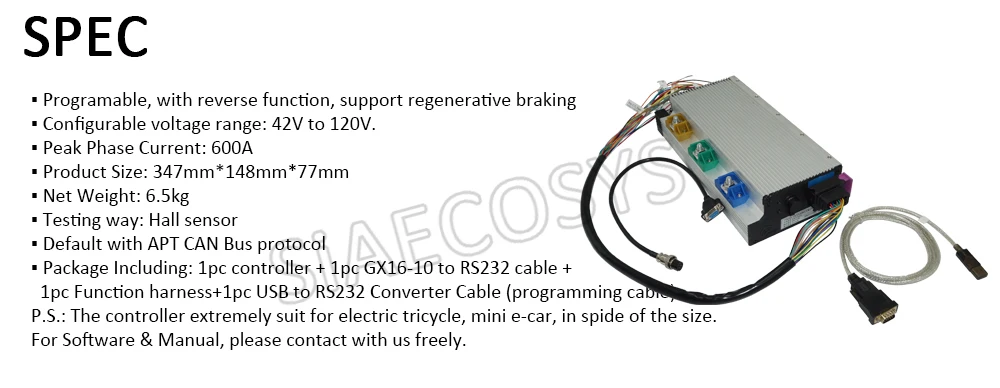

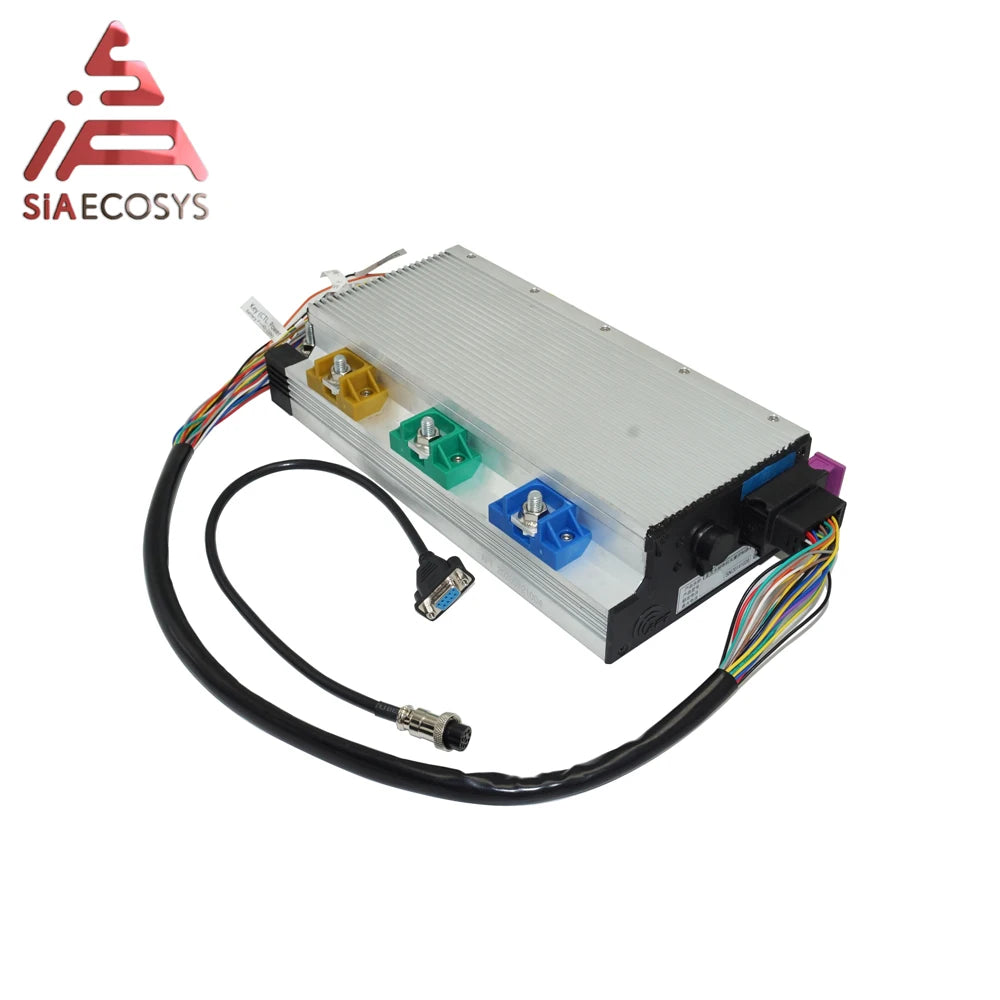

APT Controller

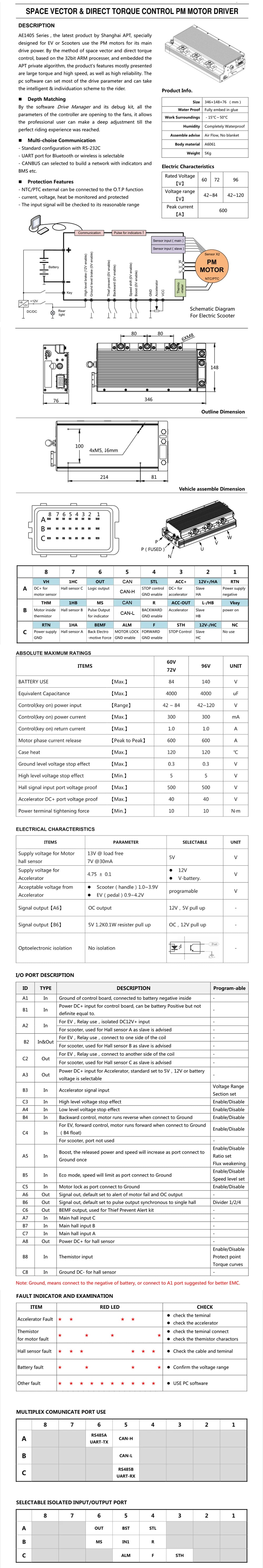

SPACE VECTOR & DIRECT TORQUE CONTROL PM MOTOR DRIVER

AE1405 Series,the latest product by Shanghai APT, specially designed for EV or Scooters use the PM motors for its main drive power. By the method of space vector and direct torque control, based on the 32bit ARM processer, and embedded the APT private algorithm, the product's features mostly presented are large torque and high speed, as well as high reliability. The pc software can set most of the drive parameter and can take the intelligent & individuation scheme to the rider.
