QSMOTOR QS260 12×3.5-Inch 72V 2000W Hub Motor Kit with VOTOL EM100-2GTRP Controller, DKD LCD Display & Z6 Throttle
$672.68
Upgrade your electric motorcycle or high-power maxi-scooter with the complete QSMOTOR QS260 12×3.5-Inch 72V 2000W (Peak 3000W) BLDC Hub Motor Powertrain Kit. Featuring the high-efficiency VOTOL EM100-2GTRP CAN Bus Sine Wave Controller, an adjustable DKD Multifunction LCD Color Speedometer, and the ergonomic Z6 Multi-Switch Twist Throttle, this comprehensive plug-and-play kit delivers smooth, silent takeoff and robust hill-climbing acceleration.
The QS260 12-inch cast aluminum wheel hub motor provides a direct-drive rear wheel solution rated at 2000W continuous with peak power capabilities exceeding 3000W. Controlled by the FOC sine wave EM100-2GTRP controller with 75A continuous battery current and 280A peak phase current, the system delivers instantaneous throttle response and electronic flux weakening for maximum top-speed performance on 72V battery systems.
Key Highlights & System Capabilities

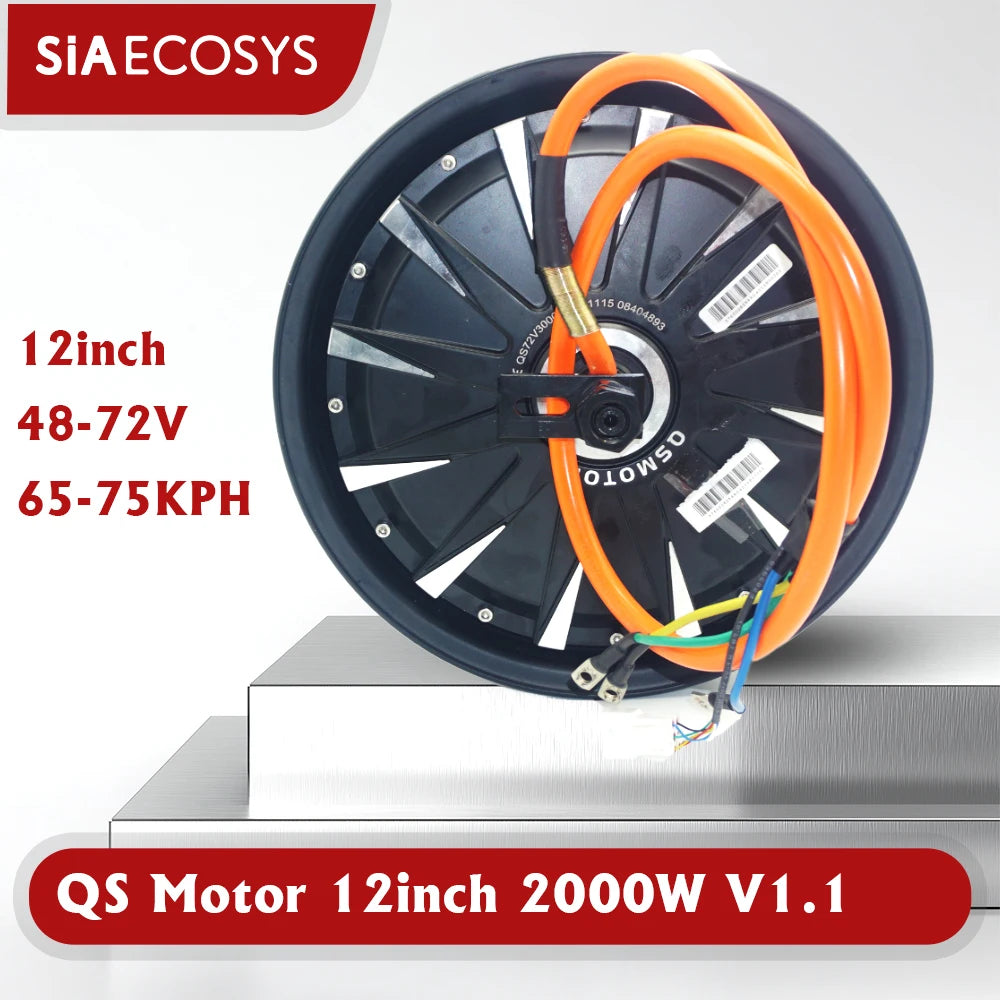

- QS260 Direct-Drive V1.1 Hub Motor: Heavy-duty 12×3.5-inch cast aluminum alloy rim accommodates standard tubeless motorcycle tires, delivering high torque directly to the pavement without belt or chain transmission losses.

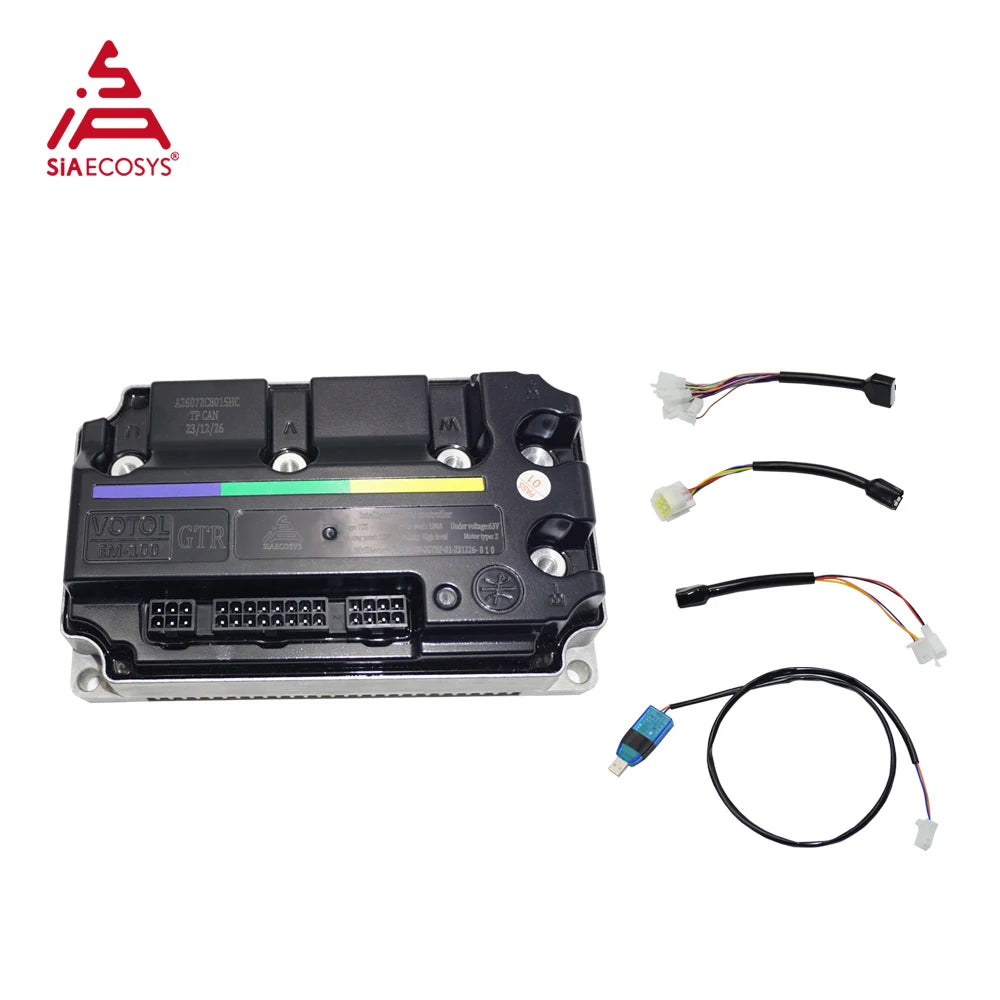

- VOTOL EM100-2GTRP CAN Controller: Advanced FOC sine wave controller capable of 75A battery DC current and 280A peak phase current. Features dynamic flux weakening, electronic regenerative braking, and silent, low-vibration operation.

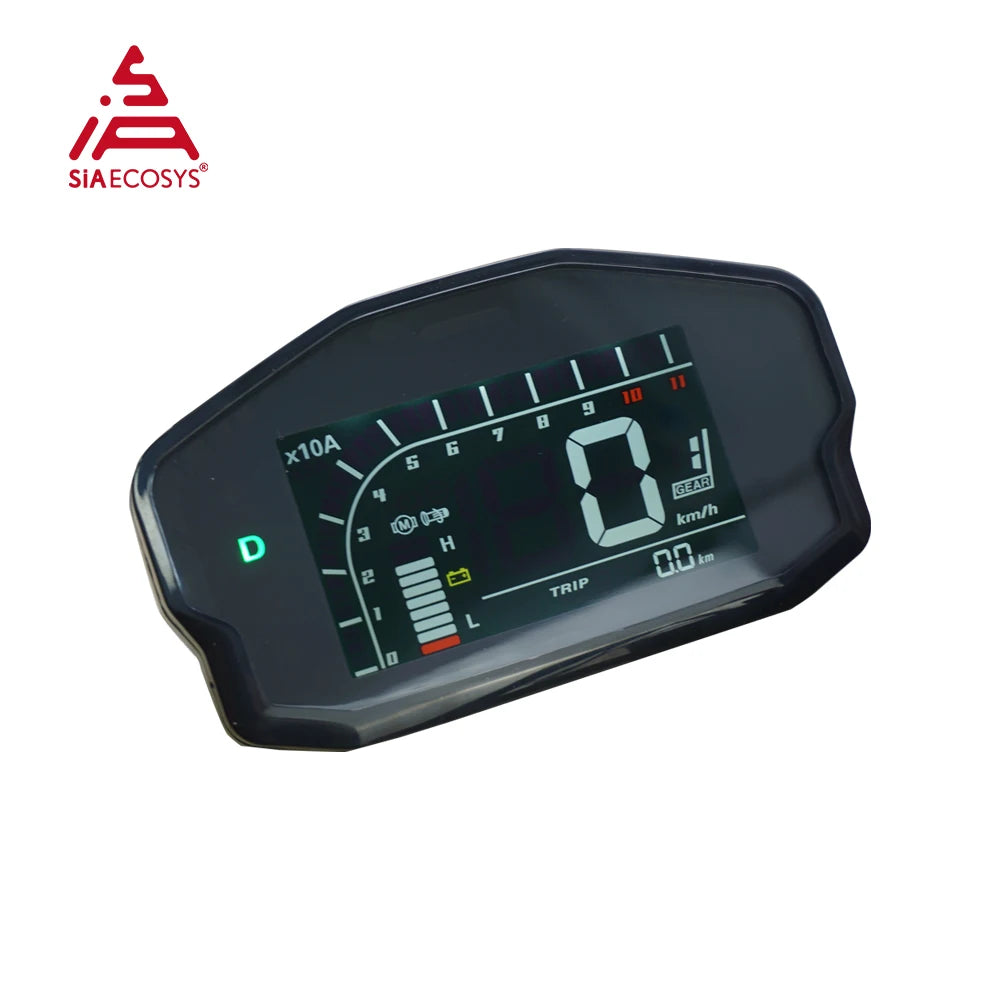

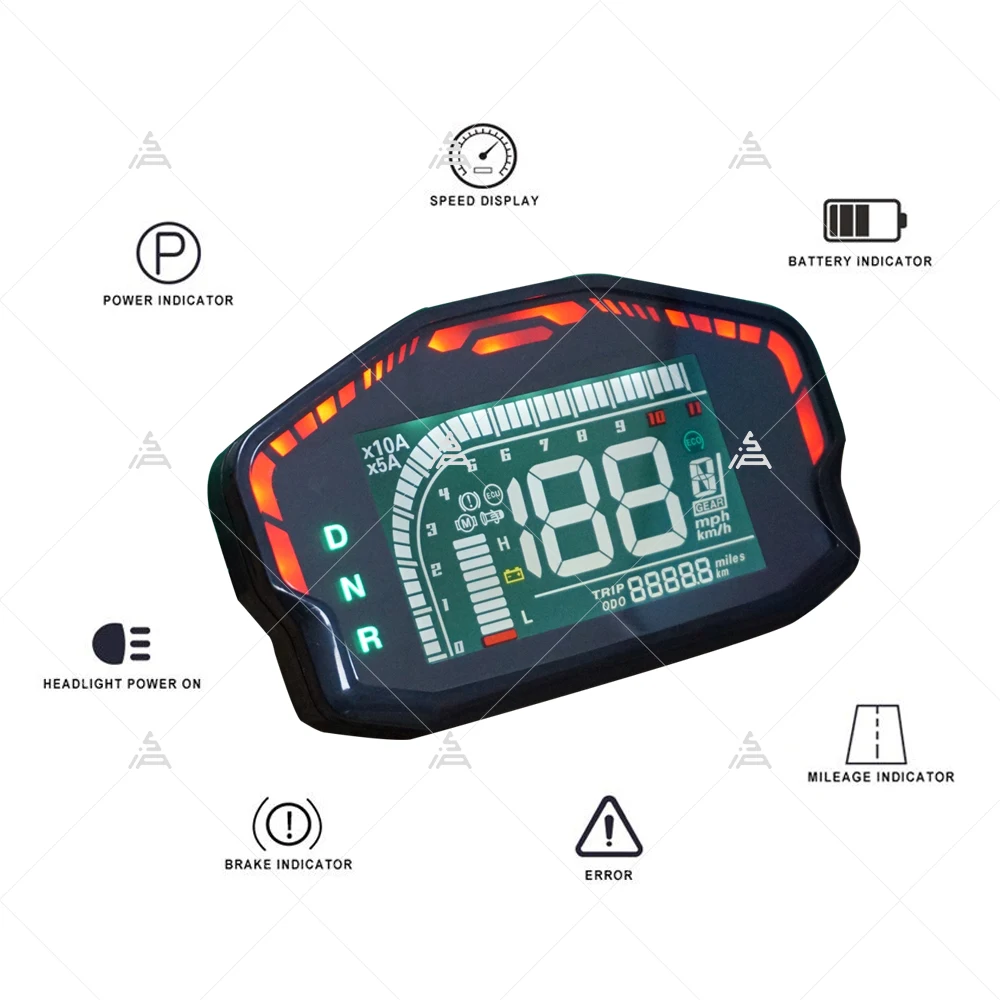

- DKD Adjustable Color LCD Dashboard: High-contrast digital display communicates directly with the controller to show real-time speedometer readings, battery state of charge (voltage/percentage), gear modes, turn signals, and fault diagnostics.

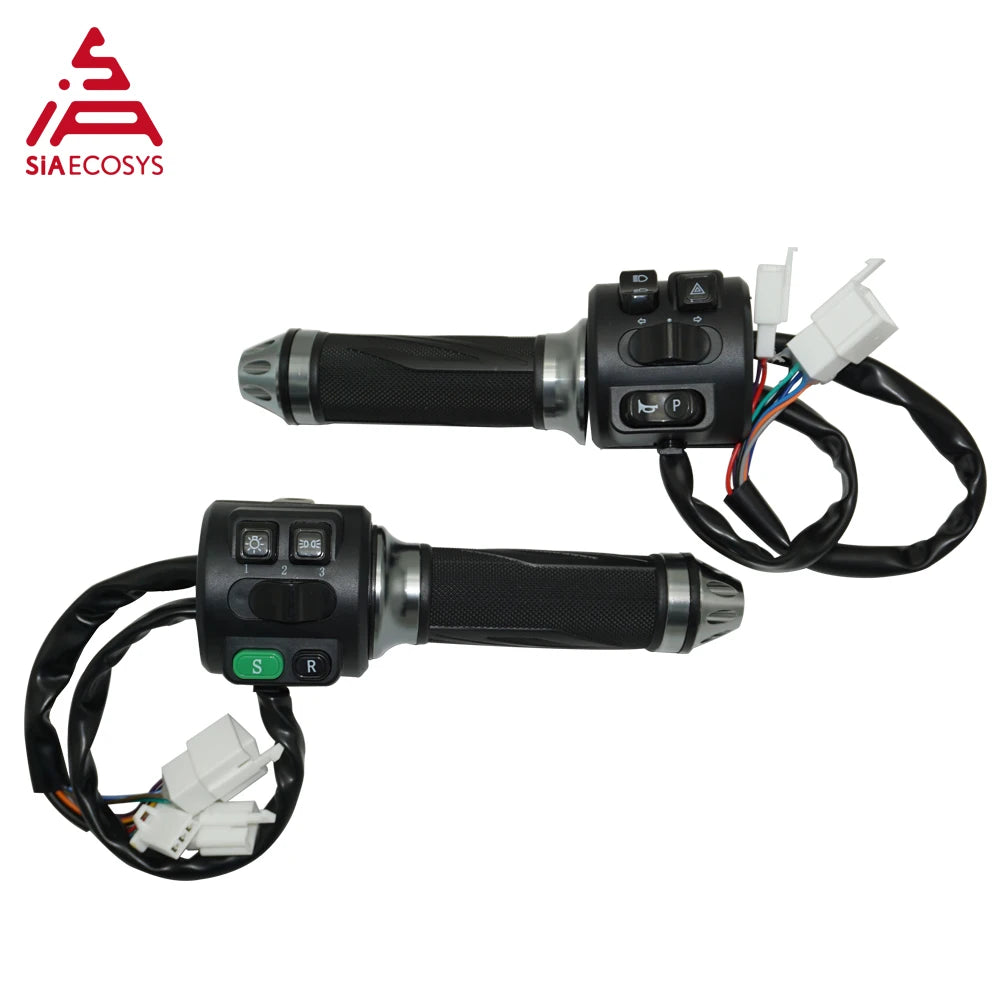

- Z6 Multi-Function Throttle Assembly: IPX6 waterproof half-twist throttle pre-wired with 3-speed selector slide switch, reverse button, parking switch (throttle on/off lock), sport/boost button, and headlight/horn controls.
- Integrated CAN Bus Architecture: Ensures reliable, high-speed data transmission between the controller and digital instrumentation without electrical noise interference.

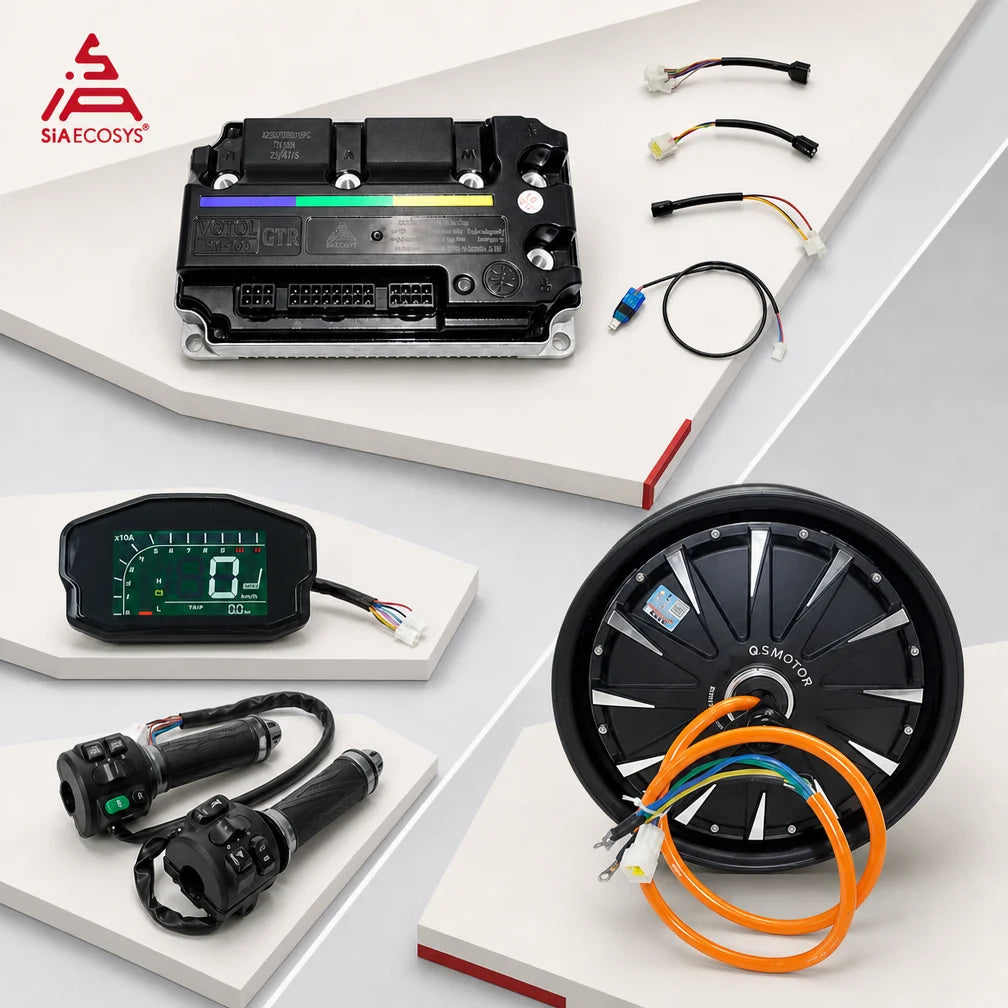

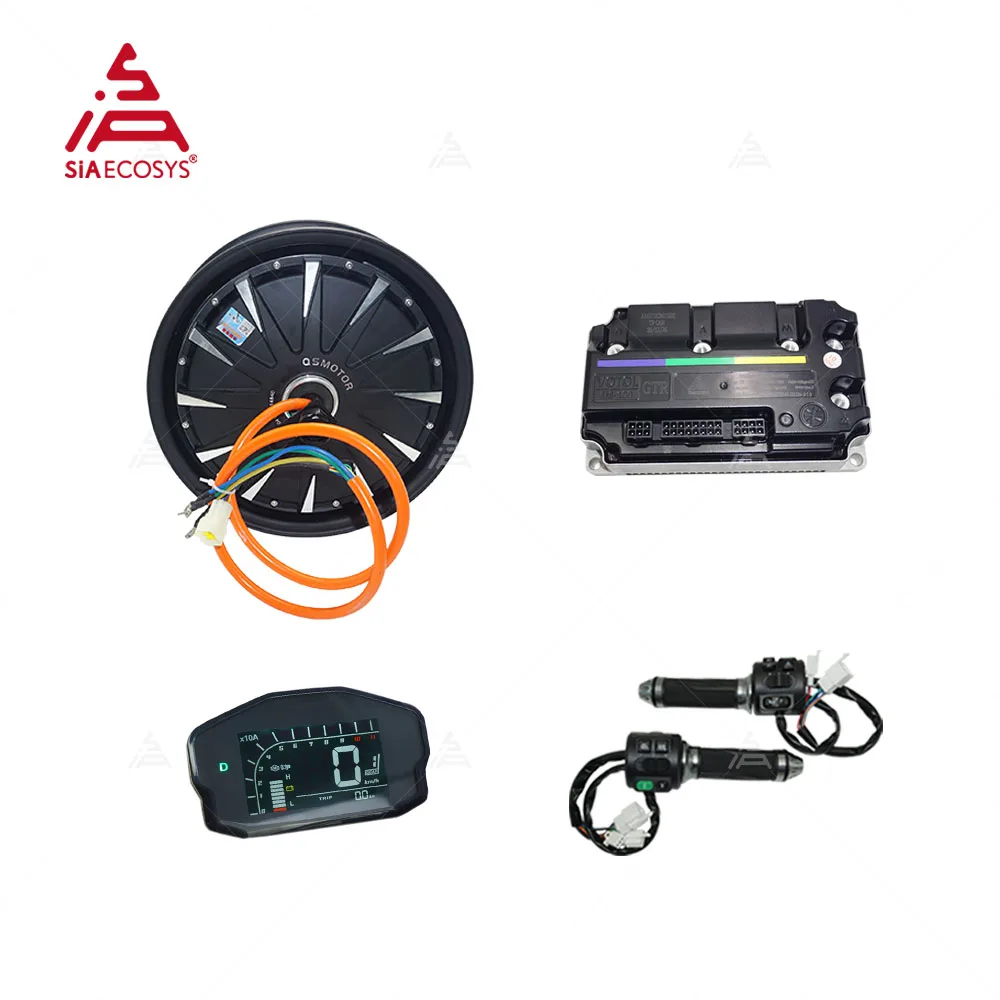

Complete Kit Inclusions
- 1× QSMOTOR QS260 12×3.5-inch 2000W V1.1 BLDC Hub Motor: Precision-wound brushless DC stator integrated into a reinforced 12-inch motorcycle rim.
- 1× VOTOL EM100-2GTRP CAN Sine Wave Controller: Pre-calibrated for QS260 motor parameters (72V 75A / 280A Phase).
- 1× DKD LCD Color Speedometer: Adjustable digital display with mounting bracket and wiring harness.
- 1× Z6 Multi-Function Handlebar Throttle: Half-twist throttle with matching left grip, key switch, and multi-switch control pod.
- 1× Complete Main Wiring Harness: Automotive-grade mating plugs, Hall sensor leads, and power terminal hardware.

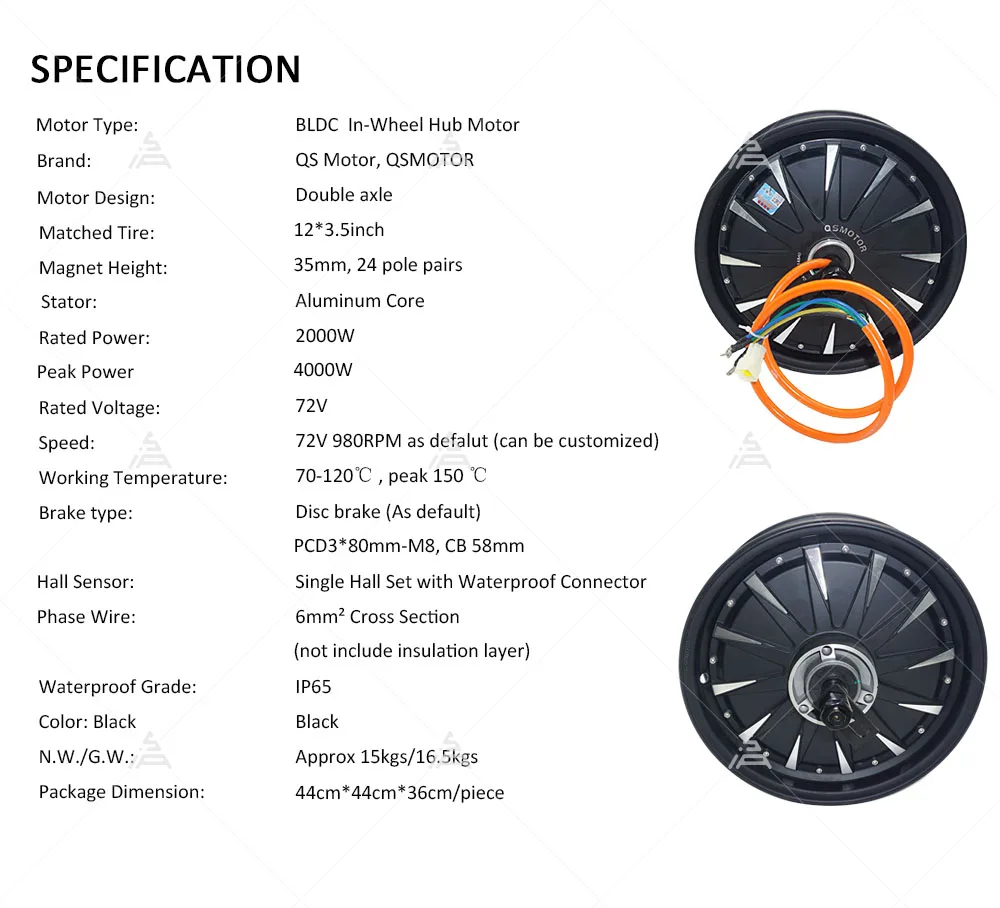

Technical Specifications Matrix
| Parameter | Specification |
|---|---|
| Brand / Manufacturer | QSMOTOR Genuine |
| Motor Model & Type | QS260 V1.1 Brushless DC (BLDC) Outer Rotor Hub Motor |
| Rim & Wheel Size | 12×3.5 inch (Fits 120/70-12, 130/70-12 motorcycle tires) |
| Rated Power / Peak Power | 2000W Rated Continuous / Up to 3000W+ Peak |
| Rated System Voltage | 72V DC (Operating range 60V–84V DC) |
| Controller Model | VOTOL EM100-2GTRP CAN Bus Sine Wave Controller |
| Controller Current Ratings | 75A Battery DC Current / 280A Peak Phase Current |
| Display Type | DKD Color LCD Speedometer (CAN / One-Line compatible) |
| Throttle Unit | Z6 Multi-Function Half-Twist (IPX6 Waterproof, 22mm bar) |
| Braking System Compatibility | Standard Motorcycle Disc Brake Rotor Flange |
| Total Kit Shipping Weight | Approx. 19.5 kg |

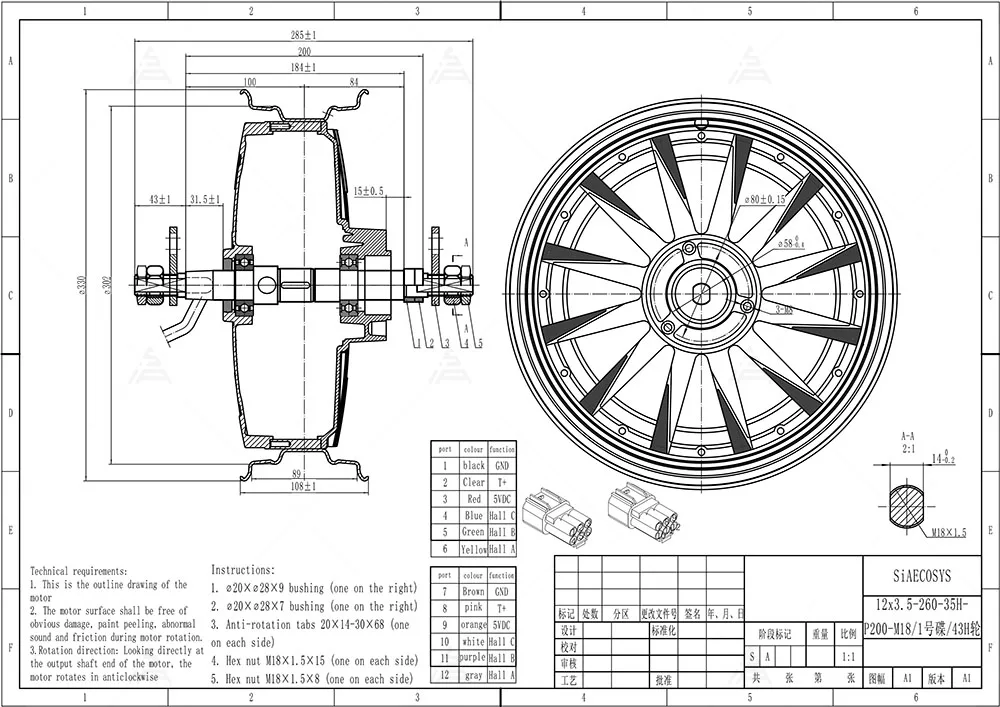

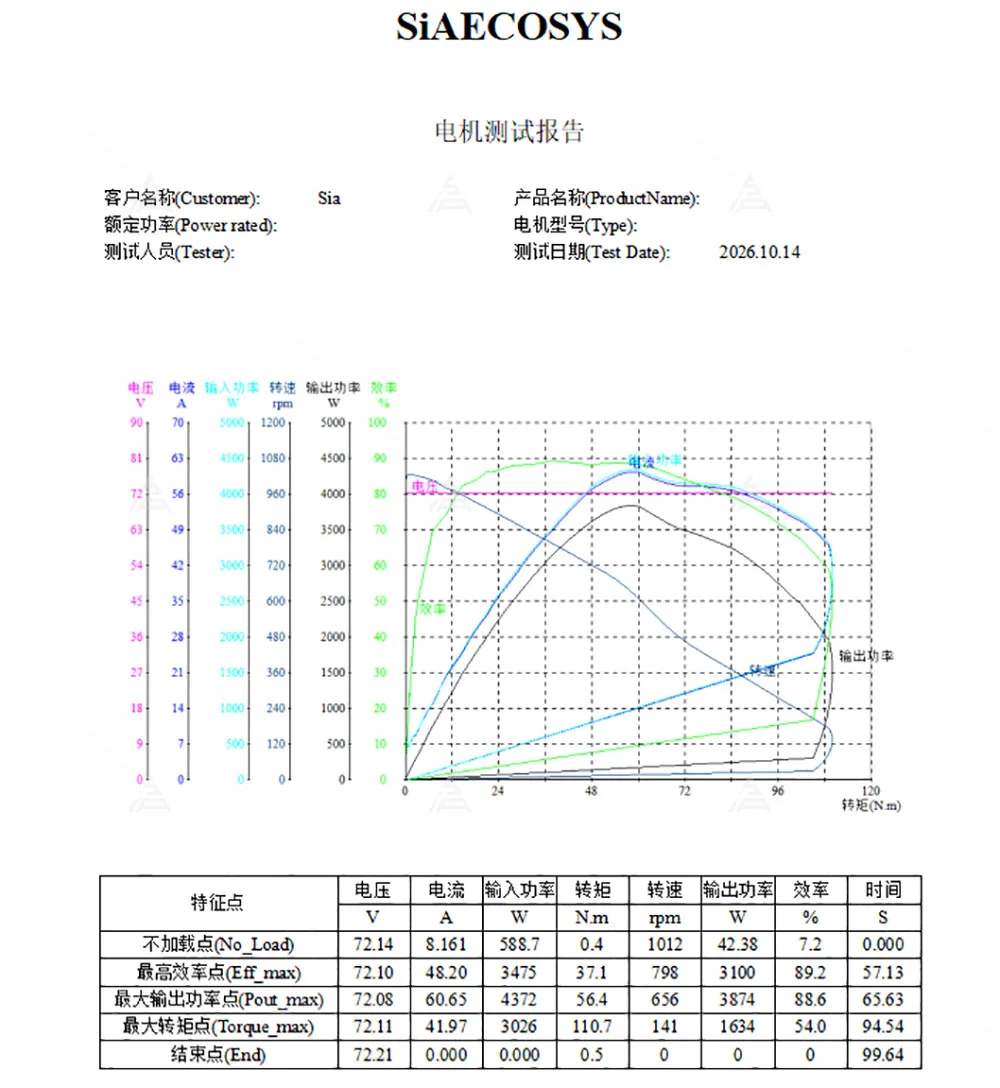

Mechanical Dimensions & Dyno Bench Test Report

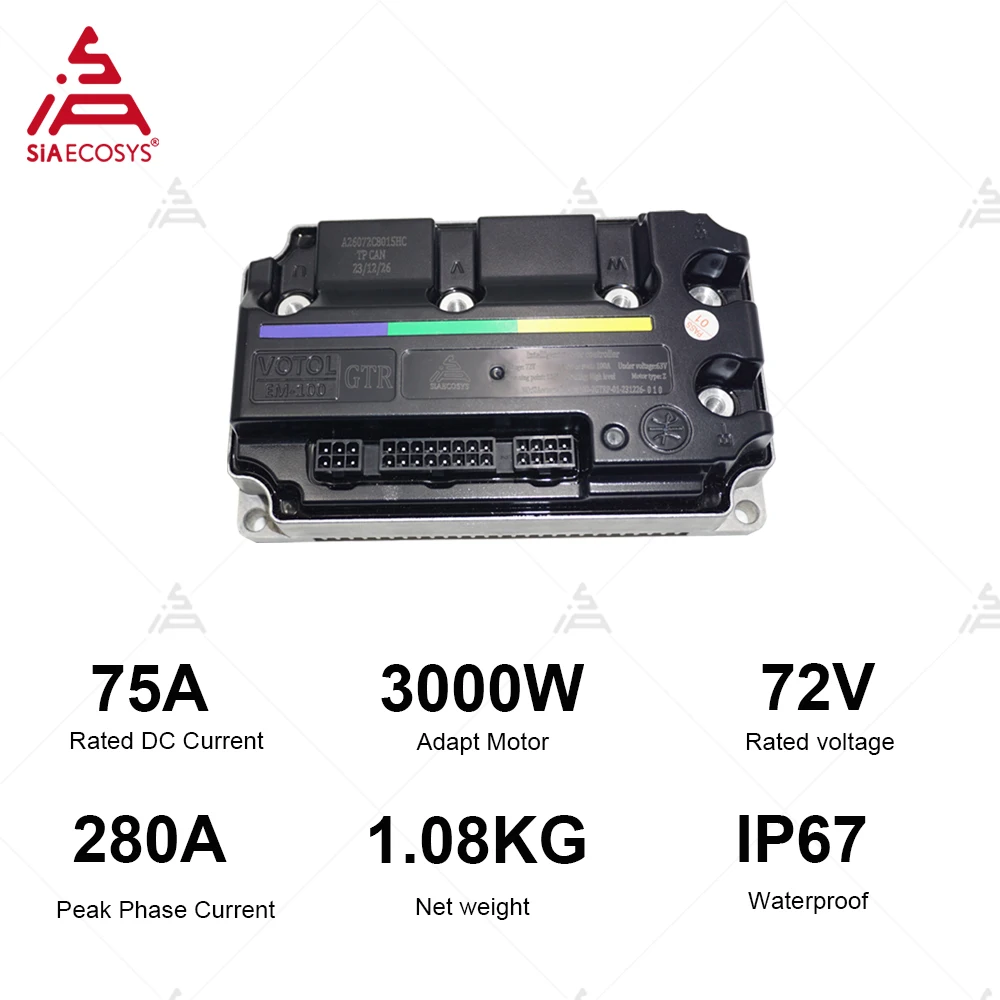

VOTOL EM100-2GTRP Controller & DKD LCD Display

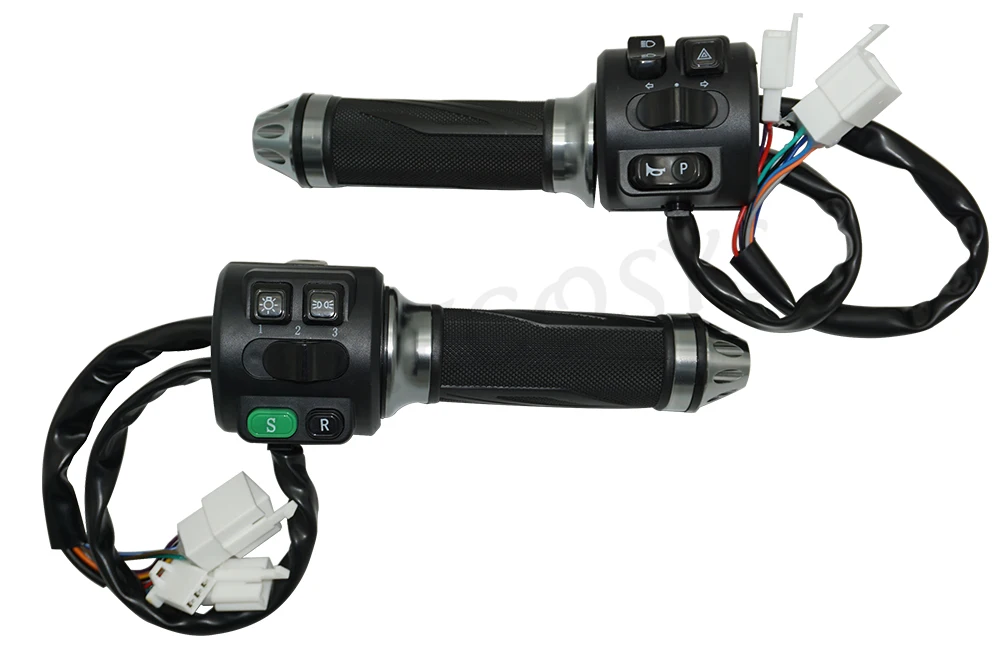

Z6 Multi-Switch Throttle Assembly
Frequently Asked Questions (FAQ)
Q: What tire size fits this 12×3.5-inch rim?
A: The 12×3.5-inch cast aluminum rim is standard motorcycle spec and fits common tubeless scooter/motorcycle tires such as 120/70-12, 130/70-12, and 140/70-12.
Q: Is the controller already matched to the motor?
A: Yes. The included VOTOL EM100-2GTRP controller is factory-parameterized specifically for the QS260 V1.1 hub motor and calibrated to communicate seamlessly with the DKD LCD display and Z6 throttle.
Q: What top speed can I expect from this 72V 2000W powertrain?
A: On a 72V battery with the VOTOL controller's flux-weakening feature enabled, riders typically achieve cruising speeds between 65 km/h to 80 km/h (40–50 mph), depending on vehicle weight, tire diameter, and terrain.
Q: What warranty and after-sales support does E Smart Way provide?
A: E Smart Way covers this complete powertrain kit with 100% insured international heavy-parcel shipping, full transit damage protection, and a 1-year product warranty. Technical wiring schematics and software download links are provided with every order.
Heavy Freight & International Delivery Notice
Reinforced Heavy-Parcel Packaging: At approximately 19.5kg, this hub motor kit is packaged with molded high-density foam padding to protect the wheel rim flanges, axle threads, and electronic modules during international transit.
Customs & Import Duties: Standard cross-border shipping regulations apply. Depending on destination customs laws, any applicable import VAT or clearance fees are the responsibility of the purchaser.
Accurate Delivery Address: Please verify your shipping address, postal code, and contact phone number at checkout for reliable courier scheduling.
