QSMOTOR 12inch 5000W 72V 90kph Dual Hub Motor Electric Car Conversion Kit for Electric ATV Car
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do
customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not
support. (special countries list contact seller)
For 260 5000W V4 motor kits, it could be used for electric car, which could be 72V 90KPH.
e.g. Electric ATV car
E-motorcycle weight, approx 600kg+1*100kg
Speed: peak 90km/h
Climbing slope: 12 degree@700kg
Battery: 72V200Ah
Tire Diameter: 0.66m

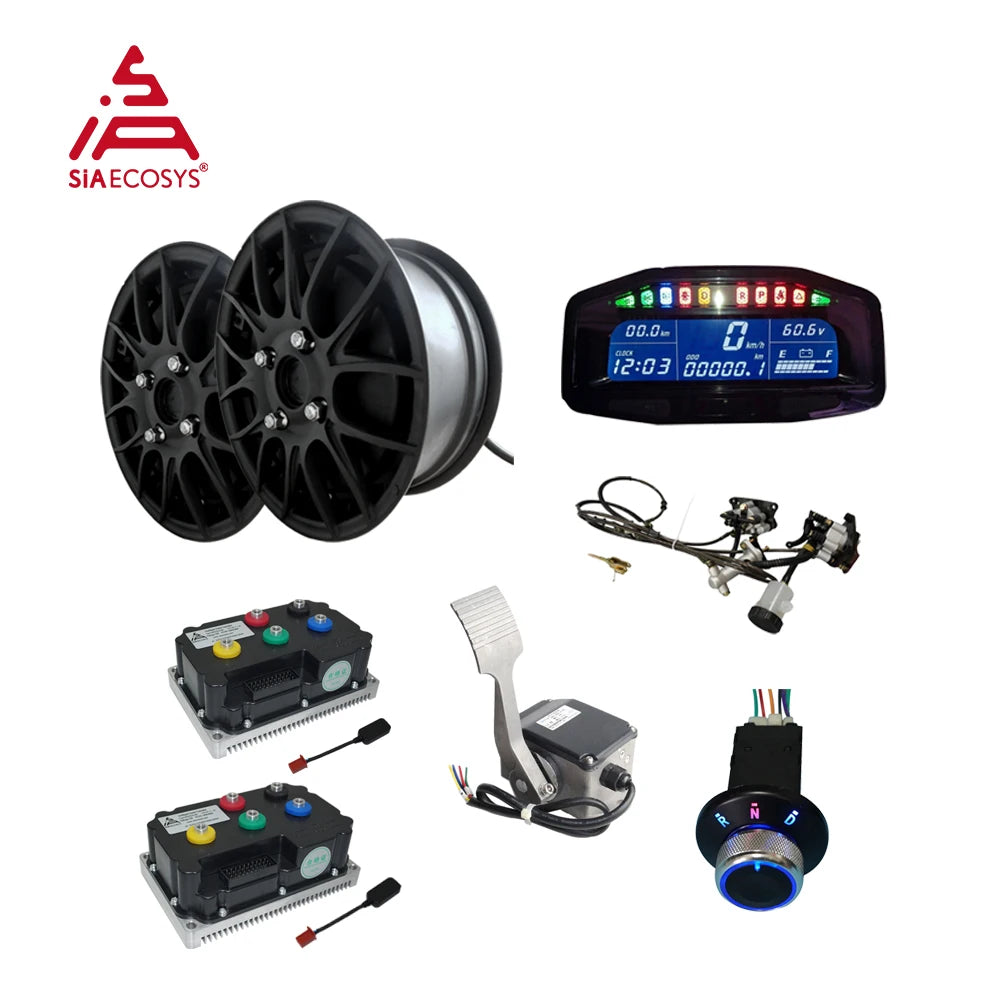

One kit including below kits
1. 2pcs X QSMOTOR 5000W 260 V4 electric wheel hub motor with 12*5.0inch rim
2. 2pcs X ND72530sine wave motor controllerwith bluetooth
3. 1pcs X XE-8 speedometer
4. 1pcs X 0-5V Electric Car Throttle Pedal
5. 1pcs X DNR gear switch
6. 1pcs X 04 1 tow 2 Hydraulic Disc brake system
Key Features
1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in wheels, and easy to be hybrid car.
4). Easily to make 4-wheel drive, which could spot turn.
5). Support regenerative braking
6). High efficiency: 85~92%
Product Description

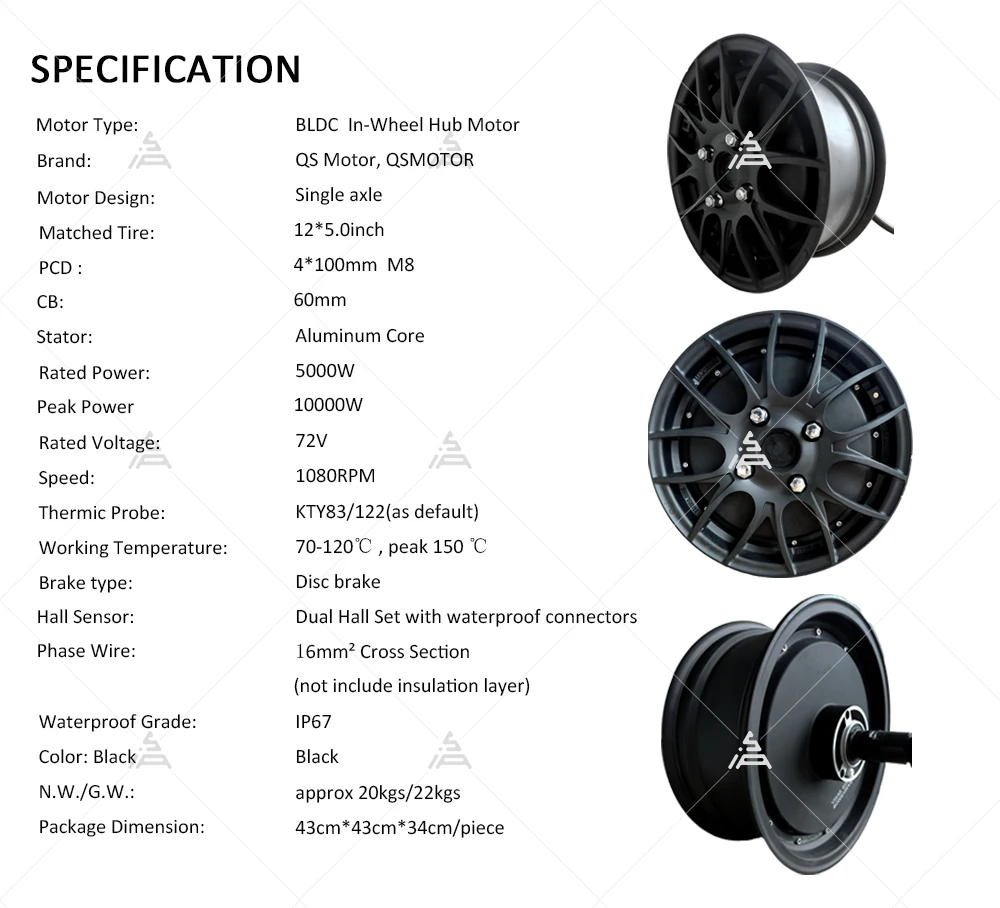

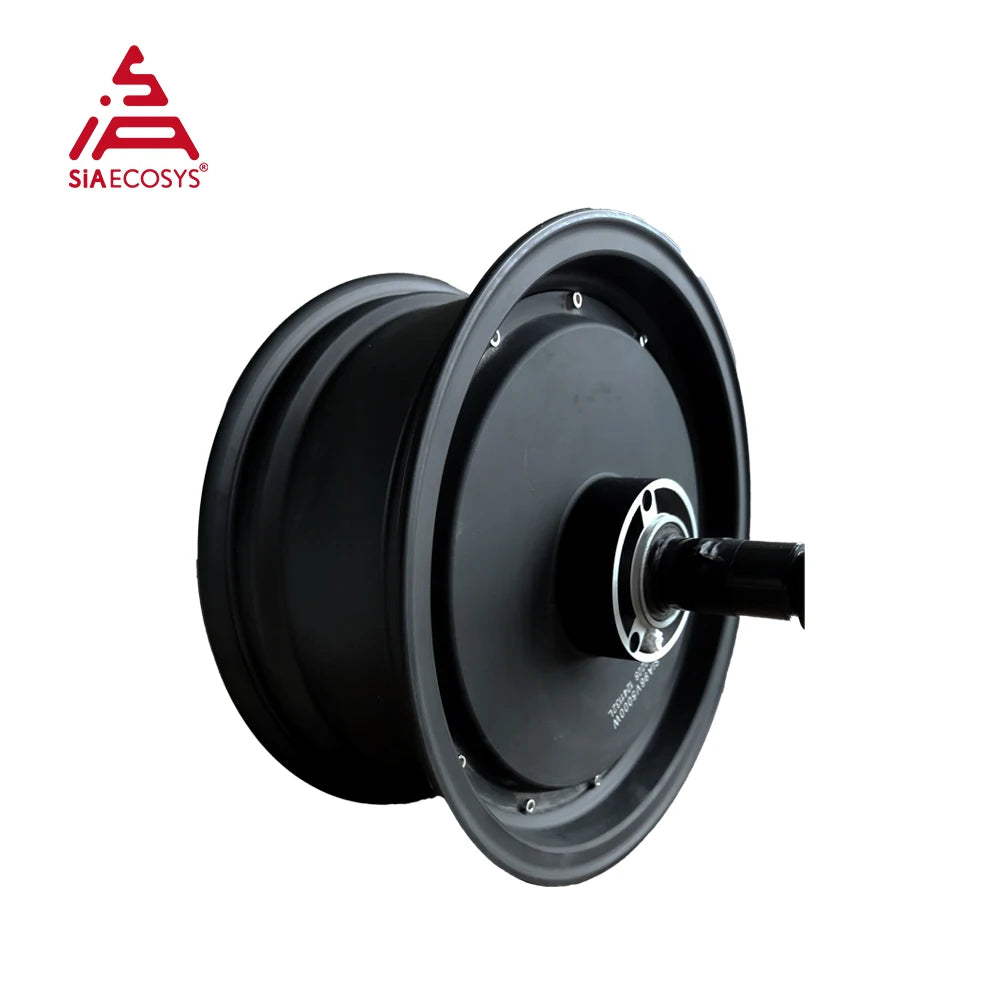

1. QSMOTOR 260 5000W V4 Electric Car Hub Motor

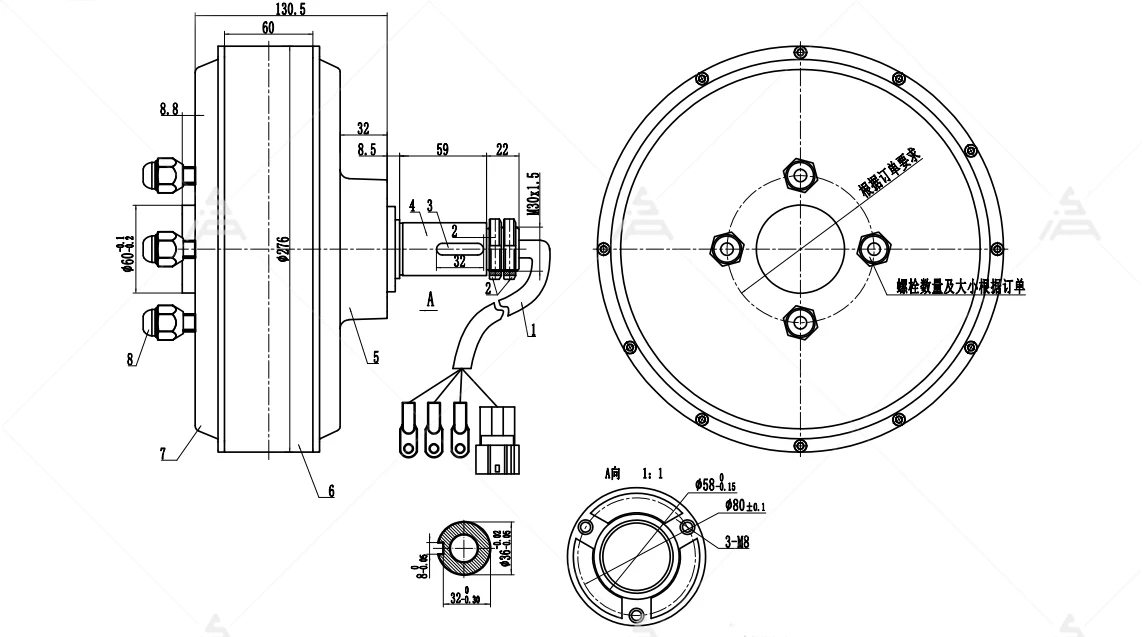

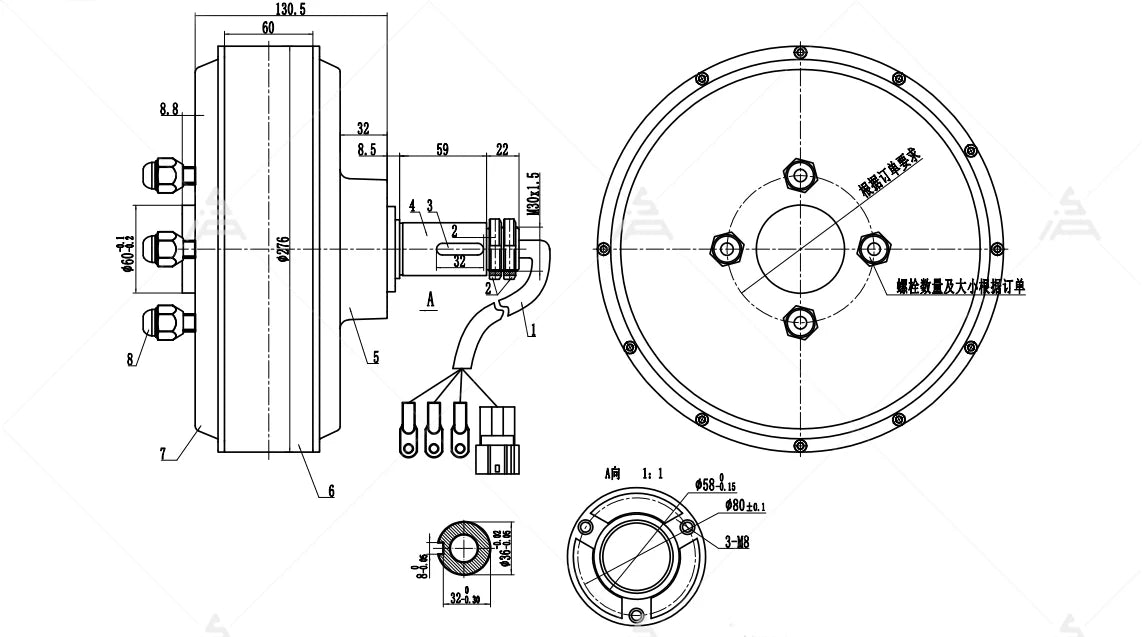

Drawing

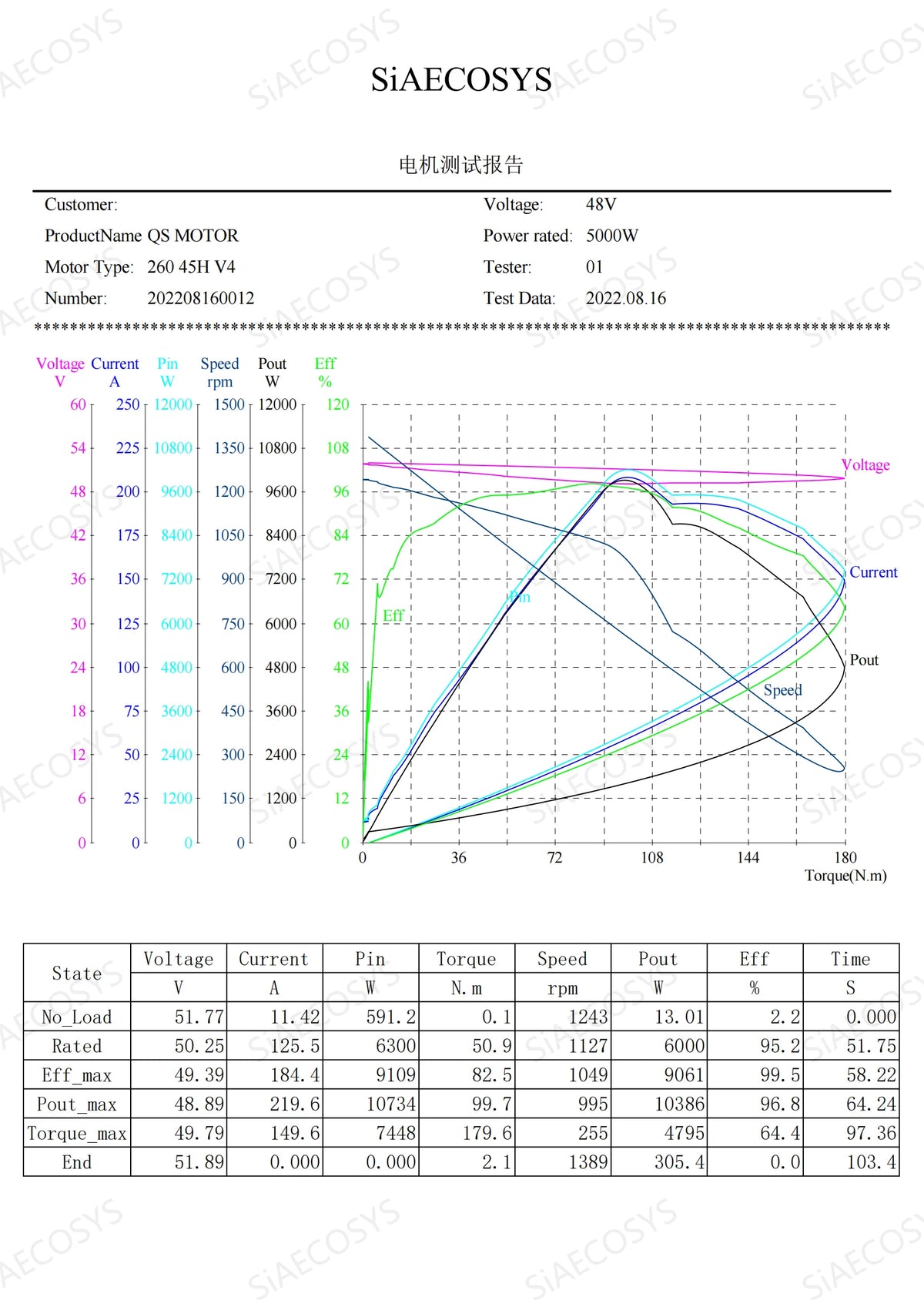

Test Reportat 48V

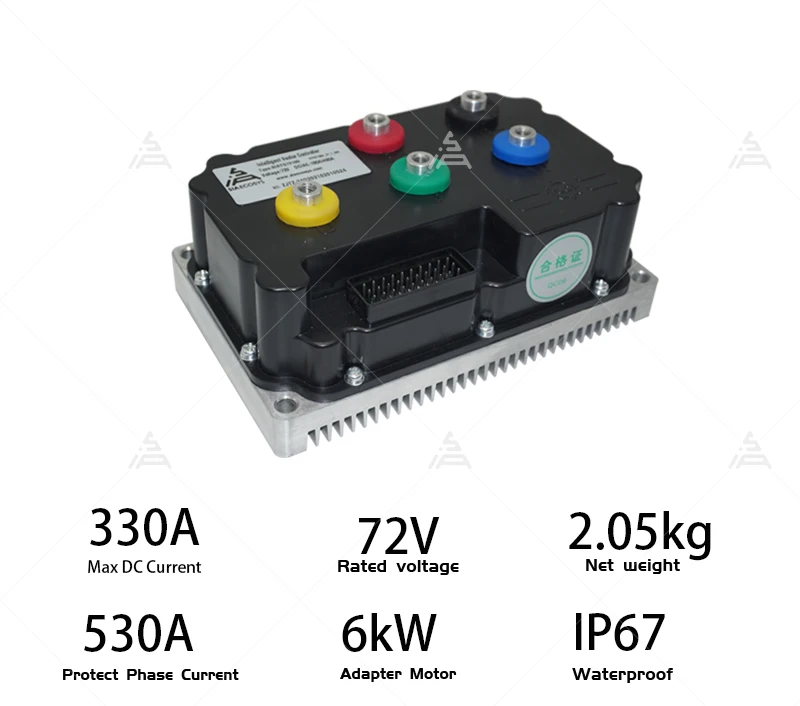

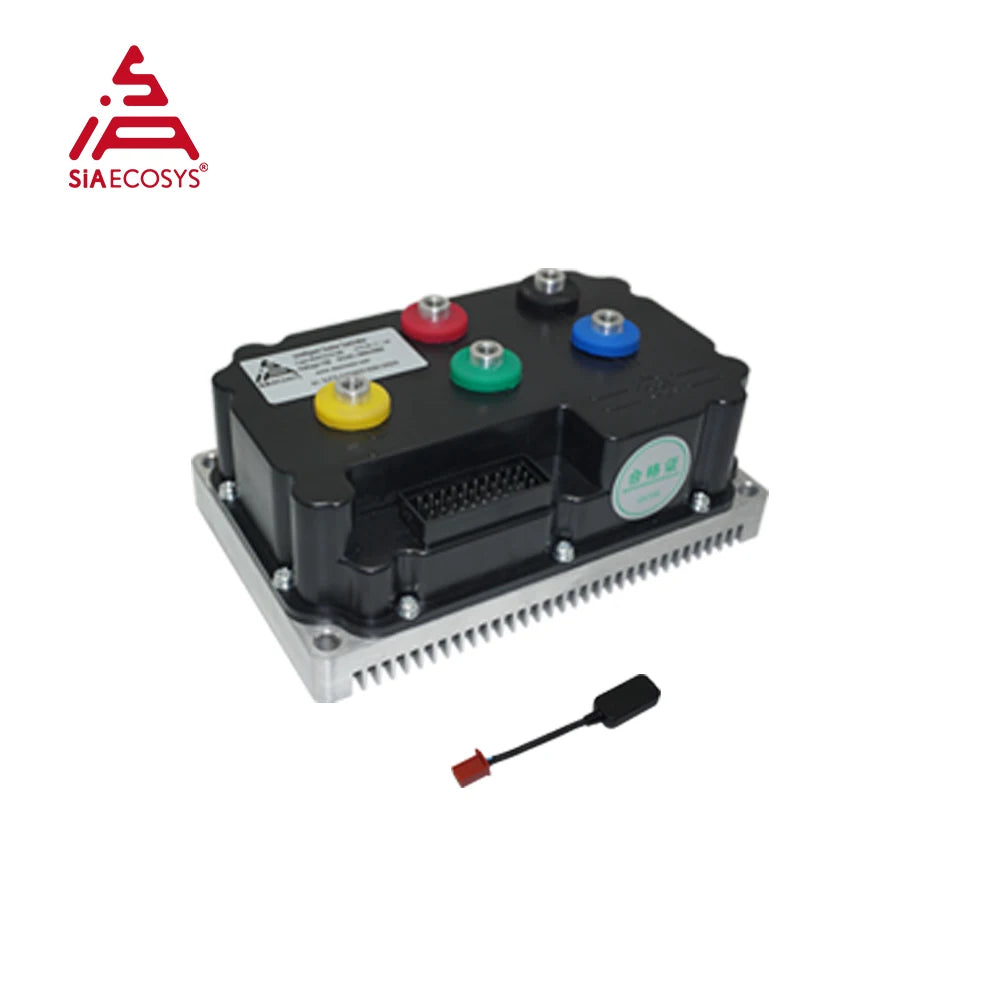

2. ND72530 controller

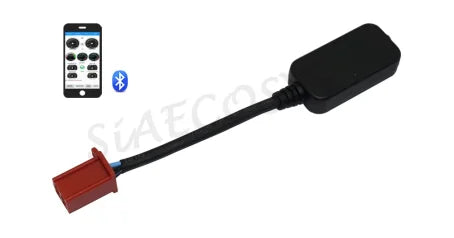

Bluetooth adapter

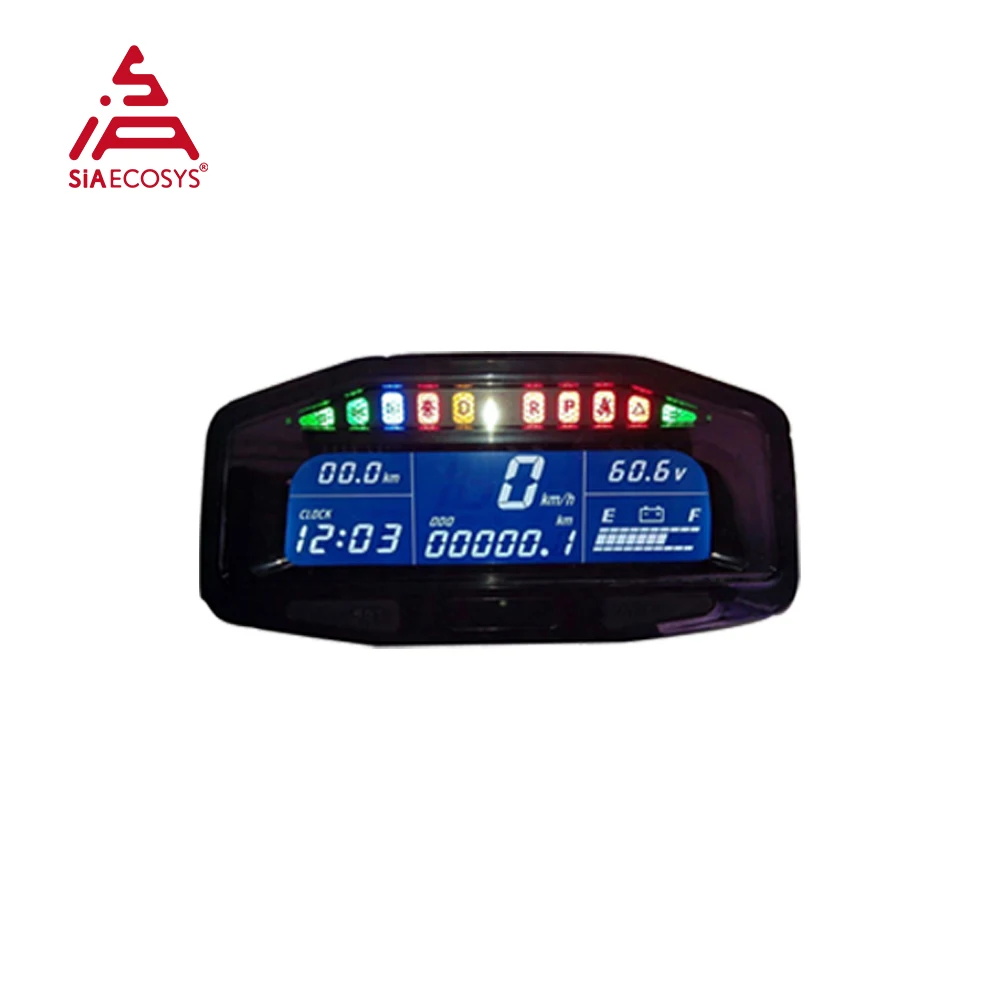

3. XE-8 speedometer
Place of Origin: China(Mainland)
Model Number: X8-E
Application: Electric Car, EV
Rated Voltage:48V-96V
Work voltage: 0-120V
Programmable items: voltage, trip, time, background light
Show Time, driving distance, speed, voltage, electric quantity
Test Speed Type: Hall Sensor
Net weight: 0.57kg
Size: 205mm*103mm*67mm
Packing size: 220mm*160mm*100mm
PS：We don't provide female and male waterproof connectors. If u need, it will cost extra USD3.0/set for unit speedometer.

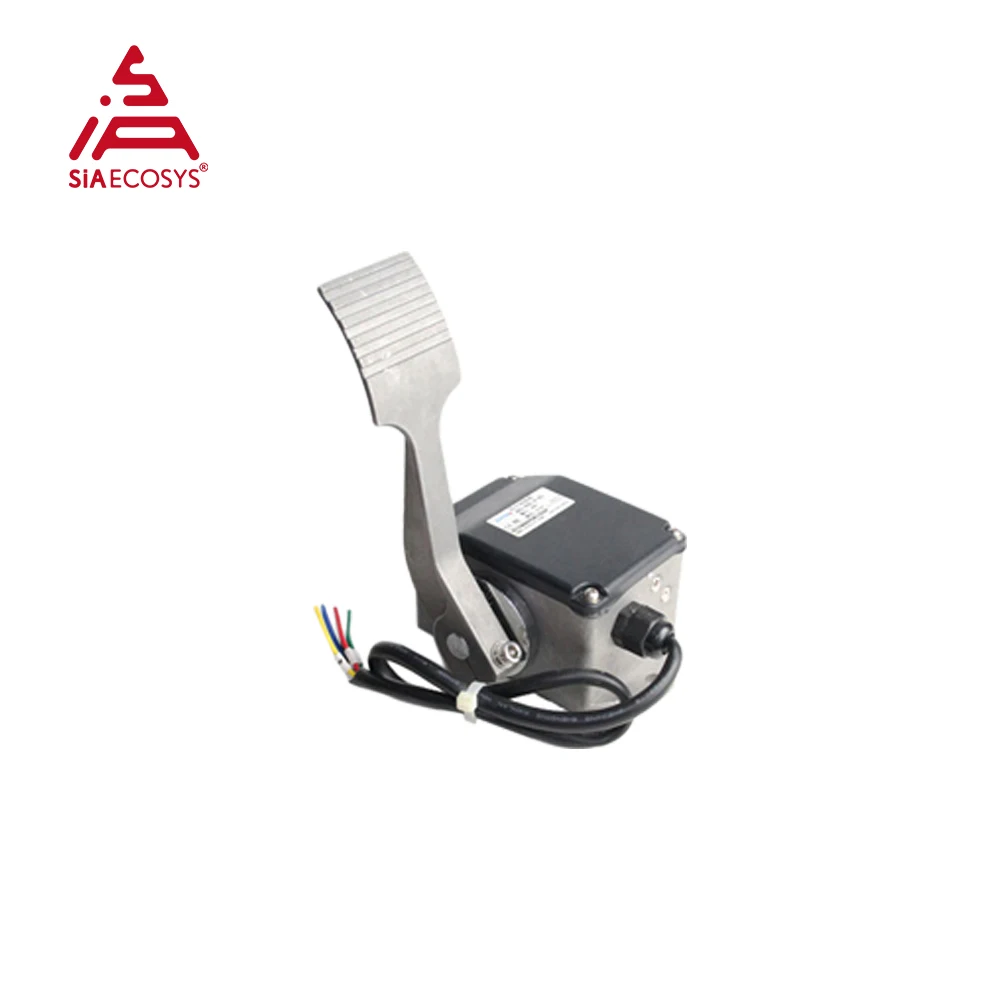

4. 0.8-4.2V Electric Car Throttle Pedal
Hall type: JKH mode
Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V
Output voltage: 0.8V-4.2V
Default: Three wires out(cannot connect with switch), 4.2v input voltage. 0.8-4.2v output voltage.

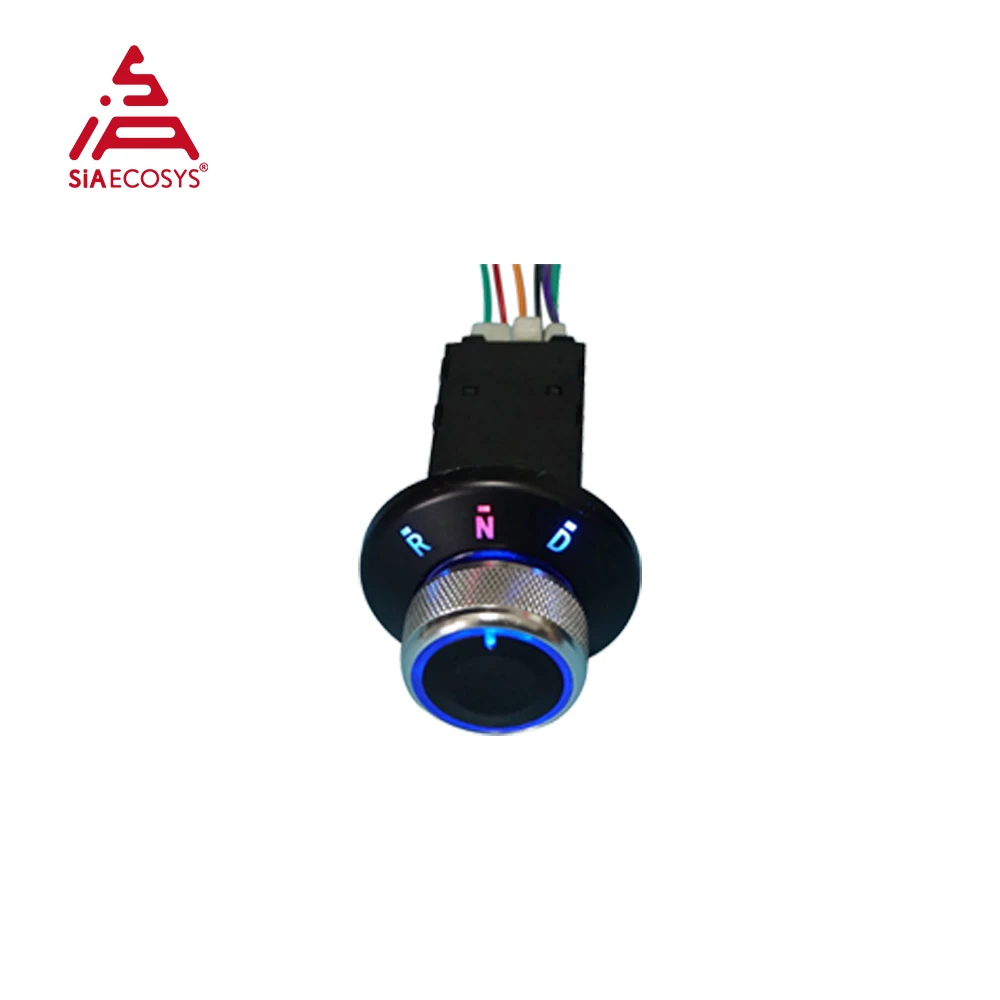

5. DNR gear switch
Include D N R three gears and light, suitable for electric tricycle and car.

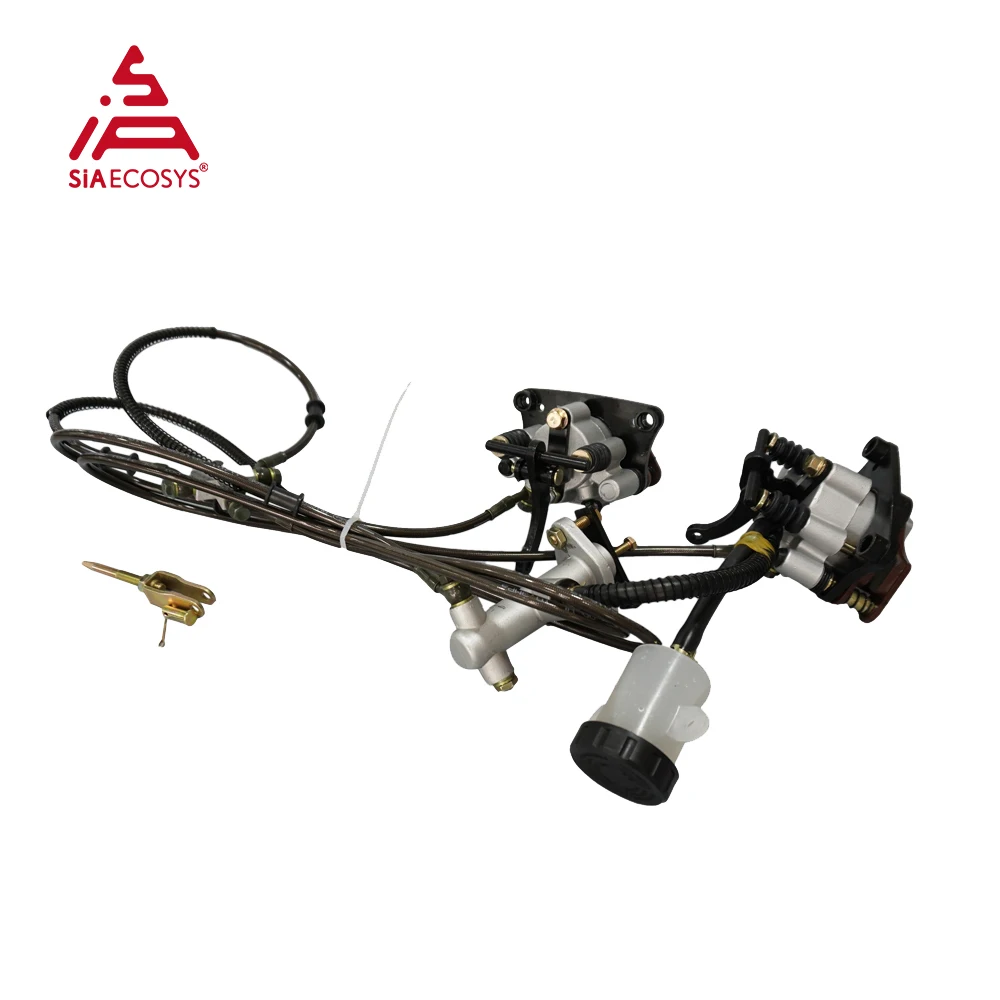

6. 04 1 tow 2 Hydraulic Disc brake system
One main master cylinder with two calipers
Dayang caliper with mechanical parking brake (in grey), 38mm plunger, pitch of mounting 80 & 103mm
Foot brake master cylinder
Hoses 220cm + 80cm X2
Mechanical parking brake cable 95cm + 2 x 115cm
220mm disc brake plate and screws (PCD 3*80mm, CB58mm, thickness 4mm)
Without brake oil
N.W. 4.78kg (Without brake disc)
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
