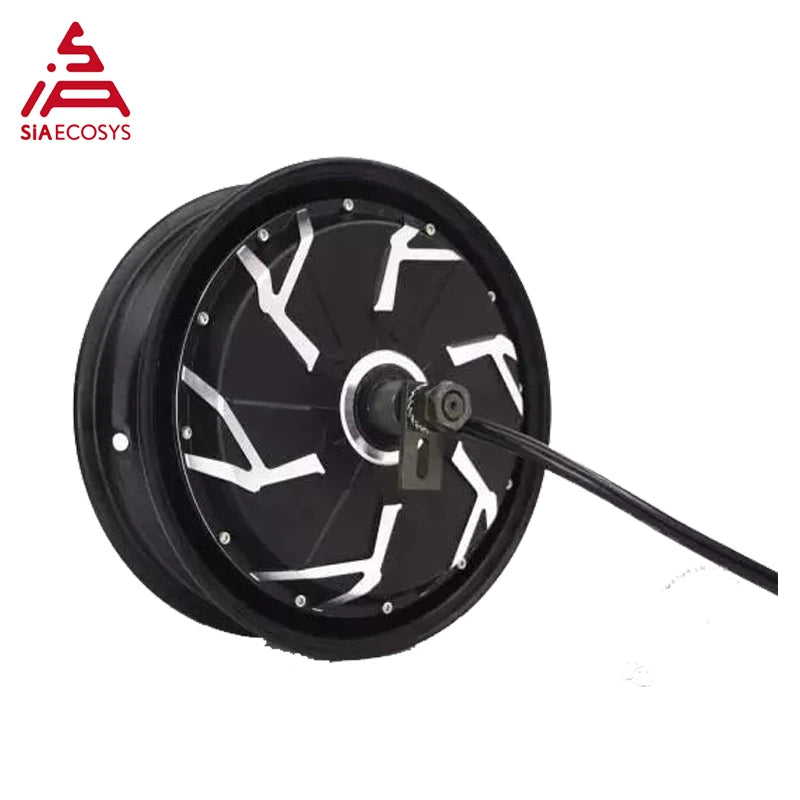

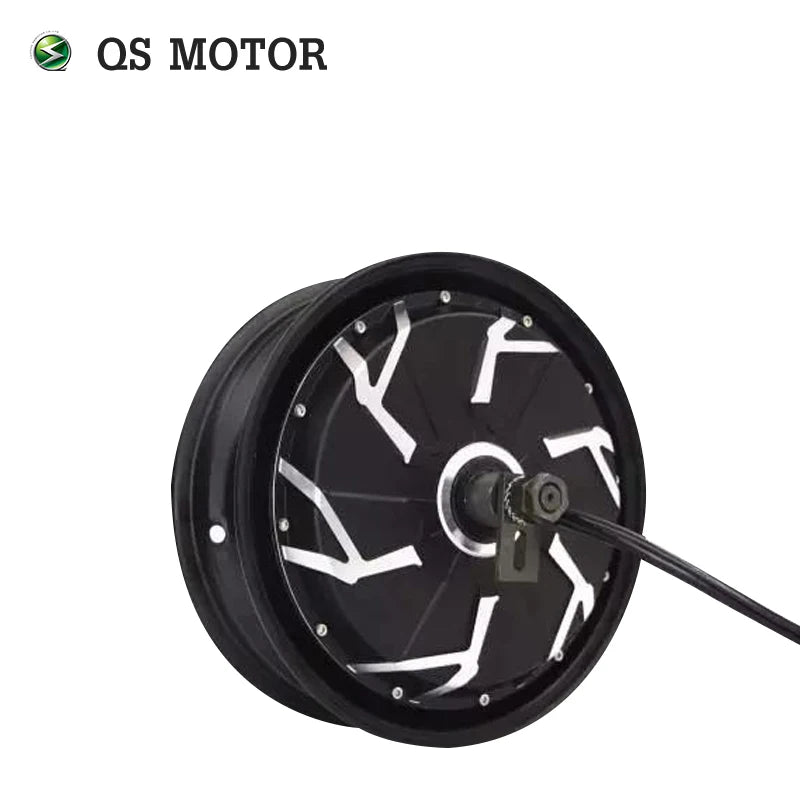

QS 12inch 5000W 260 45H V4 brushless DC electric scooter motorcycle wheel hub motor
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
For 12inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.
12x3.5inch wheel rim, suits tire size: 120/70-12
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product description
1. Genearlly Spec:
-
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
-
Brand: QS Motor, QSMOTOR
-
Motor Design: Double axle with 12inch moped rim (integrated)
-
Rim Size:12x3.5inch(Narrow Tire as default), matched tire:130/90-12 etc
-
P.S: For width tire 12*5.0inch, it will costs additional $15.0/PCS.
-
Magnet Height: 45mm, 16 pole pairs
-
Stator: Aluminum Core
-
Rated Power: 5000W
-
Speed: 30KPH-100KPH, it's customized, genearlly we will design as 72V80KPH.
-
Work voltage range: 48V-96V, will be 72V as default.
-
Max Torque approx 224.0N.m
-
KV: 10.6/14.4/19.2 (Optional)
-
Thermic Probe: KTY83-122 (as default, optional)
-
Max Efficiency approx 88%
-
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
-
Drop-outs: 200mm
-
Dual Halls with waterproof connectos(One for spare, in case of damage)
-
16mm² Phase Wire
-
Waterproof Grade: IP54
-
Color: Black (As default)

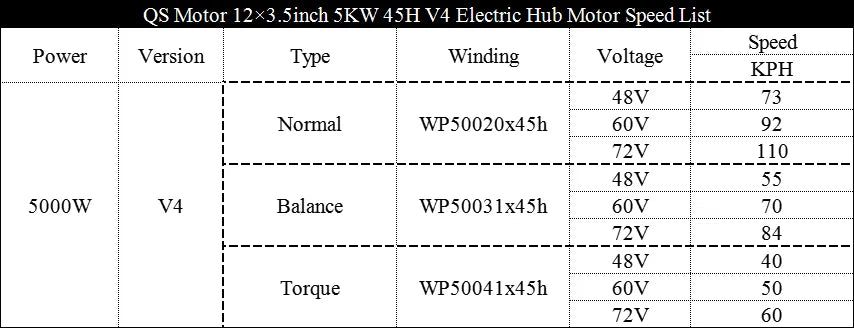

2. Speed List:

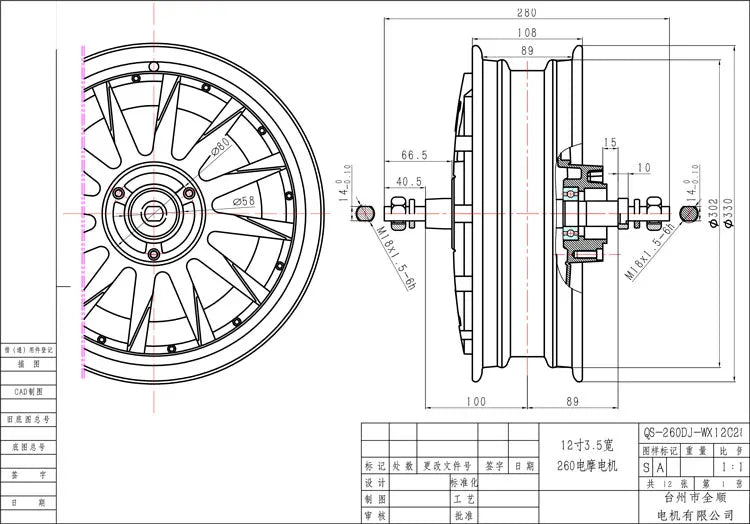

3. Dimension Drawing:
-
12*3.5inch in-wheel hub motor:
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
Conversion kits for 12inch in-wheel hub motor
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
Application for 12inch in-wheel hub motor
