QSMOTOR 120KPH High Speed Electric Bike Hub Motor 8000W 273 50H V4 Brushless In Wheel Hub Motor

Sale price $1,738.68 Regular price $1,849.88

QS273 8000W V4 72V E-Motorcycle Spoke Hub Motor120kph High Speed  with EM200-2 Controller Conversion Kit

For 8000W Motorcycle Conversion Kit 273 spoke hub motor, the dropout is 200mm, it could be used for electric motorcycle, high power electric motorcycle.

For 200mm dropout 273 spoke hub motor, we can provide from 3000W-8000W.

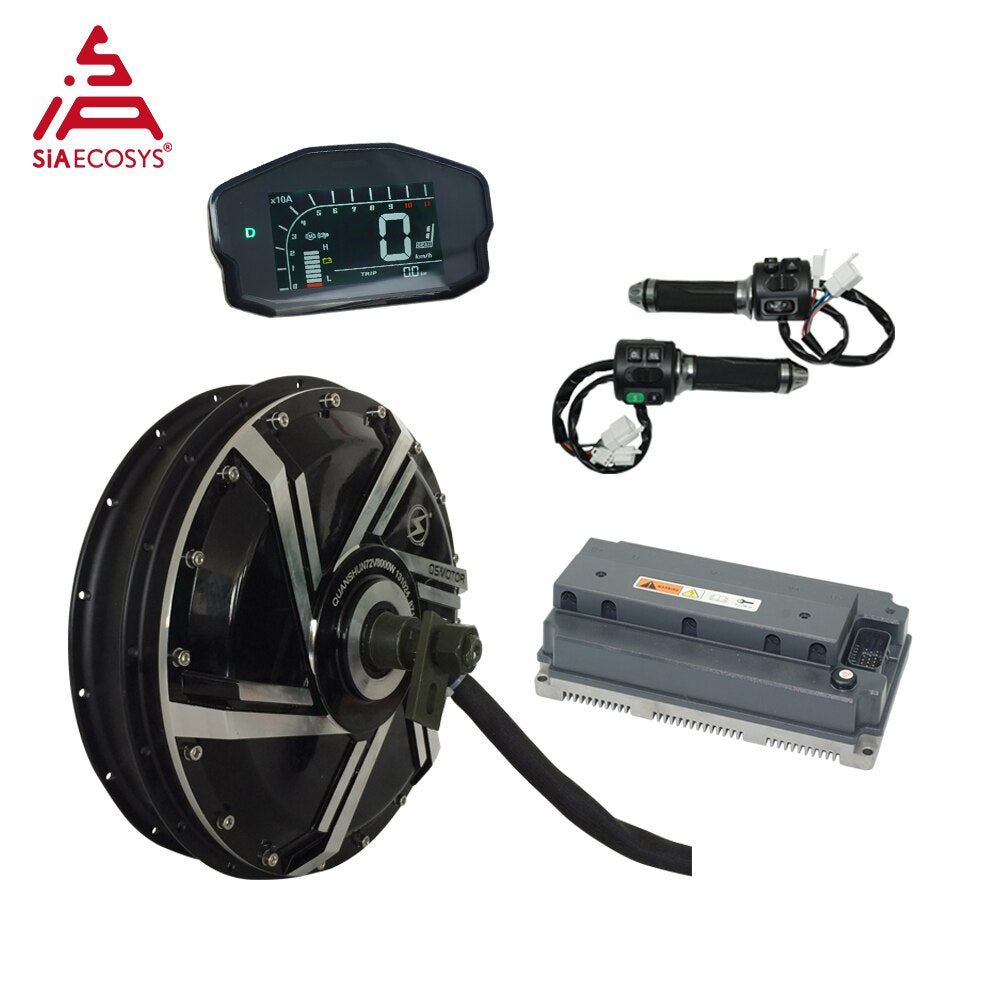

One set including below kits

1. 1pcs X QSMOTOR 273 8000W V4 E-motorcycle spoke hub motor

2. 1pcs X EM200-2 controller

3. 1pcs X DKD LCD speedometer

4. 1pcs X Z6 throttle with combination switch

Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product description

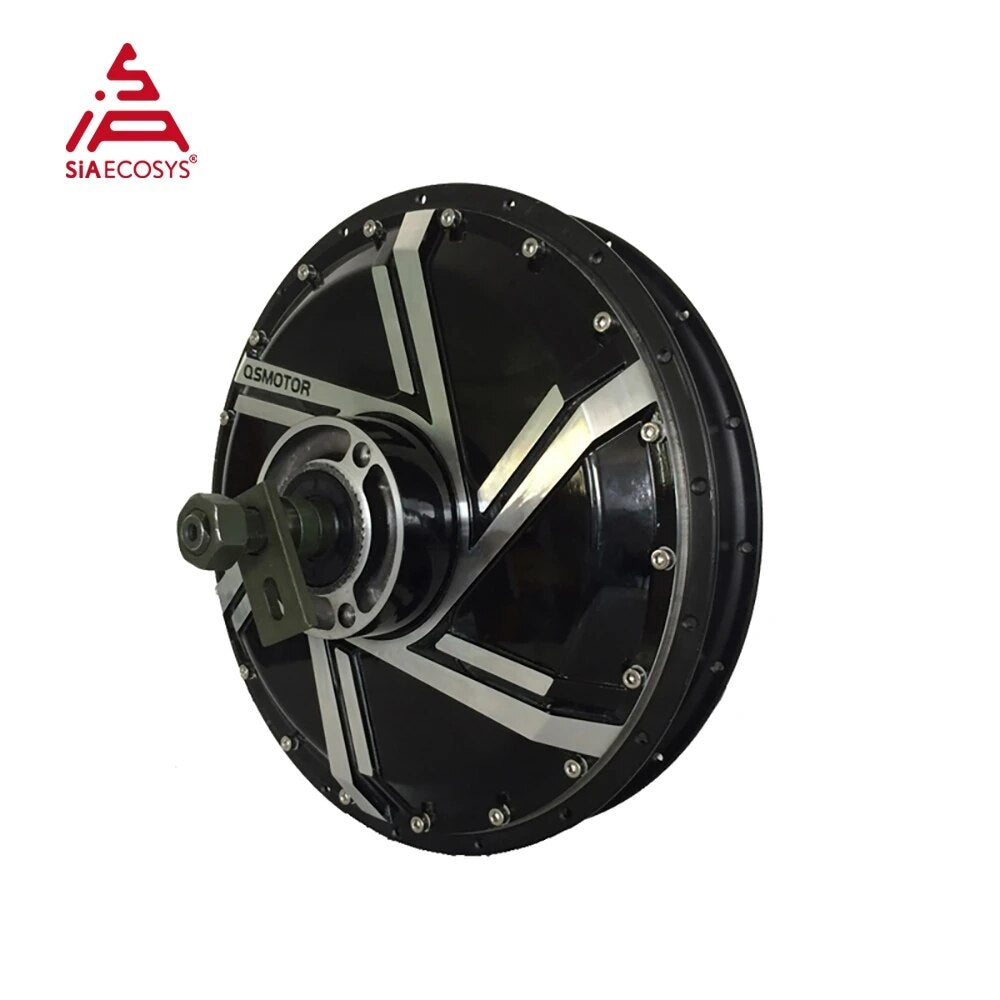

1.QS273 8000W V4 E-motorcycle spoke hub motor Spec

Dimension Drawing:

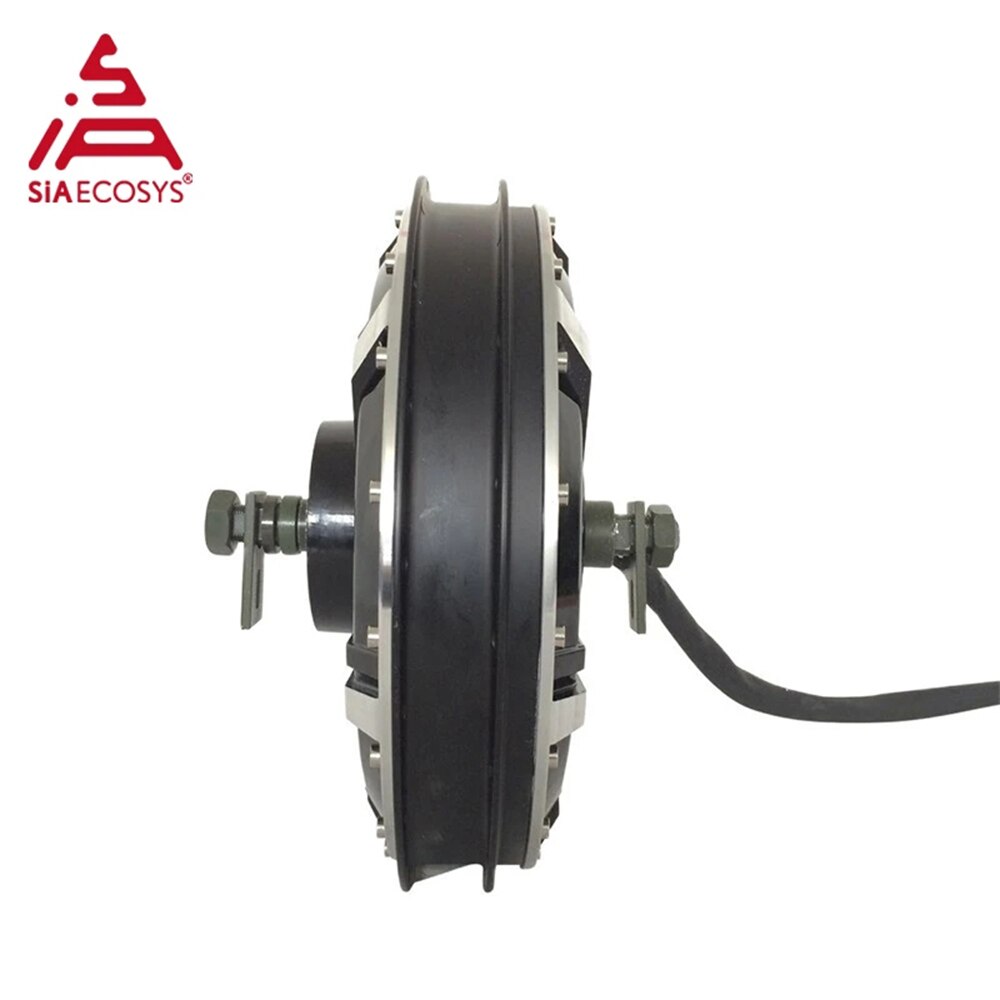

  • QS 273 200mm drop-outs e-motorcycle spoke hub motor



Test Report

For reference only

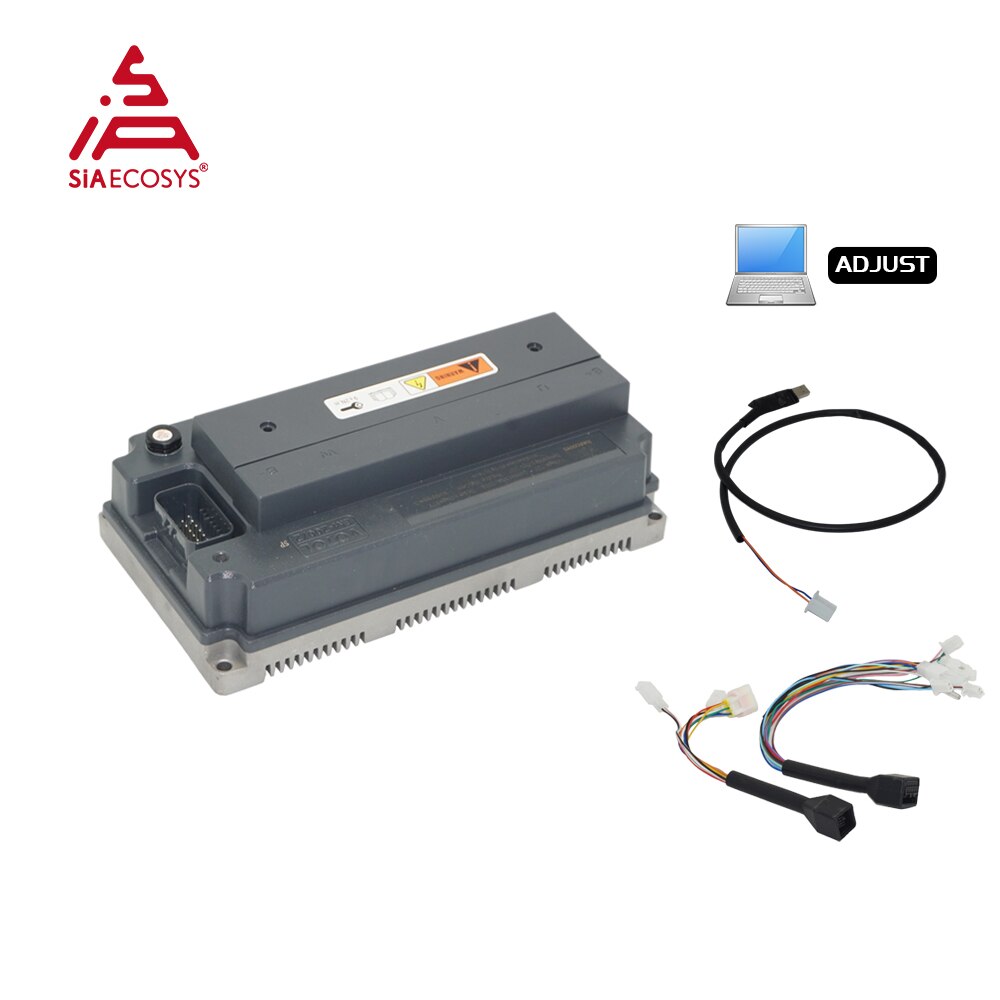

2.EM200-2SPController

EM200-2sp is cost effective controller with waterproofing grade IP67, suit for 4-8kW motors.

 Spec

Drawing

Harness Definition



USB Cable

Software interface(APP)

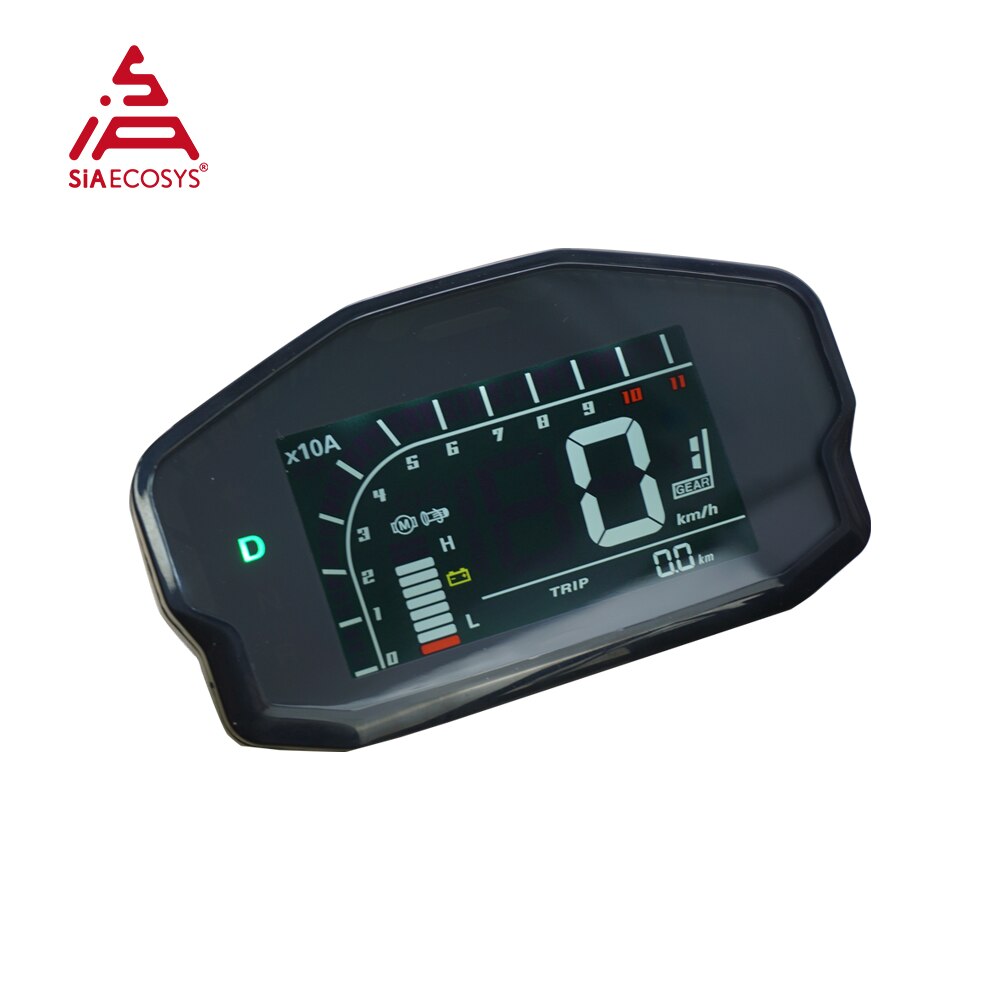

3. DKD LCD speedometer

Key Features

Both CAN and LIN communication are supported

Product Description

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

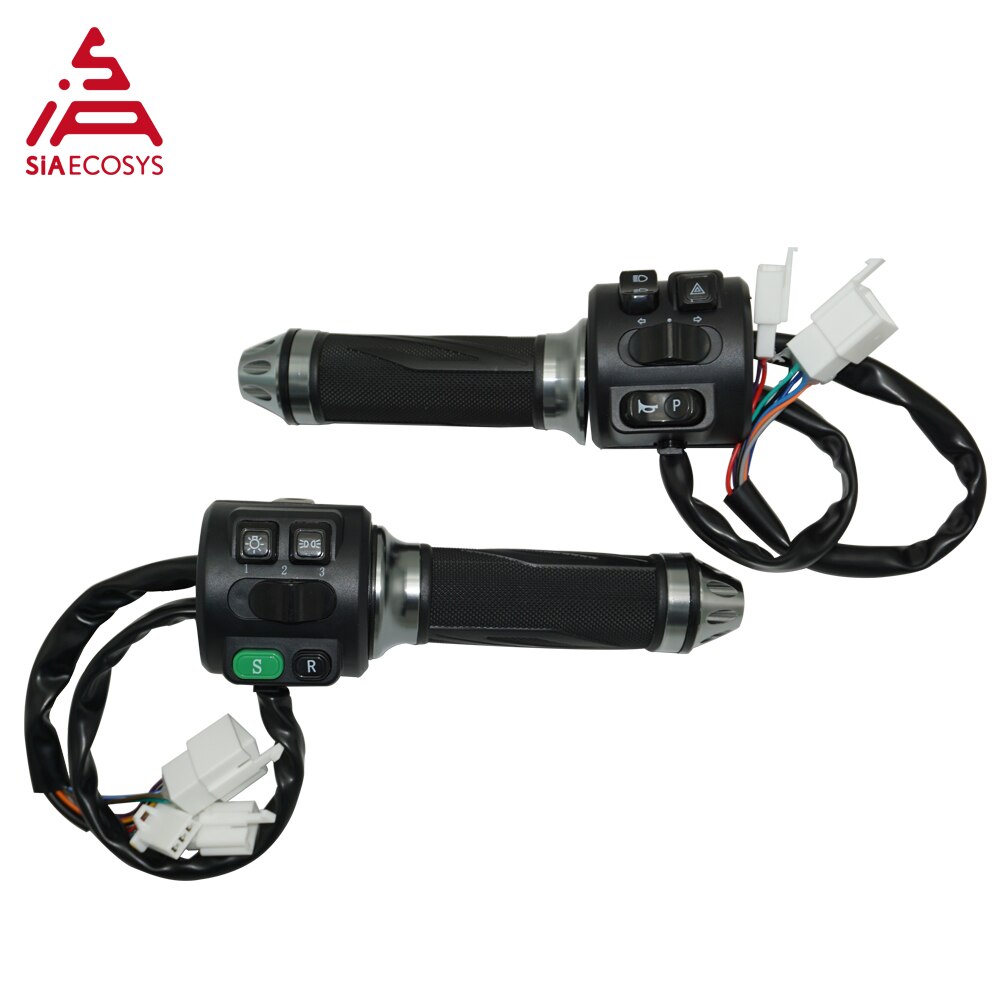

4. Z6 throttle with combination switch

Basic Parameters

Color: black

Rated operating voltage: DC+5V

Current: DC 10mA

Main material: ABS PVC

Right throttle pull force/ left handle pull pull force: ≥200N / ≥200N

Torsional strength: ≥ 9N.m

Output voltage: 0.8 ~ 4.2V

Service life: ≥100,000 times

Waterproof rating: IPX6

Number of core cable:5

Type of switch: half twist, with meter and key

Inner diameter of throttle: 22mm

Function

With Reverse, Parking button(throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.



Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.



Conversion kits for 273 8kW E-Motorycle Spoke hub motor

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.



Conversion kits for 273 8kW E-Motorycle Spoke hub motor

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

Application for E-Motorcycle hub motor
