QSMOTOR 120 2kW 72V60KPH PMSM Mid Drive Motor Sprocket and Belt Type

$503.00

QSMOTOR 120 2kW 72V60KPH PMSM Mid Drive Motor Sprocket and Belt Type



For 120 2000W mid drive motor kit assembly, it could be used for electric scooter, electric motorcycle.

It could be 72V 60KPH.

It can be designed as belt driven and sprocket design


NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

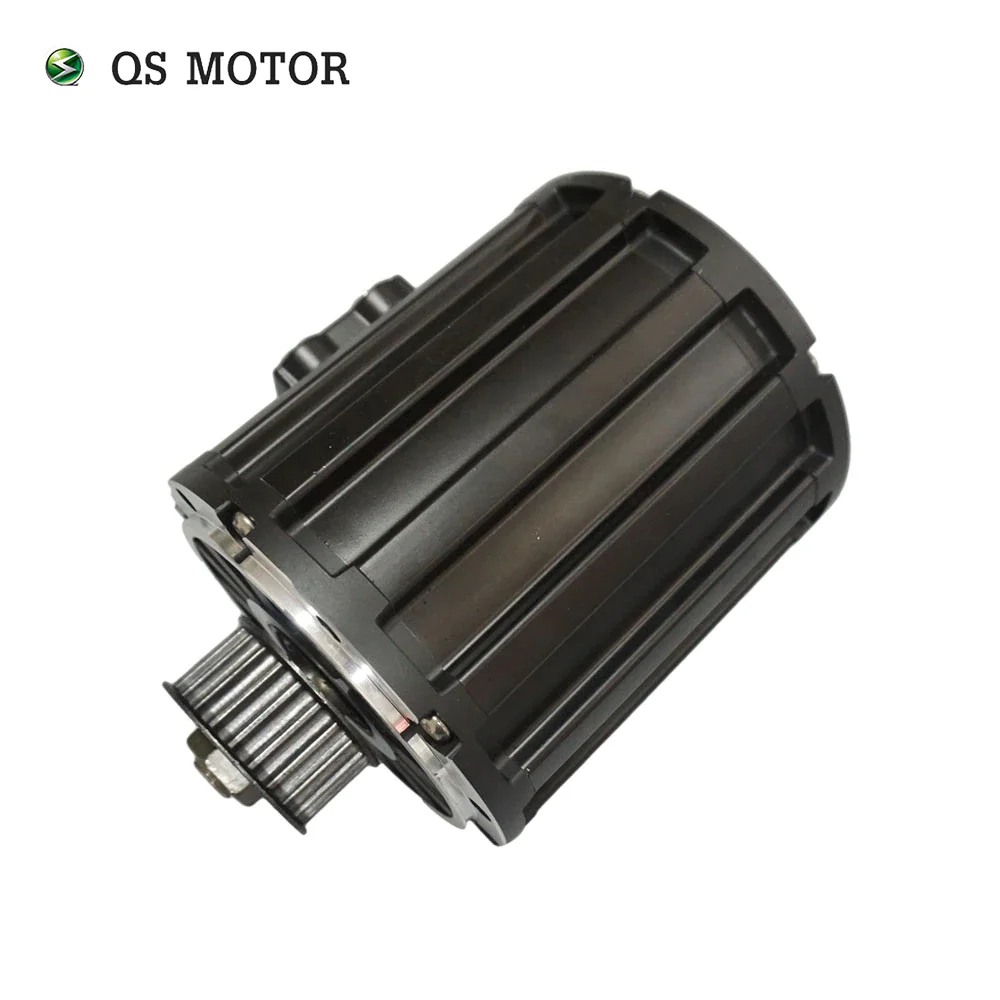

Belt Type with 22T Belt Pully

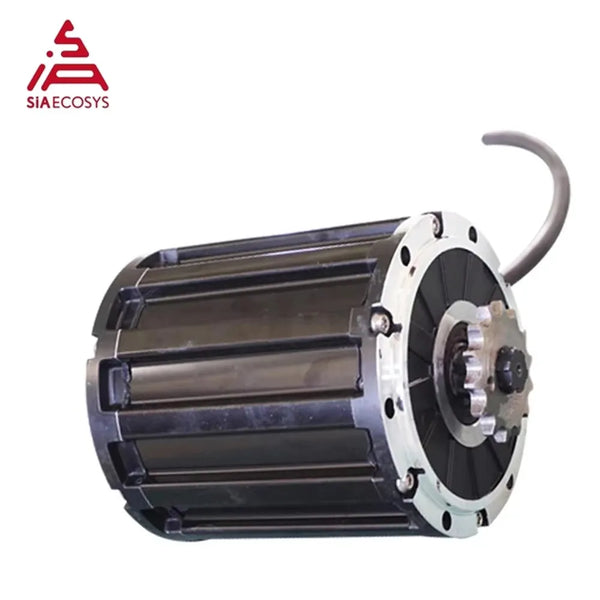

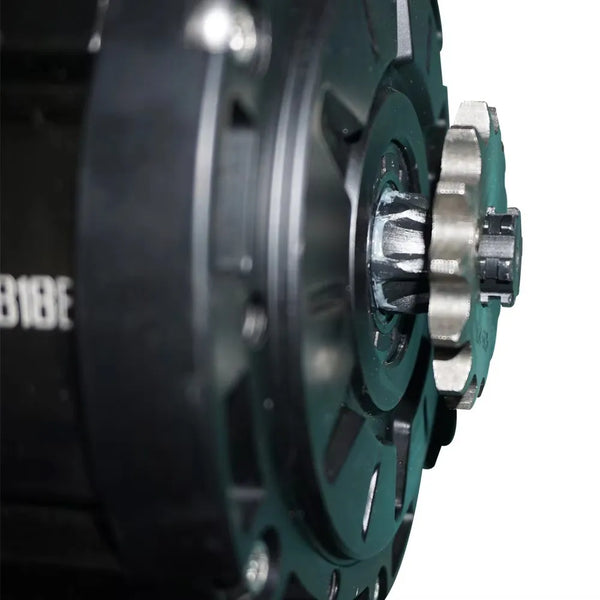

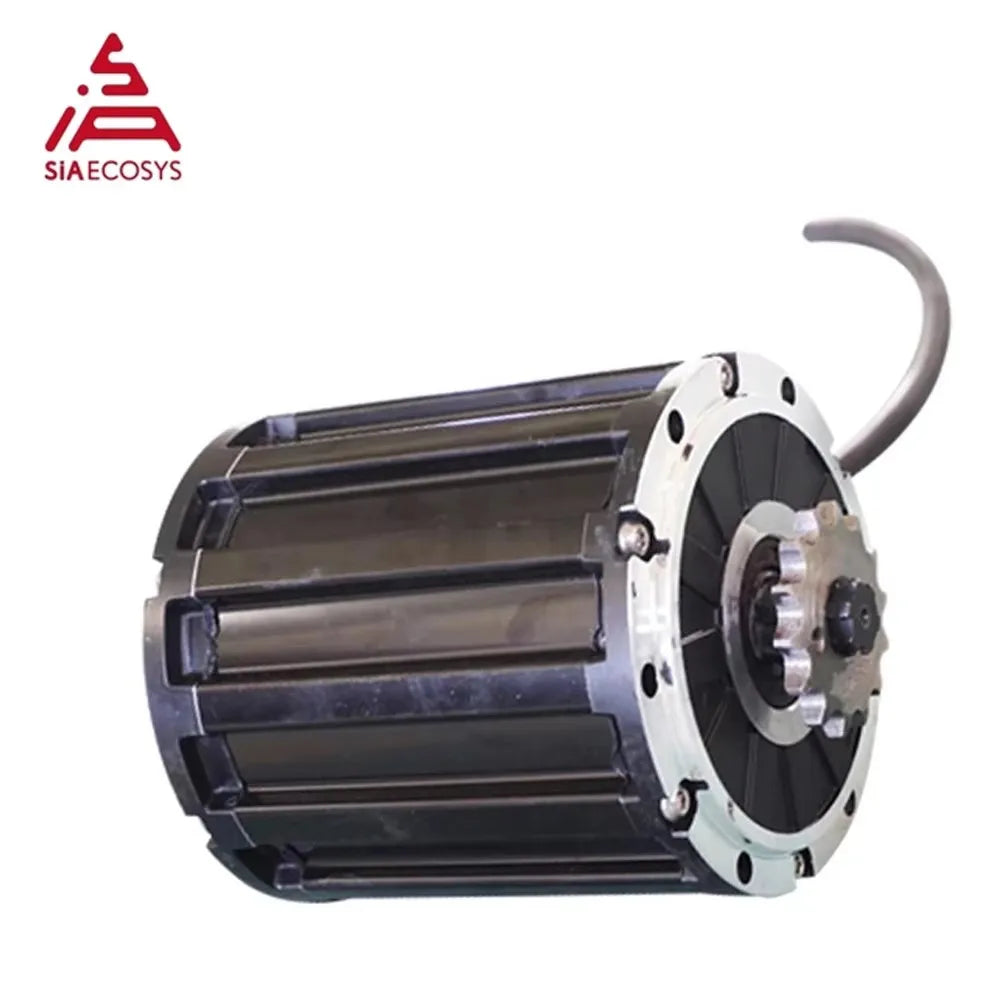

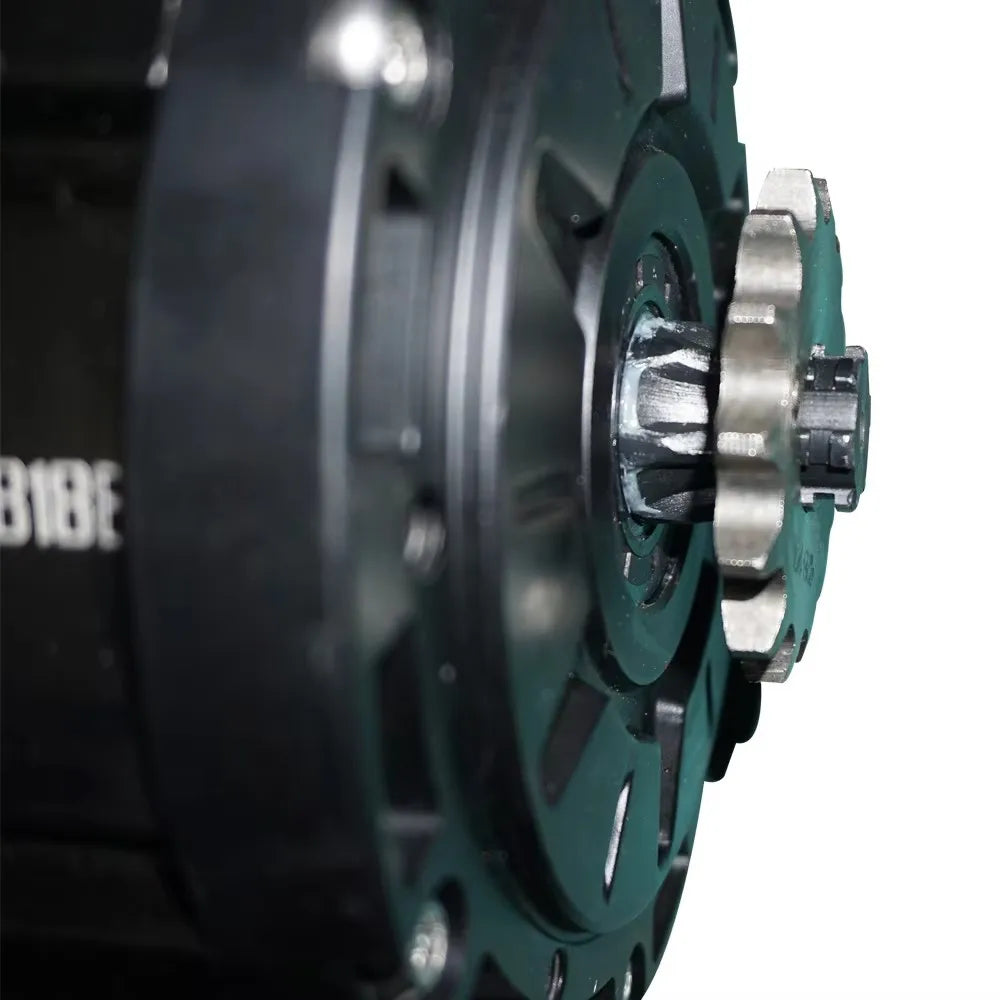

Sprocket Type with 428 14T Sprocket


Key Features


1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



Product description


Genearlly Spec:


  1. Item: QS Motor 2000W 120 70H Mid Drive Motor

  2. Motor Type:BLDC Permanent Magnet Inner Rotor Motor With Hall Sensor

  3. Brand: QS Motor, QSMOTOR

  4. Motor Design: Single axle

  5. Matched Wheel: 12inch Wheel (as default)

  6. Magnet Height: 70mm,5pole pairs

  7. Diameter of stator: 120mm

  8. Rated Power: 2000W

  9. Rated Voltage: 72V as default

  10. Speed: 60KPH

  11. No-load rpm: 2800rpm without flux weakening, 4400RPM with flux weakening.

  12. Max Torque: approx 45.4N.m without Reduction ratio, approx 216.7N.m with 1:4.77 Reduction ratio

  13. Reduction ratio: 1:4.77 (as default)

  14. Max Efficiency: 88%

  15. Continuous Battery Current: pending (72V)

  16. Peak Battery Current: 60A (72V)

  17. Suggest Peak Phase Current: 250A

  18. Thermic Probe: KTY83/122 as default

  19. Working Temperature: Pending

  20. Single Hall Plate with waterproof connectors

  21. 8mm² Cross Section of Phase Wire (not include insulation layer)

  22. Hall Sensor Phasing angle: 120 degree

  23. Waterproof Grade: IP67

  24. Color: Black

  25. N.W./G.W.: 10.8kgs/11.5kgs

  26. Package Dimension: 34cm*34cm*33cm

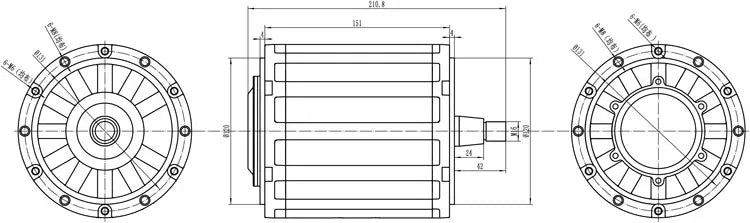

Dimension Drawing:


  • QS 2kW 120 mid drive motor belt driven



Please noted:Please noted:


Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

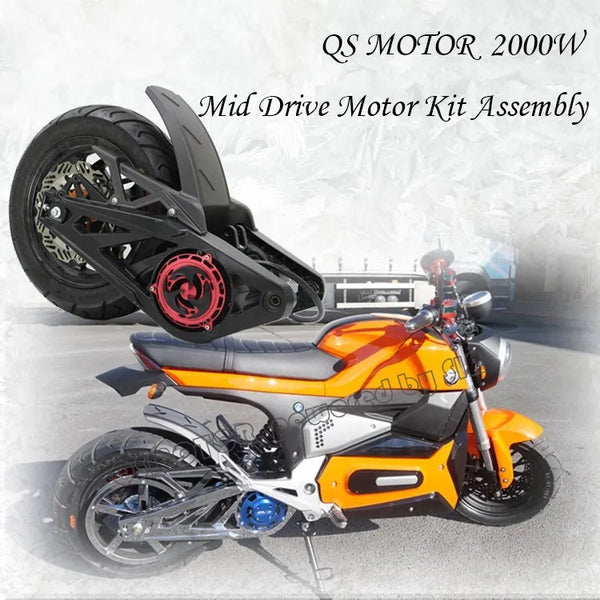

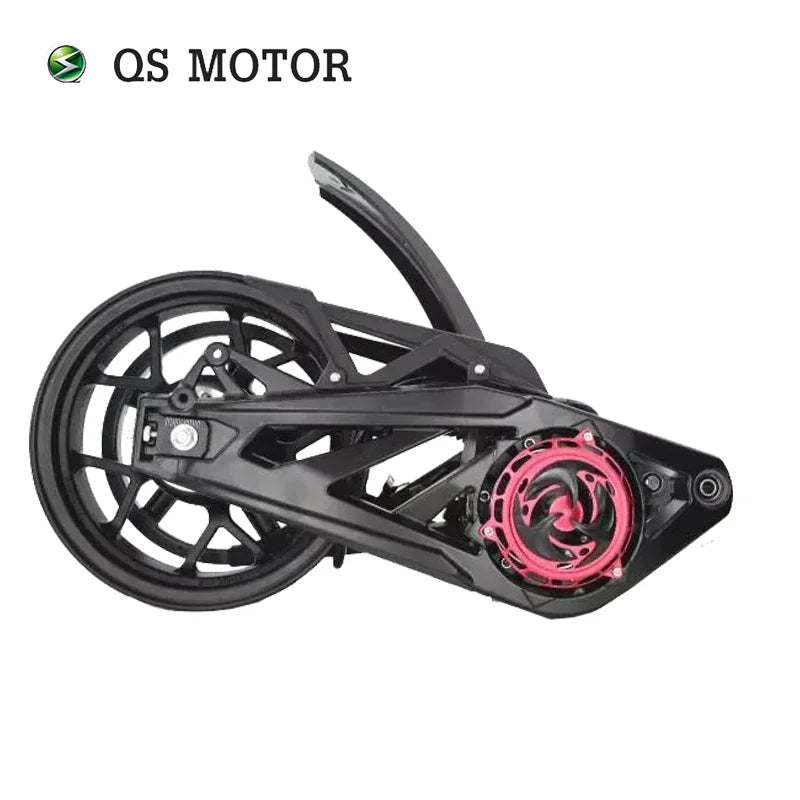

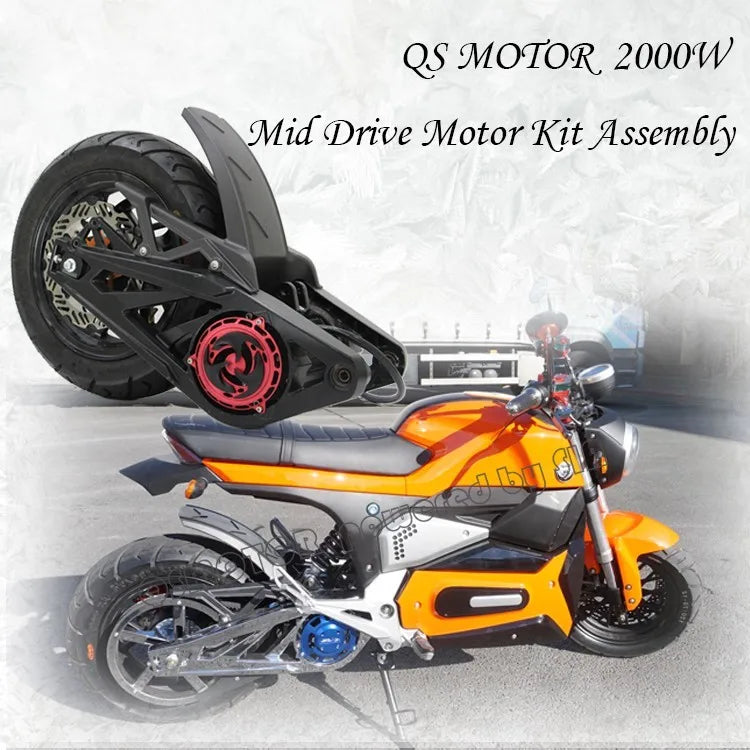

For 2kW belt driven mid drive motor, there has matched assemble kits.

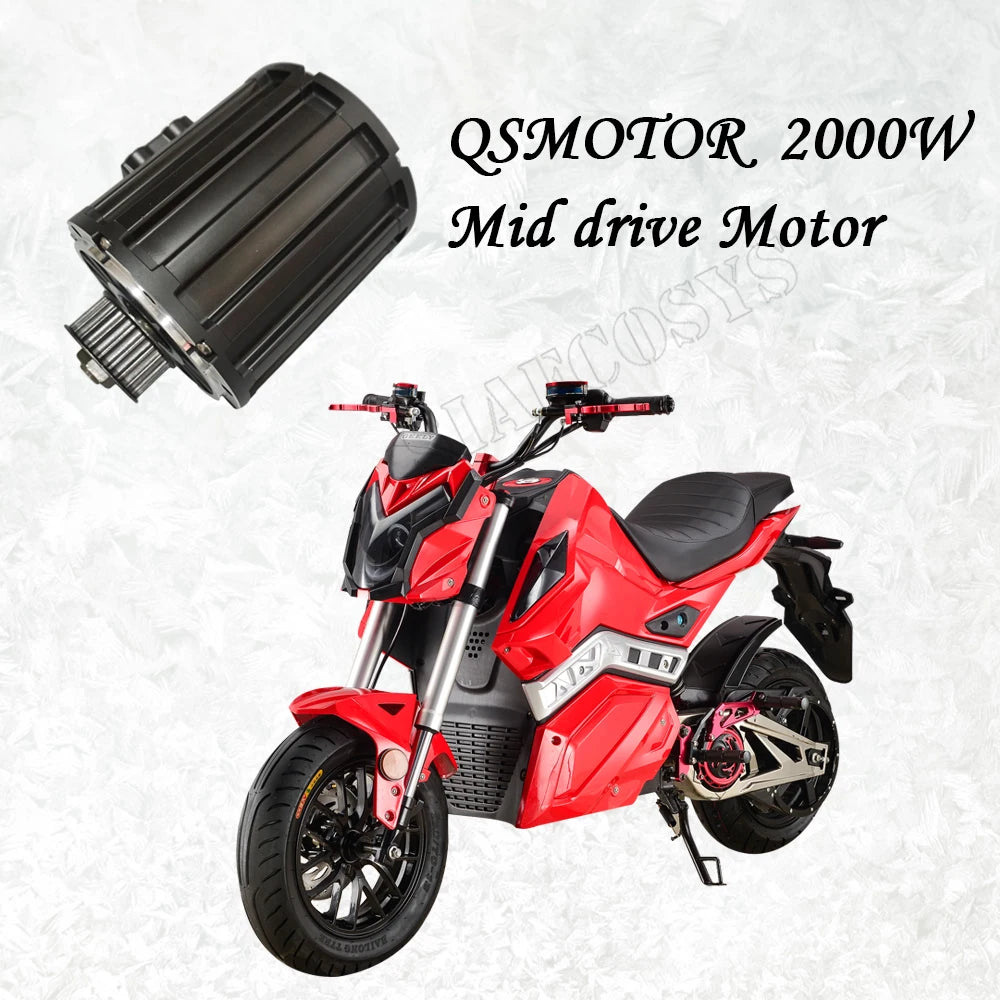

Application for 2kW mid drive motor
