QSKLS7230S controller (customized for TFT speedometer) with USB adapter

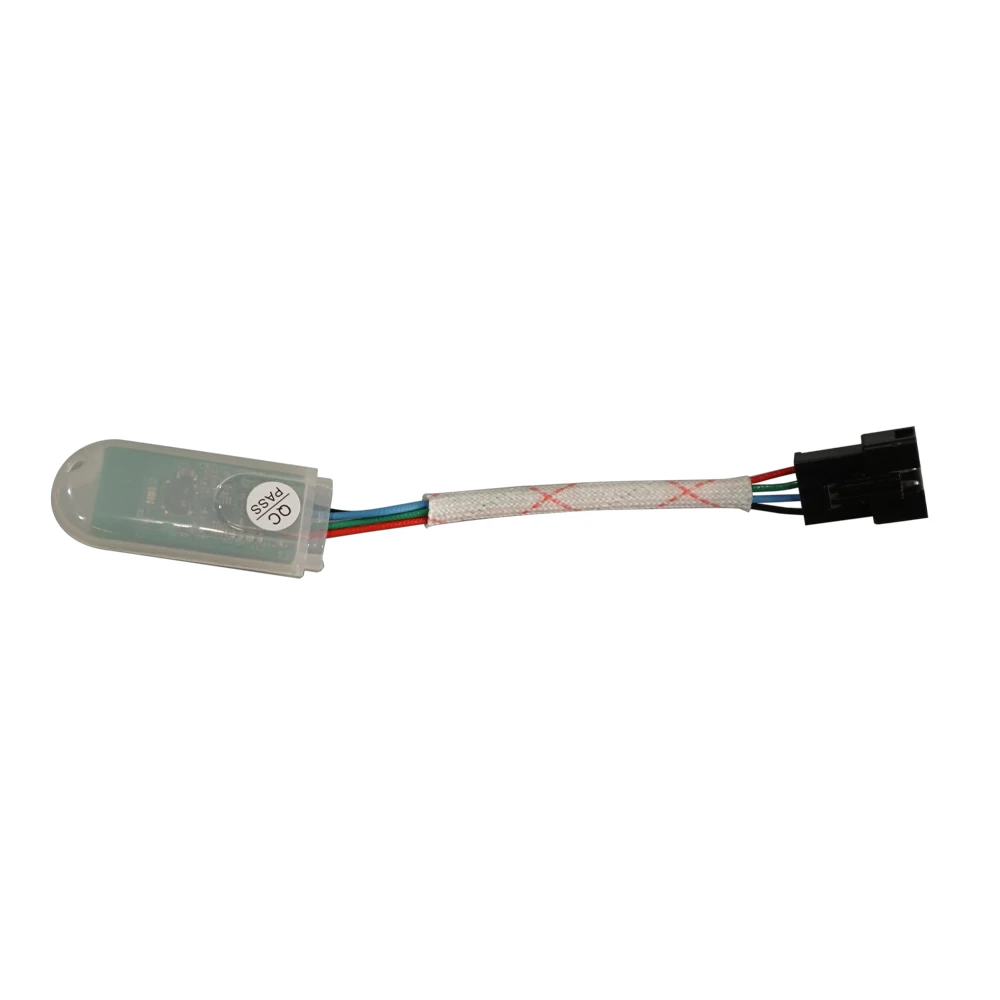

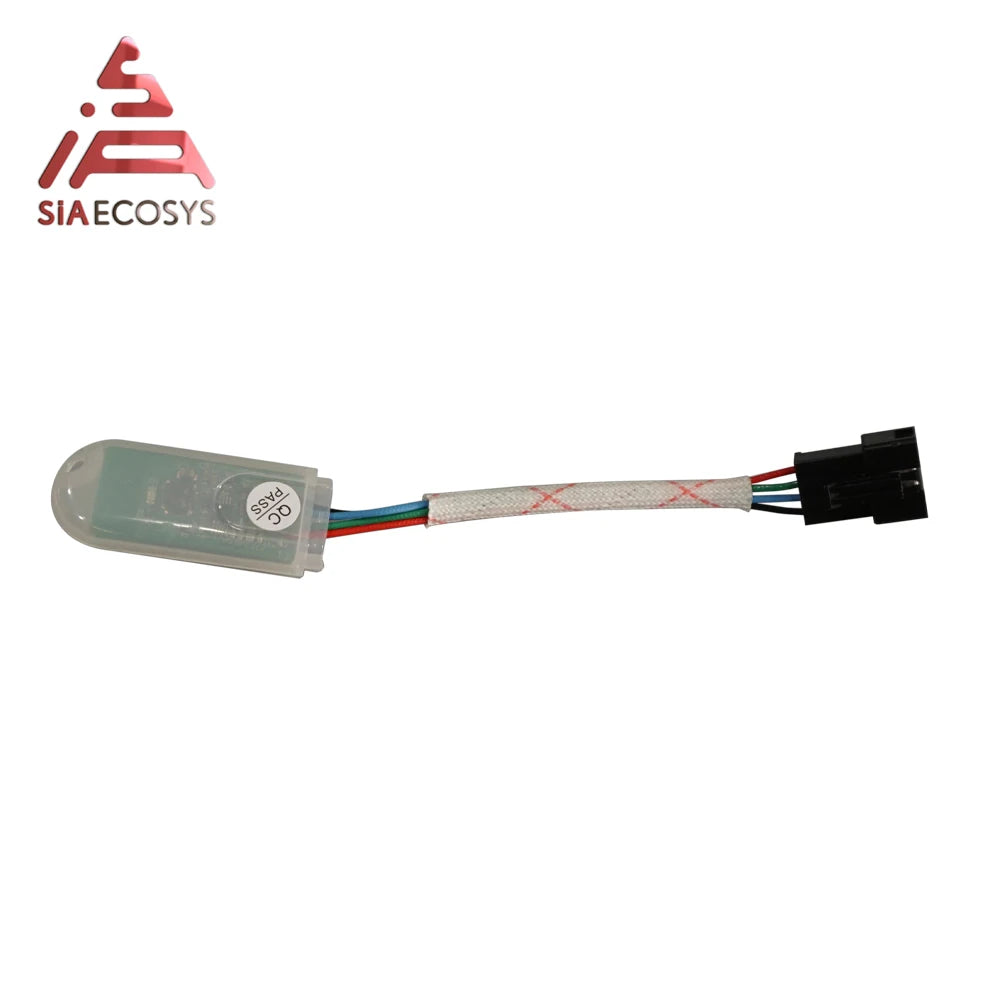

QSKLS7230S controller (customized for TFT speedometer) with bluetooth adapter

It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 3000W.

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

Key Features

1). Very Easy connect

2). Can match with almost brushless DC motor

3). Soft start can be adjusted

4). Programmable by bluetooth

5). Warranty for mass order: If any quality issue for controller cannot drive the motor when received, we will send new one with your next order for replacement.

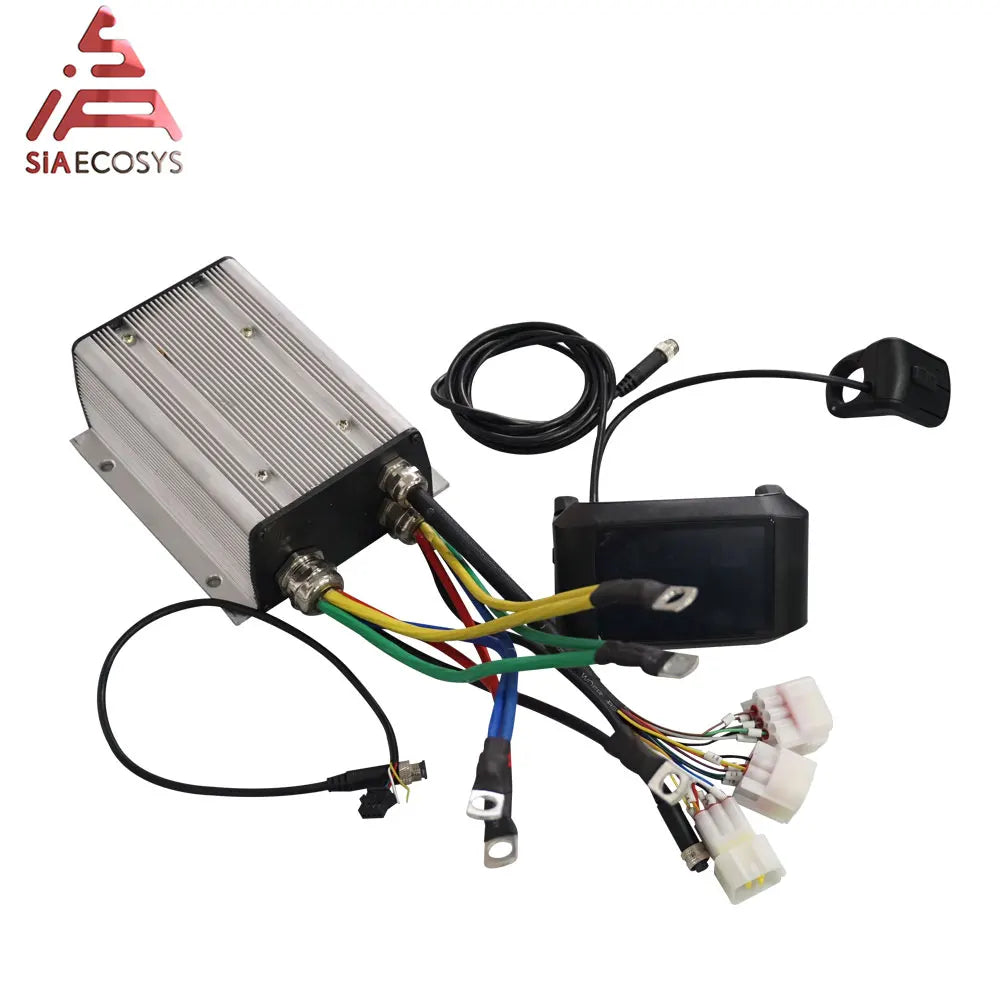

One kits including below parts

1pcs QSKLS7230S Controller without bluetooth

1pcs TFT750c Dispaly

Product Description

1). Genearlly Specification for controller

• 1. Sine wave controller, programmable, with regen function

• 2. Motor Current Limit, 20 seconds: 300A

• 3. Motor Current Limit, continuous: 120A

• 4. Thermic Probe: KTY83-122

• 5. Including one controller + USB convertor cable + matched plug

• 6. Controller size: 140mm*123mm*58.5mm

• 7. Net weight: 1.82kg

• 8. Waterproof IP54

• 9. Default not including bluetooth, waterproof(those function are optional); CAN BUS not support

• 10. Work voltage: 18V~90V; Rated voltage: 24V~72V

For the bluetooth, you can buy via this link: https://www.aliexpress.com/item/4001230077349.html?spm=5261.ProductManageOnline.0.0.331b4edfqLu7vS

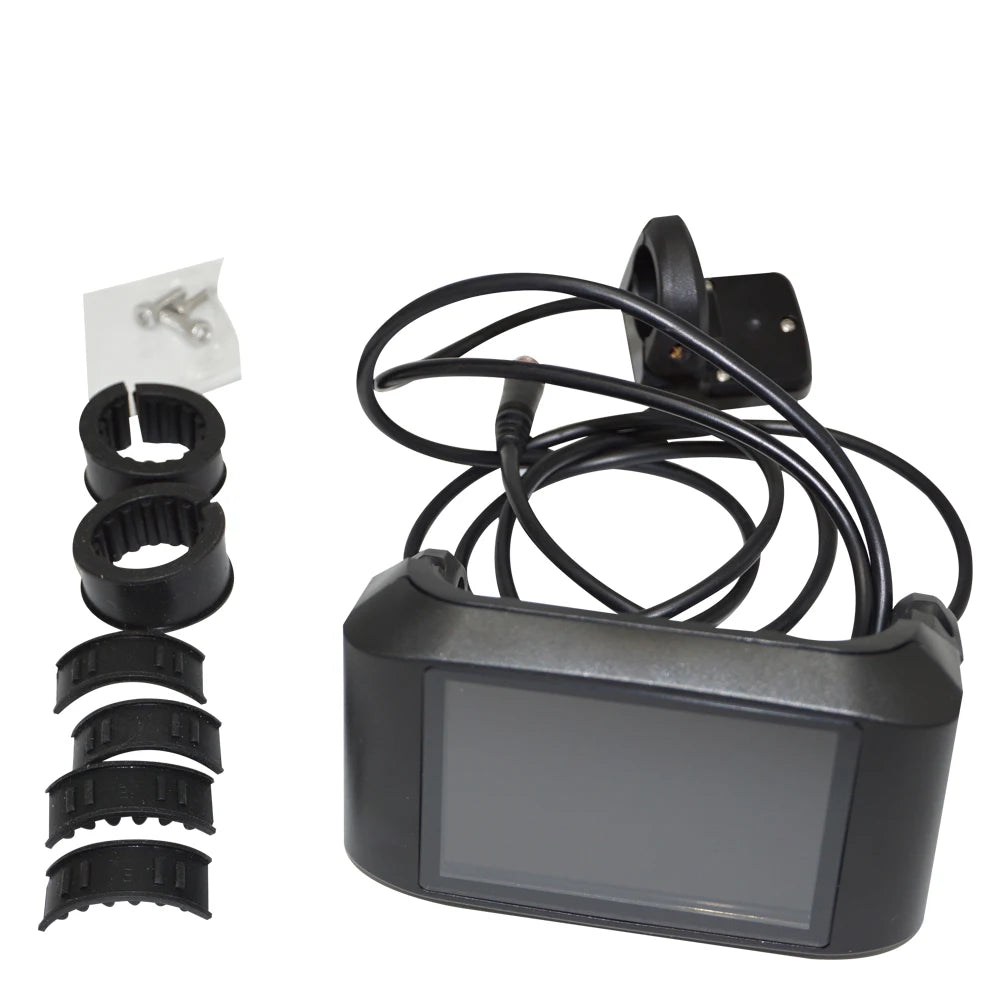

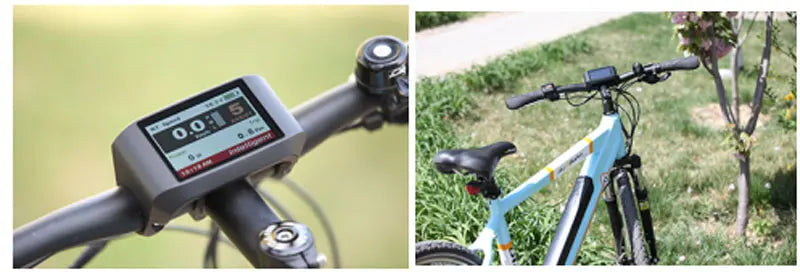

2. Genearlly description for display

·Suitable for low temperature，Max -20℃.

·High-contrast 3.2inch IPS colorful matrix screen.

·Ergonomic external button design, easy to operate.

·Speed display: AVG SPEED, MAX SPEED, SPEED (Real-time).

·Kilometer / Mile: Can be set according to customers’ habits.

·Smart battery indicator: Provide a reliable battery indicator.

·3-speed

·Mileage indicator: Odometer/ Trip distance/ Clock/ Riding time/ Range.

·Power indicator: real time power indicator, digital or analog.

·Software upgraded: Software can be upgraded through UART.

3). Questions before order

1. If you want to buy the controller separately, please advise us the parameters of your matching motor?

Such as Motor Voltage, Wattage, Speed...

2. If you need any other special functions for this controller, please feel free to contact to us. Thank you!
