QS273 8000W V4 72V E-Motorcycle Spoke Hub Motor120kph High Speed with EM200-2 Controller Conversion Kit
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
For 273 spoke hub motor, the dropout is 200mm, it could be used for electric motorcycle, high power electric motorcycle.
For 200mm dropout 273 spoke hub motor, we can provide from 3000W-8000W.
One set including below kits

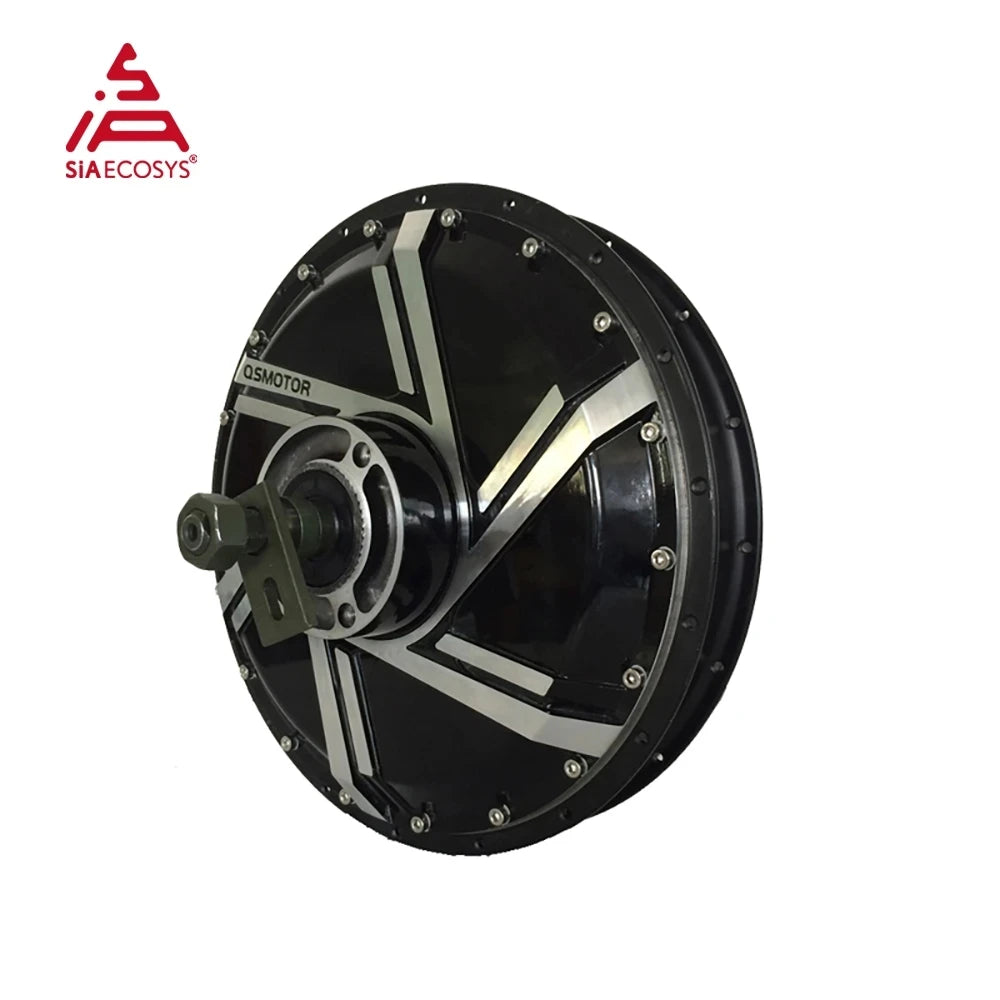

1. 1pcs X QSMOTOR 273 8000W V4 E-motorcycle spoke hub motor
2. 1pcs X EM200-2 controller
3. 1pcs X DKD Speedometer
4. 1pcs X Z6 Throttle with Combination Switch
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~94%
Product Description

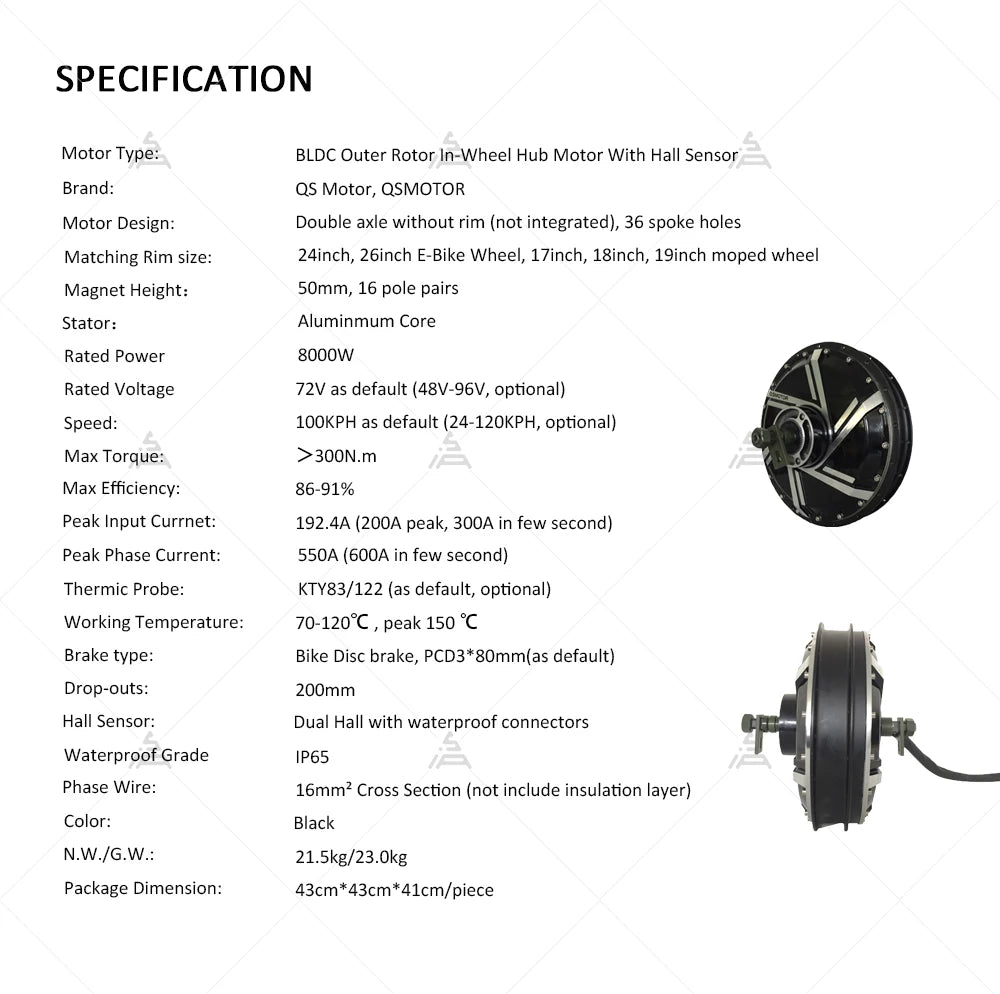

1.QS273 8000W V4 E-motorcycle spoke hub motor Spec
Drawing
QS 273 200mm drop-outs e-motorcycle spoke hub motor
Test Report
For reference only(273 8kw V4+ND72800)
2.EM200-2 controller
EM200-2sp is cost effective controller with waterproofing grade IP67, suit for 4-8kW motors.
Spec
Drawing

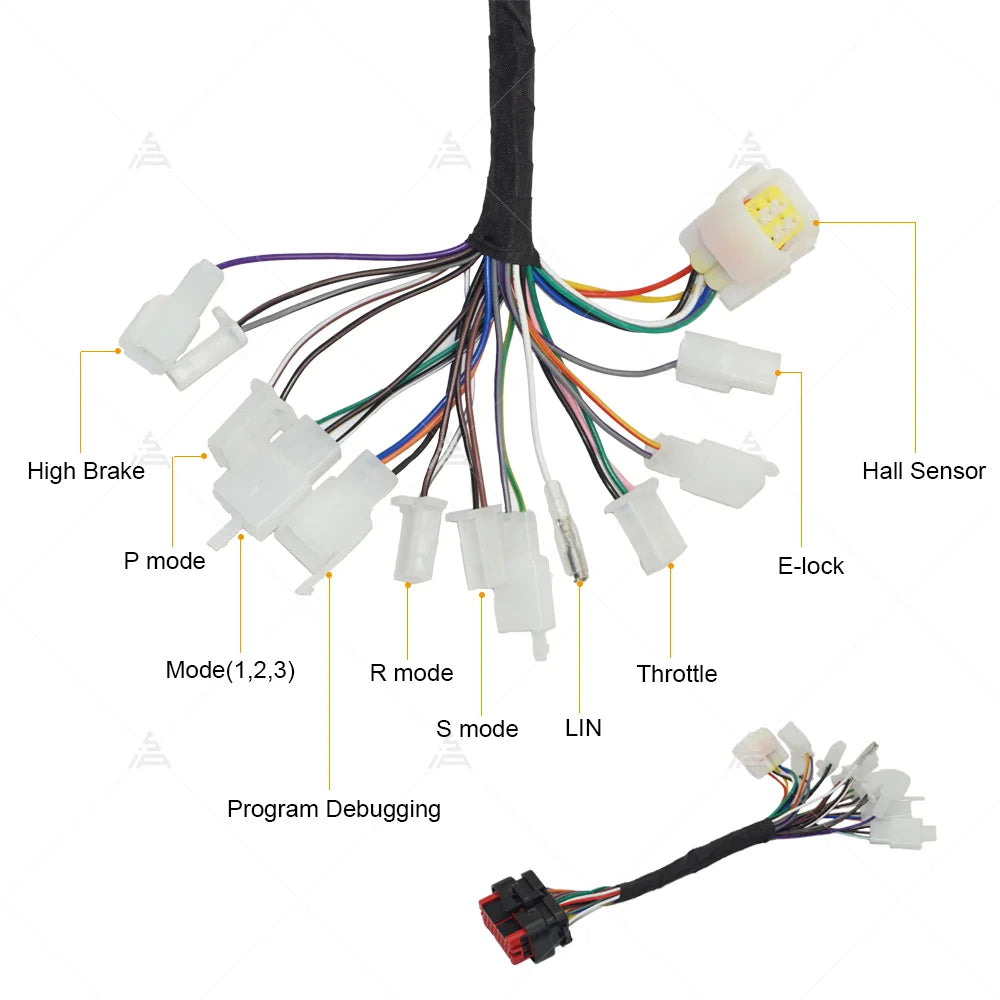

Harness Definition
USB Cable
Software interface（APP）

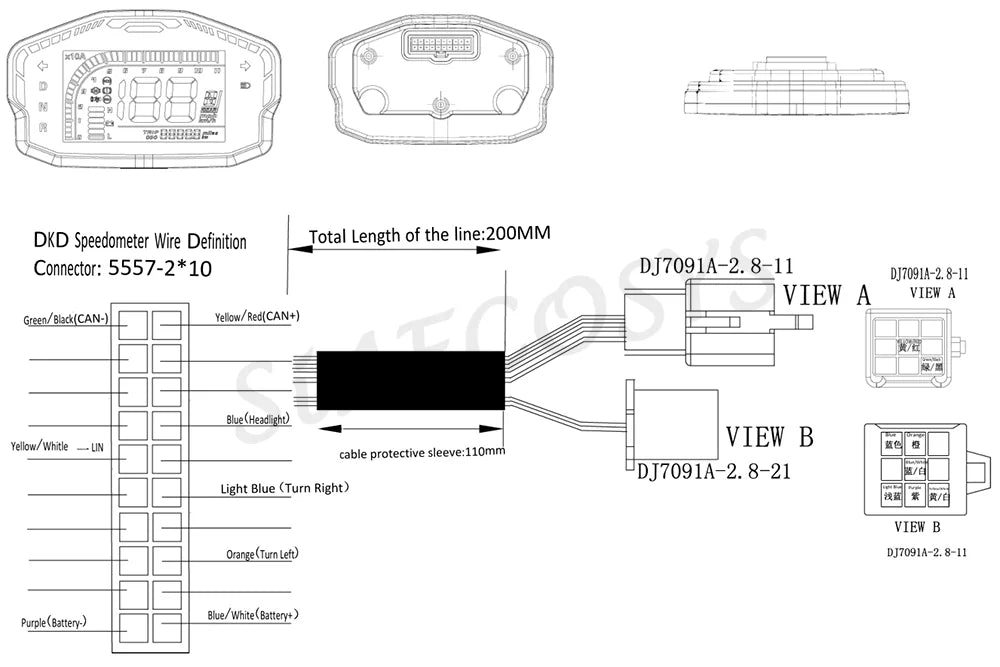

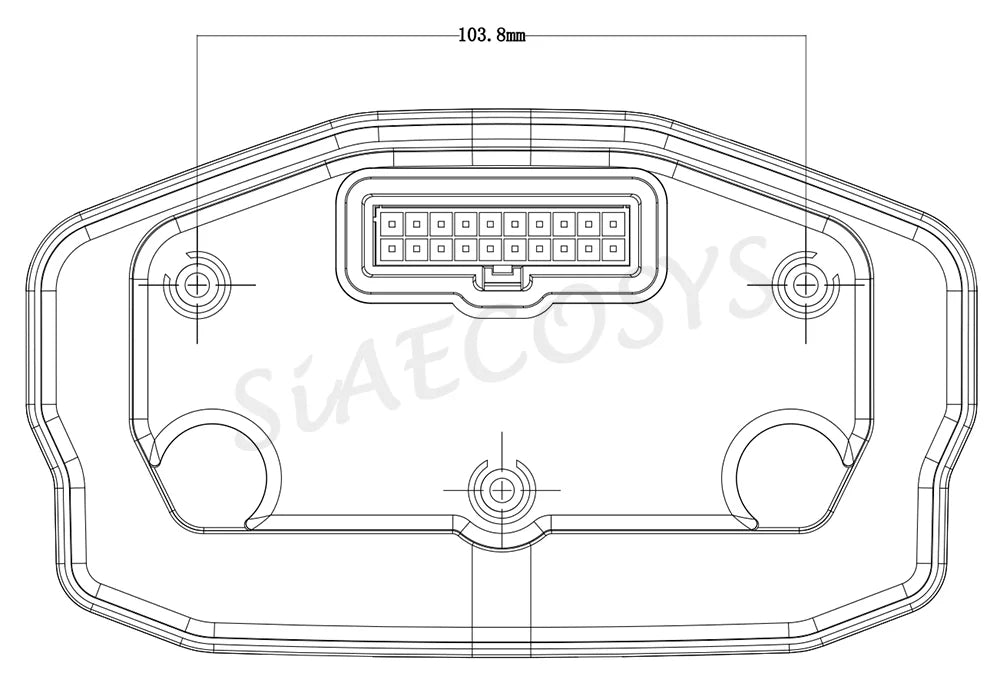

3. DKD LCD speedometer
Key Features
Both CAN and LIN communication are supported
Product Description
It display D N R, P, S gear, and battery current X5/10.
P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

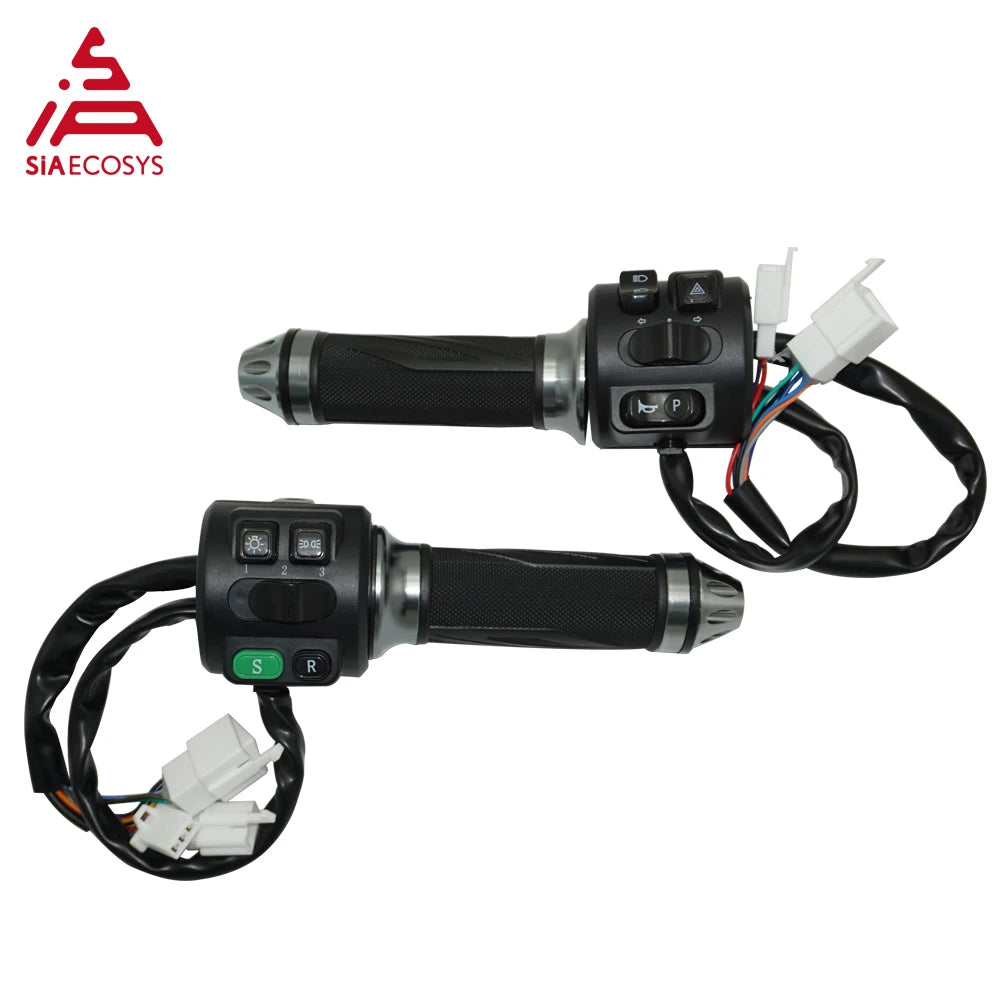

4. Z6 throttle with combination switch
Basic Parameters
Color: black
Rated operating voltage: DC+5V
Current: DC 10mA
Main material: ABS PVC
Right throttle pull force/ left handle pull pull force: ≥200N / ≥200N
Torsional strength: ≥ 9N.m
Output voltage: 0.8 ~ 4.2V
Service life: ≥100,000 times
Waterproof rating: IPX6
Number of core cable:5
Type of switch: half twist, with meter and key
Inner diameter of throttle: 22mm
Function
With Reverse, Parking button(throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with VOTOL controller well.
Programmable Software & User manual (Before you received the controller)
Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
A note to client
1. Please contact seller confirm the parameter, otherwise we will produce as default.
2. Please extended 15 days more at least for order prepare when motor no in stock. (Most of motor is customized based on application, without in stock).
3. When place order please leave email address, for seller provide manual.
4. Please read manual careful before using motor and controller, and if meet problem please contact seller in time, and don't disassemble cargo without seller permit, otherwise there will be no warranty.
