QS 50H 48-72V 5000W Electric Fat Bike Kit Snow Wheel 20 24 26 inch 4.0 Tyre Brushless Hub Motor Bicycle Conversion Kit Fit Super73, Sabvoton Programmable Controller with Alarm&Lock
Packaging list
1. QS 48-72V 5000W 150mm Fat Electric bike rear hub motor wheel

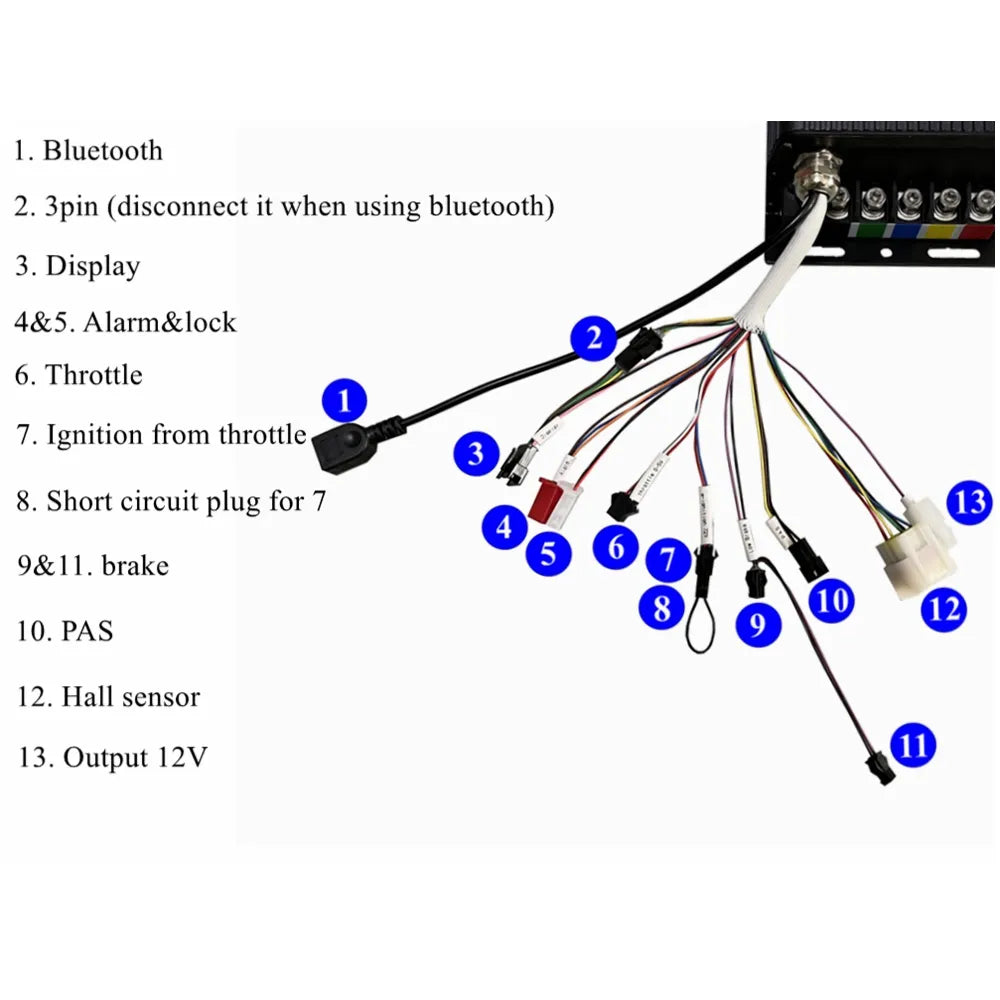

2. Sabvoton 72V 100A programmable controller
3. New version UKC1+ display
4. Bluetooth
5. Wuxing brake lever (can change to brake sensor)
6. Full twist throttle with ignition (can change to half twist throttle with ignition)
7. Single speed freewheel
8. M16 Torque arm
9. 8 magnets PAS
10. User manual

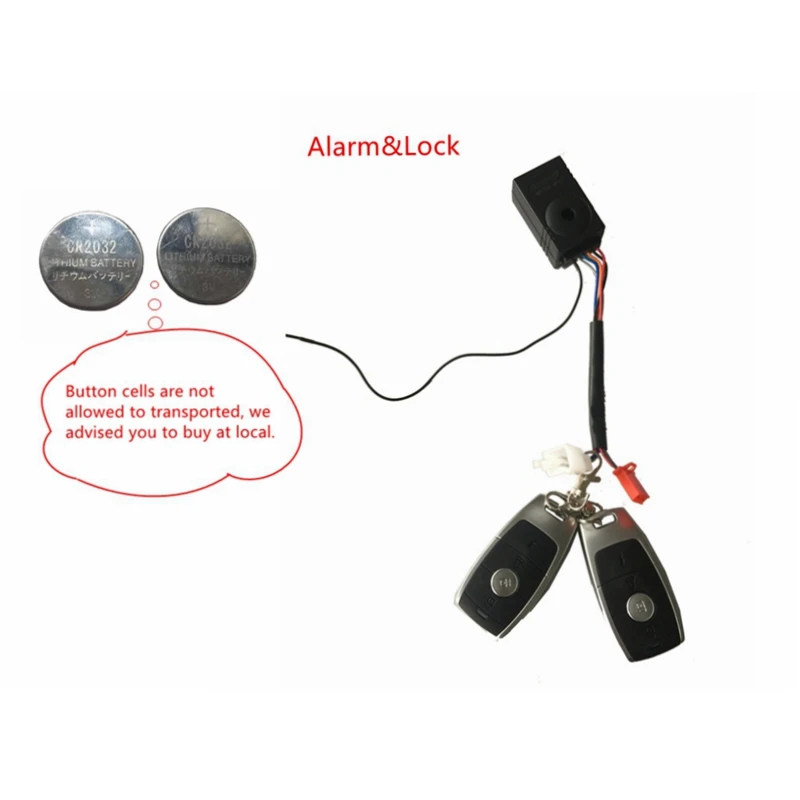

11. Alarm&lock as a gift for followers
QS motor specification
Motor Type: BLDC In-Wheel Hub Motor
Motor Design: Double Axle with Rim(integrated)
Matched Tire: 17-29inch
PCD: 6*44mm
Stator: Aluminum Core
Rated Power: 5000W
Peak Power: 6000W in few seconds
Rated Voltage: 72V
Speed: 860rpm
Drop-outs: 150mm
Max Torque: approx 181N.m
Max Efficiency: approx 91%
Thermic Probe: KTY83/122(as default)
Working Temperature: 70-120℃, peak 150℃
Brake Type: Disc Brake
Hall Sensor: Dual hall set with waterproof connector
Phase Wire:2*5mm⊃2;Cross
Hall Sensor Phasing Angle: 120 degree
Waterproof Grade: IP65
Color: Black
Pole Pairs: 16
For the option of Seller's shipping method, It is sea or rail shipping, usually take 1.5months to arrive, please noted.
