QS/SIA E-Bike 3KW Spoke Hub Motor Laced Into 17x1.6inch Moped Wheel Rim With SIA7230 Controller And Conversion Kits

Regular price $1,194.68

New Arrival SiAECOSYS QSMOTOR V3TI V3I 3000W 72V 70kph Hub Motor laced into 17x1.6inch moped wheel with SIA7230 controller and kits for E-Bike

For 3000W  E-Bike kits, it could be used for Electric Bike, which could be 72V 70KPH.

e.g. Electric high power bicycle

E-bike weight, approx 47kg+80kg

Tire model: 2.50-17

Speed: 72V 80km/h

Climbing slope: 25°@127kg

Battery: 72V40h lithium battery

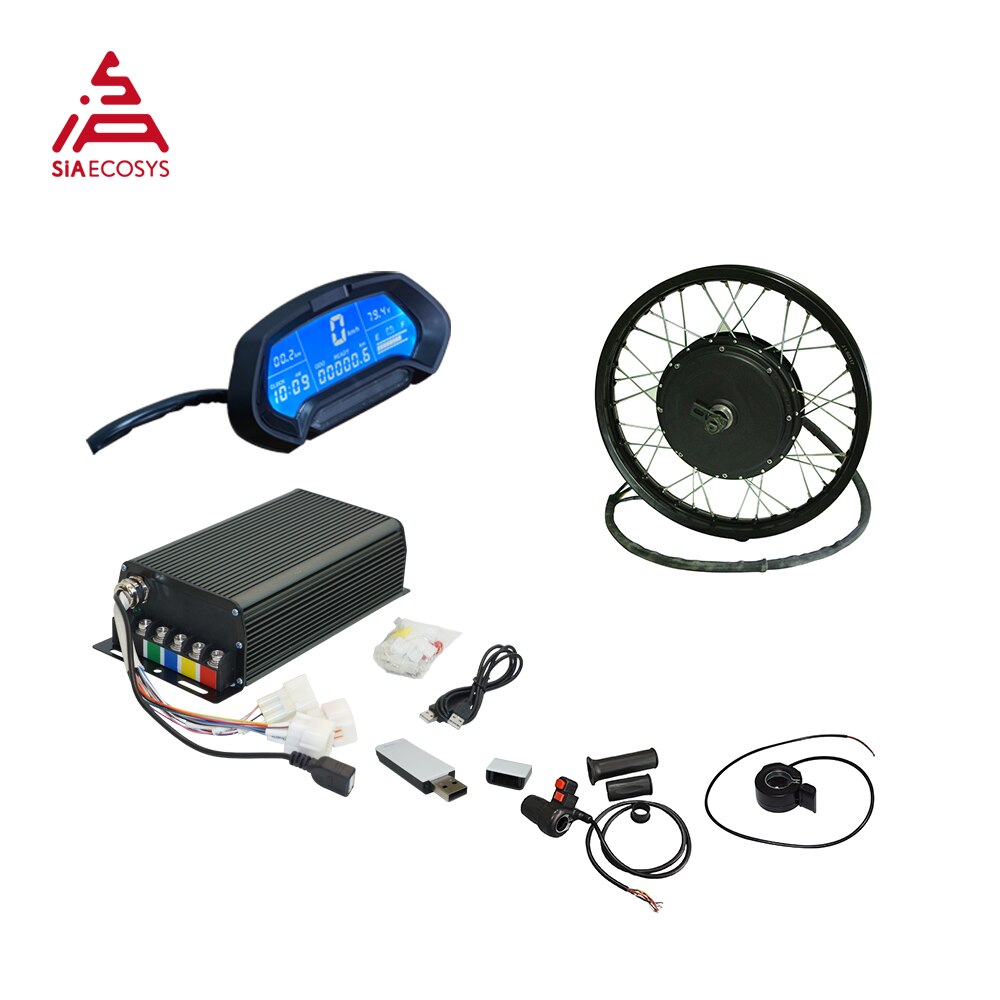

One set including below kits

Combo1.

1. 1pcs X QSMOTOR V3TI 3000W electric wheel hub motor

2. 1pcs X SIA7230 sine wave motor controller

3. 1pcs X CT-22 speedometer

4. 1pcs X Bluetooth adapter

5. 1pcs X Half Twist Throttle

6. 1pcs X Thumb Throttle

7. 1pcs X Spacer

8. 1pcs X 17*1.6inch moped rear wheel rim



Combo2.

1. 1pcs X QSMOTOR V3I 3000W electric wheel hub motor

2. 1pcs X SIA7230 sine wave motor controller

3. 1pcs X Spacer

4. 1pcs X CT-22 speedometer

5. 1pcs X Bluetooth adapter

6. 1pcs X Half Twist Throttle

7. 1pcs X Thumb Throttle

8. 1pcs X 17*1.6inch moped rear wheel rim



Key Features


1). Simplify to make a electric-bike. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



Product Description

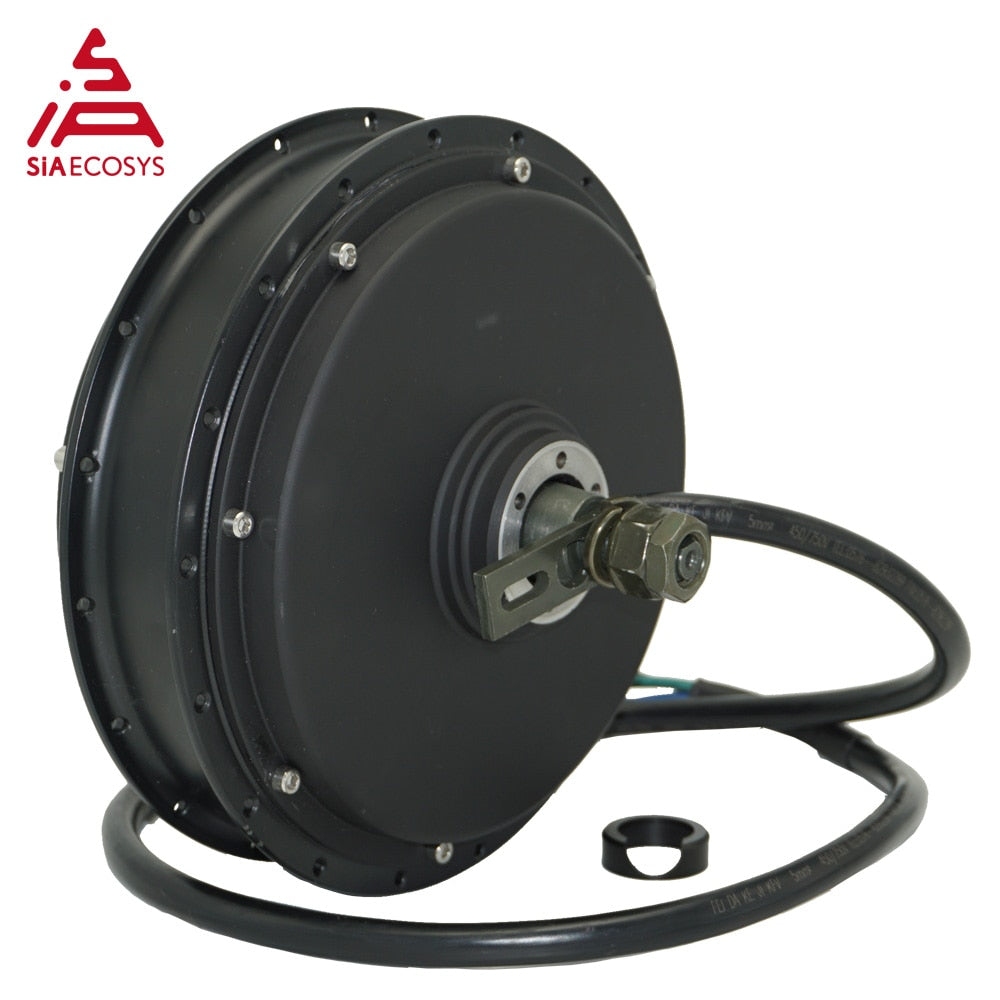

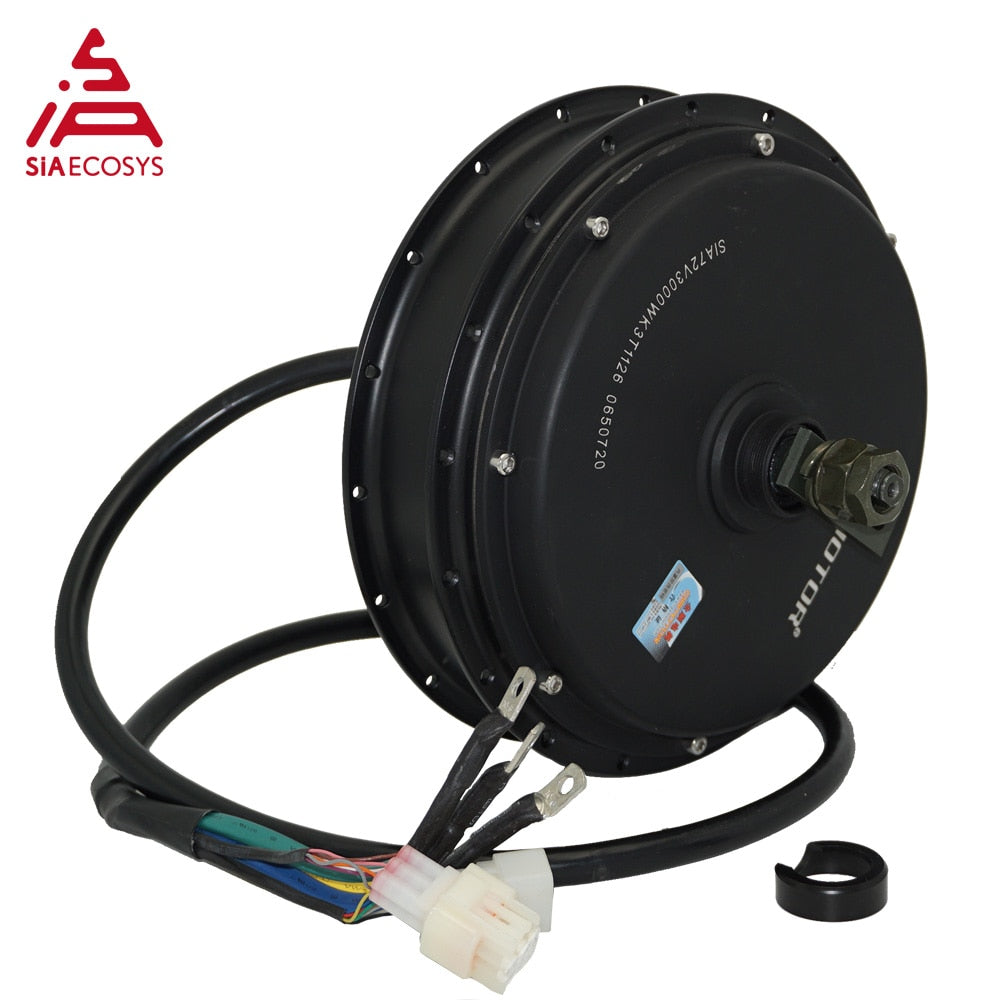

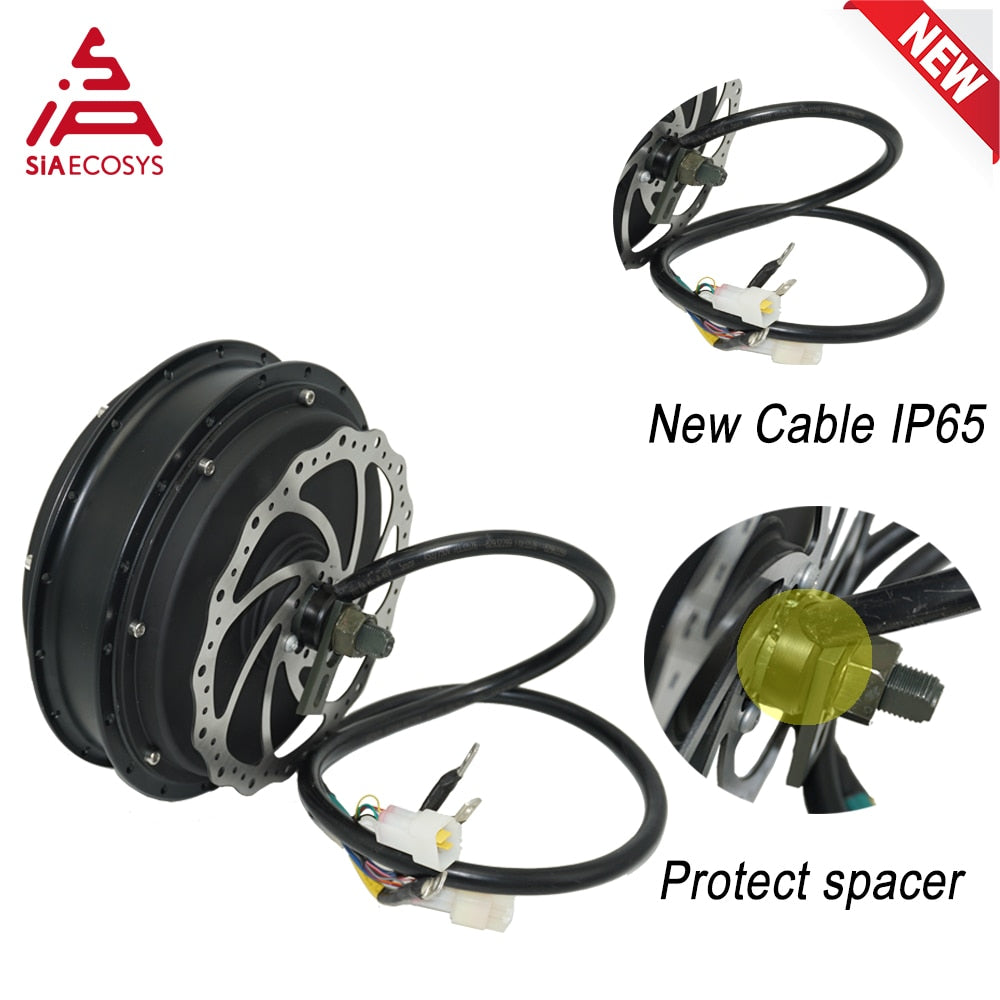

1. QSMOTOR V3TI/V3I 3000W 205 electric wheel hub motor , winding optional 6T/5T/4T

Note: only silver spokes are available now, all orders will be delivered according to silver,please don't order if you mind.

Drawing



Test Report

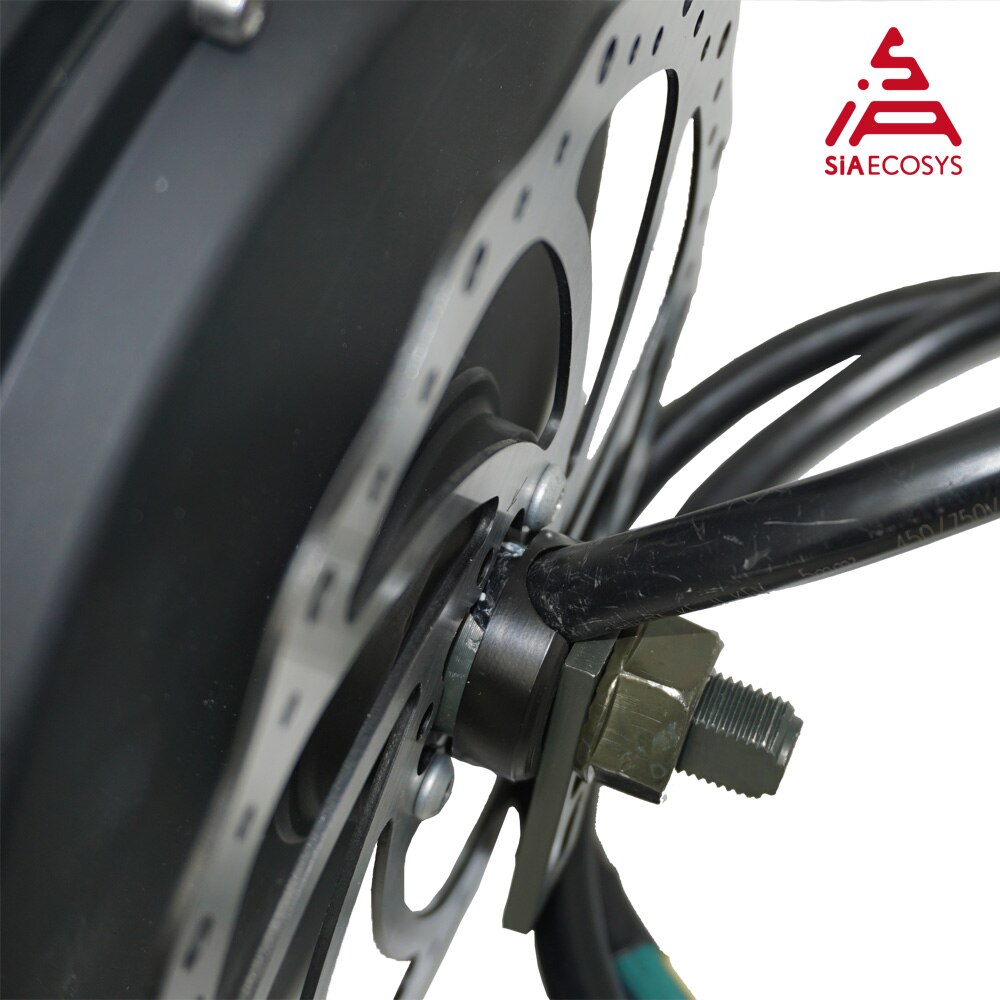

For 205 spoke motor, we provide 1 piece Hex Flange Nuts M16*1.5*13, 1 piece Hex Nuts M16*1.5*7, 1 piece 4mm thick Washer as default.

Option 1: Hex Flange Nuts M16*1.5*13 + Hex Nut M16*1.5*7

Option 2: Hex Flange Nuts M16*1.5*13 + 4mm thick Washer

We suggest option 1, if the motor shaft length is not enough, choose option 2 and make sure the washer is installed and tight, otherwise there is a risk of shaft broken.

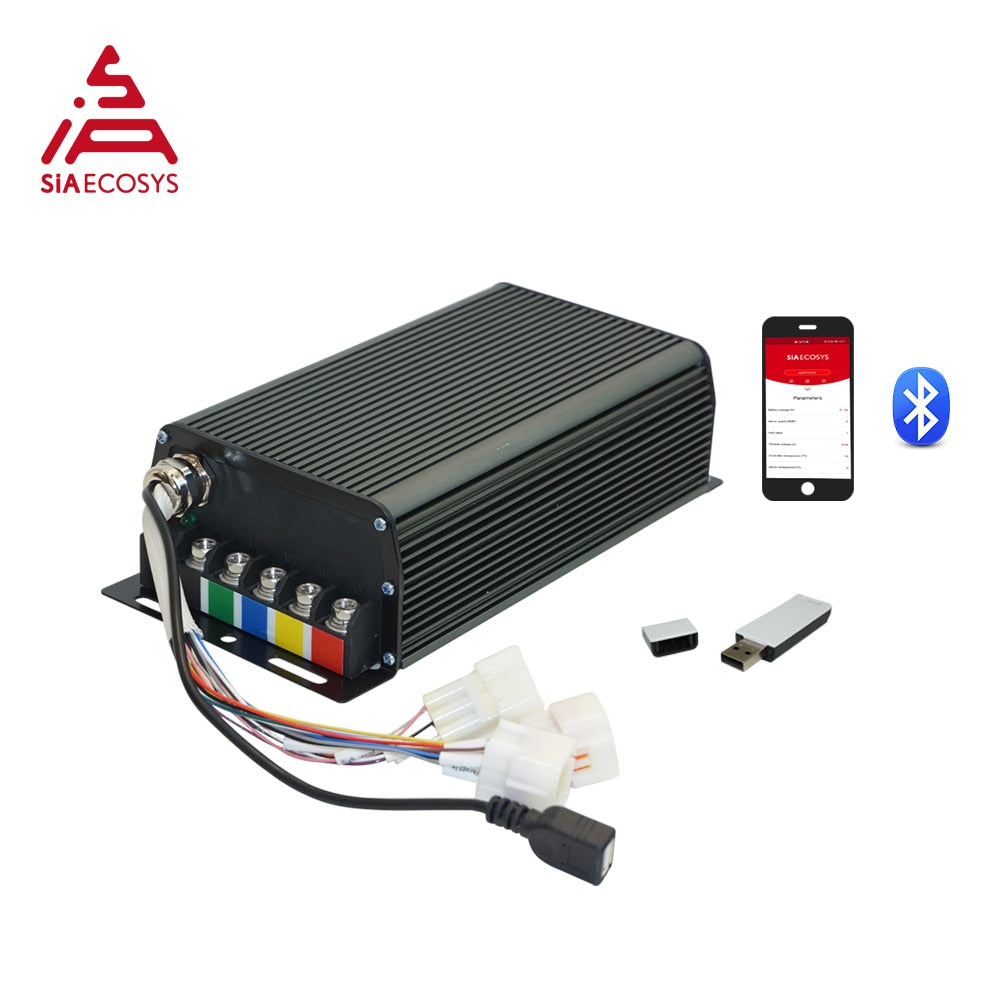

2. SIA7230 Sine Wave Motor Controller

SIA7230 is new motor controller which develop by SiAECOSYS.

Compare to SVMC72150, the size is much smaller, and more cost effective.

The connector is similar to KLS7230, aim for replacement.

Drawing

SIA7230, 243*122*63

SVMC72150 (V1), 247*146*62.5

SVMC72150(V2), 275*122*64

PIN Denfinition

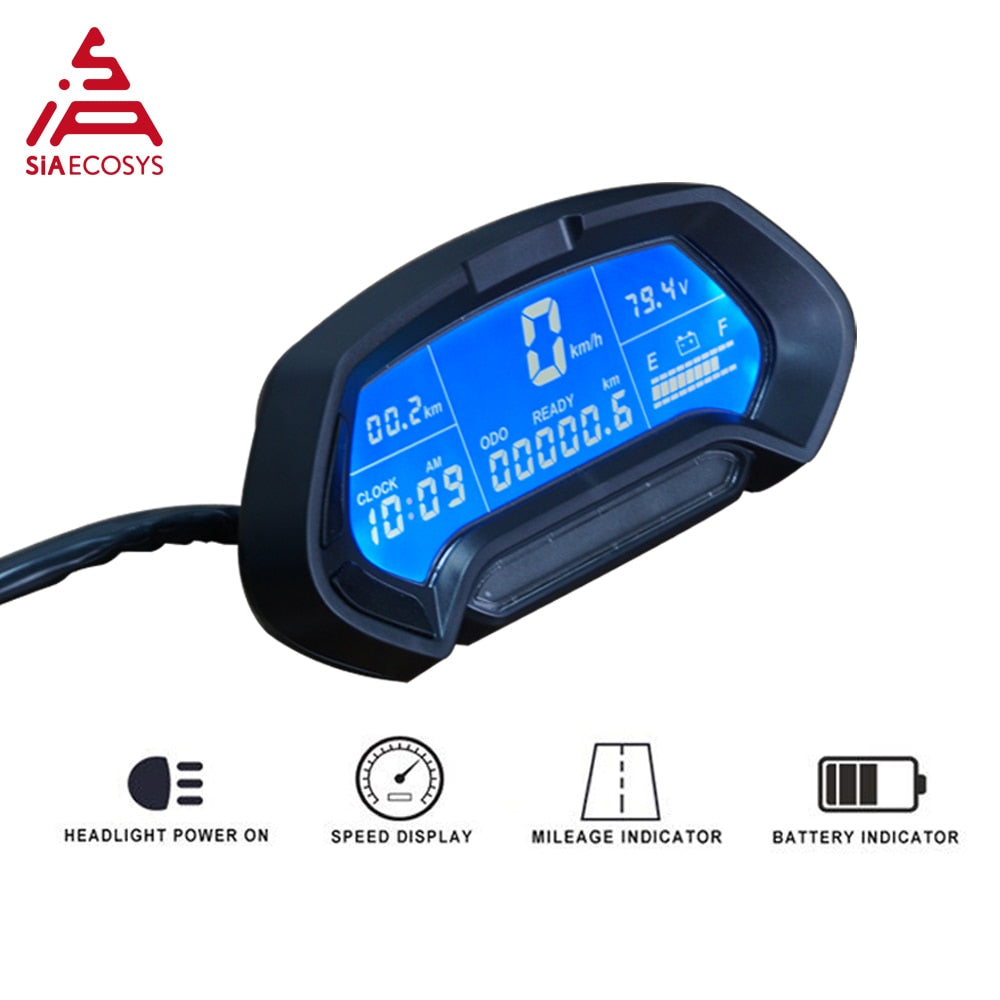

3.CT-22 Speedometer

4.Bluetooth adapter

5. Throttle

Half Twist Throttle and Thumb Throttle

6. 17*1.6inch moped rear wheel rim



Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.
