QS Motor 1500W 205 (45H) V2 in wheel Hub Motor
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
(special countries list contact seller)
It's QS electric Hub Motor for Conversion Kits, which power range from 500w to 3000w rated, drop-outs 200mm with disc brake.
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
PS.1). Above quotation base on 205 electric spoke hub motor, 48V~96V.
2). Above configuration is suggested for mass production,
for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).
Product description
Genearlly Spec:
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor, QSMOTOR
Motor Design: Double axle without moped rim (integrated), 36 spoke holes, OD 4.2mm
Matching Rim Size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel
Magnet Height: 45mm, 23 pole pairs
Stator: Aluminum Core
Rated Power: 1500W
Speed: 24KPH-60KPH, it's customized, genearlly we will design as 72V55KPH.
Work Voltage range: 48V-96V, will be 72V as default.
Max Torque approx 135.0N.m
KV: 13.85/14.4(optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 84%
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Disc brake (as default), PCD3*80mm for motorcycle
Drop-outs/Rear fork Width for installation: 200mm
Dual Halls with waterproof connectors(One for using, one for spare
12mm axle flats
10mm² Cross Section of Phase Wire(not including insulation layer)
Waterproof Grade: IP54
Color: Black (As default)
N.W/ G.W: 13.5kg/14.5kg

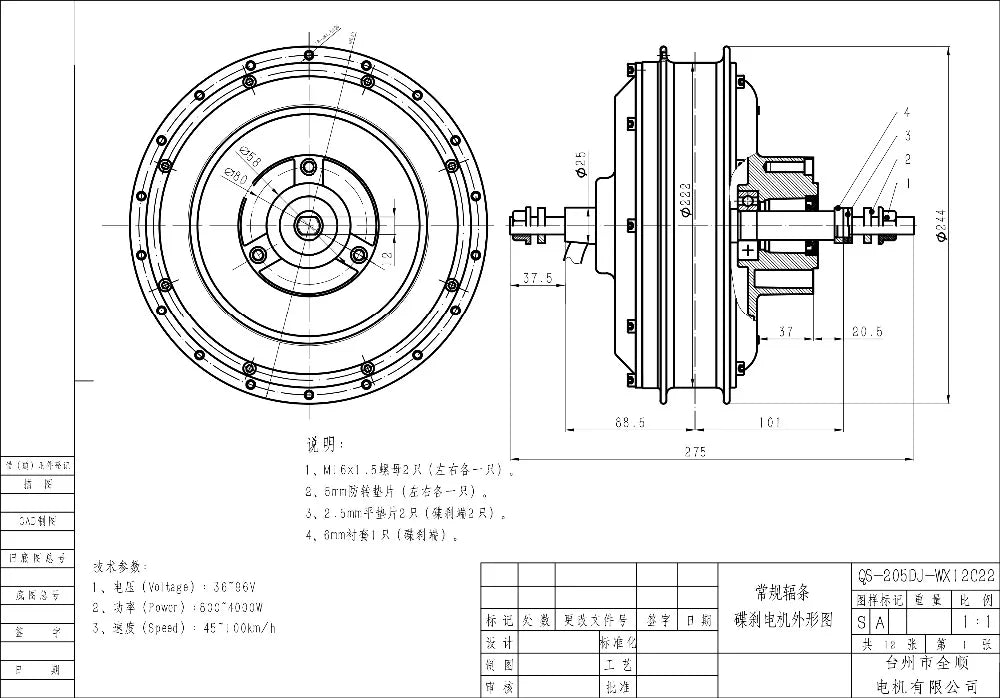

Dimension Drawing:
QS 205 200mm drop-outs spoke hub motor
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
Application for E-Bike hub motor
