QS MOTOR QS254 12X3.5inch Hub Motor 3000W V1.1 E-Scooter Hub Motor Rated 72V 840rpm Motor for Electric Scooter

$568.00
Default TitleDefault Title

QS MOTOR QS254 12X3.5inch Hub Motor 3000W V1.1 E-Scooter Hub Motor Rated


72V 840rpm Motor for Electric Scooter


NOTE:

1.Orders do not include customs duties, which are borne by the buyer.(Except for some AliExpress marked orders including tax).

2.For some special countries with strict customs for import, so pls.

confirm it first that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return

money and goods are not supported. (special countries list contact seller)


e.g.Electric Scooter

Vehicle weight: approx 90kg+100kg

Vehicle tire: 120/90-18

Battery: 72V60Ah

Gear ratio: 12:39

Speed: 72V140KPH

Climbing: 72V30kph@25°slope

Key Features

1). Simplify to make a electric-scooter.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: approx 90%

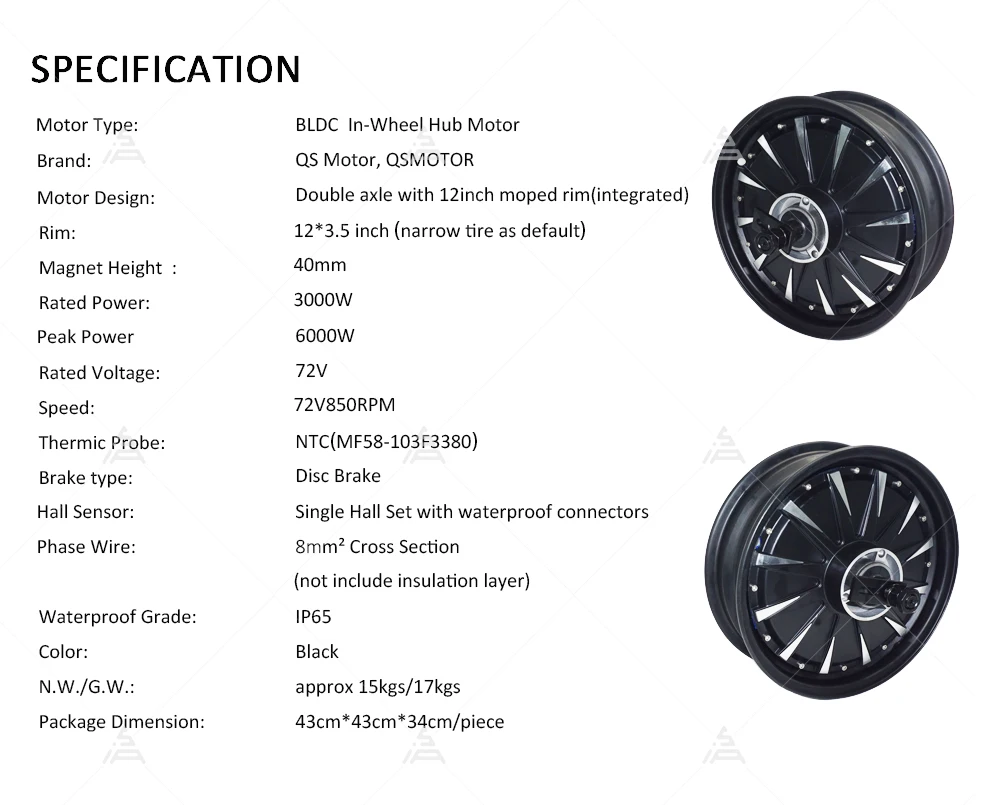

Motor Spec

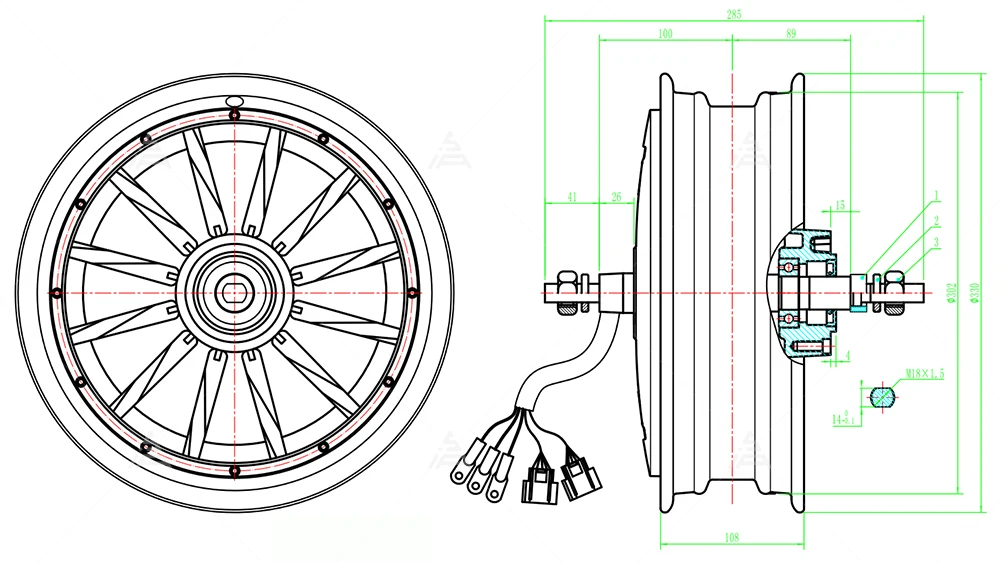

Drawing

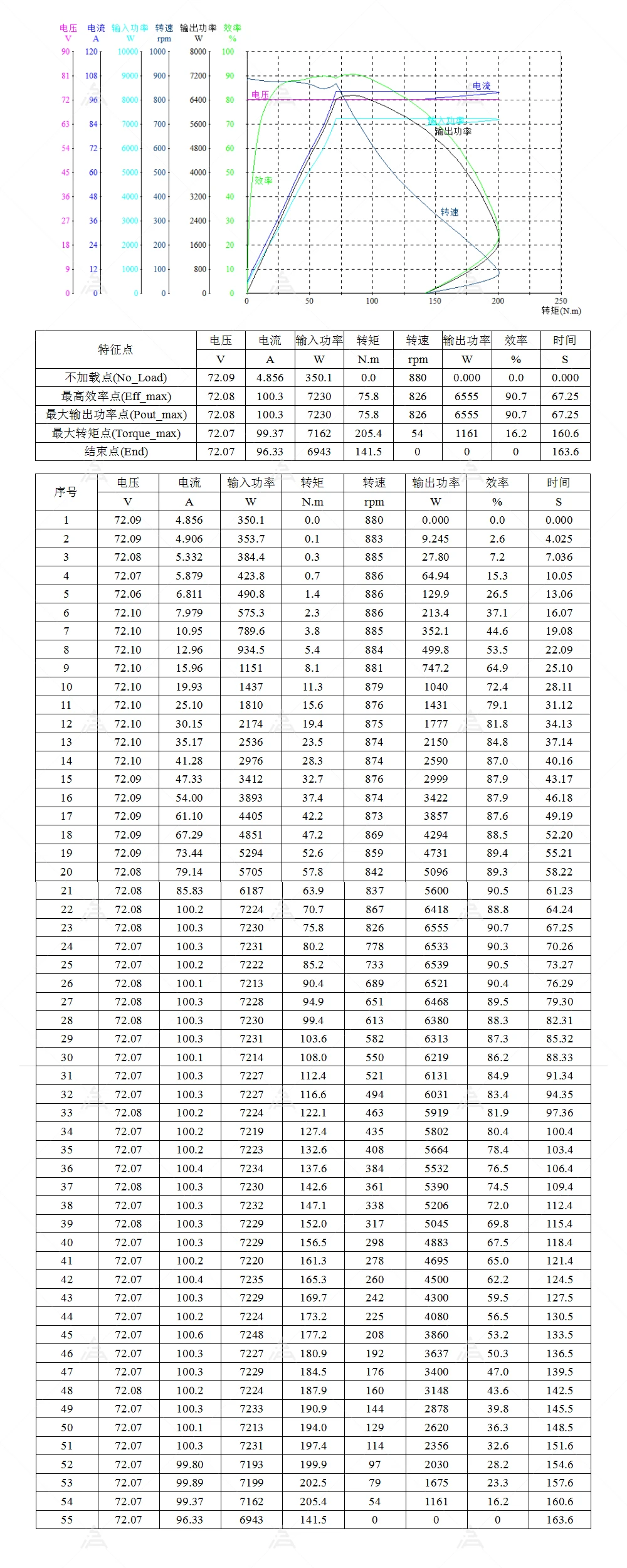

Test Report
