QS MOTOR Powerful Bicycle Spoke 5000W 205 (50H) V3I Type Hub Motor 48V/60V/72V 80KPH 96V 4T/5T 70-100KPH 24 hour ready

For 205  3000W Electric bicycle kit, it could be used for high power electric bike.

e.g. Electric high power bike with 205 3000W spoke hub motor

E-bike weight, approx 47kg+80kg

Tire diameter: 2.50-19(example)

Speed: 72V 65km/h(5T, 72V650RPM)

Climbing slope: 25°@127kg

Battery: 72V40h lithium battery

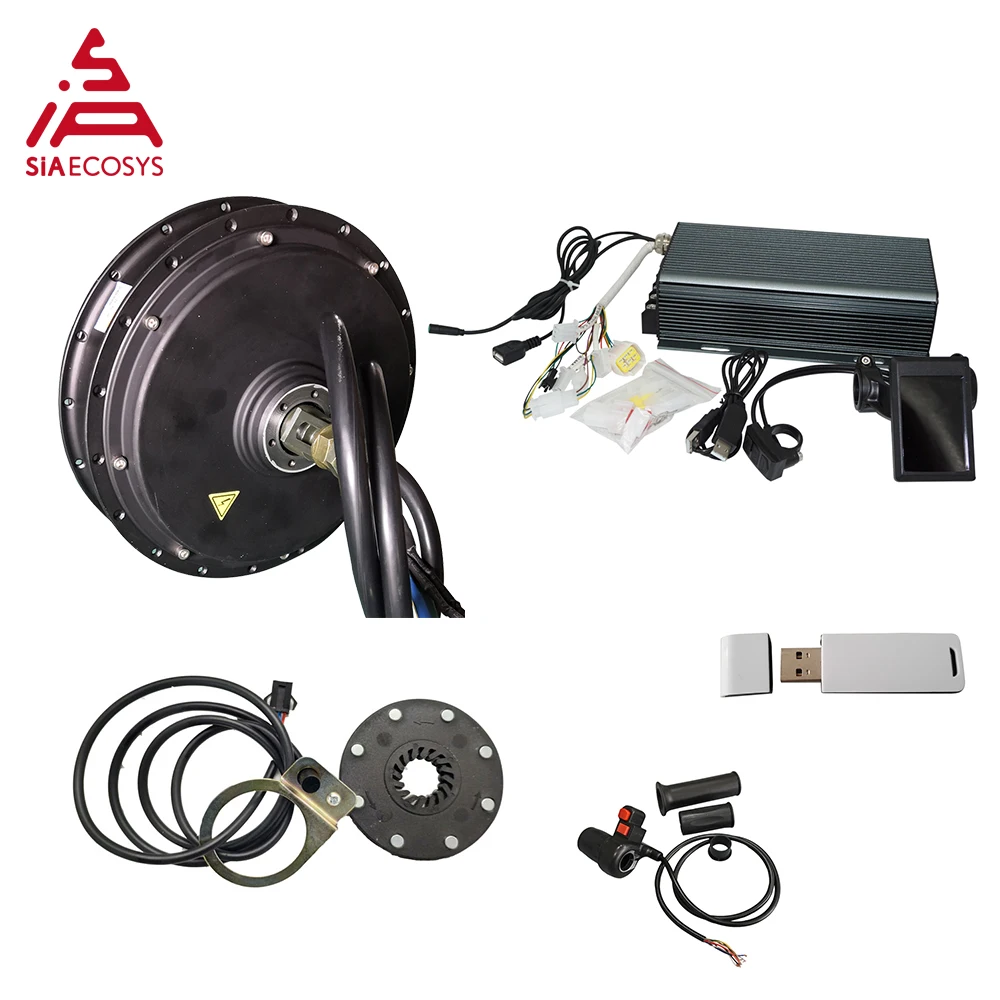

One set including below kits

1. 1pc X QSMOTOR 205 3kW 50H V3 electric spoke hub Motor(RPM optional 3T/4T/5T)

2. 1pc X Motor Spacer(Free part)

3. 1pc X Sabvoton controller (Customized for TFT speedometer) with bluetooth adapter

4. 1pc X H6 speedometer

5. 1pc X Half Twist Throttle

6.1pc X PAS sensor

NOTE: H6 speedometer is unstable at 72V, 48V or 60V is recommended. If you need to work at 72V, recommend changing to a TFT speedometer.

Key Features

1. QS Motor with high quality and service.

2. Sine Wave controller, Bluetooth wireless connection are optional, Highest Reliability!

3. Parameter Programmable

4. Higher Torque & Higher Efficiency

5. No noisy

6. Temperature sensor inside and Lower overheating

7. Regenerative braking

Product description for 3kW e-bike motor+SVMC72150 controller

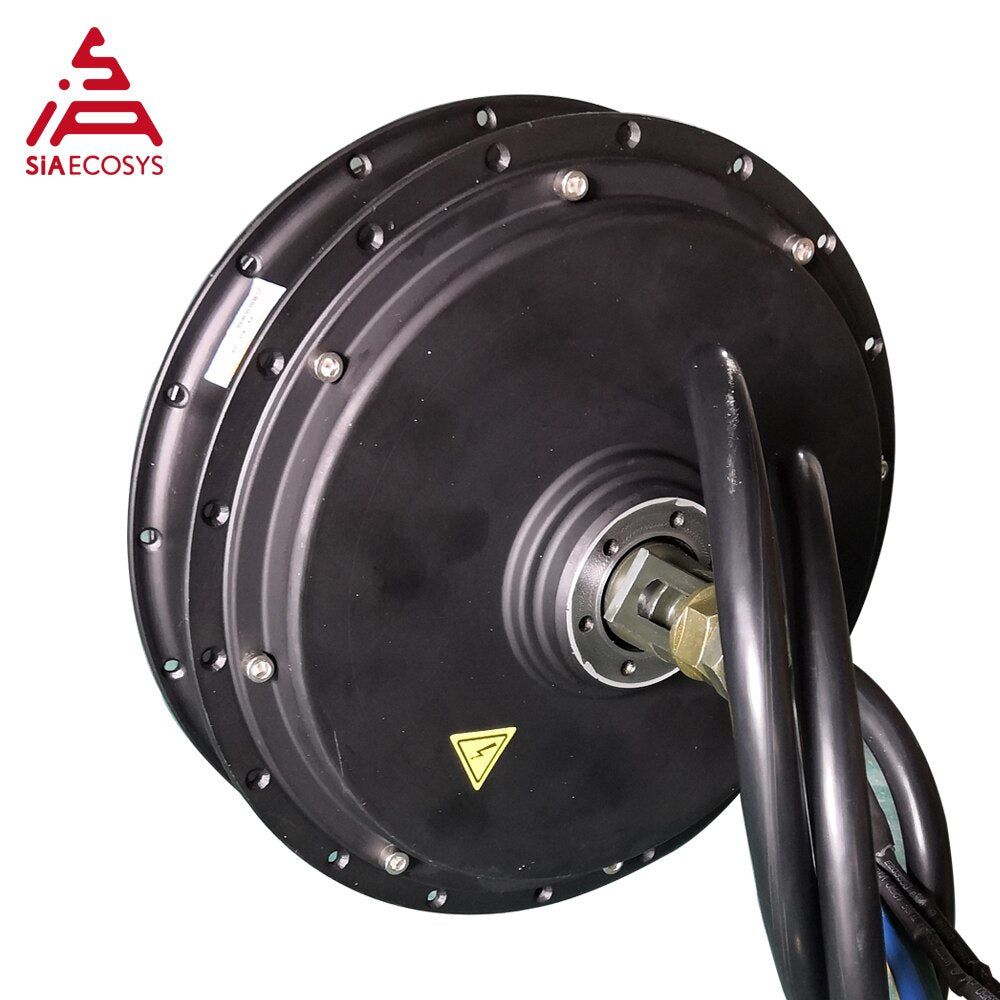

1. Item: QSMOTOR 3000W 205 50H V3 electric spoke hub Motor

1.1 Specification

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: Double axle without rim

·Matched Wheel: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

·Stator: Aluminmum Core

·Rated Power: 3000W (6000kW peak in few seconds)

·Rated Voltage: 72V

. RPM: 72V650; 72V820; 72V1170

·kV: 9.02; 11.38; 16.25

·Max Torque: approx 181.0N.m

·Max Efficiency: approx 91%

·Continuous Battery Current: 44A (72V)

·Peak Battery Current: 100-150A (72V)

·Suggest Peak Phase Current: 240A

·Thermic Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-120℃ , peak 150 ℃

·Brake type: Bike Disc brake, PCD6*44mm(as default)

·Drop-outs/Rear Fork Width for installation: 150mm

·14mm english thread length for single/3 speed freewheel

·10mm axle flats

·Dual Hall Set with waterproof connectors

·10mm² Cross Section of Phase Wire (not include insulation layer)

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP54

·Color: Black

·N.W./G.W.: approx 12.75/13.9kg

·Package Dimension: 34cm*34cm*33cm/piece

1.2 Drawing

1.3 Power train test Report:

2. Motor Spacer

To protect motor phase wire

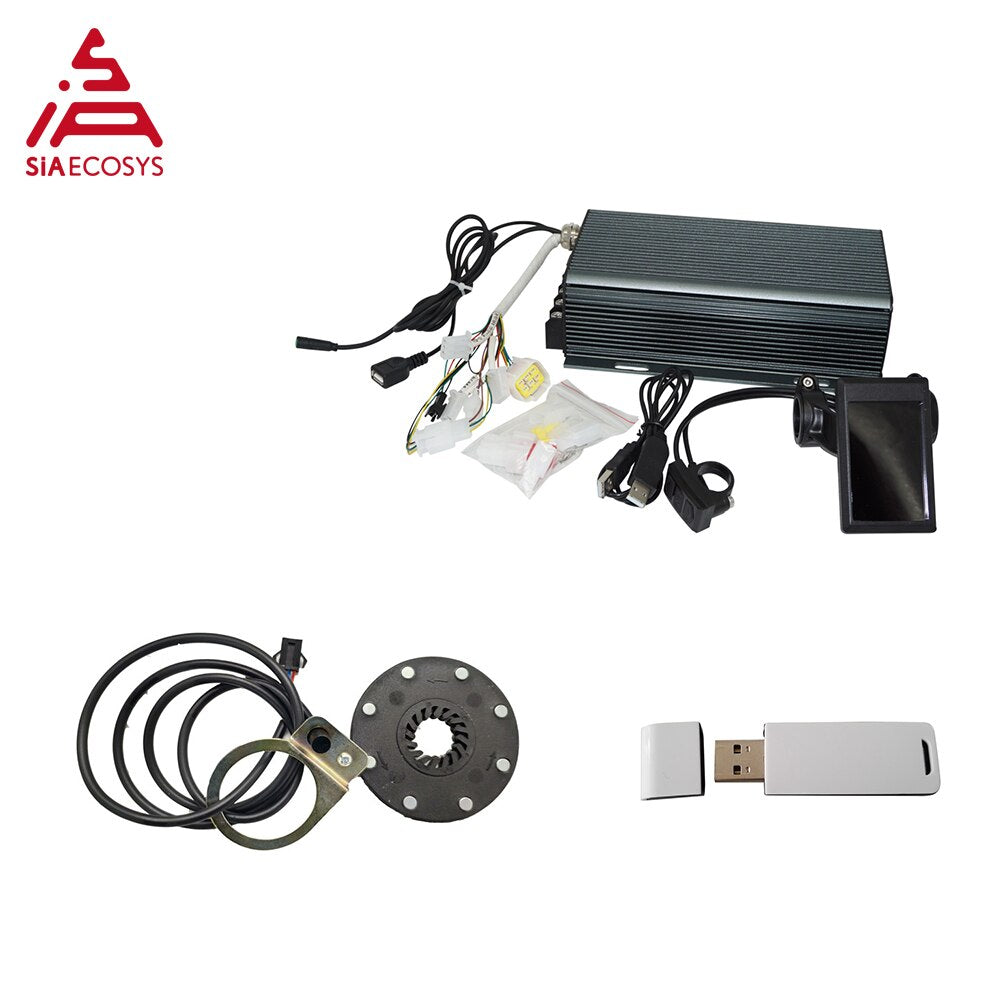

3. Sabvoton 72150 motor controller (customized for H6 speedometer)

Product Description of Controller

1). Sine wave controller, programmable, with regen function

2). DC Current Limit: 150A

3). Max. Phase Current: 350A

4). Protect Phase Current: 450A

5). Battery Voltage: 24V-72V rated, Max. 95V

6). Including one controller

7). controller size: 247mm*146mm*62mm

8). Net weight: 2kg

9). Default including bluetooth adapter.

10). Default function: Hall, Throttle, Electric brake, High Brake Level, speed switch

11). Special functions: Waterproof

PS. Please note there is no temp sensor for motor.

3.2. TFT H6 Color Speedometer Display

· 3.2 inch color TFT screen

· 48V/60V/72V power supply

· Shutdown leakage current <1Ua

· Supply controller terminal operating current 100mA

· Normal operating temperature of the instrument -20～65°C

Function of display screen

1. Battery display: 5 segments of power indication, the voltage value of each segment can be set according to customer requirements;

2. Speed mode: real-time speed RT SPEED, maximum speed MAX SPEED, average speed AVG SPEED;

3. Speed display: display range 00.0. ~ 99.9, unit Km / h km per hour, MPH miles per hour;

4. Assist gear position: 0～9 files, of which 0 gear is neutral and no boost, 1～9 corresponds to boost gear, and P is displayed in 6Km push mode;

5. Headlight display: displayed when the headlights are on;

6. motor temperature: monitor motor temperature in real time;

7. Mileage mode: cumulative mileage ODO, single mileage Trip

8. WH.KM: the controller power consumption ,wh/km

9. Motor temperature.

10. Regen Ah:Cumulative Ah while controller in regen mode .

11. Clock: Built-in battery, user set up;

12. Clock: Built-in battery, user set the year, month, day, hour, minute and second.

Pictures

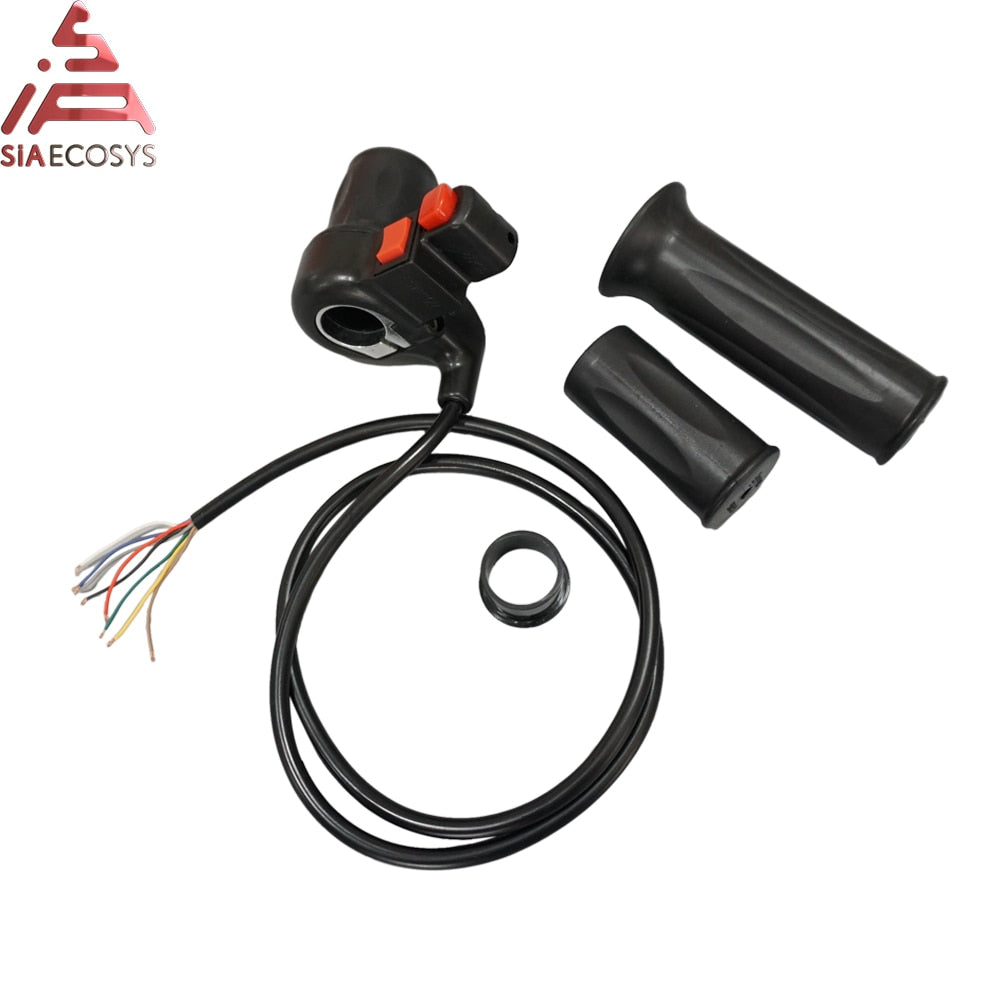

4. Half Twist Throttle with 3 speed toggle switch

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.
