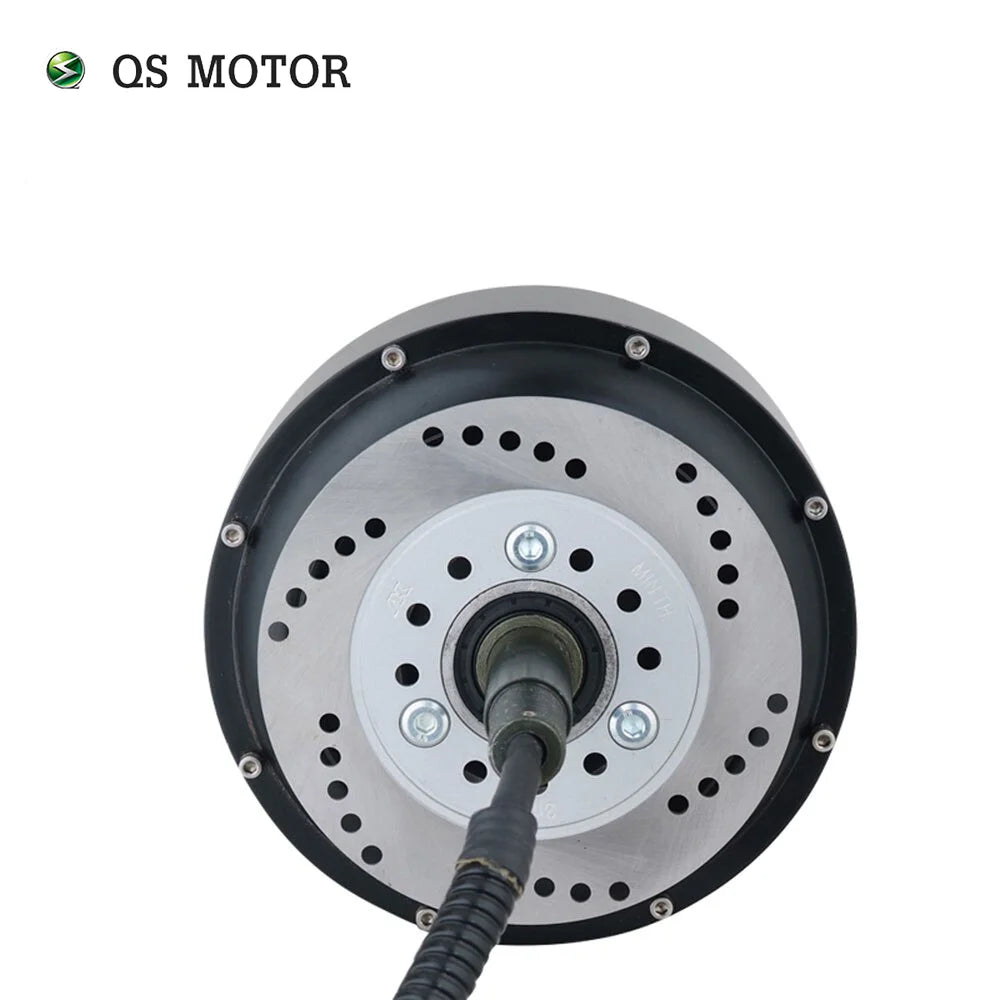

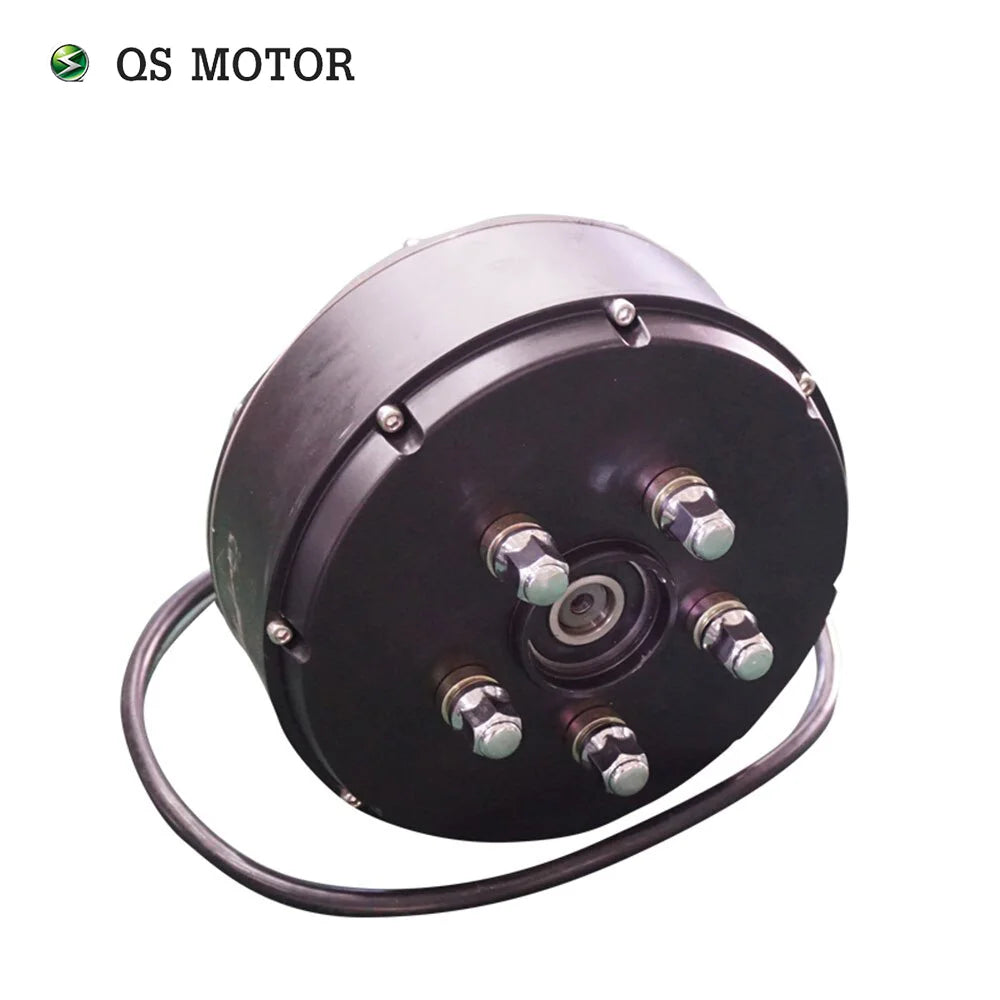

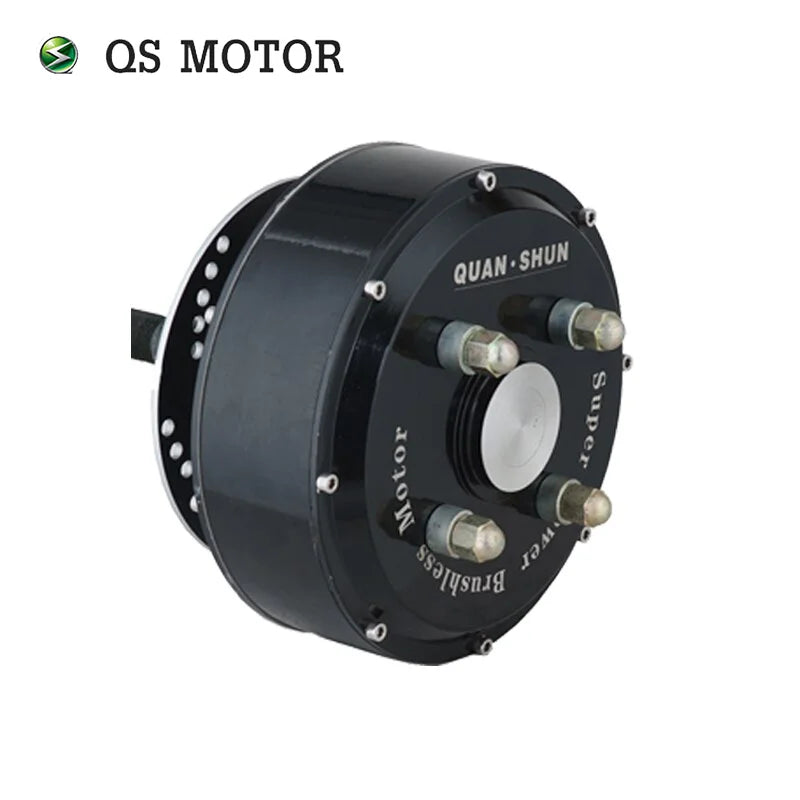

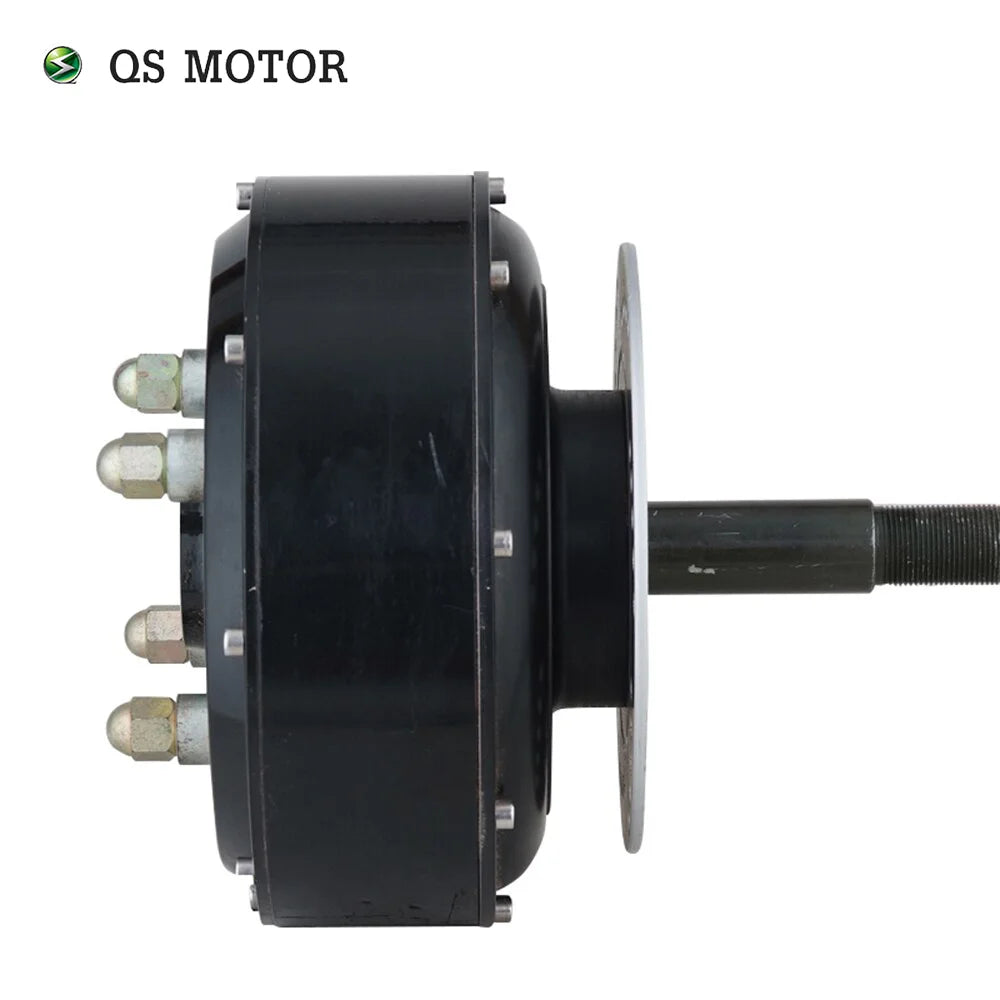

QS Motor E-car 205 3000W 205 50H V3 electric wheel hub motor

QS Motor E-car 205 3000W 205 50H V3 electric wheel hub motor

For 205 E-Car wheel hub motor, it could be used for electric scooter, tricycle, mini/golf car.

205 motor means the diameter of iron ring of rotor is 205mm, for all 205 motor, e.g. 10inch & 12inch 205 e-scooter hub motor,

205 spoke hub motor, 10inch & 12inch 205 single shaft hub motor, 205 E-car Hub motor etc., the configuration & performance is the same as 10inch 205 Hub Motor.

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

Optional Aluminium cover

Key Features

1). Simplify to make a light electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

PS.1). Above quotation base on 205 electric car hub motor, 48V~96V.

2). Above configuration is suggested for mass production.

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Product description

Genearlly Spec:

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

• Brand: QS Motor, QSMOTOR

• Motor Design: Single axle without moped rim (Integrated)

• Matching Rim Size:12inch, 13inch & above wheel rim, CB ≥60mm,PCD ≤110mm(PCD 4*100mm, CB60mm as default)

• Magnet Height: 50mm, 16 pole pairs

• Stator: Aluminum Core

• Rated Power: 3000W

• Speed: 24KPH-80KPH, it's customized, genearlly we will design as 72V65KPH.

• Work Voltage range: 48V-96V, will be 72V as default.

• Max Torque approx 196.4N.m

• KV: 6.25/7.29/8.33/9.03/11.9/16.32(optional)

• Thermic Probe: KTY83-122 (as default, optional)

• Max Efficiency approx 84%

• Working Temperature: 70-120℃ , peak 150 ℃

• Brake type:MopedDisc brake (as default), PCD: 3*80mm, CB: 58MM

• Dual Halls with waterproof connectors(One for using, one for spare

• 12mm axle flats

• 10mm² Cross Section of Phase Wire(not including insulation layer)

• Waterproof Grade: IP54

• Color: Black (As default)

• N.W/ G.W: 17.0kg/18.5kg

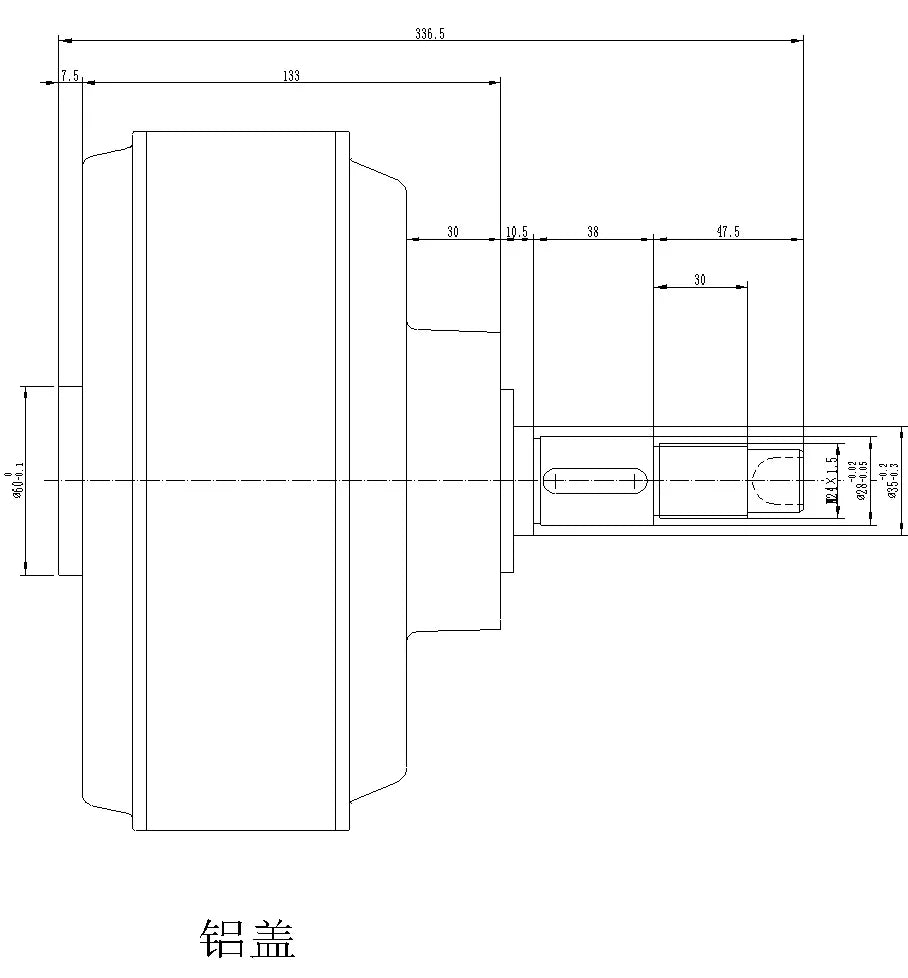

Dimension Drawing:

• QS 205 e-car hub motor(Iron cover)

QS 205 e-car hub motor (Aluminum cover)

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

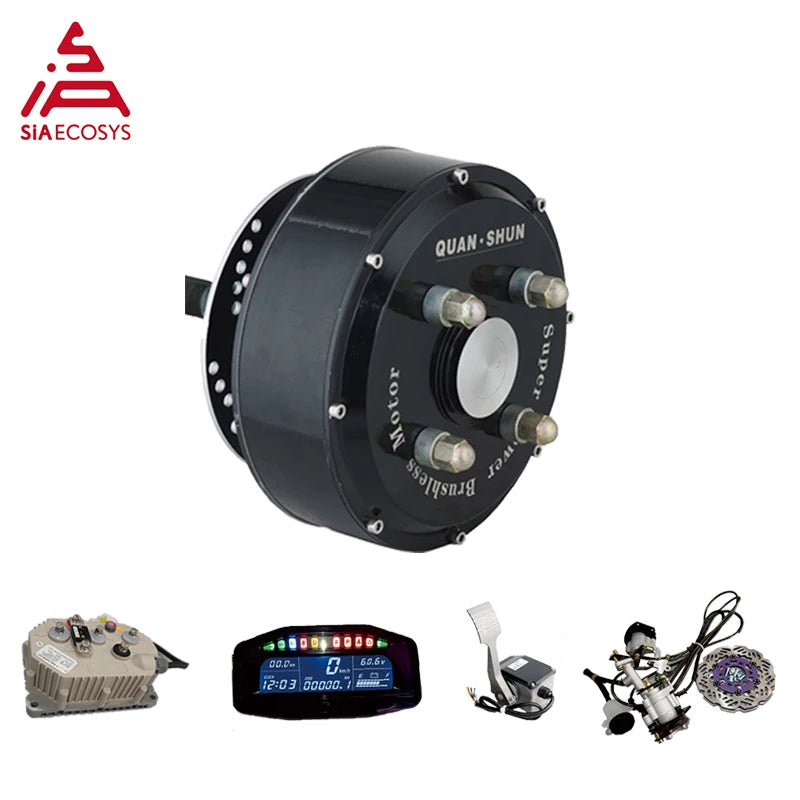

Conversion kits for 205 3kW E-Car hub motor

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

Application for E-Car hub motor
